145
Driving

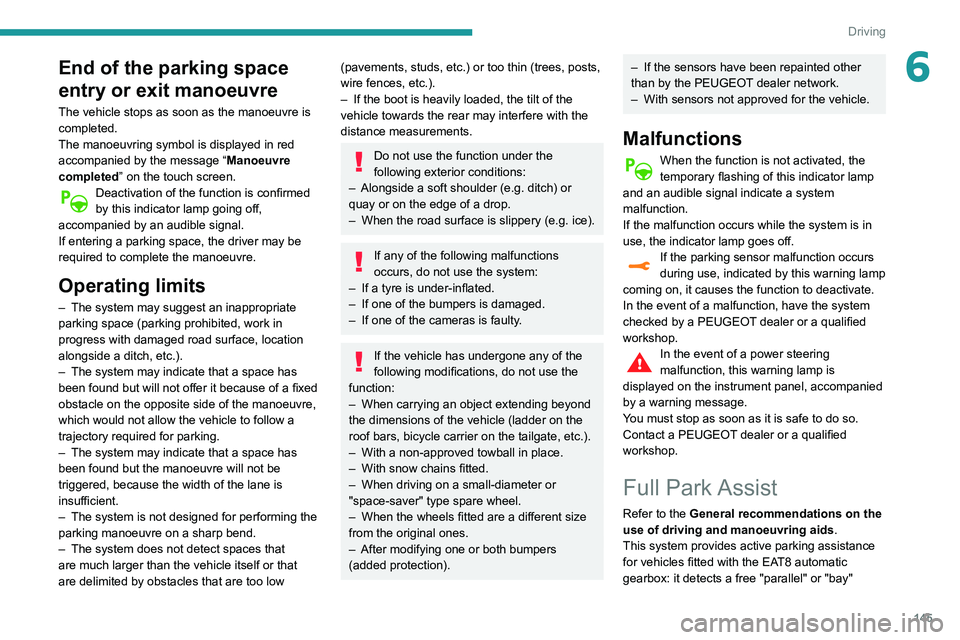

6End of the parking space
entry or exit manoeuvre
The vehicle stops as soon as the manoeuvre is
completed.
The manoeuvring symbol is displayed in red
accompanied by the message “Manoeuvre
completed” on the touch screen.
Deactivation of the function is confirmed
by this indicator lamp going off,
accompanied by an audible signal.
If entering a parking space, the driver may be
required to complete the manoeuvre.
Operating limits
– The system may suggest an inappropriate
parking space (parking prohibited, work in
progress with damaged road surface, location
alongside a ditch, etc.).
–

The system may indicate that a space has
been found but will not offer it because of a fixed
obstacle on the opposite side of the manoeuvre,
which would not allow the vehicle to follow a
trajectory required for parking.
–


The system may indicate that a space has
been found but the manoeuvre will not be
triggered, because the width of the lane is
insufficient.
–


The system is not designed for performing the
parking manoeuvre on a sharp bend.
–


The system does not detect spaces that
are much larger than the vehicle itself or that
are delimited by obstacles that are too low
(pavements, studs, etc.) or too thin (trees, posts,
wire fences, etc.).
–

If the boot is heavily loaded, the tilt of the
vehicle towards the rear may interfere with the
distance measurements.
Do not use the function under the
following exterior conditions:
–

Alongside a soft shoulder (e.g. ditch) or
quay or on the edge of a drop.
–


When the road surface is slippery (e.g. ice).
If any of the following malfunctions
occurs, do not use the system:
–

If a tyre is under-inflated.
–


If one of the bumpers is damaged.
–


If one of the cameras is faulty
.
If the vehicle has undergone any of the
following modifications, do not use the
function:
–

When carrying an object extending beyond
the dimensions of the vehicle (ladder on the
roof bars, bicycle carrier on the tailgate, etc.).
–


With a non-approved towball in place.
–


With snow chains fitted.
–


When driving on a small-diameter or
"space-saver" type spare wheel.
–


When the wheels fitted are a different size
from the original ones.
–


After modifying one or both bumpers
(added protection).
– If the sensors have been repainted other
than by the PEUGEOT dealer network.
–

With sensors not approved for the vehicle.
Malfunctions
When the function is not activated, the
temporary flashing of this indicator lamp
and an audible signal indicate a system
malfunction.
If the malfunction occurs while the system is in
use, the indicator lamp goes off.
If the parking sensor malfunction occurs
during use, indicated by this warning lamp
coming on, it causes the function to deactivate.
In the event of a malfunction, have the system
checked by a PEUGEOT dealer or a qualified
workshop.
In the event of a power steering
malfunction, this warning lamp is
displayed on the instrument panel, accompanied
by a warning message.
You must stop as soon as it is safe to do so.
Contact a PEUGEOT dealer or a qualified
workshop.
Full Park Assist
Refer to the General recommendations on the
use of driving and manoeuvring aids .
This system provides active parking assistance
for vehicles fitted with the EAT8 automatic
gearbox: it detects a free "parallel" or "bay"

148
Driving

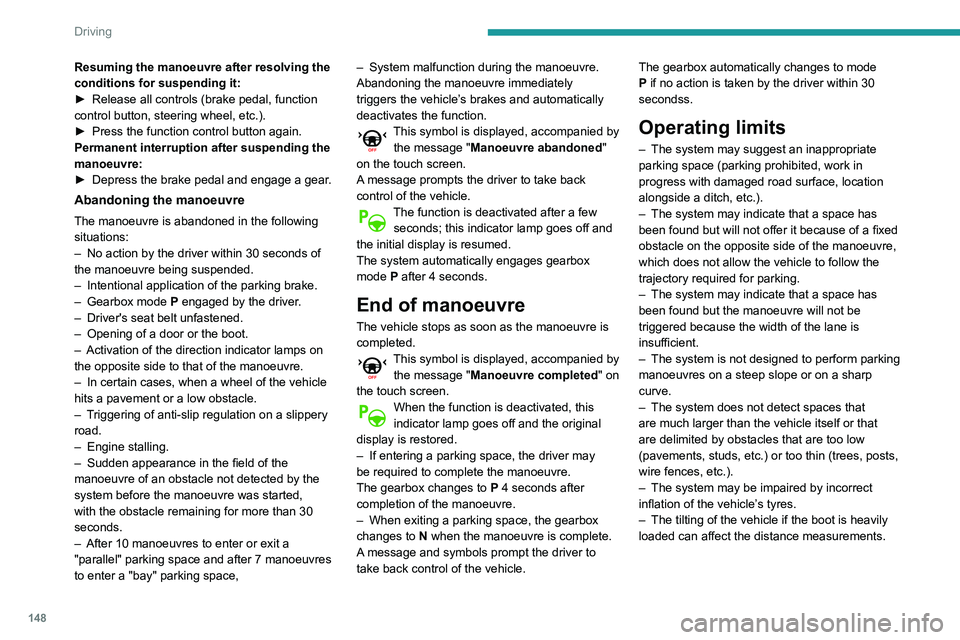

Resuming the manoeuvre after resolving the
conditions for suspending it:
►
Release all controls (brake pedal, function
control button, steering wheel, etc.).
►


Press the function control button again.
Permanent interruption after suspending the
manoeuvre:
►


Depress the brake pedal and engage a gear
.
Abandoning the manoeuvre
The manoeuvre is abandoned in the following
situations:
–
No action by the driver within 30 seconds of
the manoeuvre being suspended.
–


Intentional application of the parking brake.
–


Gearbox mode P

engaged by the driver.
–

Driver's seat belt unfastened.
–


Opening of a door or the boot.
–


Activation of the direction indicator lamps on
the opposite side to that of the manoeuvre.
–


In certain cases, when a wheel of the vehicle
hits a pavement or a low obstacle.
–


T
riggering of anti-slip regulation on a slippery
road.
–

Engine stalling.
–


Sudden appearance in the field of the
manoeuvre of an obstacle not detected by the
system before the manoeuvre was started,
with the obstacle remaining for more than 30
seconds.
–


After 10 manoeuvres to enter or exit a
"parallel" parking space and after 7 manoeuvres
to enter a "bay" parking space, –


System malfunction during the manoeuvre.
Abandoning the manoeuvre immediately
triggers the vehicle’
s brakes and automatically
deactivates the function.
This symbol is displayed, accompanied by the message "Manoeuvre abandoned"
on the touch screen.
A message prompts the driver to take back
control of the vehicle.
The function is deactivated after a few seconds; this indicator lamp goes off and
the initial display is resumed.
The system automatically engages gearbox
mode P after 4 seconds.
End of manoeuvre
The vehicle stops as soon as the manoeuvre is
completed.
This symbol is displayed, accompanied by the message "Manoeuvre completed" on
the touch screen.
When the function is deactivated, this
indicator lamp goes off and the original
display is restored.
–

If entering a parking space, the driver may
be required to complete the manoeuvre.
The gearbox changes to


P
4 seconds after
completion of the manoeuvre.
–

When exiting a parking space, the gearbox
changes to

N when the manoeuvre is complete.
A message and symbols prompt the driver to
take back control of the vehicle. The gearbox automatically changes to mode
P if no action is taken by the driver within 30
secondss.
Operating limits
– The system may suggest an inappropriate
parking space (parking prohibited, work in
progress with damaged road surface, location
alongside a ditch, etc.).
–

The system may indicate that a space has
been found but will not offer it because of a fixed
obstacle on the opposite side of the manoeuvre,
which does not allow the vehicle to follow the
trajectory required for parking.
–


The system may indicate that a space has
been found but the manoeuvre will not be
triggered because the width of the lane is
insufficient.
–


The system is not designed to perform parking
manoeuvres on a steep slope or on a sharp
curve.
–


The system does not detect spaces that
are much larger than the vehicle itself or that
are delimited by obstacles that are too low
(pavements, studs, etc.) or too thin (trees, posts,
wire fences, etc.).
–


The system may be impaired by incorrect
inflation of the vehicle’

s tyres.
–

The tilting of the vehicle if the boot is heavily
loaded can affect the distance measurements.
Do not use the function under the
following exterior conditions:
– Alongside a soft shoulder (ditch) or quay or
on the edge of a drop.
– When the road surface is slippery (ice).
Do not use the function in the presence
of one of the following malfunctions:
– If a tyre is under-inflated.
– If one of the bumpers is damaged.
– If one of the cameras is faulty.
– If the brake lamps are not working.
Do not use the function if the vehicle has
been subject to one of the following
modifications:
– When carrying an object extending beyond
the dimensions of the vehicle (ladder on the
roof bars, bicycle carrier on the tailgate, etc.).
– With a non-approved towball in place.
– With snow chains fitted.
– When driving on a small-diameter or
"space-saver" type spare wheel.
– When the wheels fitted are a different size
from the original ones.
– After modifying one or both bumpers
(added protection).
– If the sensors have been repainted outside
the PEUGEOT dealer network.
– With sensors not approved for the vehicle.

149
Driving

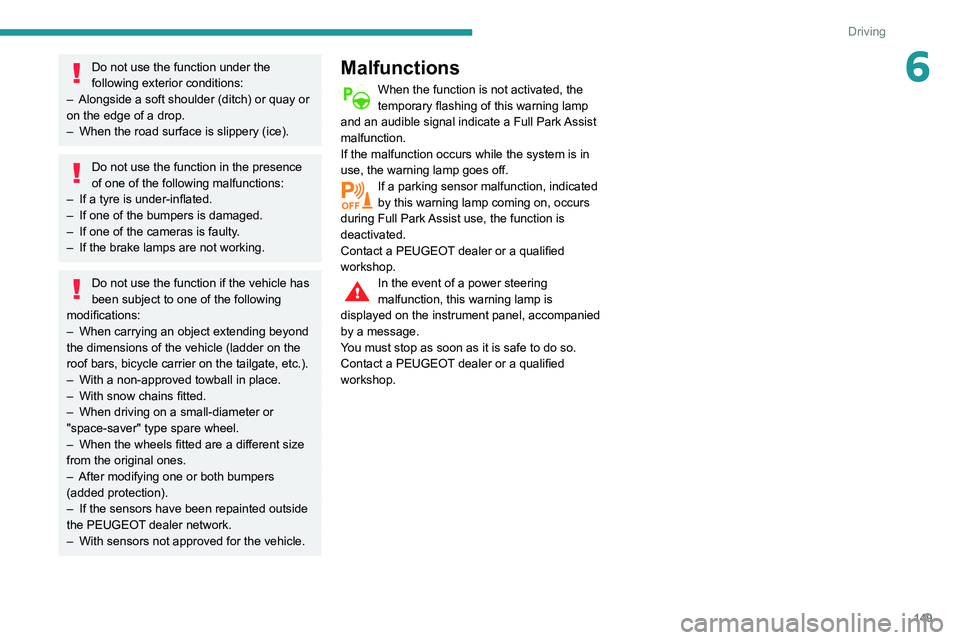

6Do not use the function under the
following exterior conditions:
–

Alongside a soft shoulder (ditch) or quay or
on the edge of a drop.
–


When the road surface is slippery (ice).
Do not use the function in the presence
of one of the following malfunctions:
–

If a tyre is under-inflated.
–


If one of the bumpers is damaged.
–


If one of the cameras is faulty
.
–

If the brake lamps are not working.
Do not use the function if the vehicle has
been subject to one of the following
modifications:
–

When carrying an object extending beyond
the dimensions of the vehicle (ladder on the
roof bars, bicycle carrier on the tailgate, etc.).
–


With a non-approved towball in place.
–


With snow chains fitted.
–


When driving on a small-diameter or
"space-saver" type spare wheel.
–


When the wheels fitted are a different size
from the original ones.
–


After modifying one or both bumpers
(added protection).
–


If the sensors have been repainted outside
the PEUGEOT

dealer network.
–

With sensors not approved for the vehicle.
Malfunctions
When the function is not activated, the
temporary flashing of this warning lamp
and an audible signal indicate a Full Park Assist
malfunction.
If the malfunction occurs while the system is in
use, the warning lamp goes off.
If a parking sensor malfunction, indicated
by this warning lamp coming on, occurs
during Full Park Assist use, the function is
deactivated.
Contact a PEUGEOT dealer or a qualified
workshop.
In the event of a power steering
malfunction, this warning lamp is
displayed on the instrument panel, accompanied
by a message.
You must stop as soon as it is safe to do so.
Contact a PEUGEOT dealer or a qualified
workshop.

202
Technical data
Dimensions (mm)
These dimensions have been measured on an unladen vehicle.
Hatchback

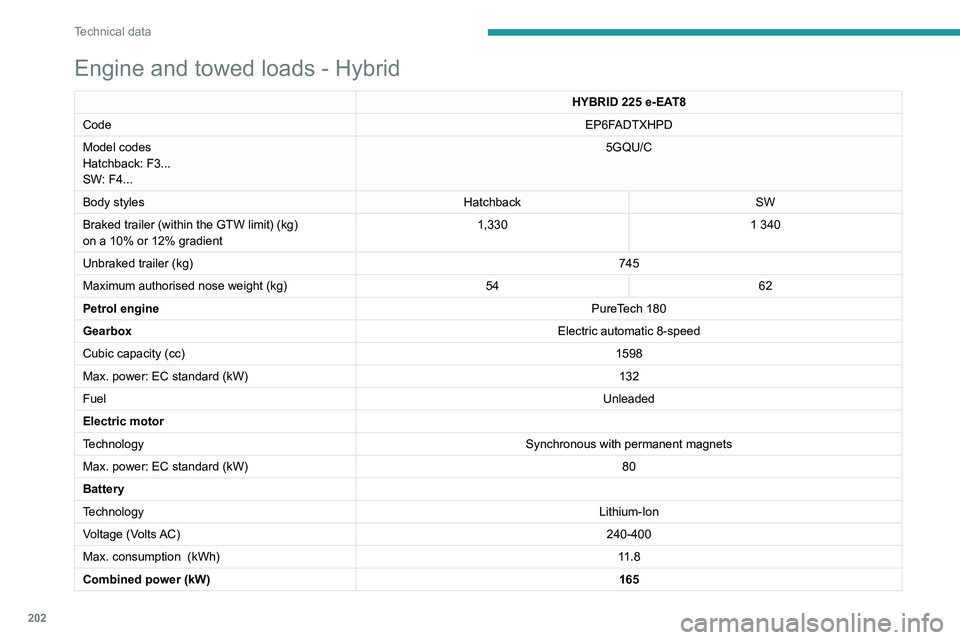

Engine and towed loads - Hybrid
HYBRID 225 e-EAT8
Code EP6F
ADTXHPD
Model codes
Hatchback: F3...
SW: F4... 5GQU/C
Body styles HatchbackSW
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,330
1 340
Unbraked trailer (kg) 745
Maximum authorised nose weight (kg) 5462
Petrol engine PureTech
180
Gearbox Electric automatic 8-speed
Cubic capacity (cc) 1598
Max. power: EC standard (kW) 132
Fuel Unleaded
Electric motor
Technology Synchronous with permanent magnets
Max. power: EC standard (kW) 80
Battery
Technology Lithium-Ion
Voltage (Volts AC) 240-400
Max. consumption

(kWh) 11.8
Combined power (kW) 165

203
Technical data

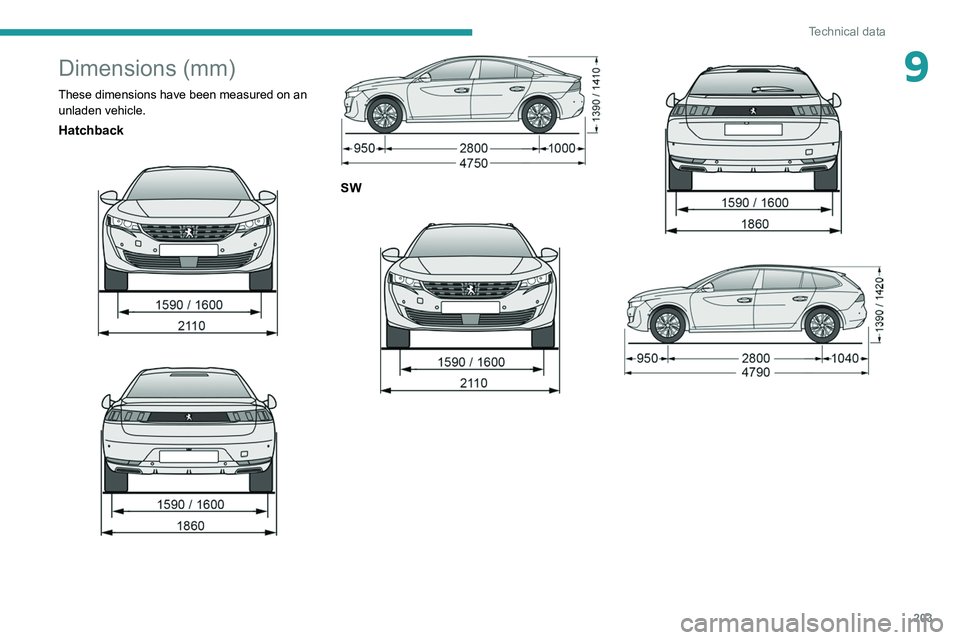

9Dimensions (mm)
These dimensions have been measured on an unladen vehicle.
Hatchback



SW

204
Technical data

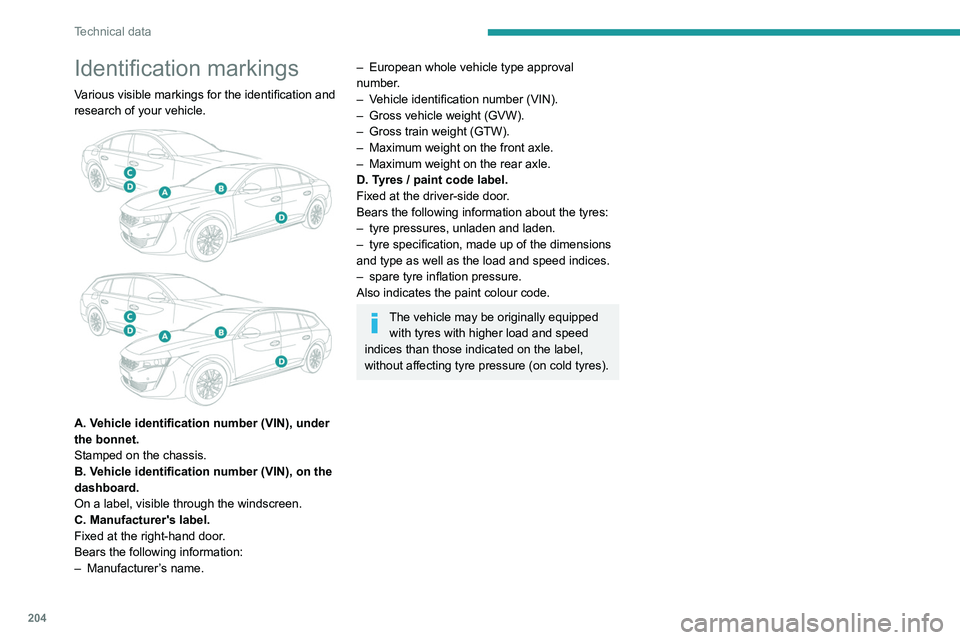

Identification markings
Various visible markings for the identification and
research of your vehicle.


A. Vehicle identification number (VIN), under
the bonnet.
Stamped on the chassis.
B. Vehicle identification number (VIN), on the
dashboard.
On a label, visible through the windscreen.
C. Manufacturer's label.
Fixed at the right-hand door.
Bears the following information:
–
Manufacturer
’s name.
– European whole vehicle type approval
number .
–

V
ehicle identification number (VIN).
–

Gross vehicle weight (GVW).
–


Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres / paint code label.
Fixed at the driver-side door.
Bears the following information about the tyres:
–

tyre pressures, unladen and laden.
–


tyre specification, made up of the dimensions
and type as well as the load and speed indices.
–


spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).

245
Alphabetical index
Changing a fuse 183–184, 187–188
Changing a wheel
173, 177
Changing a wiper blade

72–73
Changing the remote control battery

30
Charge level indicator

20
Charger, induction

57
Charger, wireless

57
Charging cable

154–155, 157
Charging connector

153, 156–157
CHECK

20
Checking the engine oil level

17
Checking the levels

164–165
Checking tyre pressures
(using the kit)

174, 176
Checks

164–165, 166–168
Checks, routine

166–167
Child lock

94
Children

81, 88–91, 93
Children (safety)

94
Child seats

81, 85–88
Child seats, conventional

87–88
Child seats, i-Size

93
Child seats, ISOFIX

89–91
Cigar lighter

55
Cleaning (advice)

153, 170–171
Closing the boot

27–28, 34
Closing the doors

27–28, 33
Collision Risk Alert

128–129
Comfort mode

108
Configuration, vehicle

22, 24
Connected applications

231–232
Connection, Bluetooth

213–214, 232, 236–237Connection, MirrorLink 212–213, 231
Connection, Wi-Fi network
232–233
Connectivity

230
Consumption figures

23
Container, AdBlue®

169
Control, emergency boot release

34
Control, emergency door

29
Control, heated seats

44
Controls, steering mounted

102–105
Control stalk, lighting

65–66
Control stalk, wipers

71–74
Control unit

154–155, 157
Courtesy lamp, front

59
Courtesy lamps

59–60
Cover, load space

61
Cruise control

115–116, 118–121
Cruise control, adaptive

121
Cruise control by speed limit
recognition

115–116
Cruise control, dynamic with Stop
function

115–116
Cup holder

55
D
DAB (Digital Audio Broadcasting) -
Digital radio
210, 234
Date (setting)

216, 240
Daytime running lamps

66, 181
Deactivating the passenger airbag

82, 86–87
Deadlocking

26, 28
Deferred charging 24, 153, 156, 158
Defrosting
52
Defrosting, front

52
Demisting

52
Demisting, front

52
Demisting, rear

52
Demisting, rear screen

52
Dials and gauges

9
Digital instrument panel

9–10
Dimensions

203
Dipstick

17, 164
Direction indicators

66, 181–183
Domestic charging

155, 158
Door pockets

55
Doors

33
Drive Assist Plus

121
Driver’s attention warning

131
Driving

41, 96
Driving aids camera (warnings)

11 2
Driving aids (recommendations)

11 2
Driving economically

7
Driving modes

107
Driving positions (storing)

44
Dynamic stability control (DSC)

78–79
E
EBFD 78
Eco-driving (advice)
7
ECO mode

107
Economy mode

162
