PEUGEOT 508 HYBRID DAG 2012 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 508 HYBRID DAG, Model: PEUGEOT 508 HYBRID DAG 2012Pages: 340, PDF Size: 20.59 MB
Page 151 of 340

5
149
Visibility

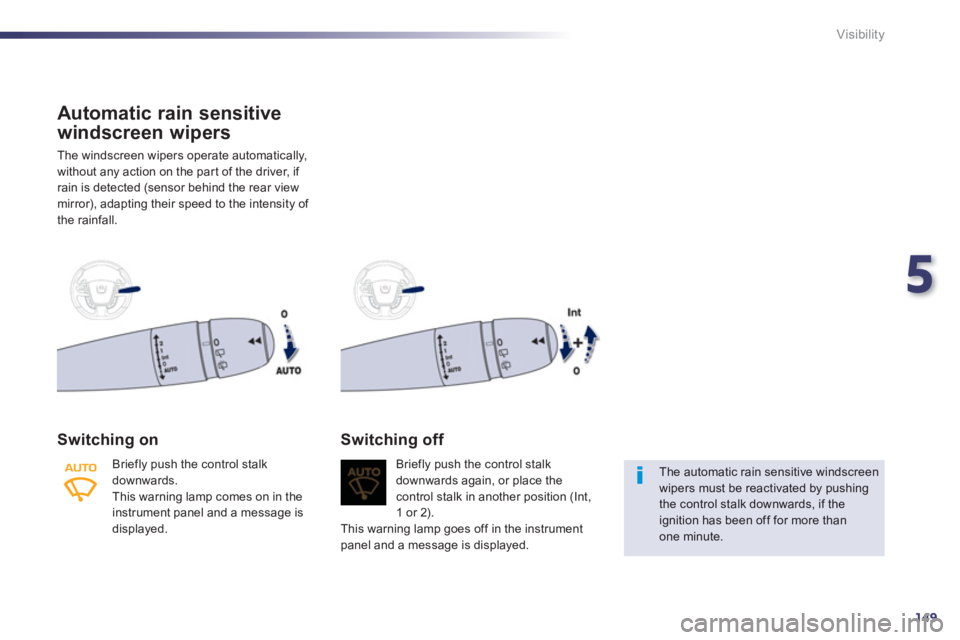

Automatic rain sensitive
windscreen wi
pers
The windscreen wipers operate automatically,
without an
y action on the par t of the driver, if
rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of
the rainfall.
Switching on
Briefly push the control stalkdownwards.
This warning lamp comes on in the
instrument panel and a message is
displayed.Brie
fly push the control stalk
downwards again, or place thecontrol stalk in another position (Int,
1 or 2).
This warning lamp goes off in the instrument
panel and a message is displayed.
Switching off
The automatic rain sensitive windscreenwipers must be reactivated by pushing the control stalk downwards, if theignition has been off for more than one minute.
Page 152 of 340

150
Visibility
Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic rain sensitivewipers when using an automatic car wash.
In winter, it is advisable to wait until thewindscreen is completely clear of ice before activating the automatic rain sensitive wipers.

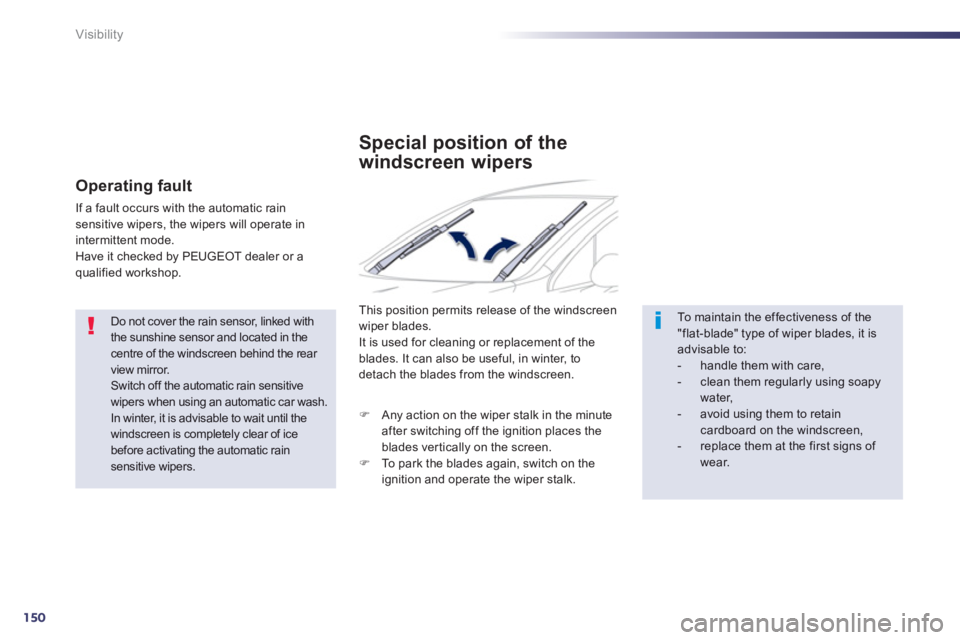

Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in intermittent mode.
Have it checked by PEUGEOT dealer or a qualified workshop.
Special position of the
w
indscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the blades. It can also be useful, in winter, todetach the blades from the windscreen.
To maintain the effectiveness of the "flat-blade" type of wiper blades, it is advisable to:
- handle them with care,
- clean them regularly using soapywater,
- avoid using them to retain cardboard on the windscreen,
- replace them at the first signs of wear.
)
Any action on the wiper stalk in the minute
after switching off the ignition places the blades vertically on the screen. ) To park the blades again, switch on theignition and operate the wiper stalk.
Page 153 of 340

5
151
Visibility

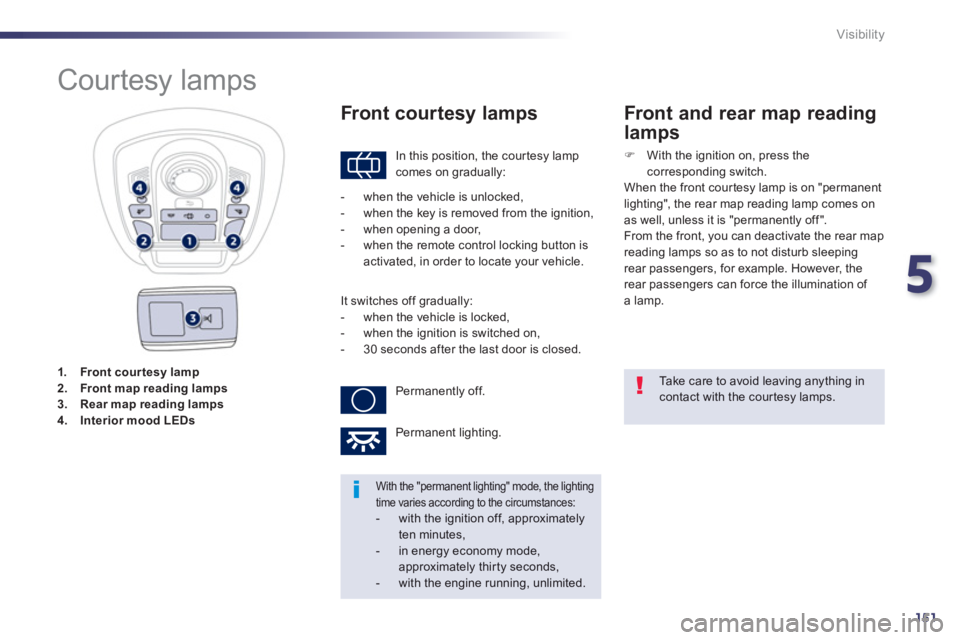

1.Front cour tesy lamp2.Front map reading lamp s3.Rear map reading lamps4.Interior mood LEDs
Courtesy lamps
In this position, the cour tesy lamp comes on gradually:
Front courtesy lamps
Take care to avoid leaving anything in contact with the cour tesy lamps.
With the "permanent lighting" mode, the lighting time varies according to the circumstances: - with the ignition off, approximatelyten minutes,- in energy economy mode, approximately thirty seconds,- with the engine running, unlimited.
- when the vehicle is unlocked,
- when the ke
y is removed from the ignition,
- when opening a door,
- when the remote control locking button is
activated, in order to locate your vehicle.
It switches off
gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanentl
y off.
Permanent lighting.
Front and rear map reading
lamps
)
With the ignition on, press the
corresponding switch.
When the front courtesy lamp is on "permanent
lighting", the rear map reading lamp comes on
as well, unless it is "permanentl
y off".
From the front, you can deactivate the rear map
reading lamps so as to not disturb sleeping
rear passengers, for example. However, the
rear passengers can force the illumination of
a lamp.
Page 154 of 340

152
Visibility

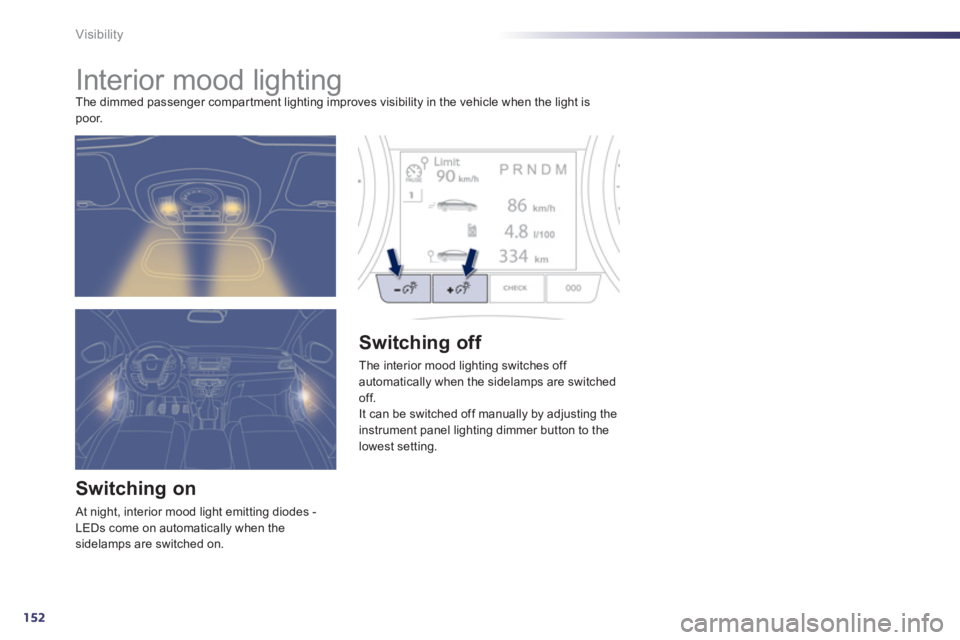

Interior mood lighting The dimmed passenger compar tment lighting improves visibility in the vehicle when the light is poor.
Switching on
At night, interior mood light emitting diodes -LEDs come on automatically when the sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are switchedoff.
It can be switched off manually by adjusting the
instrument panel lighting dimmer button to the lowest setting.
Page 155 of 340

6
153
Child safety

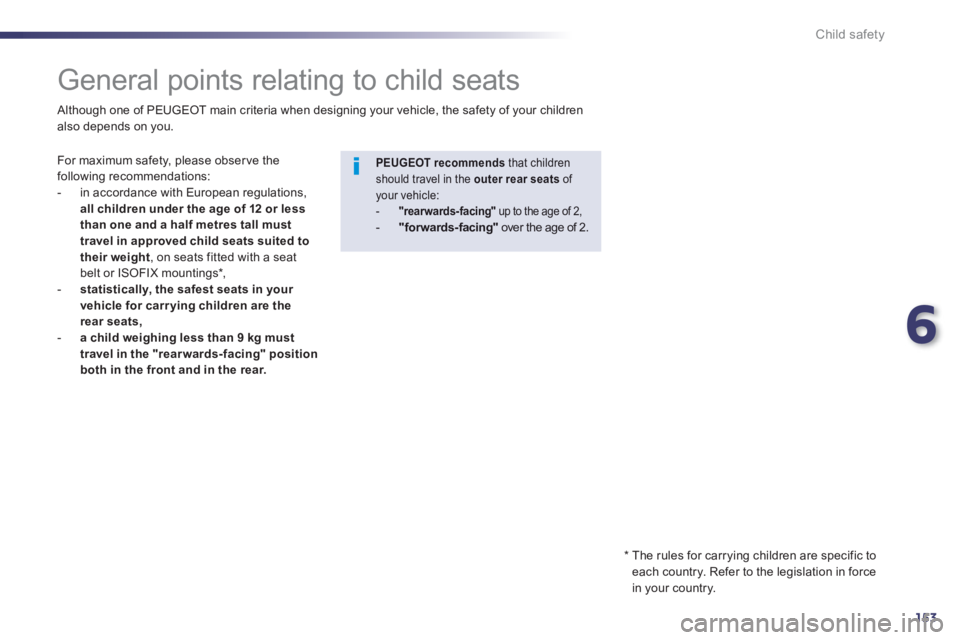

General points relating to child seats
For maximum safety, please obser ve the following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-statistically, the safest seats in your
vehicle for carrying children are the rear seats, -
a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
PEUGEOT recommendsthat childrenshould travel in the outerrear seatsof your vehicle: - "rearwards-facing"
up to the age of 2,-
"forwards-facing"
over the age of 2.
Although one of PEUGEOT main criteria when designing your vehicle, the safety of your children
also depends on you.
*
The rules for carrying children are specific to each country. Refer to the legislation in force
in your country.
Page 156 of 340

154
Child safety

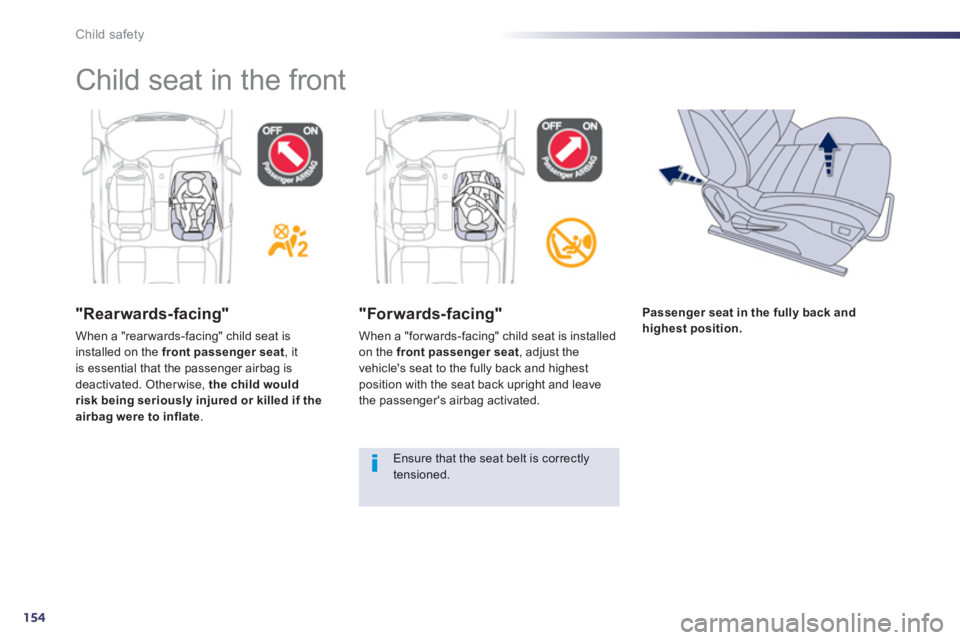

"Rearwards-facing"
When a "rear wards-facing" child seat is installed on the front passenger seat, itis essential that the passenger airbag is
deactivated. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
"Forwards-facing"
When a "for wards-facing" child seat is installed on the front passenger seat, adjust the
vehicle's seat to the fully back and highest
position with the seat back upright and leave
the passenger's airbag activated.
Child seat in the front
Ensure that the seat belt is correctlytensioned.
Passenger seat in the fully back and
highest position.
Page 157 of 340

6
155
Child safety

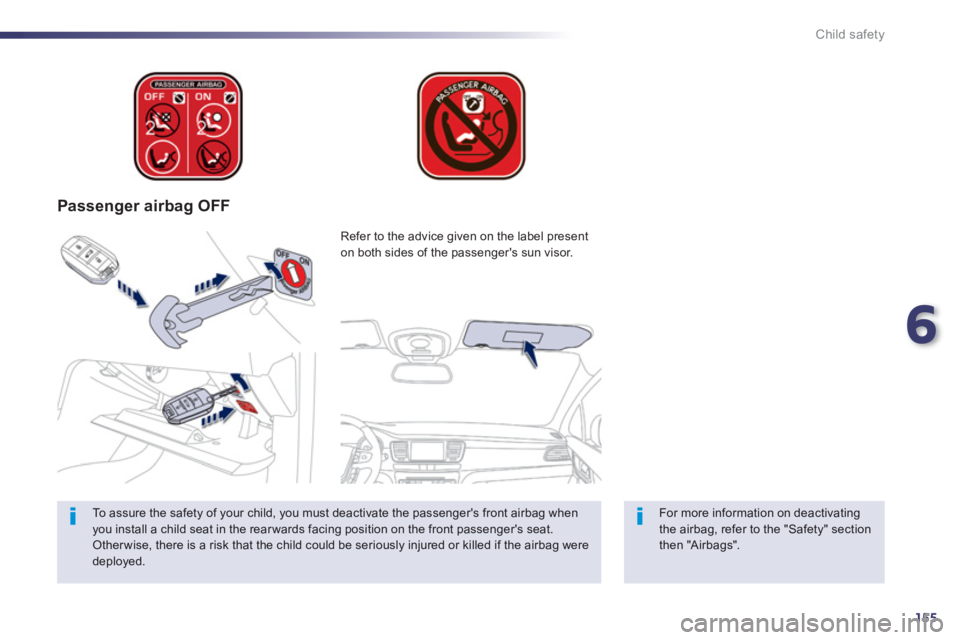

Passenger airbag OFF
For more information on deactivatingthe airbag, refer to the "Safety" sectionthen "Airbags". Re
fer to the advice given on the label present
on both sides of the passenger's sun visor.
To assure the safety of your child, you must deactivate the passenger's front airbag whenyou install a child seat in the rear wards facing position on the front passenger's seat. Other wise, there is a risk that the child could be seriously injured or killed if the airbag weredeployed.
Page 158 of 340

156
Child safety

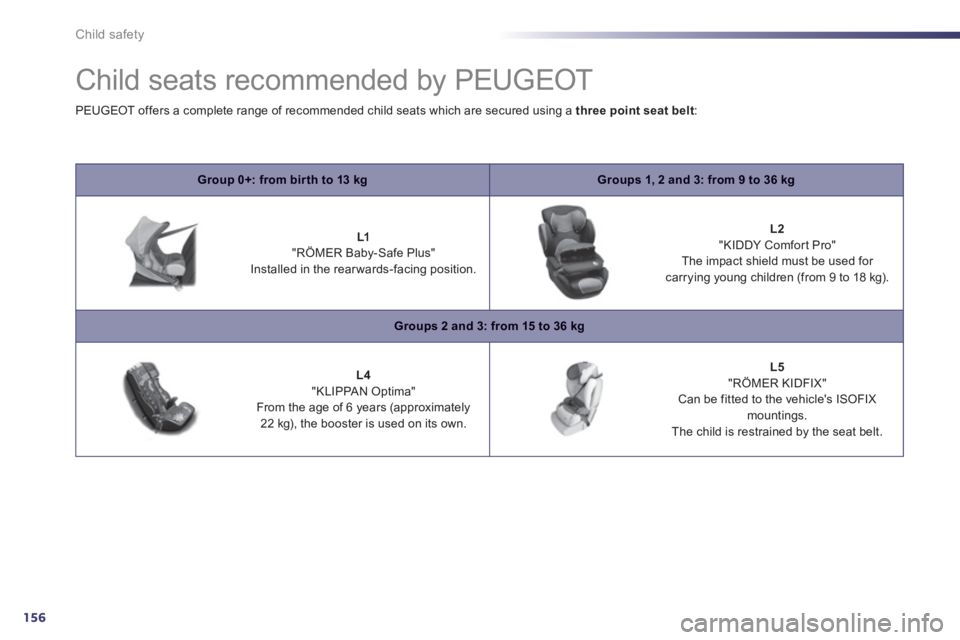

Child seats recommended by PEUGEOT
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg
L1"RÖMER Baby-Safe Plus"
Installed in the rear wards-facing position.
L2"KIDDY Comfort Pro"
The impact shield must be used for carrying young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4"KLIPPAN Optima"From the age of 6 years (approximately22 kg), the booster is used on its own.
L5"RÖMER KIDFIX"Can be fitted to the vehicle's ISOFIX
mountings.
The child is restrained by the seat belt. PEU
GEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:
Page 159 of 340

6
157./..
Child safety

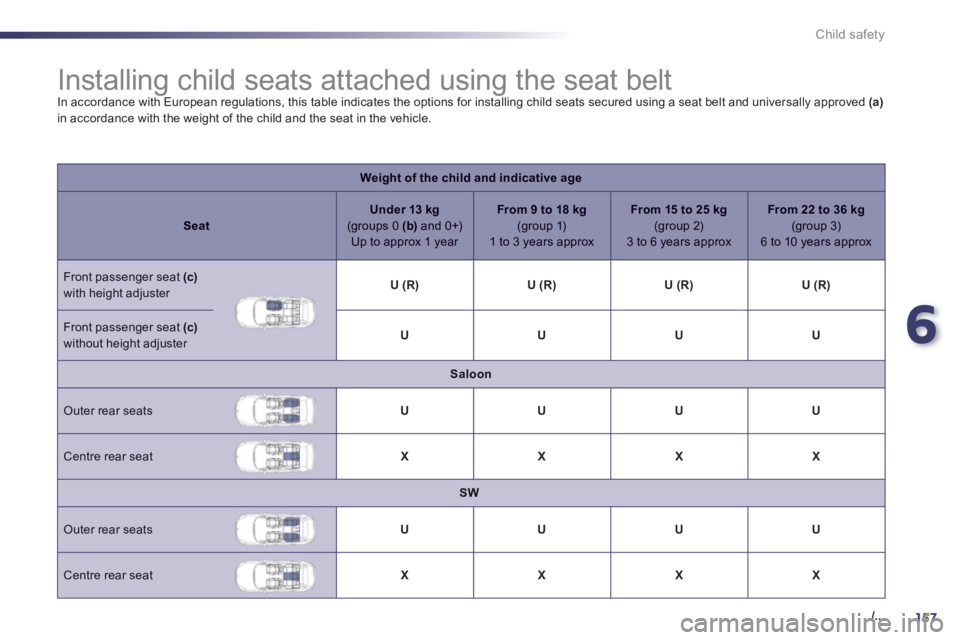

Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg
(groups 0(
b )and 0+)Up to approx 1 year
From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg
(group 2)3 to 6 years approx
From 22 to 36 kg(group 3) 6 to 10 years approx
Front passenger seat(
c )with height adjuster U (R)U (R)U (R)U (R)
Front passenger seat (c)without height adjuster UUUU
Saloon
Outer rear seats UUUU
Centre rear seat XXXX
SW
Outer rear seats UUUU
Centre rear seat XXXX
Page 160 of 340

158
Child safety
a: universal child seat, child seat that can be installed in all vehicles using a seat belt. b:
group 0, from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.
c:
consult the legislation in force in your country before installing your child on this seat.U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing". U (R):idem U, with the vehicle's seat adjusted to the highest position and as far back as possible. X:
seat position not suitable for installation of a child seat for the weight class indicated.
