PEUGEOT 508 HYBRID DAG 2012 Owners Manual

8
189
Practical information

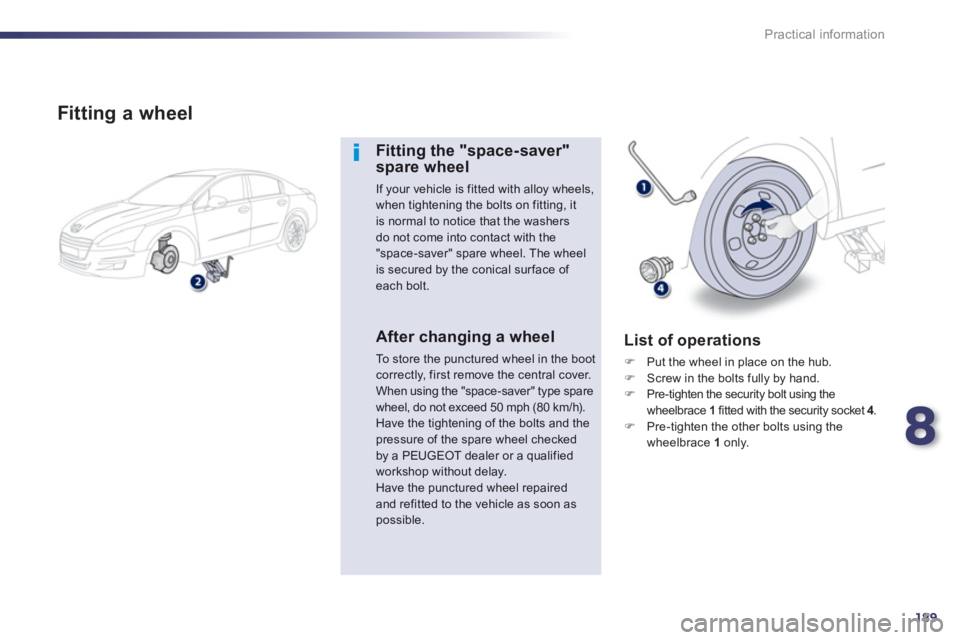

Fitting a wheel
Fitting the "space-saver"spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting, it is normal to notice that the washers
do not come into contact with the "space-saver" spare wheel. The wheel is secured by the conical surface of each bolt.
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" type sparewheel, do not exceed 50 mph (80 km/h).Have the tightening of the bolts and thepressure of the spare wheel checkedby a PEUGEOT dealer or a qualified workshop without delay. Have the punctured wheel repaired and refitted to the vehicle as soon as possible.


List of operations
)
Put the wheel in place on the hub. )
Screw in the bolts fully by hand.)
Pre-tighten the security bolt using the
wheelbrace 1fitted with the security socket 4.4) Pre-tighten the other bolts using the
wh
eelbrace 1only.

190
Practical information

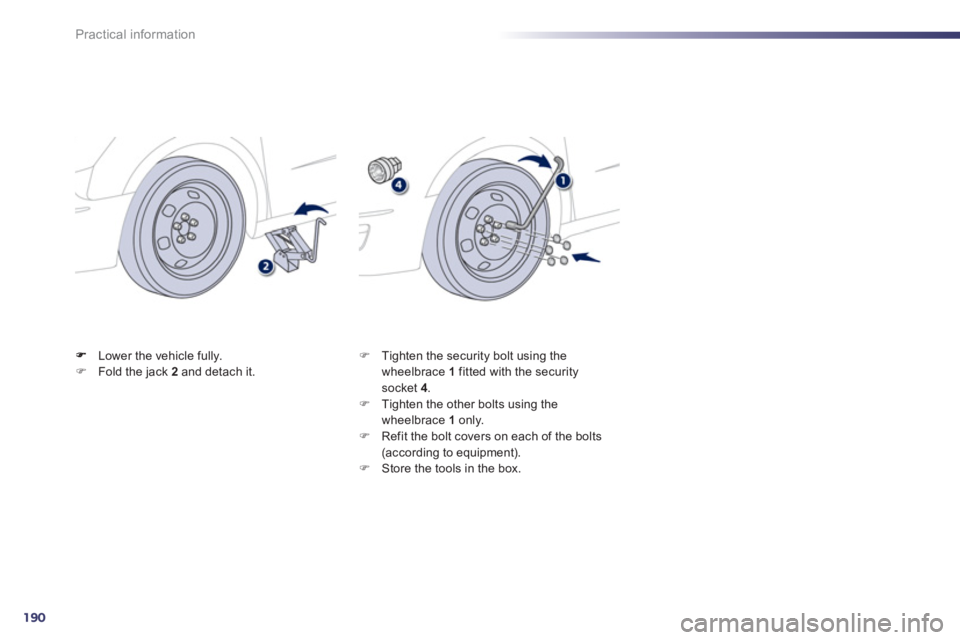

Lower the vehicle fully. )Fold the jack 2 and detach it.
)
Tighten the security bolt using the
wheelbrace 1 fitted with the securitysocket 4.)
Tighten the other bolts using the
wheelbrace 1 only.
)
Refit the bolt covers on each of the bolts(according to equipment).)
Store the tools in the box.

8
191
Practical information

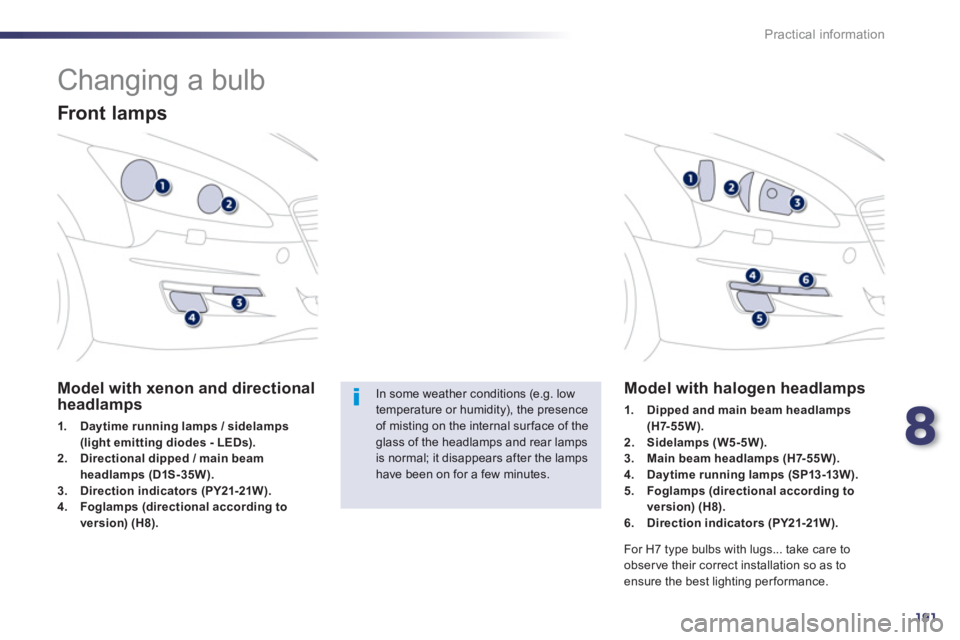

Changing a bulb


Front lamps
Model with xenon and directionalheadlamps
1.Daytime running lamps / sidelamps (light emitting diodes - LEDs).2.Directional dipped / main beam
headlamps (D1S-35W).3.Direction indicators (PY21-21W).4.Foglamps (directional according to
version) (H8).
Model with halogen headlamps
1.Dipped and main beam headlamps(H7-55W).2.Sidelamps (W5-5W).3.Main beam headlamps (H7-55W).4.Daytime running lamps (SP13-13W).5.Foglamps (directional according toversion) (H8).6. Direction indicators (PY21-21W).
For H7 type bulbs with lugs... take care toobserve their correct installation so as toensure the best lighting performance.
In some weather conditions (e.g. lowtemperature or humidity), the presenceof misting on the internal surface of the glass of the headlamps and rear lamps is normal; it disappears after the lampshave been on for a few minutes.

192
Practical information

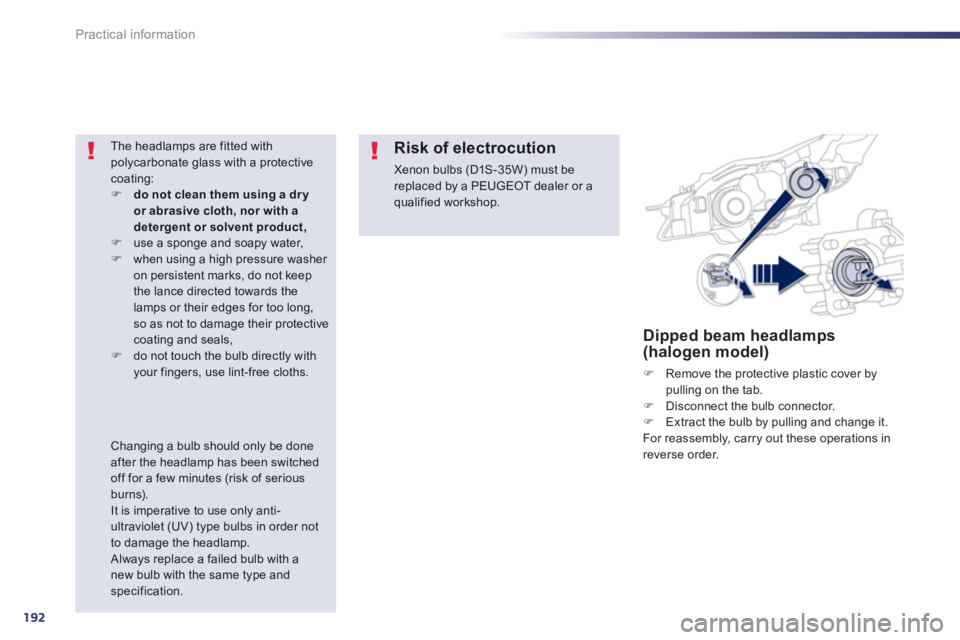

Dipped beam headlamps(halogen model)
) Remove the protective plastic cover by pulling on the tab.)
Disconnect the bulb connector.)
Extract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.


The headlamps are fitted with
polycarbonate glass with a protectivecoating:)do not clean them using a dryor abrasive cloth, nor with adetergent or solvent product,)use a sponge and soapy water, )when using a high pressure washer on persistent marks, do not keepthe lance directed towards thelamps or their edges for too long,so as not to damage their protectivecoating and seals,)do not touch the bulb directly withyour fingers, use lint-free cloths.
Risk of electrocution
Xenon bulbs (D1S-35W) must bereplaced by a PEUGEOT dealer or aqualified workshop.
Changing a bulb should only be doneafter the headlamp has been switched off for a few minutes (risk of seriousburns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order notto damage the headlamp. Always replace a failed bulb with a new bulb with the same type andspecification.

8
193
Practical information

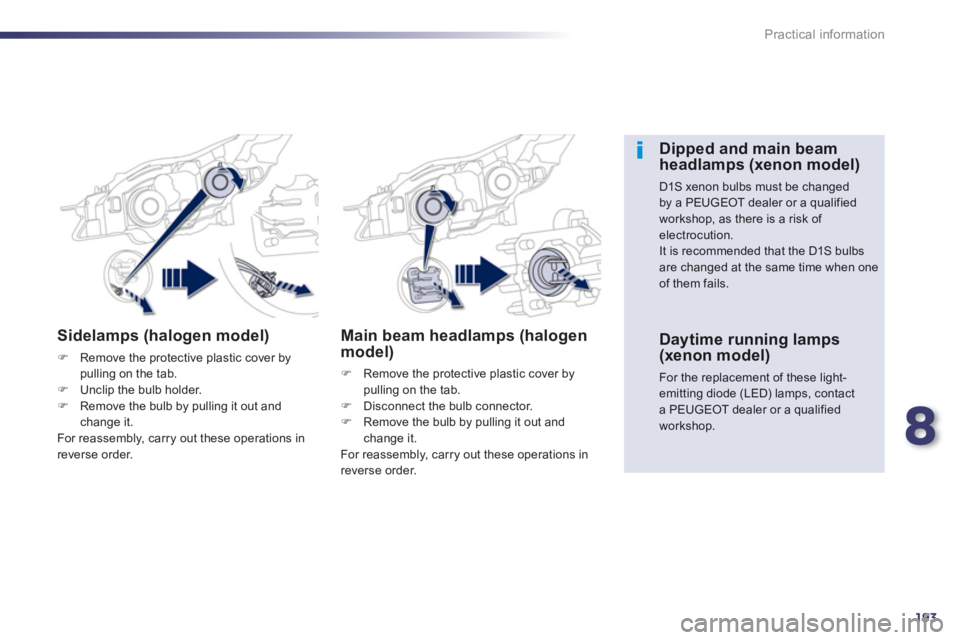

Sidelamps (halogen model)
)Remove the protective plastic cover bypulling on the tab.)Unclip the bulb holder. )Remove the bulb by pulling it out and change it.
For reassembly, carry out these operations in
reverse order.

Main beam headlamps (halogenmodel)
)
Remove the protective plastic cover by
pulling on the tab. ) Disconnect the bulb connector. )
Remove the bulb by pulling it out andchange it.
For reassembly, carry out these operations in reverse order.








Dipped and main beam
headlamps (xenon model)

D1S xenon bulbs must be changedby a PEUGEOT dealer or a qualifiedworkshop, as there is a risk of electrocution.
It is recommended that the D1S bulbsare changed at the same time when oneof them fails.
Daytime running lamps
(xenon model)

For the replacement of these light-emitting diode (LED) lamps, contacta PEUGEOT dealer or a qualifiedworkshop.

194
Practical information

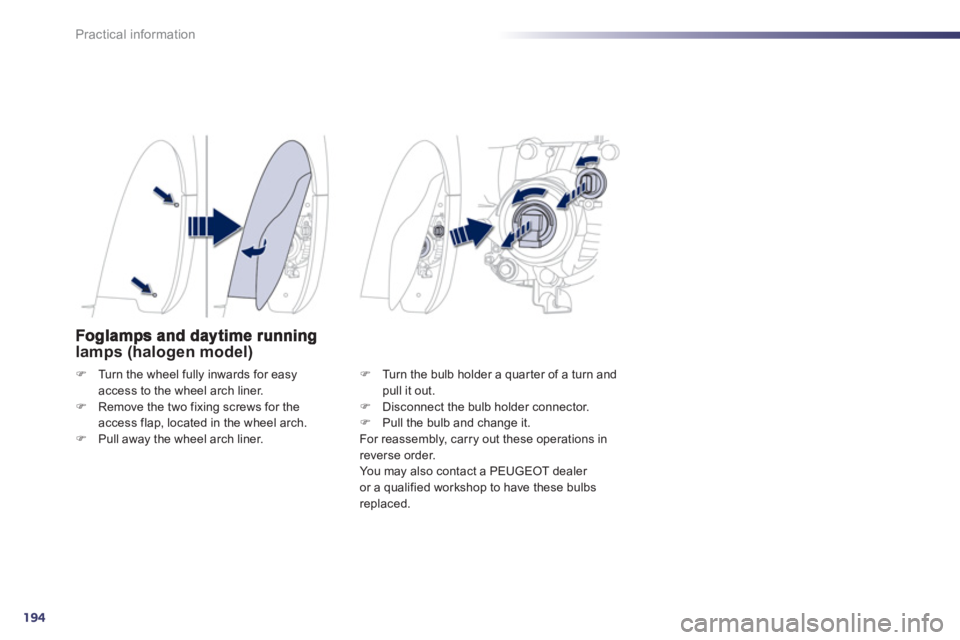

lamps (halogen model)
)Turn the wheel fully inwards for easy access to the wheel arch liner. )Remove the two fixing screws for the access flap, located in the wheel arch. )Pull away the wheel arch liner.
)Turn the bulb holder a quarter of a turn and
pull it out.
)Disconnect the bulb holder connector. )Pull the bulb and change it.
For reassembly, carry out these operations in reverse order.
Yo u m ay also contact a PEUGEOT dealer
or a qualified workshop to have these bulbs replaced.

8
195
Practical information

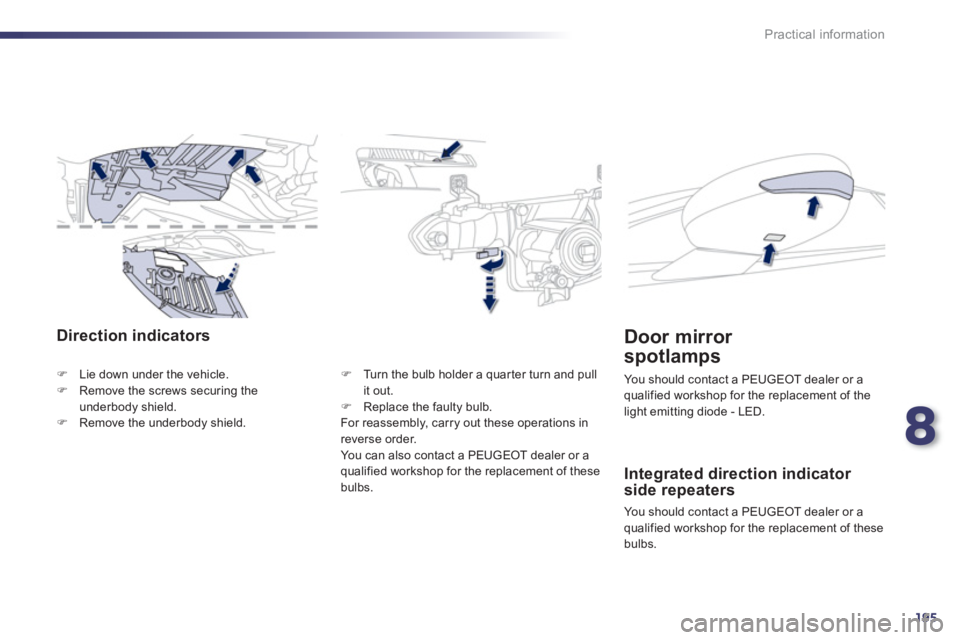

Direction indicators
)Lie down under the vehicle. )Remove the screws securing theunderbody shield. )Remove the underbody shield.
) Turn the bulb holder a quar ter turn and pull
it out. ) Replace the faulty bulb.
For reassembly, carry out these operations in reverse order.
You can also contact a PEUGEOT dealer or aqualified workshop for the replacement of thesebulbs.
Integrated direction indicator
side repeaters
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these
bulbs.
Door mirror
s
potlamps
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the
light emitting diode - LED.

196
Practical information
1.Brake lamps (light emittingdiodes - LEDs).2. Reversing lamps (P21W).3.Direction indicators (PY21W amber).4.Sidelamps (light emitting diodes -LEDs).5.Foglamps (H21W).

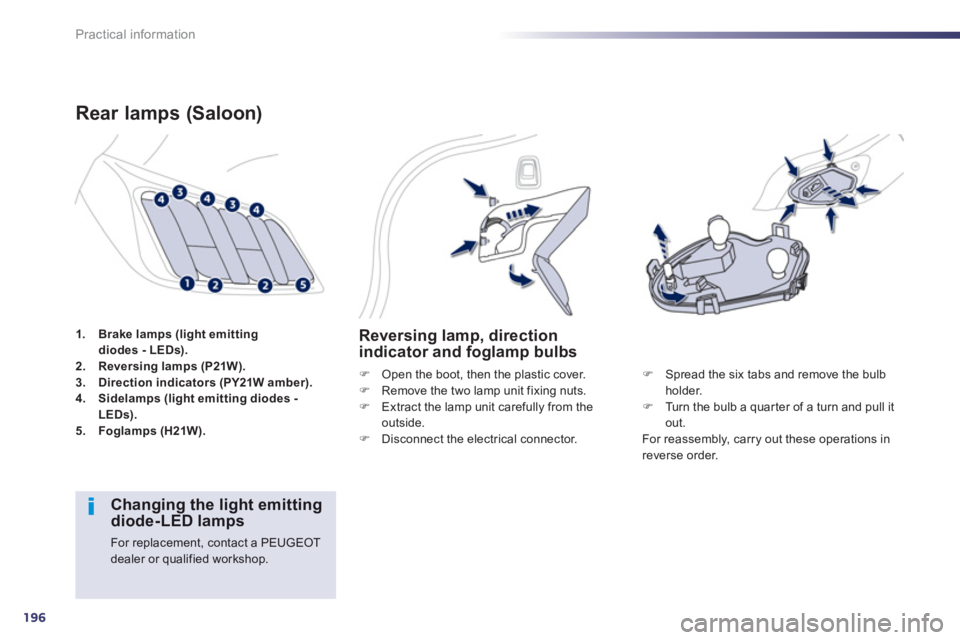

Rear lamps (Saloon)
Reversing lamp, direction
indicator and foglamp bulbs
) Open the boot, then the plastic cover. )
Remove the two lamp unit fixing nuts. )
Extract the lamp unit carefully from the outside.)
Disconnect the electrical connector.
)Spread the six tabs and remove the bulb holder. )Turn the bulb a quar ter of a turn and pull it out.
For reassembly, carry out these operations in
reverse order.




Changing the light emittingdiode-LED lamps

For replacement, contact a PEUGEOT dealer or qualified workshop.

8
197
Practical information
1.Brake lamps (light emittingdiodes - LEDs).2.Reversing lamps (W19W).3.Direction indicators (PY21W amber).4.Sidelamps (light emittingdiodes - LEDs).5.Foglamps (light emitting diodes - LEDs).

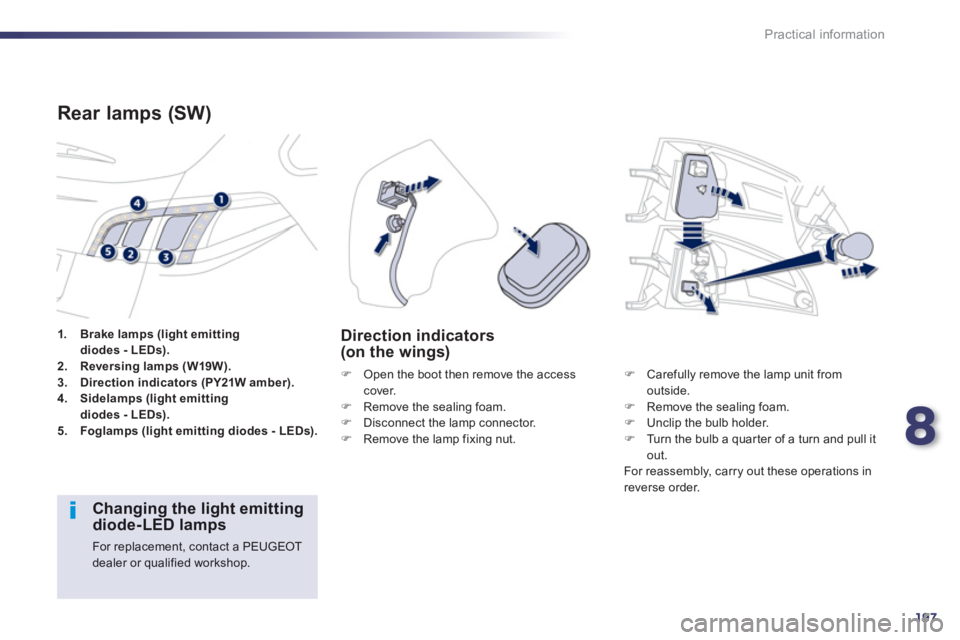

Rear lamps (SW)
)
Open the boot then remove the accesscover.)
Remove the sealing foam.)
Disconnect the lamp connector. )
Remove the lamp fixing nut.
Direction indicators(on the wings)
)
Carefully remove the lamp unit from outside.)
Remove the sealing foam. )
Unclip the bulb holder. )
Turn the bulb a quar ter of a turn and pull itout.
For reassembly, carry out these operations in
reverse order.



Changing the light emitting diode-LED lamps

For replacement, contact a PEUGEOT dealer or qualified workshop.

198
Practical information

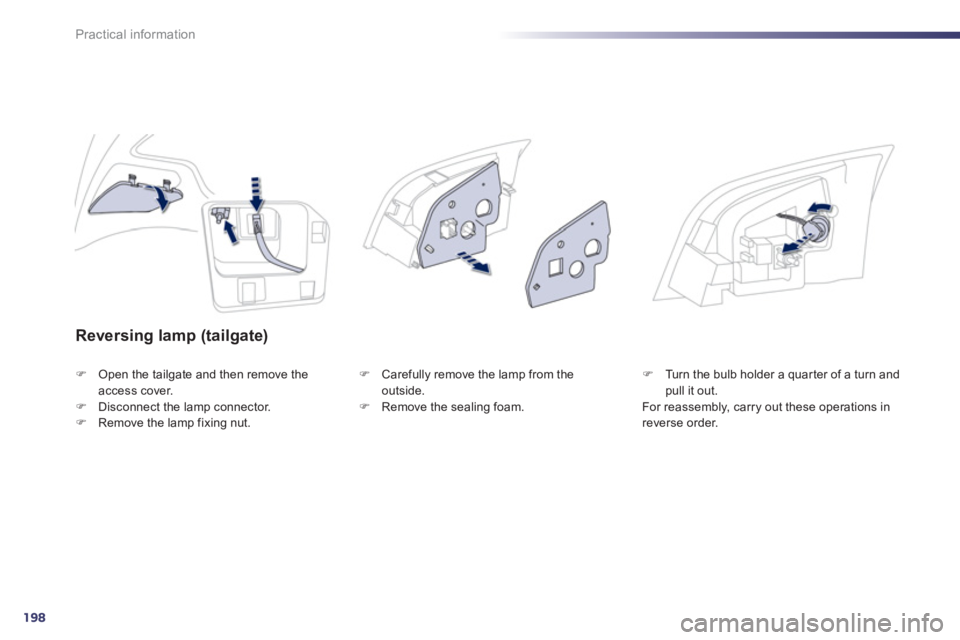

Reversing lamp (tailgate)
)Open the tailgate and then remove theaccess cover.)Disconnect the lamp connector.)Remove the lamp fixing nut.
) Carefully remove the lamp from theoutside.)
Remove the sealing foam.
)Turn the bulb holder a quarter of a turn andpull it out.
For reassembly, carry out these operations in
reverse order.
