Page 101 of 183
10-02-2003
YOUR 607 IN DETAIL
102

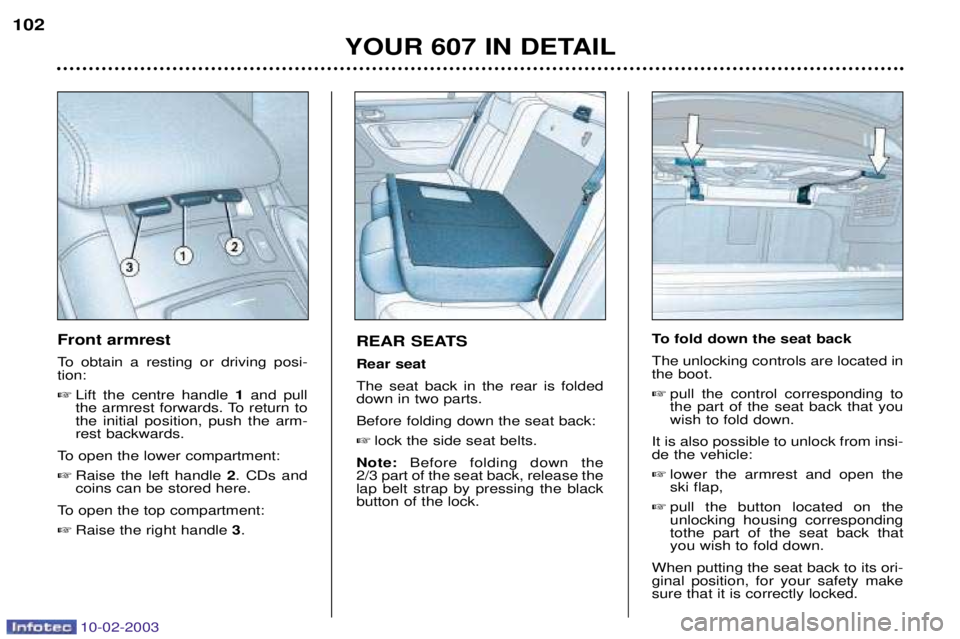

REAR SEATS Rear seatThe seat back in the rear is folded down in two parts. Before folding down the seat back:
lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the lap belt strap by pressing the blackbutton of the lock.
Front armrest
To obtain a resting or driving posi- tion:
Lift the centre handle 1and pull
the armrest forwards. To return tothe initial position, push the arm-rest backwards.
To open the lower compartment: Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment: Raise the right handle 3. To fold down the seat back The unlocking controls are located in the boot.
pull the control corresponding tothe part of the seat back that youwish to fold down.
It is also possible to unlock from insi-de the vehicle: lower the armrest and open theski flap,
pull the button located on theunlocking housing correspondingtothe part of the seat back thatyou wish to fold down.
When putting the seat back to its ori-ginal position, for your safety makesure that it is correctly locked.
Page 102 of 183
10-02-2003
YOUR 607 IN DETAIL103
Ski flap
Lower the armrest to access the ski flap. Open by pulling the han-dle.
Page 103 of 183
10-02-2003
YOUR 607 IN DETAIL
104
Rules for transporting children on the front passenger seat**: Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe most rearward position and armthe passenger air bag. The rearwards facing position is per- mitted from birth to 18 kg. In thisposition, it is essential to disarm thepassenger air bag.
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
- Since 1992, all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
In order to recognise a child seat which conforms to current legislation, check
that it bears an orange label indicating the weight range for its use and its approval number .
- A child weighing less than 9 kg must travel in the rearwards facing posi-
tion both in the front and in the rear.
- The safest seats in your vehicle for the transportation of children are therear seats.
- If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat beltmust be positioned on the child's shoulder without touching the neck. PEU-
GEOT recommends that you use a booster seat with a back, fitted with a seatbelt guide.
- Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.
Page 104 of 183
10-02-2003
YOUR 607 IN DETAIL105
"ISOFIX" MOUNTINGS The one third side of the rear seat of your vehicle is fitted with ISOFIX
mountings . These are 2 rings loca-
ted between the seat back and seatcushion of your vehicle. The ISOFIX child seats are fitted
with 2 locks which fit onto these rings. The ISOFIX child seat approved for
PEUGEOT vehicles and sold by the
PEUGEOT network is the
ISOFIX
KIDDY* child seat. It can be installed
in the rearwards facing position frombirth to 13 kg and in the forwards
facing position from 9 to 18 kg. In the front, in the rearwards facing position, the front passenger seatmust be moved as far forwards aspossible so that the shell of the childseat is in contact with, or as close aspossible to, the fascia.
In the rear, in the forwards facing position, the front passenger seatmust be in the intermediate longitudi-nal position, with the seat backupright. The ISOFIX KIDDY child seat mayalso be used where there are no Iso-fix mountings.In this case it is com-pulsory to attach it to the vehicle'sseat using the three-point seat beltfor both the rearwards facing and for-wards facing positions.
If the ISOFIX KIDDY seat is fitted in the rearwards facing positionon the front passenger seat, it isessential to disarm the passengerair bag. Follow the instructions for fitting the child seat indicated in the seatmanufacturer's installation ins-tructions. Refer to the "Summary table for the installation of child seats".
* You can only secure ISOFIX child
seats, approved by PEUGEOT and sold by its network, on your vehi-cle's ISOFIX mountings.
Page 105 of 183
10-02-2003
YOUR 607 IN DETAIL
106
CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt: Group 0+: from birth to 13 kg) L1 - "Britax Babysure": installed in the rear-facing position in the front or in the rear using a three-point seat belt.In the front, it is compulsory to disarm the passenger air bag and the passenger seat must be adjusted to the 'mid-way'posi-
tion on the runner.
Group 1: from 9 to 18 kgL2 - "Ršmer Prince": installed in the rear using a two or three-point seat belt.
For the safety of your child, the seat and the restraining cushion must never be separated.
Group 2: from 15 to 25 kg
L3 - "Ršmer Vario'': installed in the rear with a two or three-point seat belt.
Page 106 of 183
10-02-2003

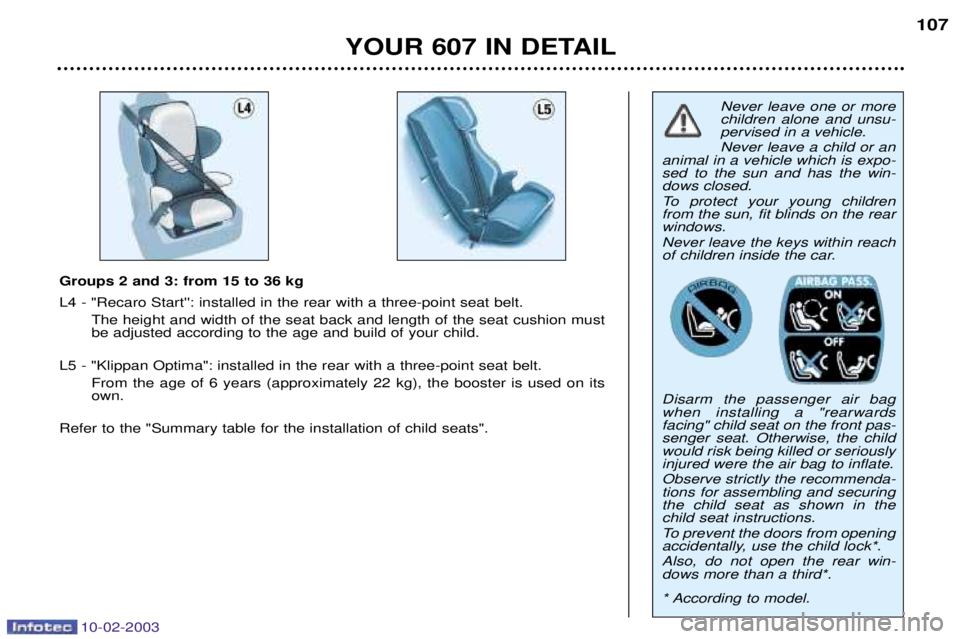

Never leave one or more children alone and unsu-pervised in a vehicle. Never leave a child or an
animal in a vehicle which is expo- sed to the sun and has the win-dows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a "rearwardsfacing" child seat on the front pas-senger seat. Otherwise, the childwould risk being killed or seriouslyinjured were the air bag to inflate. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear win- dows more than a third*.
* According to model.
YOUR 607 IN DETAIL 107
Groups 2 and 3: from 15 to 36 kg L4 - "Recaro Start'': installed in the rear with a three-point seat belt. The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 - "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats".
Page 107 of 183
10-02-2003
SUMMARY TABLE FOR THE INSTALLATION OF CHILD SEATS In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child seats, in relation to the weight group and the seat in the vehicle:
U : universal child seat, "rearwards facing" and "forwards facing".
U (R) : universal child seat, rearwards facing and forwards facing, set in the highest position.
X : no child seat. According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : R…MER Prince E1 03301058 Universal (9 to 18 kg).
L3 : R…MER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg) (c)
.
L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg) (c)
.
(a) Group 0: from birth to 10 kg.
(b) Consult the current legislation in your country.
(c) See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings. Statutory weight range
Seat Group 0(a)
to 0+ Groupe 1 Groupe 2 Groupe 3
< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger seat (b)
without booster L1, L6 L2, L7 L3, L4, L5 L4, L5
Front passenger seat (b)
U (R) U (R) U (R) U (R)
with booster (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger seat UU UU
Side seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger seat XX L3, L4, L5 L4, L5
Centre seat
YOUR 607 IN DETAIL
108
Page 108 of 183
10-02-2003
YOUR 607 IN DETAIL109

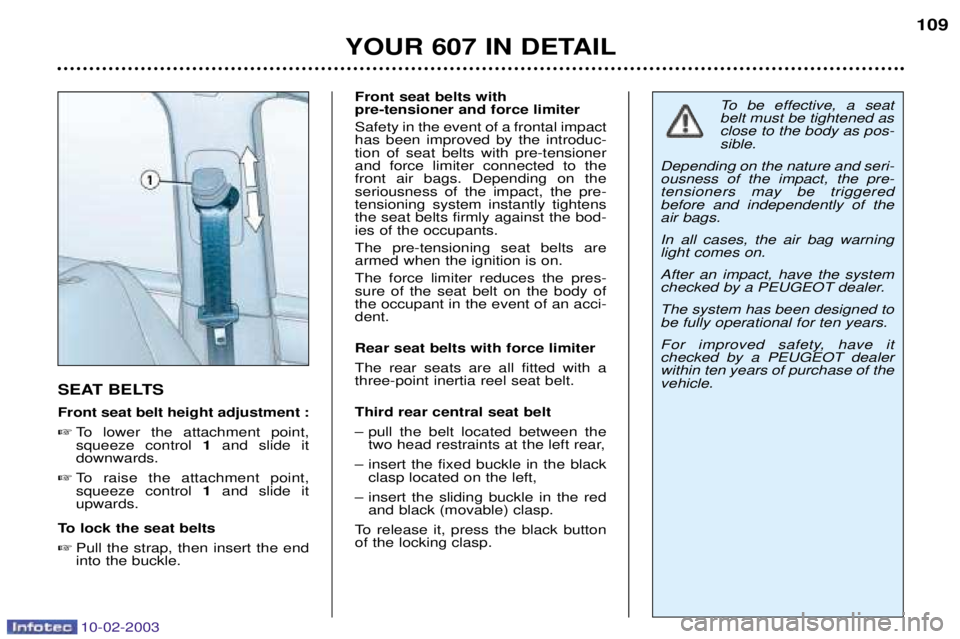

SEAT BELTS Front seat belt height adjustment : To lower the attachment point, squeeze control 1and slide it
downwards.
To raise the attachment point,squeeze control 1 and slide it
upwards.
To lock the seat belts Pull the strap, then insert the endinto the buckle. Front seat belts with pre-tensioner and force limiter Safety in the event of a frontal impact has been improved by the introduc-tion of seat belts with pre-tensionerand force limiter connected to thefront air bags. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bod-ies of the occupants. The pre-tensioning seat belts are armed when the ignition is on. The force limiter reduces the pres- sure of the seat belt on the body ofthe occupant in the event of an acci-dent. Rear seat belts with force limiter The rear seats are all fitted with a three-point inertia reel seat belt. Third rear central seat belt
Ð pull the belt located between the
two head restraints at the left rear,
Ð insert the fixed buckle in the black clasp located on the left,
Ð insert the sliding buckle in the red and black (movable) clasp.
To release it, press the black button of the locking clasp. To be effective, a seatbelt must be tightened asclose to the body as pos-sible.
Depending on the nature and seri-ousness of the impact, the pre-tensioners may be triggeredbefore and independently of theair bags. In all cases, the air bag warning light comes on. After an impact, have the system
checked by a PEUGEOT dealer. The system has been designed to be fully operational for ten years.
For improved safety, have it checked by a PEUGEOT dealerwithin ten years of purchase of thevehicle.
Page 109 of 183
10-02-2003
YOUR 607 IN DETAIL
110

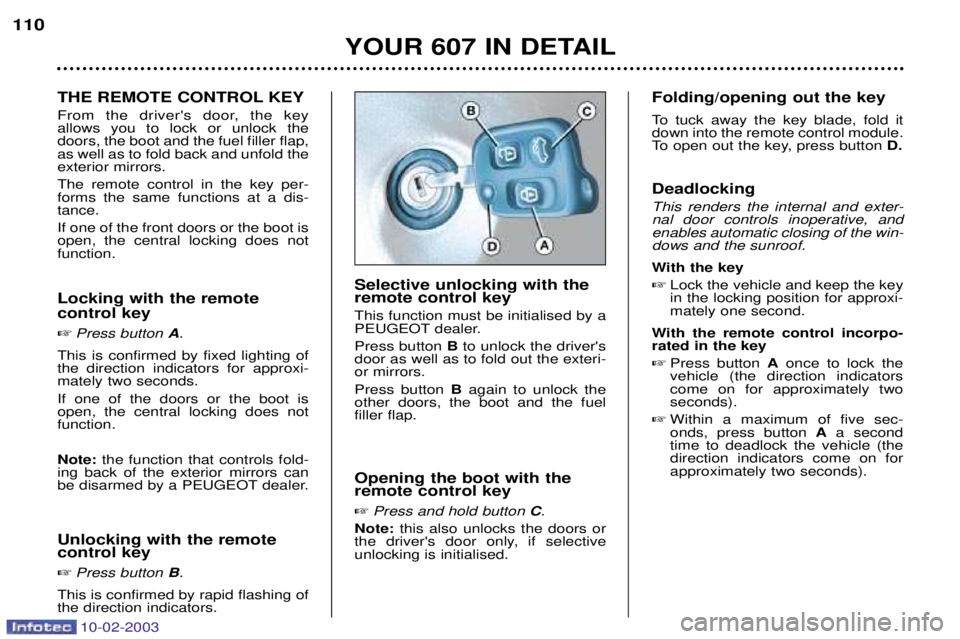

THE REMOTE CONTROL KEY
From the driver's door, the key allows you to lock or unlock thedoors, the boot and the fuel filler flap,as well as to fold back and unfold theexterior mirrors. The remote control in the key per- forms the same functions at a dis-tance. If one of the front doors or the boot is open, the central locking does notfunction. Selective unlocking with theremote control key This function must be initialised by a
PEUGEOT dealer. Press button Bto unlock the driver's
door as well as to fold out the exteri- or mirrors. Press button Bagain to unlock the
other doors, the boot and the fuel filler flap. Folding/opening out the key
To tuck away the key blade, fold it down into the remote control module.
To open out the key, press button
D.
Deadlocking This renders the internal and exter- nal door controls inoperative, andenables automatic closing of the win-dows and the sunroof.
With the key Lock the vehicle and keep the key in the locking position for approxi-mately one second.
With the remote control incorpo-rated in the key Press button Aonce to lock the
vehicle (the direction indicatorscome on for approximately twoseconds).
Within a maximum of five sec-onds, press button Aa second
time to deadlock the vehicle (thedirection indicators come on forapproximately two seconds).
Unlocking with the remotecontrol key Press button B.
This is confirmed by rapid flashing ofthe direction indicators.
Locking with the remote control key
Press button A.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. If one of the doors or the boot is open, the central locking does notfunction. Note: the function that controls fold-
ing back of the exterior mirrors can
be disarmed by a PEUGEOT dealer. Opening the boot with theremote control key
Press and hold button C.
Note: this also unlocks the doors or
the driver's door only, if selectiveunlocking is initialised.
Page 110 of 183
10-02-2003
YOUR 607 IN DETAIL111
Electronic engine immobiliser This locks the engine control system a few moments after the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possi-ble. If the system does not function
correctly, the central locking button
indicator light, situated on the centreconsole, flashes rapidly when theignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. Flat battery (CR 2025/3 volt battery) This is indicated by illumination of a warning light on the instrument panel
display, accompanied by an audiblesignal and a message on the multi-
function display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
press button A. The courtesy
lights come on and the directionindicators flash for a few seconds.

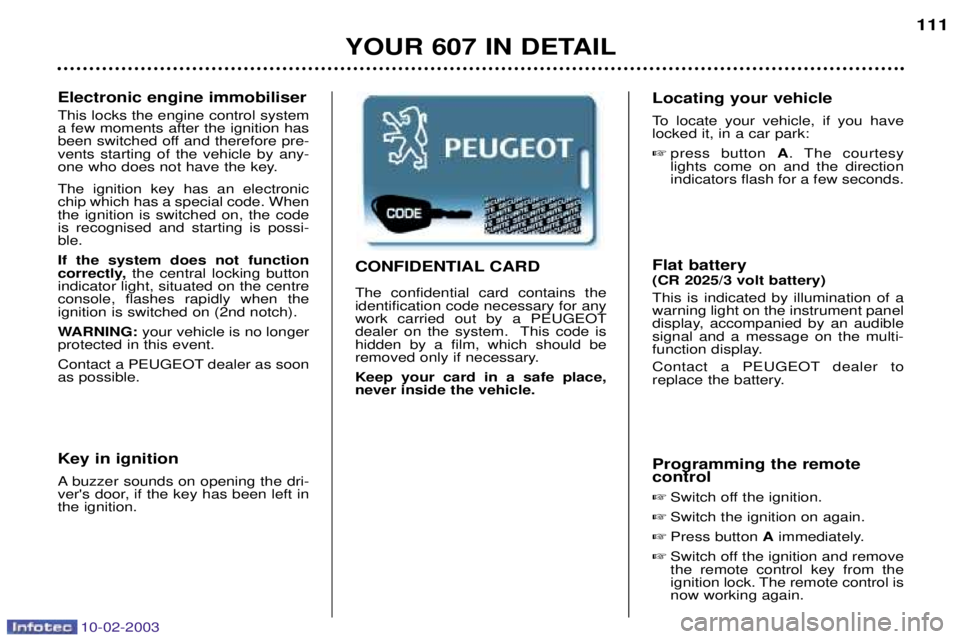

CONFIDENTIAL CARD The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remotecontrol Switch off the ignition.
Switch the ignition on again.
Press button Aimmediately.
Switch off the ignition and removethe remote control key from the
ignition lock. The remote control isnow working again.
