PEUGEOT 607 2003 Manual Online

10-02-2003
Selecting a service The last destination address input is displayed. There are 3 ways of defining the location in which you wish to obtain a service: Ð repeat the last address input using the'Validate'func-
tion,
Ð input the name of a new town then input the street (or the 'Town Centre' function), using the 'Change'function,
Ð automatically input your current location by means of the 'Current location' function.
YOUR 607 IN DETAIL 83
After validating the address, scroll through the list of ser- vices by turning the dial, then press the dial to select oneof them. Note:
if the service selected is not available at the pro-
grammed location, a message (by means of a superim- posed display) will indicate this. The cursor on the left-hand side of the screen indicates your position in the list. The address of the service required is displayed. Information on the right-hand side of the screen (e.g. 1/50) indicates whether there are several establishments (50maximum) within a radius of 30 miles (50km) of theaddress selected, as the crow flies. Use the '
Next'or 'Previous' functions to consult the list
offered.When the establishment of your choice is displayed, select the 'Validate' function, then press the dial. If necessary,
select a guidance criterion. Guidance begins, follow the instructions.

10-02-2003
Selecting a destination stored in the memory Using the dial, select the directory in which the address you are looking for is stored, then press the dial. The addresses stored in the memory are displayed. The cursor on the left-hand side of the screen indicates your position in the list. Make your selection by scrolling
through the list using the dial, then press the dial. The com-plete address is displayed. Select the 'Validate'function,
then press the dial. If you wish, select a new guidance criterion.Guidance begins, follow the instructions.
Storing an address in a directory.When a new address is input, you can store it in the mem- ory by selecting the
'Archive' function.
Input the address. If the details already exist for a differentaddress, you can replace the old address (after removingit) with a new one.
Select the Personal or Professional directory, then press
the dial. The address is then stored in the directory of yourchoice (storage capacity of 100 addresses).
YOUR 607 IN DETAIL
84

10-02-2003
Navigation options From the navigation/guidance menu, the 'Navigation
options' menu offers the following options:
- management of the directories. This allows details of a stored address to be renamed or deleted, by selecting the directory and the details to be modified,
- voice synthesis volume adjustment,
Once the function has been selected, adjust the volumeof the voice synthesis using the dial, the audio systembutton or the steering wheel stalk, then confirm. Note: the voice synthesis volume can also be adjusted
during a message using the audio system button or the steering wheel stalk.
- deletion of all data stored in both directories.
- stopping or resuming of guidance. Two messages may be displayed depending on the previous status: "Resu-
me guidance" or "Stop guidance" . Guidance tools Access to the
'Guidance tools' menu is by pressing the
dial at any time during guidance. It enables: Ð the current guidance criterion to be changed,Ð the programmed destination to be displayed or changed,Ð the voice synthesis volume to be adjusted (see 'Naviga-
tion options' paragraph),
Ð the current guidance to be stopped.
YOUR 607 IN DETAIL 85

10-02-2003

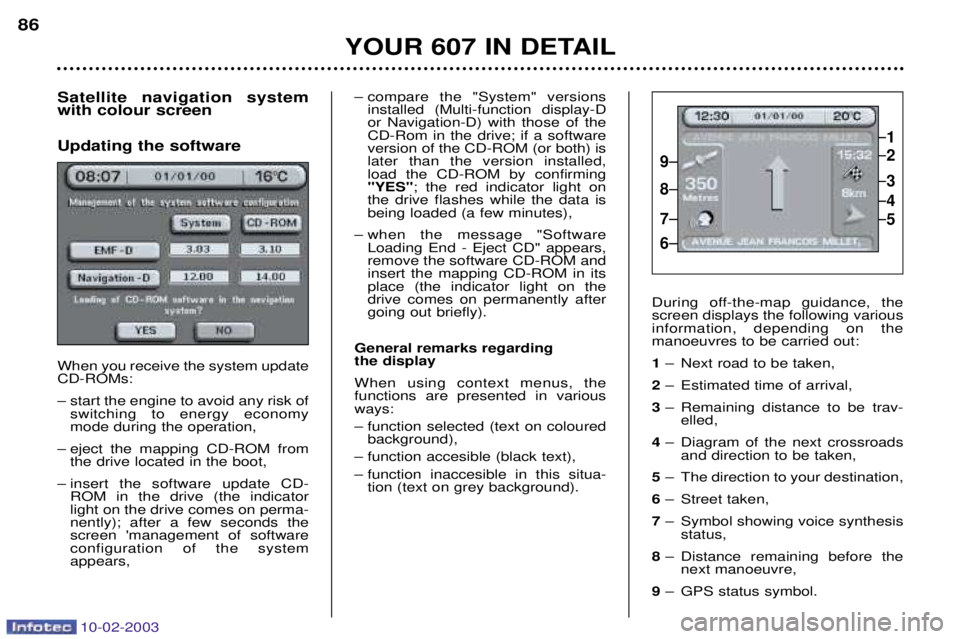

Satellite navigation system with colour screen Updating the software When you receive the system update CD-ROMs:
Ð start the engine to avoid any risk ofswitching to energy economy mode during the operation,
Ð eject the mapping CD-ROM from the drive located in the boot,
Ð insert the software update CD- ROM in the drive (the indicatorlight on the drive comes on perma-nently); after a few seconds thescreen 'management of softwareconfiguration of the systemappears,
YOUR 607 IN DETAIL
86
Ð compare the "System" versionsinstalled (Multi-function display-D or Navigation-D) with those of theCD-Rom in the drive; if a softwareversion of the CD-ROM (or both) islater than the version installed,load the CD-ROM by confirming"YES" ; the red indicator light on
the drive flashes while the data isbeing loaded (a few minutes),
Ð when the message "Software Loading End - Eject CD" appears,remove the software CD-ROM andinsert the mapping CD-ROM in itsplace (the indicator light on thedrive comes on permanently aftergoing out briefly).
General remarks regarding the display When using context menus, the functions are presented in variousways:
Ð function selected (text on coloured background),
Ð function accesible (black text),
Ð function inaccesible in this situa- tion (text on grey background). During off-the-map guidance, the screen displays the following variousinformation, depending on themanoeuvres to be carried out: 1
Ð Next road to be taken,
2 Ð Estimated time of arrival,
3 Ð Remaining distance to be trav-
elled,
4 Ð Diagram of the next crossroads
and direction to be taken,
5 Ð The direction to your destination,
6 Ð Street taken,
7 Ð Symbol showing voice synthesis
status,
8 Ð Distance remaining before the
next manoeuvre,
9 Ð GPS status symbol.
1
2
3
5
4
9
8
7
6

10-02-2003

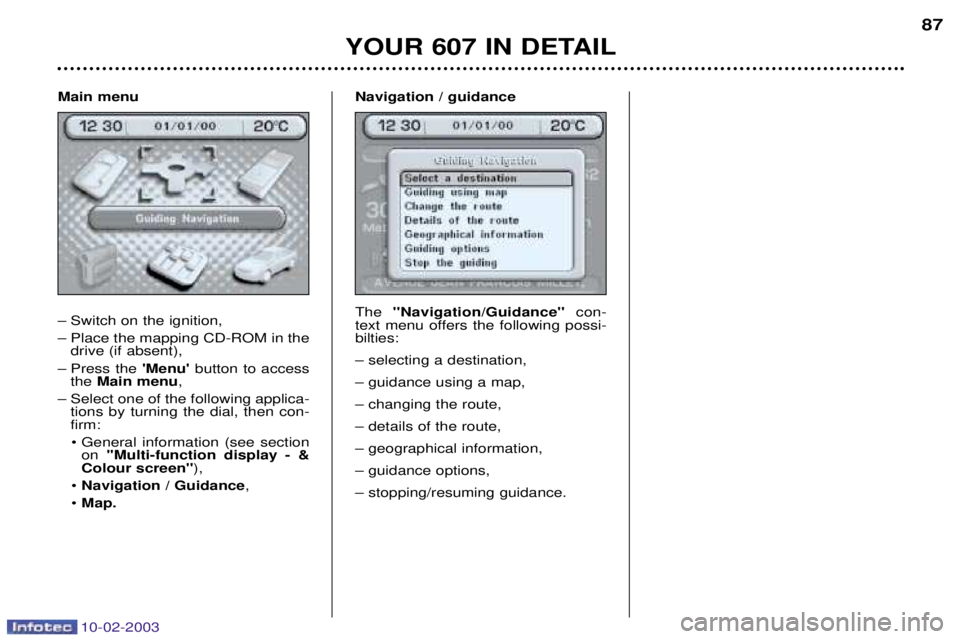

Main menu
Ð Switch on the ignition,
Ð Place the mapping CD-ROM in thedrive (if absent),
Ð Press the 'Menu'button to access
the Main menu ,
Ð Select one of the following applica- tions by turning the dial, then con- firm:
¥ General information (see section on ''Multi-function display - &
Colour screen'' ),
¥ Navigation / Guidance ,
¥ Map. Navigation / guidance The
''Navigation/Guidance'' con-
text menu offers the following possi- bilties: Ð selecting a destination,Ð guidance using a map,Ð changing the route,Ð details of the route,Ð geographical information,Ð guidance options,Ð stopping/resuming guidance.
YOUR 607 IN DETAIL 87

10-02-2003
Access a list by the selecting the "List"function when inputting the
town or road. Select a name thenconfirm. Select a name then confirm.When the required information has been given, confirm so that you cango on to the next.
YOUR 607 IN DETAIL
88

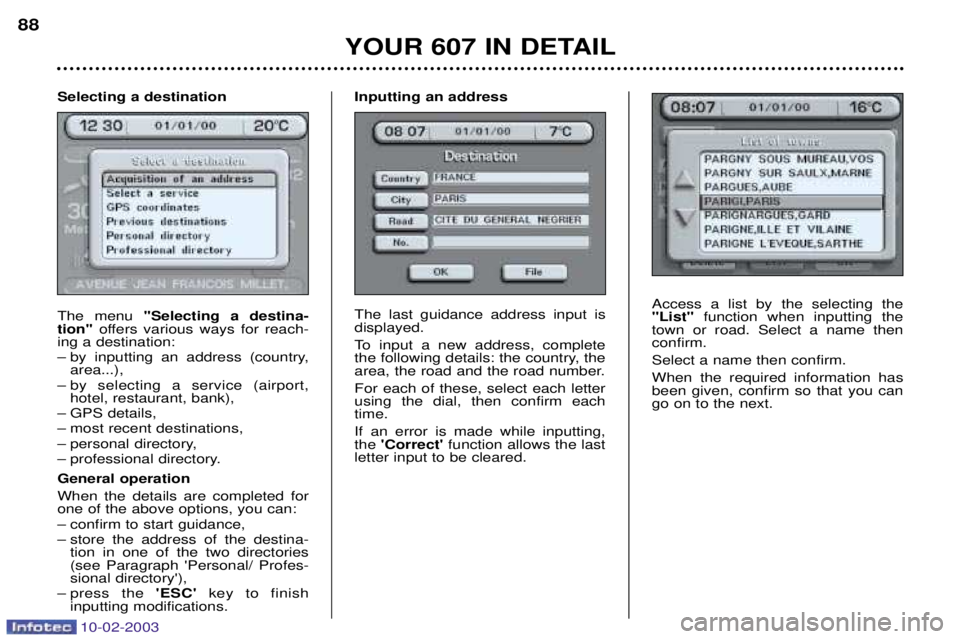

Selecting a destination The menu ''Selecting a destina-
tion'' offers various ways for reach-
ing a destination:
Ð by inputting an address (country, area...),
Ð by selecting a service (airport, hotel, restaurant, bank),
Ð GPS details,
Ð most recent destinations,
Ð personal directory,
Ð professional directory. General operation When the details are completed for one of the above options, you can:
Ð confirm to start guidance,
Ð store the address of the destina- tion in one of the two directories (see Paragraph 'Personal/ Profes-sional directory'),
Ð press the 'ESC' key to finish
inputting modifications. Inputting an address The last guidance address input is displayed.
To input a new address, complete
the following details: the country, the
area, the road and the road number. For each of these, select each letter using the dial, then confirm eachtime. If an error is made while inputting, the
'Correct' function allows the last
letter input to be cleared.

10-02-2003
YOUR 607 IN DETAIL89
Selecting a service
To select a service: ¥ select the location. The last destination appears; you can - change it,
- replace it with the current location, by confirmation ofthe corresponding button),
¥ select 'OK'to look at the list of services for the type and
location selected,
¥ select a type of service from the list (hotel, service sta- tion, restaurant etc.)
¥ select 'OK' to activate guidance towards the service
selected. GPS detailsThe details of your current location (longitude and latitude
shown in degrees, minutes and seconds). You can store
them to activate guidance to this location later. Most recent destinations With the dial, select the destination required from the list, then confirm. Personal /Professional directory Select one of the two directories to choose a destination address from the list.

10-02-2003

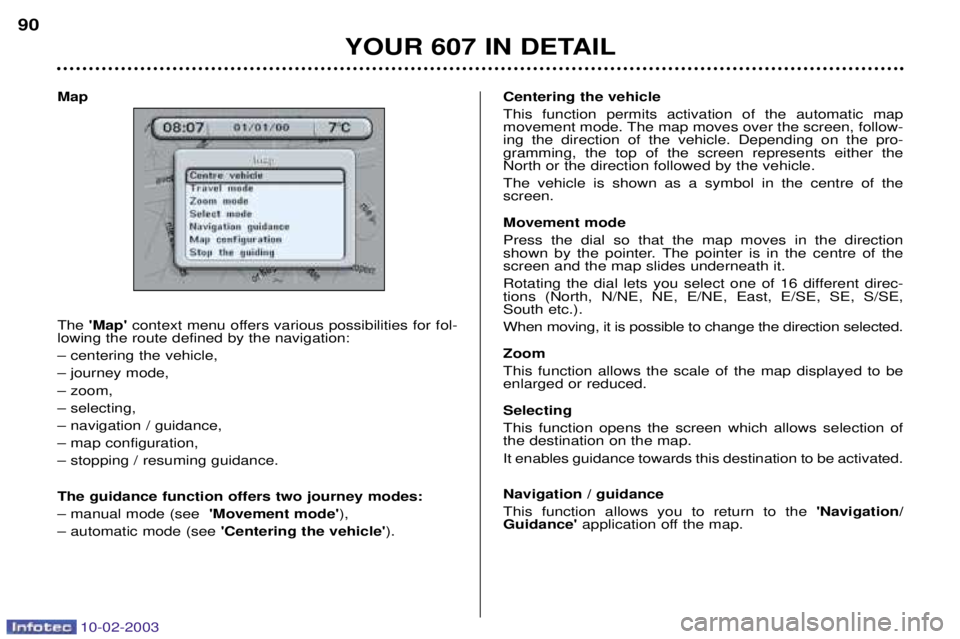

Map The 'Map' context menu offers various possibilities for fol-
lowing the route defined by the navigation: Ð centering the vehicle,Ð journey mode,Ð zoom,Ð selecting,Ð navigation / guidance,Ð map configuration,Ð stopping / resuming guidance. The guidance function offers two journey modes: Ð manual mode (see 'Movement mode'),
Ð automatic mode (see 'Centering the vehicle' ).Centering the vehicleThis function permits activation of the automatic map
movement mode. The map moves over the screen, follow-ing the direction of the vehicle. Depending on the pro-gramming, the top of the screen represents either theNorth or the direction followed by the vehicle. The vehicle is shown as a symbol in the centre of the screen. Movement mode Press the dial so that the map moves in the direction
shown by the pointer. The pointer is in the centre of thescreen and the map slides underneath it.
Rotating the dial lets you select one of 16 different direc- tions (North, N/NE, NE, E/NE, East, E/SE, SE, S/SE,South etc.). When moving, it is possible to change the direction selected. Zoom This function allows the scale of the map displayed to be enlarged or reduced. Selecting This function opens the screen which allows selection of the destination on the map. It enables guidance towards this destination to be activated. Navigation / guidance This function allows you to return to the
'Navigation/
Guidance' application off the map.
YOUR 607 IN DETAIL
90

10-02-2003
Map configuration
This function offers various possibilities to optimise and enhance the display of the route:
Ð map orientation,
Ð type of services displayed,
Ð selection of scale. Map orientation This function allows orientation of the map to be selected: North or according to the direction of the vehicle. Note:the "vehicle orientation" option is only active if the
display scale is less than or equal to 1km.
Types of services displayed This function allows the required service to be displayed.From the list presented, select the service(s) required (for insertion), the service(s) not required (for deletion), orchoose 'Any'(parking, hotel, restaurant, service station,
cinema...). Changing the route This function allows you, for example, to avoid a tail-back on the route which has been worked out. Using the 'Navigation/Guidance' context menu, or by
holding down the last voice message recall control, you can introduce a change to the route that had been workedout, at any time during guidance. This change occurs on the stretch between your present position and a point located at a distance which has to beinput, using the initial route. Enter a distance between 1 and 10 km, using the alphanu- meric keypad, then confirm. The system takes this change into account and suggests new guidance, having invalidated the section selected. Details of the route At all times during guidance, the sub-menu
'Details of the
route' gives you access to the following functions:
Ð destination selected,
Ð see the places to be travelled through (display of roads, streets and towns to be passed),
Ð see the route on the map (change to map display).
A pointer located on the side indicates your position in rela- tion to the route. Geographical information The sub-menu 'Geographical information' presents the
GPS information regarding the position of the vehicle.
YOUR 607 IN DETAIL 91

10-02-2003

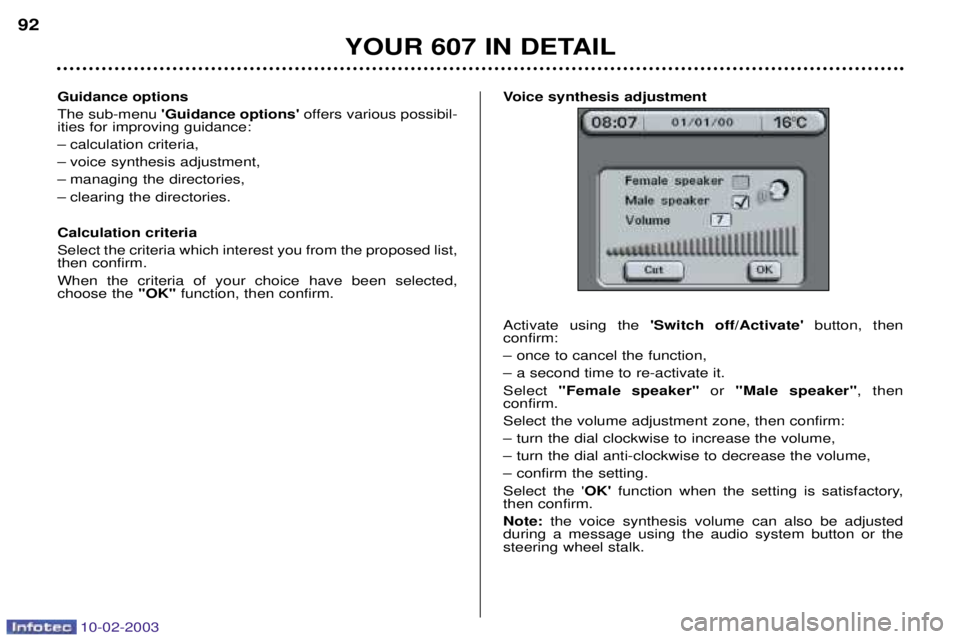

Guidance options The sub-menu 'Guidance options' offers various possibil-
ities for improving guidance:
Ð calculation criteria,
Ð voice synthesis adjustment,
Ð managing the directories,
Ð clearing the directories. Calculation criteria Select the criteria which interest you from the proposed list, then confirm. When the criteria of your choice have been selected, choose the ''OK''function, then confirm. Voice synthesis adjustment Activate using the
'Switch off/Activate' button, then
confirm: Ð once to cancel the function,Ð a second time to re-activate it.Select "Female speaker" or "Male speaker" , then
confirm.Select the volume adjustment zone, then confirm:Ð turn the dial clockwise to increase the volume,Ð turn the dial anti-clockwise to decrease the volume,Ð confirm the setting.Select the ' OK' function when the setting is satisfactory,
then confirm.Note: the voice synthesis volume can also be adjusted
during a message using the audio system button or the steering wheel stalk.
YOUR 607 IN DETAIL
92
