USING ROOF BARS
To use the transverse roof bars, release the four locking levers provi ded for this
purpose.
Slide them in their rails to the appropriate position.
Lock the four locking levers located at the base of the feet of each bar.
Note: when the roof bars are not in use, position them at the rea r stop to avoid
excess consumption.
Use accessories approved by Automobiles PEUGEOT and follow the manufa c
turer's fitting instructions.
Maximum authorised weight on the roof rack 220 lbs. (100 k g)Removal and refitting of the

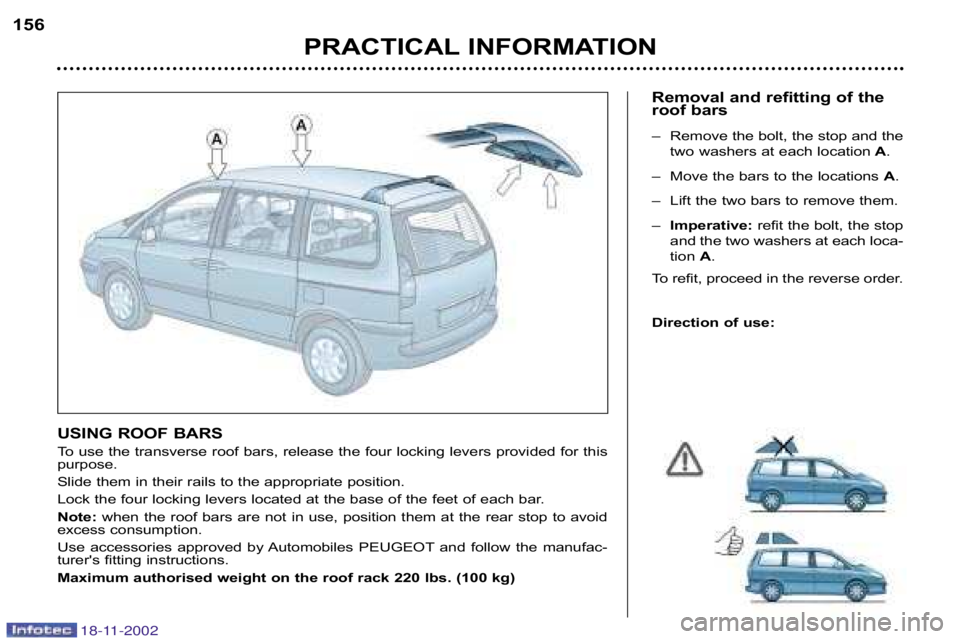

roof bars
– Remove the bolt, the stop and the two washers at each location A.
– Move the bars to the locations A.
– Lift the two bars to remove them.
– Imperative: refit the bolt, the stop
and the two washers at each loca
tion A.
To refit, proceed in the reverse order.
Direction of use:
18-11-2002

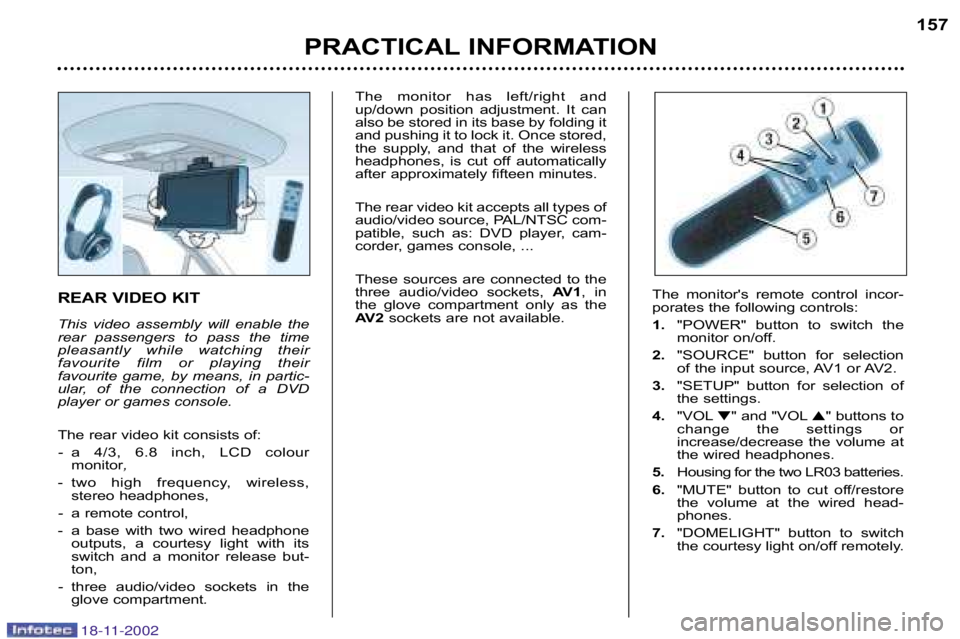

REAR VIDEO KIT
This video assembly will enable the
rear passengers to pass the time
pleasantly while watching their
favourite film or playing their
favourite game, by means, in partic
ular, of the connection of a DVD
player or games console.
The rear video kit consists of: a 4/3, 6.8 inch, LCD colour
monitor ,
two high frequency, wireless, stereo headphones,
a remote control,
a base with two wired headphone outputs, a courtesy light with its
switch and a monitor release but
ton,
three audio/video sockets in the
glove compartment . The monitor's remote control incor
porates the following controls:
1.
"POWER" button to switch the
monitor on/off.
2. "SOURCE" button for selection
of the input source, AV1 or AV2.
3. "SETUP" button for selection of
the settings.
4. "VOL " and "VOL " buttons to
change the settings or
increase/decrease the volume at
the wired headphones.
5. Housing for the two LR03 batteries.
6. "MUTE" button to cut off/restore
the volume at the wired head
phones.
7. "DOMELIGHT" button to switch
the courtesy light on/off remotely.
PRACTICAL INFORMATION 157
The monitor has left/right and
up/down position adjustment. It can
also be stored in its base by folding it
and pushing it to lock it. Once stored,
the supply, and that of the wireless
headphones, is cut off automatically
after approximately fifteen minutes.
The rear video kit accepts all types of
audio/video source, PAL/NTSC com
patible, such as: DVD player, cam
corder, games console, ...
These sources are connected to the
three audio/video sockets, AV 1, in
the glove compartment only as the
AV2 sockets are not available.
18-11-2002

PRACTICAL INFORMATION
158
The various controls are incorporat
ed in the wireless headphones :
AHousing for the two LR03 batter
ies.
B Headphones on/off button.
C Headphones volume adjustment
control.
The get the best out the head
phones, you must adjust their size to
your own size and adjust the volume
by rotating control C.
This video assembly is
intended to be operated
and used by the rear
passengers only.
Note:
the courtesy light can be con
trolled directly by means of its switch
in the on or off position or remotely
by means of the remote control in the
intermediate position.
By pressing buttons 4and 5, you can
adjust the brightness, the contrast,
the colours, ...
For further details, refer to the oper
ating manual "ALPINE video kit".
18-11-2002

18-11-2002
PRACTICAL INFORMATION159

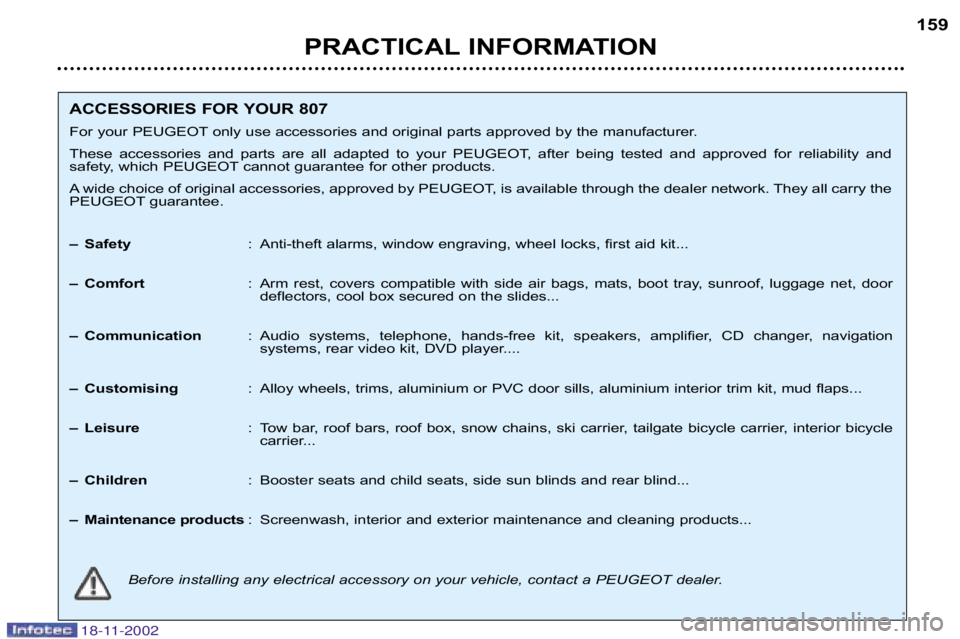

ACCESSORIES FOR YOUR 807
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
Awide choice of original accessories, approved by PEUGEOT, is availab le through the dealer network. They all carry the
PEUGEOT guarantee.
– Safety : Antitheft alarms, window engraving, wheel locks, first aid kit ...
– Comfort : Arm rest, covers compatible with side air bags, mats, boot tray, sun roof, luggage net, door
deflectors, cool box secured on the slides...
– Communication : Audio systems, telephone, handsfree kit, speakers, amplifier, CD changer, navigation
systems, rear video kit, DVD player....
– Customising : Alloy wheels, trims, aluminium or PVC door sills, aluminium interio r trim kit, mud flaps...
– Leisure : Tow bar, roof bars, roof box, snow chains, ski carrier, tailgat e bicycle carrier, interior bicycle
carrier...
– Children : Booster seats and child seats, side sun blinds and rear blind.. .
– Maintenance products : Screenwash, interior and exterior maintenance and cleaning prod ucts...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.

TECHNICAL DATA
160
2 litre 16V 2.2 litre 16V
1997 2230
85 x 88 86 x 96 16 16
100 116
6000 5650
190 217
4100 3900
Unleaded Unleaded Yes Yes
Yes Yes
Manual Automatic Manual
(5speed)(4speed)(5speed)
4.25 4.25
1.9 8 1.85
PETROL ENGINES
MODELS :
Model codes EBRFNC/IF EBRFNF/IF EB3FZC/IF
EARFNC/IF EARFNF/IF EA3FZC/IF
ENGINES
Capacity (cm 3
)
Bore x stroke (mm)
Number of valves
Max. power : EU standard (KW)
Max. torque at engine speed (rpm)
Max. torque : EU standard (Nm)
Max. power at engine speed (rpm)
Fuel
Catalytic converter
Electronic injection
GEARBOX
OIL CAPACITIES (in litres)
Engine (with filter replacement)
Gearbox Final drive
18-11-2002

TECHNICAL DATA161
turbo diesel turbo diesel turbo diesel
2 litre 16V HDI 2 litre 16V HDI 2.2 litre 16V HDI 1997 1997 2179
85 x 88 85 x 88 85 x 96 16 16 16
80 80 79 94
4000 4000 4000
270 270 314
1750 1750 2000
Diesel Diesel Diesel Ye s Ye s Ye sNo Yes Yes
Ye s Ye s Ye s
Manual Manual Automatic Manual
(5speed)(5speed) (4speed) (5speed)
4.75 4.75 4.75
1.85 1.85 8 1.85
DIESEL ENGINES
MODELS :
Model codes EBRHWB EBRHTB EBRHTE EB4HWB
EARHWB EARHTB EARHTE EA4HWB
ENGINES
Capacity (cm 3
)
Bore x stroke (mm)
Number of valves
Max. power : EU standard (KW)
Max. power at engine speed (rpm)
Max. torque : EU standard (Nm)
Max. torque at engine speed (rpm)
Fuel
Catalytic converter
Particulate emission filter (PEF)
Electronic Injection
GEARBOX
OIL CAPACITIES (in litres)
Engine (with filter replacement)
Gearbox Final drive
18-11-2002

TECHNICAL DATA
162
2 litre 16V
Manual 22.9 (12.3) 38.7(7.3) 31.0(9.1) 218
2 litre 16V Automatic 20.6(13.7) 38.7(7.3) 29.4(9.6) 230
2.2 litre 16V Manual 22.4(12.9)36.2(7.8) 29.1(9.7) 231
2 litre 16V turbo diesel HDI Manual 30.7(9.2)47.9(5.9) 40.4(7.0) 186
2 litre turbo diesel HDI Manual 30.1(9.4) 47.9 (5.9) 39.2(7.2) 189
16V PEF
2 litre turbo diesel HDI Automatic
16V PEF
2.2 litreturbo diesel HDI Manual 27.9(10.1)47.9(5.9) 38.2(7.4) 199
16V PEF

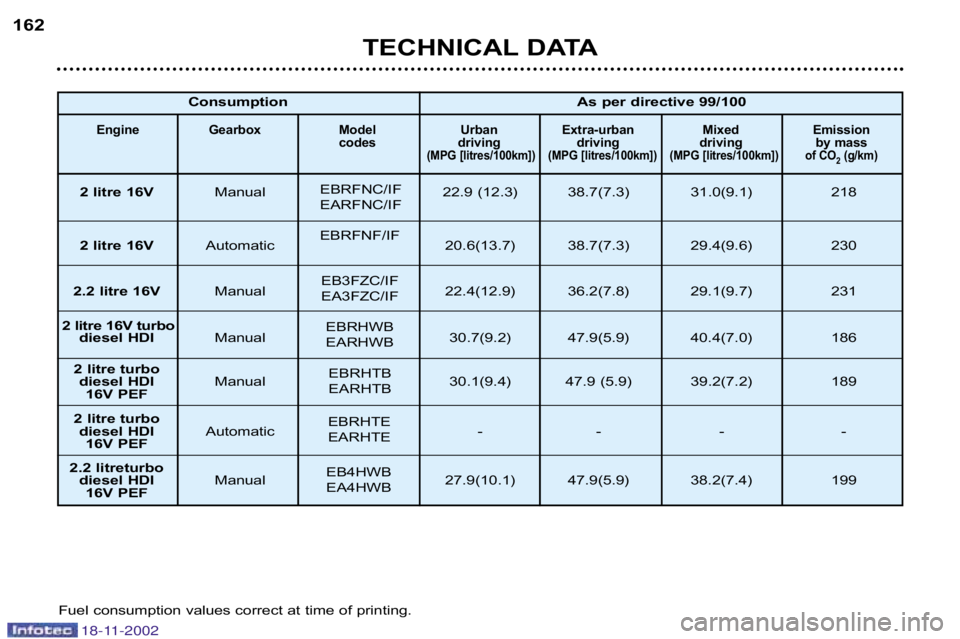

Fuel consumption values correct at time of printing. Consumption
As per directive 99/100
Engine Gearbox Model Urban Extraurban Mixed Emission
codesdriving driving driving by mas s
(MPG [litres/100km]) (MPG [litres/100km]) (MPG [litres/100km]) of CO
2(g/km)
EBRFNF/IF
EB3FZC/IF
EA3FZC/IF EBRHWB
EARHWB
EBRHTB
EARHTB
EBRHTE
EARHTE
EB4HWB
EA4HWB
EBRFNC/IF
EARFNC/IF
18-11-2002

TECHNICAL DATA163

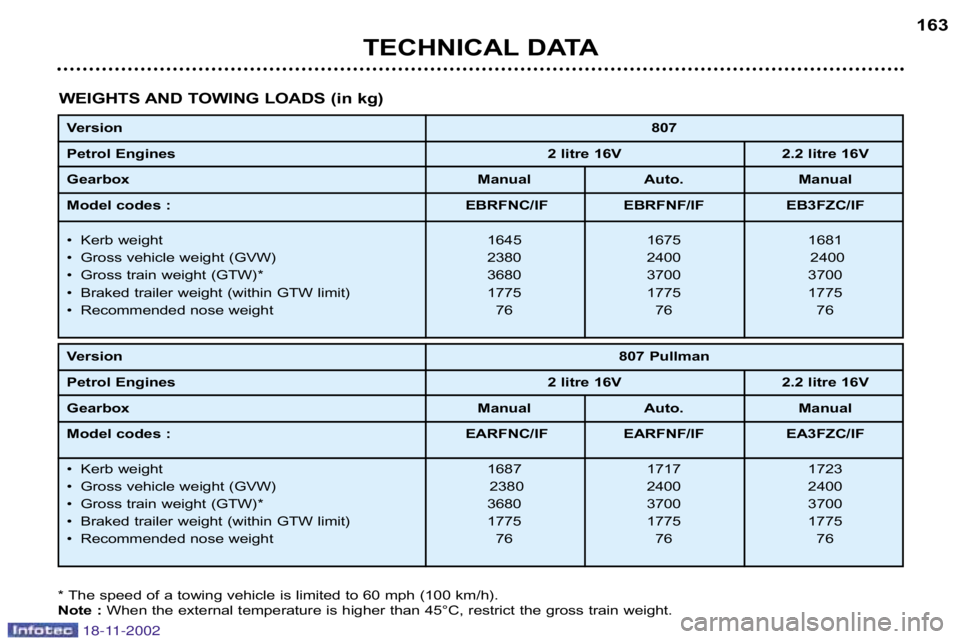

WEIGHTS AND TOWING LOADS (in kg)
Version 807
Petrol Engines2 litre 16V 2.2 litre 16V
Gearbox Manual Auto. Manual
Model codes : EBRFNC/IF EBRFNF/IF EB3FZC/IF
• Kerb weight 1645 1675 1681
• Gross vehicle weight (GVW)2380 2400 2400
• Gross train weight (GTW)* 3680 3700 3700
• Braked trailer weight (within GTW limit) 1775 1775 1775
• Recommended nose weight 76 76 76
Version 807 Pullman
Petrol Engines2 litre 16V 2.2 litre 16V
Gearbox Manual Auto. Manual
Model codes : EARFNC/IF EARFNF/IF EA3FZC/IF
• Kerb weight 1687 1717 1723
• Gross vehicle weight (GVW)2380 2400 2400
• Gross train weight (GTW)* 3680 3700 3700
• Braked trailer weight (within GTW limit) 1775 1775 1775
• Recommended nose weight 76 76 76
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
Note : When the external temperature is higher than 45°C, restrict th e gross train weight.
18-11-2002

TECHNICAL DATA
164

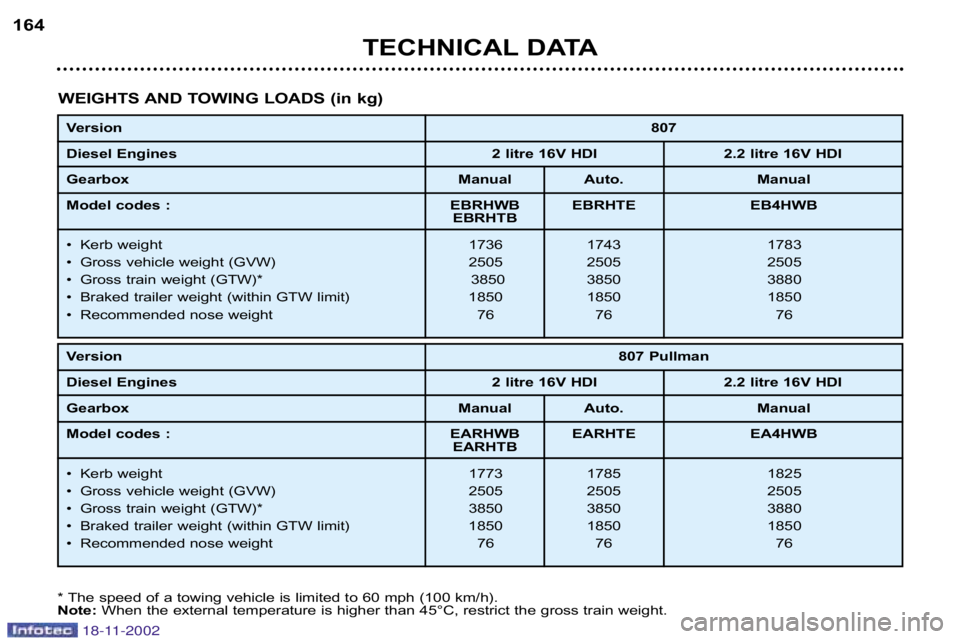

WEIGHTS AND TOWING LOADS (in kg)
Version 807
Diesel Engines 2 litre 16V HDI 2.2 litre 16V HDI
Gearbox Manual Auto. Manual
Model codes : EBRHWB EBRHTE EB4HWB
EBRHTB
• Kerb weight 1736 1743 1783
• Gross vehicle weight (GVW)2505 2505 2505
• Gross train weight (GTW)* 3850 3850 3880
• Braked trailer weight (within GTW limit) 1850 1850 1850
• Recommended nose weight 76 76 76
Version 807 Pullman
Diesel Engines 2 litre 16V HDI 2.2 litre 16V HDI
Gearbox Manual Auto. Manual
Model codes : EARHWB EARHTE EA4HWB
EARHTB
• Kerb weight 1773 1785 1825
• Gross vehicle weight (GVW)2505 2505 2505
• Gross train weight (GTW)* 3850 3850 3880
• Braked trailer weight (within GTW limit) 1850 1850 1850
• Recommended nose weight 76 76 76
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
Note: When the external temperature is higher than 45°C, restrict th e gross train weight.
18-11-2002

TECHNICAL DATA165

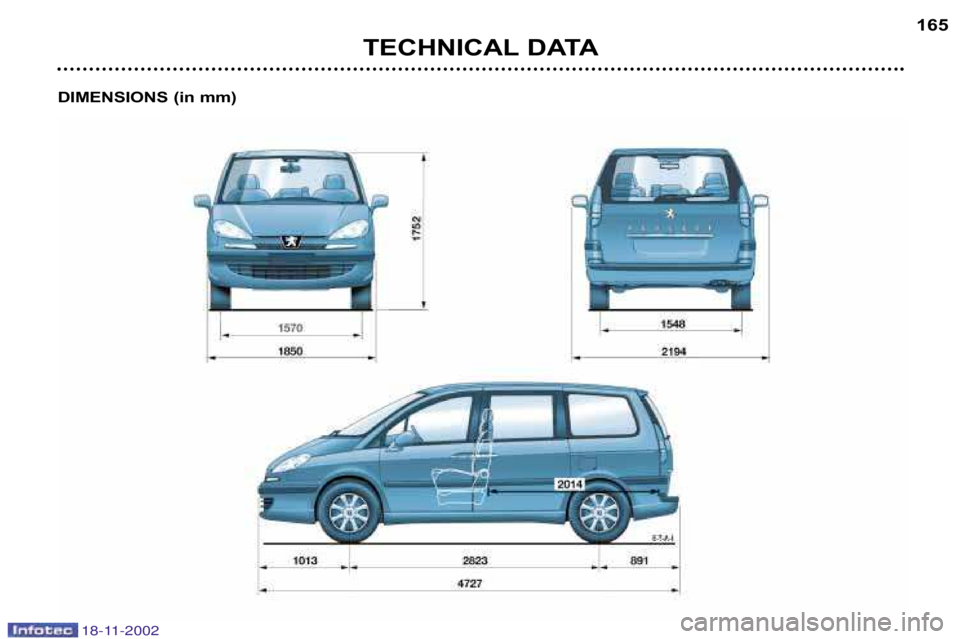

DIMENSIONS (in mm)
18-11-2002
