PEUGEOT 807 2002.5 Owners Manual

YOUR 807 IN DETAIL131
REAR PARKING ASSISTANCE
This system consists of four proximity
sensors, located in the rear bumper,
and a special speaker fitted in the
fascia.
This detects any obstacle (person,
vehicle, tree, gate, pavement etc.)
behind the vehicle.
Note: this function will be disarmed
automatically when the vehicle is
towing a trailer or when a bicycle
carrier is fitted (vehicle fitted with
towing attachment or bicycle carrier
recommended by PEUGEOT).
In wintry weather, ensure that the
sensors are not covered with frost or
snow.
Deactivation  Change to neutral, the system is
again inactive.
Activation
The system is activated as soon as
reverse gear is engaged; an audible
bleep shows that it is active.
The proximity information is given by
an audible signal, which becomes
more rapid as the vehicle approach
es the obstacle.
When the distance between the rear
of the vehicle and the obstacle is
less than approximately twentyfive
centimetres, the audible signal
becomes continuous.
Detection zone
If there is an operating
fault, the audible signal will
be a short bleep followed
by a long bleep when
changing to reverse gear.
18-11-2002

YOUR 807 IN DETAIL
132


: snow programme
P ark: to immobilise the vehicle or start the engine ,
with the handbrake on or off.
R everse: to reverse(select this function with the
vehicle stationary, engine at idle).
N eutral: to start the engine and to park, with the
handbrake on.
Note: if function Nis engaged inadvertently while
driving, allow the engine to return to idle before
engaging function Dto accelerate.
D rive: for drivingin automatic mode.
M anual: for drivingin manual mode.
Moving off
With the engine running, to move off
from position P:
 it is essential to press the
brake pedal to exit position P,
 select function R, D or M, then
gradually release the pressure
on the brake pedal; the vehicle
moves off immediately.
You can also move off from position N:
 release the handbrake, with your
foot on the brake
 select function R, D or M, then
gradually release the pressure
on the brake pedal; the vehicle
moves off immediately.
WARNING
When the engine is at idle, brakes not
applied, if function R, D or M is
selected the vehicle moves even with
out the accelerator being pressed.
For this reason, do not leave
children unsupervised inside the
vehicle, with the engine running .
When maintenance operations need
to be carried out with the engine
running, apply the handbrake and
select position P.
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
The four speed
automatic gearbox offers a choice between the comfort of inte
gral automatic operation , enhanced by a snow programme, or the pleasure of
manual gear changing .
Gear selection gate  Move the lever in the gate to select a function.
Once the function is selected, the corresponding indicator lig ht appears on
the instrument panel display.
If the battery is flat and the lever is in position P, it will be impossible
to change to another position.
18-11-2002

YOUR 807 IN DETAIL133
Automatic operation
Automatic changing of the four
gears:  select function D in the gate.
The gearbox always selects the
most suitable gear according to the
following parameters:
the style of driving,
the road profile,
the vehicle load.
The gearbox is then operating in
autoadaptive mode, without any
action on your part.
WARNING
Never select function N when the
vehicle is moving.
Never select functions Por Runless
the vehicle is stationary.
Never change between functions to
optimise braking on a slippery surface.
Notes
For immediate maximum accelera
tion without touching the gear lever,
press the accelerator pedal down as
far as it will go (kickdown). The gear
box will automatically change down
or maintain the gear selected until
maximum engine speed is reached.
When braking, the gearbox will auto
matically change down in order to
provide efficient engine braking. If you take your foot off the accelera
tor suddenly, the gearbox will not
change to a higher gear for reasons
of safety.
Snow programme
In addition to the autoadaptive pro
gramme, there is a special pro
gramme.
The programme is displayed on the
instrument panel screen.
The Snow programme improves
starting and drive when traction is
poor.
Press button

once the vehicle
has been started and function D
selected.
The gearbox adapts to driving on
slippery roads.
Note: you can return to the auto
adaptive programme at any time.  Press button

again to switch
off the programme you are in.
Manual operation
Manual changing of the four gears:
 select function M in the gate,
 push the lever to the + sign to
change to a higher gear,
pull the lever to the – sign to
change to a lower gear.
You can change from position D (dri
ving in automatic mode) to position
M (driving in manual mode) at any
time.
Note
It is only possible to change from one
gear to another if the vehicle speed
and engine speed permit. If they do
not, the vehicle will operate tem
porarily in automatic mode.
When the vehicle is stationary or
moving very slowly, the gearbox
automatically selects gear M1.
The

(snow) programme does not
operate in manual mode.
Operating abnormality
Any operating abnormality is indicated
by an audible signal, accompanied by
the message "Automatic gearbox
faulty" on the multifunction display
and flashing of the Snow warning
light on the instrument panel.
In this situation the gearbox operates
in downgrade mode (locked in 3rd
gear). You may feel a substantial
knock when changing from Pto R
and from N to R (this will not cause
any damage to the gearbox).
Do not exceed 60 mph (100 km/h),
keeping within the limit of local
speed restrictions.
Contact a PEUGEOT dealer as soon
as possible.
18-11-2002

YOUR 807 IN DETAIL
134
MANUAL GEARBOX
Reverse
*
To change to reverse gear, lift the
ring under the gear lever knob and
push the gear lever to the left then to
the front.
Reverse gear can only be
engaged when the vehicle is sta
tionary with the engine idling.
* According to engine. AIR BAGS
The air bags have been designed to
maximise the safety of the occu
pants in the event of serious colli
sions. They work in conjunction with
the forcelimiting seat belts. The
electronic detectors register and
analyse any abrupt deceleration of
the vehicle : if the triggering thresh
old is reached, the air bags inflate
instantly and protect the occupants
of the vehicle.
Immediately after the impact, the air
bags deflate rapidly so that they do
not hinder the visibility of the occu
pants nor their exit if necessary from
the vehicle.
The air bags are not deployed in the
case of collisions which are not seri
ous, for which the seat belt is suffi
cient to ensure maximum protection.
The seriousness of a collision
depends on the nature of the obsta
cle and the speed of the vehicle at
the moment of the collision.

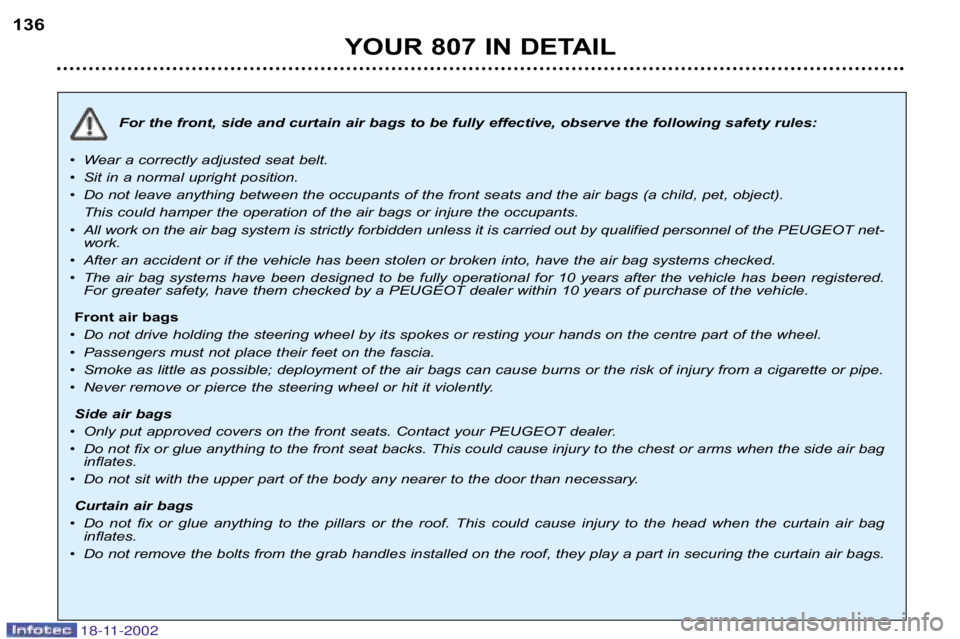

Air bags only operate when the
ignition is switched on.
Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS
These are folded in the centre of the
steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,
except in cases where the passen
ger air bag is disarmed.
Front air bag fault
If this warning light comeson, accompanied by an
audible signal and the mes
sage "Air bag fault" on the
multi–function display, con
tact a PEUGEOT dealer to
have the system checked.
18-11-2002

YOUR 807 IN DETAIL
134
MANUAL GEARBOX
Reverse
*
To change to reverse gear, lift the
ring under the gear lever knob and
push the gear lever to the left then to
the front.
Reverse gear can only be
engaged when the vehicle is sta
tionary with the engine idling.
* According to engine. AIR BAGS
The air bags have been designed to
maximise the safety of the occu
pants in the event of serious colli
sions. They work in conjunction with
the forcelimiting seat belts. The
electronic detectors register and
analyse any abrupt deceleration of
the vehicle : if the triggering thresh
old is reached, the air bags inflate
instantly and protect the occupants
of the vehicle.
Immediately after the impact, the air
bags deflate rapidly so that they do
not hinder the visibility of the occu
pants nor their exit if necessary from
the vehicle.
The air bags are not deployed in the
case of collisions which are not seri
ous, for which the seat belt is suffi
cient to ensure maximum protection.
The seriousness of a collision
depends on the nature of the obsta
cle and the speed of the vehicle at
the moment of the collision.
Air bags only operate when the
ignition is switched on.
Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS
These are folded in the centre of the
steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,
except in cases where the passen
ger air bag is disarmed.
Front air bag fault
If this warning light comeson, accompanied by an
audible signal and the mes
sage "Air bag fault" on the
multi–function display, con
tact a PEUGEOT dealer to
have the system checked.
18-11-2002

YOUR 807 IN DETAIL135
Disarming the passenger
air bag*
To ensure the safety of your child,
it is essential to disarm the pas
senger air bag when you install a
rearfacing child seat on the front
passenger seat.
With the ignition switched off,
insert the key into the passenger
air bag disarming switch 1, turn it
to the "OFF" position, then
remove the key keeping the slot
in this position.
The air bag warning light on the
instrument panel is lit throughout the
disarming process. In the
"OFF" position, the passenger
air bag will not be triggered in the
event of an impact.
As soon as the child seat is
removed, turn the air bag slot to the
"ON" position to reactivate the air
bag and thus ensure the safety of
your passenger in the event of an
impact.
Operating check
This is confirmed by an indicator
light, accompanied by an audible
signal and a message on the multi
function display.
With the ignition on (2nd
notch), illumination of this
warning light accompanied
by an audible signal and the
message "Passenger air
bag disarmed" on the
multifunction display, indicates that
the passenger air bag is disarmed
(switch in the "OFF" position). SIDE AIR BAGS AND
CURTAIN AIR BAGS
The side air bags are incorporated
into the front seat backs on the door
side.
The curtain air bags are incorporated
into the door pillars and the upper
part of the passenger compartment.
They are deployed independently of
each other depending on which side
the collision occurs.
Operating check
This is confirmed by an indi
cator light, accompanied by
an audible signal and a
message on the multi–func
tion display.
If this indicator light comes on,
accompanied by an audible signal
and the message "Air bag fault" on
the multi–function display, contact a
PEUGEOT dealer to have the sys
tem checked.
* According to destination. If
the two "Air bag fault" and "Passenger air bag disarmed" warning
lights come on permanently, do not install a rearward facing child seat
and consult a PEUGEOT dealer.
18-11-2002

18-11-2002
YOUR 807 IN DETAIL
136
For the front, side and curtain air bags to be fully effec tive, observe the following safety rules:
• W ear a correctly adjusted seat belt.
• Sit in a normal upright position.
• Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object).
This could hamper the operation of the air bags or injure th e occupants.
• All work on the air bag system is strictly forbidden unless it is ca rried out by qualified personnel of the PEUGEOT net
work.
• After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
• The air bag systems have been designed to be fully operation al for 10 years after the vehicle has been registered.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags
• Do not drive holding the steering wheel by its spokes or resti ng your hands on the centre part of the wheel.
• Passengers must not place their feet on the fascia.
• Smoke as little as possible; deployment of the air bags can cau se burns or the risk of injury from a cigarette or pipe.
• Never remove or pierce the steering wheel or hit it violently.
Side air bags
• Only put approved covers on the front seats. Contact your PEUGEOT dealer.
• Do not fix or glue anything to the front seat backs. This co uld cause injury to the chest or arms when the side air bag
inflates.
• Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags
• Do not fix or glue anything to the pillars or the roof. T his could cause injury to the head when the curtain air bag
inflates.
• Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.

YOUR 807 IN DETAIL135
Disarming the passenger
air bag*
To ensure the safety of your child,
it is essential to disarm the pas
senger air bag when you install a
rearfacing child seat on the front
passenger seat.
With the ignition switched off,
insert the key into the passenger
air bag disarming switch 1, turn it
to the "OFF" position, then
remove the key keeping the slot
in this position.
The air bag warning light on the
instrument panel is lit throughout the
disarming process. In the
"OFF" position, the passenger
air bag will not be triggered in the
event of an impact.
As soon as the child seat is
removed, turn the air bag slot to the
"ON" position to reactivate the air
bag and thus ensure the safety of
your passenger in the event of an
impact.
Operating check
This is confirmed by an indicator
light, accompanied by an audible
signal and a message on the multi
function display.
With the ignition on (2nd
notch), illumination of this
warning light accompanied
by an audible signal and the
message "Passenger air
bag disarmed" on the
multifunction display, indicates that
the passenger air bag is disarmed
(switch in the "OFF" position). SIDE AIR BAGS AND
CURTAIN AIR BAGS
The side air bags are incorporated
into the front seat backs on the door
side.
The curtain air bags are incorporated
into the door pillars and the upper
part of the passenger compartment.
They are deployed independently of
each other depending on which side
the collision occurs.
Operating check
This is confirmed by an indi
cator light, accompanied by
an audible signal and a
message on the multi–func
tion display.
If this indicator light comes on,
accompanied by an audible signal
and the message "Air bag fault" on
the multi–function display, contact a
PEUGEOT dealer to have the sys
tem checked.
* According to destination. If
the two "Air bag fault" and "Passenger air bag disarmed" warning
lights come on permanently, do not install a rearward facing child seat
and consult a PEUGEOT dealer.
18-11-2002

18-11-2002
YOUR 807 IN DETAIL
136
For the front, side and curtain air bags to be fully effec tive, observe the following safety rules:
• W ear a correctly adjusted seat belt.
• Sit in a normal upright position.
• Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object).
This could hamper the operation of the air bags or injure th e occupants.
• All work on the air bag system is strictly forbidden unless it is ca rried out by qualified personnel of the PEUGEOT net
work.
• After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
• The air bag systems have been designed to be fully operation al for 10 years after the vehicle has been registered.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags
• Do not drive holding the steering wheel by its spokes or resti ng your hands on the centre part of the wheel.
• Passengers must not place their feet on the fascia.
• Smoke as little as possible; deployment of the air bags can cau se burns or the risk of injury from a cigarette or pipe.
• Never remove or pierce the steering wheel or hit it violently.
Side air bags
• Only put approved covers on the front seats. Contact your PEUGEOT dealer.
• Do not fix or glue anything to the front seat backs. This co uld cause injury to the chest or arms when the side air bag
inflates.
• Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags
• Do not fix or glue anything to the pillars or the roof. T his could cause injury to the head when the curtain air bag
inflates.
• Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.

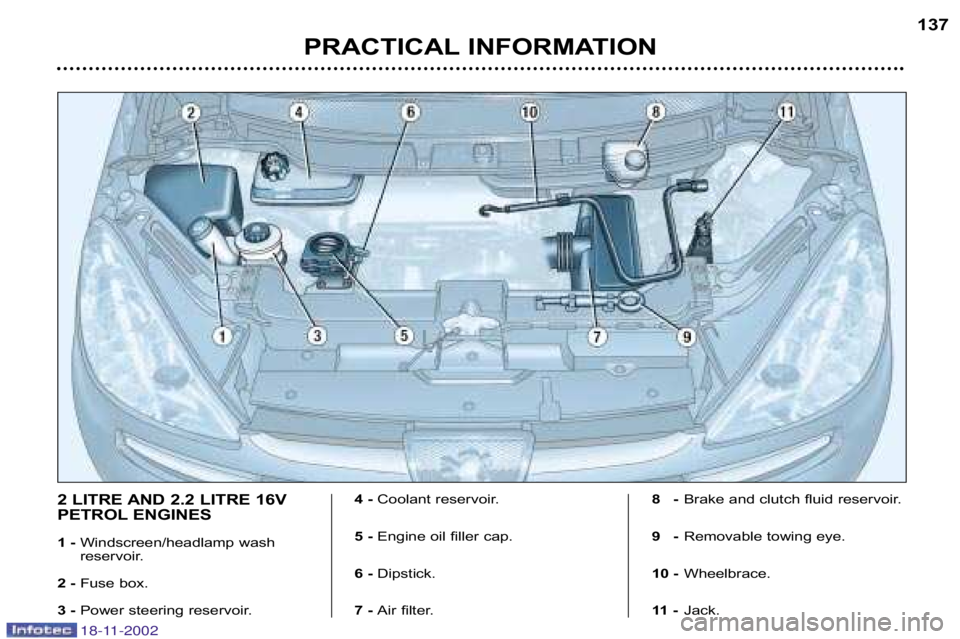

2 LITRE AND 2.2 LITRE 16V
PETROL ENGINES
1 Windscreen/headlamp wash
reservoir.
2 Fuse box.
3 Power steering reservoir. 4
Coolant reservoir.
5 Engine oil filler cap.
6 Dipstick.
7 Air filter. 8
Brake and clutch fluid reservoir.
9 Removable towing eye.
10 Wheelbrace.
11 Jack.
PRACTICAL INFORMATION
137
18-11-2002
