131
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning,
C l u t c h s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p ,
Electrochromatic interior mirror.
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer,
A u d i o / t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n
control unit, Sliding doors module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it,
Parking assistance control unit, Sliding side door buttons, Hand s-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs,
Odometer warning lights unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Page 132 of 257
132
Changing a fuse
BATTERY COMPARTMENT
FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath the
fl o o r i n f r o n t o f t h e s e a t o n t h e r i g h t -
hand side:
- unclip the cover.
Carefully close the cover when you
h a v e fi n i s h e d .
Page 133 of 257
133
TROUBLESHOOTING
7
Changing a fuse

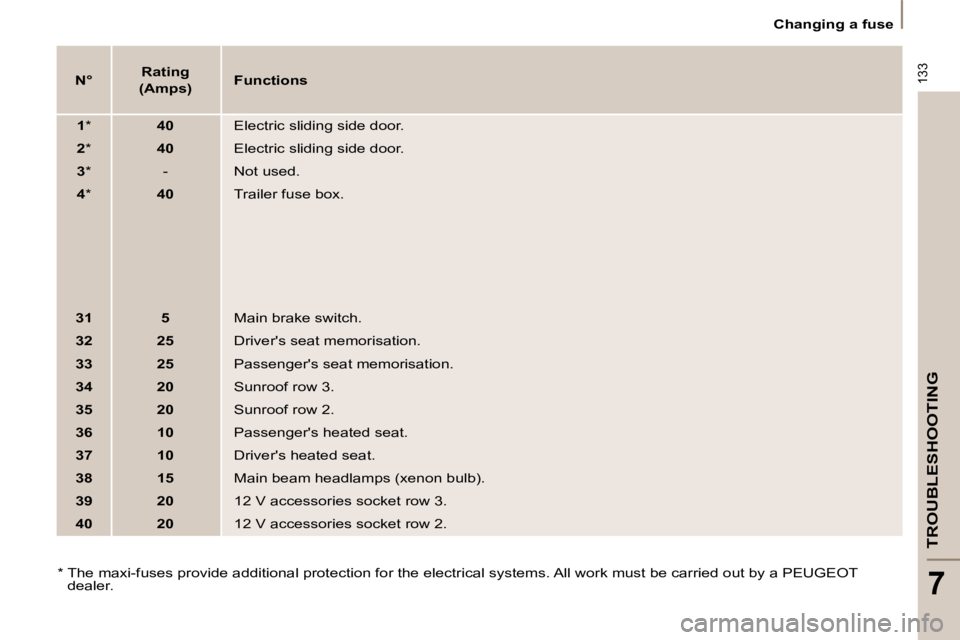

N°
Rating
(Amps)
Functions
1 * 40 Electric sliding side door.
2 * 40 Electric sliding side door.
3 * - Not used.
4 * 40 T r a i l e r f u s e b o x .
31 5 Main brake switch.
32 25 Driver's seat memorisation.
33 25 Passenger's seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2.
36 10 Passenger's heated seat.
37 10 Driver's heated seat.
38 15 M a i n b e a m h e a d l a m p s ( x e n o n b u l b ) .
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k m u s t b e c a r r i e d o u t b y a P E U G E O T
dealer .
Page 134 of 257
134
Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of the
coolant reservoir):
- unclip the cover.
ENGINE COMPARTMENT
FUSES The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
t h e g l o v e b o x b e h i n d t h e i n s t r u m e n t
p a n e l f u s e b o x , o n t h e r i g h t - h a n d s i d e .
For any other work, visit a PEUGEOT
dealer .
Carefully close the cover when you
h a v e fi n i s h e d .
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer .
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.
Page 135 of 257
135
TROUBLESHOOTING
7
Changing a fuse

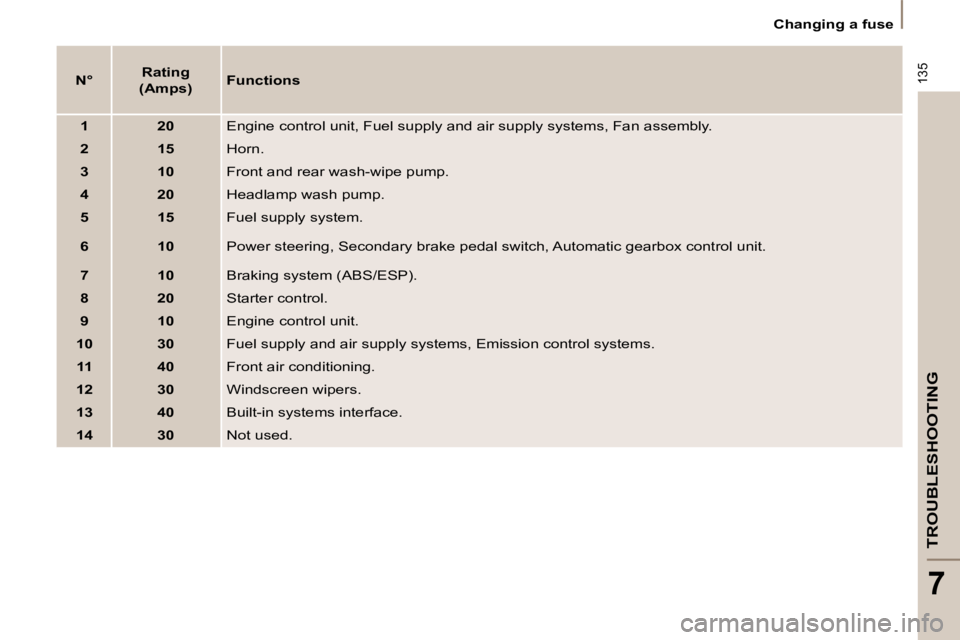

N°
Rating
(Amps)
Functions
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h , A u t o m a t i c g e a r b o x c o n t r o l u n i t .
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Engine control unit.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 30 Not used.
Page 136 of 257
136
Changing a wiper blade
CHANGING A WINDSCREEN
WIPER BLADE
- Reconnect the windscreen-wash pipe and push back the wiper arm.
To return the windscreen wipers
to their normal position, switch on
the ignition and operate the wipers
stalk.
Placing the wiper blades in the
special position
- Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(special position).

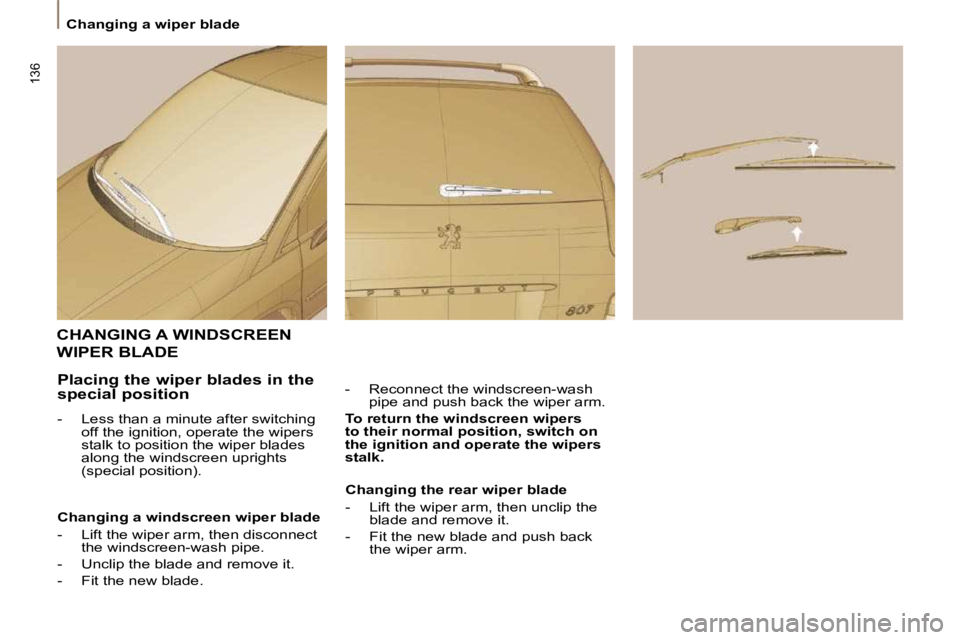

Changing a windscreen wiper blade
- Lift the wiper arm, then disconnect the windscreen-wash pipe.
- Unclip the blade and remove it.
- Fit the new blade. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
Page 137 of 257
137
TROUBLESHOOTING
7
Having your vehicle towed
From the rear

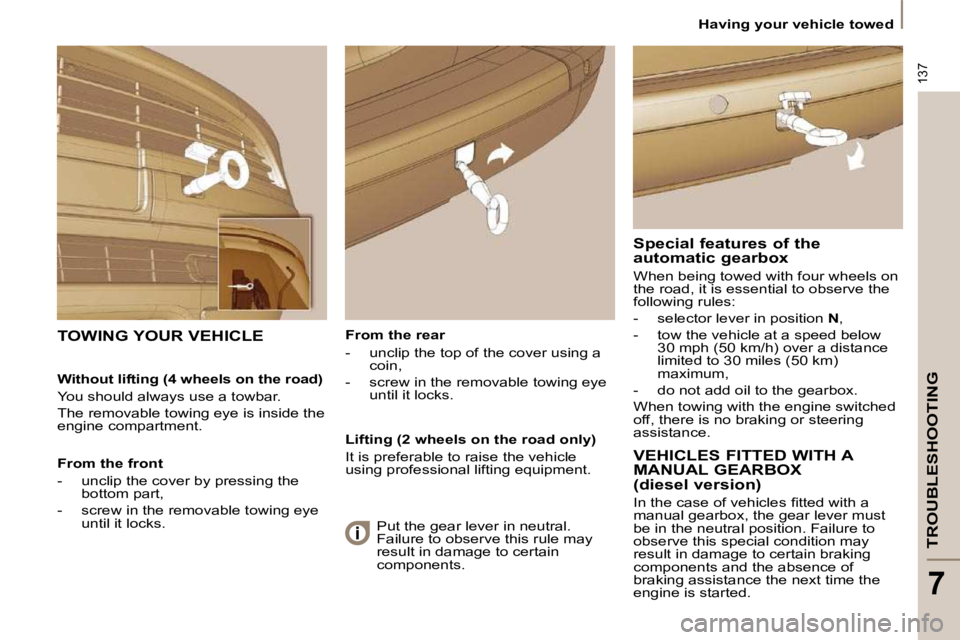

- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of the
automatic gearbox
When being towed with four wheels on
the road, it is essential to observe the
following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
m a x i m u m ,
- d o n o t a d d o i l t o t h e g e a r b o x .
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting (4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH A
MANUAL GEARBOX
(diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
b r a k i n g a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.
Page 138 of 257
Petrol and Diesel technical data
138

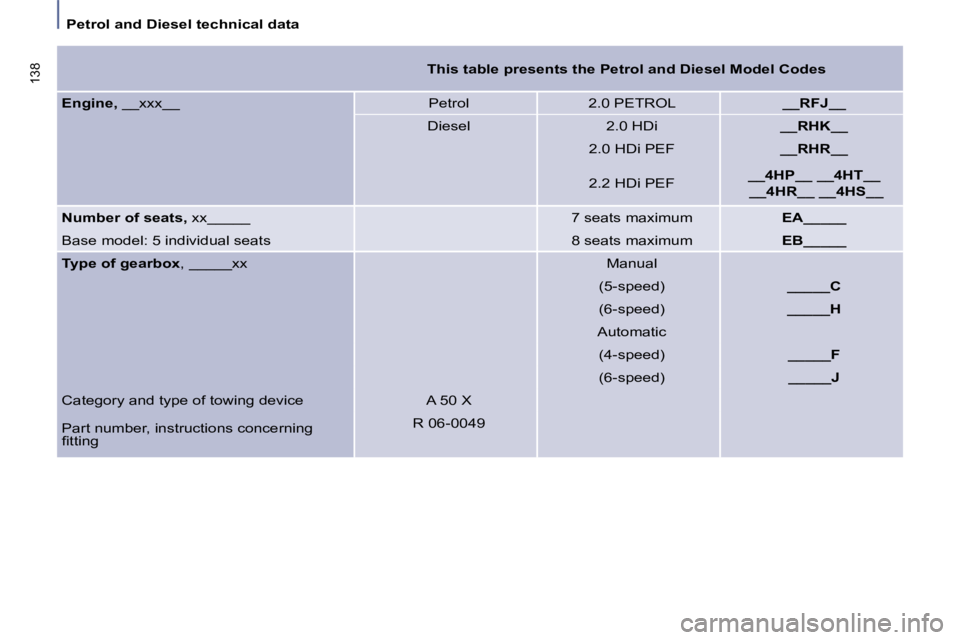

This table presents the Petrol and Diesel Model Codes
Engine, __xxx__ Petrol 2.0 PETROL __RFJ__
Diesel 2.0 HDi __RHK__
2.0 HDi PEF __RHR__
2.2 HDi PEF
__4HP__
__4HT__
__4HR__
__4HS__
Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____
Type of gearbox , _____xx Manual
(5-speed) _____C
(6-speed) _____H
Automatic
(4-speed) _____F
(6-speed) _____J
Category and type of towing device A 50 X
Part number, instructions concerning
fi t t i n g R 06-0049
Page 139 of 257
139
Petrol and Diesel technical data
TECHNICAL DATA
8

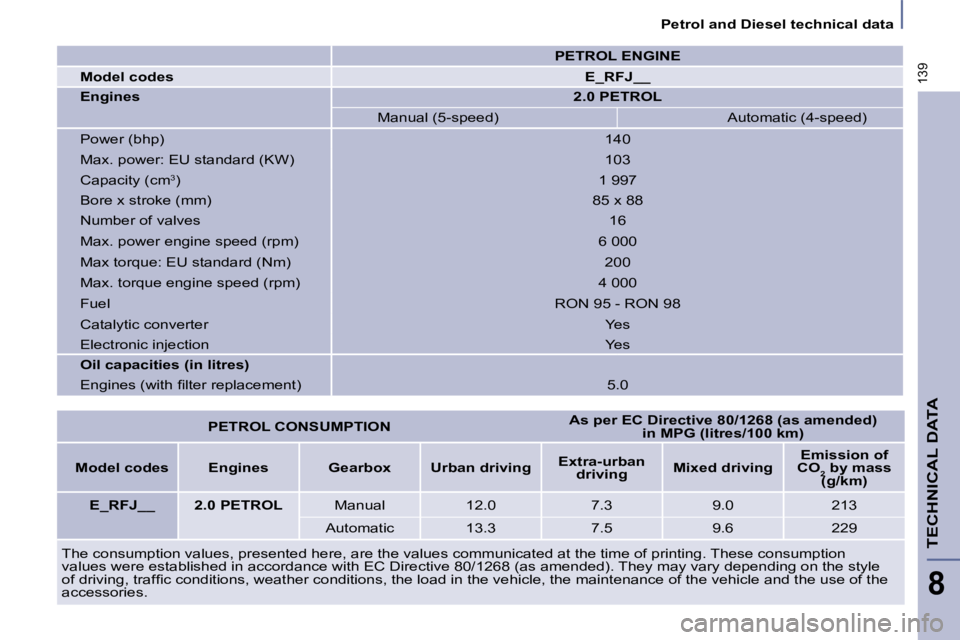

PETROL ENGINE
Model codes
E_RFJ__
Engines 2.0 PETROL
Manual (5-speed) Automatic (4-speed)
Power (bhp) 140
Max. power: EU standard (KW) 103
Capacity (cm 3
) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 200
Max. torque engine speed (rpm) 4 000
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes
Oil capacities (in litres)
E n g i n e s ( w i t h fi l t e r r e p l a c e m e n t ) 5.0
PETROL CONSUMPTION
As per EC Directive 80/1268 (as amended)
in MPG (litres/100 km)
Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission of
CO 2 by mass
(g/km)
E_RFJ__ 2.0 PETROL Manual 12.0 7.3 9.0 213
Automatic 13.3 7.5 9.6 229
The consumption values, presented here, are the values communica ted at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e
accessories.
Page 140 of 257
Petrol and Diesel technical data
138
This table presents the Petrol and Diesel Model Codes
Engine, __xxx__ Petrol 2.0 PETROL __RFJ__
Diesel 2.0 HDi __RHK__
2.0 HDi PEF __RHR__
2.2 HDi PEF
__4HP__
__4HT__
__4HR__
__4HS__
Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____
Type of gearbox , _____xx Manual
(5-speed) _____C
(6-speed) _____H
Automatic
(4-speed) _____F
(6-speed) _____J
Category and type of towing device A 50 X
Part number, instructions concerning
fi t t i n g R 06-0049
