PEUGEOT 807 2009 Owners Manual

66
88
77
55
11
22
33
44
03
9.11
Press the dial to confi rm the selection.
ADJUST SPEECH SYNTHESIS
DEACTIVATE
OK
Select the ADJUST SPEECH SYNTHESIS function and press the dial to confi rm.
Press the dial then adjust the volume of the speech synthesis or select the DEACTIVATE function and press the dial to confi rm.
Select OK and press the dial to confi rm.
GUIDANCE SPEECH SYNTHESIS
During the announcements, the volume of each speech synthesis function (guidance, traffi c information...) can be adjusted directly by means of the volume button.
GPS
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the GUIDANCE OPTIONS function.
GUIDANCE OPTIONS

9.12
03
11
22
33
44
55
66
77
44
GPS
Press the MENU button.
Turn the dial and select the MAP function.
Press the dial to confi rm the selection.
Turn the dial and select the MAP DETAILS function. Permits selection of the services which can be seen on the map (hotels, restaurants, hazardous areas...).

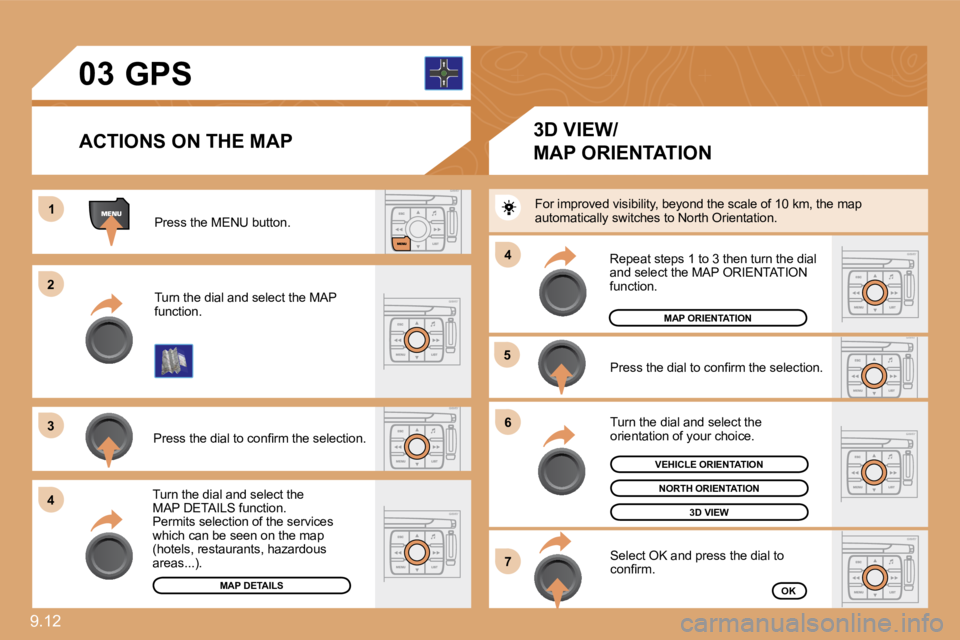

ACTIONS ON THE MAP
MAP DETAILS
Press the dial to confi rm the selection.
Turn the dial and select the orientation of your choice.
Select OK and press the dial to confi rm.
Repeat steps 1 to 3 then turn the dial and select the MAP ORIENTATION function.
3D VIEW/
MAP ORIENTATION
MAP ORIENTATION
3D VIEW
OK
NORTH ORIENTATION
VEHICLE ORIENTATION
For improved visibility, beyond the scale of 10 km, the map automatically switches to North Orientation.

11
22
33
44
55
66
77
03
Press the MENU button.
Press the dial to confi rm the selection.
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to confi rm.
Press the dial to confi rm the selection.
Turn the dial and select the DISPLAY MAP function.

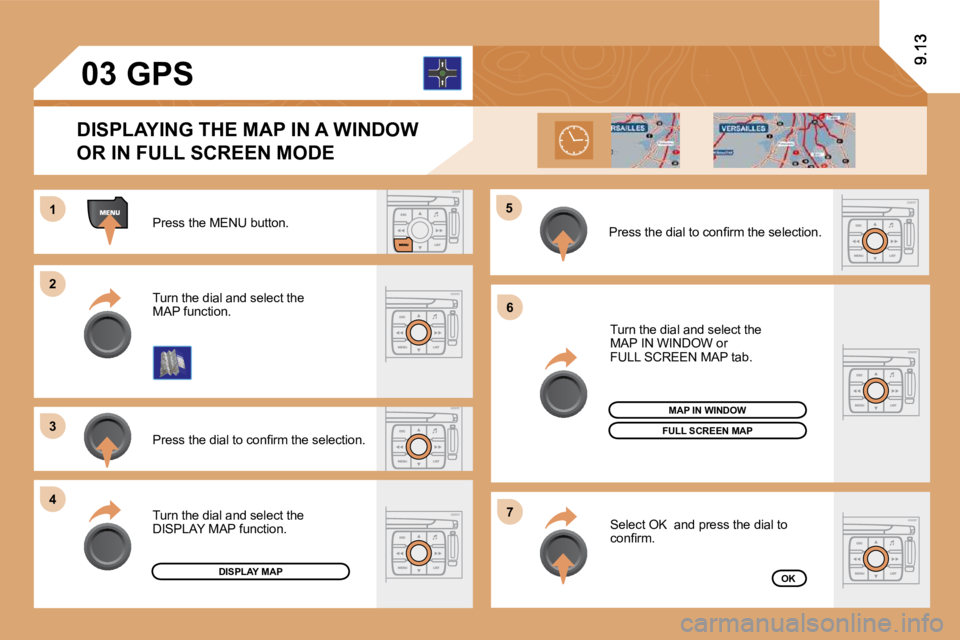

DISPLAYING THE MAP IN A WINDOW
OR IN FULL SCREEN MODE
GPS
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW

9.14
03

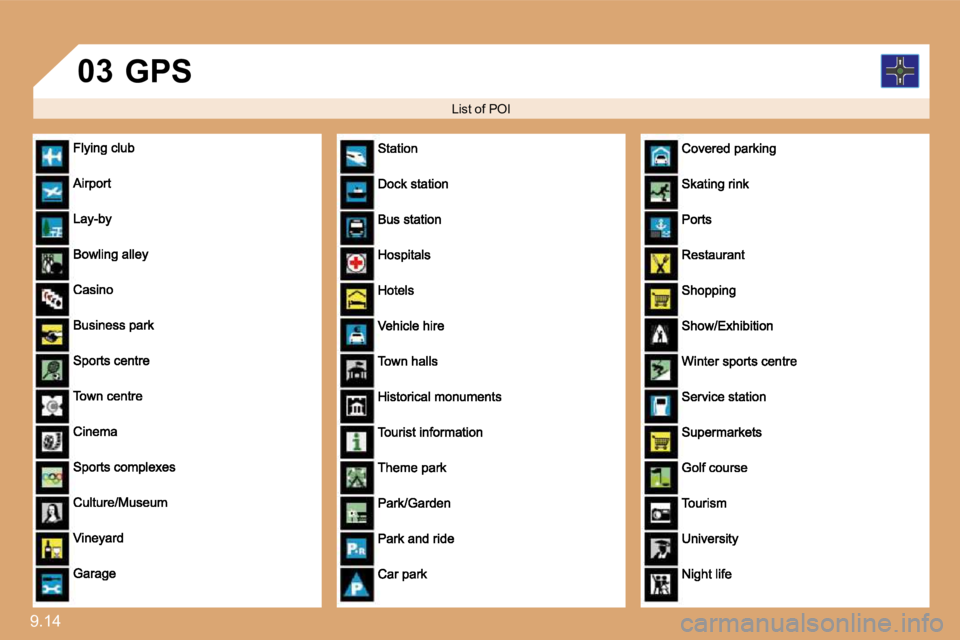

List of POI
GPS

11
22
33
44
55
99
88
77
66
03
9.15

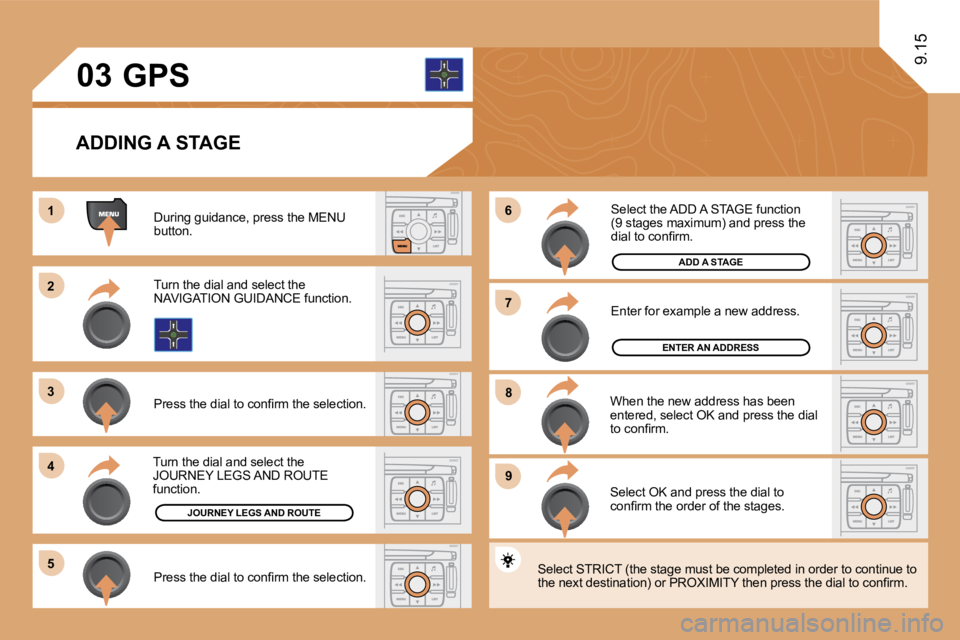

ADDING A STAGE
During guidance, press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the JOURNEY LEGS AND ROUTE function.
JOURNEY LEGS AND ROUTE
Select OK and press the dial to confi rm the order of the stages.
When the new address has been entered, select OK and press the dial to confi rm.
Enter for example a new address.
Select the ADD A STAGE function (9 stages maximum) and press the dial to confi rm.
Press the dial to confi rm the selection. Select STRICT (the stage must be completed in order to continue to the next destination) or PROXIMITY then press the dial to confi rm.
ENTER AN ADDRESS
ADD A STAGE
GPS

9.16
55
66
77
88
11
22
33
44
04

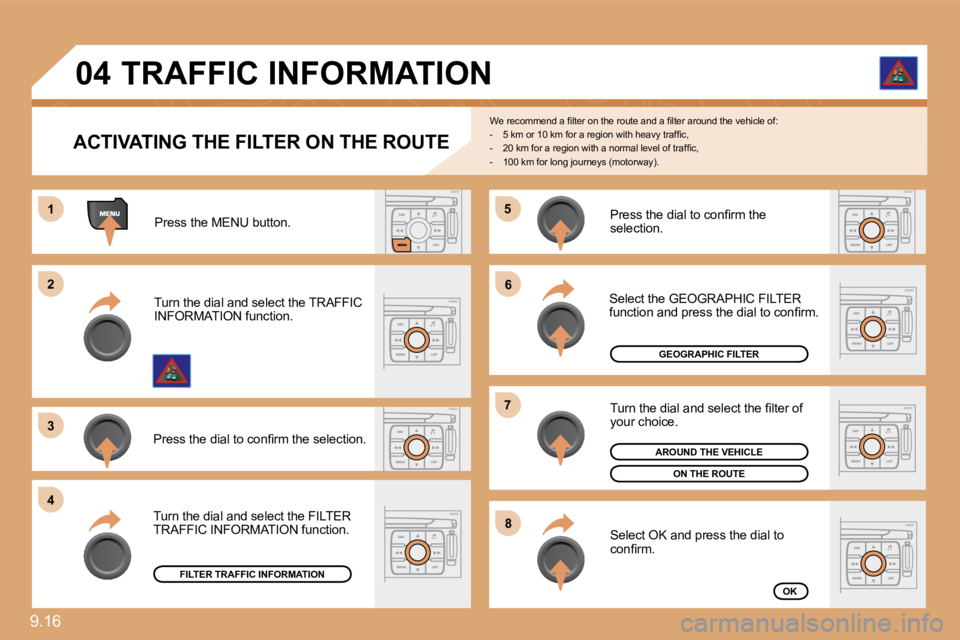

ACTIVATING THE FILTER ON THE ROUTE
We recommend a fi lter on the route and a fi lter around the vehicle of: - 5 km or 10 km for a region with heavy traffi c, - 20 km for a region with a normal level of traf fi c, - 100 km for long journeys (motorway).
Press the MENU button.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to confi rm the selection.
FILTER TRAFFIC INFORMATION
Turn the dial and select the FILTER TRAFFIC INFORMATION function.
TRAFFIC INFORMATION
Press the dial to confi rm the selection.
Select the GEOGRAPHIC FILTER function and press the dial to confi rm.
Turn the dial and select the fi lter of your choice.
Select OK and press the dial to confi rm.
GEOGRAPHIC FILTER
AROUND THE VEHICLE
ON THE ROUTE
OK

11
22
33
44
66
55
77
04
9.17
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK

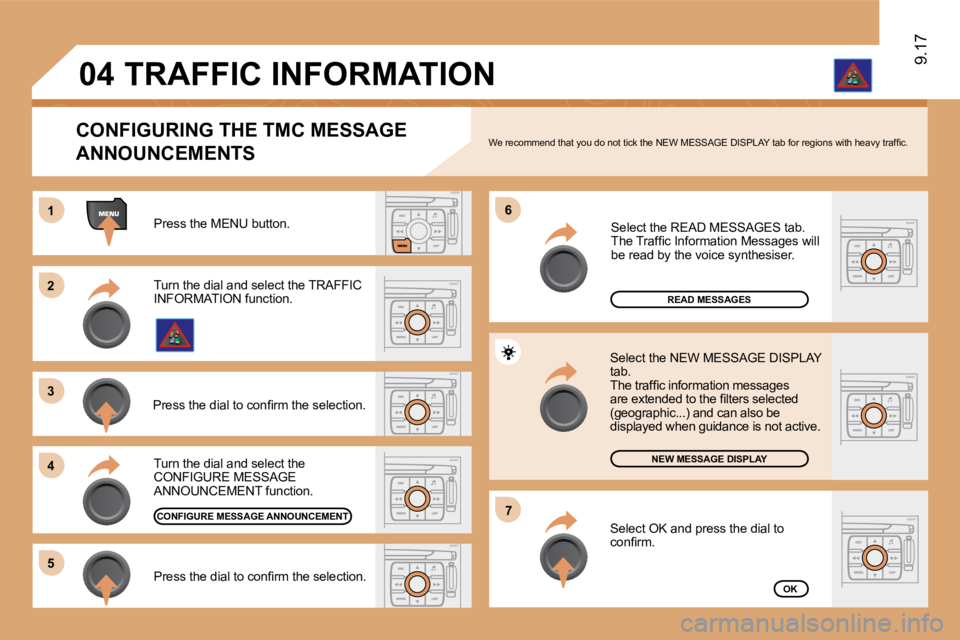

CONFIGURING THE TMC MESSAGE
ANNOUNCEMENTS We recommend that you do not tick the NEW MESSAGE DISPLAY tab for regions with heavy traffi c.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Turn the dial and select the CONFIGURE MESSAGE ANNOUNCEMENT function.
Select the READ MESSAGES tab. The Traffi c Information Messages will be read by the voice synthesiser.
Select the NEW MESSAGE DISPLAY tab. The traffi c information messages are extended to the fi lters selected (geographic...) and can also be displayed when guidance is not active.
CONFIGURE MESSAGE ANNOUNCEMENT
TRAFFIC INFORMATION
Select OK and press the dial to confi rm.

9.18
11
22
33
1
22
33
44
05
44
55
AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and select the RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally (60 maximum). To update this list, press for more than two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM BAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue lis tening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
FM BAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)

1
22
05
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player. Insert an audio CD or an MP3 compilation in the pl ayer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation m ay depend on the recording programme and/or the parameter settin gs used. We recommend use of the ISO 9660 recording standard .
PLAYING A CD
OR AN MP3 COMPILATION
CD
AUDIO/VIDEO
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded CDR/DVDR or CDRW/DVDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les wit h the extension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z. No other type of fi le (.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without using special characters (e.g.: " ? ; ù) to avoid any pla ying or displaying problems.
MP3 CD
9.19

9.20
22
33
11
55
66
44
COPY CD TO JUKEBOX
COMPLETE CD
STOP COPY
OK
Select COPY CD TO JUKEBOX and press the dial to confi rm.
Select COMPLETE CD to copy the entire CD and press the dial to confi rm.
To stop the copy, repeat points 2 and 3. Select STOP COPY and press the dial to confi rm.
The AUTO CREATION tab automatically copies the CD by default into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disc. Copying may take up to 20 minutes depending on the duration of the C D. During this copying phase, it is not possible to listen to the albums previously recorded on the hard disc or the CDs.
Select the letters one by one and select OK to confi rm.
If it is not an MP3 CD, the Jukebox automatically compresses the CD in MP3 format. The compression may take appr oximately 20 minutes depending on the duration of the CD. During this compression phase, it is possible to listen to the CD or to albums previously recorded on the hard disc.
A long press on the SOURCE button starts the copyi ng of the CD.
It is not possible to copy fi les from the Jukebox to a CD. The STOP THE CD COPY action does not delete the fi les which have already been transferred onto the jukebox hard disc.
Select AUDIO FUNCTIONS then select CD and press the dial to confi rm.
Insert an audio CD or an MP3 compilation and press the MENU button.

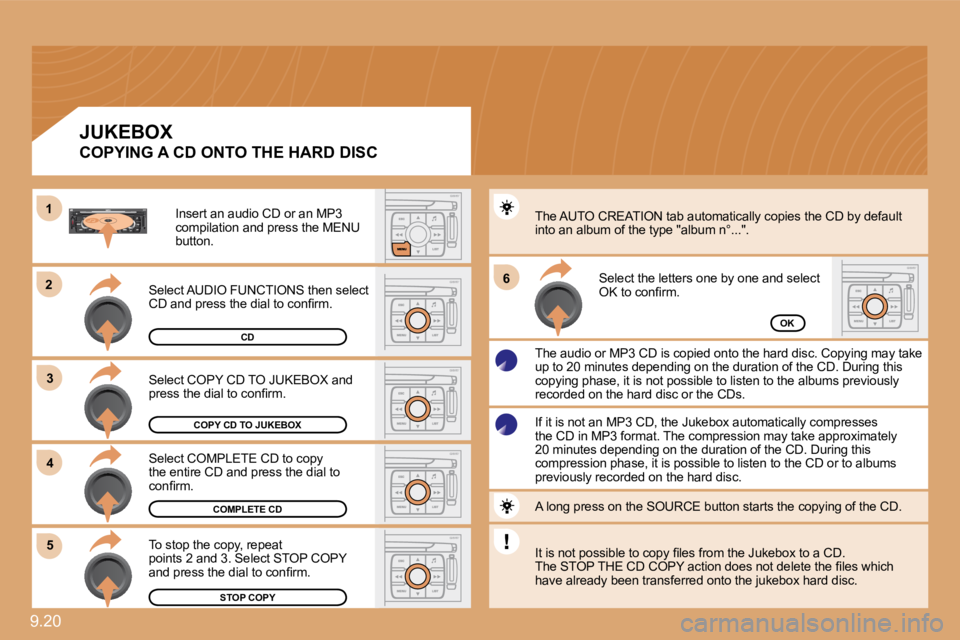

JUKEBOX
COPYING A CD ONTO THE HARD DISC
CD
