45
2
Dimensions
TECHNICAL DATA

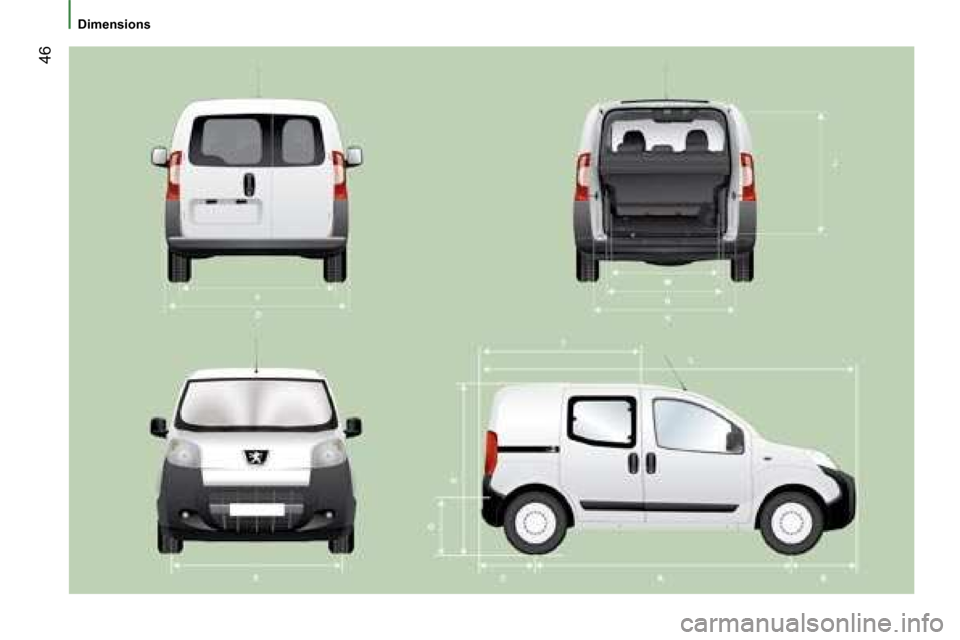

DIMENSIONS
The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:
Light van (in mm)
L1 L2 (Worksite Pack)
L Overall length 3 864 3 881
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 760 777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 469 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r 1 523
J Maximum interior load height 1 205
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Maximum interior width (at the sides) -
N Interior width between wheel arches 1 046
Volume (m
3
) 2.5
Page 52 of 131
46
Dimensions
Page 53 of 131
47
2
Dimensions
TECHNICAL DATA
Combi (in mm)
Standard All-terrain
L Overall length 3 959 3 970
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 855 866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t i n p l a c e ) 743
L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t f u l l y f o l d e d ) 1 130
J Maximum interior load height (under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Maximum interior width (at the sides) -
N Interior width between wheel arches 1 046
Page 54 of 131
48
Engines

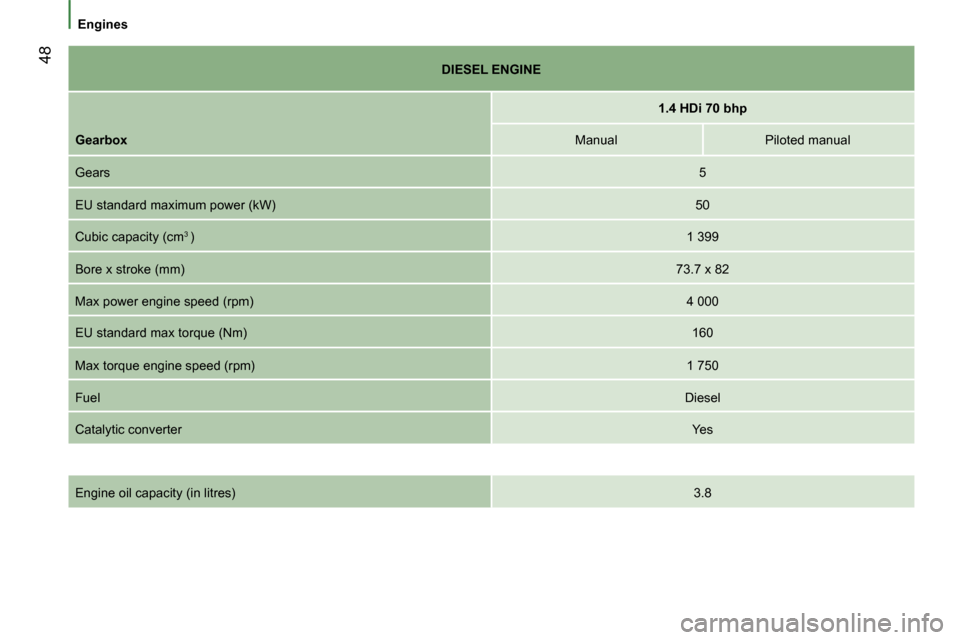

DIESEL
ENGINE
1.4 HDi 70 bhp
Gearbox Manual Piloted manual
Gears 5
EU standard maximum power (kW) 50
Cubic capacity (cm 3
) 1 399
Bore x stroke (mm) 73.7 x 82
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 160
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Engine oil capacity (in litres) 3.8
Page 55 of 131
49
2
Engines
TECHNICAL DATA

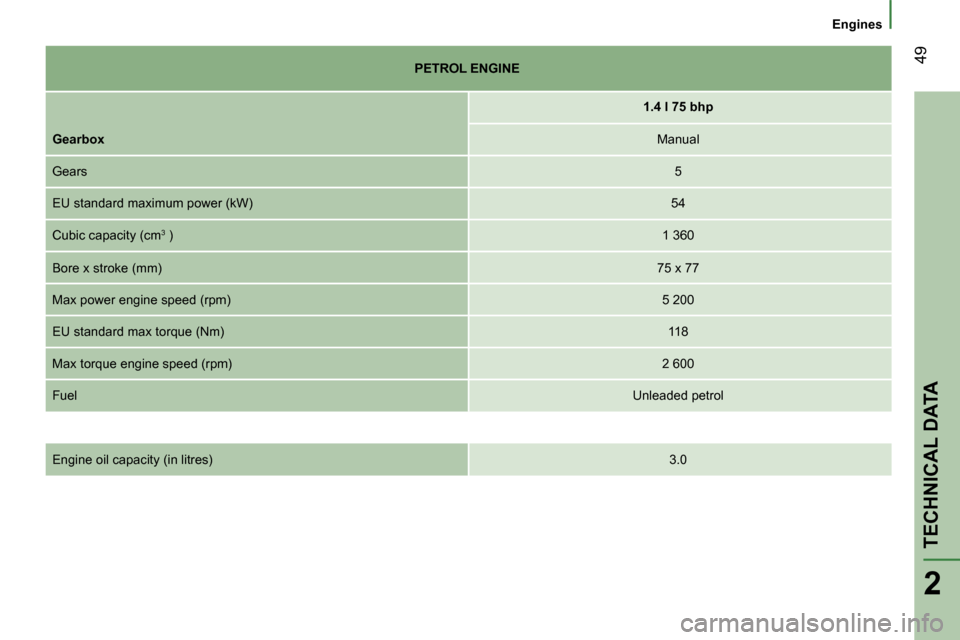

PETROL ENGINE
1.4 l 75 bhp
Gearbox Manual
Gears 5
EU standard maximum power (kW) 54
Cubic capacity (cm 3
) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Engine oil capacity (in litres) 3.0
Page 56 of 131
50
Engines
CONSUMPTION
T h e s e c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h d i r e c t i v e 8 0 / 1 2 6 8 / E C . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c
conditions, weather conditions, the load in the vehicle, t he maintenance of the vehicle and the use of the accessories.
Light van
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
mpg (litres/100 km) Inter-urban driving
mpg (litres/100 km)
Mixed driving
mpg (litres/100 km) Emission of CO 2 by
mass (g/km)
1.4 HDi Manual AA8HSC 49.6 (5.7) 74.3 (3.8) 62.8 (4.5)
119
Piloted
manual AA8HSC/P - - - -
1.4 l Manual AAKFVC 32.1 (8.8) 47.9 (5.9) 40. 9 (6.9) 164
Combi
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
mpg (litres/100 km) Inter-urban driving
mpg (litres/100 km) Mixed driving
mpg (litres/100 km) Emission of CO
2
by mass (g/km)
1.4 HDi Manual AJ8HSC
5.93.94.6123
Piloted
manual AJ8HSC/P - - - -
1.4 l Manual AJ8KFVC
8.85.97.0165
C o n s u m p t i o n fi g u r e s c o r r e c t a t t i m e o f p r i n t i n g .
Page 57 of 131
51
2
Weights
TECHNICAL DATA

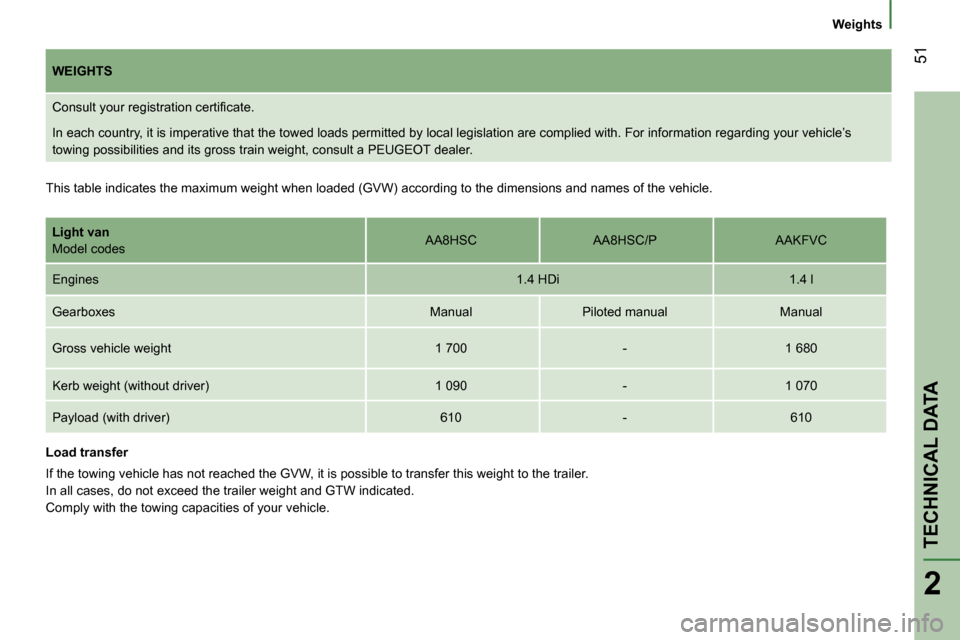

WEIGHTS
C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that the towed loads permi tted by local legislation are complied with. For information regarding your vehicle’s
towing possibilities and its gross train weight, consult a PEU GEOT dealer.
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Light van
Model codes AA8HSC AA8HSC/P AAKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight 1 700 - 1 680
Kerb weight (without driver) 1 090 - 1 070
Payload (with driver) 610 - 610
Load transfer
If the towing vehicle has not reached the GVW, it is possib le to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW in dicated.
Comply with the towing capacities of your vehicle.
Page 58 of 131
52
Weights
Combi
Model codes AJ8HSC AJ8HSC/P AJKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual Piloted manual Manual
Gross vehicle weight
-1 680
Kerb weight (without driver) 1 185-1 165
Payload (with driver) 515-515
Page 59 of 131
53
3
IN-CAR TECHNOLOGY
Trip computer
TRIP COMPUTER

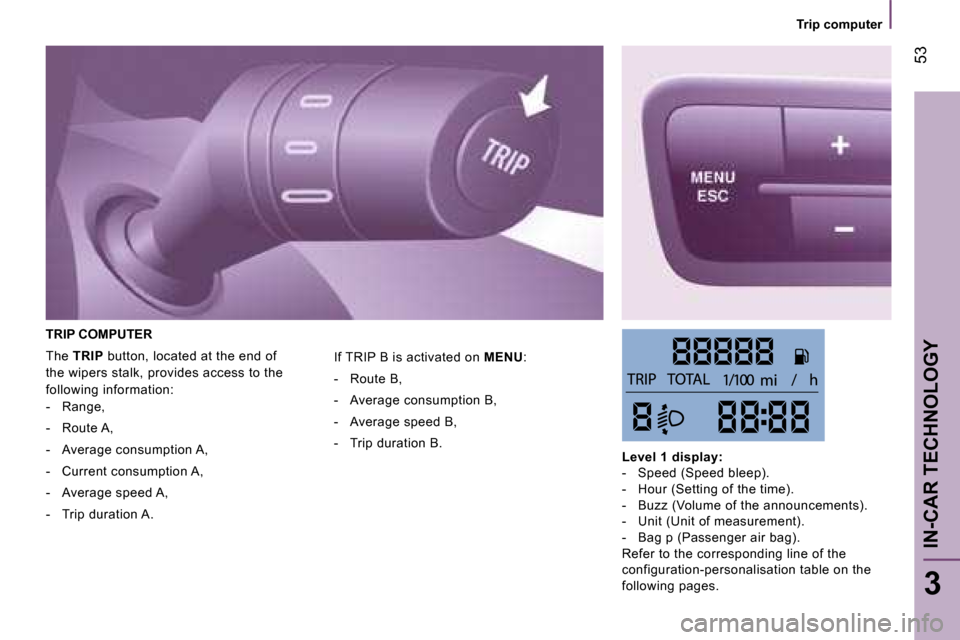

The TRIP button, located at the end of
the wipers stalk, provides access to the
following information: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A. If TRIP B is activated on
MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).
Refer to the corresponding line of the
configuration-personalisation table on the
following pages.
Page 60 of 131
54
Menu
MENU
This button enables you to:
- access the menus and sub-menus,
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the welcome screen.
This button enables you to:
- scroll up through a menu,
- increase a value.
This button enables you to:
- scroll down through a menu,
- decrease a value.

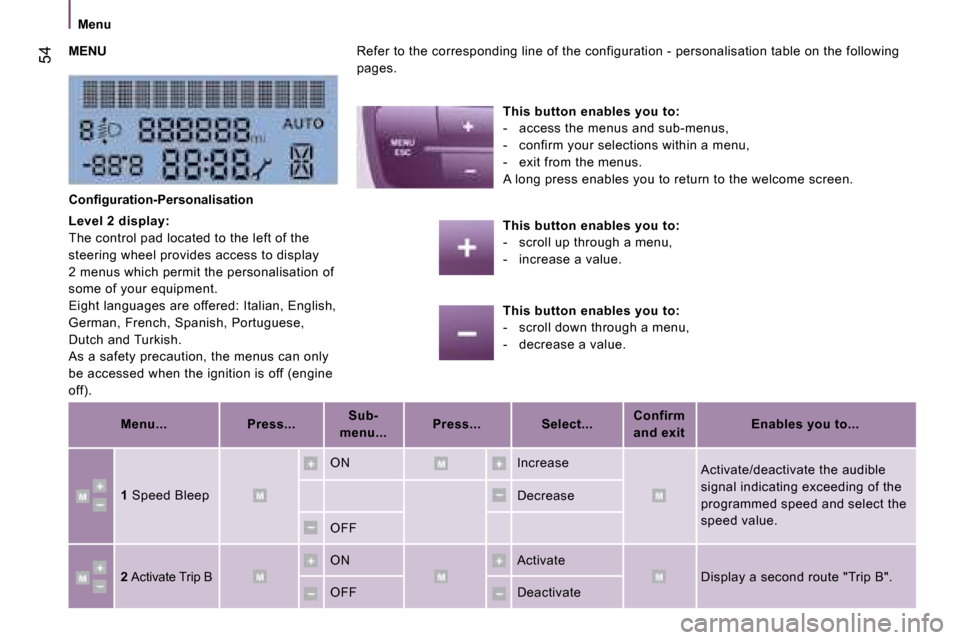

Menu... Press...
Sub-
menu...
Press... Select...
Confirm
and exit
Enables you to...
1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF
2 Activate Trip B ON Activate
Display a second route "Trip B".
OFF Deactivate
C o n fi g u r a t i o n - P e r s o n a l i s a t i o n
Level 2 display:
The control pad located to the left of the
steering wheel provides access to display
2 menus which permit the personalisation of
some of your equipment.
Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish.
As a safety precaution, the menus can only
be accessed when the ignition is off (engine
off). Refer to the corresponding line of the configurati
on - personalisation table on the following
pages.
