Page 12 of 131
15
FAMILIARISATION
Familiarisation
MONITOR THOROUGHLY
Instrument panel Controls bar
A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning light switches off. If it remains on,
this indicates that you have reached the
minimum level in the tank.
B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning light switches off.
C. With the ignition on, the oil level warning
light does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Hands-free kit.
61
B. Hazard warning lights.
78
C. Rear screen and mirrors de-icing.
68
D. Locking/Unlocking of the load space
(Light van).
32
1. With the ignition on, the orange and red
warning lights come on.
2. With the engine running, these warning
lights should switch off.
If warning lights remain on, refer to the section
concerned.
Warning lights
19
25
Page 13 of 131
16
Familiarisation
KEEP YOUR PASSENGERS SAFE
Passenger's front air bag
The passenger's front air bag is disarmed by
means of the MENU button, located to the right
of the steering wheel.
1. Press the MENU button.
2. S e l e c t " B a g " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
3. S e l e c t " O F F " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
4. S e l e c t " Y E S " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
Seat belt not fastened
A. Driver's seat belt not fastened warning
light.
80
84 Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.
74
Page 16 of 131
19
1
READY TO SET OFF
Instruments and controls
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-checking test. T hey switch off almost immediately.
When the engine is running: the warning light becom es a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message on t he display. "Do not ignore these warnings".
Warning light
is indicates Solution - action
Service on temporarily. minor faults. Consult a PEUGEOT
dealer .
continuously on,
accompanied by a
message on the display. major faults.
Make a note of the warning message and contact
a PEUGEOT dealer .
Handbrake
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the
warning light.
on. that the fluid level is too
low. Top up with a fluid recommended by a
PEUGEOT dealer .
continuously on, even
though the level is
correct.
Stop immediately, park, switch off the ignition
and contact a PEUGEOT dealer .
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
PEUGEOT dealer .
continuously on, even
though the level is
correct.
Stop immediately, park, switch off the ignition
and contact a PEUGEOT dealer .
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the circui
t
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a PEUGEOT dealer .
Page 17 of 131
20
Instruments and controls
Warning light
is indicates Solution - action
Engine oil pressure on while driving.
that the pressure is too
low. Park and switch off the ignition, allow the
lubrication circuit to cool in order to check its
level. Refer to the "Levels" section of chapter 7.
continuously on, even
though the level is
correct. a major fault. Contact a PEUGEOT dealer .
fl a s h i n g , f o r a f e w
seconds, with a
message on the display. that a service will soon
be due.
Refer to the list of checks in the servicing bookl
et
then carry out the PEUGEOT service.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection malfunction.
Contact a PEUGEOT dealer .
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by
a message on the
display.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver ’s seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.
Page 18 of 131
21
1
READY TO SET OFF
Instruments and controls
Warning light
is indicates Solution - action
Front air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Refer to the "Air bags"
section of chapter 5.
Side air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Refer to the "Air bags"
section of chapter 5.
Disarming of the
passenger ’s front air
bag on. that this air bag has been
disarmed intentionally in
the presence of a rear
facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop
and contact a PEUGEOT dealer .
Emission control
system flashing or
continuously on.
failure of the system. Have the system checked by a PEUGEOT
dealer without delay.
Electronic immobiliser on. the ignition key inserted is
not recognised.
The vehicle cannot be
started. Use another key and have the faulty key
checked by a PEUGEOT dealer . Refer to the
"Access" section of chapter 1.
Front brake pads on. brake pad wear. Have the pa ds replaced by a PEUGEOT dealer .
Page 19 of 131
22
Instruments and controls

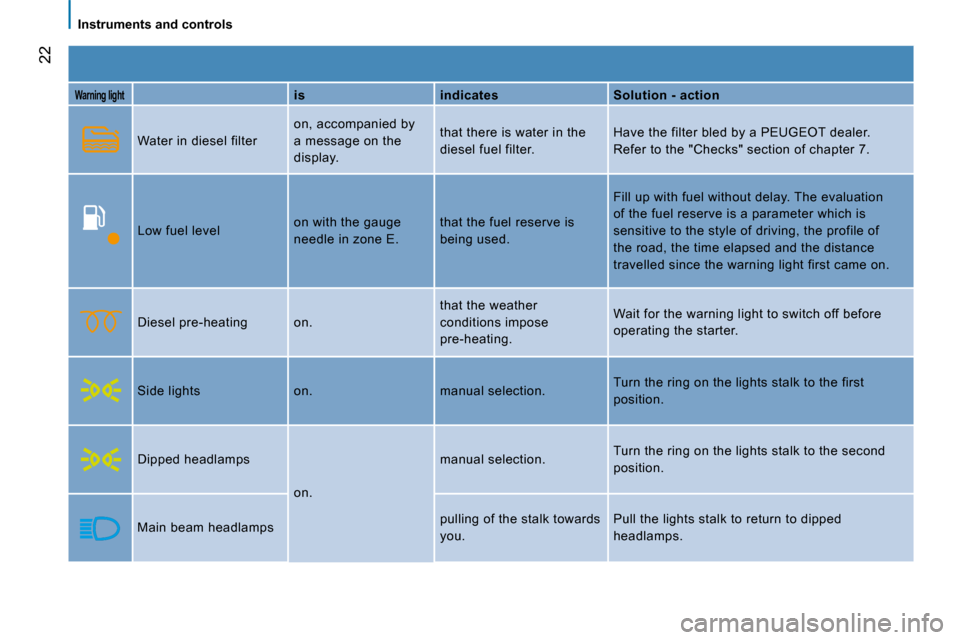

Warning light
is indicates Solution - action
Water in diesel filter on, accompanied by
a message on the
display. that there is water in the
diesel fuel filter.
Have the filter bled by a PEUGEOT dealer .
Refer to the "Checks" section of chapter 7.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Fill up with fuel without delay. The evaluation
of the fuel reserve is a parameter which is
sensitive to the style of driving, the profile of
the road, the time elapsed and the distance
travelled since the warning light first came on.
Diesel pre-heating on. that the weather
conditions impose
pre-heating. Wait for the warning light to switch off before
operating the starter.
Side lights on. manual selection. Turn the ring on the lights stalk to the first
position.
Dipped headlamps on. manual selection.
Turn the ring on the lights stalk to the second
position.
Main beam headlamps pulling of the stalk towards
you. Pull the lights stalk to return to dipped
headlamps.
Page 20 of 131
23
1
READY TO SET OFF
Instruments and controls

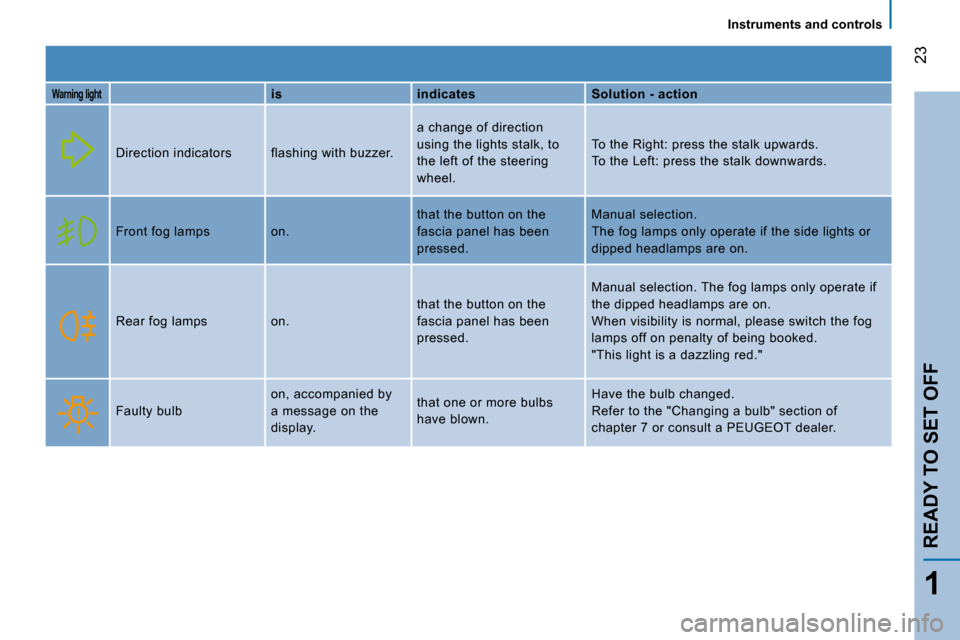

Warning light
is indicates Solution - action
Direction indicators flashing with buzzer. a change of direction
using the lights stalk, to
the left of the steering
wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection.
The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection. The fog lamps only operate if
the dipped headlamps are on.
When visibility is normal, please switch the fog
lamps off on penalty of being booked.
"This light is a dazzling red."
Faulty bulb on, accompanied by
a message on the
display. that one or more bulbs
have blown. Have the bulb changed.
Refer to the "Changing a bulb" section of
chapter 7 or consult a PEUGEOT dealer .
Page 21 of 131
24
Instruments and controls

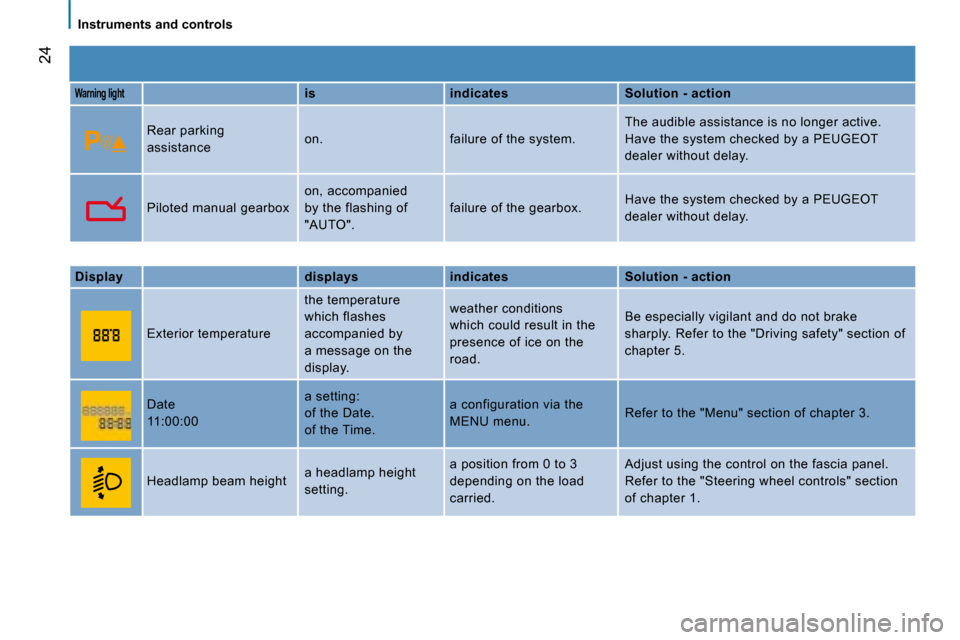

Warning light
is indicates Solution - action
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT
dealer without delay.
Piloted manual gearbox on, accompanied
by the flashing of
"AUTO". failure of the gearbox.
Have the system checked by a PEUGEOT
dealer without delay.
Display displays indicates Solution - action
Exterior temperature the temperature
which flashes
accompanied by
a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake
sharply. Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.
Page 22 of 131
24
Instruments and controls
Warning light
is indicates Solution - action
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT
dealer without delay.
Piloted manual gearbox on, accompanied
by the flashing of
"AUTO". failure of the gearbox.
Have the system checked by a PEUGEOT
dealer without delay.
Display displays indicates Solution - action
Exterior temperature the temperature
which flashes
accompanied by
a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake
sharply. Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.
Page 23 of 131
25
1
READY TO SET OFF
Instruments and controls
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- F (Full): the capacity of the fuel tank is
approximately 45 litres .
- E (Empty): the reserve is now being
used, the warning light comes on
continuously.
The reserve when the warning first comes
on is approximately 6 litres.
COOLANT TEMPERATURE
The needle is positioned between
C (Cold) and H (Hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations. - wait approximately 15 minutes to allow
the engine to cool down in order to check
the level and top it up if necessary. The
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer .
Refer to the "Levels" section of
chapter 7. Refer to the "Levels" section of
chapter 7.
What you should do if the needle
enters the red zone, or if the warning
light comes on:
- stop immediately, switch off the ignition. The fan may continue to operate for
a certain time up to approximately
10 minutes.
EMISSION CONTROL
EOBD (European On Board Diagnosis) is
a diagnostics system which complies with,
among others, the standards concerning
authorised emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles detected by oxygen sensors placed
upstream and downstream of the catalytic
converters.
Therefore, the driver is warned of
any malfunction of this emission
control system by the flashing of
this specific warning light on the
instrument panel.
