remote start Peugeot Bipper 2011 Owner's Manual

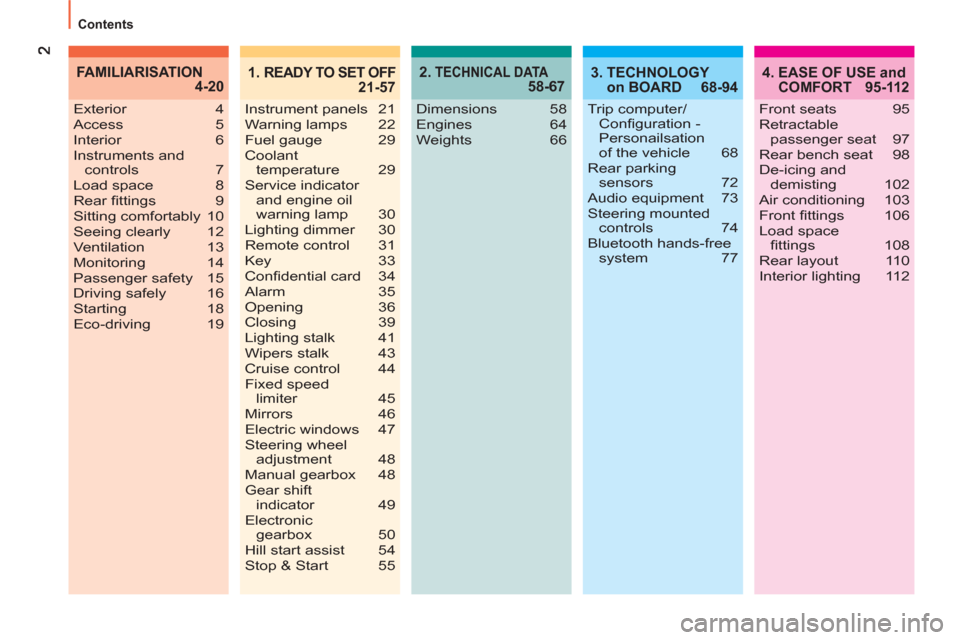

Contents
2. TECHNICAL DATA 58-674. EASE OF USE and
COMFORT 95-112
Dimensions 58
Engines 64
Weights 66 Exterior 4
Access 5
Interior 6
Instruments and
controls 7
Load space 8
Rear fi ttings 9
Sitting comfortably 10
Seeing clearly 12
Ventilation 13
Monitoring 14
Passenger safety 15
Driving safely 16
Starting 18
Eco-driving 19
FAMILIARISATION
4-20
Front seats 95
Retractable
passenger seat 97
Rear bench seat 98
De-icing and
demisting 102
Air conditioning 103
Front fi ttings 106
Load space
fi ttings 108
Rear layout 110
Interior lighting 112
3. TECHNOLOGY
on BOARD 68-94
Trip computer/
Confi guration -
Personailsation
of the vehicle 68
Rear parking
sensors 72
Audio equipment 73
Steering mounted
controls 74
Bluetooth hands-free
system 77
1. READY TO SET OFF
21-57
Instrument panels 21
Warning lamps 22
Fuel gauge 29
Coolant
temperature 29
Service indicator
and engine oil
warning lamp 30
Lighting dimmer 30
Remote control 31
Key 33
Confi dential card 34
Alarm 35
Opening 36
Closing 39
Lighting stalk 41
Wipers stalk 43
Cruise control 44
Fixed speed
limiter 45
Mirrors 46
Electric windows 47
Steering wheel
adjustment 48
Manual gearbox 48
Gear shift
indicator 49
Electronic
gearbox 50
Hill start assist 54
Stop & Start 55

5
FAMILIARISATIO
N
Familiarisation

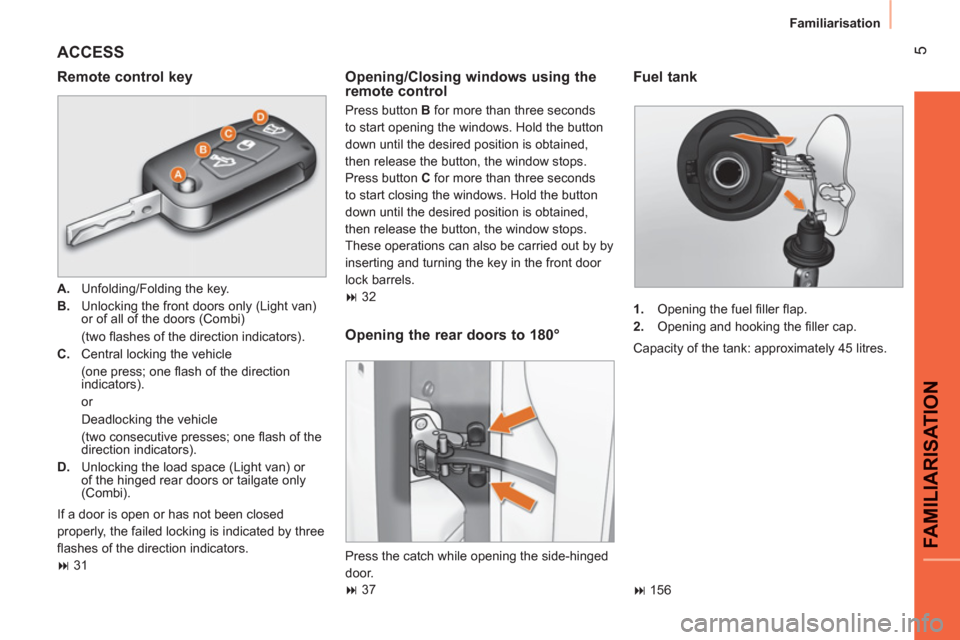

ACCESS


Remote control key



A.
Unfolding/Folding the key.

B.
Unlocking the front doors only (Light van)
or of all of the doors (Combi)
(two fl ashes of the direction indicators).

C.
Central locking the vehicle
(one press; one fl ash of the direction
indicators).
or
Deadlocking the vehicle
(two consecutive presses; one fl ash of the
direction indicators).

D.
Unlocking the load space (Light van) or
of the hinged rear doors or tailgate only
(Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by three
fl ashes of the direction indicators.



31



Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fi ller cap.
Capacity of the tank: approximately 45 litres.



156



Opening the rear doors to 180°

Press the catch while opening the side-hinged
door.



37



Opening/Closing windows using the
remote control
Press button B
for more than three seconds
to start opening the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
Press button C
for more than three seconds
to start closing the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
These operations can also be carried out by by
inserting and turning the key in the front door
lock barrels.



32

32

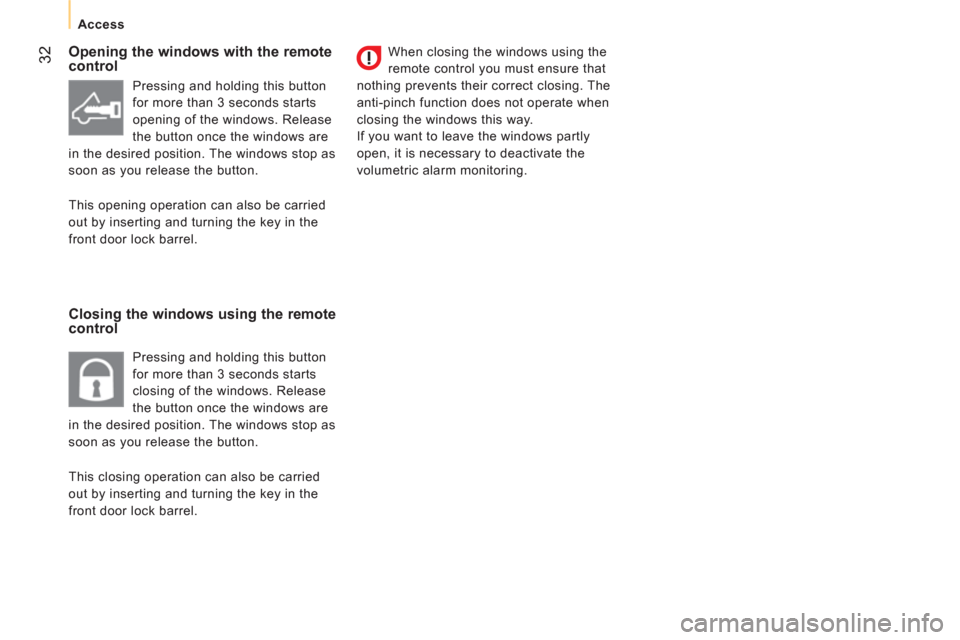

Access



Opening the windows with the remote
control

Closing the windows using the remote
control
When closing the windows using the
remote control you must ensure that
nothing prevents their correct closing. The
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.
Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.
This closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel. This opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.
Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are
in the desired position. The windows stop as
soon as you release the button.

33
1
READY TO SET OFF
Access

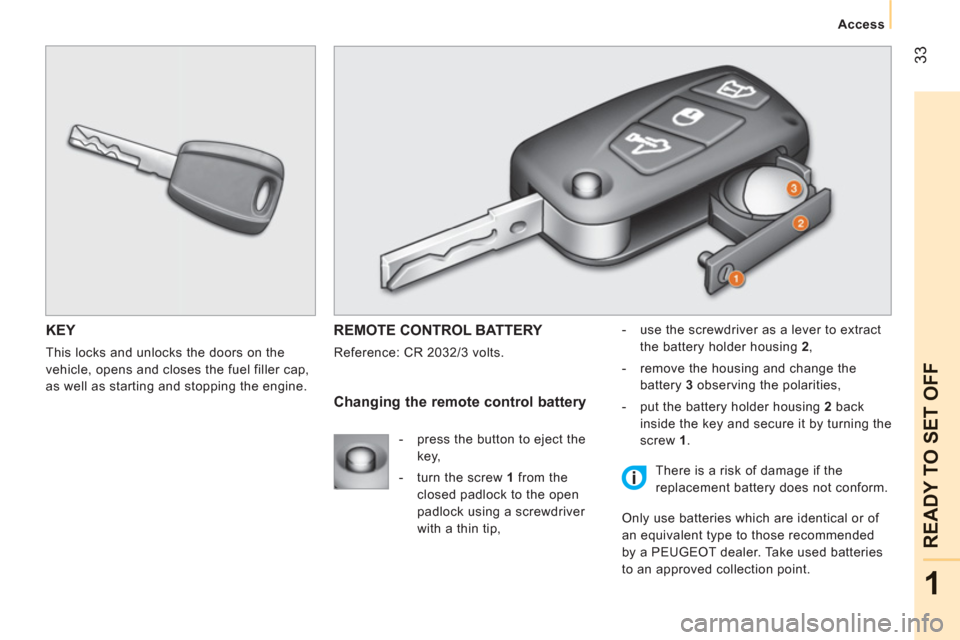

KEY
This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.
REMOTE CONTROL BATTERY

Reference: CR 2032/3 volts.
-
use the screwdriver as a lever to extract
t
he battery holder housing 2 ,

- remove the housin
g and change the
batter
y3 observing the polarities,

- put the battery holder housin
g 2back
inside the ke
y and secure it by turning the
screw 1 .


Changing the remote control battery

There is a risk of damage if the
replacement battery does not conform.
Only use batteries which are identical or of
an equivalent type to those recommended
by a PEUGEOT dealer. Take used batteries
to an approved collection point.

- press the button to eject the
key,

- turn the screw 1 from the
closed padlock to the open
padlock using a screwdriver
with a thin tip,

34

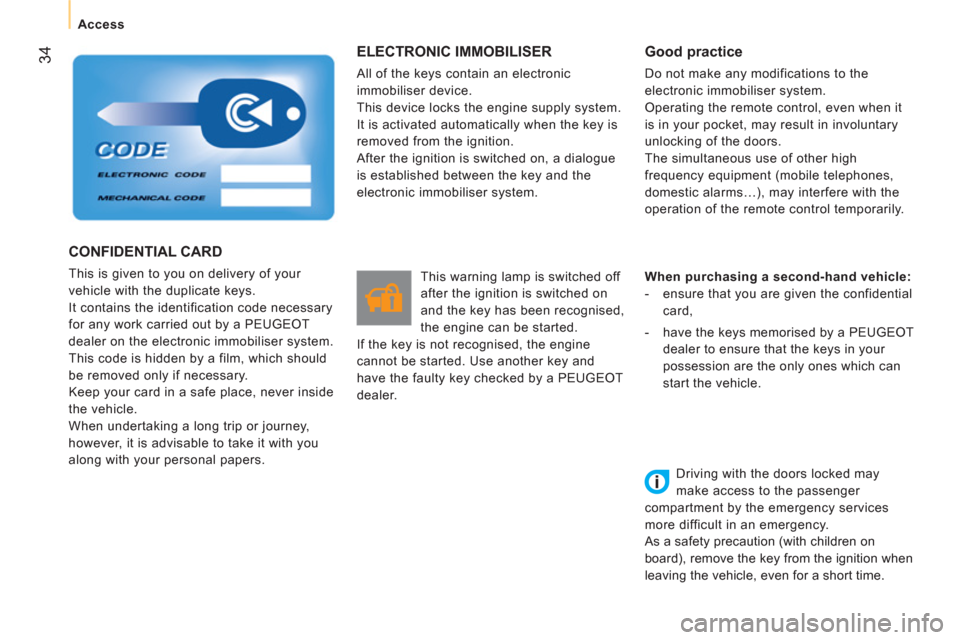

Access

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a PEUGEOT
dealer.

Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.

When purchasing a second-hand vehicle:


- ensure that you are given the confidential
card,

- have the keys memorised by a PEUGEOT
dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.





CONFIDENTIAL CARD

This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.

35
1
READY TO SET OFF
Access

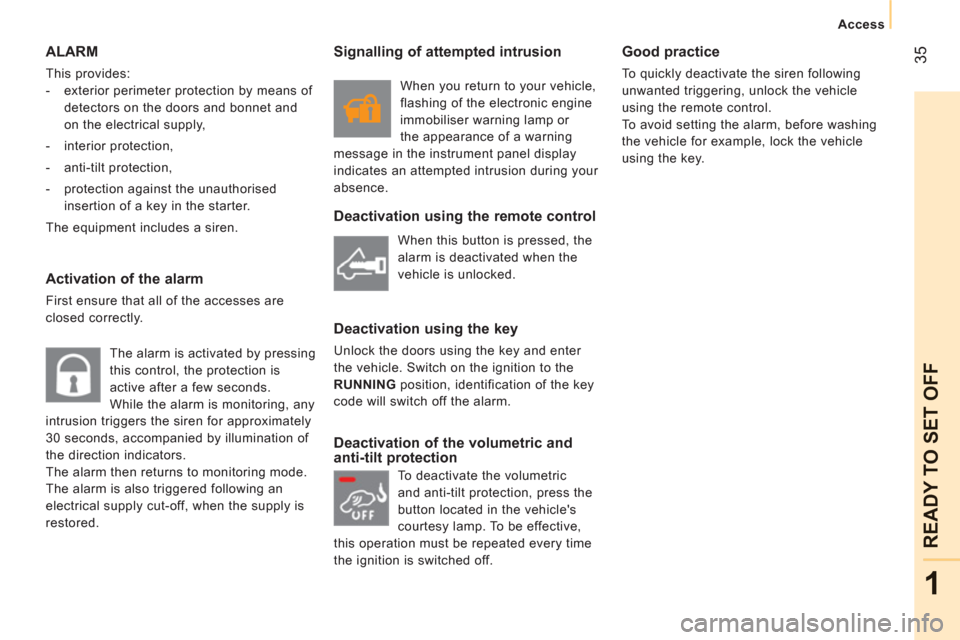

ALARM
This provides:


- exterior perimeter protection by means of
detectors on the doors and bonnet and
on the electrical supply,

- interior protection,

- anti-tilt protection,

- protection against the unauthorised
insertion of a key in the starter.
The equipment includes a siren.


Activation of the alarm

First ensure that all of the accesses are
closed correctly.
The alarm is activated by pressing
this control, the protection is
active after a few seconds.
While the alarm is monitoring, any
intrusion triggers the siren for approximately
30 seconds, accompanied by illumination of
the direction indicators.
The alarm then returns to monitoring mode.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.


Deactivation using the remote control

Deactivation using the key

Unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.


Deactivation of the volumetric and
anti-tilt protection
Good practice

To quickly deactivate the siren following
unwanted triggering, unlock the vehicle
using the remote control.
To avoid setting the alarm, before washing
the vehicle for example, lock the vehicle
using the key.
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.


Signalling of attempted intrusion

When you return to your vehicle,
flashing of the electronic engine
immobiliser warning lamp or
the appearance of a warning
message in the instrument panel display
indicates an attempted intrusion during your
absence.
To deactivate the volumetric
and anti-tilt protection, press the
button located in the vehicle's
courtesy lamp. To be effective,
this operation must be repeated every time
the ignition is switched off.

167

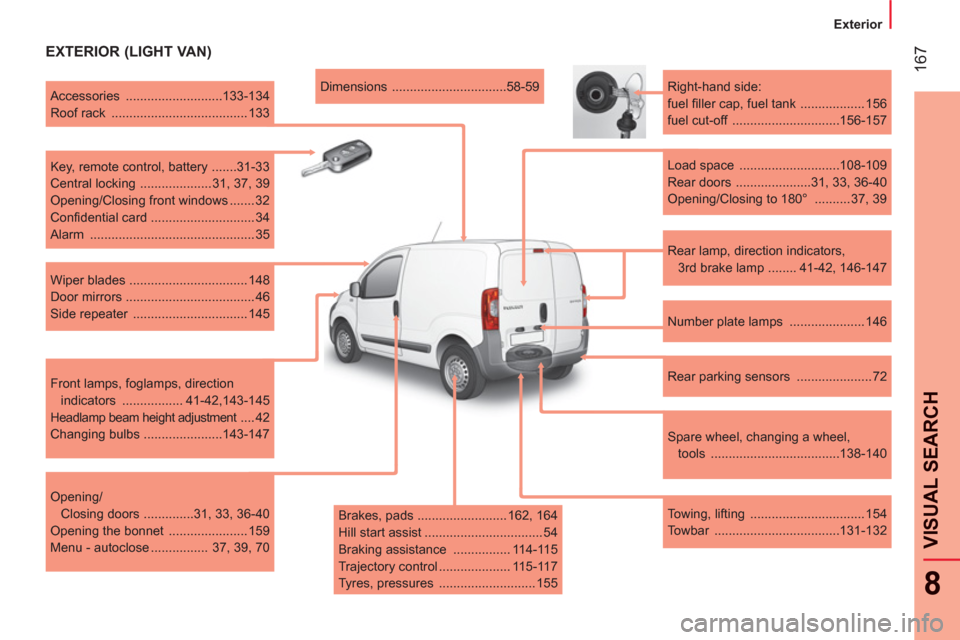

8
VISUAL SEARCH


Exterior



EXTERIOR (LIGHT VAN)


Rear lamp, direction indicators,
3rd brake lamp ........ 41-42, 146-147
Right-hand side:
fuel fi ller cap, fuel tank .................. 156
fuel cut-off ..............................156-157

Load space ............................108-109
Rear doors .....................31, 33, 36-40
Opening/Closing to 180° .......... 37, 39

Number plate lamps ..................... 146

Rear parking sensors ..................... 72

Spare wheel, changing a wheel,
tools ....................................138-140

Towing, lifting ................................ 154
Towbar ...................................131-132
Dimensions ................................58-59

Accessories ...........................133-134
Roof rack ...................................... 133

Key, remote control, battery .......31-33
Central locking .................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card ............................. 34
Alarm .............................................. 35

Wiper blades ................................. 148
Door mirrors .................................... 46
Side repeater ................................ 145

Front lamps, foglamps, direction
indicators ................. 41-42,143-145
Headlamp beam height adjustment .... 42
Changing bulbs ......................143-147

Opening/
Closing doors ..............31, 33, 36-40
Opening the bonnet ...................... 159
Menu - autoclose ................ 37, 39, 70

Brakes, pads ......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................ 114-115
Trajectory control .................... 115-117
Tyres, pressures ........................... 155

168

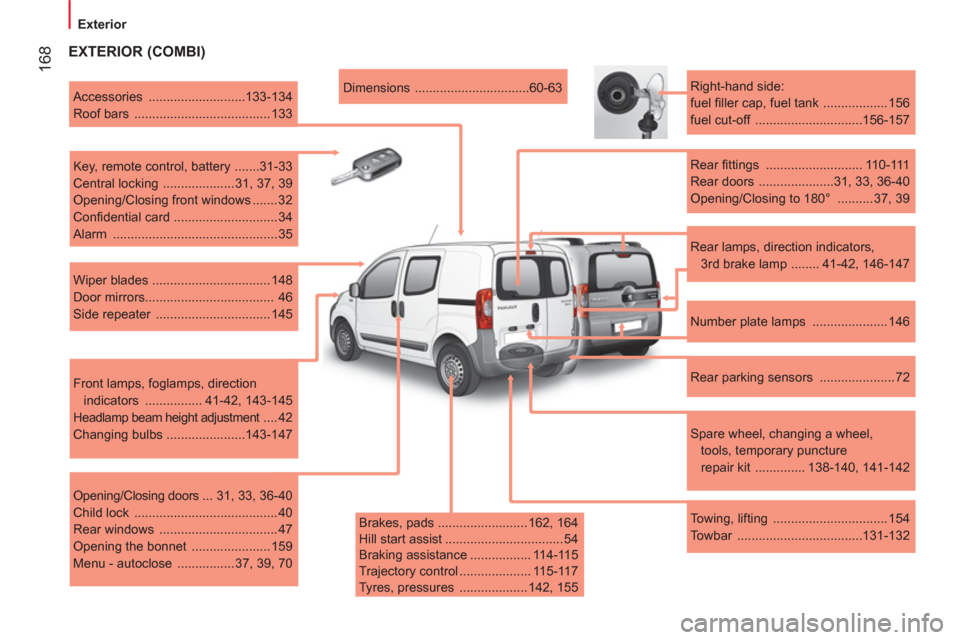

Exterior






EXTERIOR (COMBI)


Brakes, pads ......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................. 114-115
Trajectory control .................... 115-117
Tyres, pressures ................... 142, 155
Dimensions ................................60-63

Accessories ...........................133-134
Roof bars ...................................... 133

Key, remote control, battery .......31-33
Central locking .................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card ............................. 34
Alarm .............................................. 35

Wiper blades ................................. 148
Door mirrors .................................... 46
Side repeater ................................ 145

Front lamps, foglamps, direction
indicators ................ 41-42, 143-145
Headlamp beam height adjustment .... 42
Changing bulbs ......................143-147

Opening/Closing doors ... 31, 33, 36-40
Child lock ........................................ 40
Rear windows ................................. 47
Opening the bonnet ...................... 159
Menu - autoclose ................ 37, 39, 70
Right-hand side:
fuel fi ller cap, fuel tank .................. 156
fuel cut-off ..............................156-157

Rear fi ttings ........................... 110-111
Rear doors .....................31, 33, 36-40
Opening/Closing to 180° .......... 37, 39

Number plate lamps ..................... 146

Rear parking sensors ..................... 72

Spare wheel, changing a wheel,
tools, temporary puncture
repair kit .............. 138-140, 141-142

Towing, lifting ................................ 154
Towbar ...................................131-132


Rear lamps, direction indicators,
3 rd brake lamp ........ 41-42, 146-147
