YOUR BOXER IN DETAIL45
CASSETTE: RADIO CASSETTE Selecting cassette mode When a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, the message "CC-IN"appears. Press the "SRC-SC"button until cassette
mode is selected.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette
Press button Gto eject the cassette from the player.
Direction of play The player will play sides A and B of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press button F.
Fast forward/rewind Press button Kor Mrespectively to fast forward or rewind the cassette. At the end of the fast
forward/rewind, the set plays the current side.
Selection of a track on the cassette Press button Jto listen to the next track.
Press button Lto return to the beginning of the current track.
Press button Lagain to listen to the previous track.

05-05-2003
YOUR BOXER IN DETAIL
46
Pause / Resume play Press button Oto pause the cassette.
Press button Oagain to resume playing of the current track.
Scanning the tracks on the cassette Press the "SRC-SC" button for more than two seconds.
Y ou will then hear each track on the cassette for approximately ten seconds.
If you are interested in a track, press the "SRC-SC" button again to stop the scan.
"Dolby B" sound function Press button Pto switch the "Dolby B" sound cassette tape noise reduction function on or off.
Recommendations for using casssettes - Use good quality cassettes.
- Avoid the use of cassettes which play for longer than 90 minutes.- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before inserting the cassette into the player.- Clean the playing head regularly with a damp-type cleaning cassette.

05-05-2003
Touche Fonction
A VOL - Diminution du volume.
BO NCoupure / Restauration du son (MUTE). Pression de plus de 2 secondes : m arche/arr
C VOL + Augmentation du volume.

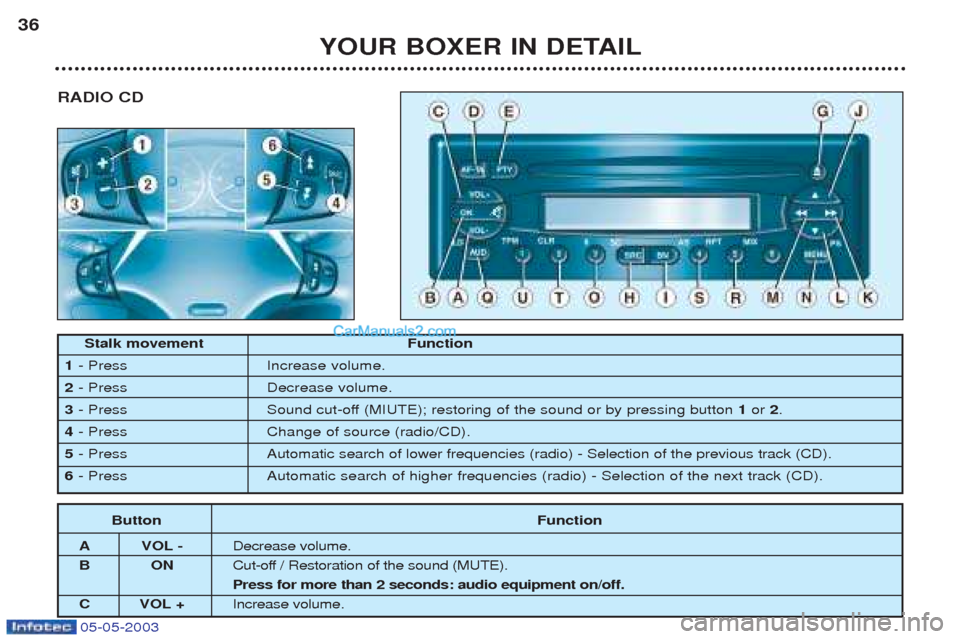

Stalk movement Function
1 - Press Increase volume.
2 - Press Decrease volume.
3 - Press Sound cut-off (MIUTE); restoring of the sound or by pressing button 1or 2.
4 - Press Change of source (radio/CD).
5 - Press Automatic search of lower frequencies (radio) - Selection of the previous track (CD).
6 - Press Automatic search of higher frequencies (radio) - Selection of the next track (CD).
Button Function
A VOL - Decrease volume.
BO NCut-off / Restoration of the sound (MUTE). Press for more than 2 seconds: audio equipment on/off.
C VOL + Increase volume.
YOUR BOXER IN DETAIL
36
RADIO CD

05-05-2003
Touche Fonction
D AF - TA Marche/arr
Pression de plus de 2 secondes : marche/arr
E PTY Marche/arrPression de plus de 2 secondes : marche/arr
G i
ƒjection du CD.
H SRC SŽlection de la source : radio ou CD.
SC Pression de plus de 2 secondes : balayage des stations (radio) ou des morceaux (CD).
IB NSŽlection des gammes d'ondes FM1, FM2, FMT, MW, LW.
AS Pression de plus de 2 secondes : mŽmorisation automatique des stations (autostore).
J ▲ Recherche automatique frŽquence supŽrieure (radio) - RŽglages audio supŽrieur. SŽlection morceau suivant (CD) - SŽlection fonctions du menu.
K kk Recherche manuelle frŽquence supŽrieure - SŽlection du PTY (radio).Avance rapide (CD) - RŽglages fonctions du menu.
L ▼ Recherche automatique frŽquence infŽrieure (radio) - RŽglages audio infŽrieur.SŽlection morceau prŽcŽdent (CD) - SŽlection fonctions du menu.
M jj Recherche manuelle frŽquence infŽrieure - SŽlection du PTY (radio).Retour rapide (CD) - RŽglages fonctions du menu.
N MENU-PS EntrŽe dans le menu.Pression de plus de 2 secondes : balayage des stations mŽmorisŽes.
OI IPause / Reprise de la lecture du CD.
Q AUD-LD SŽlection des rŽglages audio (graves, aigus, fader, balance).Pression de plus de 2 secondes : activation / neutralisation du loudness.
R MIX Lecture alŽatoire du CD.
S RPT RŽpŽtition dÕun morceau du CD.
T CLR Effacement de la programmation de lecture du CD.
U TPM Programmation de la lecture du CD.
1 ˆ 6 1 2 3 4 5 6 SŽlection de la station mŽmorisŽe. Pression de plus de 2 secondes : mŽmorisation d'une station.

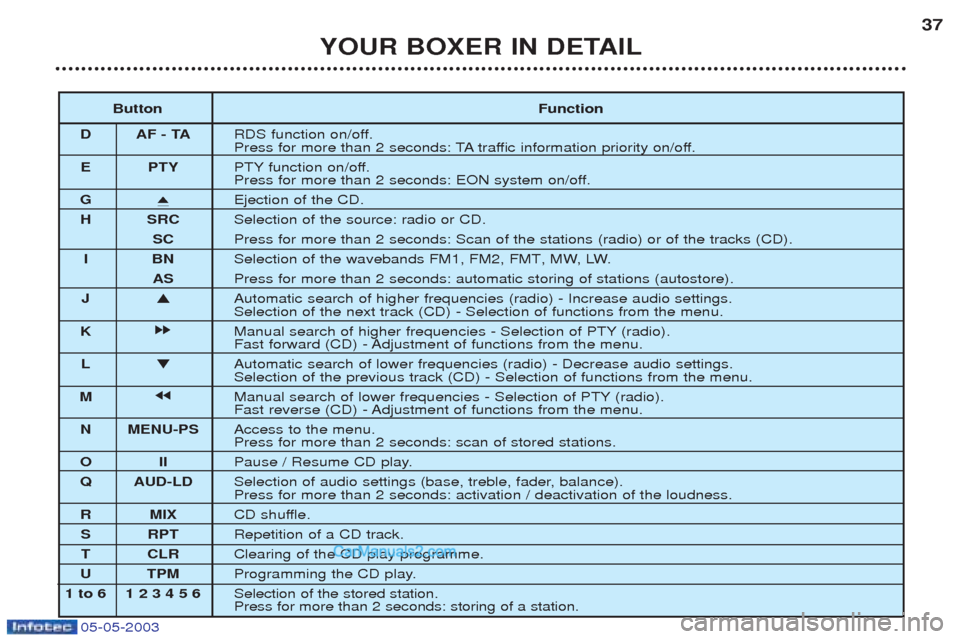

Button Function
D AF - TA RDS function on/off.
Press for more than 2 seconds: TA traffic information priority on/off.
E PTY PTY function on/off.
Press for more than 2 seconds: EON system on/off.
G i
Ejection of the CD.
H SRC Selection of the source: radio or CD.
SC Press for more than 2 seconds: Scan of the stations (radio) or of the tracks (CD).
IB NSelection of the wavebands FM1, FM2, FMT, MW, LW.
AS Press for more than 2 seconds: automatic storing of stations (autostore).
J ▲ Automatic search of higher frequencies (radio) - Increase audio settings. Selection of the next track (CD) - Selection of functions from the menu.
K kk Manual search of higher frequencies - Selection of PTY (radio).
Fast forward (CD) - Adjustment of functions from the menu.
L ▼ Automatic search of lower frequencies (radio) - Decrease audio settings.Selection of the previous track (CD) - Selection of functions from the menu.
M jj Manual search of lower frequencies - Selection of PTY (radio).
Fast reverse (CD) - Adjustment of functions from the menu.
N MENU-PS Access to the menu.Press for more than 2 seconds: scan of stored stations.
OI IPause / Resume CD play.
Q AUD-LD Selection of audio settings (base, treble, fader, balance). Press for more than 2 seconds: activation / deactivation of the loudness.
R MIX CD shuffle.
S RPT Repetition of a CD track.
T CLR Clearing of the CD play programme.
U TPM Programming the CD play.
1 to 6 1 2 3 4 5 6 Selection of the stored station. Press for more than 2 seconds: storing of a station.
YOUR BOXER IN DETAIL 37

05-05-2003
YOUR BOXER IN DETAIL47
COMPACT DISC: RADIO CD Selecting CD mode After insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, the message "CD" appears. Press the "SCR-SC" button to select the CD mode.
Ejection of a disc Press button Gto eject the disc from the player.
Selecting a track Press button Jto listen to the next track.
Press button Lto return to the start of the current track.
Press button Lagain to listen to the previous track.
Accelerated play Press and hold button K or Mrespectively for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle (MIX) When CD mode is selected, press button R.
The tracks will be played in random sequence. Pressing button Ragain returns you to normal play.

05-05-2003
YOUR BOXER IN DETAIL
48

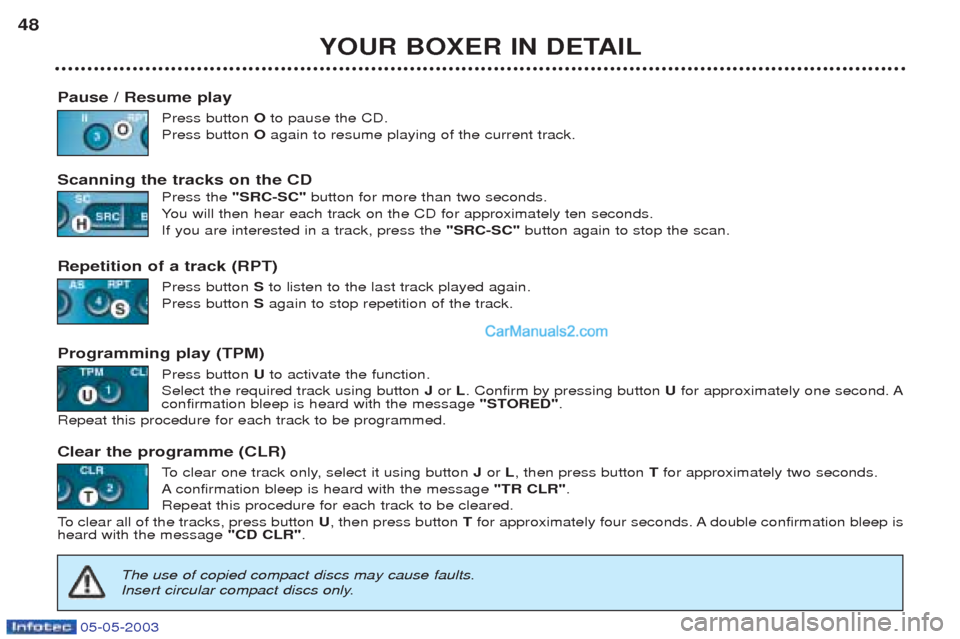

Pause / Resume play Press button Oto pause the CD.
Press button Oagain to resume playing of the current track.
Scanning the tracks on the CD Press the "SRC-SC" button for more than two seconds.
Y ou will then hear each track on the CD for approximately ten seconds.
If you are interested in a track, press the "SRC-SC" button again to stop the scan.
Repetition of a track (RPT) Press button Sto listen to the last track played again.
Press button Sagain to stop repetition of the track.
Programming play (TPM) Press button Uto activate the function.
Select the required track using button Jor L. Confirm by pressing button U for approximately one second. A
confirmation bleep is heard with the message "STORED".
Repeat this procedure for each track to be programmed.
Clear the programme (CLR) To clear one track only, select it using button Jor L, then press button Tfor approximately two seconds.
A confirmation bleep is heard with the message "TR CLR".
Repeat this procedure for each track to be cleared.
To clear all of the tracks, press button U, then press button Tfor approximately four seconds. A double confirmation bleep is
heard with the message "CD CLR".
The use of copied compact discs may cause faults.
Insert circular compact discs only.

05-05-2003
Superimposed display In certain cases, when a function
(radio, telephone, trip computer, ... )changes status while another func-tion is displayed, a window opens toinform you of the change, thendisappears.MULTIFUNCTION DISPLAYS Presentation Monochrome display Colour display These two multifunction displays are an integral part of theaudio/tele-
phone/GPS. Therefore, they are
controlled by its control keypad andby its steering wheel stalk. They enable you to obtain the follo-wing information: -
displaying of the audio sources (radio, CD),
- displaying of the telematic systems(telephone, services, ... ),
- displaying of the satellite naviga-tion system (see correspondingsection),
- displaying of the trip computer (seecorresponding section),
- the warning messages (e.g.
"Warning, maximum speed excee-ded") or information messages(e.g. "SIM card absent") displayed
temporarily.
YOUR BOXER IN DETAIL 49

05-05-2003

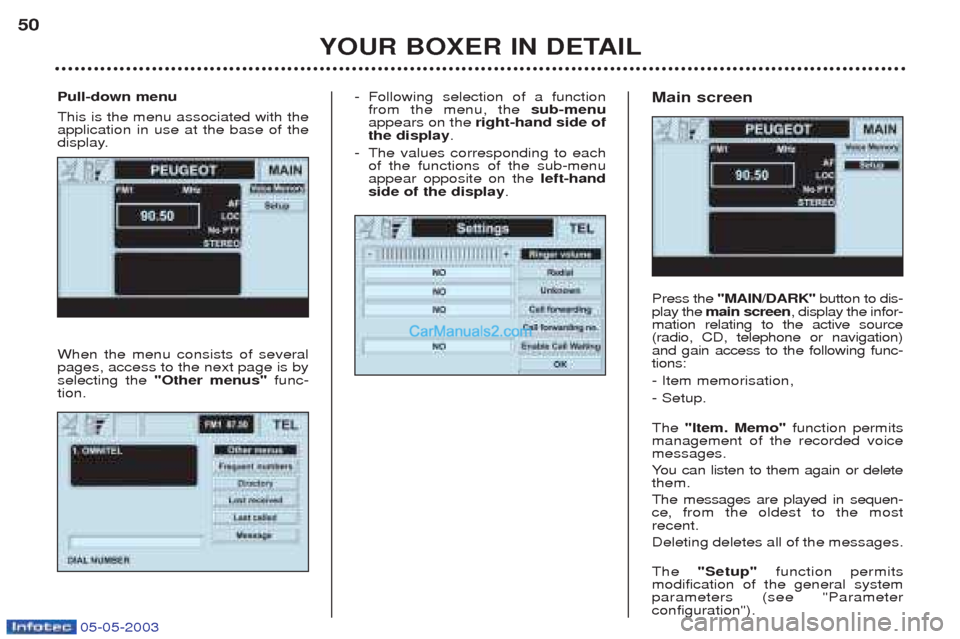

-Following selection of a function from the menu, the sub-menu
appears on the right-hand side of
the display .
- The values corresponding to eachof the functions of the sub-menuappear opposite on the left-hand
side of the display . Main screen Press the
"MAIN/DARK" button to dis-
play the main screen , display the infor-
mation relating to the active source (radio, CD, telephone or navigation)and gain access to the following func-tions: - Item memorisation,- Setup. The "Item. Memo" function permits
management of the recorded voice messages. Y ou can listen to them again or delete
them.The messages are played in sequen- ce, from the oldest to the most
recent. Deleting deletes all of the messages. The "Setup" function permits
modification of the general system parameters (see "Parameter configuration").
YOUR BOXER IN DETAIL
50
Pull-down menu This is the menu associated with the application in use at the base of the
display. When the menu consists of several pages, access to the next page is byselecting the "Other menus" func-
tion.

05-05-2003
Parameter configuration Setup menu The"Setup" menu provides access
to the following general parameters: - "Setup": choice of day/night bright- ness, display colours, voice/textmessage language and distanceunit,
- "Fleet Management": configurationof the automatic vehicle locationSMS messages,
- "Speed Limit Warning": setting,activation and display of exceedingof the permitted speed,
- "Modem": activation/deactivationof the communication between thesystem's modem and the laptop.
YOUR BOXER IN DETAIL 51
Setup The "Day brightness" and "Night
brightness" functions enable you to
set day and night brightness values
independently. The "Colours" function controls dis-
playing on the day or night setting or changes the setting automatically inrelation to the light in the passengercompartment or switching on of thelights. The "Voice language" and "Text lan-
guage" functions enable you to choo-
se the language for voice recognition and SMS messages (Italian, German,English, Spanish, French, Portuguese,Dutch). The "Distance unit" function enables
you to choose the distance unit for the trip computer calculations (km ormiles). Note: to choose the language and
the distance unit, insert the configu- ration CD-Rom. Fleet Management The
"Fleet Management" function
permits locating of the vehicle by means of the automatic transmissionof SMS messages to a controlcentre.
To have the SMS messages sent,
you must: - activate the "Sending Mode " func- tion,
- select a type of interval in the"Event Mode" function,
- set the duration of the interval inthe "Data frequency send" func-tion,
- enter the registration number in the
"Vehicle ID" function,
- enter the telephone number of the
control centre in the "TelephoneNumber" function,
- insert the SIM card.

05-05-2003
YOUR BOXER IN DETAIL
52

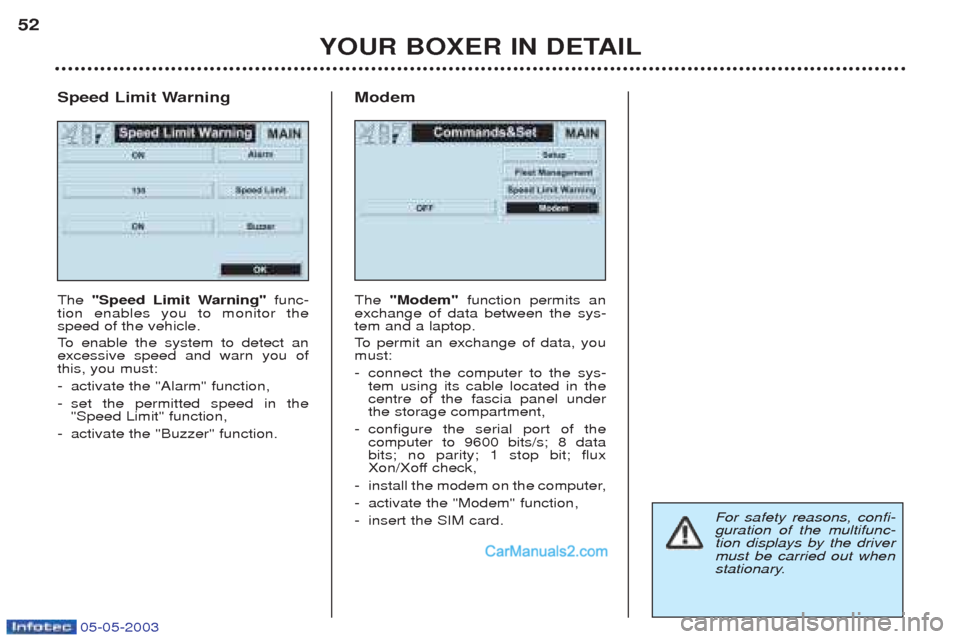

Speed Limit Warning The"Speed Limit Warning" func-
tion enables you to monitor the speed of the vehicle.
To enable the system to detect an
excessive speed and warn you of this, you must: - activate the "Alarm" function,
- set the permitted speed in the "Speed Limit" function,
- activate the "Buzzer" function. Modem The
"Modem" function permits an
exchange of data between the sys- tem and a laptop.
To permit an exchange of data, you
must: - connect the computer to the sys- tem using its cable located in thecentre of the fascia panel underthe storage compartment,
- configure the serial port of thecomputer to 9600 bits/s; 8 databits; no parity; 1 stop bit; flux
Xon/Xoff check,
- install the modem on the computer,
- activate the "Modem" function,
- insert the SIM card.
For safety reasons, confi- guration of the multifunc-tion displays by the drivermust be carried out when
stationary.
