Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs. * According to destination.
7YOUR BOXER AT A GLANCE
AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works inconjunction with the seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ☞ disarm the air bag if you ins- tall a rear-facing child seat,
☞ activate the air bag for an
adult passenger. Disarming the passenger air bag* ☞
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it to
the "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
128129
05-05-2003

05-05-2003
YOUR BOXER IN DETAIL101
Rules for transporting children on the front passenger seat** Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe most rearward position and armthe passenger air bag. The rearwards facing position is per- mitted from birth to 13 kg or 18 kg. Inthis position, it is essential to disarmthe passenger air bag.

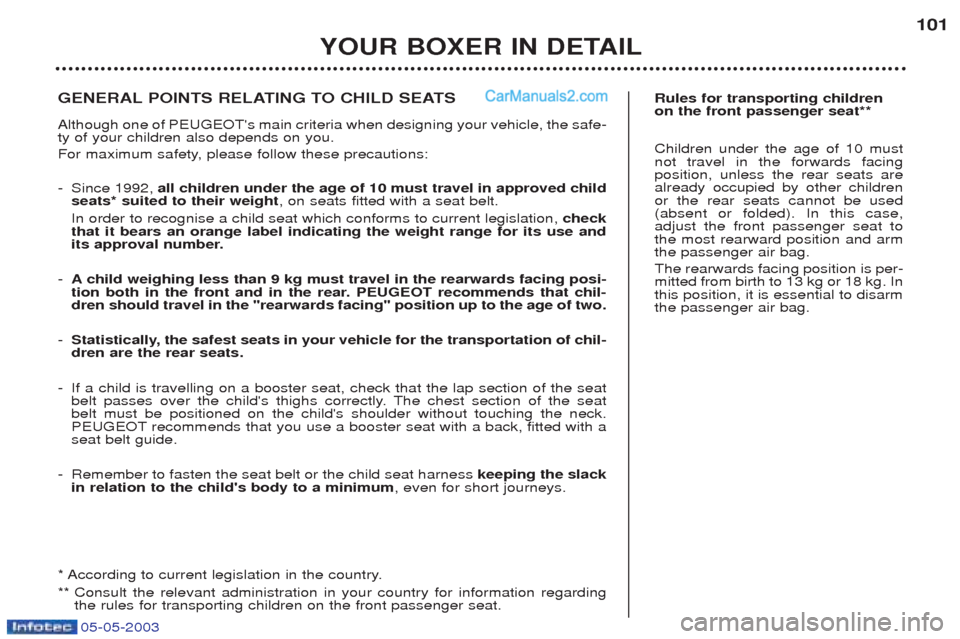

GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions: -
Since 1992, all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
In order to recognise a child seat which conforms to current legislation, check
that it bears an orange label indicating the weight range for its use and
its approval number.
- A child weighing less than 9 kg must travel in the rearwards facing posi-
tion both in the front and in the rear. PEUGEOT recommends that chil-dren should travel in the "rearwards facing" position up to the age of two.
- Statistically, the safest seats in your vehicle for the transportation of chil-dren are the rear seats.
- If a child is travelling on a booster seat, check that the lap section of the seat
belt passes over the child's thighs correctly. The chest section of the seat belt must be positioned on the child's shoulder without touching the neck.
PEUGEOT recommends that you use a booster seat with a back, fitted with aseat belt guide.
- Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.

05-05-2003
YOUR BOXER IN DETAIL
102

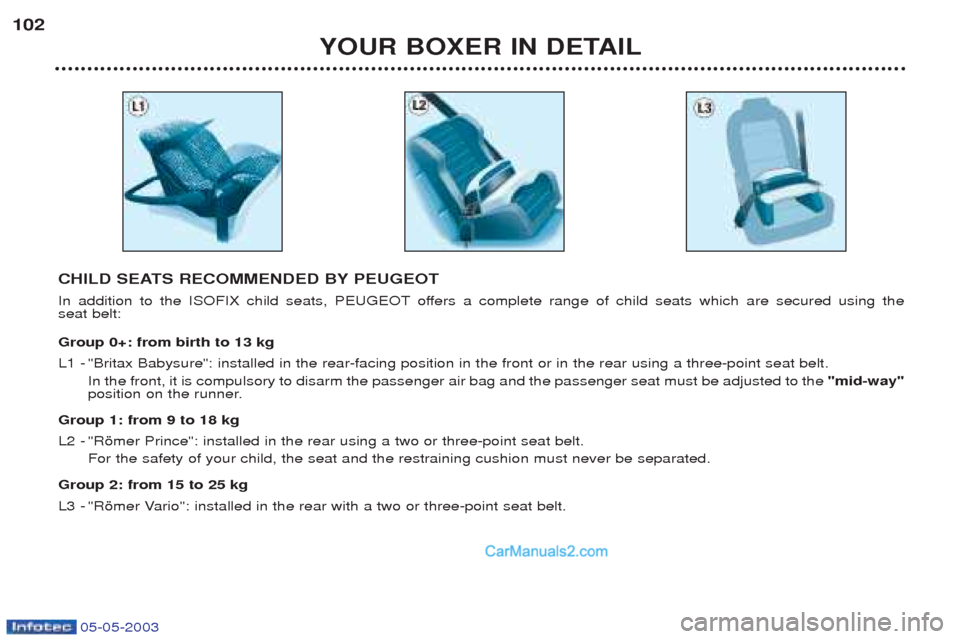

CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt: Group 0+: from birth to 13 kg
L1 - "Britax Babysure": installed in the rear-facing position in the front or in the rear using a three-point seat belt.
In the front, it is compulsory to disarm the passenger air bag and the passenger seat must be adjusted to the "mid-way"
position on the runner.
Group 1: from 9 to 18 kg
L2 - "Ršmer Prince": installed in the rear using a two or three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
Group 2: from 15 to 25 kg
L3 - "Ršmer Vario'': installed in the rear with a two or three-point seat belt.

05-05-2003
YOUR BOXER IN DETAIL103
Never leave one or more chil- dren alone and unsupervisedin a vehicle. Never leave a child or an ani-
mal in a vehicle which is exposed to the sun and has the windows closed.
To protect your young children from the
sun, fit blinds on the rear windows.Never leave the keys within reach of children inside the vehicle. Disarm the passenger air bag when ins- talling a "rearwards facing" child seat onthe front passenger seat. Otherwise,the child would risk being killed orseriously injured were the air bag toinflate. Observe strictly the recommendations for assembling and securing the childseat as shown in the child seat instruc-tions.
To prevent the doors from opening acci-
dentally, use the child lock*.Also, do not open the rear windows more than a third*.
* According to model.

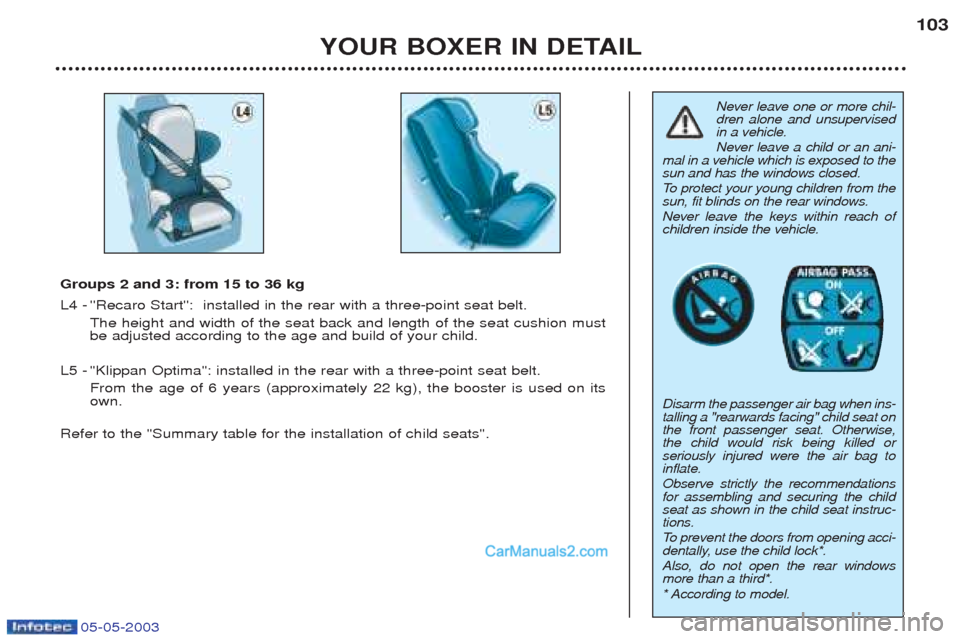

Groups 2 and 3: from 15 to 36 kg
L4 - ''Recaro Start'': installed in the rear with a three-point seat belt.
The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 - "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats".

05-05-2003
YOUR BOXER IN DETAIL
104

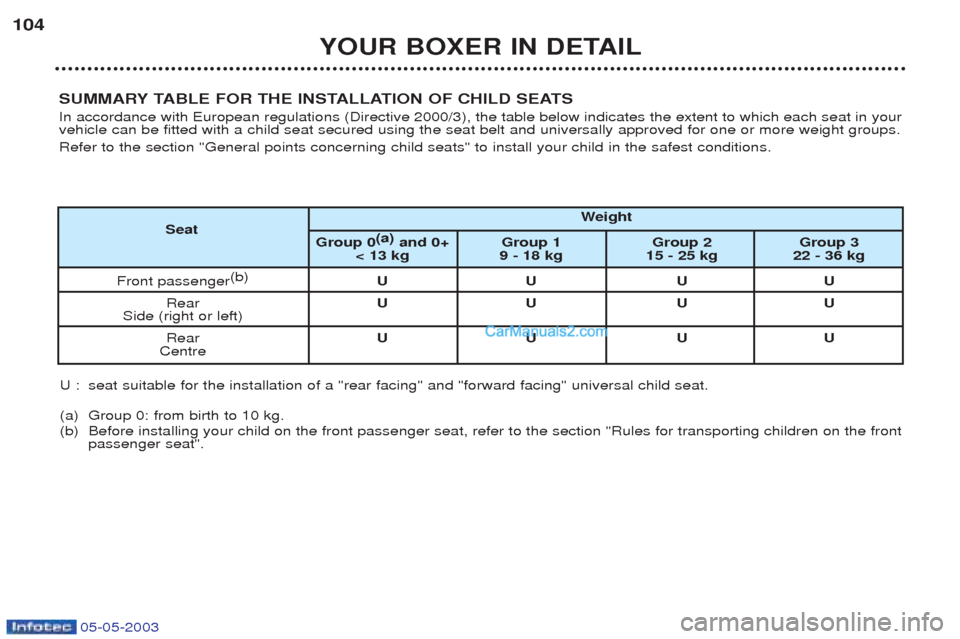

SUMMARY TABLE FOR THE INSTALLATION OF CHILD SEATS In accordance with European regulations (Directive 2000/3), the table below indicates the extent to which each seat in your vehicle can be fitted with a child seat secured using the seat belt and universally approved for one or more weight groups. Refer to the section "General points concerning child seats" to install your child in the safest conditions.
U : seat suitable for the installation of a "rear facing" and "forward facing" universal child seat.
(a) Group 0: from birth to 10 kg.
(b) Before installing your child on the front passenger seat, refer to the section "Rules for transporting children on the front passenger seat". W
eight
Seat Group 0(a)
and 0+ Group 1 Group 2 Group 3
< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger (b)
UU UU
Rear UU UU
Side (right or left)
Rear UU UU
Centre

05-05-2003
YOUR BOXER IN DETAIL
128
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with theseat belts. The electronic detectors register and analyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflate ins-tantly and protect the occupants ofthe vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-ficient to ensure maximum protec-
tion. The seriousness of a collisiondepends on the nature of the obs-tacle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passen-ger air bag is disarmed. Front air bag fault
If this warning light comes on on the instrument panel,
contact a PEUGEOT dealerto have the system chec-ked. Disarming the passenger air bag*
To
ensure the safety of your child,
it is essential to disarm the pas- senger air bag when you install arear-facing child seat on the frontpassenger seat. ☞ Remove the ignition key, insert it into the passenger air bag switch1located between the two front
seats and turn it to the "OFF"
position.
☞ The air bag warning light on theinstrument panel is lit throughoutthe disarming process.
* According to destination.

05-05-2003
YOUR BOXER IN DETAIL129

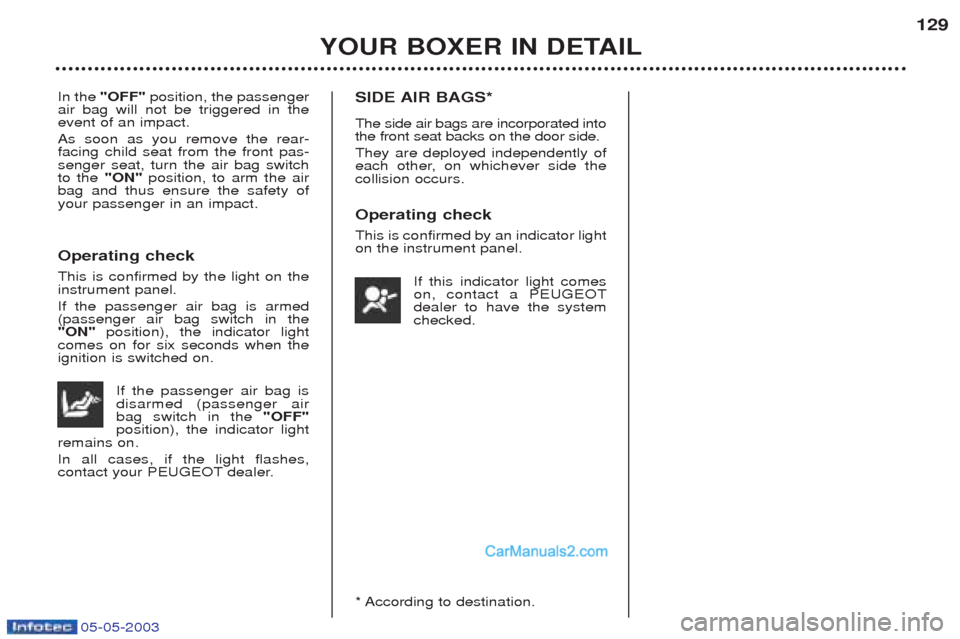

In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear- facing child seat from the front pas-senger seat, turn the air bag switchto the "ON"position, to arm the air
bag and thus ensure the safety ofyour passenger in an impact. Operating check This is confirmed by the light on the instrument panel. If the passenger air bag is armed (passenger air bag switch in the"ON" position), the indicator light
comes on for six seconds when theignition is switched on.
If the passenger air bag isdisarmed (passenger airbag switch in the "OFF"
position), the indicator light
remains on. In all cases, if the light flashes,
contact your PEUGEOT dealer. SIDE AIR BAGS* The side air bags are incorporated into the front seat backs on the door side. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light on the instrument panel.
If this indicator light comeson, contact a PEUGEOTdealer to have the systemchecked.
* According to destination.

05-05-2003
YOUR BOXER IN DETAIL
130

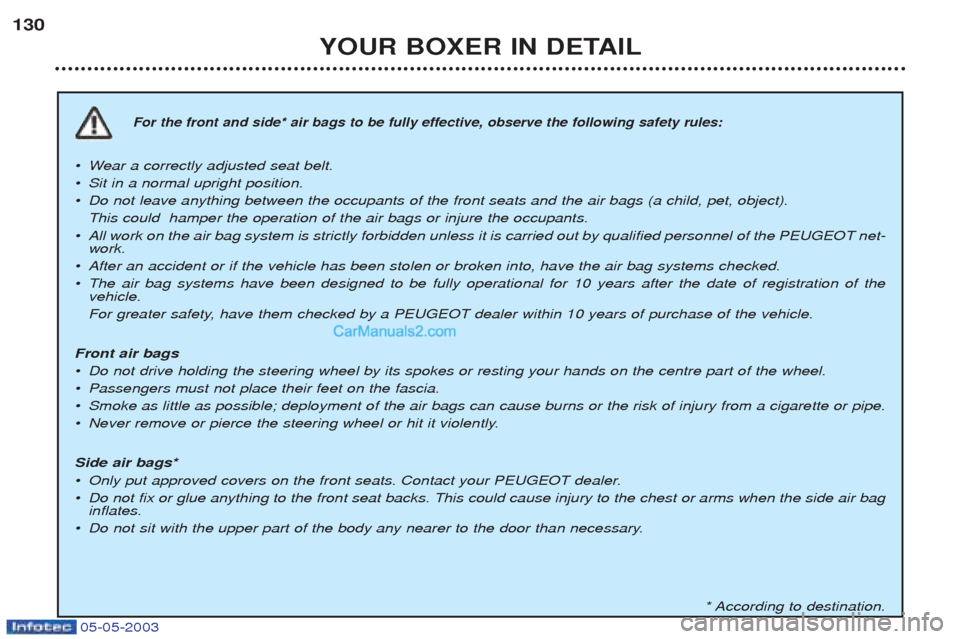

For the front and side* air bags to be fully effective, observe the following safety rules:
¥W
ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT net- work.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the date of registration of thevehicle.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.

05-05-2003
YOUR BOXER IN DETAIL129
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear- facing child seat from the front pas-senger seat, turn the air bag switchto the "ON"position, to arm the air
bag and thus ensure the safety ofyour passenger in an impact. Operating check This is confirmed by the light on the instrument panel. If the passenger air bag is armed (passenger air bag switch in the"ON" position), the indicator light
comes on for six seconds when theignition is switched on.
If the passenger air bag isdisarmed (passenger airbag switch in the "OFF"
position), the indicator light
remains on. In all cases, if the light flashes,
contact your PEUGEOT dealer. SIDE AIR BAGS* The side air bags are incorporated into the front seat backs on the door side. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light on the instrument panel.
If this indicator light comeson, contact a PEUGEOTdealer to have the systemchecked.
* According to destination.

05-05-2003
YOUR BOXER IN DETAIL
130
For the front and side* air bags to be fully effective, observe the following safety rules:
¥W
ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT net- work.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the date of registration of thevehicle.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
