warning lights Peugeot Boxer 2003 Owner's Manual

05-05-2003
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left-hand direction indicator.
6 - Side lights and dipped beamheadlamps indicator light.
7 - Main beam headlamps indicatorlight.
8 - Right-hand direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and total distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine diagnostics warninglight.
26 - Front brake pad wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
INSTRUMENTS AND CONTROLS
28
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

05-05-2003
Low coolant level warning light Illumination of this warning light indicates that the coolant level is too
low.
Stop immediately.
W arning: allow the engine to cool before topping up.
The cooling circuit is pressurised.
To avoid any risk of scalding, unscrew the cap by two turns to allow the pressu-
re to drop.When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 29
Engine oil pressure warning light This comes on for a few seconds when the ignition is switched on. Illumination of this warning light while the engine is running indicates
that the oil pressure or level is too low.
Stop immediately. If there is a lack of oil in the lubrication circuit, top it up.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS A permanently lit warning light or one that flashes while the engine is
running indicates an operating fault. The illumination of certain warning lights may be accompanied by a bleep and a message on the multi-
function display. Do not ignore this warning: contact your PEUGEOT dealer as soon as possible.
Handbrake warning light This comes on for a few seconds when the ignition is
switched on.Illumination of this warning light indi-cates that the handbrake is applied
or has not been released correctly.Coolant temperature warning light This comes on for a few seconds when the ignition is
switched on.Illumination of this warning light indi-cates an abnormal increase in thecoolant temperature.
Stop immediately.
Contact a PEUGEOT dealer.

05-05-2003

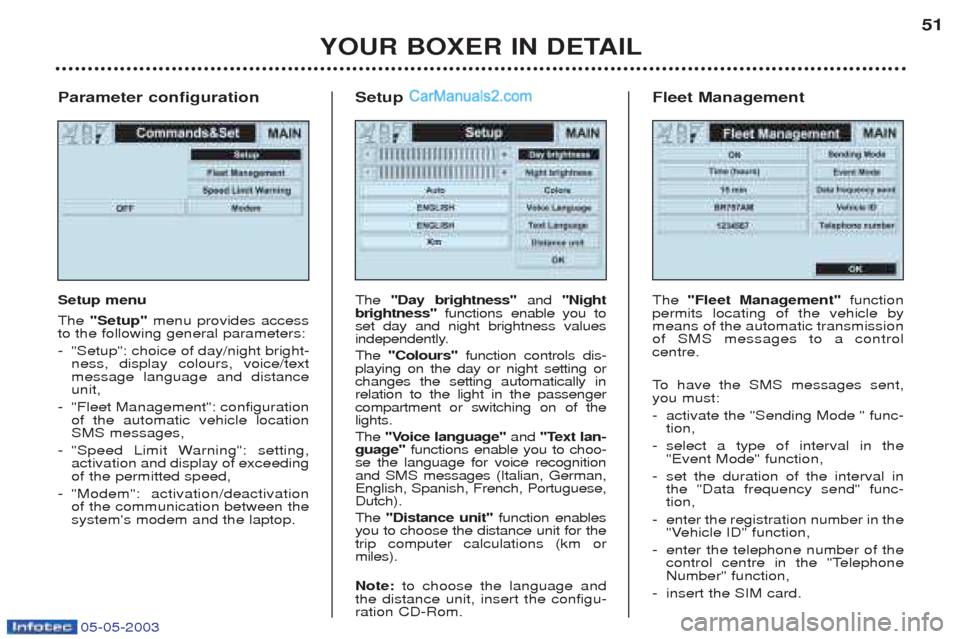

Parameter configuration Setup menu The"Setup" menu provides access
to the following general parameters: - "Setup": choice of day/night bright- ness, display colours, voice/textmessage language and distanceunit,
- "Fleet Management": configurationof the automatic vehicle locationSMS messages,
- "Speed Limit Warning": setting,activation and display of exceedingof the permitted speed,
- "Modem": activation/deactivationof the communication between thesystem's modem and the laptop.
YOUR BOXER IN DETAIL 51
Setup The "Day brightness" and "Night
brightness" functions enable you to
set day and night brightness values
independently. The "Colours" function controls dis-
playing on the day or night setting or changes the setting automatically inrelation to the light in the passengercompartment or switching on of thelights. The "Voice language" and "Text lan-
guage" functions enable you to choo-
se the language for voice recognition and SMS messages (Italian, German,English, Spanish, French, Portuguese,Dutch). The "Distance unit" function enables
you to choose the distance unit for the trip computer calculations (km ormiles). Note: to choose the language and
the distance unit, insert the configu- ration CD-Rom. Fleet Management The
"Fleet Management" function
permits locating of the vehicle by means of the automatic transmissionof SMS messages to a controlcentre.
To have the SMS messages sent,
you must: - activate the "Sending Mode " func- tion,
- select a type of interval in the"Event Mode" function,
- set the duration of the interval inthe "Data frequency send" func-tion,
- enter the registration number in the
"Vehicle ID" function,
- enter the telephone number of the
control centre in the "TelephoneNumber" function,
- insert the SIM card.

05-05-2003
YOUR BOXER IN DETAIL109
THE ALARM This provides two types of protection: -
exterior protection: it sounds if a
door, the tailgate or the bonnet isopened.
- interior protection: it sounds if thevolume inside the passenger com-partment changes (breaking of awindow or a movement inside thevehicle).
Setting the alarm ☞ Switch off the ignition and get out of the vehicle.
☞ Set the alarm within five minutesof getting out of the vehicle, bylocking using the remote control(the red indicator light, located onthe fascia, visible from outside,flashes once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, thesiren sounds and the direction indi-cator lights flash for thirty seconds. After triggering, the alarm remains set. W
arning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inactive. Note: if the red warning light, located
on the fascia, flashes rapidly, the alarm has been triggered while you
were away from your vehicle. To stopit flashing, insert the remote controlkey and switch on the ignition. Disarming Unlock the vehicle with the remote control key (the red indicator light,located on the fascia, goes out).
To set the alarm with exterior
protection only If, while you are away from the vehicle, you wish to leave a windowpartially open or a pet inside thevehicle, you should choose exterior
protection only. ☞ Switch off the ignition placing the key in the STOPposition.
☞ Place the key in the ONposition.
☞ Switch off the ignition placing thekey in the STOPposition.
☞ Remove the key.
The interior protection is disarmedwhen the red indicator light locatedon the fascia comes on for twoseconds. ☞
Get out of the vehicle.
☞ Within the next five minutes, setthe alarm by locking using theremote control (the red indicatorlight, located on the fascia,flashes once a second).
Note: when the alarm is set but the
remote control does not operate: ☞ Unlock the doors with the key
and open the door. The alarm istriggered.
☞ Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if the red indicator light, located on thefascia, comes on for ten seconds,there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked. Do not make any modifications to the alarm system, this could cause faults.

05-05-2003
YOUR BOXER IN DETAIL113

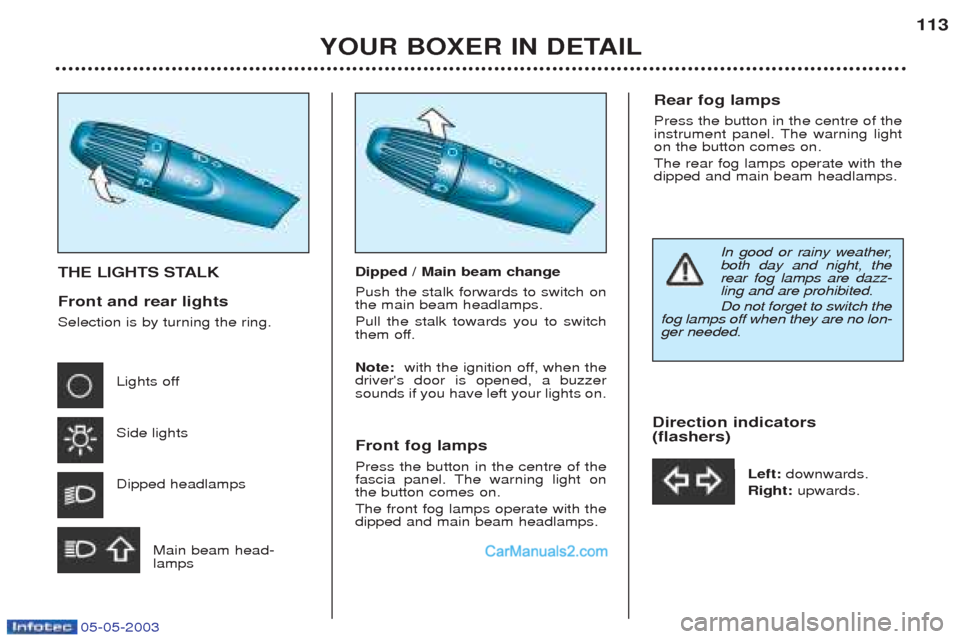

THE LIGHTS STALK Front and rear lights Selection is by turning the ring.
Lights off Side lights Dipped headlamps
Main beam head- lamps Dipped / Main beam change Push the stalk forwards to switch on the main beam headlamps. Pull the stalk towards you to switch
them off. Note:
with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps Press the button in the centre of the
fascia panel. The warning light onthe button comes on. The front fog lamps operate with the dipped and main beam headlamps. Direction indicators (flashers)
Left: downwards.
Right: upwards.
Rear fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The rear fog lamps operate with the dipped and main beam headlamps.
In good or rainy weather, both day and night, therear fog lamps are dazz-ling and are prohibited. Do not forget to switch the
fog lamps off when they are no lon- ger needed.

05-05-2003
YOUR BOXER IN DETAIL
118

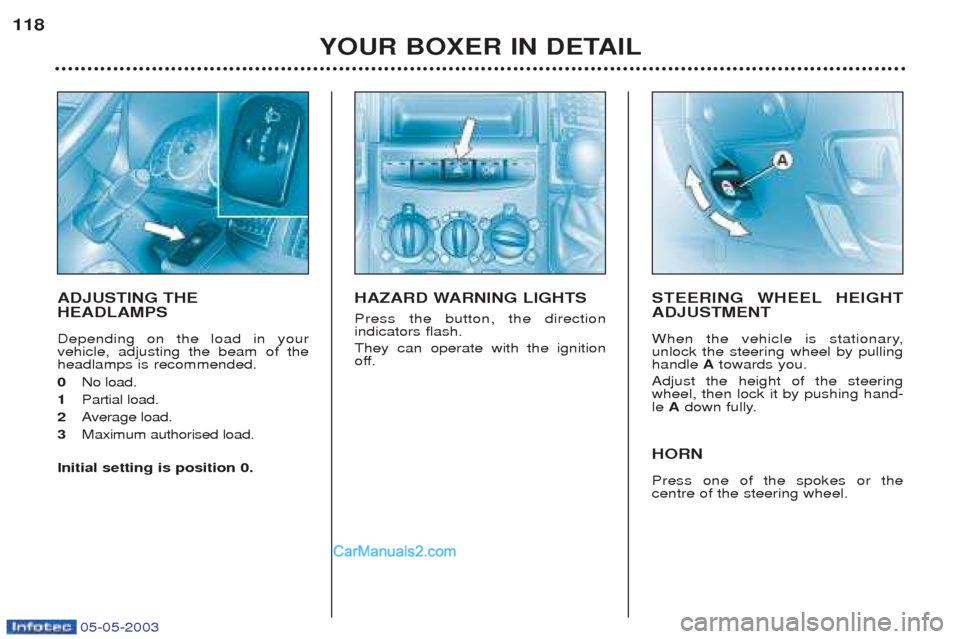

ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended. 0
No load.
1 Partial load.
2 Average load.
3 Maximum authorised load.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
Atowards you.
Adjust the height of the steeringwheel, then lock it by pushing hand-le Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.

05-05-2003
PRACTICAL INFORMATION
142
Fuse no. Rating
Functions
12 5 A Front and rear right side lights.
13 5 A Front and rear left side lights.
24 5 A Number plate and trailer lights - Side lights warning light - Lights stalk.
25 7,5 A Audio equipment.
26 7,5 A Brake lights.
27 7,5 A Electric mirrors - Cruise control - Telephone - Chronotachograph -
Remote control - Alarm.
31 10 A Reversing lights - Front fog lamps relay - Air conditioning relay - Heated mirrors relay -Heated rear screen relay - 12 volt socket.
32 15 A Audio equipment.
33 7,5 A Rear fog lamp.
35 7,5 A ABI - Electric window controls.
36 - Not used.
37 10 A Instrument panel.
39 10 A Interior lighting - EOBD diagnostic socket.
42 7,5 A ABS.
43 20 A Wash-wipe pump.
44 15 A Lighter.
46 - Not used.
49 20 A Headlamp wash pump.
50 7,5 A Air bags.
51 10 A PCS (Minibus).
52 20 A Front power socket.
53 10 A Direction indicators- Hazard lights - Instrument panel.
55 30 A Passenger compartment electric ventilator - Webasto unit - Heating/air conditioning ventila-
tion - Webasto heating ventilation - Webasto supply.
62 - Not used.
Left-hand fuse box

05-05-2003

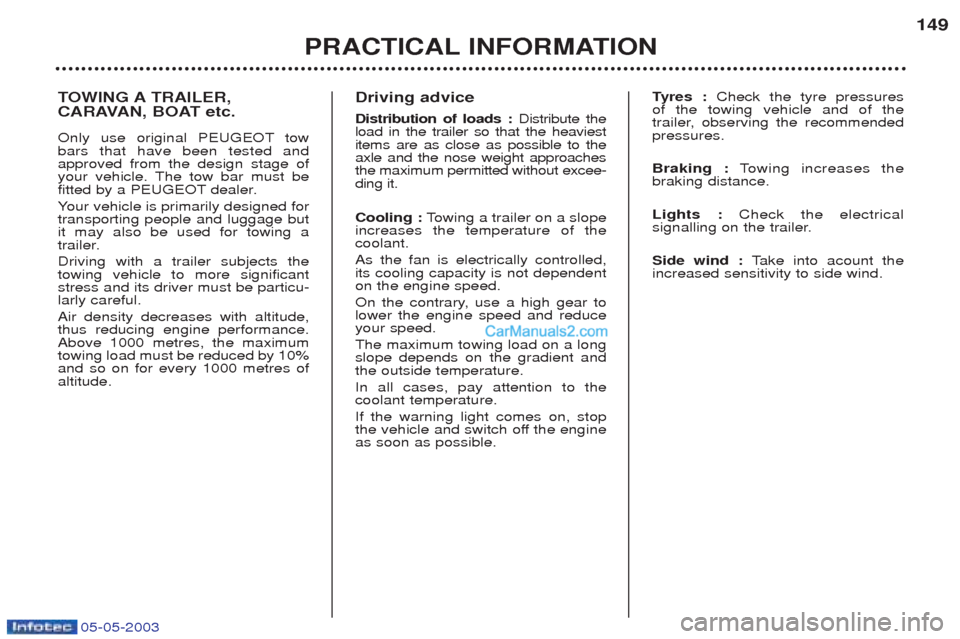

TOWING A TRAILER,
CARAVAN, BOAT etc.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be
fitted by a PEUGEOT dealer. Y our vehicle is primarily designed for
transporting people and luggage but it may also be used for towing a
trailer. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.Above 1000 metres, the maximumtowing load must be reduced by 10%and so on for every 1000 metres ofaltitude. Driving advice Distribution of loads :
Distribute the
load in the trailer so that the heaviest items are as close as possible to theaxle and the nose weight approachesthe maximum permitted without excee-ding it. Cooling : Towing a trailer on a slope
increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible. T
yres : Check the tyre pressures
of the towing vehicle and of the
trailer, observing the recommendedpressures. Braking : Towing increases the
braking distance. Lights : Check the electrical
signalling on the trailer.Side wind : Take into acount the
increased sensitivity to side wind.
PRACTICAL INFORMATION 149
