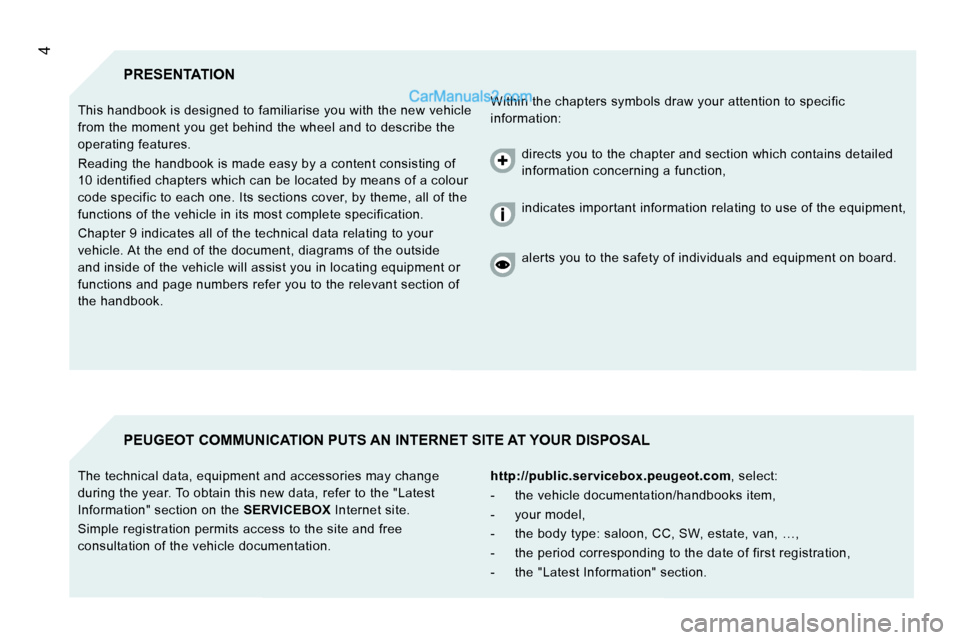

PRESENTATION
Within the chapters symbols draw your attention to specific
information:
This handbook is designed to familiarise you with
the new vehicle
from the moment you get behind the wheel and to des cribe the
operating features.
Reading the handbook is made easy by a content con sisting of
10 identified chapters which can be located by mean s of a colour
code specific to each one. Its sections cover, by t heme, all of the
functions of the vehicle in its most complete speci fication.
Chapter 9 indicates all of the technical data rela ting to your
vehicle. At the end of the document, diagrams of th e outside
and inside of the vehicle will assist you in locati ng equipment or
functions and page numbers refer you to the relevan t section of
the handbook.
PEUGEOT COMMUNICATION PUTS AN INTERNET SITE AT YOUR DISPOSAL

http://public.servicebox.peugeot.com , select:
- the vehicle documentation/handbooks item,
- your model,
- the body type: saloon, CC, SW, estate, van, …,
- the period corresponding to the date of first registration,
- the "Latest Information" section.
The technical data, equipment and accessories may
change
during the year. To obtain this new data, refer to the "Latest
Information" section on the SERVICEBOX Internet site.
Simple registration permits access to the site and free
consultation of the vehicle documentation. directs you to the chapter and section which conta
ins detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipm ent on board.

4
3
4
2
1
FAMILIARISATION
5
Familiarisation
Reversing camera
This equipment is activated automatically
when reverse gear is engaged, with a
visual return on the screen located in the
interior mirror position.
77

76

41

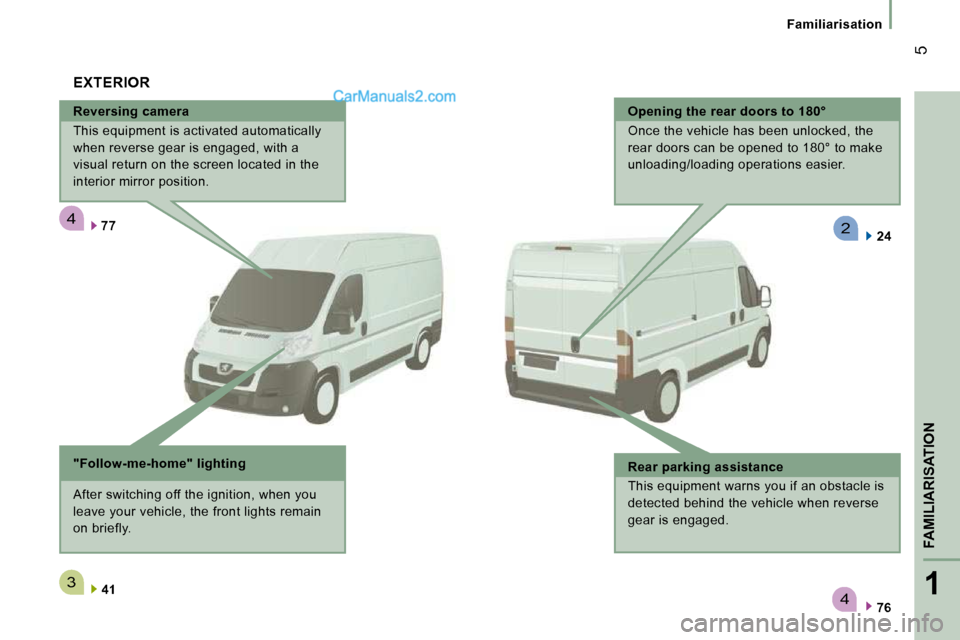

EXTERIOR
"Follow-me-home" lighting
After switching off the ignition, when you
leave your vehicle, the front lights remain
on briefly. Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.
Rear parking assistance
This equipment warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.

24

222
6
Familiarisation
Sliding side door

Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.
Take care to open the door fully to lock the
device at the base of the door.
Do not drive with the sliding side door open.

23
Locking of the vehicle.
Unlocking of the vehicle.
Locking/Unlocking of the load space.
Remote control key

2 buttons
Unfolding/Folding of the key.
Unlocking.
Locking.

18 Manual centralised controls

25

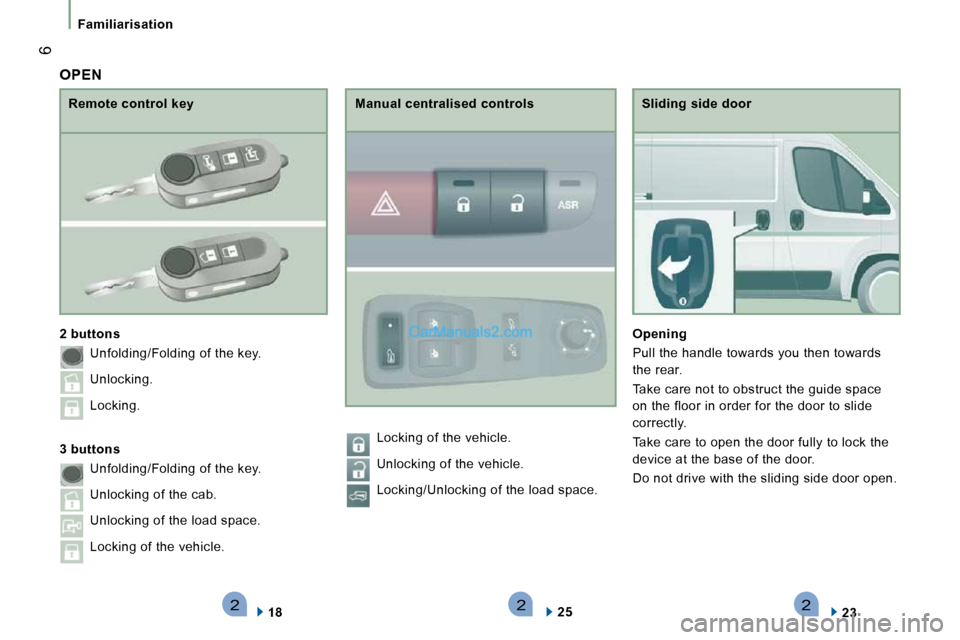

OPEN

3 buttons
Unfolding/Folding of the key.
Unlocking of the cab.
Unlocking of the load space.
Locking of the vehicle.

2271
FAMILIARISATION
7
Familiarisation

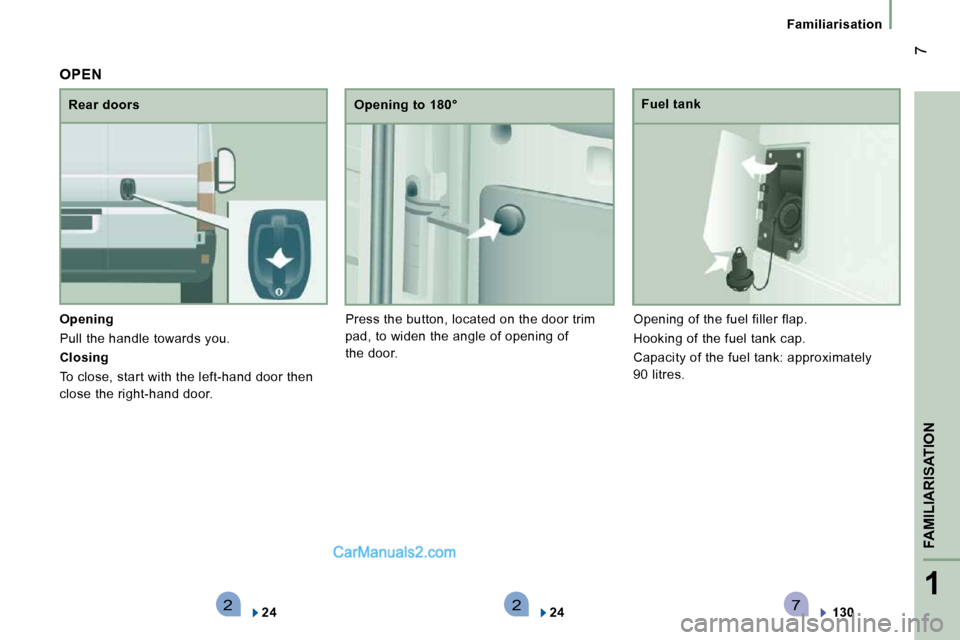

Opening
Pull the handle towards you.

Closing
To close, start with the left-hand door then
close the right-hand door. Rear doors
Opening to 180°
Press the button, located on the door trim
pad, to widen the angle of opening of
the door. Fuel tank
Opening of the fuel filler flap.
Hooking of the fuel tank cap.
Capacity of the fuel tank: approximately
90 litres.

24
OPEN

24
130

8
Familiarisation

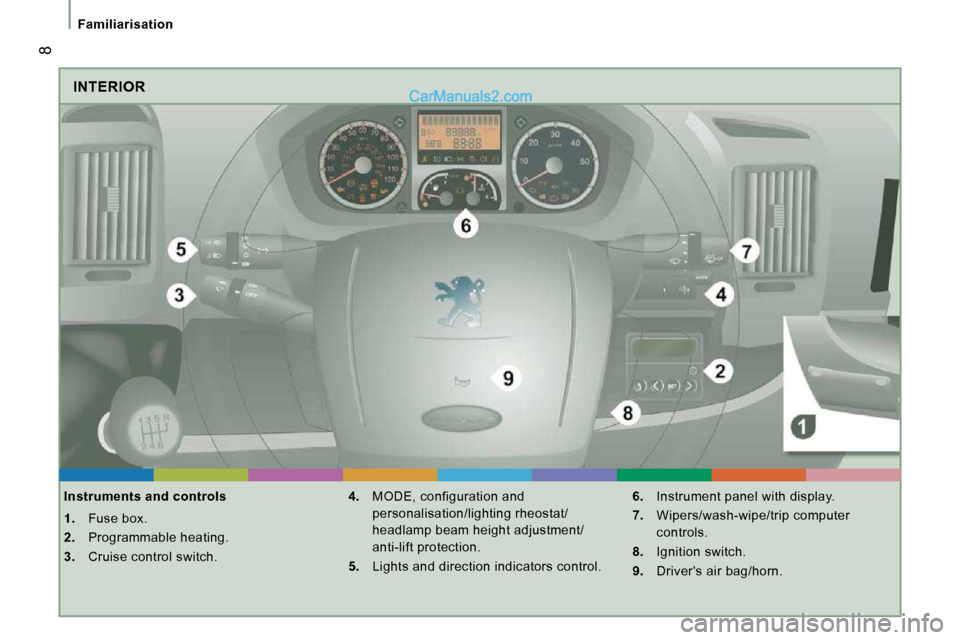

INTERIOR
Instruments and controls

1. Fuse box.

2. Programmable heating.

3. Cruise control switch.
4. MODE, configuration and
personalisation/lighting rheostat/
headlamp beam height adjustment/
anti-lift protection.

5. Lights and direction indicators control.
6. Instrument panel with display.

7. Wipers/wash-wipe/trip computer
controls.

8. Ignition switch.

9. Driver's air bag/horn.

1
FAMILIARISATION
9
Familiarisation

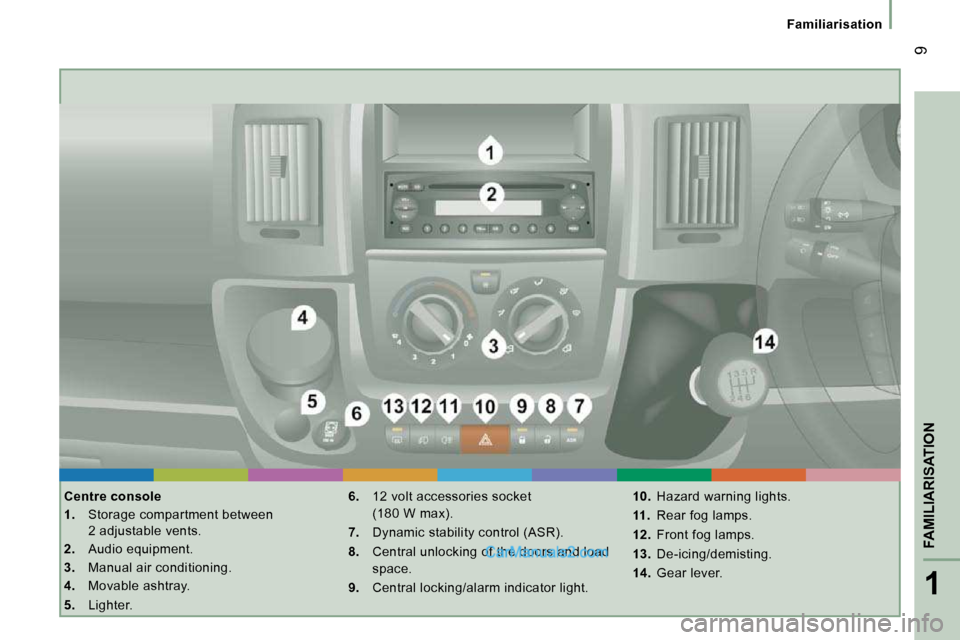

Centre console

1. Storage compartment between
2 adjustable vents.

2. Audio equipment.

3. Manual air conditioning.

4. Movable ashtray.

5. Lighter.
6. 12 volt accessories socket
(180 W max).

7. Dynamic stability control (ASR).

8. Central unlocking of the doors and load
space.

9. Central locking/alarm indicator light.
10. Hazard warning lights.

11. Rear fog lamps.

12. Front fog lamps.

13. De-icing/demisting.

14. Gear lever.

2
10
Familiarisation

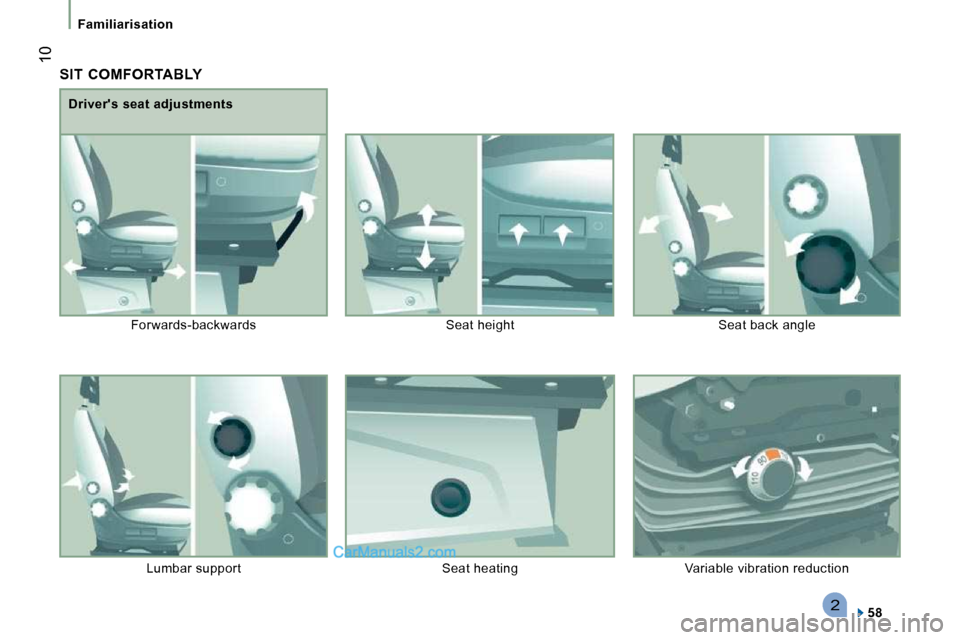

SIT COMFORTABLY

58
Driver's seat adjustments
Forwards-backwards Seat height Seat back angle
Lumbar support Seat heating Variable vibration r eduction

523
5
1
FAMILIARISATION
11
Familiarisation
SIT COMFORTABLY

1. Unlocking of the lever.

2. Locking of the lever.

3. Adjustment of the depth of the steering
wheel.
Manual adjustment of the depth of the
steering wheel

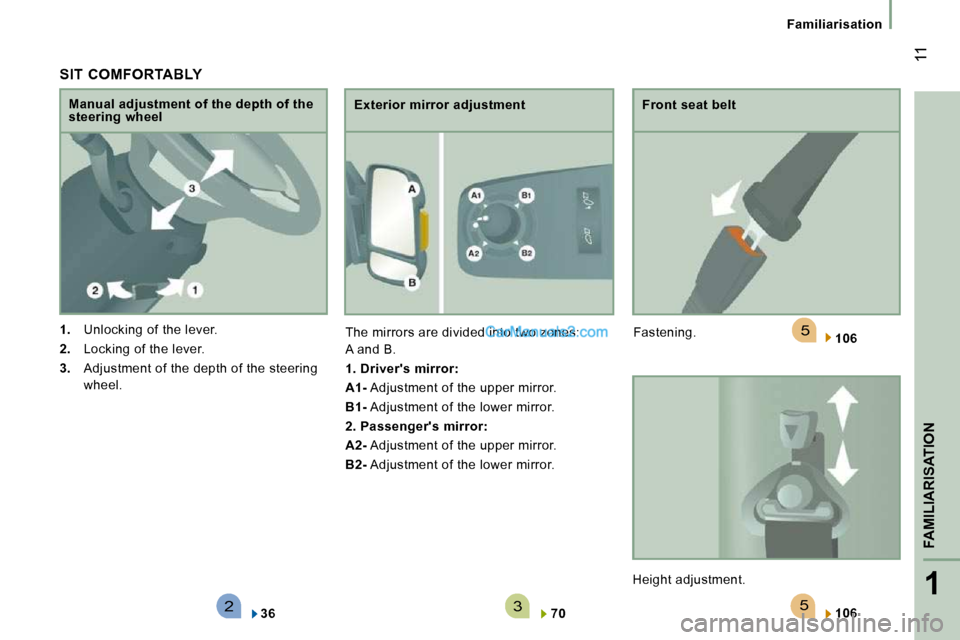

Exterior mirror adjustment
The mirrors are divided into two zones:
A and B.

1. Driver's mirror:

A1- Adjustment of the upper mirror.

B1- Adjustment of the lower mirror.

2. Passenger's mirror:

A2- Adjustment of the upper mirror.

B2- Adjustment of the lower mirror.

36
70 Front seat belt
Fastening.
Height adjustment.
106

106

233
12
Familiarisation
SEE CLEARLY
Lights Side lights/PARK
Front fog lamps and rear fog
lamps.
40
42
Automatic switching on of the
lights.
Lights off.
Side lights.
Dipped headlamps or main beam
headlamps. With the ignition off and the key in the STOP
position or removed:
Move the ring on the lights stalk to
position O then to side lights, dipped
headlamps or main beam headlamps.
The side lights will remain on while you are
parked.

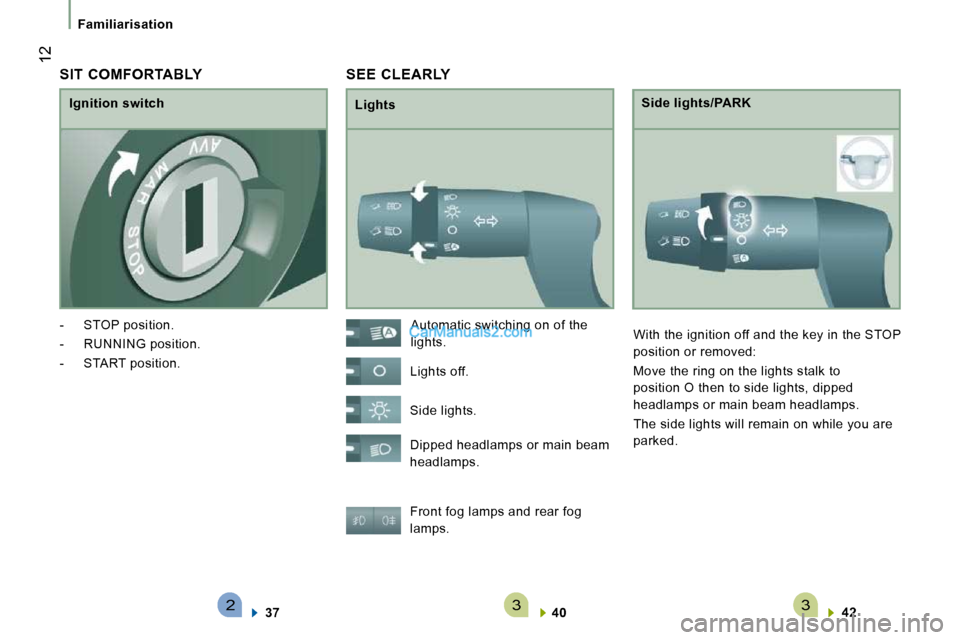

SIT COMFORTABLY
Ignition switch
- STOP position.
- RUNNING position.
- START position.

37

3331
FAMILIARISATION
13
Familiarisation

43
Windscreen wash
Pull the control towards you, the windscreen
wash is accompanied by a timed sweep of
the wipers.

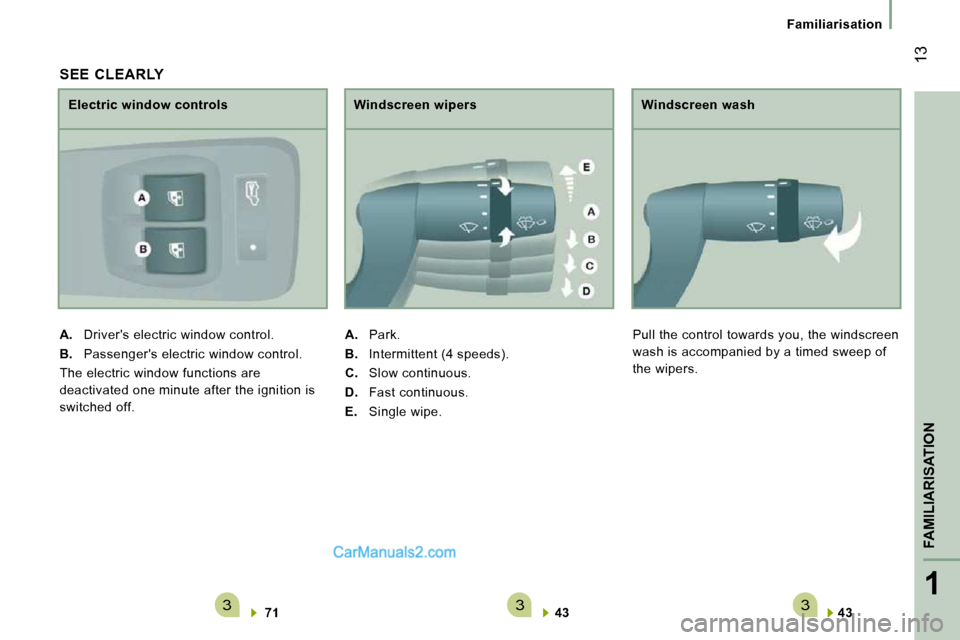

SEE CLEARLY

71
Electric window controls

A. Driver's electric window control.

B. Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

43
Windscreen wipers

A. Park.

B. Intermittent (4 speeds).

C. Slow continuous.

D. Fast continuous.

E. Single wipe.
