Peugeot Boxer 2008.5 Owner's Manual

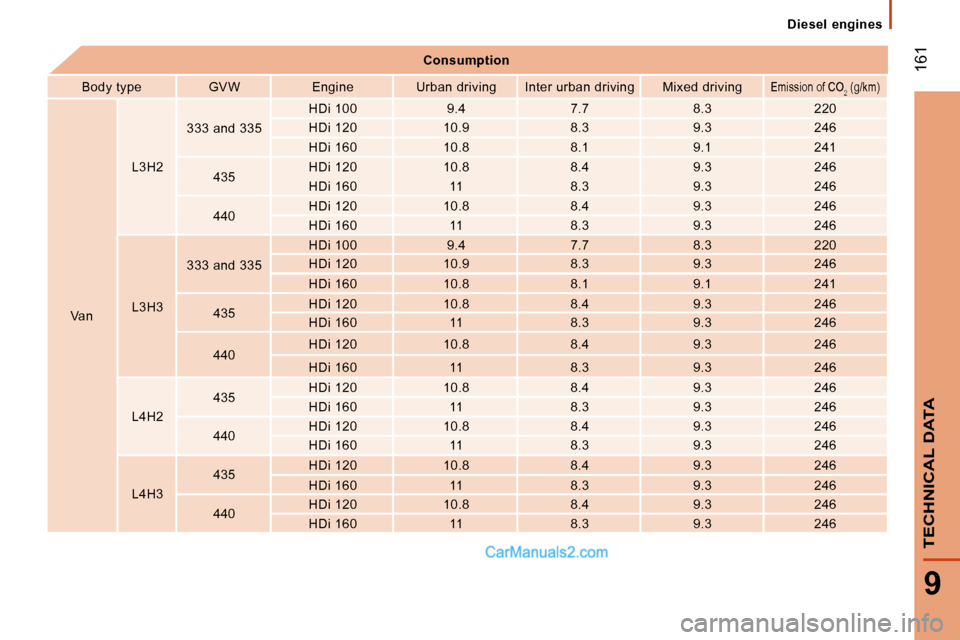

161
9
TECHNICAL DATA
Diesel engines

Consumption
Body type GVW Engine Urban driving In ter urban driving Mixed driving
Emission of CO
2 (g/km)
Van L3H2
333 and 335
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L3H3 333 and 335
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4H2 435
HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4H3 435
HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

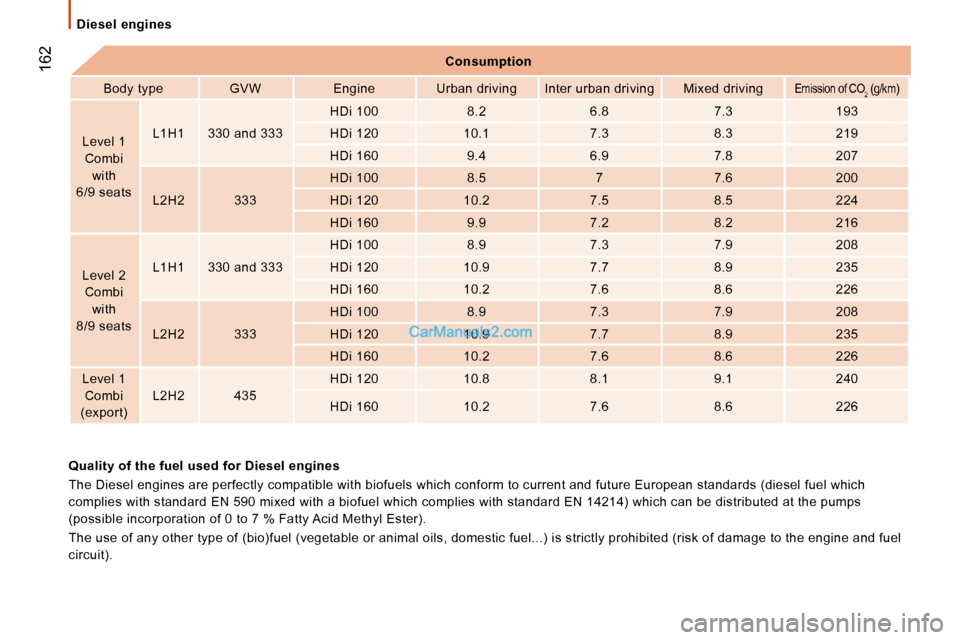

162
Diesel engines

Consumption
Body type GVW Engine Urban driving Inter urb an driving Mixed driving
Emission of CO
2 (g/km)
Level 1
Combi with
6/9 seats L1H1 330 and 333
HDi 100 8.2 6.8 7.3 193
HDi 120 10.1 7.3 8.3 219
HDi 160 9.4 6.9 7.8 207
L2H2 333 HDi 100 8.5 7 7.6 200
HDi 120 10.2 7.5 8.5 224
HDi 160 9.9 7.2 8.2 216
Level 2 Combi with
8/9 seats L1H1 330 and 333
HDi 100 8.9 7.3 7.9 208
HDi 120 10.9 7.7 8.9 235
HDi 160 10.2 7.6 8.6 226
L2H2 333 HDi 100 8.9 7.3 7.9 208
HDi 120 10.9 7.7 8.9 235
HDi 160 10.2 7.6 8.6 226
Level 1 Combi
(export) L2H2 435 HDi 120 10.8 8.1 9.1 240
HDi 160 10.2 7.6 8.6 226
Quality of the fuel used for Diesel engi nes
The Diesel engines are perfectly compatible with b iofuels which conform to current and future Europea n standards (diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) which can be distributed at the pumps
(possible incorporation of 0 to 7 % Fatty Acid Meth yl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel
circuit).

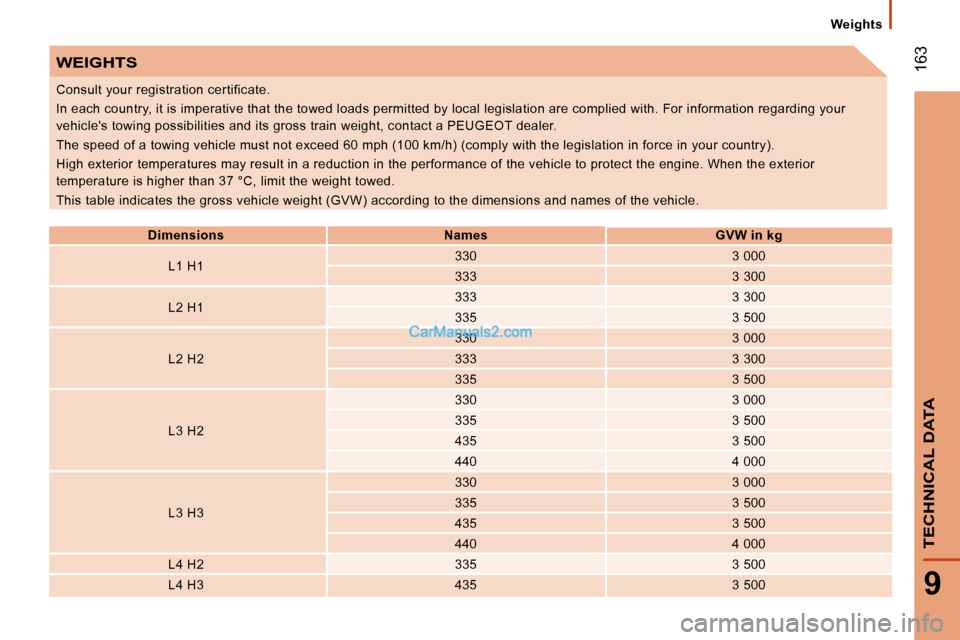

163
9
TECHNICAL DATA
Weights
WEIGHTS

Dimensions
Names
GVW in kg
L1 H1 330
3 000
333 3 300
L2 H1 333
3 300
335 3 500
L2 H2 330
3 000
333 3 300
335 3 500
L3 H2 330
3 000
335 3 500
435 3 500
440 4 000
L3 H3 330
3 000
335 3 500
435 3 500
440 4 000
L4 H2 335 3 500
L4 H3 435 3 500
Consult your registration certificate.
In each country, it is imperative that the towed l
oads permitted by local legislation are complied wi th. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW ) according to the dimensions and names of the vehi cle.

164

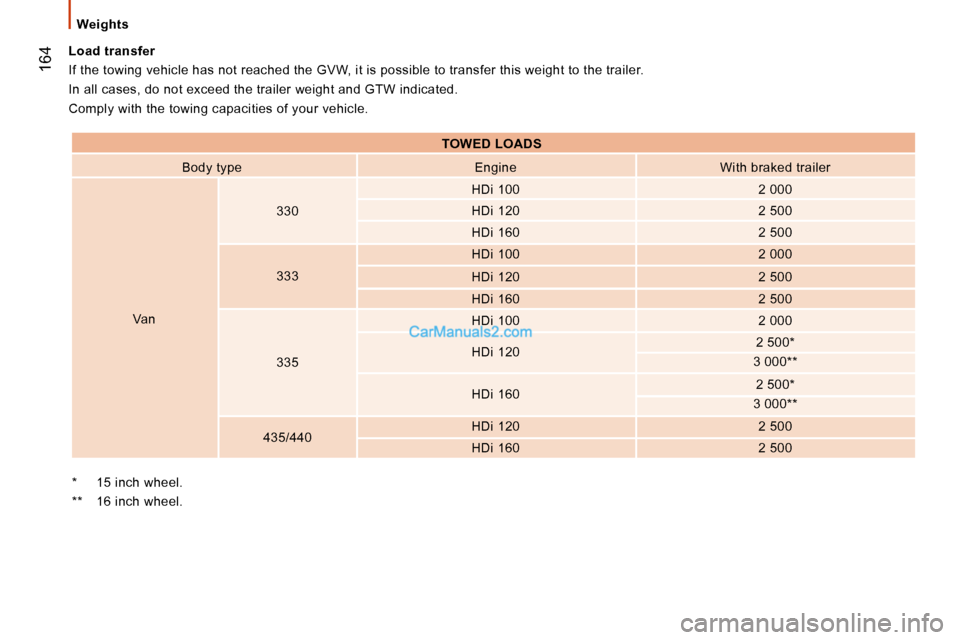

Weights
* 15 inch wheel.
** 16 inch wheel.
Load transfer
If the towing vehicle has not reached the GVW, it
is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.

TOWED LOADS
Body type Engine With braked trailer
Van 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500 *
3 000 **
HDi 160 2 500 *
3 000 **
435/440 HDi 120
2 500
HDi 160 2 500

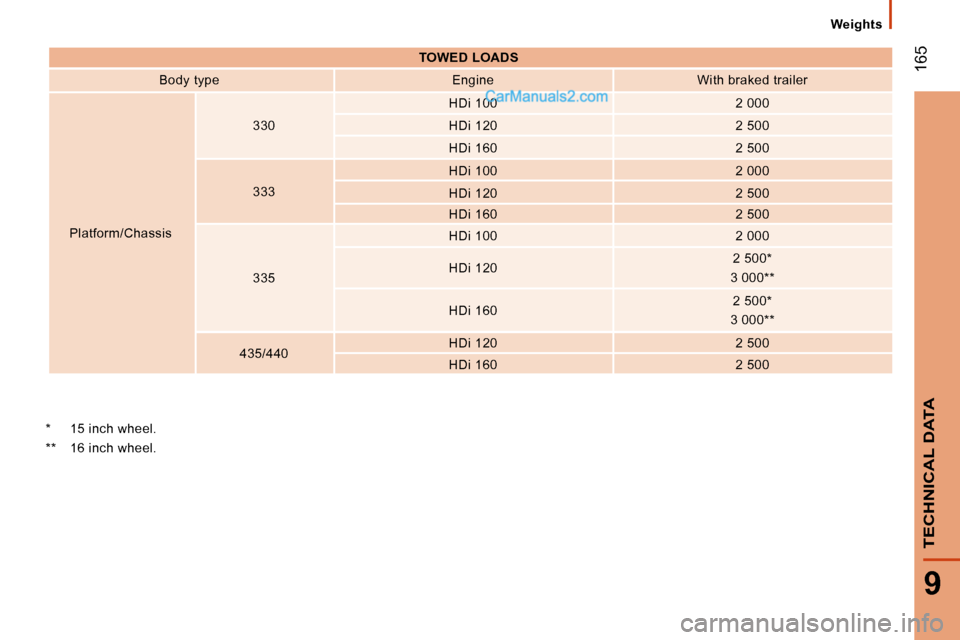

165
9
TECHNICAL DATA
Weights

TOWED LOADS
Body type Engine With braked trailer
Platform/Chassis 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500 *
3 000 **
HDi 160 2 500 *
3 000 **
435/440 HDi 120
2 500
HDi 160 2 500
* 15 inch wheel.
** 16 inch wheel.

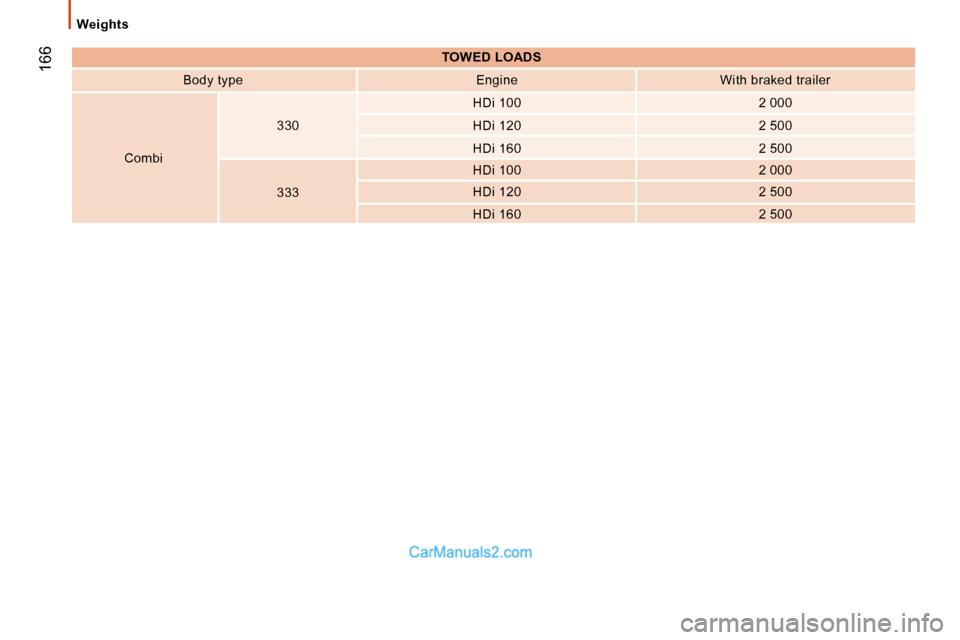

166
Weights

TOWED LOADS
Body type Engine With braked trailer
Combi 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500

167
9
TECHNICAL DATA

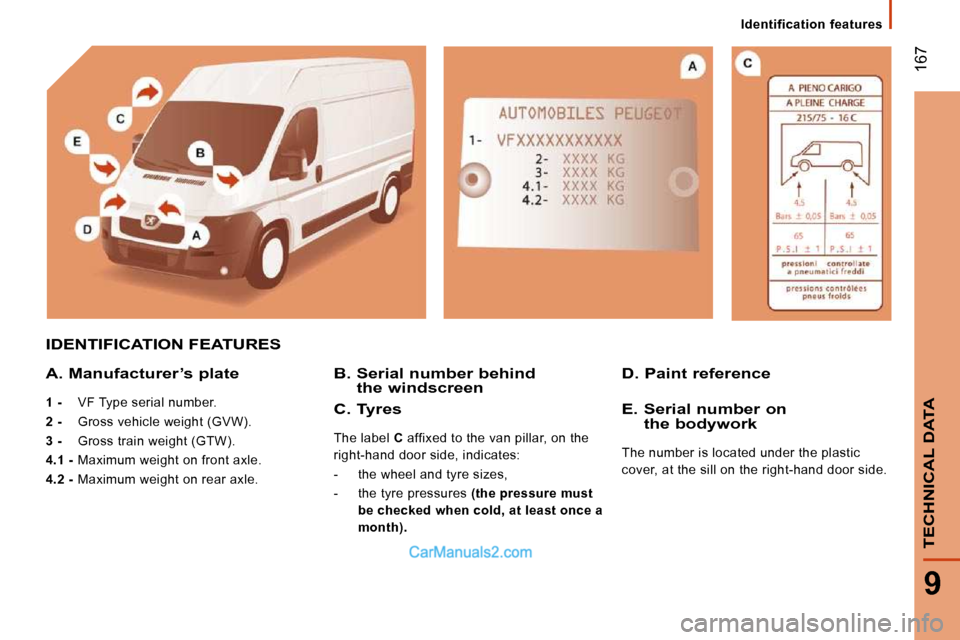

Identification features
IDENTIFICATION FEATURES
A. Manufacturer’s plate

1 - VF Type serial number.

2 - Gross vehicle weight (GVW).

3 - Gross train weight (GTW).

4.1 - Maximum weight on front axle.

4.2 - Maximum weight on rear axle.
B. Serial number behindthe windscreen D. Paint reference
C. Tyres
The label C affixed to the van pillar, on the
right-hand door side, indicates:
- the wheel and tyre sizes,
- the tyre pressures (the pressure must
be checked when cold, at least once a
month).
E. Serial number on the bodywork
The number is located under the plastic
cover, at the sill on the right-hand door side.
