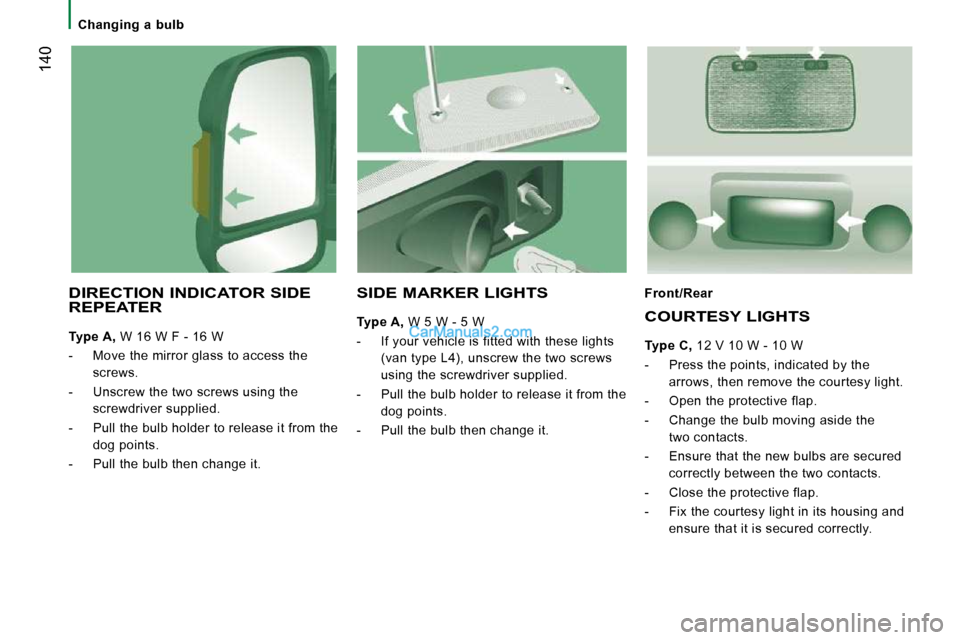

Changing a bulb
DIRECTION INDICATOR SIDE REPEATER

Type A, W 16 W F - 16 W
- Move the mirror glass to access the screws.
- Unscrew the two screws using the screwdriver supplied.
- Pull the bulb holder to release it from the dog points.
- Pull the bulb then change it.
Front/Rear
COURTESY LIGHTS

Type C, 12 V 10 W - 10 W
- Press the points, indicated by the arrows, then remove the courtesy light.
- Open the protective flap.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.
SIDE MARKER LIGHTS

Type A, W 5 W - 5 W
- If your vehicle is fitted with these lights (van type L4), unscrew the two screws
using the screwdriver supplied.
- Pull the bulb holder to release it from the dog points.
- Pull the bulb then change it.

141
TROUBLESHOOTING
8

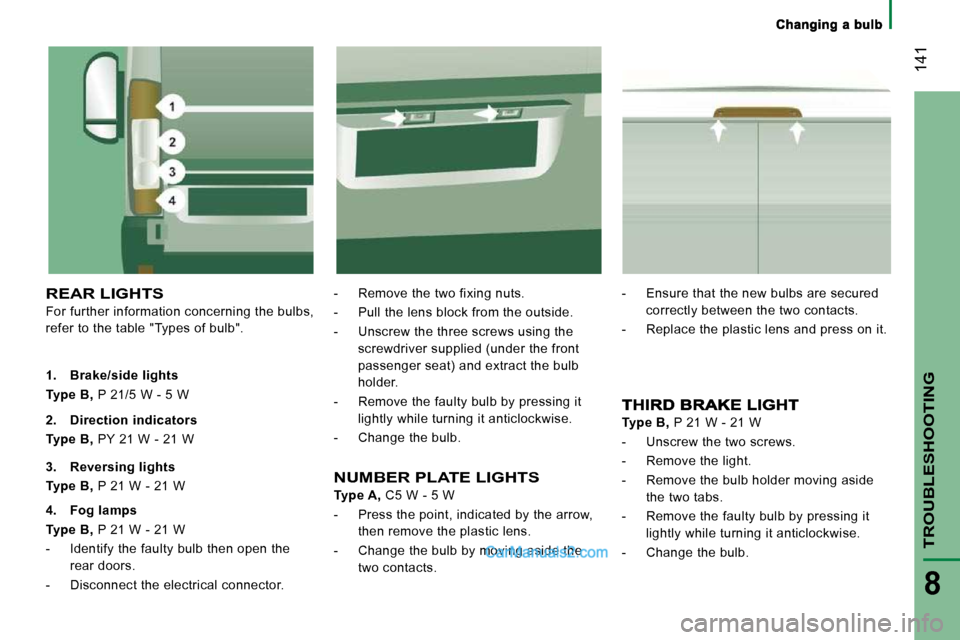

REAR LIGHTS
For further information concerning the bulbs,
refer to the table "Types of bulb". - Remove the two fixing nuts.
- Pull the lens block from the outside.
- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

1. Brake/side lights

Type B, P 21/5 W - 5 W

Type B, P 21 W - 21 W
- Unscrew the two screws.
- Remove the light.
- Remove the bulb holder moving aside the two tabs.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

2. Direction indicators

Type B, PY 21 W - 21 W

3. Reversing lights

Type B, P 21 W - 21 W

4. Fog lamps

Type B, P 21 W - 21 W
- Identify the faulty bulb then open the rear doors.
- Disconnect the electrical connector.
NUMBER PLATE LIGHTS

Type A, C5 W - 5 W
- Press the point, indicated by the arrow, then remove the plastic lens.
- Change the bulb by moving aside the two contacts. - Ensure that the new bulbs are secured
correctly between the two contacts.
- Replace the plastic lens and press on it.

142

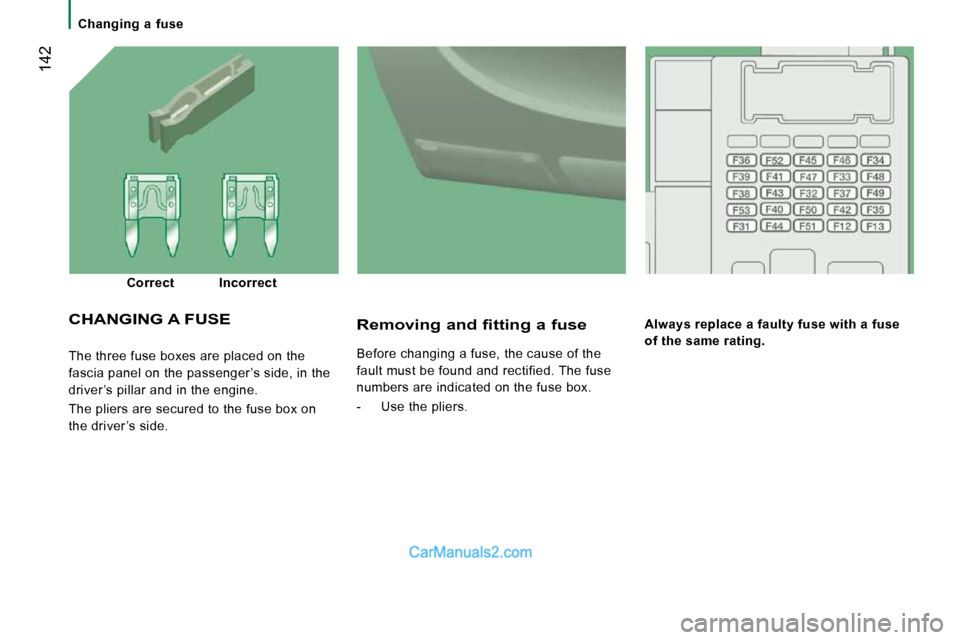

Changing a fuse
The three fuse boxes are placed on the
fascia panel on the passenger ’s side, in the
driver ’s pillar and in the engine.
The pliers are secured to the fuse box on
the driver ’s side.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
CHANGING A FUSE

Correct Incorrect

Changing a fuse
143
TROUBLESHOOTING
8

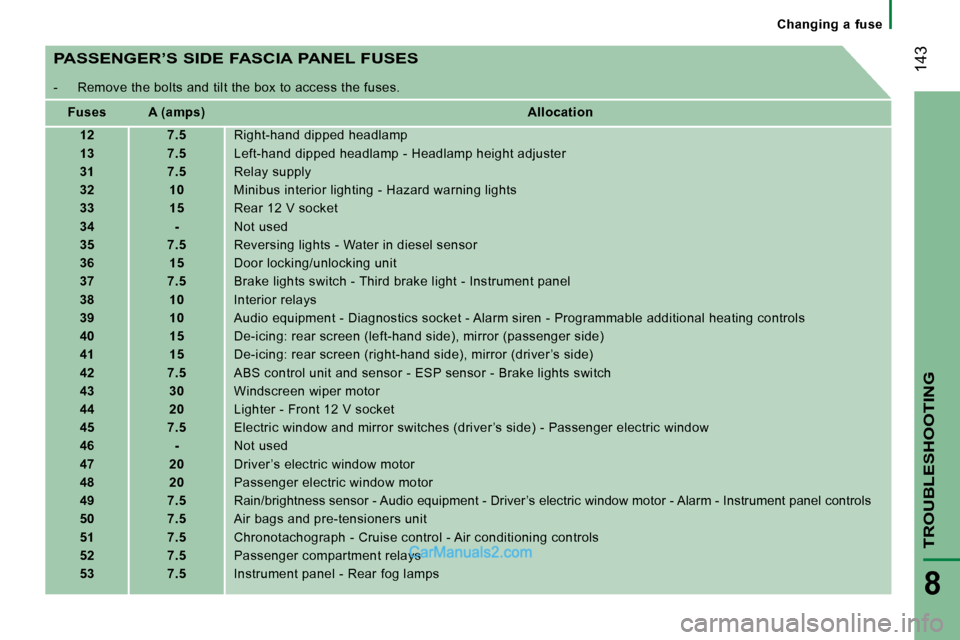

PASSENGER’S SIDE FASCIA PANEL FUSES
- Remove the bolts and tilt the box to access the fuses.

Fuses A (amps)
Allocation
12 7 . 5 Right-hand dipped headlamp
13 7 . 5 Left-hand dipped headlamp - Headlamp height adjust er
31 7 . 5 Relay supply
32 10 Minibus interior lighting - Hazard warning lights
33 15 Rear 12 V socket
34 - Not used
35 7 . 5 Reversing lights - Water in diesel sensor
36 15 Door locking/unlocking unit
37 7.5 Brake lights switch - Third brake light - Instrume nt panel
38 10 Interior relays
39 10 Audio equipment - Diagnostics socket - Alarm siren - Programmable additional heating controls
40 15 De-icing: rear screen (left-hand side), mirror (pa ssenger side)
41 15 De-icing: rear screen (right-hand side), mirror (d river ’s side)
42 7 . 5 ABS control unit and sensor - ESP sensor - Brake l ights switch
43 30 Windscreen wiper motor
44 20 Lighter - Front 12 V socket
45 7 . 5 Electric window and mirror switches (driver ’s side ) - Passenger electric window
46 - Not used
47 20 Driver ’s electric window motor
48 20 Passenger electric window motor
49 7 . 5 Rain/brightness sensor - Audio equipment - Driver’ s electric window motor - Alarm - Instrument panel controls
50 7 . 5 Air bags and pre-tensioners unit
51 7 . 5 Chronotachograph - Cruise control - Air conditioni ng controls
52 7 . 5 Passenger compartment relays
53 7 . 5 Instrument panel - Rear fog lamps

144
Changing a fuse
Fuses A (amps) Allocation
54 - Not used
55 15 Heated seats
56 15 Rear 12 V socket - Lighter
57 10 Ventilation/heating motor under the driver ’s seat
58 10 Direction indicators
59 7.5 Pneumatic suspension
60 - Not used
61 - Not used
62 - Not used
63 10 Programmable additional heating switch
64 - Not used
65 30 Rear blower

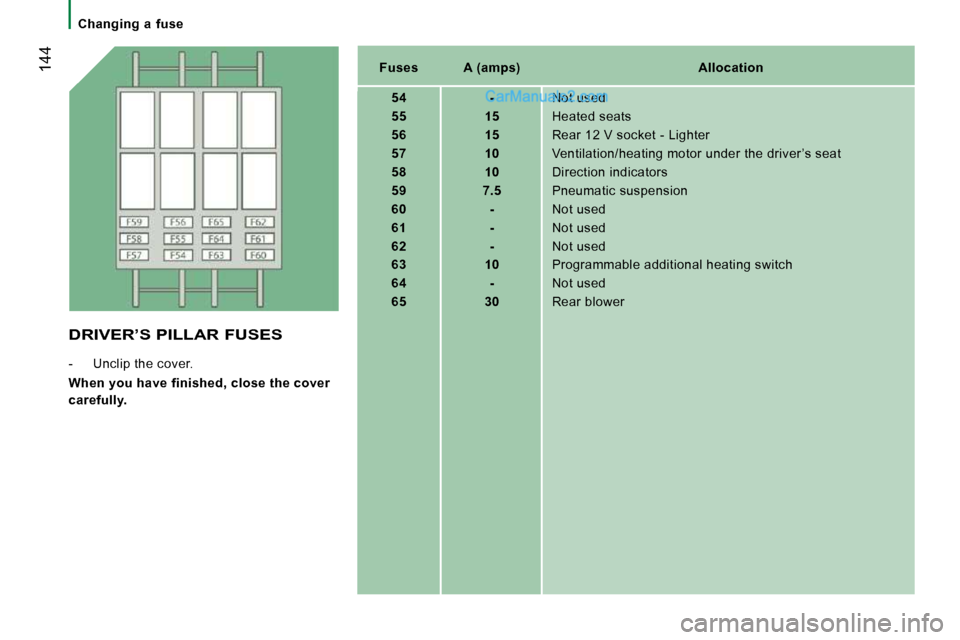

DRIVER’S PILLAR FUSES
- Unclip the cover.

When you have finished, close the cover
carefully.

145
TROUBLESHOOTING
8

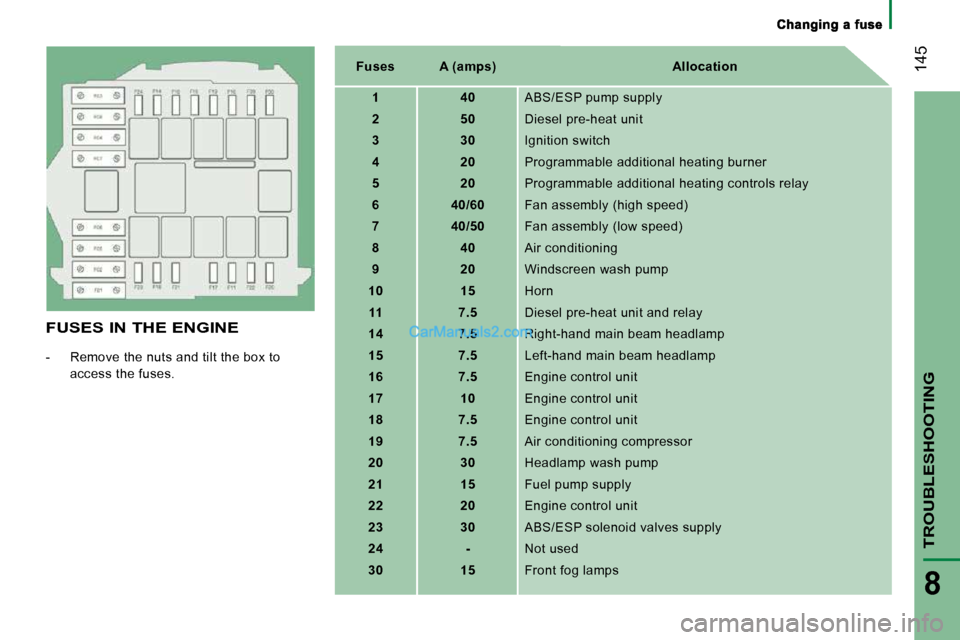

FUSES IN THE ENGINE
- Remove the nuts and tilt the box to access the fuses.
Fuses A (amps) Allocation
1 40 ABS/ESP pump supply
2 50 Diesel pre-heat unit
3 30 Ignition switch
4 20 Programmable additional heating burner
5 20 Programmable additional heating controls relay
6 40/60 Fan assembly (high speed)
7 40/50 Fan assembly (low speed)
8 40 Air conditioning
9 20 Windscreen wash pump
10 15 Horn
11 7 . 5 Diesel pre-heat unit and relay
14 7 . 5 Right-hand main beam headlamp
15 7 . 5 Left-hand main beam headlamp
16 7 . 5 Engine control unit
17 10 Engine control unit
18 7 . 5 Engine control unit
19 7 . 5 Air conditioning compressor
20 30 Headlamp wash pump
21 15 Fuel pump supply
22 20 Engine control unit
23 30 ABS/ESP solenoid valves supply
24 - Not used
30 15 Front fog lamps

146

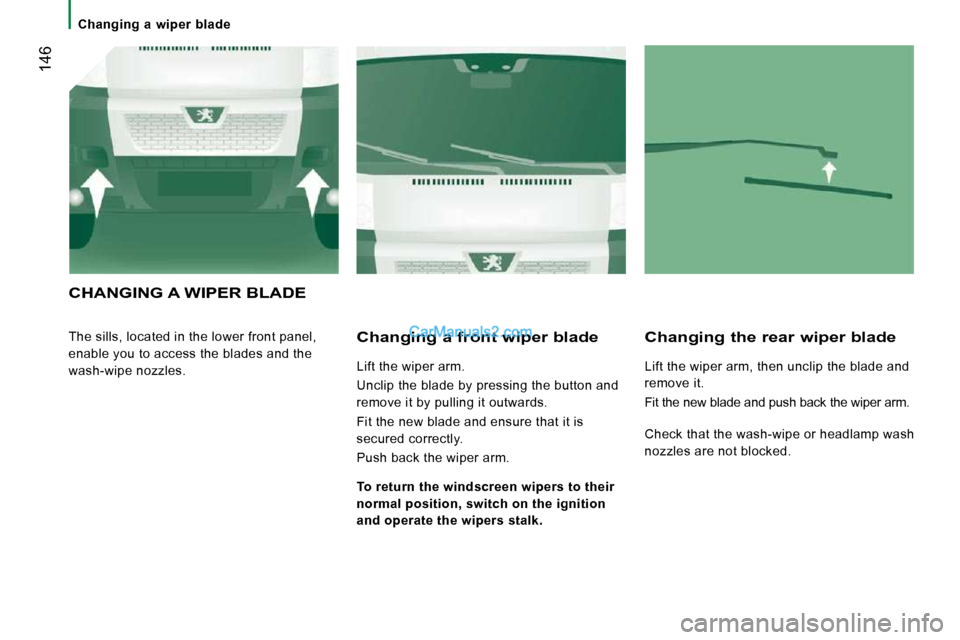

Changing a wiper blade
CHANGING A WIPER BLADE
The sills, located in the lower front panel,
enable you to access the blades and the
wash-wipe nozzles. Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Check that the wash-wipe or headlamp wash
nozzles are not blocked.

TROUBLESHOOTING
8
Having your vehicle towed

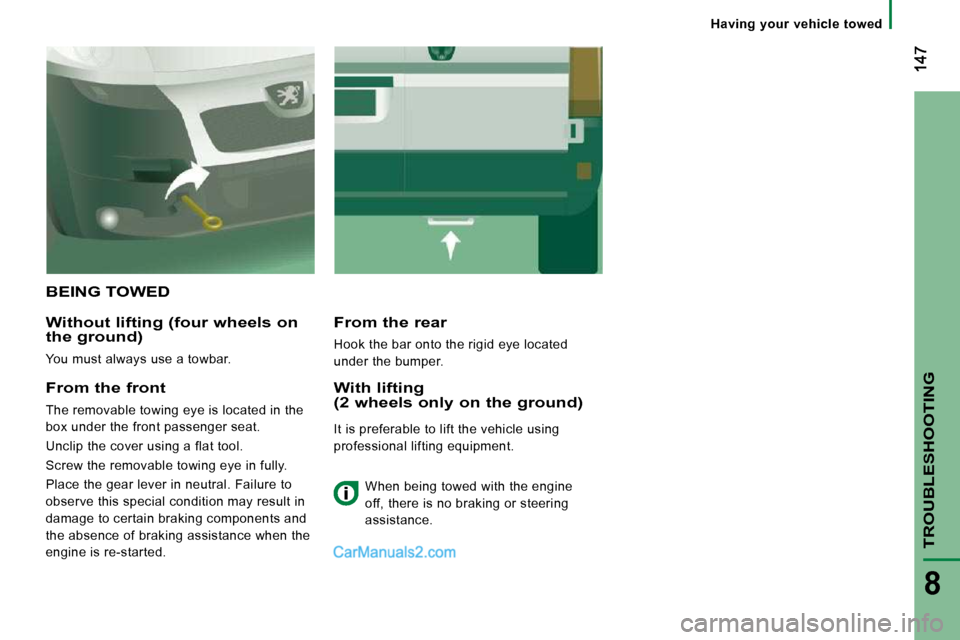

BEING TOWED
Without lifting (four wheels on the ground)
You must always use a towbar.
From the rear
Hook the bar onto the rigid eye located
under the bumper.
From the front
The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting (2 wheels only on the ground)
It is preferable to lift the vehicle using
professional lifting equipment. When being towed with the engine
off, there is no braking or steering
assistance.

149
9
TECHNICAL DATA
Environment

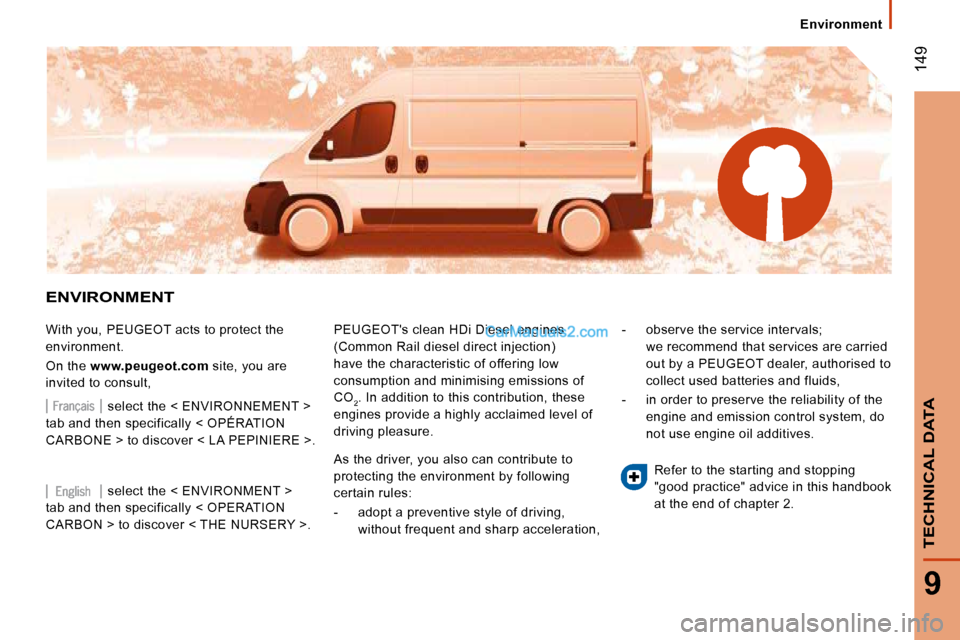

ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
On the www.peugeot.com site, you are
invited to consult, PEUGEOT's clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO
2. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure. - observe the service intervals;
we recommend that services are carried
out by a PEUGEOT dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control system, do
not use engine oil additives.
select the < ENVIRONNEMENT >
tab and then specifically < OPÉRATION
CARBONE > to discover < LA PEPINIERE >.
select the < ENVIRONMENT >
tab and then specifically < OPERATION
CARBON > to discover < THE NURSERY >. As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and sharp acceleration, Refer to the starting and stopping
"good practice" advice in this handbook
at the end of chapter 2.

150

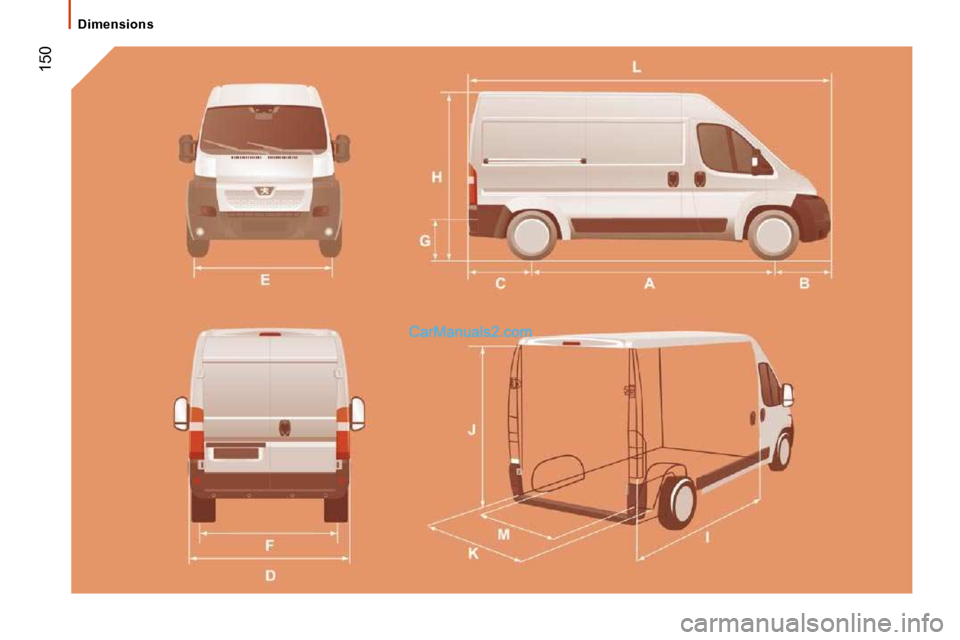

Dimensions
