steering wheel Peugeot Boxer 2008 Owner's Manual

29
2
READY TO SET OFF
Instruments and controls
Warning light is indicates Solution - action
Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckle
.
accompanied by
an audible signal
then remains on. that the vehicle is moving
with the driver ’s seat belt
unfastened.
Check that the seat belt is fastened correctly by p
ulling
the strap. Refer to "Seat belts" section of chapter 5.
Power steering on. its malfunction. The vehicle retains conventional steering without
assistance. Have the system checked by a PEUGEOT
dealer.
Front/side air
bag flashing or
continuously on.
the failure of an air bag. Have the system checked by a PEUGEOT dealer.
Refer to the "Air bags" section of chapter 5.
Suspension on. failure of the pneumatic
compensation.Consult a PEUGEOT dealer.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer.
ASR on.
that skidding of the wheels has
been avoided. The system optimises drive and improves the directi
onal
stability of the vehicle.
Refer to the "Driving safety" section of chapter 5.
continuously on. its malfunction Consult a PEUGEOT de aler.

32
Instruments and controls
Warning light is indicates Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lights stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the centre
console has been pressed. Manual selection.
The fog lamps only operate if the side lights or di
pped
headlamps are on.
Rear fog lamps on. that the button on the centre
console has been pressed. Manual selection. The fog lamps only operate if the

side lights or dipped headlamps are on. When visibi lity
is normal, please switch the fog lamps off.
Cruise control on. that the cruise control has been
selected.Manual selection.
Refer to the "Steering wheel controls" section of
chapter 3.
Faulty bulb on.
accompanied by
a message on
the display. that one or more bulbs have
blown.
Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or
contact a PEUGEOT dealer
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT dealer
without delay.

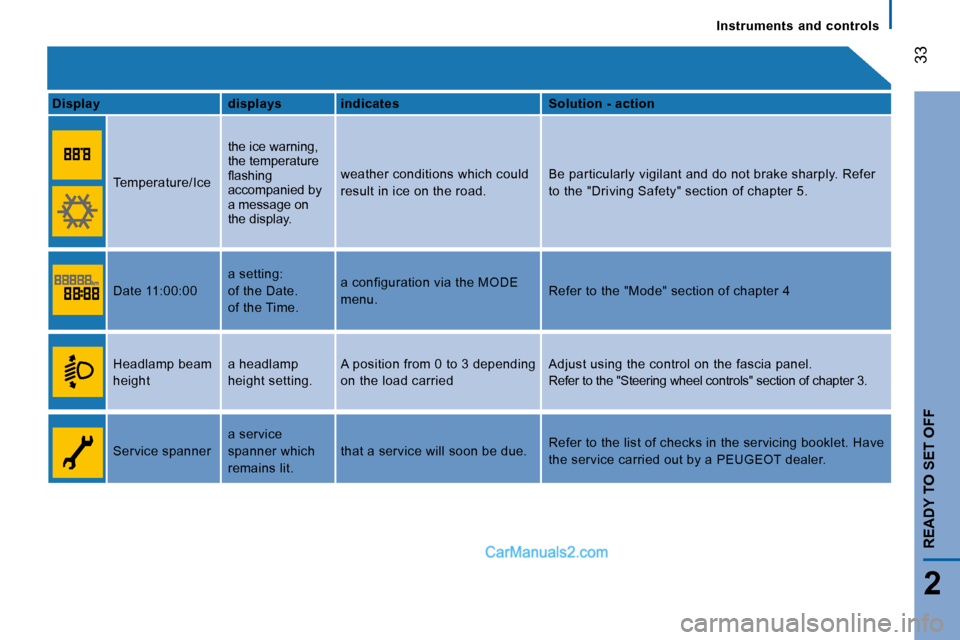

33
2
READY TO SET OFF
Instruments and controls
Display displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
lashing
accompanied by
a message on
the display.weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
Refer
to the "Driving Safety" section of chapter 5.
Date 11:00:00 a setting:
of the Date.
of the Time.a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4
Headlamp beam
height a headlamp
height setting.A position from 0 to 3 depending
on the load carried Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of c
hapter 3.
Service spanner a service
spanner which
remains lit.that a service will soon be due.
Refer to the list of checks in the servicing bookle
t. Have
the service carried out by a PEUGEOT dealer.

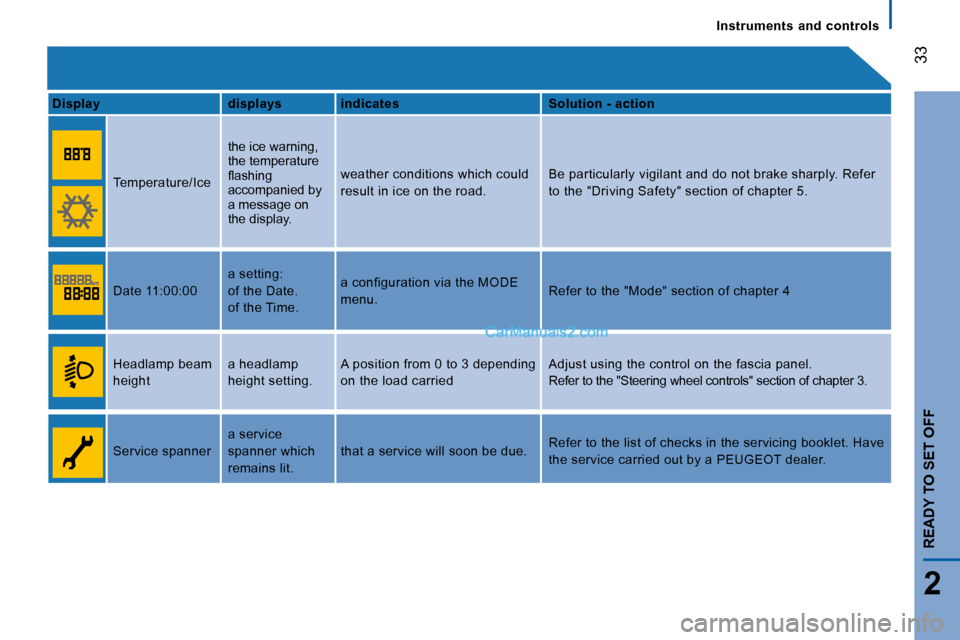

33
2
READY TO SET OFF
Instruments and controls
Display displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
lashing
accompanied by
a message on
the display.weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
Refer
to the "Driving Safety" section of chapter 5.
Date 11:00:00 a setting:
of the Date.
of the Time.a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4
Headlamp beam
height a headlamp
height setting.A position from 0 to 3 depending
on the load carried Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of c
hapter 3.
Service spanner a service
spanner which
remains lit.that a service will soon be due.
Refer to the list of checks in the servicing bookle
t. Have
the service carried out by a PEUGEOT dealer.

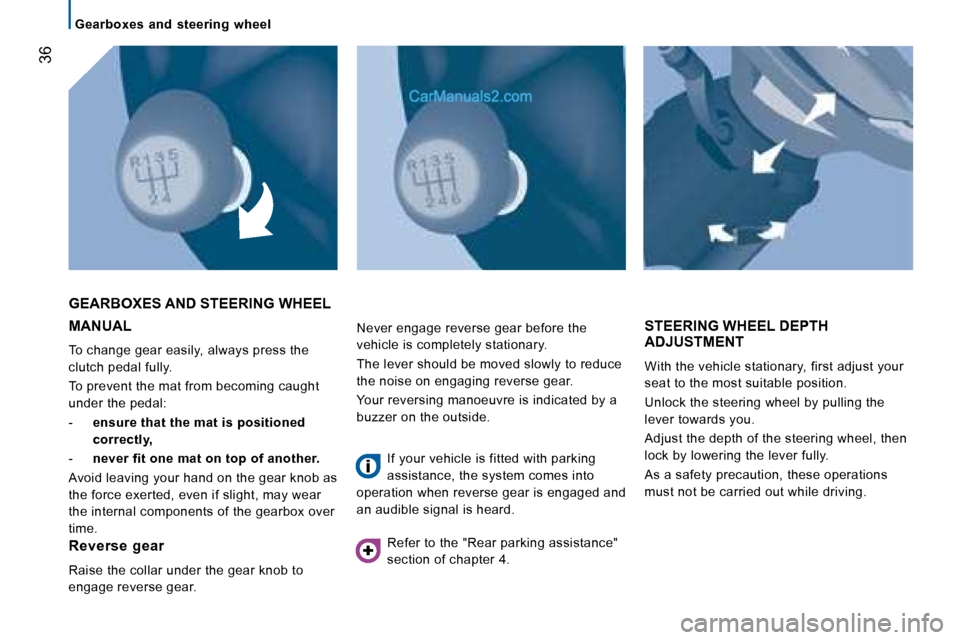

36
Gearboxes and steering wheel
MANUAL
To change gear easily, always press the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:
- ensure that the mat is positioned
correctly,
- never fit one mat on top of another.
Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
GEARBOXES AND STEERING WHEEL
STEERING WHEEL DEPTH
ADJUSTMENT
With the vehicle stationary, first adjust your
seat to the most suitable position.
Unlock the steering wheel by pulling the
lever towards you.
Adjust the depth of the steering wheel, then
lock by lowering the lever fully.
As a safety precaution, these operations
must not be carried out while driving.
Reverse gear
Raise the collar under the gear knob to
engage reverse gear. Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
Your reversing manoeuvre is indicated by a
buzzer on the outside.
If your vehicle is fitted with parking
assistance, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking assistance"
section of chapter 4.

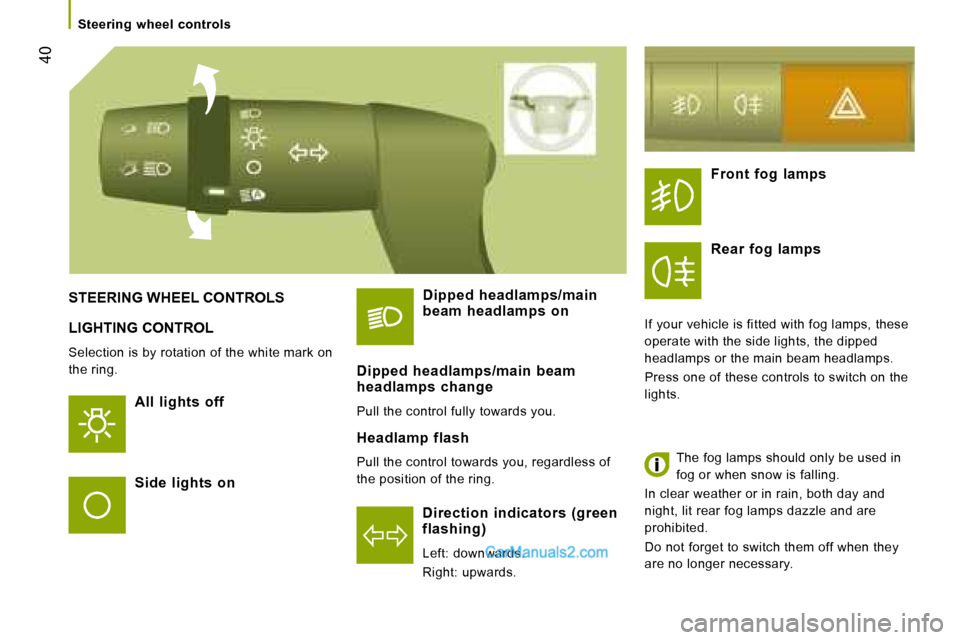

40
Steering wheel controls
LIGHTING CONTROL
Selection is by rotation of the white mark on
the ring.
All lights off
Direction indicators (green
flashing)
Left: downwards.
Right: upwards.
STEERING WHEEL CONTROLS
Side lights on Dipped headlamps/main
beam headlamps on
Dipped headlamps/main beam
headlamps change
Pull the control fully towards you.
Headlamp flash
Pull the control towards you, regardless of
the position of the ring. Front fog lamps
Rear fog lamps
If your vehicle is fitted with fog lamps, these
operate with the side lights, the dipped
headlamps or the main beam headlamps.
Press one of these controls to switch on the
lights. The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.

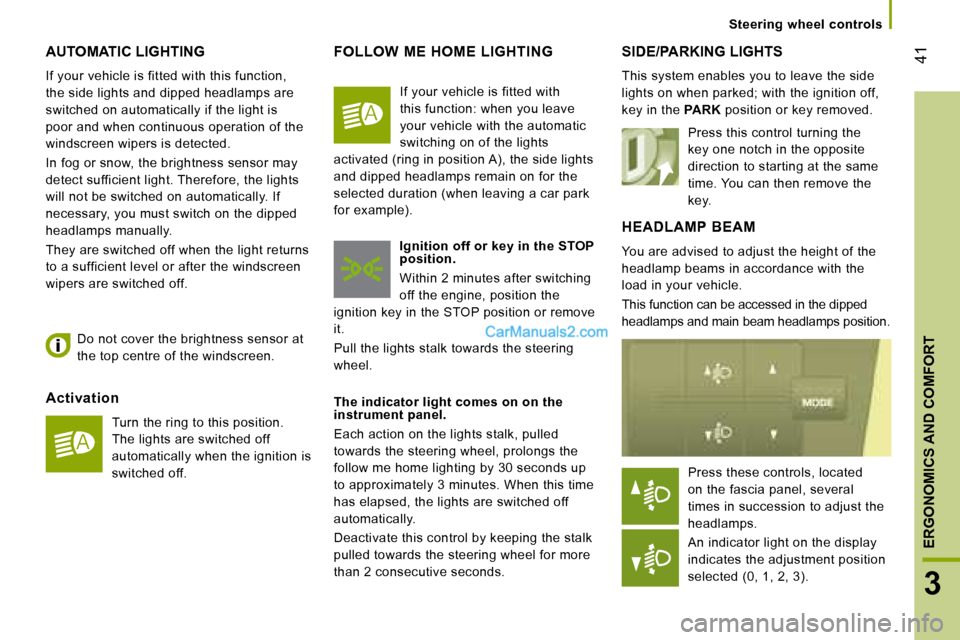

41
3
ERGONOMICS AND COMFORT
Steering wheel controls
AUTOMATIC LIGHTING
If your vehicle is fitted with this function,
the side lights and dipped headlamps are
switched on automatically if the light is
poor and when continuous operation of the
windscreen wipers is detected.
In fog or snow, the brightness sensor may
detect sufficient light. Therefore, the lights
will not be switched on automatically. If
necessary, you must switch on the dipped
headlamps manually.
They are switched off when the light returns
to a sufficient level or after the windscreen
wipers are switched off. HEADLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can be accessed in the dipped
headlamps and main beam headlamps position.
SIDE/PARKING LIGHTS
This system enables you to leave the side
lights on when parked; with the ignition off,
key in the
PARK position or key removed.
Activation Turn the ring to this position.
The lights are switched off
automatically when the ignition is
switched off.
Do not cover the brightness sensor at
the top centre of the windscreen. FOLLOW ME HOME LIGHTING
Ignition off or key in the STOP
position.
Within 2 minutes after switching
off the engine, position the
ignition key in the STOP position or remove
it.
Pull the lights stalk towards the steering
wheel.
The indicator light comes on on the
instrument panel.
Each action on the lights stalk, pulled
towards the steering wheel, prolongs the
follow me home lighting by 30 seconds up
to approximately 3 minutes. When this time
has elapsed, the lights are switched off
automatically.
Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 consecutive seconds. Press this control turning the
key one notch in the opposite
direction to starting at the same
time. You can then remove the
key.
If your vehicle is fitted with
this function: when you leave
your vehicle with the automatic
switching on of the lights
activated (ring in position A), the side lights
and dipped headlamps remain on for the
selected duration (when leaving a car park
for example).
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

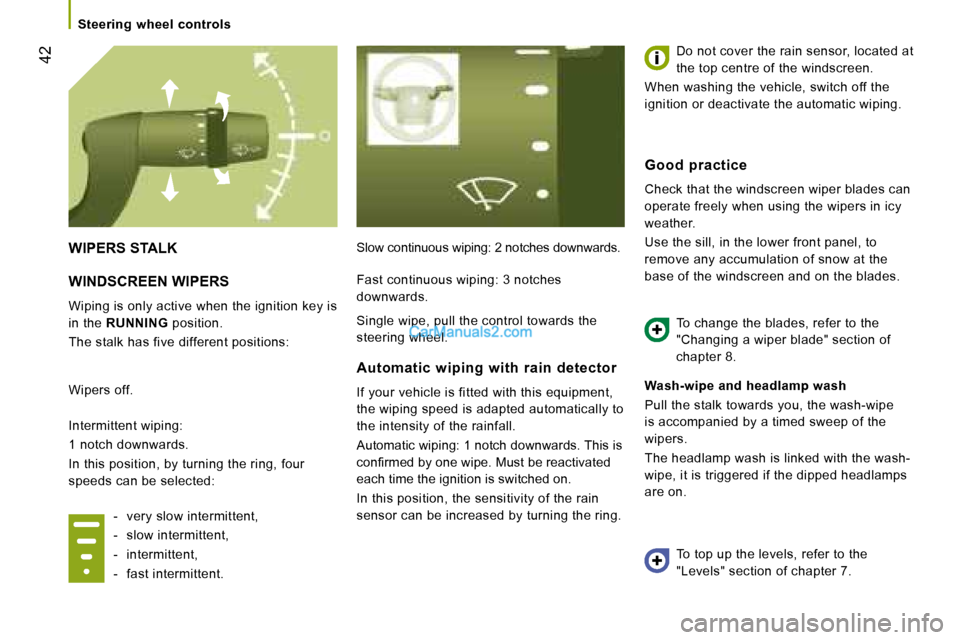

42
Steering wheel controls
WIPERS STALKSlow continuous wiping: 2 notches downwards. Do not cover the rain sensor, located at
the top centre of the windscreen.
When washing the vehicle, switch off the
ignition or deactivate the automatic wiping.
Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
The headlamp wash is linked with the wash-
wipe, it is triggered if the dipped headlamps
are on.
WINDSCREEN WIPERS
Wiping is only active when the ignition key is
in the RUNNING position.
The stalk has five different positions:
Wipers off.
Intermittent wiping:
1 notch downwards.
In this position, by turning the ring, four
speeds can be selected:
- very slow intermittent,
- slow intermittent,
- intermittent,
- fast intermittent. Automatic wiping with rain detector
If your vehicle is fitted with this equipment,
the wiping speed is adapted automatically to
the intensity of the rainfall.
Automatic wiping: 1 notch downwards. This is
conirmed by one wipe. Must be reactivated
each time the ignition is switched on.
In this position, the sensitivity of the rain
sensor can be increased by turning the ring. Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
Use the sill, in the lower front panel, to
remove any accumulation of snow at the
base of the windscreen and on the blades.
To change the blades, refer to the
"Changing a wiper blade" section of
chapter 8.
To top up the levels, refer to the
"Levels" section of chapter 7.
Fast continuous wiping: 3 notches
downwards.
Single wipe, pull the control towards the
steering wheel.

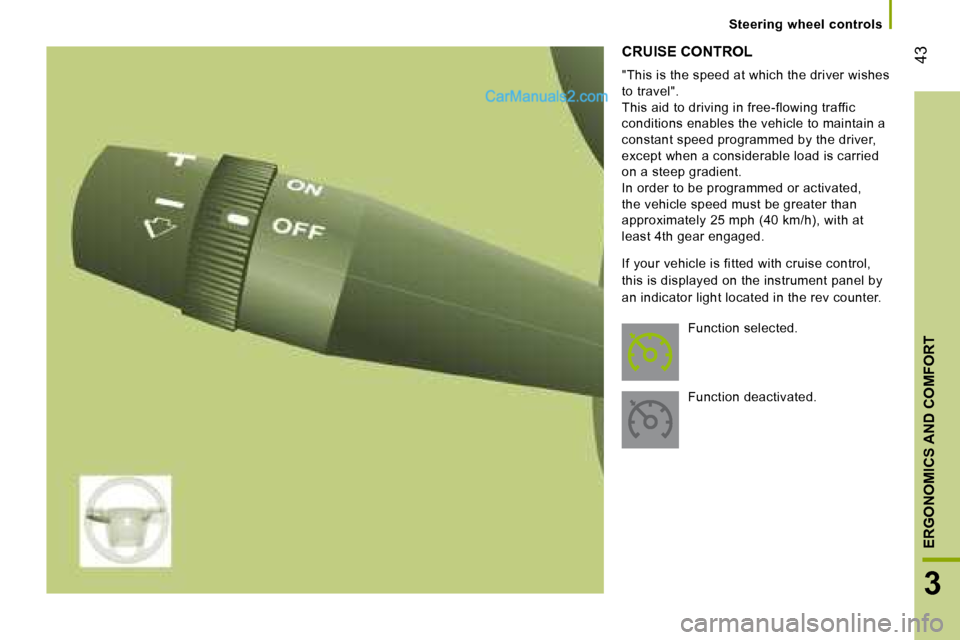

43
3
ERGONOMICS AND COMFORT
Steering wheel controls
CRUISE CONTROL
"This is the speed at which the driver wishes
to travel".
This aid to driving in free-flowing traffic
conditions enables the vehicle to maintain a
constant speed programmed by the driver,
except when a considerable load is carried
on a steep gradient.
In order to be programmed or activated,
the vehicle speed must be greater than
approximately 25 mph (40 km/h), with at
least 4th gear engaged.
If your vehicle is fitted with cruise control,
this is displayed on the instrument panel by
an indicator light located in the rev counter.
Function selected.
Function deactivated.

44

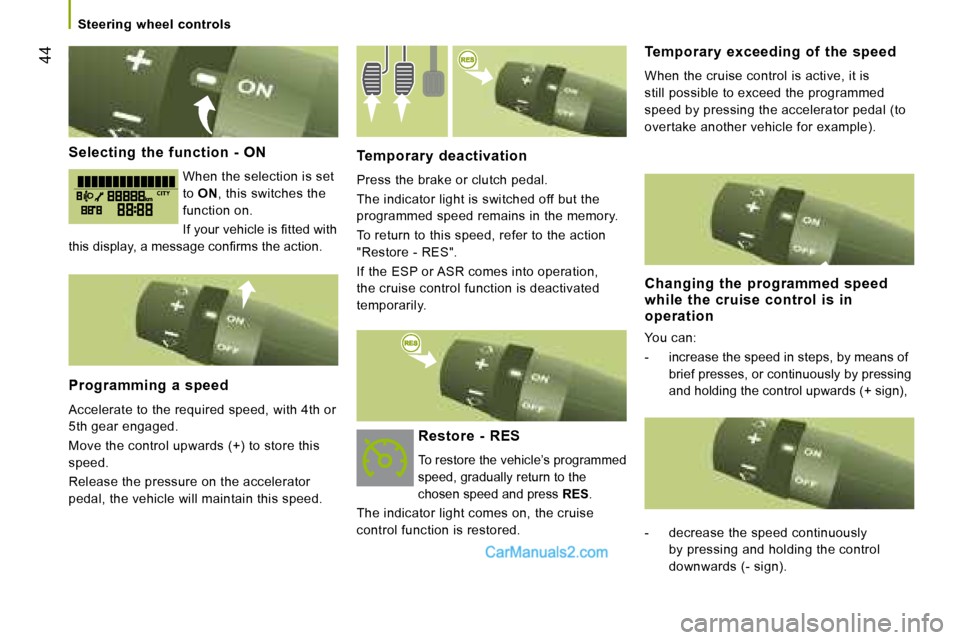

Steering wheel controls
Selecting the function - ON
When the selection is set
to ON , this switches the
function on.
If your vehicle is itted with
this display, a message conirms the action. Temporary deactivation
Press the brake or clutch pedal.
The indicator light is switched off but the
programmed speed remains in the memory.
To return to this speed, refer to the action
"Restore - RES".
If the ESP or ASR comes into operation,
the cruise control function is deactivated
temporarily.
Programming a speed
Accelerate to the required speed, with 4th or
5th gear engaged.
Move the control upwards (+) to store this
speed.
Release the pressure on the accelerator
pedal, the vehicle will maintain this speed. Restore - RES
To restore the vehicle’s programmed
speed, gradually return to the
chosen speed and press
RES.
The indicator light comes on, the cruise
control function is restored. Changing the programmed speed
while the cruise control is in
operation
You can:
- increase the speed in steps, by means of
brief presses, or continuously by pressing
and holding the control upwards (+ sign),
Temporary exceeding of the speed
When the cruise control is active, it is
still possible to exceed the programmed
speed by pressing the accelerator pedal (to
overtake another vehicle for example).
- decrease the speed continuously
by pressing and holding the control
downwards (- sign).
