Peugeot Boxer 2010 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: Boxer, Model: Peugeot Boxer 2010Pages: 167, PDF Size: 4.33 MB
Page 91 of 167

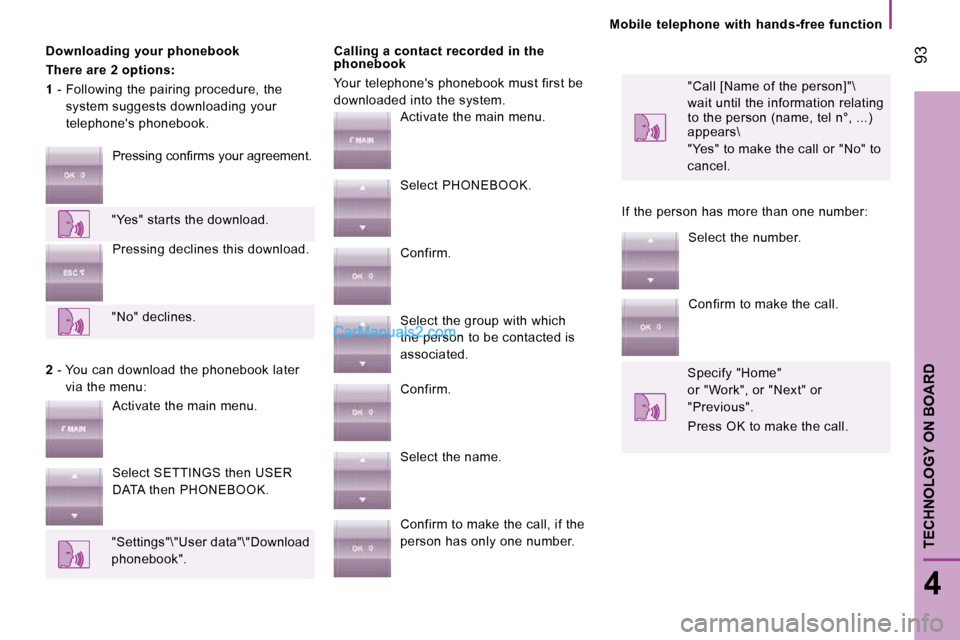

93
4
TECHNOLOGY ON BOARD
Mobile telephone with hands-free function
Downloading your phonebook
There are 2 options:
1 - Following the pairing procedure, the
system suggests downloading your
telephone's phonebook. Calling a contact recorded in the
phonebook
Your telephone's phonebook must first be
downloaded into the system.
"Call [Name of the person]"\
wait until the information relating
to the person (name, tel n°, ...)
appears\
"Yes" to make the call or "No" to
cancel.
P r e s s i n g c o n fi r m s y o u r a g r e e m e n t .
"Yes" starts the download. Pressing declines this download.
"No" declines.
2 - You can download the phonebook later
via the menu:
Activate the main menu.
Select SETTINGS then USER
DATA then PHONEBOOK.
"Settings"\"User data"\"Download
phonebook". Activate the main menu.
Select PHONEBOOK.
Confirm.
Select the group with which
the person to be contacted is
associated.
Confirm.
Select the name.
Confirm to make the call, if the
person has only one number.
If the person has more than one number:
Select the number.
Confirm to make the call.
Specify "Home"
or "Work", or "Next" or
"Previous".
Press OK to make the call.

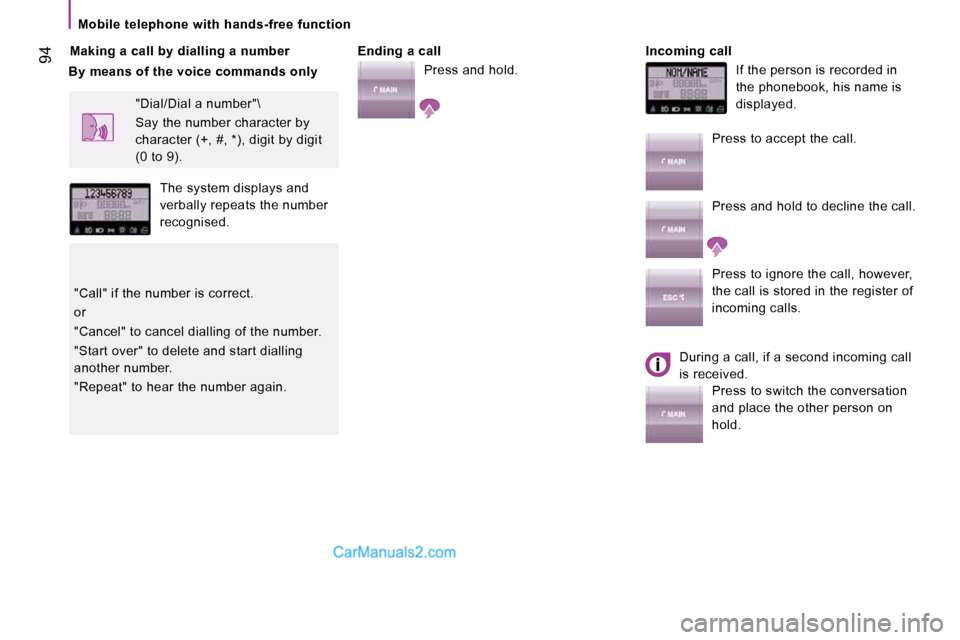

Page 92 of 167
Mobile telephone with hands-free function
94 Making a call by dialling a number Ending a call
Press and hold. Incoming call
If the person is recorded in
the phonebook, his name is
displayed.
"Dial/Dial a number"\
Say the number character by
character (+, #, *), digit by digit
(0 to 9).
The system displays and
verbally repeats the number
recognised.
"Call" if the number is correct.
or
"Cancel" to cancel dialling of the number.
"Start over" to delete and start dialling
another number.
"Repeat" to hear the number again. Press to accept the call.
Press and hold to decline the call.
Press to ignore the call, however,
the call is stored in the register of
incoming calls.
During a call, if a second incoming call
is received. Press to switch the conversation
and place the other person on
hold.
By means of the voice commands only
Page 93 of 167

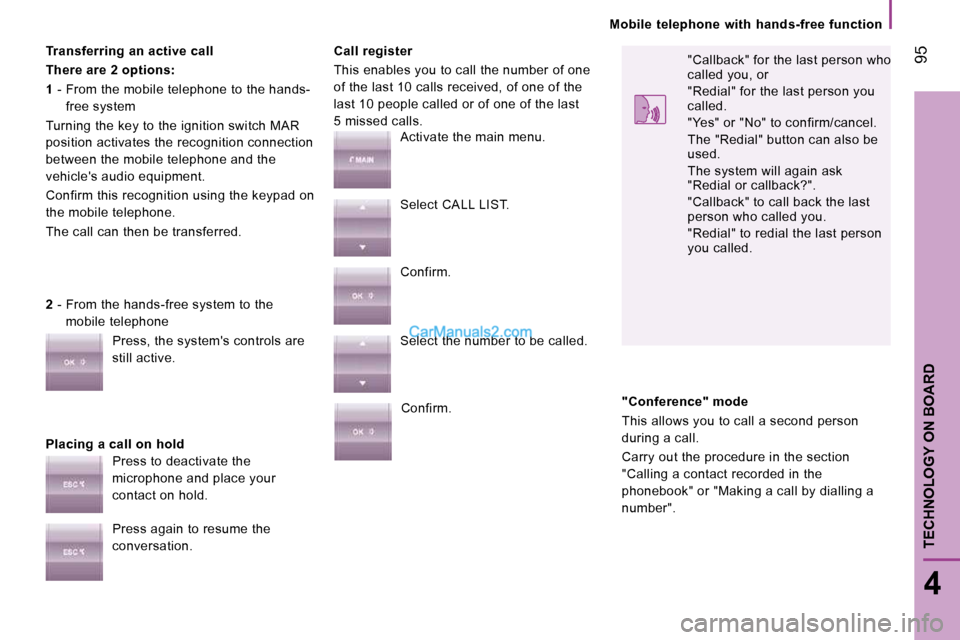

95
4
TECHNOLOGY ON BOARD
Mobile telephone with hands-free function
Transferring an active call
There are 2 options:
1 - From the mobile telephone to the hands-
free system
Turning the key to the ignition switch MAR
position activates the recognition connection
between the mobile telephone and the
vehicle's audio equipment.
Confirm this recognition using the keypad on
the mobile telephone.
The call can then be transferred.
Placing a call on hold Call register
This enables you to call the number of one
of the last 10 calls received, of one of the
last 10 people called or of one of the last
5 missed calls.
2 - From the hands-free system to the
mobile telephone
Press, the system's controls are
still active.
Press to deactivate the
microphone and place your
contact on hold.
Press again to resume the
conversation. Activate the main menu.
Select CALL LIST.
Confirm.
Select the number to be called.
Confirm. "Callback" for the last person who
called you, or
"Redial" for the last person you
called.
"Yes" or "No" to confirm/cancel.
The "Redial" button can also be
used.
The system will again ask
"Redial or callback?".
"Callback" to call back the last
person who called you.
"Redial" to redial the last person
you called.
"Conference" mode
This allows you to call a second person
during a call.
Carry out the procedure in the section
"Calling a contact recorded in the
phonebook" or "Making a call by dialling a
number".
Page 94 of 167

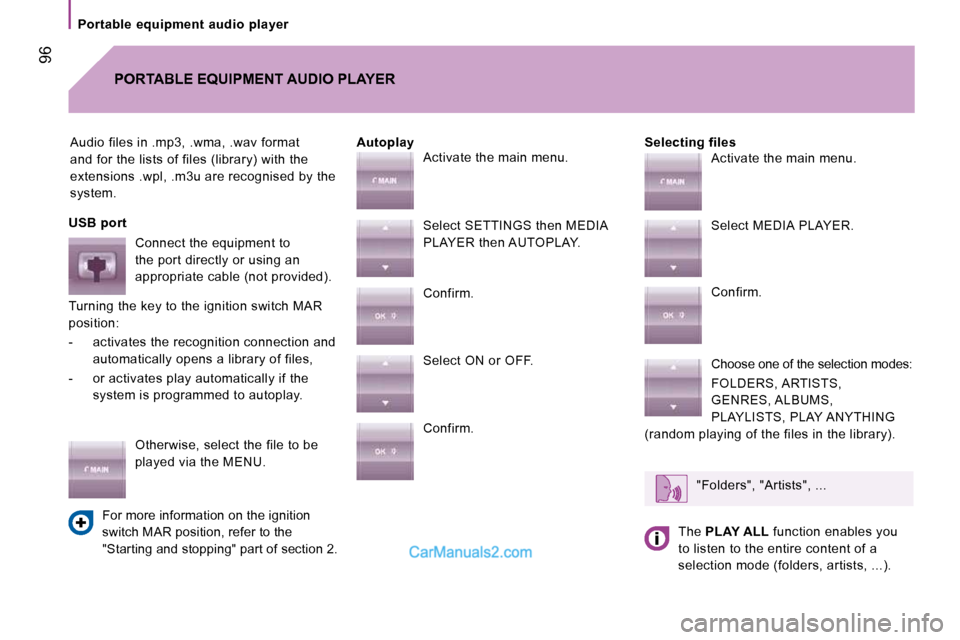

Portable equipment audio player
96
Audio files in .mp3, .wma, .wav format
and for the lists of files (library) with the
extensions .wpl, .m3u are recognised by the
system. Selecting files
PORTABLE EQUIPMENT AUDIO PLAYER
Autoplay
USB port Connect the equipment to
the port directly or using an
appropriate cable (not provided).
Turning the key to the ignition switch MAR
position:
- activates the recognition connection and automatically opens a library of files,
- or activates play automatically if the system is programmed to autoplay.
Otherwise, select the file to be
played via the MENU.
For more information on the ignition
switch MAR position, refer to the
"Starting and stopping" part of section 2. Activate the main menu.
Select SETTINGS then MEDIA
PLAYER then AUTOPLAY.
Confirm.
Select ON or OFF.
Confirm.
Activate the main menu.
Select MEDIA PLAYER.
Confirm.
Choose one of the selection modes:
FOLDERS, ARTISTS,
GENRES, ALBUMS,
PLAYLISTS, PLAY ANYTHING
(random playing of the files in the library).
"Folders", "Artists", ...
The PLAY ALL function enables you
to listen to the entire content of a
selection mode (folders, artists, ...).
Page 95 of 167

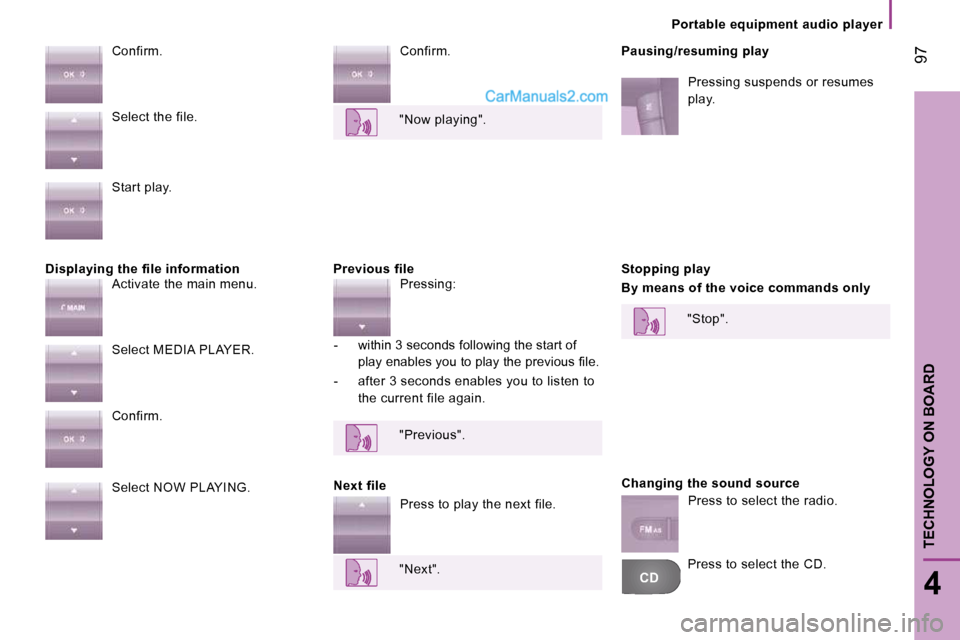

CD
97
4
TECHNOLOGY ON BOARD
Portable equipment audio player
Displaying the file information Previous file Confirm.
Pausing/resuming play
Confirm.
Next file Stopping play
By means of the voice commands only
Changing the sound source
Select the file.
Start play.
Activate the main menu.
Select MEDIA PLAYER.
Confirm.
Select NOW PLAYING. "Now playing".
Pressing:
- within 3 seconds following the start of p l a y e n a b l e s y o u t o p l a y t h e p r e v i o u s fi l e .
- after 3 seconds enables you to listen to the current file again.
"Previous".
Press to play the next file.
"Next". "Stop".
Press to select the radio.
Pressing suspends or resumes
play.
Press to select the CD.

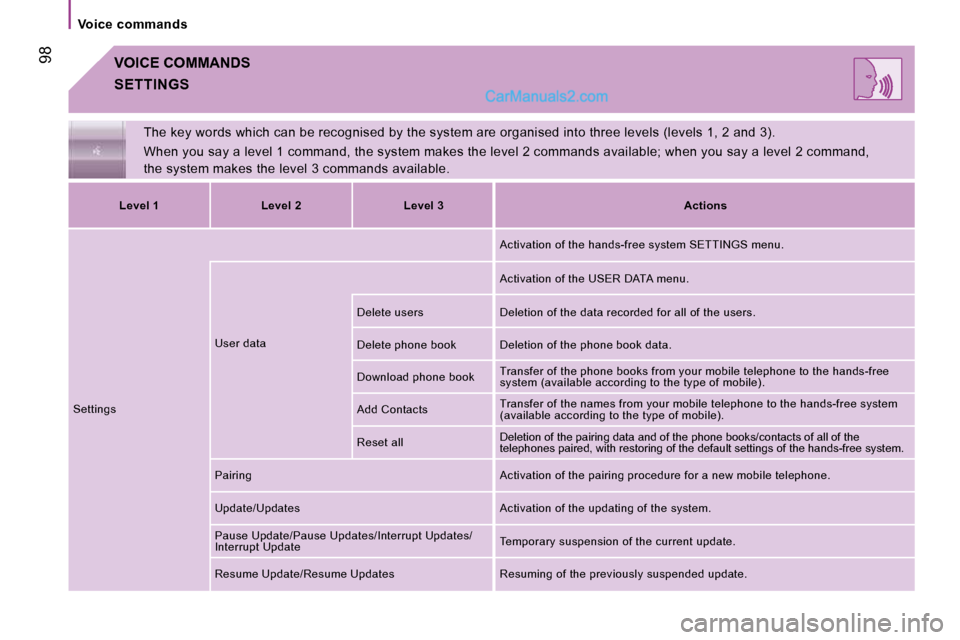

Page 96 of 167
Voice commands
98 VOICE COMMANDS
The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes t he level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.
SETTINGS
Level 1 Level 2 Level 3
Actions
Settings User data Activation of the hands-free system SETTINGS menu.
Activation of the USER DATA menu.
Delete users Deletion of the data recorded for all of the users.
Delete phone book Deletion of the phone book data.
Download phone book Transfer of the phone books from your mobile telep
hone to the hands-free
system (available according to the type of mobile).
Add Contacts Transfer of the names from your mobile telephone t
o the hands-free system
(available according to the type of mobile).
Reset all Deletion of the pairing data and of the phone books/co
ntacts of all of the
telephones paired, with restoring of the default settings of the hands-free system.
Pairing Activation of the pairing procedure for a new mobile telephone.
Update/Updates Activation of the updating of the system.
Pause Update/Pause Updates/Interrupt Updates/
Interrupt Update Temporary suspension of the current update.
Resume Update/Resume Updates Resuming of the previ ously suspended update.
Page 97 of 167

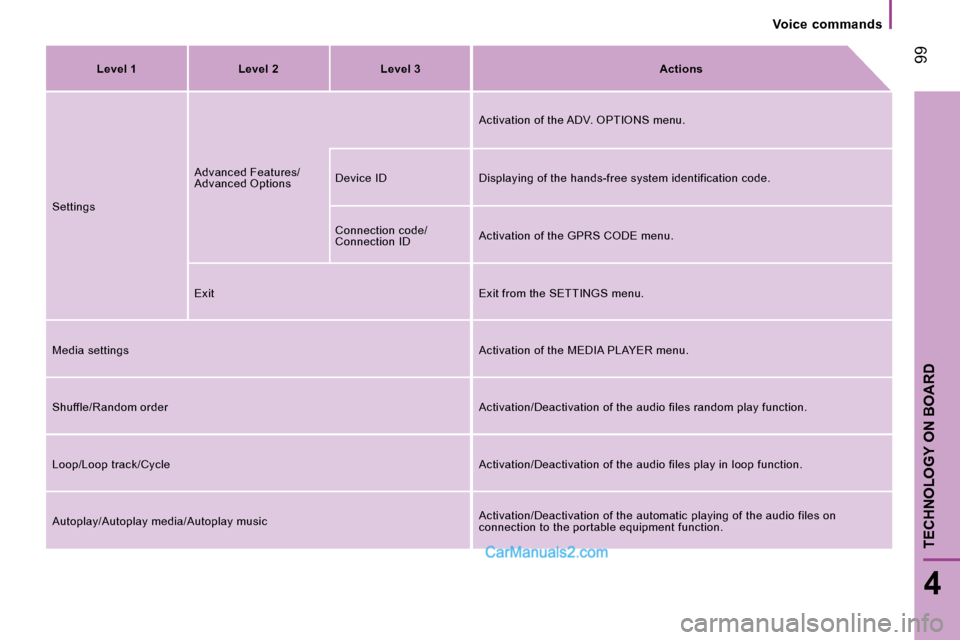

99
4
TECHNOLOGY ON BOARD
Voice commands
Level 1 Level 2 Level 3
Actions
Settings Advanced Features/
Advanced Options Activation of the ADV. OPTIONS menu.
Device ID Displaying of the hands-free system ide ntification code.
Connection code/
Connection ID Activation of the GPRS CODE menu.
Exit Exit from the SETTINGS menu.
Media settings Activation of the MEDIA PLAYER menu.
Shuffle/Random order Activation/Deactivation of the audio files random play function.
Loop/Loop track/Cycle Activation/Deactivation of the audio files play in loop function.
Autoplay/Autoplay media/Autoplay music Activation/Deactivation of the automatic playing o
f the audio files on
connection to the portable equipment function.
Page 98 of 167

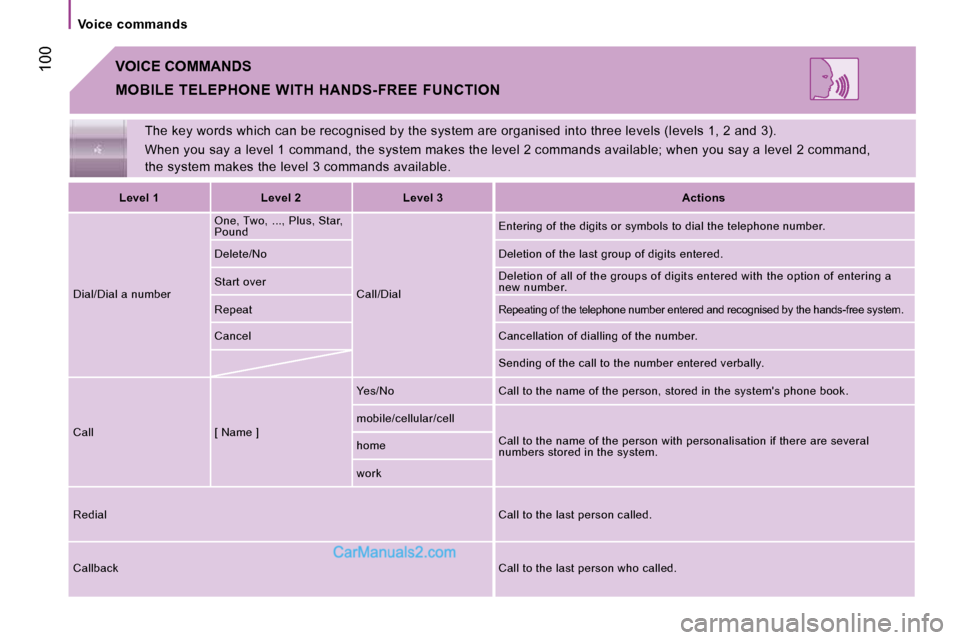

Voice commands
100
The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes t he level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.
VOICE COMMANDS
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
Level 1 Level 2 Level 3
Actions
Dial/Dial a number One, Two, ..., Plus, Star,
Pound
Call/Dial Entering of the digits or symbols to dial the tele
phone number.
Delete/No Deletion of the last group of digits entered.
Start over Deletion of all of the groups of digits entered wi
th the option of entering a
new number.
Repeat
Repeating of the telephone number entered and reco gnised by the hands-free system.
Cancel Cancellation of dialling of the number.
Sending of the call to the number entered verbally.
Call [ Name ] Yes/No Call to the name of the person, stored in
the system's phone book.
mobile/cellular/cell Call to the name of the person with personalisatio n if there are several
numbers stored in the system.
home
work
Redial Call to the last person called.
Callback Call to the last person who called.
Page 99 of 167

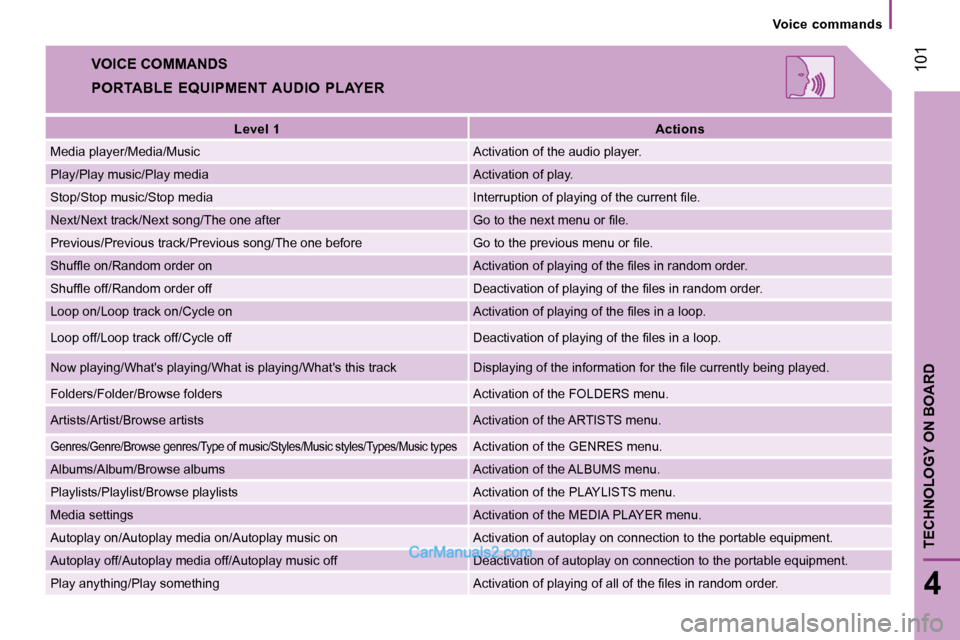

101
4
TECHNOLOGY ON BOARD
Voice commands
VOICE COMMANDS
PORTABLE EQUIPMENT AUDIO PLAYER
Level 1
Actions
Media player/Media/Music Activation of the audio player.
Play/Play music/Play media Activation of play.
Stop/Stop music/Stop media I n t e r r u p t i o n o f p l a y i n g o f t h e c u r r e n t fi l e .
Next/Next track/Next song/The one after G o t o t h e n e x t m e n u o r fi l e .
Previous/Previous track/Previous song/The one before G o t o t h e p r e v i o u s m e n u o r fi l e .
S h u f fl e o n / R a n d o m o r d e r o n A c t i v a t i o n o f p l a y i n g o f t h e fi l e s i n r a n d o m o r d e r .
S h u f fl e o f f / R a n d o m o r d e r o f f D e a c t i v a t i o n o f p l a y i n g o f t h e fi l e s i n r a n d o m o r d e r .
Loop on/Loop track on/Cycle on A c t i v a t i o n o f p l a y i n g o f t h e fi l e s i n a l o o p .
Loop off/Loop track off/Cycle off D e a c t i v a t i o n o f p l a y i n g o f t h e fi l e s i n a l o o p .
Now playing/What's playing/What is playing/What's this tra ck D i s p l a y i n g o f t h e i n f o r m a t i o n f o r t h e fi l e c u r r e n t l y b e i n g p l a y e d .
Folders/Folder/Browse folders Activation of the FOLDERS menu.
Artists/Artist/Browse artists Activation of the ARTISTS menu.
Genres/Genre/Browse genres/Type of music/Styles/Mus ic styles/Types/Music types Activation of the GENRES menu.
Albums/Album/Browse albums Activation of the ALBUMS menu.
Playlists/Playlist/Browse playlists Activation of the PLAYLISTS menu.
Media settings Activation of the MEDIA PLAYER menu.
Autoplay on/Autoplay media on/Autoplay music on Activation of autoplay on connection to the portable equipment.
Autoplay off/Autoplay media off/Autoplay music off Deactivati on of autoplay on connection to the portable equipment.
Play anything/Play something A c t i v a t i o n o f p l a y i n g o f a l l o f t h e fi l e s i n r a n d o m o r d e r .
Page 100 of 167

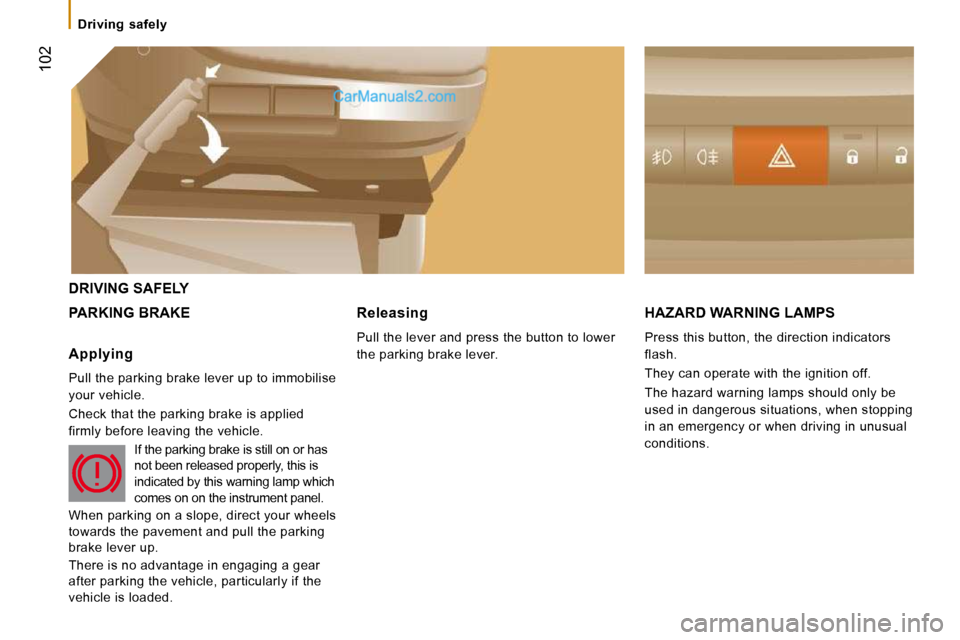

102
Driving safely
DRIVING SAFELY
PARKING BRAKE HAZARD WARNING LAMPS
Press this button, the direction indicators
flash.
They can operate with the ignition off.
The hazard warning lamps should only be
used in dangerous situations, when stopping
in an emergency or when driving in unusual
conditions.
Applying
Pull the parking brake lever up to immobilise
your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle. If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on on the instrument panel.
When parking on a slope, direct your wheels
towards the pavement and pull the parking
brake lever up.
There is no advantage in engaging a gear
after parking the vehicle, particularly if the
vehicle is loaded.
Releasing
Pull the lever and press the button to lower
the parking brake lever.
