Page 161 of 167
161
9
TECHNICAL DATA
Diesel engines
Fuel consumption in litres per 100 km (miles per ga lllon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle
CO2 emissions (g/km)
Van L3H2
333 and 335
HDi 100 9.4 (30.1) 7.7 (36.7) 8.3 (34.0)
220
HDi 120 10.9 (25.9) 8.3 (34.0) 9.3 (30.4) 246
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L3H3 333 and 335
HDi 100 9.4 (30.1) 7.7 (36.7) 8.3 (34.0)
220
HDi 120 10.9 (25.9) 8.3 (34.0) 9.3 (30.4) 246
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L4H2 435
HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L4H3 435
HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246

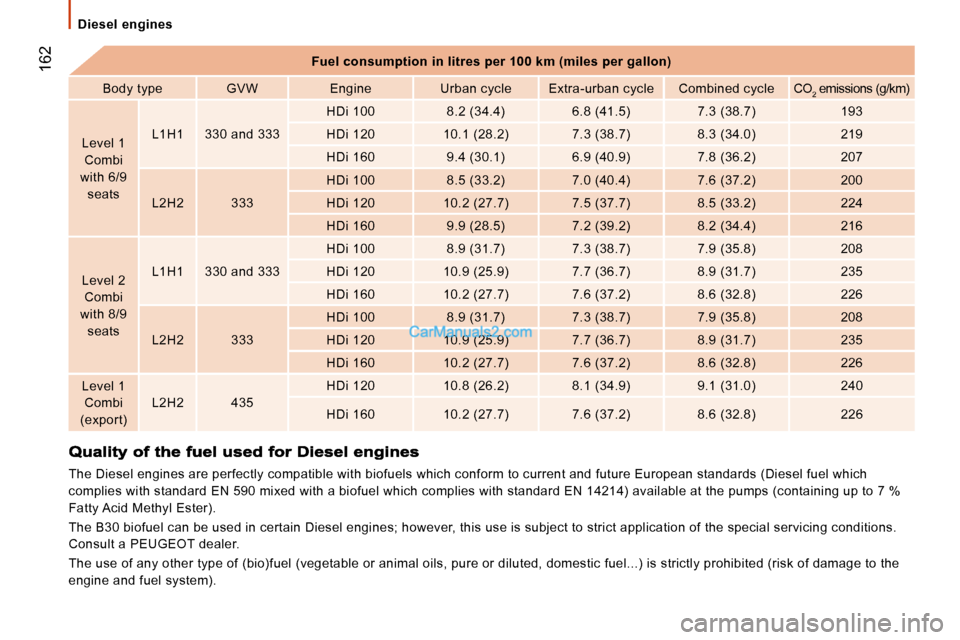

Page 162 of 167
162
Diesel engines
Fuel consumption in litres per 100 km (miles per ga llon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle CO
2 emissions (g/km)
Level 1 Combi
with 6/9 seats L1H1 330 and 333
HDi 100 8.2 (34.4) 6.8 (41.5) 7.3 (38.7)
193
HDi 120 10.1 (28.2) 7.3 (38.7) 8.3 (34.0) 219
HDi 160 9.4 (30.1) 6.9 (40.9) 7.8 (36.2) 207
L2H2 333 HDi 100 8.5 (33.2) 7.0 (40.4) 7.6 (37.2)
200
HDi 120 10.2 (27.7) 7.5 (37.7) 8.5 (33.2) 224
HDi 160 9.9 (28.5) 7.2 (39.2) 8.2 (34.4) 216
Level 2 Combi
with 8/9 seats L1H1 330 and 333
HDi 100 8.9 (31.7) 7.3 (38.7) 7.9 (35.8)
208
HDi 120 10.9 (25.9) 7.7 (36.7) 8.9 (31.7) 235
HDi 160 10.2 (27.7) 7.6 (37.2) 8.6 (32.8) 226
L2H2 333 HDi 100 8.9 (31.7) 7.3 (38.7) 7.9 (35.8)
208
HDi 120 10.9 (25.9) 7.7 (36.7) 8.9 (31.7) 235
HDi 160 10.2 (27.7) 7.6 (37.2) 8.6 (32.8) 226
Level 1 Combi
(export) L2H2 435 HDi 120 10.8 (26.2) 8.1 (34.9) 9.1 (31.0)
240
HDi 160 10.2 (27.7) 7.6 (37.2) 8.6 (32.8) 226
The Diesel engines are perfectly compatible with biofuels which conform to current and future Europe an standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engi nes; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).
Page 163 of 167
163
9
TECHNICAL DATA
Weights
WEIGHTS
Dimensions
Model
GVW in kg
L1 H1 330
3 000
333 3 300
L2 H1 333
3 300
335 3 500
L2 H2 330
3 000
333 3 300
335 3 500
L3 H2 330
3 000
335 3 500
435 3 500
440 4 000
L3 H3 330
3 000
335 3 500
435 3 500
440 4 000
L4 H2 335 3 500
L4 H3 435 3 500
Consult your registration certificate.
In each country, it is imperative that the towed l
oads permitted by local legislation are complied wi th. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW ) according to the dimensions and the vehicle model .
Page 164 of 167
164
Weights
* 15 inch wheel.
** 16 inch wheel.
Load transfer
If the towing vehicle has not reached the GVW, it
is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.
TOWED LOADS
Body type Engine With braked trailer
Van 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500 *
3 000 **
HDi 160 2 500 *
3 000 **
435/440 HDi 120
2 500
HDi 160 2 500
Page 165 of 167
165
9
TECHNICAL DATA
Weights
TOWED LOADS
Body type Engine With braked trailer
Platform/Chassis 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
335 HDi 100
2 000
HDi 120 2 500 *
3 000 **
HDi 160 2 500 *
3 000 **
435/440 HDi 120
2 500
HDi 160 2 500
* 15 inch wheel.
** 16 inch wheel.

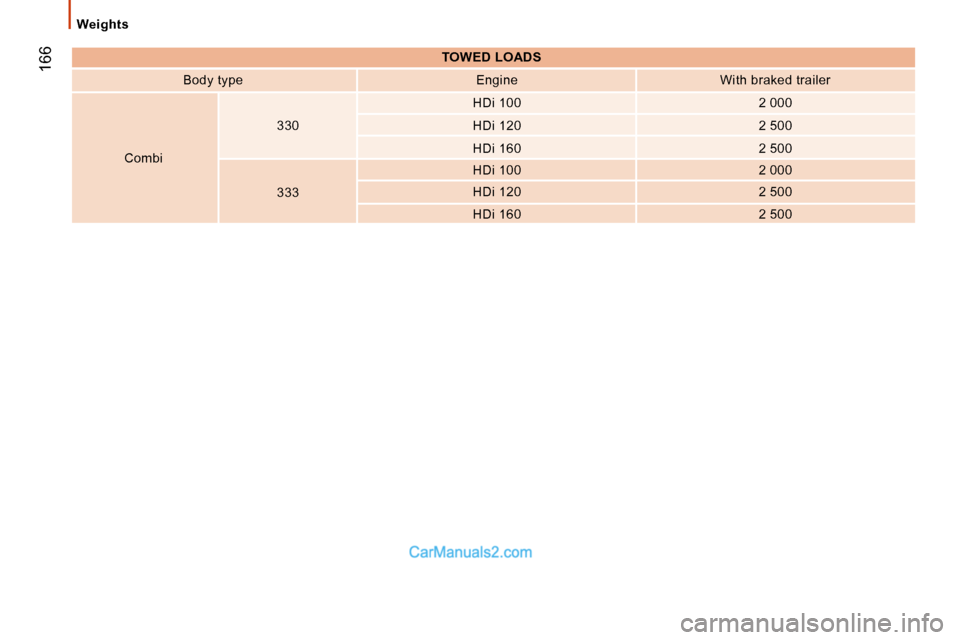

Page 166 of 167
166
Weights
TOWED LOADS
Body type Engine With braked trailer
Combi 330
HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
333 HDi 100
2 000
HDi 120 2 500
HDi 160 2 500
Page 167 of 167
167
9
TECHNICAL DATA
Identification features
IDENTIFICATION MARKINGS
A. Manufacturer’s plate
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Serial number behind the windscreen D. Paint code
C. Tyres
The label C affixed to the van pillar, on the
right-hand door side, indicates:
- the wheel and tyre sizes,
- the tyre pressures (the
pressures
must
be checked when cold, at least once a
month).
E. Serial number on the bodywork
The number is located under the plastic
cover, at the sill inside the right-hand door.
