Environment
ENVIRONMENT

With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com

website. As the driver, you also can contribute to
protecting the environment by following
certain rules:


- adopt a preventive style of driving,
without frequent and harsh acceleration,

- observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,

- in order to preserve the reliability of the
engine and emission control systems, do
not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).
159159
99
TECHNI
CAL DAT
A
TECHNICAL DATA

160


Dimensions

161
9
TECHNI
CAL DAT
A





Dimensions
DIMENSIONS

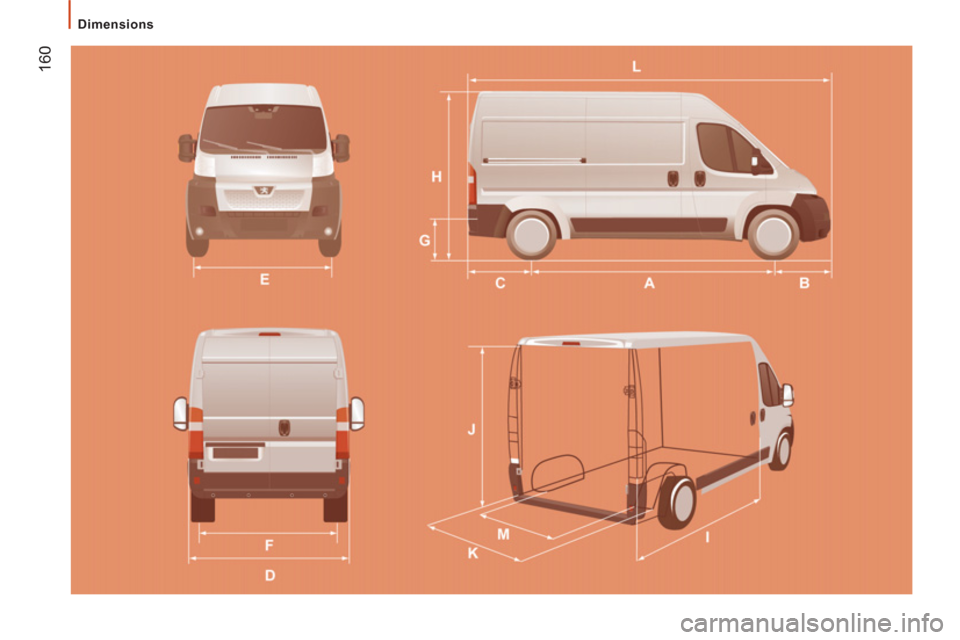

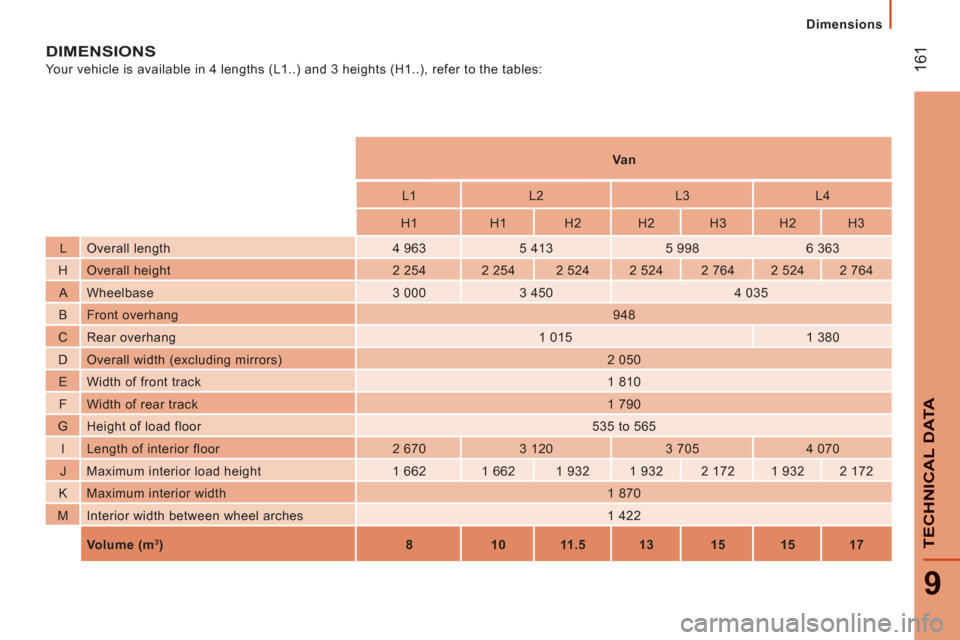

Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:


Va n


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

L Overall length
4 963
5 413
5 998
6 363

H Overall height
2 254
2 254
2 524
2 524
2 764
2 524
2 764

A Wheelbase
3 000
3 450
4 035

B Front overhang

948

C Rear overhang
1 015
1 380

D Overall width (excluding mirrors)
2 050

E Width of front track
1 810

F Width of rear track
1 790


G Height of load floor
535 to 565

I Length of interior floor
2 670
3 120
3 705
4 070

J Maximum interior load height
1 662
1 662
1 932
1 932
2 172
1 932
2 172

K Maximum interior width
1 870

M Interior width between wheel arches
1 422

Volume (m
3)

8


10


11 . 5


13


15


15


17

162


Dimensions

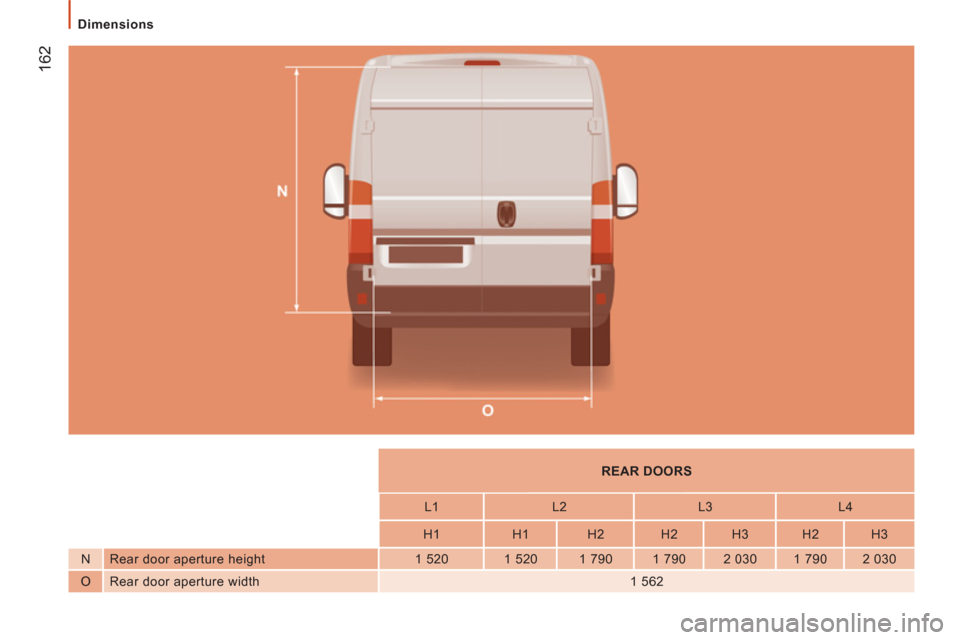

REAR DOORS


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

N Rear door aperture height
1 520
1 520
1 790
1 790
2 030
1 790
2 030

O Rear door aperture width
1 562

163
9
TECHNI
CAL DAT
A





Dimensions


SIDE DOOR


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

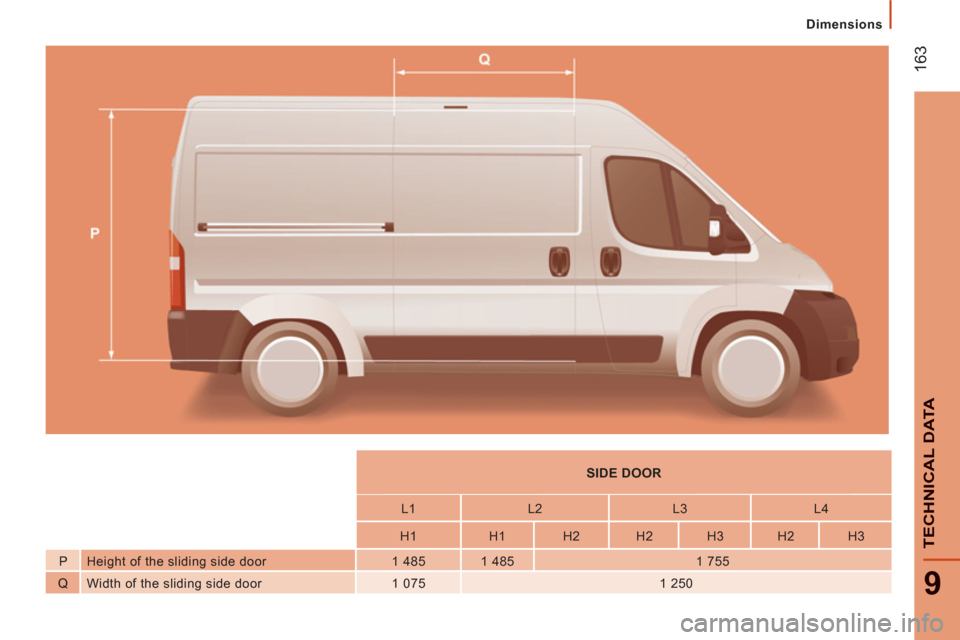

P Height of the sliding side door
1 485
1 485
1 755

Q Width of the sliding side door
1 075
1 250

164


Dimensions

9
TECHNI
CAL DAT
A





Dimensions

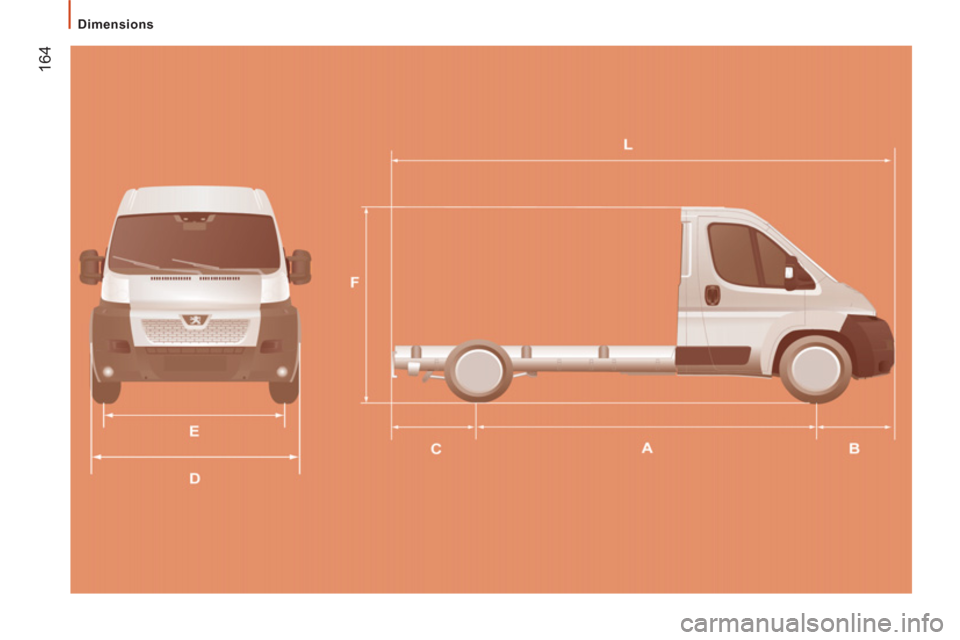

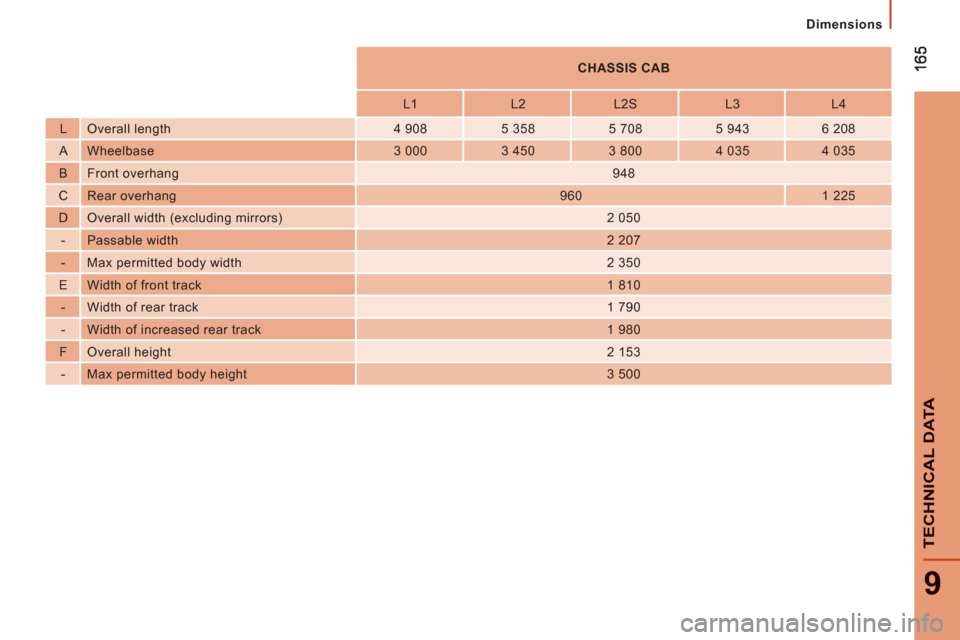

CHASSIS CAB


L1
L2
L2S
L3
L4

L Overall length
4 908
5 358
5 708
5 943
6 208

A Wheelbase
3 000
3 450
3 800
4 035
4 035

B Front overhang

948

C Rear overhang
960
1 225

D Overall width (excluding mirrors)
2 050

- Passable width

2 207

- Max permitted body width
2 350

E Width of front track
1 810

- Width of rear track
1 790

- Width of increased rear track
1 980

F Overall height

2 153


- Max permitted body height
3 500

166


Dimensions

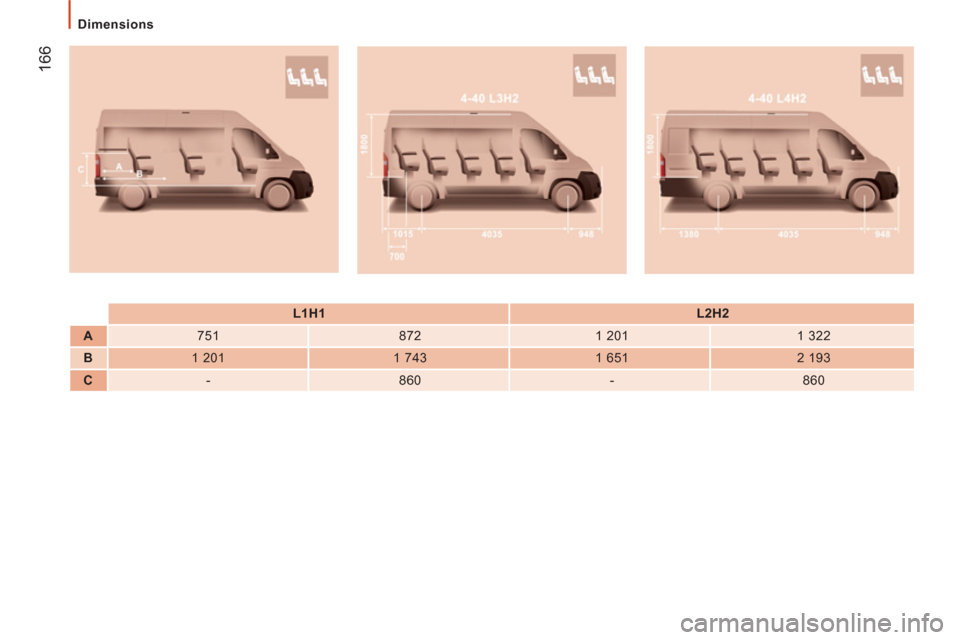

L1H1


L2H2



A

751
872
1 201
1 322


B

1 201
1 743
1 651
2 193


C

-
860
-
860

167
9
TECHNI
CAL DAT
A


Diesel engines

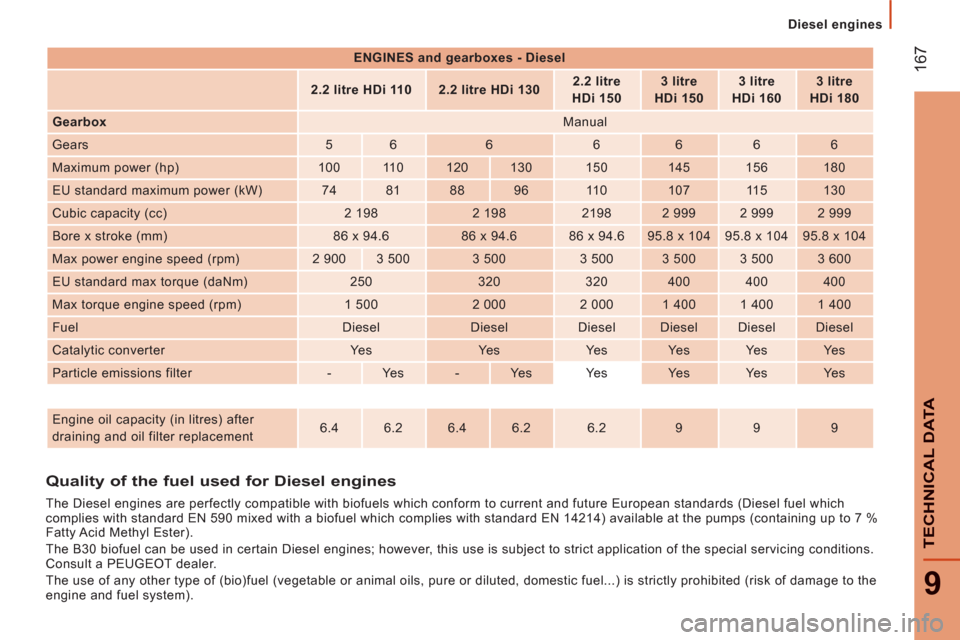

ENGINES and gearboxes - Diesel





2.2 litre HDi 110


2.2 litre HDi 130


2.2 litre
HDi 150


3 litre
HDi 150


3 litre
HDi 160


3 litre
HDi 180


Gearbox

Manual
Gears
5
6
6
6
6
6
6
Maximum power (hp)
100
11 0
120
130
150
145
156
180
EU standard maximum power (kW)
74
81
88
96
11 0
107
11 5
130
Cubic capacity (cc)
2 198
2 198
2198
2 999
2 999
2 999
Bore x stroke (mm)
86 x 94.6
86 x 94.6
86 x 94.6
95.8 x 104
95.8 x 104
95.8 x 104
Max power engine speed (rpm)
2 900
3 500
3 500
3 500
3 500
3 500
3 600
EU standard max torque (daNm)
250
320
320
400
400
400
Max torque engine speed (rpm)
1 500
2 000
2 000
1 400
1 400
1 400
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
Particle emissions filter
-
Ye s
-
Ye s
Ye s
Ye s
Ye s
Ye s





Engine oil capacity (in litres) after
draining and oil filter replacement
6.4
6.2
6.4
6.2
6.2
9
9
9
Quality of the fuel used for Diesel engines


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).

168

Weights

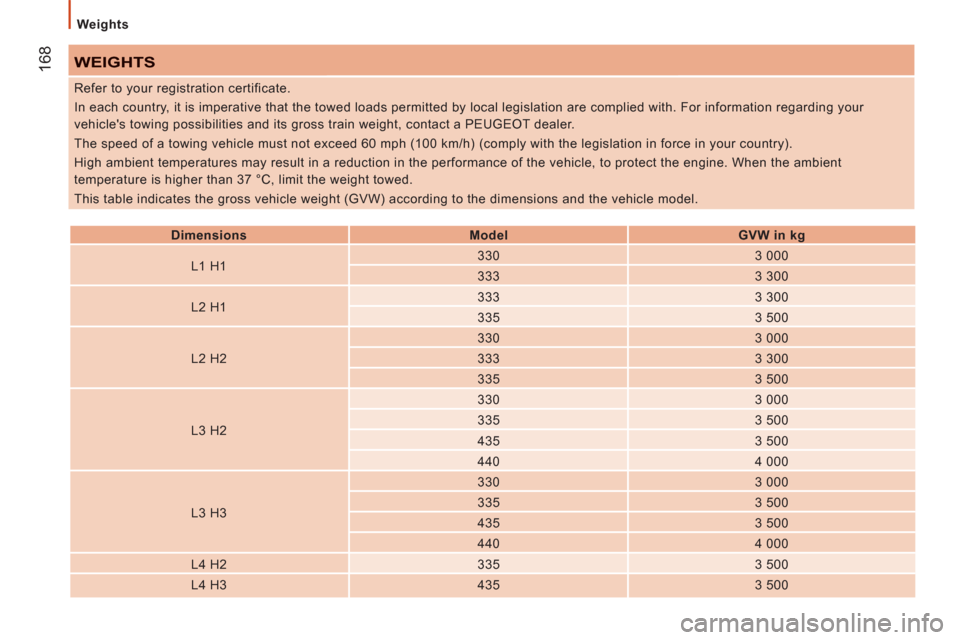

WEIGHTS



Dimensions


Model


GVW in kg


L1 H1
330
3 000

333
3 300

L2 H1
333
3 300

335
3 500

L2 H2
330
3 000

333
3 300

335
3 500

L3 H2
330
3 000

335
3 500

435
3 500

440
4 000

L3 H3
330
3 000

335
3 500

435
3 500

440
4 000

L4 H2
335
3 500

L4 H3
435
3 500 Refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.
