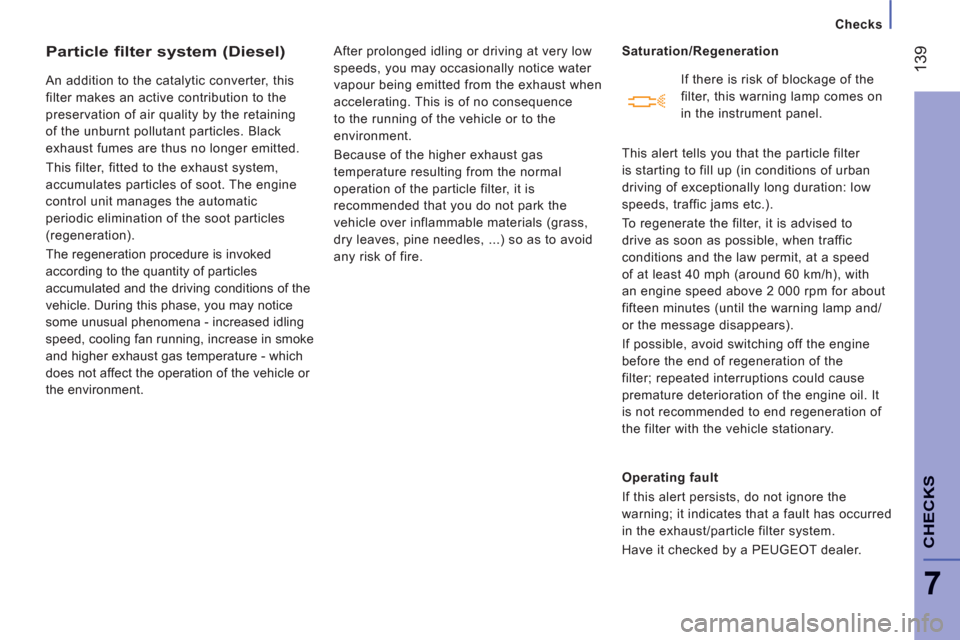

Particle filter system (Diesel)

An addition to the catalytic converter, this
filter makes an active contribution to the
preservation of air quality by the retaining
of the unburnt pollutant particles. Black
exhaust fumes are thus no longer emitted.
This filter, fitted to the exhaust system,
accumulates particles of soot. The engine
control unit manages the automatic
periodic elimination of the soot particles
(regeneration).
The regeneration procedure is invoked
according to the quantity of particles
accumulated and the driving conditions of the
vehicle. During this phase, you may notice
some unusual phenomena - increased idling
speed, cooling fan running, increase in smoke
and higher exhaust gas temperature - which
does not affect the operation of the vehicle or
the environment. After prolonged idling or driving at very low
speeds, you may occasionally notice water
vapour being emitted from the exhaust when
accelerating. This is of no consequence
to the running of the vehicle or to the
environment.
Because of the higher exhaust gas
temperature resulting from the normal
operation of the particle filter, it is
recommended that you do not park the
vehicle over inflammable materials (grass,
dry leaves, pine needles, ...) so as to avoid
any risk of fire.
Saturation/Regeneration

Operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred
in the exhaust/particle filter system.
Have it checked by a PEUGEOT dealer.
This alert tells you that the particle filter
is starting to fill up (in conditions of urban
driving of exceptionally long duration: low
speeds, traffic jams etc.) .
To regenerate the filter, it is advised to
drive as soon as possible, when traffic
conditions and the law permit, at a speed
of at least 40 mph (around 60 km/h), with
an engine speed above 2 000 rpm for about
fifteen minutes (until the warning lamp and/
or the message disappears).
If possible, avoid switching off the engine
before the end of regeneration of the
filter; repeated interruptions could cause
premature deterioration of the engine oil. It
is not recommended to end regeneration of
the filter with the vehicle stationary. If there is risk of blockage of the
filter, this warning lamp comes on
in the instrument panel.

Maintenance with TOTAL
14
0


Innovation at the service of performance
The TOTAL Research and Development teams
develop lubricants for PEUGEOT which satisfy the
requirements of the latest technical innovations
incorporated in PEUGEOT vehicles.
This ensures that you obtain the best performance
and the maximum engine life.

Reduced exhaust emissions
TOTAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is crucial to
observe the servicing recommendations made by
PEUGEOT to ensure correct operation.



RECOMMENDS

Fuel
14
1
7
CHECK
S

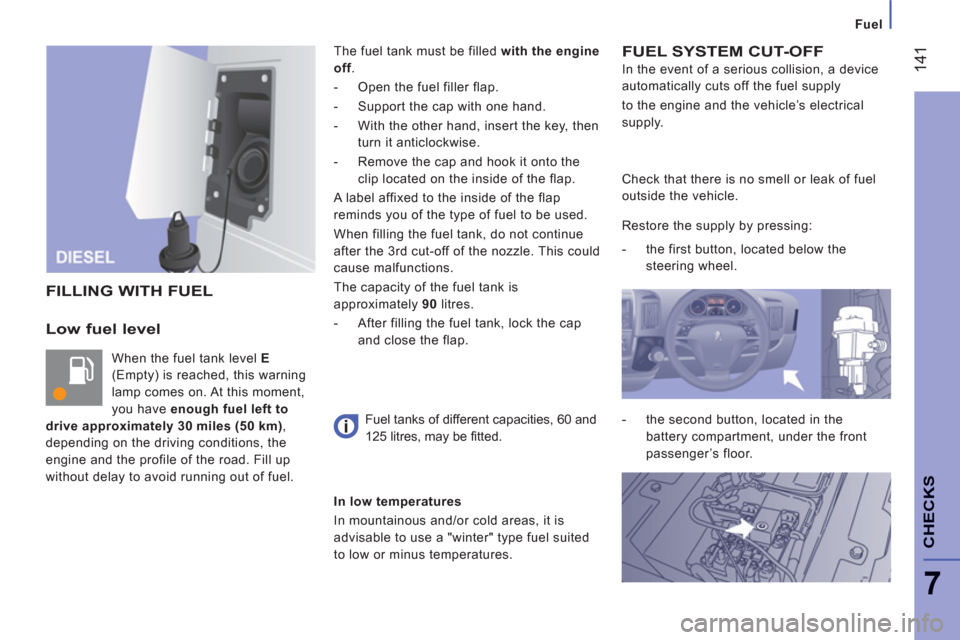

Low fuel level

When the fuel tank level E
(Empty) is reached, this warning
lamp comes on. At this moment,
you have enough fuel left to
drive approximately 30 miles (50 km)
,
depending on the driving conditions, the
engine and the profile of the road. Fill up
without delay to avoid running out of fuel. The fuel tank must be filled with the engine
off
.


- Open the fuel filler flap.

- Support the cap with one hand.

- With the other hand, insert the key, then
turn it anticlockwise.

- Remove the cap and hook it onto the
clip located on the inside of the flap.
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle. This could
cause malfunctions.
The capacity of the fuel tank is
approximately 90
litres.


- After filling the fuel tank, lock the cap
and close the flap.
FUEL SYSTEM CUT-OFF

In the event of a serious collision, a device
automatically cuts off the fuel supply
to the engine and the vehicle’s electrical
supply.
FILLING WITH FUEL
Fuel tanks of different capacities, 60 and
125 litres, may be fi tted. Check that there is no smell or leak of fuel
outside the vehicle.
Restore the supply by pressing:


- the first button,
located below the
steering wheel.

- the second button, located in the
battery compartment, under the front
passenger’s floor.


In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.

142

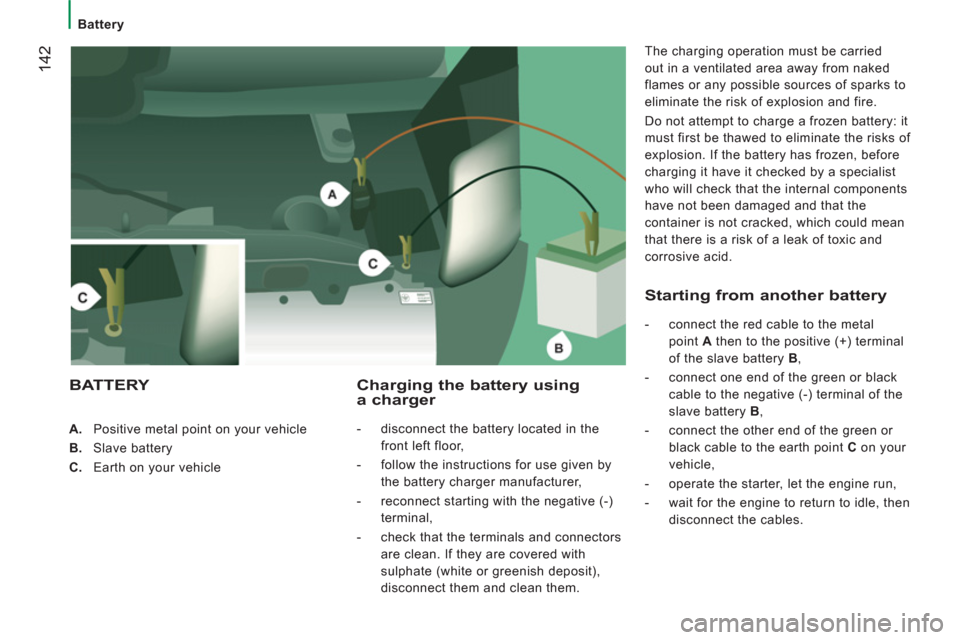

Battery




A.
Positive metal point on your vehicle

B.
Slave battery

C.
Earth on your vehicle

Charging the battery using a charger



- disconnect the battery located in the
front left floor,

- follow the instructions for use given by
the battery charger manufacturer,

- reconnect starting with the negative (-)
terminal,

- check that the terminals and connectors
are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
The charging operation must be carried
out in a ventilated area away from naked
flames or any possible sources of sparks to
eliminate the risk of explosion and fire.
Do not attempt to charge a frozen battery: it
must first be thawed to eliminate the risks of
explosion. If the battery has frozen, before
charging it have it checked by a specialist
who will check that the internal components
have not been damaged and that the
container is not cracked, which could mean
that there is a risk of a leak of toxic and
corrosive acid.

BATTERY


Starting from another battery



- connect the red cable to the metal
point A
then to the positive (+) terminal
of the slave battery B
,

- connect one end of the green or black
cable to the negative (-) terminal of the
slave battery B
,

- connect the other end of the green or
black cable to the earth point C
on your
vehicle,

- operate the starter, let the engine run,

- wait for the engine to return to idle, then
disconnect the cables.

14
3





Battery
QUICK HELP
8


The batteries contain harmful
substances such as sulphuric acid and
lead. They must be discarded in accordance
with the provisions of the law and must not,
in any circumstances, be discarded with
household waste.
Take used batteries to a special collection
point.


It is advisable to disconnect the negative (-)
terminal of the battery if the vehicle is not to be
used for a period of more than one month.


Before disconnecting the battery, you
must wait for 2 minutes after switching off
the ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
Close the windows and doors before
disconnecting the battery.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight difficulties
are experienced after this, please contact a
PEUGEOT dealer.
If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:


- the display parameters (date,
time, language, distance unit and
temperature unit),

- the radio stations,

- the central locking.
Some settings are cleared and must be
reprogrammed, consult a PEUGEOT.
If your vehicle is fitted with a tachograph or
an alarm, disconnection of the negative (-)
terminal of the battery (located under the
floor on the left-hand side, in the cab) is
recommended if the vehicle is not to be used
for a period of more than 5 days.

144


Changing a wheel



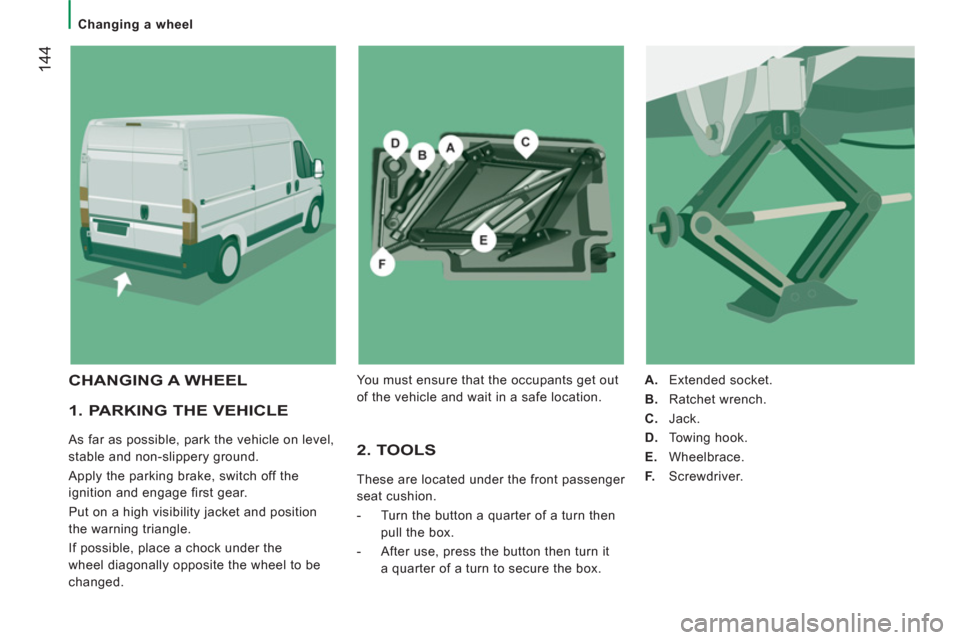

1. PARKING THE VEHICLE

As far as possible, park the vehicle on level,
stable and non-slippery ground.
Apply the parking brake, switch off the
ignition and engage first gear.
Put on a high visibility jacket and position
the warning triangle.
If possible, place a chock under the
wheel diagonally opposite the wheel to be
changed. 2. TOOLS
These are located under the front passenger
seat cushion.


- Turn the button a quarter of a turn then
pull the box.

- After use, press the button then turn it
a quarter of a turn to secure the box.

A.
Extended socket.

B.
Ratchet wrench.

C.
Jack.

D.
Towing hook.

E.
Wheelbrace.

F.
Screwdriver.


CHANGING A WHEEL
You must ensure that the occupants get out
of the vehicle and wait in a safe location.

QUICK HELP
8


Changing a wheel


4. OPERATING PROCEDURE



- Remove the trim using the screwdriver F

as a lever.

-
Release the bolts using the wheelbrace E
.


- Position the jack C
at one of the four
locations provided on the underbody
near the wheels. 3. SPARE WHEEL


The spare wheel retaining bolt is located on
the rear right side.


- Turn the bolt using the socket A
and the
ratchet wrench B
to release the wheel.

- Turn to the locking point, indicated by
an increase in the force required for
the manoeuvre.
- Take out the spare wheel using the
wrench.

- Unscrew the handle G
and remove
the support H
.

- Release the spare wheel and place it
near the wheel to be changed.

If you have a retractable foor board, the jack
must be positioned at 45°.


- Extend the jack using the ratchet
wrench B
until the wheel is a few
centimetres off the ground.

- Unscrew the bolts fully and change the
wheel.

14
6


Changing a wheel



6. REFITTING THE REPAIREDWHEEL

Refitting of the wheel is identical to step 5,
do not forget to refit the wheel trim.

Refer to the "Identification markings"
section of chapter 9 to locate the tyre
label.
The spare wheel is not designed to be used
over long distances. Have the tightening of
the bolts and pressure of the spare wheel
checked by a PEUGEOT dealer without
delay.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.


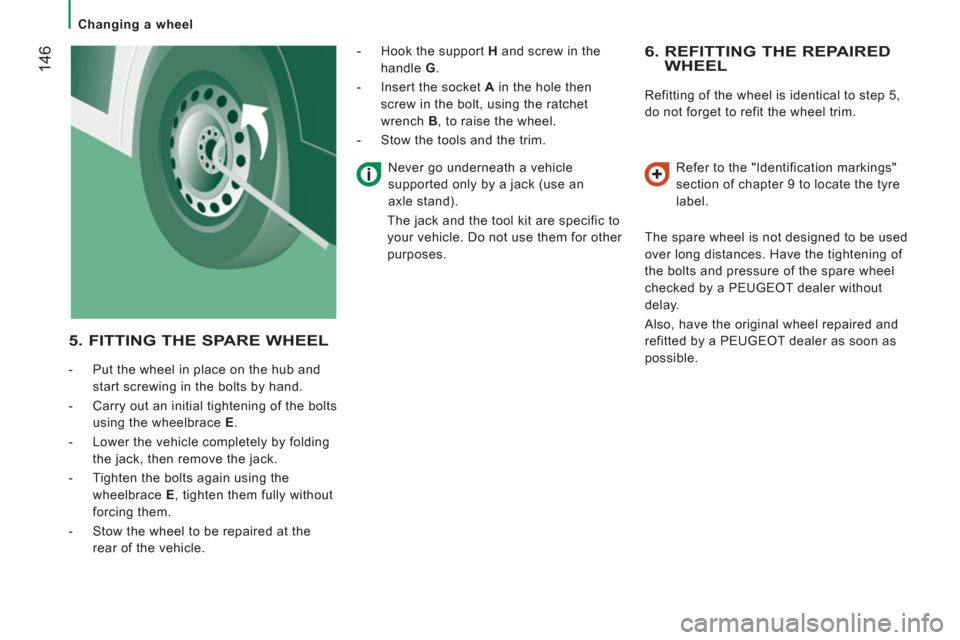

5. FITTING THE SPARE WHEEL



- Put the wheel in place on the hub and
start screwing in the bolts by hand.

- Carry out an initial tightening of the bolts
using the wheelbrace E
.

- Lower the vehicle completely by folding
the jack, then remove the jack.

- Tighten the bolts again using the
wheelbrace E
, tighten them fully without
forcing them.

- Stow the wheel to be repaired at the
rear of the vehicle.
- Hook the support H
and screw in the
handle G
.

- Insert the socket A
in the hole then
screw in the bolt, using the ratchet
wrench B
, to raise the wheel.

- Stow the tools and the trim.

Never go underneath a vehicle
supported only by a jack (use an
axle stand).
The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.

14
7
QUICK HELP
8


Changing a wheel

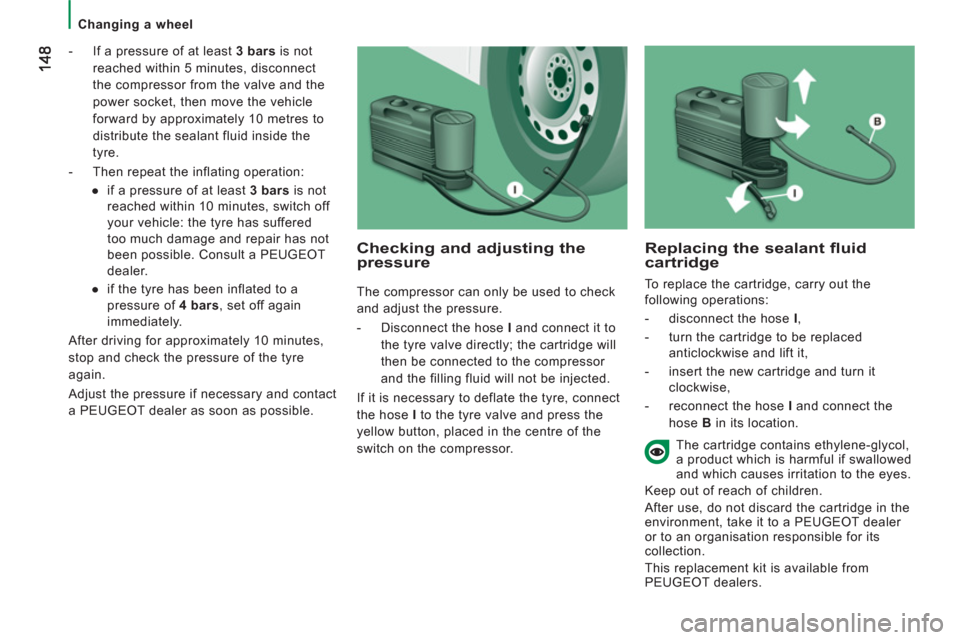

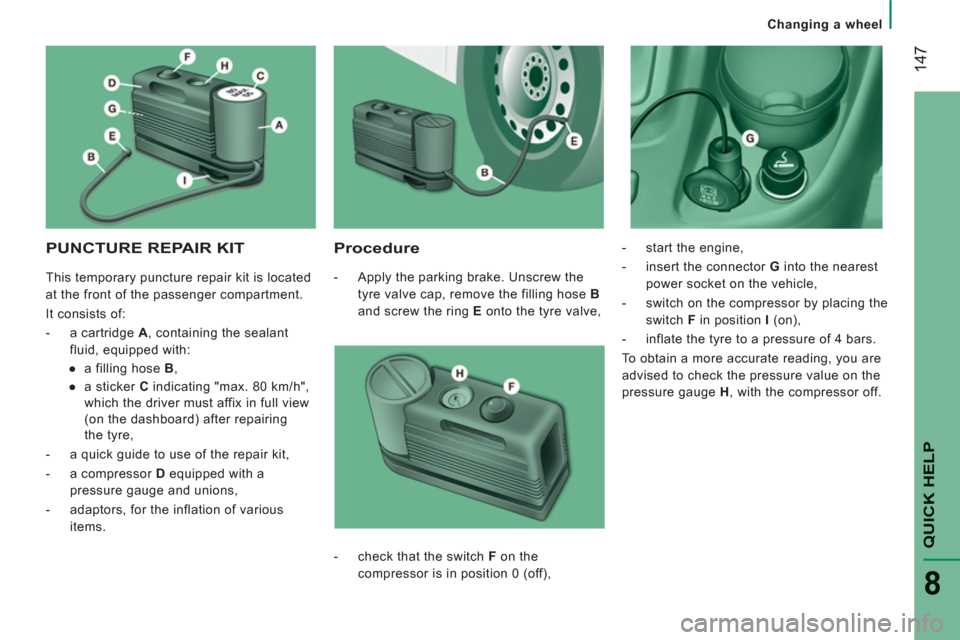

PUNCTURE REPAIR KIT

Procedure



- Apply the parking brake. Unscrew the
tyre valve cap, remove the filling hose B
and screw the ring E
onto the tyre valve,
- start the engine,

- insert the connector G
into the nearest
power socket on the vehicle,

- switch on the compressor by placing the
switch F
in position I
(on),

- inflate the tyre to a pressure of 4 bars.
To obtain a more accurate reading, you are
advised to check the pressure value on the
pressure gauge H
, with the compressor off.

- check that the switch F
on the
compressor is in position 0 (off), This temporary puncture repair kit is located
at the front of the passenger compartment.
It consists of:


- a cartridge A
, containing the sealant
fluid, equipped with:


●
a filling hose B
,

●
a sticker C
indicating "max. 80 km/h",
which the driver must affix in full view
(on the dashboard) after repairing
the tyre,

- a quick guide to use of the repair kit,

- a compressor D
equipped with a
pressure gauge and unions,

- adaptors, for the inflation of various
items.

Changing a wheel



- If a pressure of at least 3 bars
is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forward by approximately 10 metres to
distribute the sealant fluid inside the
tyre.

- Then repeat the inflating operation:


●
if a pressure of at least 3 bars
is not
reached within 10 minutes, switch off
your vehicle: the tyre has suffered
too much damage and repair has not
been possible. Consult a PEUGEOT
dealer.

●
if the tyre has been inflated to a
pressure of 4 bars
, set off again
immediately.

After driving for approximately 10 minutes,
stop and check the pressure of the tyre
again.
Adjust the pressure if necessary and contact
a PEUGEOT dealer as soon as possible.
Checking and adjusting the pressure

The compressor can only be used to check
and adjust the pressure.


- Disconnect the hose I
and connect it to
the tyre valve directly; the cartridge will
then be connected to the compressor
and the filling fluid will not be injected.
If it is necessary to deflate the tyre, connect
the hose I
to the tyre valve and press the
yellow button, placed in the centre of the
switch on the compressor.


Replacing the sealant fluidcartridge

To replace the cartridge, carry out the
following operations:


- disconnect the hose I
,

- turn the cartridge to be replaced
anticlockwise and lift it,

- insert the new cartridge and turn it
clockwise,

- reconnect the hose I
and connect the
hose B
in its location.



The cartridge contains ethylene-glycol,
a product which is harmful if swallowed
and which causes irritation to the eyes.
Keep out of reach of children.
After use, do not discard the cartridge in the
environment, take it to a PEUGEOT dealer
or to an organisation responsible for its
collection.
This replacement kit is available from
PEUGEOT dealers.
