TECHNOLOGY ON BOARD
Reversing camera
REVERSING CAMERA
If your vehicle is fitted with this camera, it
is located at the rear of the van, next to the
third brake lamp.
It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring.

Screen

The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior rear view mirror.
Press the button and place the screen in the
required position.

Activation

With the key in the running position, unfold
the screen.
The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).
When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.
Fold the screen.
Buttons

Brightness adjustment.
Back-lighting adjustment.
ON/OFF enables you to see rear
views without engaging reverse
gear.

80


Reversing camera

Initial settings
With reverse gear not engaged,
press and hold the ON/OFF
button for approximately
3 seconds. The button flashes
twice to confirm the reinitialisation.

Alarm display on the screen
In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:


- each time reverse gear is engaged, a
message appears before the first view is
transmitted,

- at 11 mph (18 km/h) in reverse gear,
the rear view disappears and the
screen switches to "Stand by". The view
appears again when the vehicle returns
to a speed below 9 mph (15 km/h).


Change of language
With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.
Scroll through the languages by pressing
ON/OFF.
When the language has been selected, wait
approximately 3 seconds for it to be stored.
Good practice
When vehicle conditions are optimum
(position on the road, loading level) the
maximum area of visibility covered by the
camera has a field depth approximately 3 m
long and 5.5 m wide.
The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.
Please store the screen in its housing when
no longer in use.
When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.
Use a non-abrasive cloth or a small brush.
Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.
If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.
Contact a PEUGEOT dealer to have the
screen repaired.

81
4
TECHNOLOGY ON BOARD
Pneumatic suspension
PNEUMATIC SUSPENSION

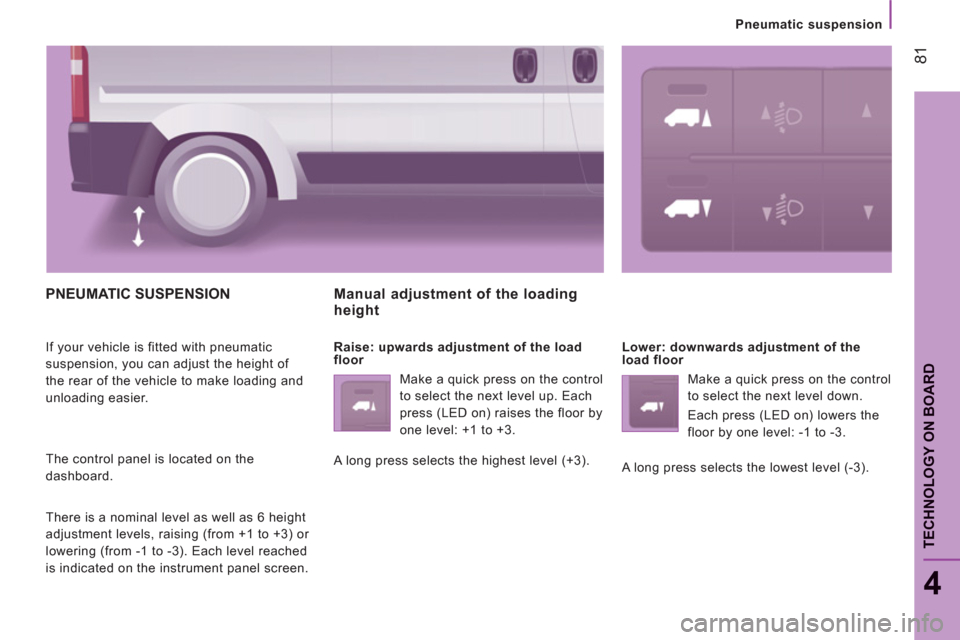

If your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.
The control panel is located on the
dashboard.
There is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel screen.

Manual adjustment of the loadingheight


Raise: upwards adjustment of the load
floor
Make a quick press on the control
to select the next level up. Each
press (LED on) raises the floor by
one level: +1 to +3.
A long press selects the highest level (+3).
Lower: downwards adjustment of the
load floor
Make a quick press on the control
to select the next level down.
Each press (LED on) lowers the
floor by one level: -1 to -3.
A long press selects the lowest level (-3).

Pneumatic suspension


Deactivation
Make a long press on both controls
simultaneously to deactivate the system.
The LEDs remain on.

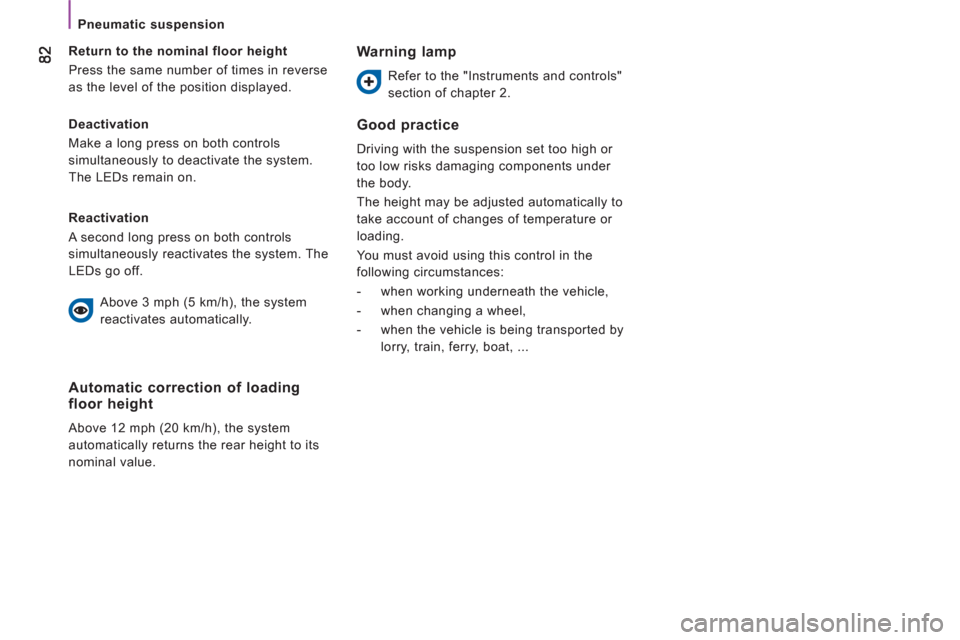

Return to the nominal floor height
Press the same number of times in reverse
as the level of the position displayed.

Reactivation
A second long press on both controls
simultaneously reactivates the system. The
LEDs go off.

Automatic correction of loading
floor height
Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.
Warning lamp

Refer to the "Instruments and controls"
section of chapter 2.
Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.
The height may be adjusted automatically to
take account of changes of temperature or
loading.
You must avoid using this control in the
following circumstances:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Above 3 mph (5 km/h), the system
reactivates automatically.

83
4
TECHNOLOGY ON BOARD
Tachograph
TACHOGRAPH

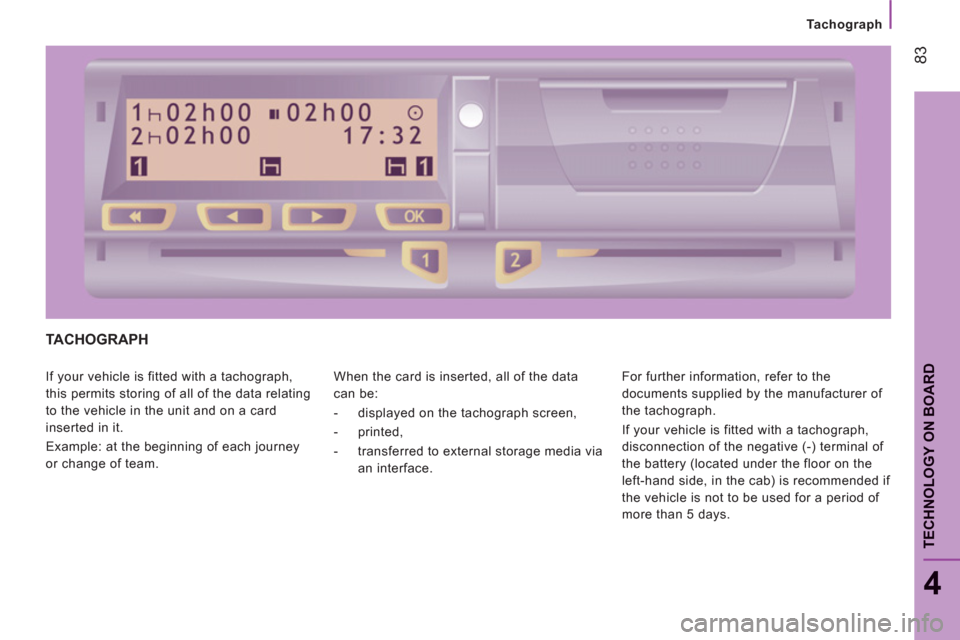

If your vehicle is fitted with a tachograph,
this permits storing of all of the data relating
to the vehicle in the unit and on a card
inserted in it.
Example: at the beginning of each journey
or change of team. When the card is inserted, all of the data
can be:


- displayed on the tachograph screen,

- printed,

- transferred to external storage media via
an interface. For further information, refer to the
documents supplied by the manufacturer of
the tachograph.
If your vehicle is fitted with a tachograph,
disconnection of the negative (-) terminal of
the battery (located under the floor on the
left-hand side, in the cab) is recommended if
the vehicle is not to be used for a period of
more than 5 days.

Audio equipment
84

Volume adjustment. Automatic presetting of stations
(autostore).

Selection of wavebands
FM1, FM2, FMA.

Selection of wavebands:
MW1, MW2.

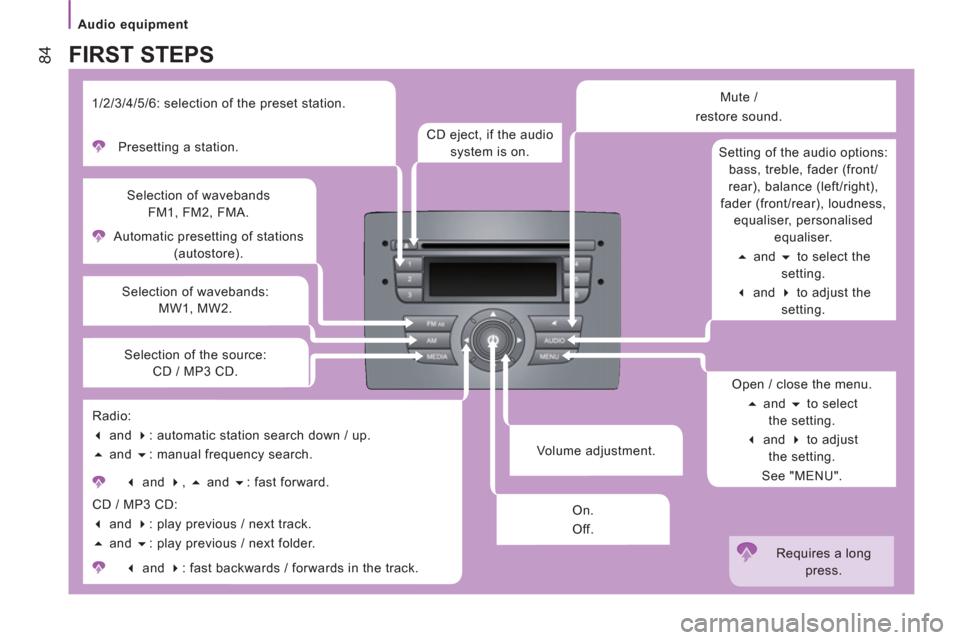

FIRST STEPS


On.
Off.
CD eject, if the audio
system is on.

Open / close the menu.


and
to select
the setting.


and
to adjust
the setting.
See "MENU".
Setting of the audio options:
bass, treble, fader (front/
rear), balance (left/right),
fader (front/rear), loudness,
equaliser, personalised
equaliser.


and
to select the
setting.


and
to adjust the
setting.
Mute /
restore sound.

CD / MP3 CD:


and
: play previous / next track.


and
: play previous / next folder.

Requires a long
press.
Radio:


and
: automatic station search down / up.


and
: manual frequency search.



and
,
and
: fast forward.



and
: fast backwards / forwards in the track. Presetting a station.

1/2/3/4/5/6: selection of the preset station.

Selection of the source:
CD / MP3 CD.

Audio equipment
85
4
TECHNOLOGY
on
BOARD

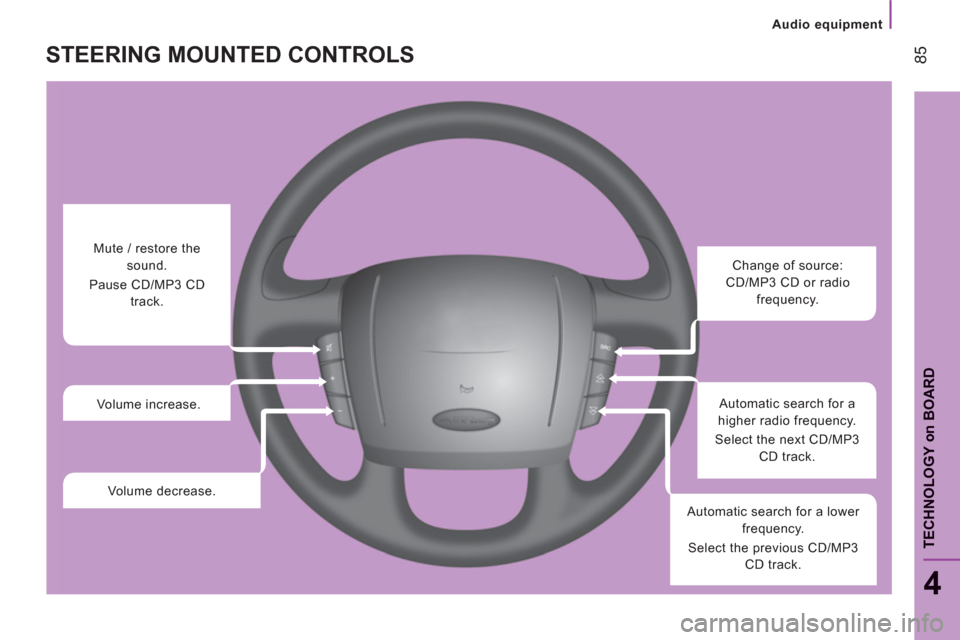

STEERING MOUNTED CONTROLS







Change of source:
CD/MP3 CD or radio
frequency.

Automatic search for a
higher radio frequency.
Select the next CD/MP3
CD track.

Automatic search for a lower
frequency.
Select the previous CD/MP3
CD track.
Mute / restore the
sound.



Pause CD/MP3 CD
track.
Volume increase.

Volume decrease.

Audio equipment
86

Open and close the menus.
Confirmation and storing the choices from
the current menu.

Scrolling of various menus.

Selection of the choices from the current menu.

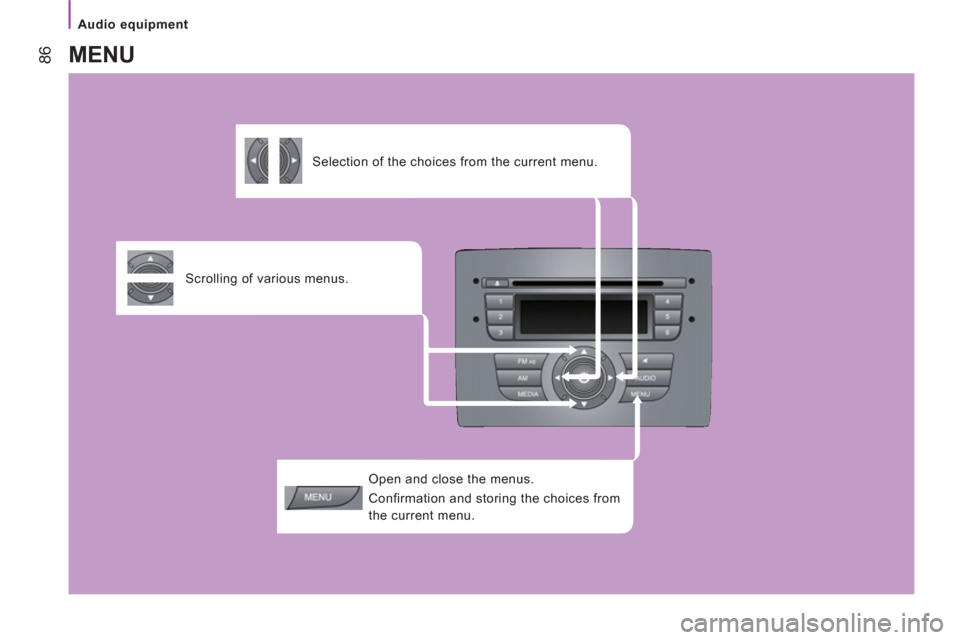

MENU

Audio equipment
87
4
TECHNOLOGY
on
BOARD

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Select

Display

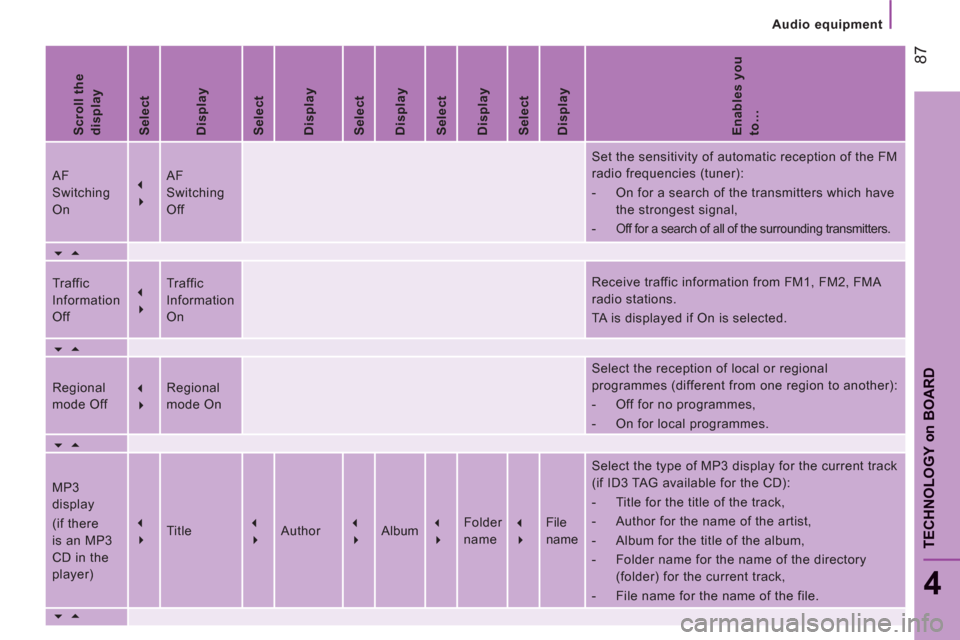

Enables you
to…

AF
Switching
On

 AF
Switching
Off Set the sensitivity of automatic reception of the FM
radio frequencies (tuner):


- On for a search of the transmitters which have
the strongest signal,

-
Off for a search of all of the surrounding transmitters.




Traffic
Information
Off

 Traffic
Information
On Receive traffic information from FM1, FM2, FMA
radio stations.
TA is displayed if On is selected.



Regional
mode Off

 Regional
mode On Select the reception of local or regional
programmes (different from one region to another):


- Off for no programmes,

- On for local programmes.



MP3
display
(if there
is an MP3
CD in the
player)

 Title

 Author

 Album


 Folder
name

 File
name Select the type of MP3 display for the current track
(if ID3 TAG available for the CD):


- Title for the title of the track,

- Author for the name of the artist,

- Album for the title of the album,

- Folder name for the name of the directory
(folder) for the current track,

- File name for the name of the file.




Audio equipment
88

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

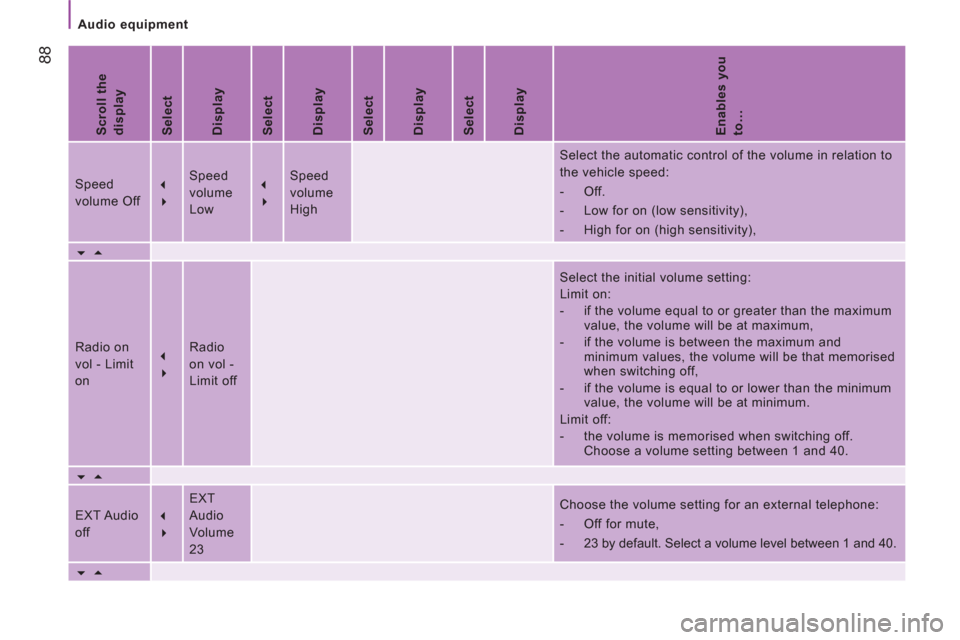

Speed
volume Off

 Speed
volume
Low

 Speed
volume
High Select the automatic control of the volume in relation to
the vehicle speed:


- Off.

- Low for on (low sensitivity),

- High for on (high sensitivity),



Radio on
vol - Limit
on

 Radio
on vol -
Limit off Select the initial volume setting:
Limit on:


- if the volume equal to or greater than the maximum
value, the volume will be at maximum,

- if the volume is between the maximum and
minimum values, the volume will be that memorised
when switching off,

- if the volume is equal to or lower than the minimum
value, the volume will be at minimum.
Limit off:


- the volume is memorised when switching off.
Choose a volume setting between 1 and 40.



EXT Audio
off

 EXT
Audio
Volume
23 Choose the volume setting for an external telephone:


- Off for mute,

- 23 by default. Select a volume level between 1 and 40.
