Peugeot Boxer 2012 Owner's Manual

169
9
TECHNI
CAL DAT
A
Weights

*
15 inch wheels.

**
16 inch wheels.

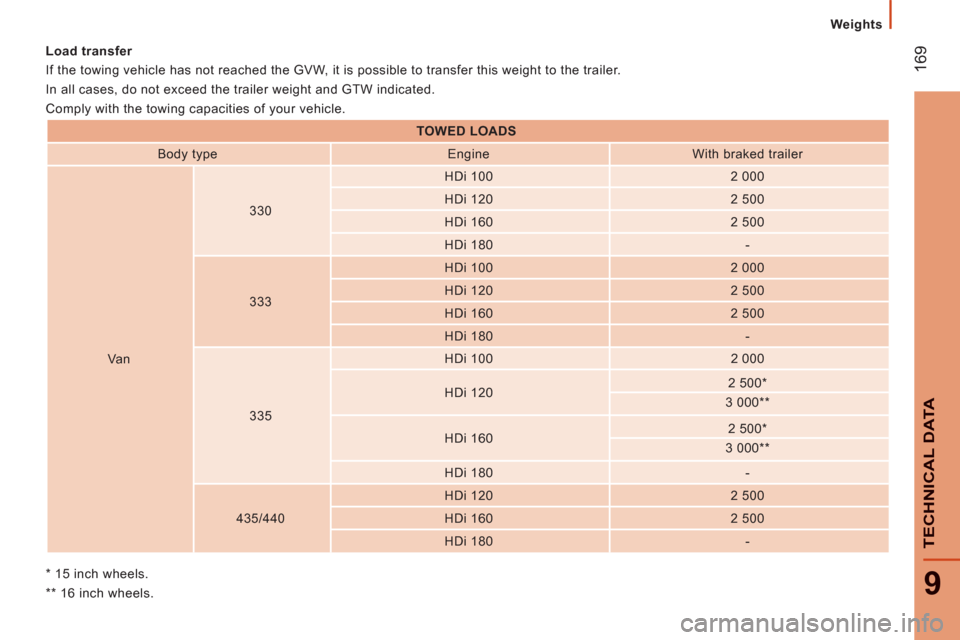

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.




TOWED LOADS


Body type
Engine
With braked trailer

Va n
330
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

333
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

335
HDi 100
2 000

HDi 120
2 500 *
3 000 **


HDi 160
2 500 *
3 000 **


HDi 180
-

435/440
HDi 120
2 500

HDi 160
2 500

HDi 180
-

17
0

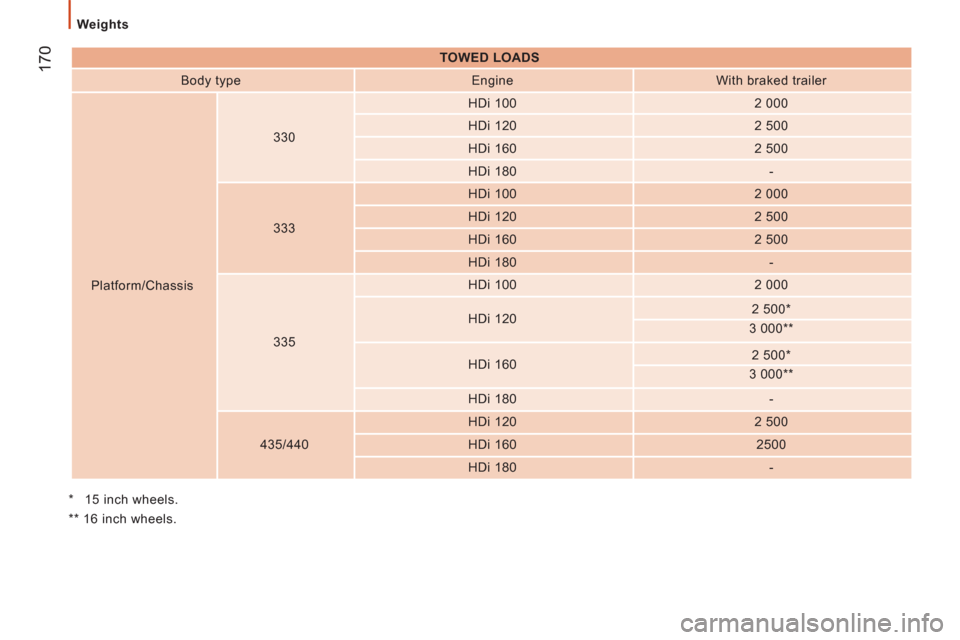

Weights


TOWED LOADS


Body type
Engine
With braked trailer
Platform/Chassis
330
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

333
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

335
HDi 100
2 000

HDi 120
2 500 *
3 000 **


HDi 160
2 500 *
3 000 **


HDi 180
-
435/440
HDi 120
2 500

HDi 160
2500

HDi 180
-

* *15 inch wheels.

** 16 inch wheels.

17
1
9
TECHNI
CAL DAT
A
Weights


TOWED LOADS


Body type
Engine
With braked trailer

Combi
330
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

333
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

172


Identification markings

IDENTIFICATION MARKINGS

A. Manufacturer's plate


1 -
VF Type serial number.

2 -
Gross vehicle weight (GVW).

3 -
Gross train weight (GTW).

4.1 -
Maximum weight on front axle.

4.2 -
Maximum weight on rear axle.
B. Serial number onthe bodywork
D. Paint code
C. T
yres
The label C
affixed to the van pillar, on the
right-hand door side, indicates:


- the wheel and tyre sizes,

- the tyre pressures (the

pressures

must
be checked when cold, at least once a
month).




E. Serial number on
the bodywork
The number is located under the plastic
cover, at the sill on the right-hand door side.

17
3


Exterior

10
VISUAL SEARCH
EXTERIOR

Rear lamps, direction indicators,
3rd brake lamp,
foglamps 34, 42, 149, 152 Left-hand side:
fuel fi ller cap, fuel tank 141
Fuel cut-off 141
Load space 70-71
Rear doors 26
Number plate lamp 152
Parking sensors 78
Spare wheel, jack,
changing a wheel, tools,
puncture repair kit 144-148
Infl ating, pressures 172
Towing, lifting 158
Towbar, towball 130-131 Dimensions 160-166
Accessories 132-133
Roof bars 132
Brakes, pads 136, 138
ABS, Electronic brake force
distribution 112
EBA 112
ASR, ESP 113-114
Tyres, pressures 172
Pneumatic suspension 81 Key, remote control, battery 20-22
Starting 39-40
Central locking 27
Confi dential card 23
Alarm 24
Wiper blade 157
Door mirror 72
Side repeater 151
Front lamps, foglamps,
direction indicators 149-151
Headlamp beam height adjustment 44
Headlamp wash 45
Changing bulbs 149-151
Opening/closing doors 25-27
Key 22
Opening the bonnet, stay 134
Mode - autoclose 76

174

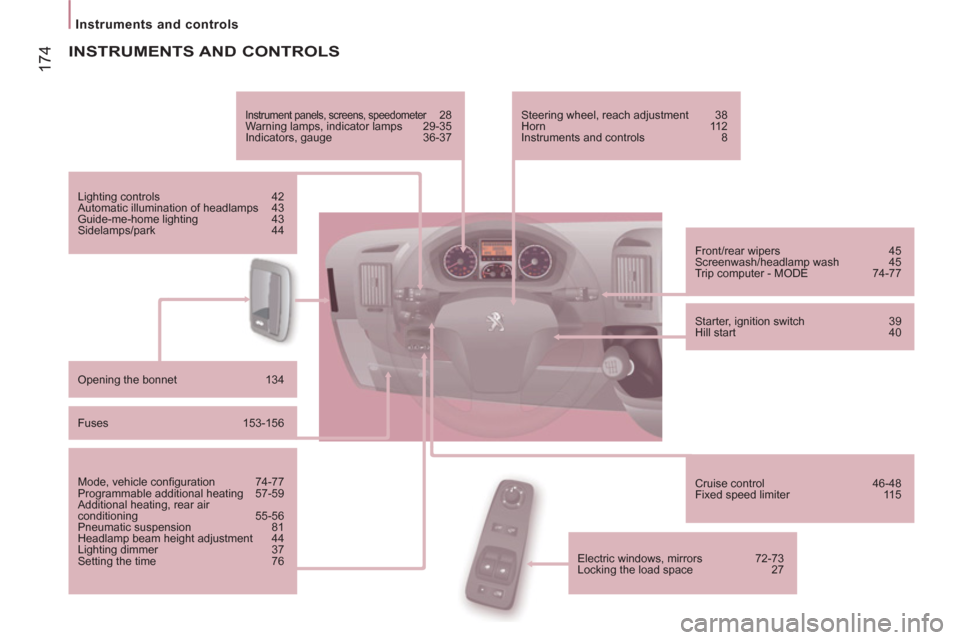

Instruments and controls


INSTRUMENTS AND CONTROLS
Instrument panels, screens, speedometer 28
Warning lamps, indicator lamps 29-35
Indicators, gauge 36-37
Lighting controls 42
Automatic illumination of headlamps 43
Guide-me-home lighting 43
Sidelamps/park 44
Opening the bonnet 134
Fuses 153-156
Mode, vehicle confi guration 74-77
Programmable additional heating 57-59
Additional heating, rear air
conditioning 55-56
Pneumatic suspension 81
Headlamp beam height adjustment 44
Lighting dimmer 37
Setting the time 76 Front/rear wipers 45
Screenwash/headlamp wash 45
Trip computer - MODE 74-77
Starter, ignition switch 39
Hill start 40
Cruise control 46-48
Fixed speed limiter 115 Steering wheel, reach adjustment 38
Horn 112
Instruments and controls 8
Electric windows, mirrors 72-73
Locking the load space 27

17
5
Instruments and controls
10
VISUAL SEARCH
Central locking 27
Demisting-defrosting 49 Audio equipment, CD/MP3 84-92
Bluetooth hands-free system 93-110 Tachograph 83
Reversing camera 79-80
Heating, ventilation 51-54


●
air conditioning A/C,

●
manual air conditioning,

●
mono-zone digital air conditioning,

●
air recirculation.
Cab fi ttings 66-69


●
cigarette lighter,

●
glove box - cooled,

●
overhead storage,

●
portable ashtray,

●
courtesy lamps,

●
12 volt socket,

●
writing table,

●
storage compartments.

Gearbox 38
Parking sensors 78
Alarm indicator lamp 24
ASR, ESP 113-114
Intelligent Traction Control 114
Front/rear fog lamps 42
Hazard warning lamps 111

17
6

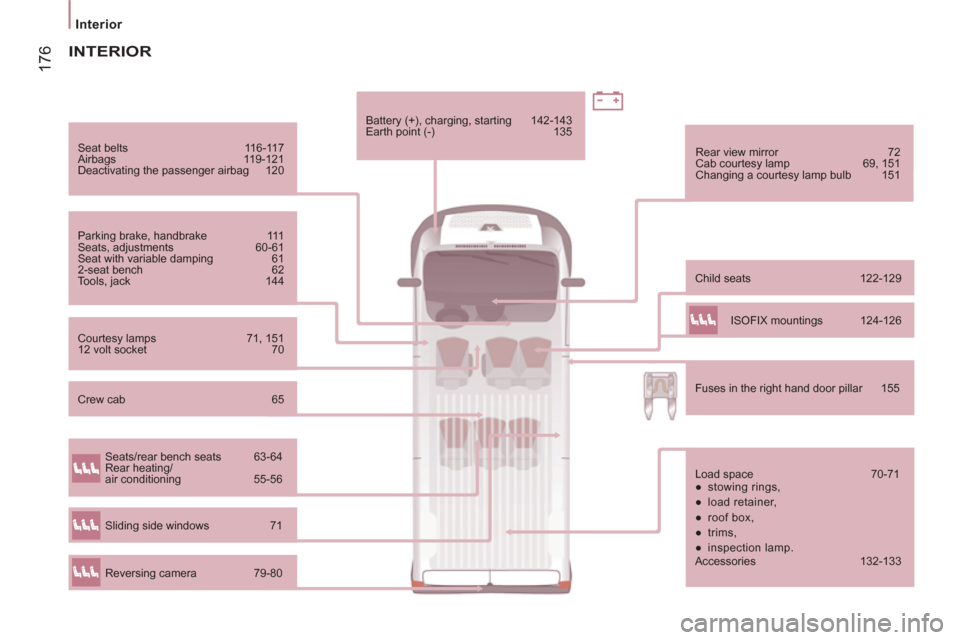

Interior


Seat belts 116-117
Airbags 119-121
Deactivating the passenger airbag 120
Parking brake, handbrake 111
Seats, adjustments 60-61
Seat with variable damping 61
2-seat bench 62
Tools, jack 144 Child seats 122-129 Rear view mirror 72
Cab courtesy lamp 69, 151
Changing a courtesy lamp bulb 151
Courtesy lamps 71, 151
12 volt socket 70 Battery (+), charging, starting 142-143
Earth point (-) 135
Fuses in the right hand door pillar 155

INTERIOR

Load space 70-71


●
stowing rings,

●
load retainer,

●
roof box,

●
trims,

●
inspection lamp.
Accessories 132-133
Seats/rear bench seats 63-64
Rear heating/
air conditioning 55-56
Reversing camera 79-80 Sliding side windows 71 ISOFIX mountings 124-126
Crew cab 65

17
7


Technical data - Maintenance

10
VISUAL SEARCH

Screenwash/headlamp wash, level 137
Bulbs, lighting, changing bulbs 149-151
Opening the bonnet, stay 134
Under the bonnet 135
Identifi cation markings,
serial number, paint, tyres 172 Changing a wiper blade 157 Levels 136-137


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant.
Water bleed, Diesel fi lter 138
Checks 138


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
parking brake,

●
particle filter,

●
brake pads.
Emission control 36
Engine fuses 153, 156
TECHNICAL DATA - MAINTENANCE

Engine technical data 167
Dimensions 160-166
Weights 168-171
