Changing a bulb

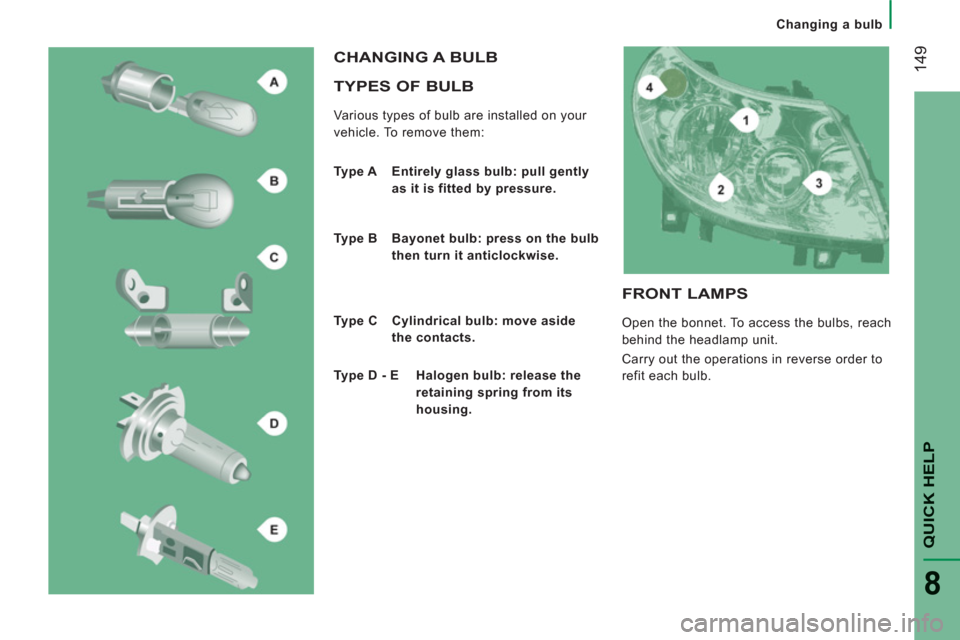

TYPES OF BULB

Various types of bulb are installed on your
vehicle. To remove them:
CHANGING A BULB


Type A Entirely glass bulb: pull gently
as it is fitted by pressure.

Type B Bayonet bulb: press on the bulb
then turn it anticlockwise.

Type C Cylindrical bulb: move aside
the contacts.

Type D - E Halogen bulb: release the
retaining spring from its
housing.

FRONT LAMPS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.

150


Changing a bulb

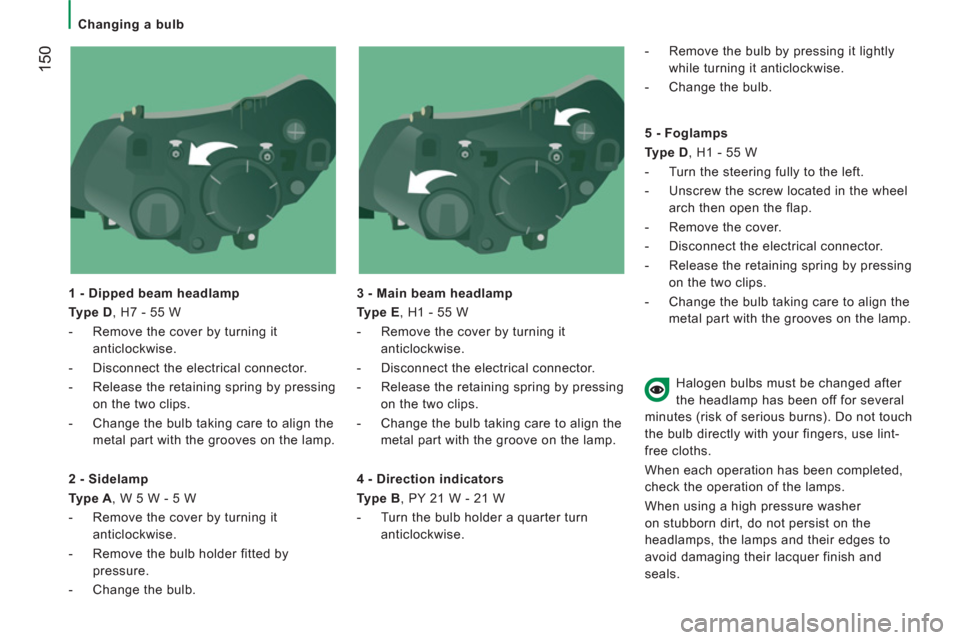

1 - Dipped beam headlamp

Type D
, H7 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.

3 - Main beam headlamp

Type E
, H1 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the groove on the lamp.


2 - Sidelamp

Type A
, W 5 W - 5 W


- Remove the cover by turning it
anticlockwise.

- Remove the bulb holder fitted by
pressure.

- Change the bulb.

4 - Direction indicators

Type B
, PY 21 W - 21 W


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.


5 - Foglamps

Type D
, H1 - 55 W


- Turn the steering fully to the left.

- Unscrew the screw located in the wheel
arch then open the flap.

- Remove the cover.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use lint-
free cloths.
When each operation has been completed,
check the operation of the lamps.
When using a high pressure washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their edges to
avoid damaging their lacquer finish and
seals.

QUICK HELP
8
Changing a bulb

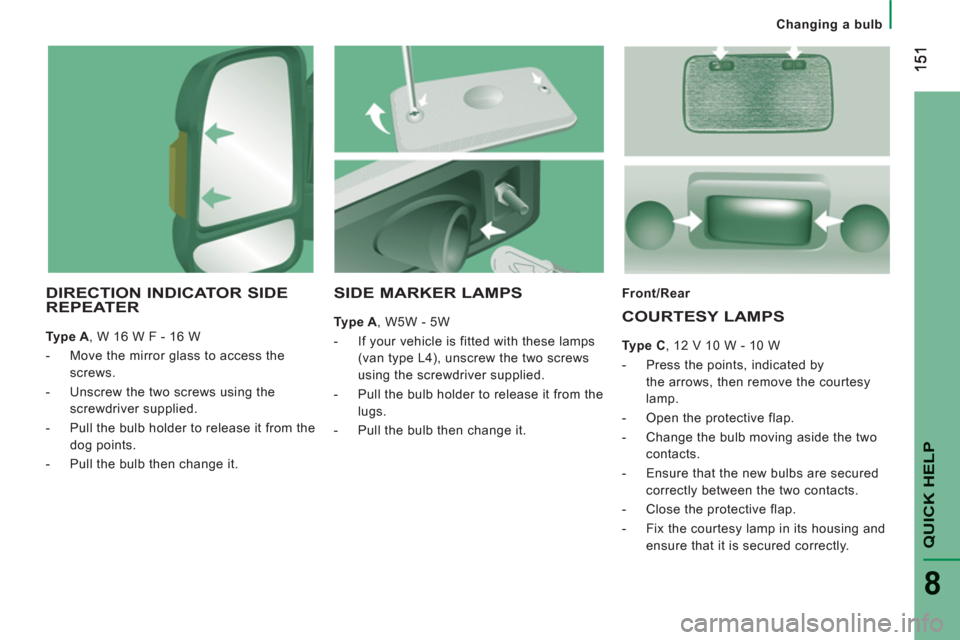

DIRECTION INDICATOR SIDE
REPEATER

Type A
, W 16 W F - 16 W


- Move the mirror glass to access the
screws.

- Unscrew the two screws using the
screwdriver supplied.

- Pull the bulb holder to release it from the
dog points.

- Pull the bulb then change it.
Front/Rear

COURTESY LAMPS


Type C
, 12 V 10 W - 10 W


- Press the points, indicated by
the arrows, then remove the courtesy
lamp.

- Open the protective flap.

- Change the bulb moving aside the two
contacts.

- Ensure that the new bulbs are secured
correctly between the two contacts.

- Close the protective flap.

- Fix the courtesy lamp in its housing and
ensure that it is secured correctly.



SIDE MARKER LAMPS


Type A
, W5W - 5W


- If your vehicle is fitted with these lamps
(van type L4), unscrew the two screws
using the screwdriver supplied.

- Pull the bulb holder to release it from the
lugs.

- Pull the bulb then change it.

152


Changing a bulb

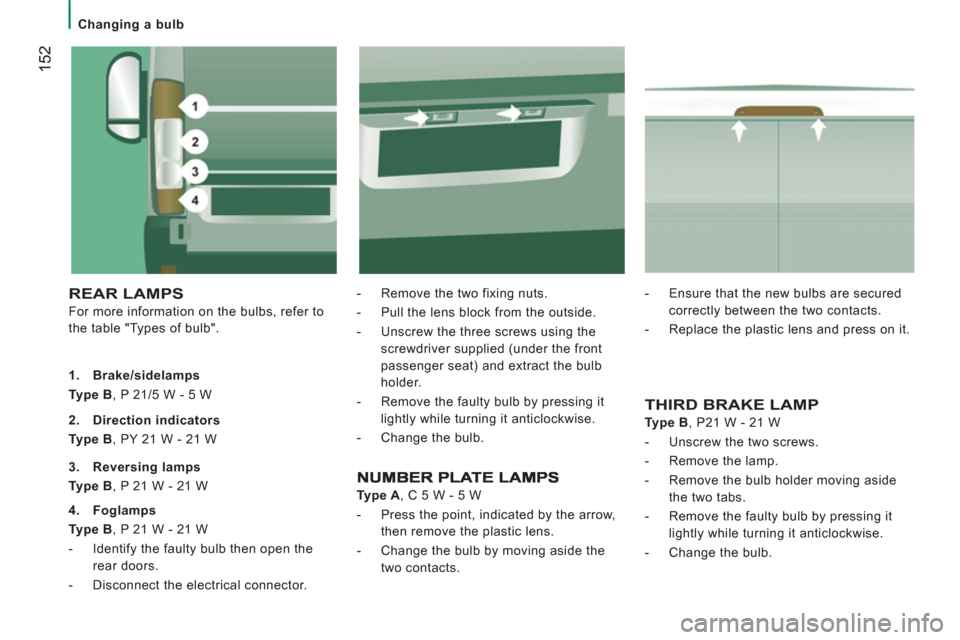

REAR LAMPS

For more information on the bulbs, refer to
the table "Types of bulb".
- Remove the two fixing nuts.

- Pull the lens block from the outside.

- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

1.
Brake/

sidelamps

Type B
, P 21/5 W - 5 W
THIRD BRAKE LAMP


Type B
, P21 W - 21 W


- Unscrew the two screws.

- Remove the lamp.

- Remove the bulb holder moving aside
the two tabs.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.
2.
Direction indicators

Type B
, PY 21 W - 21 W

3.
Reversing

lamps

Type B
, P 21 W - 21 W

4.
Foglamps

Type B
, P 21 W - 21 W


- Identify the faulty bulb then open the
rear doors.

- Disconnect the electrical connector.


Type A
, C 5 W - 5 W


- Press the point, indicated by the arrow,
then remove the plastic lens.

- Change the bulb by moving aside the
two contacts.
- Ensure that the new bulbs are secured
correctly between the two contacts.

- Replace the plastic lens and press on it.

153
QUICK HELP
8
Changing a fuse

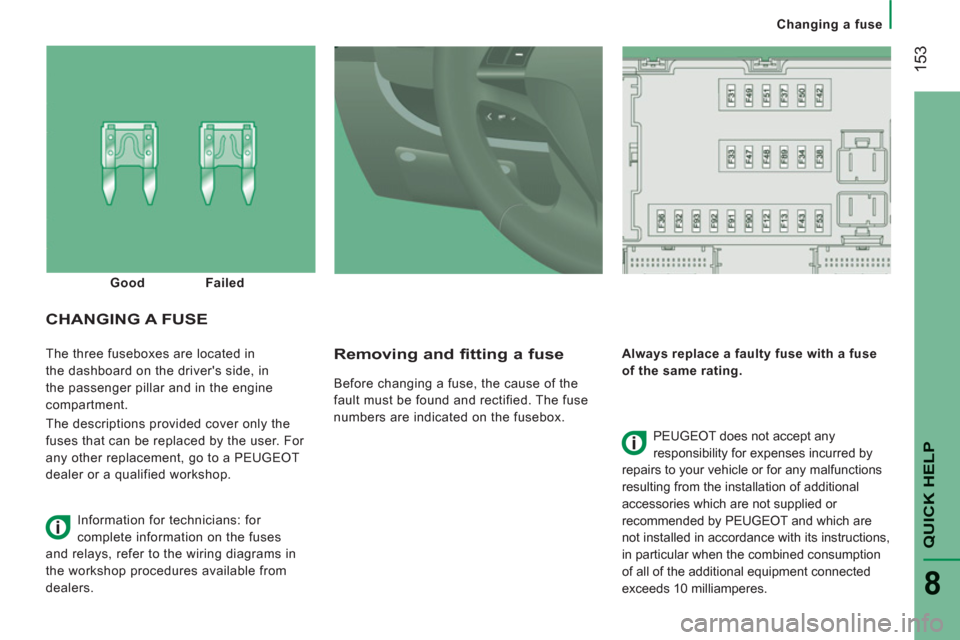

The three fuseboxes are located in
the dashboard on the driver's side, in
the passenger pillar and in the engine
compartment.
The descriptions provided cover only the
fuses that can be replaced by the user. For
any other replacement, go to a PEUGEOT
dealer or a qualified workshop.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always replace a faulty fuse with a fuse
of the same rating.
CHANGING A FUSE

PEUGEOT does not accept any
responsibility for expenses incurred by
repairs to your vehicle or for any malfunctions
resulting from the installation of additional
accessories which are not supplied or
recommended by PEUGEOT and which are
not installed in accordance with its instructions,
in particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.
Good
Failed
Information for technicians: for
complete information on the fuses
and relays, refer to the wiring diagrams in
the workshop procedures available from
dealers.

154


Changing a fuse


DRIVER'S SIDE DASHBOARD FUSES

- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)


Allocation



12


7.5
Right-hand dipped headlamp


13


7.5
Left-hand dipped headlamp


31


5
Relay supply


32


7.5
Roof courtesy lamp


33


20
Battery sensor


34


20
Minibus interior lighting - Hazard warning


36


10

Radio - Diagnostic socket - Alarm siren - Programmable additional heating - Air conditioning controls -
Tachograph - Battery


37


7.5
Brake lamp - Third brake lamp - Instrument panel


38


20
Central locking control


42


5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


20

Windscreen wiper motor


47


20
Driver's electric window motor


48


20
Passenger's electric window motor


49


5
Audio equipment - Instrument panel controls


50


7.5
Airbags and pre-tensioners unit


51


5
Tachograph - Cruise control - Air conditioning controls - Reversing lamps - Water in Diesel sensor


53


7.5
Instrument panel


89


-
Not used


90


7.5
Left-hand main beam headlamp


91


7.5
Right-hand main beam headlamp


92


7.5
Left-hand foglamp


93


7.5
Right-hand fog lamp

QUICK HELP
8
Changing a fuse


Fuses


A (amps)


Allocation



54


-
Not used


55


15
Heated seats


56


15
12 V socket


57


10
Programmable additional heating


58


15
Demisting: rear screen (left)


59


15
Demisting: rear screen (right)


60


-
Not used


61


-
Not used


62


-
Not used


63


10
Programmable additional heating switch


64


-
Not used


65


30
Fan for programmable additional heating
PASSENGER PILLAR FUSES

- Unclip the cover

When you have finished, close the cover
carefully.

156


Changing a fuse


FUSES IN THE ENGINE
COMPARTMENT
- Remove the nuts and tilt the box to access
the fuses.

Fuses


A (amps)


Allocation



1


40
ABS pump supply


2


50
Diesel pre-heat unit


3


30
Ignition switch


4


30
Headlamp washer pump


8


40
Cabin fan assembly


9


15
Rear 12 V socket


10


15
Horn


14


15
Front 12 V socket


15


10
Cigarette lighter


20


30
Screenwash pump


21


15
Fuel pump supply


24


15
Auxiliary panel for ambulance - Mirrors


30


15
Demisting

157
QUICK HELP
8


Changing a wiper blade

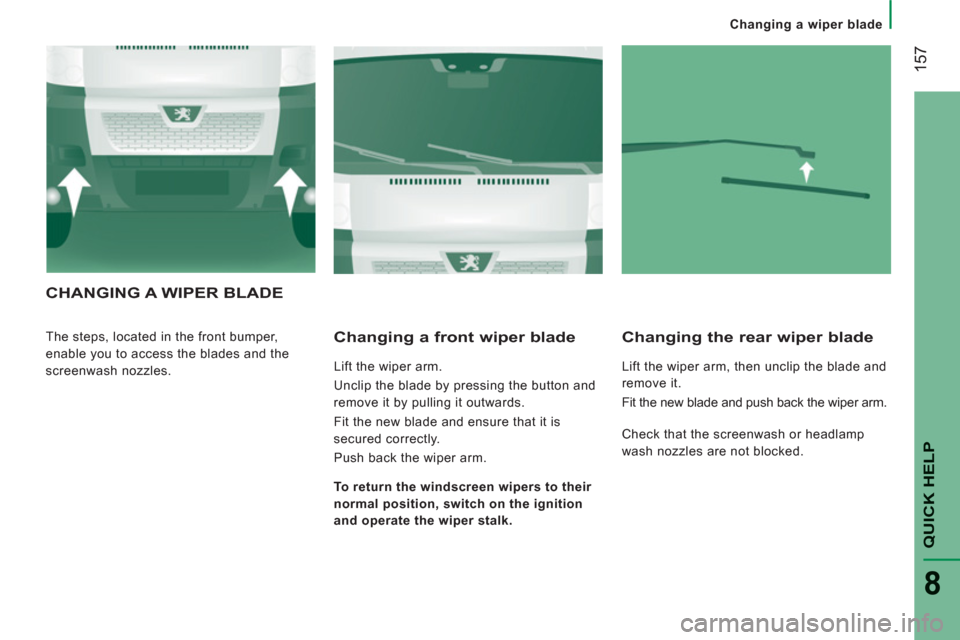

CHANGING A WIPER BLADE

The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles.
Changing a front wiper blade

Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade

Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the

wiper

stalk.
Check that the screenwash or headlamp
wash nozzles are not blocked.

158


Having your vehicle towed


BEING TOWED

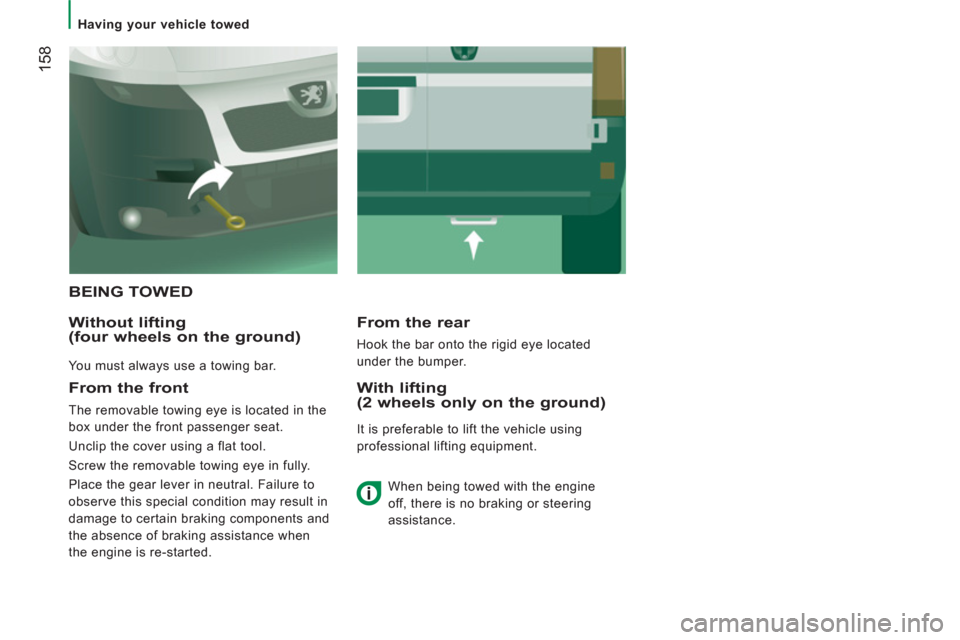

Without liftin
g(four wheels on the ground)

You must always use a towing bar.
From the rear

Hook the bar onto the rigid eye located
under the bumper.


From the front

The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when
the engine is re-started.
With lifting(2 wheels only on the ground)

It is preferable to lift the vehicle using
professional lifting equipment.
When being towed with the engine
off, there is no braking or steering
assistance.
