EASE OF USE AND COMFOR
T
Practical information

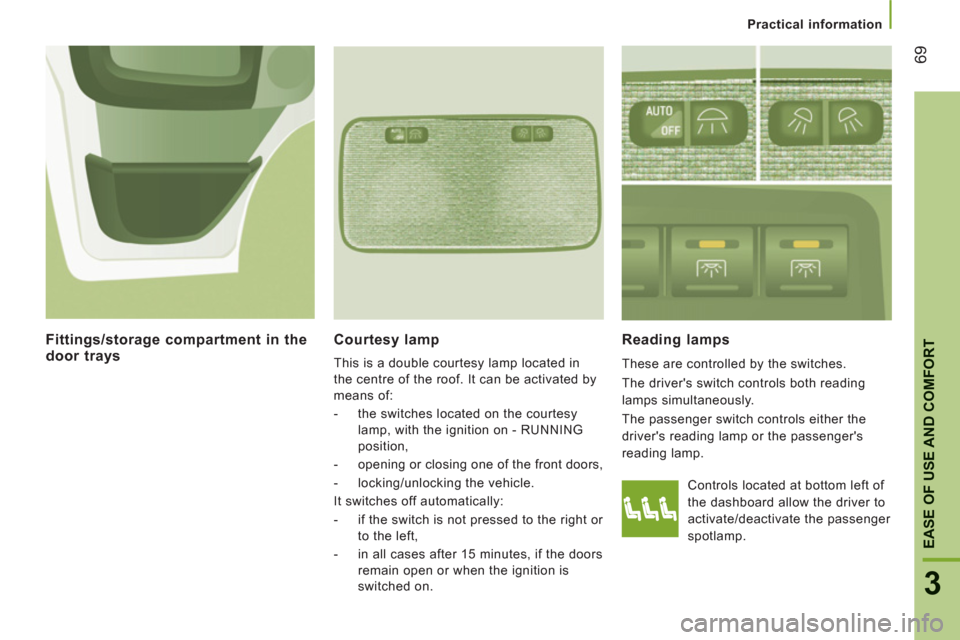

Courtesy lamp

This is a double courtesy lamp located in
the centre of the roof. It can be activated by
means of:


- the switches located on the courtesy
lamp, with the ignition on - RUNNING
position,

- opening or closing one of the front doors,

- locking/unlocking the vehicle.
It switches off automatically:


- if the switch is not pressed to the right or
to the left,

- in all cases after 15 minutes, if the doors
remain open or when the ignition is
switched on.

Reading lamps

These are controlled by the switches.
The driver's switch controls both reading
lamps simultaneously.
The passenger switch controls either the
driver's reading lamp or the passenger's
reading lamp.
Fittings/storage compartment in thedoor trays


Controls located at bottom left of
the dashboard allow the driver to
activate/deactivate the passenger
spotlamp.

70


Practical information

LOAD SPACE FITTINGS Support for stowing rail

Supports for securing a stowing rail are
available above the trims, on each side of
the vehicle.


12 volt socket

When used as a power socket: 180 W max.


Stowing rings

Eight stowing rings are provided for securing
your loads. Six rings are located on the floor
and two on the partition behind the cab.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the cab as
possible.
Trims

The lower parts of the sides are fitted with
load protection trims.

3
EASE OF USE AND COMFOR
T
Practical information
Sliding side windows
Depending on the vehicle's
equipment, the side windows of
row 2 can be opened.
Squeeze the two controls then
slide the window.
While driving, the window must be closed or
secured in an intermediate position.


Step

To make access and exit easier, your vehicle
may be fitted with a step which unfolds when
the sliding side door is opened.

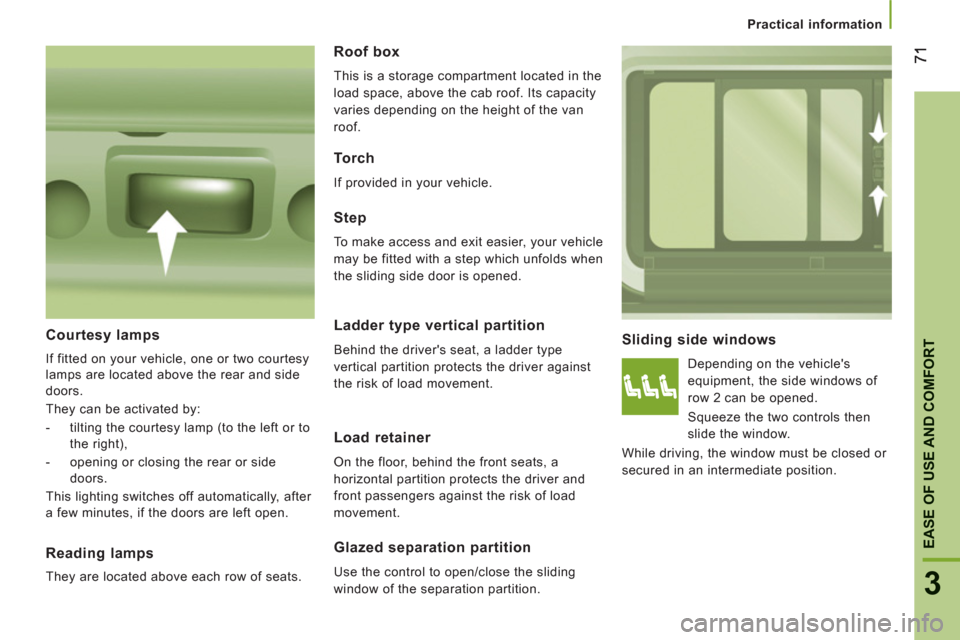

Courtesy lamps

If fitted on your vehicle, one or two courtesy
lamps are located above the rear and side
doors.
They can be activated by:


- tilting the courtesy lamp (to the left or to
the right),

- opening or closing the rear or side
doors.
This lighting switches off automatically, after
a few minutes, if the doors are left open.
Reading lamps

They are located above each row of seats.


Roof box

This is a storage compartment located in the
load space, above the cab roof. Its capacity
varies depending on the height of the van
roof.


Torch

If provided in your vehicle.


Ladder type vertical partition

Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.


Load retainer

On the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.


Glazed separation partition

Use the control to open/close the sliding
window of the separation partition.

72
Mirrors and windows


MIRRORS AND WINDOWS
MIRRORS

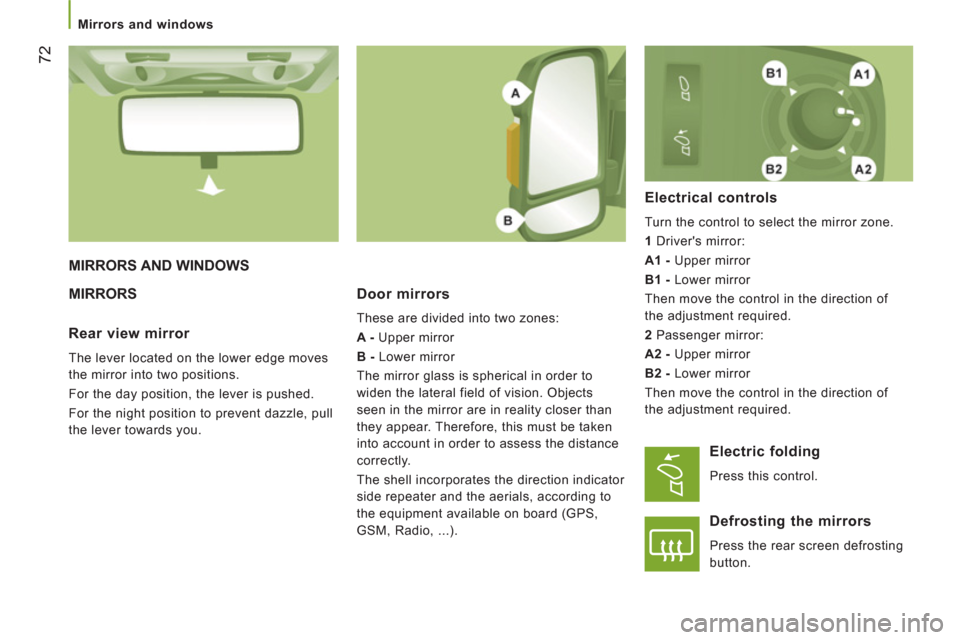

Door mirrors

These are divided into two zones:

A -
Upper mirror

B -
Lower mirror
The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.
The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM, Radio, ...).

Electrical controls

Turn the control to select the mirror zone.

1
Driver's mirror:

A1 -
Upper mirror

B1 -
Lower mirror
Then move the control in the direction of
the adjustment required.

2
Passenger mirror:

A2 -
Upper mirror

B2 -
Lower mirror
Then move the control in the direction of
the adjustment required.


Rear view mirror

The lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle, pull
the lever towards you.
Electric folding

Press this control.
Defrosting the mirrors

Press the rear screen defrosting
button.

73
3
EASE OF USE AND COMFOR
T
Mirrors and windows

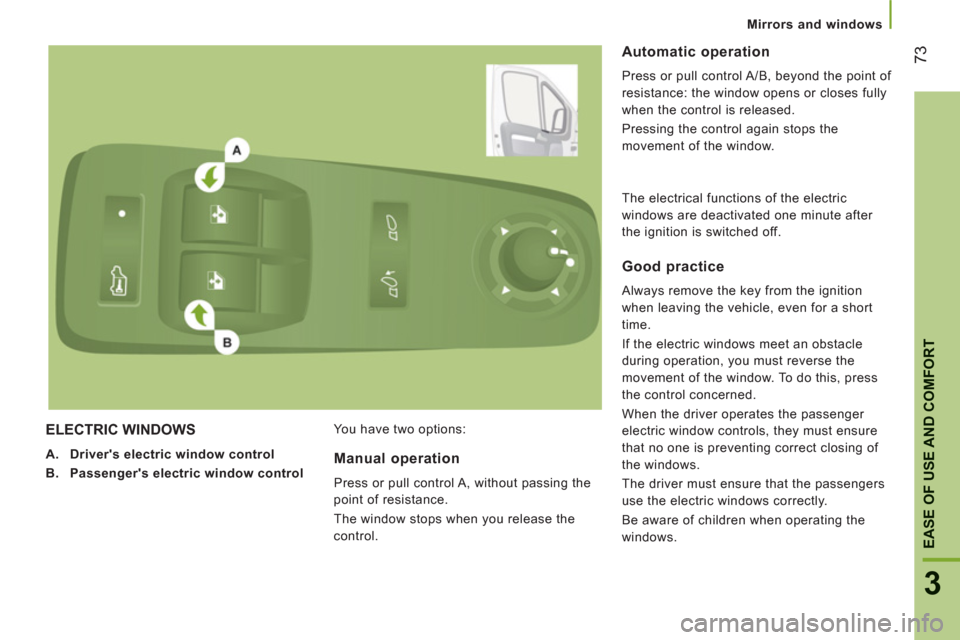

ELECTRIC WINDOWS


A.
Driver's electric window control

B.
Passenger

's

electric window control
You have two options:
Automatic operation

Press or pull control A/B , beyond the point of
resistance: the window opens or closes fully
when the control is released.
Pressing the control again stops the
movement of the window.

Manual operation

Press or pull control A , without passing the
point of resistance.
The window stops when you release the
control.
Good practice

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows. The electrical functions of the electric
windows are deactivated one minute after
the ignition is switched off.

74


Trip computer

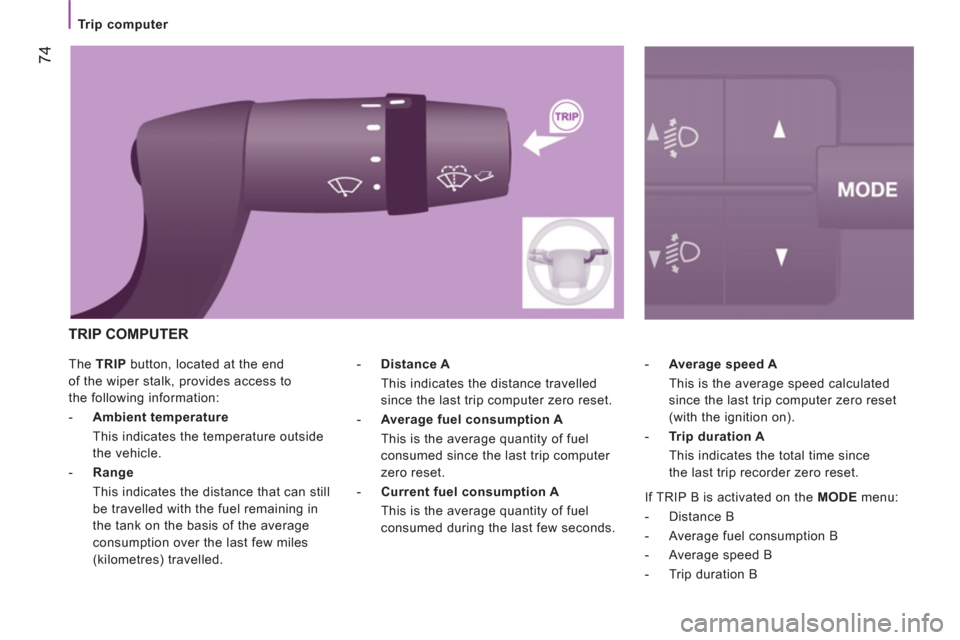

The TRIP
button, located at the end
of the wiper stalk, provides access to
the following information:


- Ambient

temperature

This indicates the temperature outside
the vehicle.

- Range

This indicates the distance that can still
be travelled with the fuel remaining in
the tank on the basis of the average
consumption over the last few miles
(kilometres) travelled.
- Average speed A

This is the average speed calculated
since the last trip computer zero reset
(with the ignition on).

- Trip duration A

This indicates the total time since
the last trip recorder zero reset.
- Distance A

This indicates the distance travelled
since the last trip computer zero reset.

- Average

fuel

consumption A

This is the average quantity of fuel
consumed since the last trip computer
zero reset.

- Current

fuel

consumption A

This is the average quantity of fuel
consumed during the last few seconds.
TRIP COMPUTER

If TRIP B is activated on the MODE
menu:


- Distance B

- Average fuel consumption B

- Average speed B

- Trip duration B

75
4
TECHNOLOGY
on
BOARD


Mode
MODE
Confi
guration - Personalisation

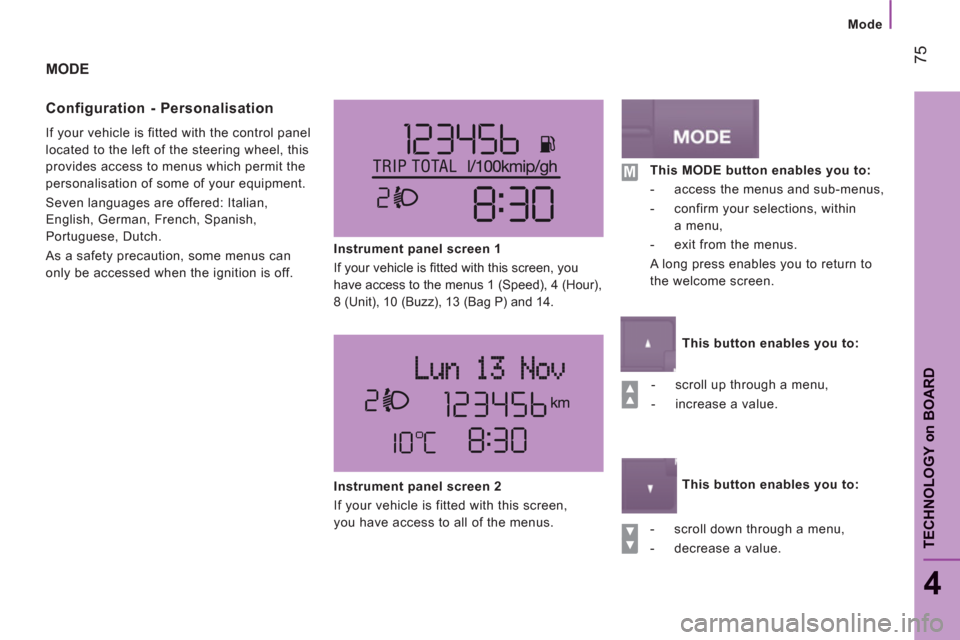

If your vehicle is fitted with the control panel
located to the left of the steering wheel, this
provides access to menus which permit the
personalisation of some of your equipment.
Seven languages are offered: Italian,
English, German, French, Spanish,
Portuguese, Dutch.
As a safety precaution, some menus can
only be accessed when the ignition is off.
Instrument panel screen 1
If your vehicle is fi tted with this screen, you
have access to the menus 1 (Speed), 4 (Hour),
8 (Unit), 10 (Buzz), 13 (Bag P) and 14.


- scroll up through a menu,

- increase a value.



- scroll down through a menu,

- decrease a value.

Instrument panel screen 2
If your vehicle is fitted with this screen,
you have access to all of the menus.

This MODE button enables you to:


- access the menus and sub-menus,

- confirm your selections, within
a menu,

- exit from the menus.
A long press enables you to return to
the welcome screen.


This button enables you to:


This button enables you to:

76


Mode



Menu...


Press...


Sub-menu…


Press...


Select…


Confirm
and exit


Enables you to...


1
Bleep
Speed
(Speed)


ON



Increase



Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed.

Decrease
OFF




2
Headlamp
sensor
Increase

Set the sensitivity of the
sunshine sensor (1 to 3).
Decrease

3
Activation
Trip B

Activate

Display a second distance
"Trip B".
Deactivate

4
Setting the
time (Hour)

Hours/
Minutes
Increase

Set the clock.
Decrease


Time format

24

Select the clock display mode.
12

5
Setting
the date

Year/Month/
Day
Activate

Set the date.
Deactivate

6
See radio


ON

Display the name of the station.
OFF

7
Autoclose


While moving

ON

Activate/Deactivate automatic
door locking above approx
12 mph (20 km/h) OFF

77
4
TECHNOLOGY
on
BOARD


Mode


Menu…


Press...


Sub-menu…


Press...


Select…


Confirm
and exit


Enables you to...

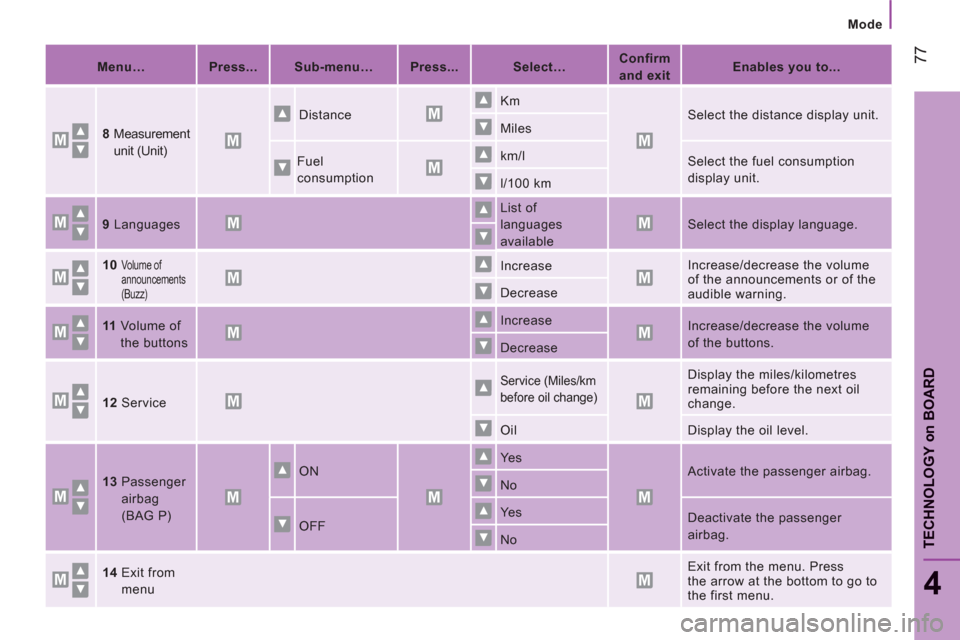

8
Measurement
unit (Unit)

Distance

Km

Select the distance display unit.
Miles


Fuel
consumption
km/l

Select the fuel consumption
display unit.
l/100 km

9
Languages



List of
languages
available

Select the display language.

10

Volume of
announcements
(Buzz)
Increase

Increase/decrease the volume
of the announcements or of the
audible warning. Decrease

11
Volume of
the buttons

Increase

Increase/decrease the volume
of the buttons.
Decrease

12
Service



Service (Miles/km
before oil change)


Display the miles/kilometres
remaining before the next oil
change.
Oil Display the oil level.

13
Passenger
airbag
(BAG P) ON Ye s
Activate the passenger airbag.
No


OFF

Ye s

Deactivate the passenger
airbag.
No

14
Exit from
menu

Exit from the menu. Press
the arrow at the bottom to go to
the first menu.

kmCITY
78


Parking sensors


AUDIBLE REAR PARKING SENSORS

If fitted on your vehicle, the system consists
of four proximity sensors, installed in the
rear bumper.
They detect any obstacle: person, vehicle,
tree, fence, behind the vehicle during the
manoeuvre.
However, objects the size or thickness of
which are detected at the beginning of the
manoeuvre will no longer be detected at the
end of the manoeuvre: blind spots between
and below the sensors. Examples: stake,
roadworks cone or pavement post. Engage reverse gear
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
The system cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.
Stop the assistance

Change to neutral.


Malfunction

If this warning lamp comes on
on the instrument panel, contact
a PEUGEOT dealer.
If your vehicle is
fitted with this screen,
a message appears.


Good practice

In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice or snow.
