Reversing camera

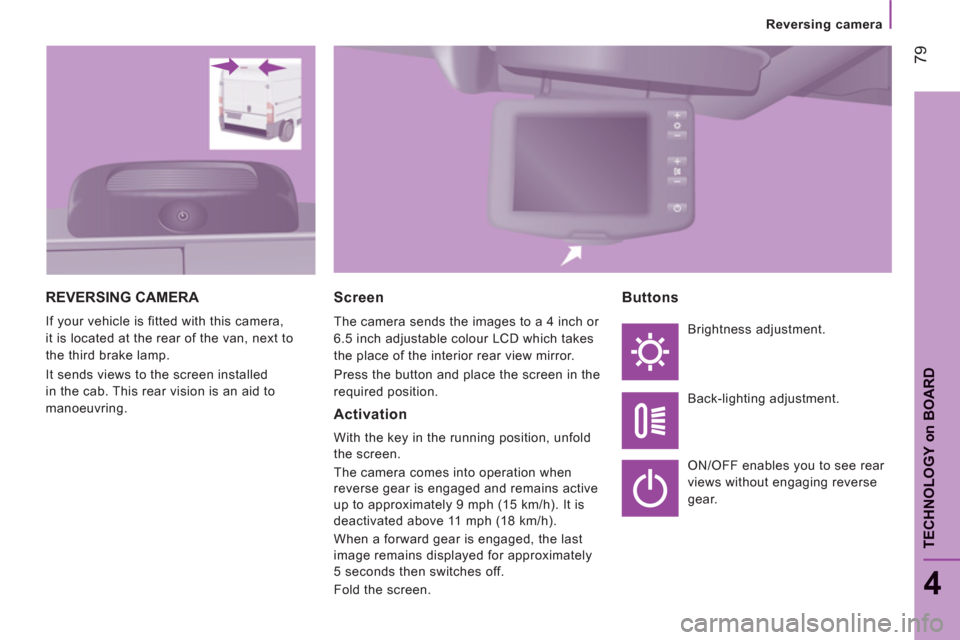

REVERSING CAMERA
If your vehicle is fitted with this camera,
it is located at the rear of the van, next to
the third brake lamp.
It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring.

Screen

The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior rear view mirror.
Press the button and place the screen in the
required position.

Activation

With the key in the running position, unfold
the screen.
The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).
When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.
Fold the screen.
Buttons

Brightness adjustment.
Back-lighting adjustment.
ON/OFF enables you to see rear
views without engaging reverse
gear.

80


Reversing camera

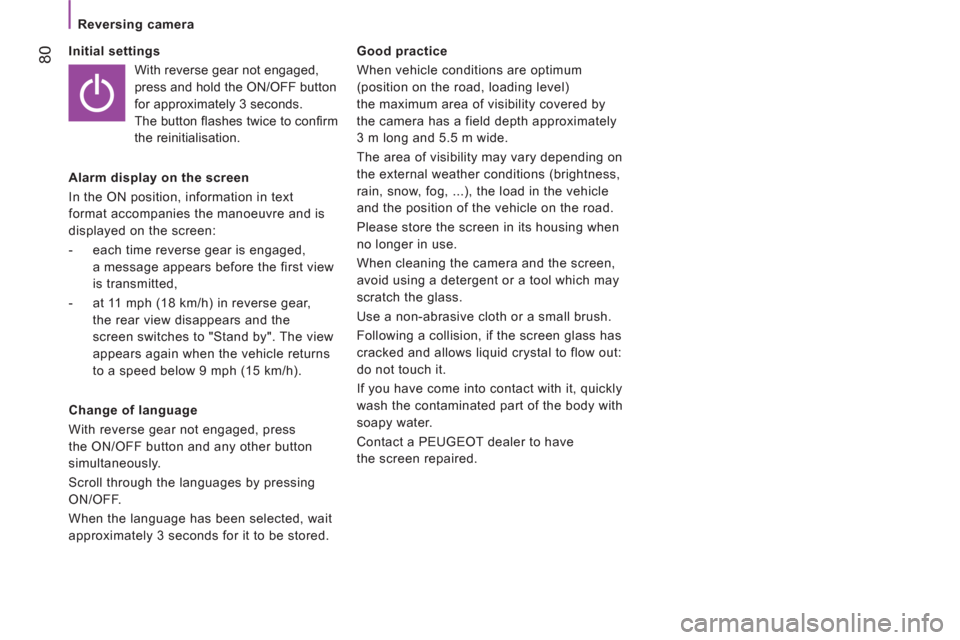

Initial settings

With reverse gear not engaged,
press and hold the ON/OFF button
for approximately 3 seconds.
The button fl ashes twice to confi rm
the reinitialisation.

Alarm display on the screen
In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:


- each time reverse gear is engaged,
a message appears before the first view
is transmitted,

- at 11 mph (18 km/h) in reverse gear,
the rear view disappears and the
screen switches to "Stand by". The view
appears again when the vehicle returns
to a speed below 9 mph (15 km/h).


Change of language
With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.
Scroll through the languages by pressing
ON/OFF.
When the language has been selected, wait
approximately 3 seconds for it to be stored.
Good practice
When vehicle conditions are optimum
(position on the road, loading level)
the maximum area of visibility covered by
the camera has a field depth approximately
3 m long and 5.5 m wide.
The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.
Please store the screen in its housing when
no longer in use.
When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.
Use a non-abrasive cloth or a small brush.
Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.
If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.
Contact a PEUGEOT dealer to have
the screen repaired.

81
4
TECHNOLOGY
on
BOARD

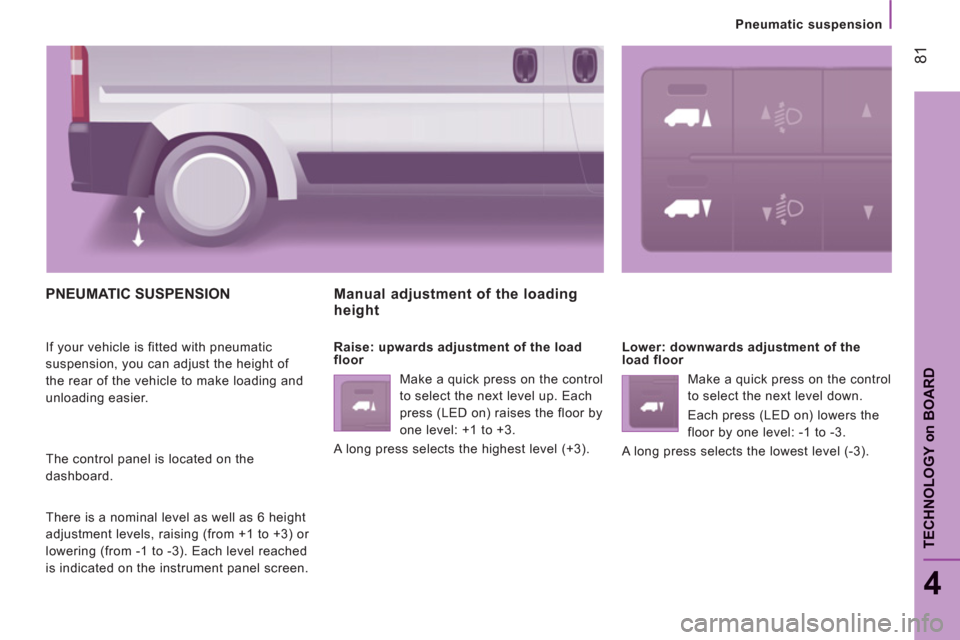

Pneumatic suspension
PNEUMATIC SUSPENSION

If your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.
The control panel is located on the
dashboard.
There is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel screen.

Manual adjustment of the loadingheight


Raise: upwards adjustment of the load
floor
Make a quick press on the control
to select the next level up. Each
press (LED on) raises the floor by
one level: +1 to +3.
A long press selects the highest level (+3).
Lower: downwards adjustment of the
load floor
Make a quick press on the control
to select the next level down.
Each press (LED on) lowers the
floor by one level: -1 to -3.
A long press selects the lowest level (-3).

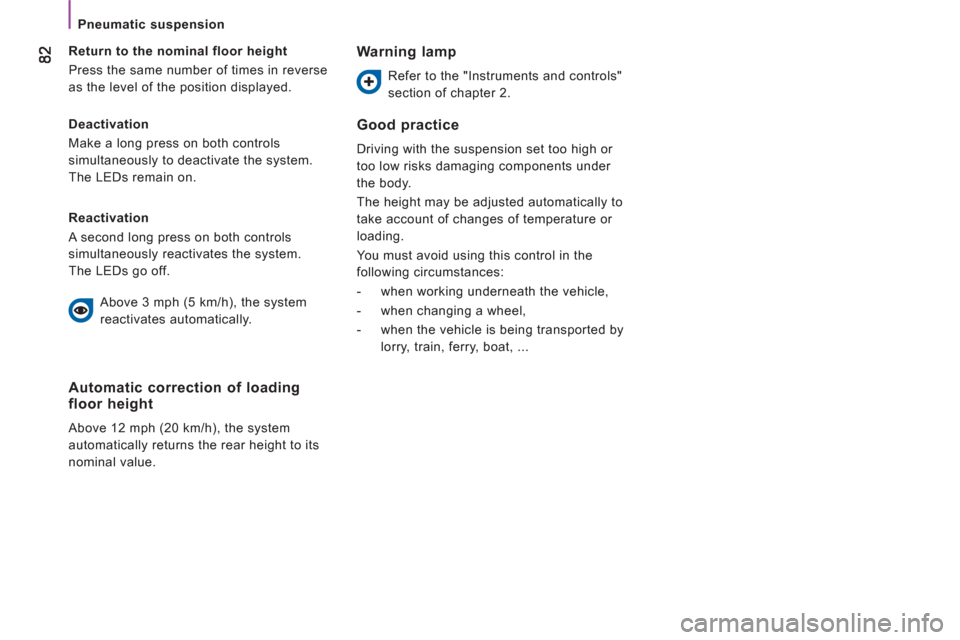

Pneumatic suspension


Deactivation
Make a long press on both controls
simultaneously to deactivate the system.
The LEDs remain on.
Return to the nominal floor height
Press the same number of times in reverse
as the level of the position displayed.

Reactivation
A second long press on both controls
simultaneously reactivates the system.
The LEDs go off.

Automatic correction of loading
floor height
Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.
Warning lamp

Refer to the "Instruments and controls"
section of chapter 2.
Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.
The height may be adjusted automatically to
take account of changes of temperature or
loading.
You must avoid using this control in the
following circumstances:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Above 3 mph (5 km/h), the system
reactivates automatically.

83
4
TECHNOLOGY
on
BOARD
Tachograph

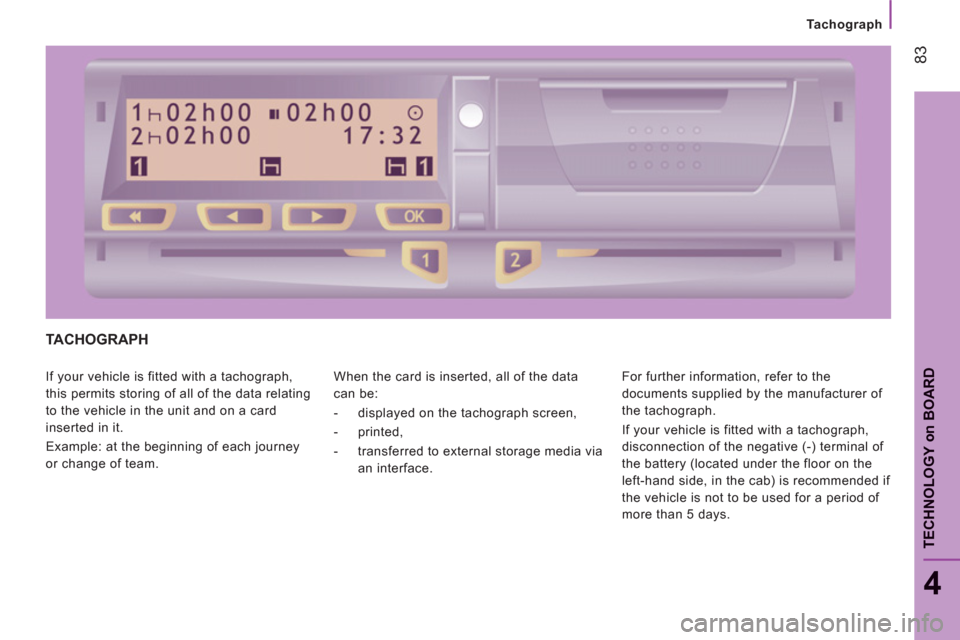

TACHOGRAPH
If your vehicle is fitted with a tachograph,
this permits storing of all of the data relating
to the vehicle in the unit and on a card
inserted in it.
Example: at the beginning of each journey
or change of team. When the card is inserted, all of the data
can be:


- displayed on the tachograph screen,

- printed,

- transferred to external storage media via
an interface. For further information, refer to the
documents supplied by the manufacturer of
the tachograph.
If your vehicle is fitted with a tachograph,
disconnection of the negative (-) terminal of
the battery (located under the floor on the
left-hand side, in the cab) is recommended if
the vehicle is not to be used for a period of
more than 5 days.

FM MUTE CD
AMAS
84

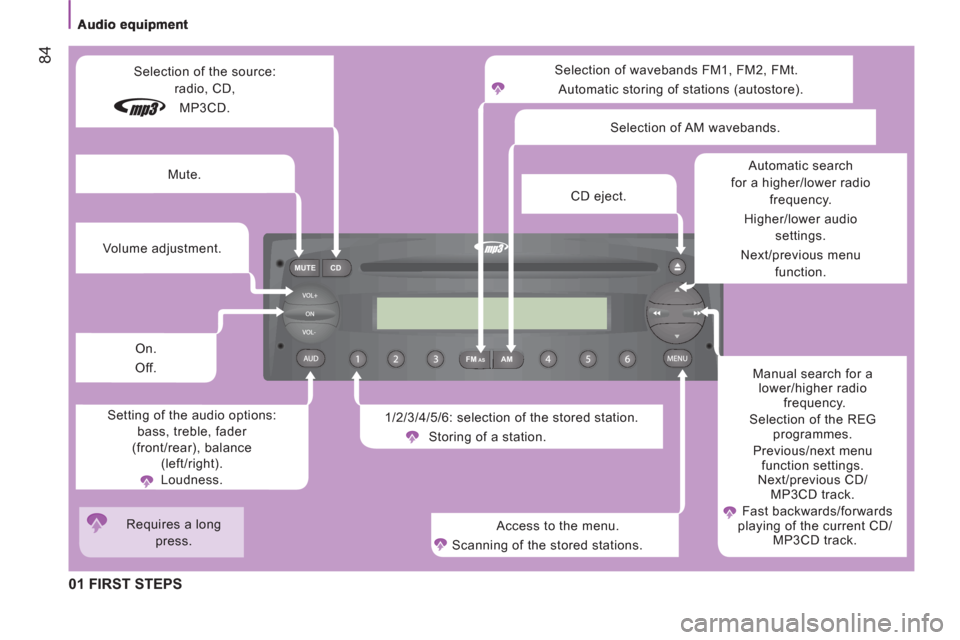

01 FIRST STEPS

Selection of wavebands FM1, FM2, FMt.
Automatic storing of stations (autostore).
1/2/3/4/5/6: selection of the stored station.
Storing of a station.
Access to the menu.
Scanning of the stored stations. Manual search for a
lower/higher radio
frequency.
Selection of the REG
programmes.
Previous/next menu
function settings.
Next/previous CD/
MP3CD track.
Fast backwards/forwards
playing of the current CD/
MP3CD track. Automatic search
for a higher/lower radio
frequency.
Higher/lower audio
settings.
Next/previous menu
function. CD eject. Selection of AM wavebands.
Setting of the audio options:
bass, treble, fader
(front/rear), balance
(left/right).
Loudness. Volume adjustment.
On.
Off. Selection of the source:
radio, CD,
MP3CD.
Mute.
Requires a long
press.

Audio equipment
85
4
TECHNOLOGY
on
BOARD

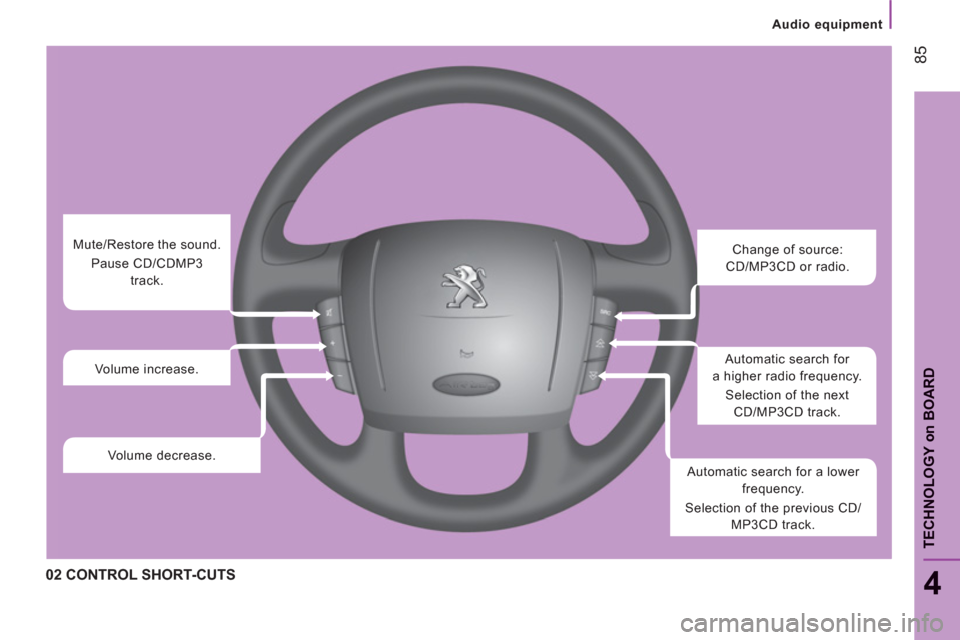

02 CONTROL SHORT-CUTS
Change of source:
CD/MP3CD or radio.
Automatic search for
a higher radio frequency.
Selection of the next
CD/MP3CD track.
Automatic search for a lower
frequency.
Selection of the previous CD/
MP3CD track. Mute/Restore the sound.

Pause CD/CDMP3
track.
Volume increase.
Volume decrease.

AM
FMAMMAS
FMAMAS
FM
D
AAMAS
86

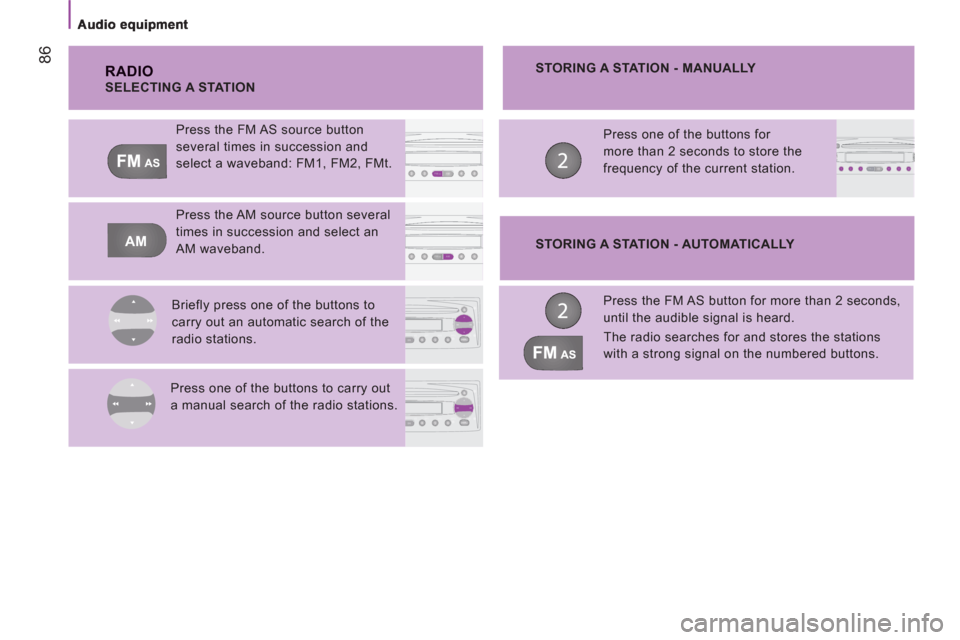

RADIO

SELECTING A STATION
Press the FM AS source button
several times in succession and
select a waveband: FM1, FM2, FMt.
Press the AM source button several
times in succession and select an
AM waveband.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out
a manual search of the radio stations.
STORING A STATION - MANUALLY
Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.

STORING A STATION - AUTOMATICALLY
Press the FM AS button for more than 2 seconds,
until the audible signal is heard.
The radio searches for and stores the stations
with a strong signal on the numbered buttons.

FM MUTE CD
AMAS
Audio equipment
87
4
TECHNOLOGY
on
BOARD

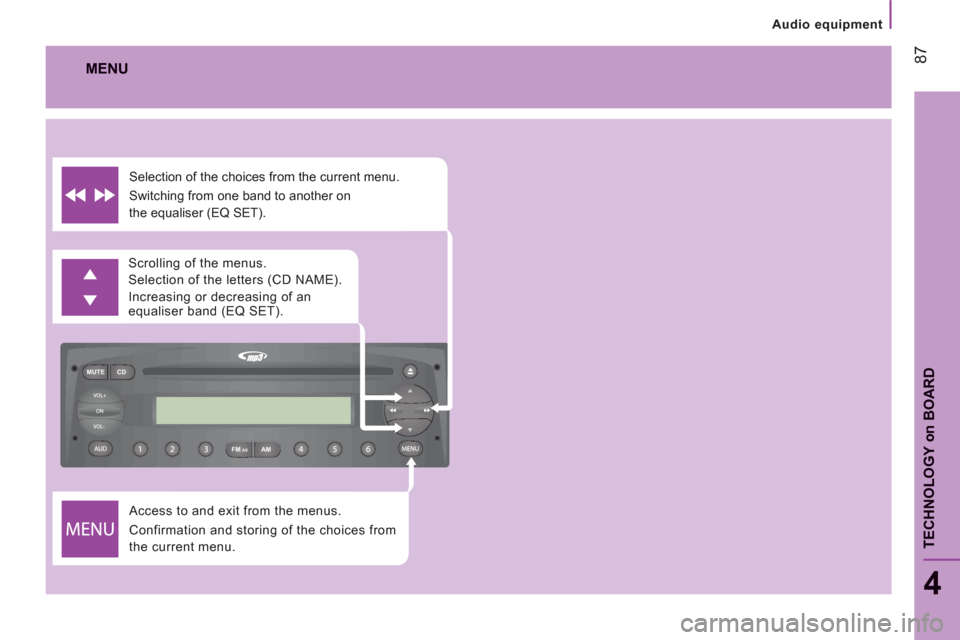

Access to and exit from the menus.
Confirmation and storing of the choices from
the current menu. Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET). Selection of the choices from the current menu.
Switching from one band to another on
the equaliser (EQ SET).
MENU

Audio equipment

88


Scroll
the display

Select

Display

Select

Display

Select

Display

Select

Display

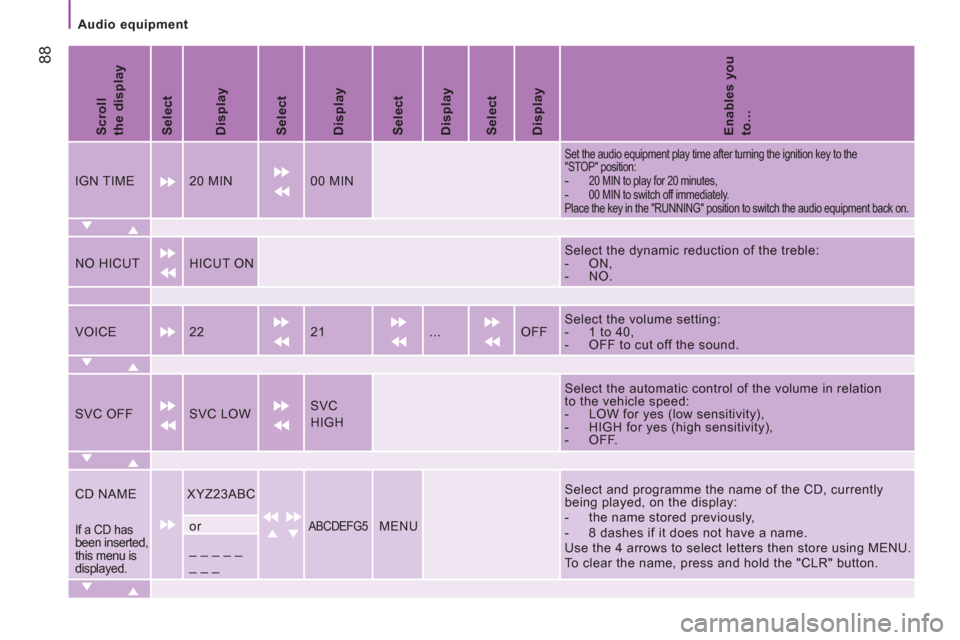

Enables you
to…

IGN TIME 20 MIN 00 MIN


Set the audio equipment play time after turning the ignition key to the
"STOP" position:


-
20 MIN to play for 20 minutes,
-
00 MIN to switch off immediately.
Place the key in the "RUNNING" position to switch the audio equipment back on.



NO HICUT HICUT ON

Select the dynamic reduction of the treble:


- ON,

- NO.



VOICE 22 21 ... OFF Select the volume setting:


- 1 to 40,

- OFF to cut off the sound.



SVC OFF SVC LOW SVC
HIGH

Select the automatic control of the volume in relation
to the vehicle speed:


- LOW for yes (low sensitivity),

- HIGH for yes (high sensitivity),

- OFF.



CD NAME



XYZ23ABC


ABCDEFG5
MENU


Select and programme the name of the CD, currently
being played, on the display:


- the name stored previously,

- 8 dashes if it does not have a name.
Use the 4 arrows to select letters then store using MENU.
To clear the name, press and hold the "CLR" button.

If a CD has
been inserted,
this menu is
displayed. or
_ _ _ _ _
_ _ _
