FAMILIARISATION
9
Familiarisation

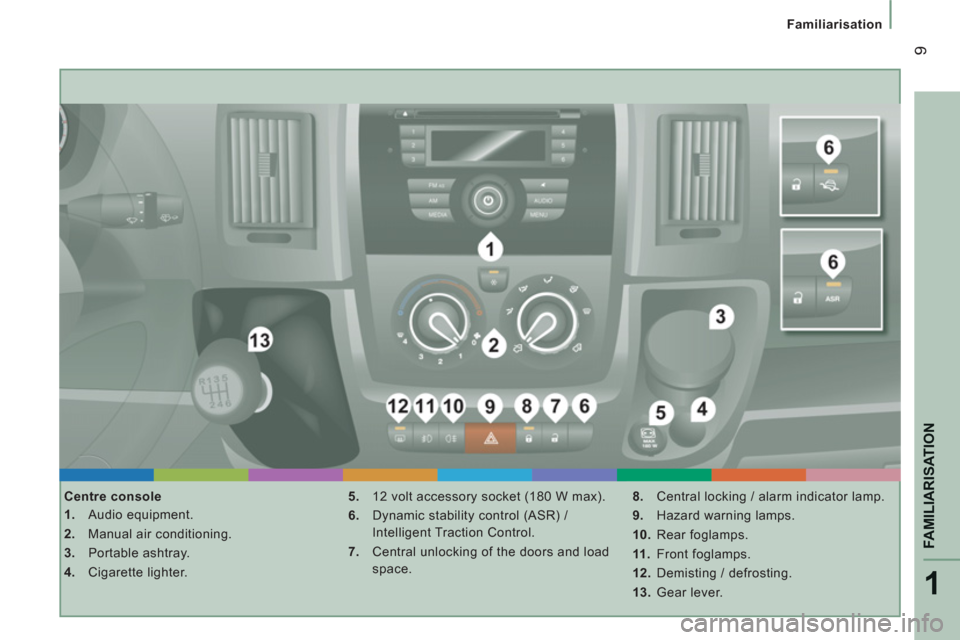

Centre console


1.
Audio equipment.

2.
Manual air conditioning.

3.
Portable ashtray.

4.
Cigarette lighter.
5.
12 volt accessory socket (180 W max).

6.
Dynamic stability control (ASR) /
Intelligent Traction Control.

7.
Central unlocking of the doors and load
space.
8.
Central locking / alarm indicator lamp.

9.
Hazard warning lamps.

10.
Rear foglamps.

11 .
Front foglamps.

12.
Demisting / defrosting.

13.
Gear lever.

3
10


Familiarisation
SITTING COMFORTABLY


65

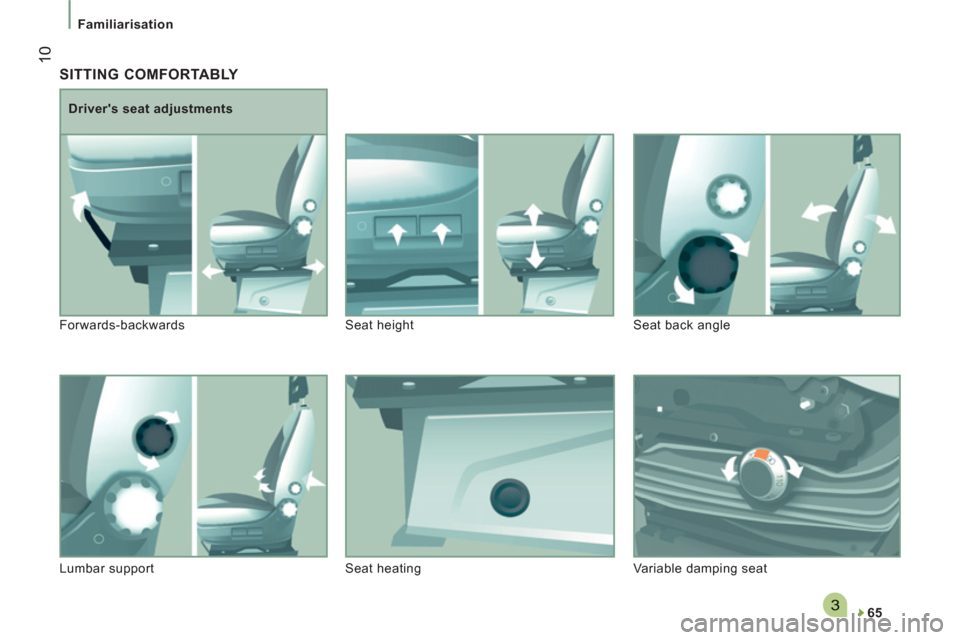

Driver's seat adjustments
Forwards-backwards Seat height Seat back angle
Lumbar support Seat heating Variable damping seat

523
5
1
FAMILIARISATION
11
Familiarisation
SITTING COMFORTABLY



1.
Unlocking the adjustment mechanism.

2.
Locking the adjustment mechanism.

3.
Adjustment of the reach of the steering wheel.
Manual adjustment of the reach of
the steering wheel
Door mirror adjustment
The mirrors are divided into
two zones: A and B.

1. Driver's mirror:

A1-
Adjustment of the upper mirror.

B1-
Adjustment of the lower mirror.

2. Passenger's mirror:

A2-
Adjustment of the upper mirror.

B2-
Adjustment of the lower mirror.

40

77

Front seat belt
Fastening.
Height adjustment.

11 9


11 9

33
12


Familiarisation

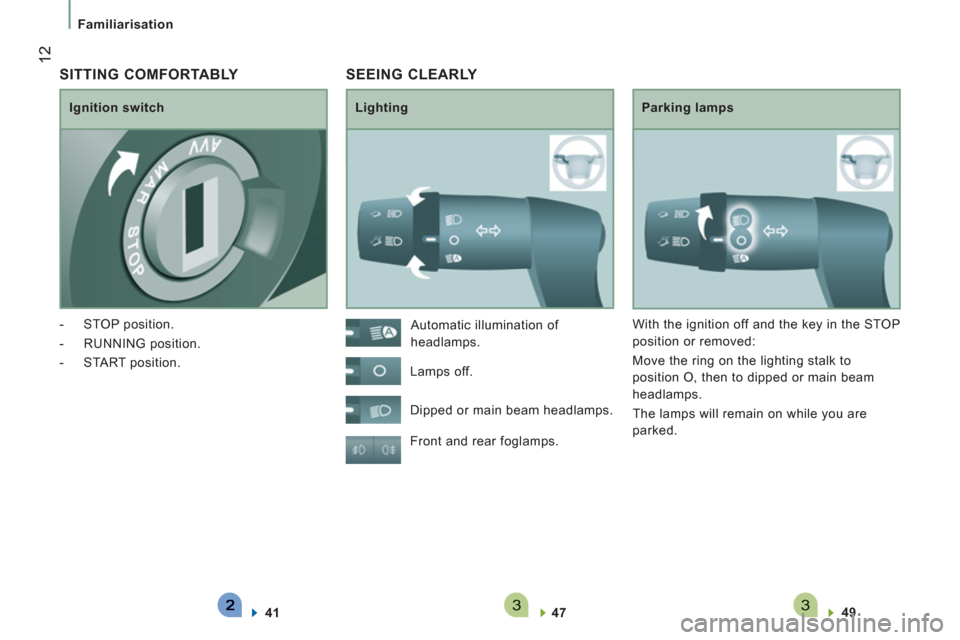

SEEING CLEARLY


Lighting
Parking lamps
Front and rear foglamps.

47

49

Automatic illumination of
headlamps.
Lamps off.
Dipped or main beam headlamps. With the ignition off and the key in the STOP
position or removed:
Move the ring on the lighting stalk to
position O, then to dipped or main beam
headlamps.
The lamps will remain on while you are
parked.
SITTING COMFORTABLY


Ignition switch


- STOP position.

- RUNNING position.

- START position.

41

3331
FAMILIARISATION
13
Familiarisation

50



Windscreen wash
Pull the control stalk towards you, the
windscreen wash is accompanied by a timed
operation of the wipers.
SEEING CLEARLY


78

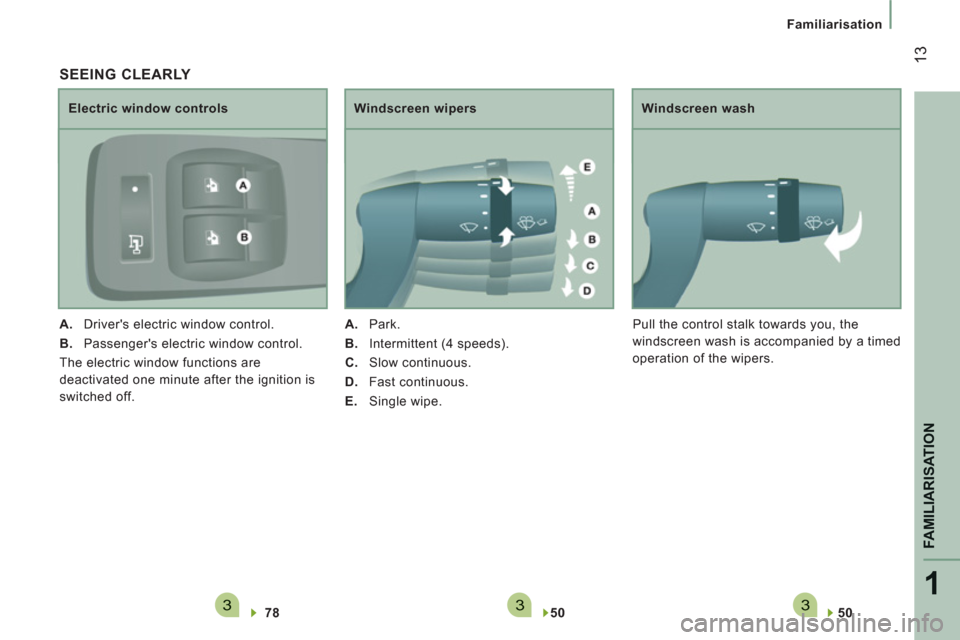

Electric window controls


A.
Driver's electric window control.

B.
Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

50

Windscreen wipers


A.
Park.

B.
Intermittent (4 speeds).

C.
Slow continuous.

D.
Fast continuous.

E.
Single wipe.

14


Familiarisation

VENTILATION

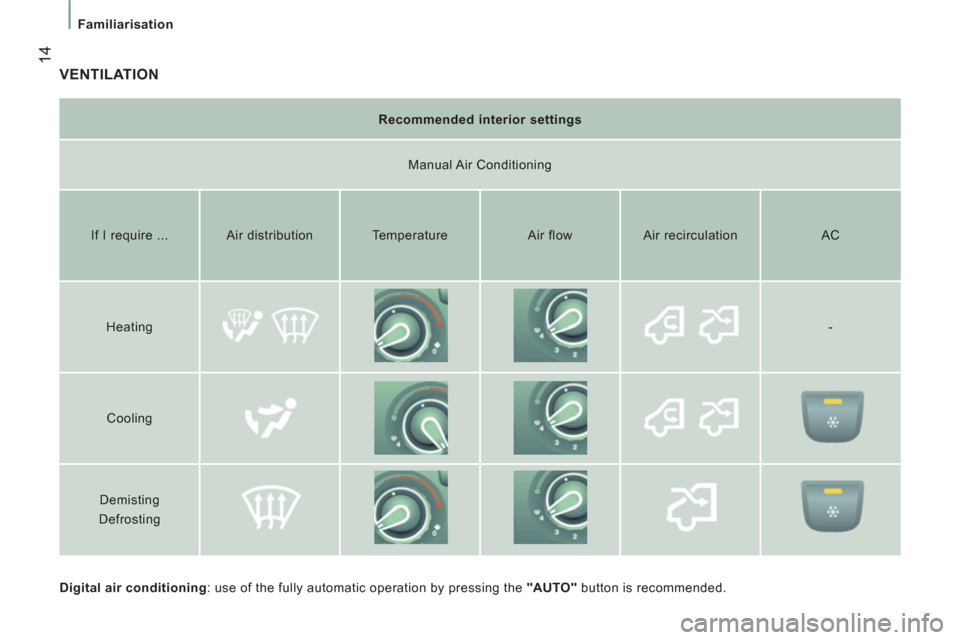

Digital air conditioning
: use of the fully automatic operation by pressing the "AUTO"
button is recommended.

Recommended interior settings

Manual Air Conditioning

If I require ...
Air distribution
Temperature
Air flow
Air recirculation AC

Heating
-

Cooling


Demisting
Defrosting

221
FAMILIARISATION
15
Familiarisation

Reversing camera
The camera comes on when you engage
reverse gear and remains active up to
approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

84

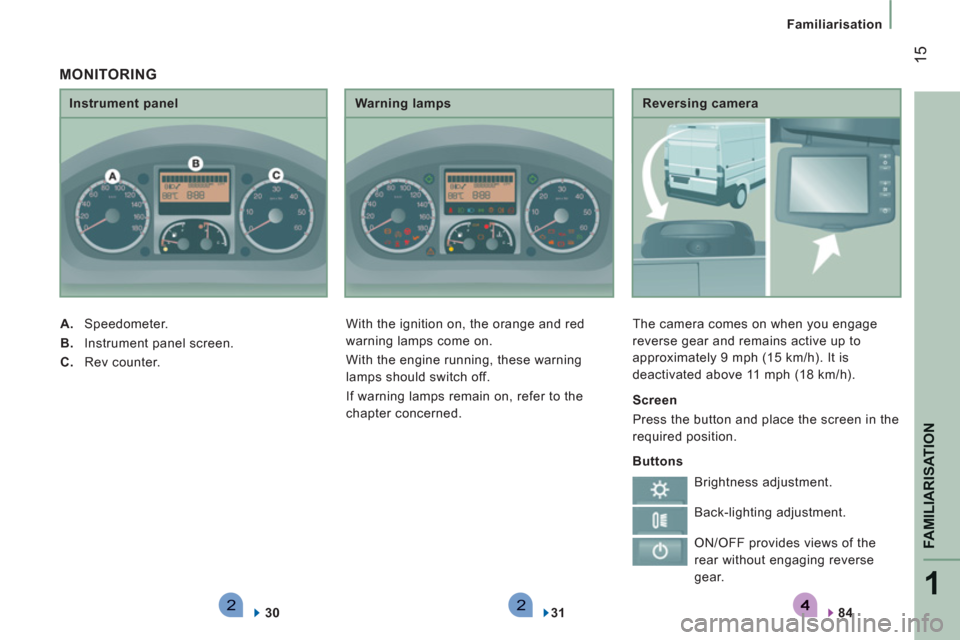

Instrument panel


A.
Speedometer.

B.
Instrument panel screen.

C.
Rev counter.

30

Warning lamps
With the ignition on, the orange and red
warning lamps come on.
With the engine running, these warning
lamps should switch off.
If warning lamps remain on, refer to the
chapter concerned.

31


MONITORING


Buttons
Brightness adjustment.
Screen
Press the button and place the screen in the
required position.
Back-lighting adjustment.
ON/OFF provides views of the
rear without engaging reverse
gear.

542
16


Familiarisation
Two front rings, located between the seat
back and the seat cushion are used to
secure an ISOFIX child seat.
ISOFIX mountings

129




PASSENGER SAFETY



To deactivate the front passenger airbag,
refer to the "MODE" section of chapter 4, then
on the "Passenger airbag” menu, select OFF.
The airbag warning lamp on the instrument
panel stays on while the airbag is
deactivated.

80
This prevents opening of the sliding side
door from the inside.

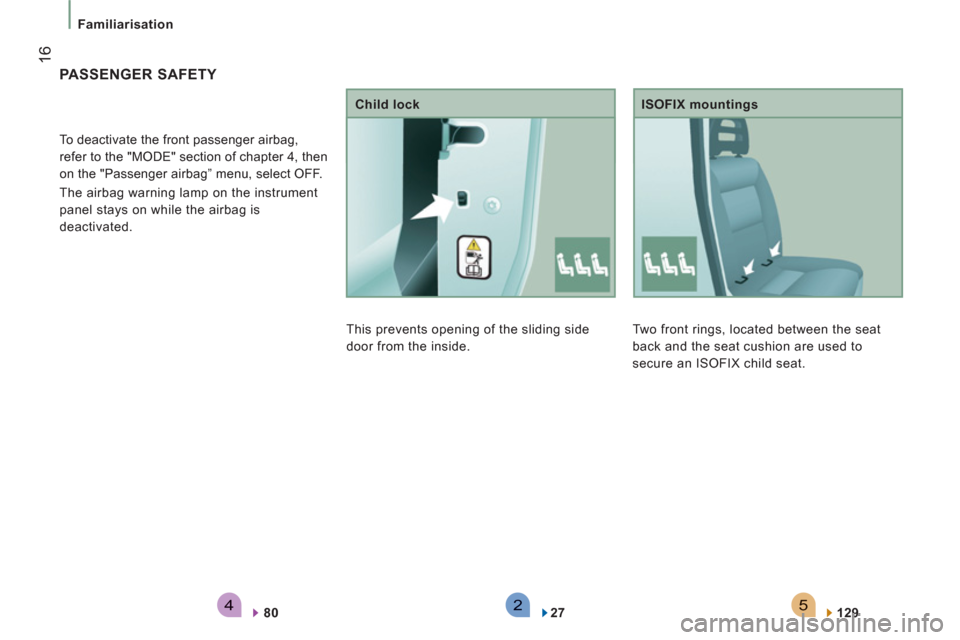

Child lock

27

4321
FAMILIARISATION
17
Familiarisation

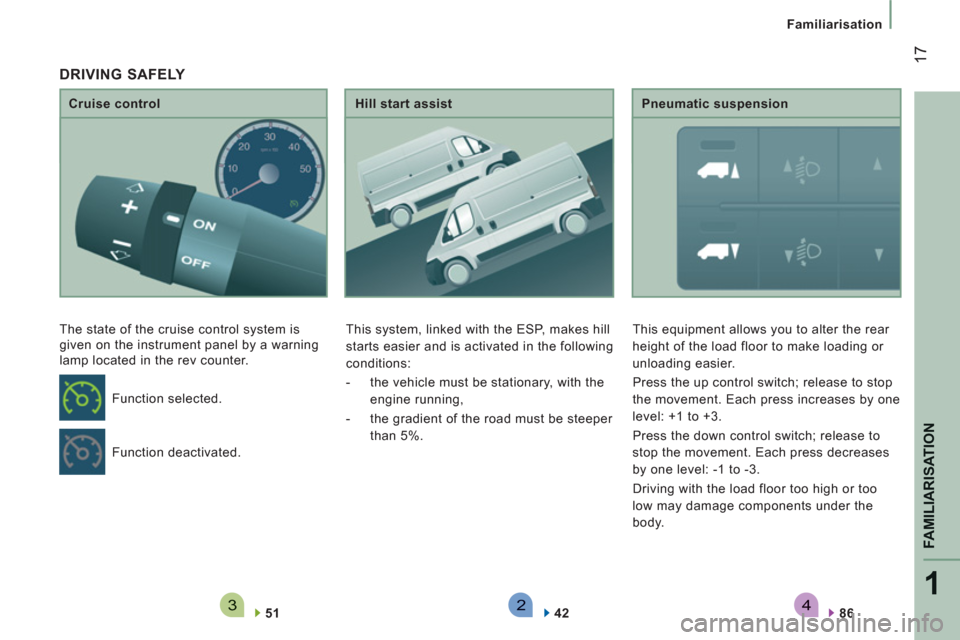

Cruise control
The state of the cruise control system is
given on the instrument panel by a warning
lamp located in the rev counter.

51

Hill start assist
This system, linked with the ESP, makes hill
starts easier and is activated in the following
conditions:


- the vehicle must be stationary, with the
engine running,

- the gradient of the road must be steeper
than 5%.

42

Pneumatic suspension
This equipment allows you to alter the rear
height of the load floor to make loading or
unloading easier.
Press the up control switch; release to stop
the movement. Each press increases by one
level: +1 to +3.
Press the down control switch; release to
stop the movement. Each press decreases
by one level: -1 to -3.
Driving with the load floor too high or too
low may damage components under the
body.

86

Function deactivated. Function selected.

DRIVING SAFELY

222
18


Familiarisation


DRIVING SAFELY

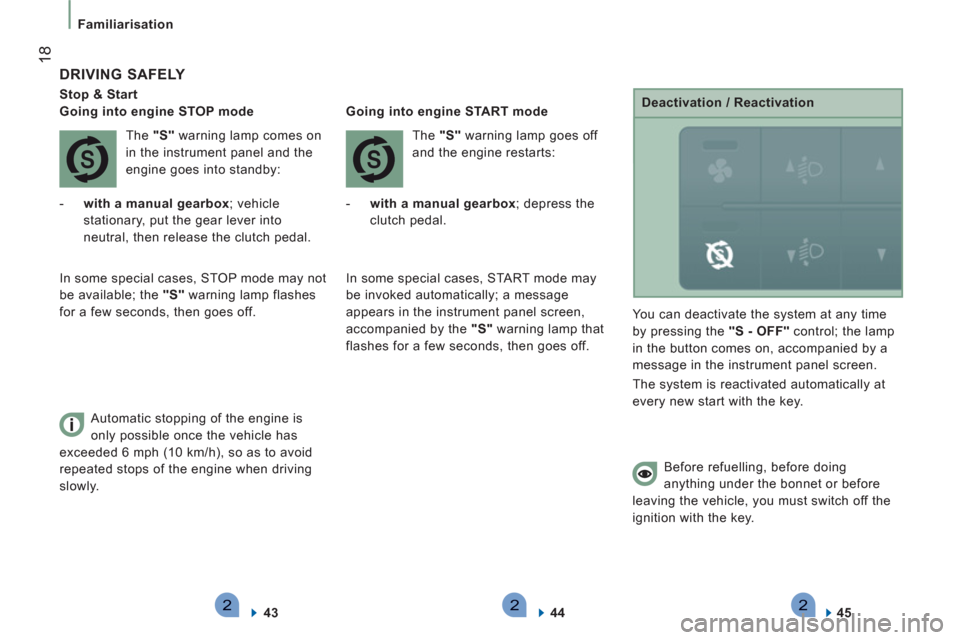

Stop & Start


Going into engine STOP mode
The "S"
warning lamp comes on
in the instrument panel and the
engine goes into standby:


- with a manual gearbox
; vehicle
stationary, put the gear lever into
neutral, then release the clutch pedal.

Automatic stopping of the engine is
only possible once the vehicle has
exceeded 6 mph (10 km/h), so as to avoid
repeated stops of the engine when driving
slowly.

43 The "S"
warning lamp goes off
and the engine restarts:

Going into engine START mode


- with a manual gearbox
; depress the
clutch pedal.

In some special cases, STOP mode may not
be available; the "S"
warning lamp flashes
for a few seconds, then goes off.
In some special cases, START mode may
be invoked automatically; a message
appears in the instrument panel screen,
accompanied by the "S"
warning lamp that
flashes for a few seconds, then goes off.

44 You can deactivate the system at any time
by pressing the "S - OFF"
control; the lamp
in the button comes on, accompanied by a
message in the instrument panel screen.
The system is reactivated automatically at
every new start with the key.

Deactivation / Reactivation

Before refuelling, before doing
anything under the bonnet or before
leaving the vehicle, you must switch off the
ignition with the key.

45
