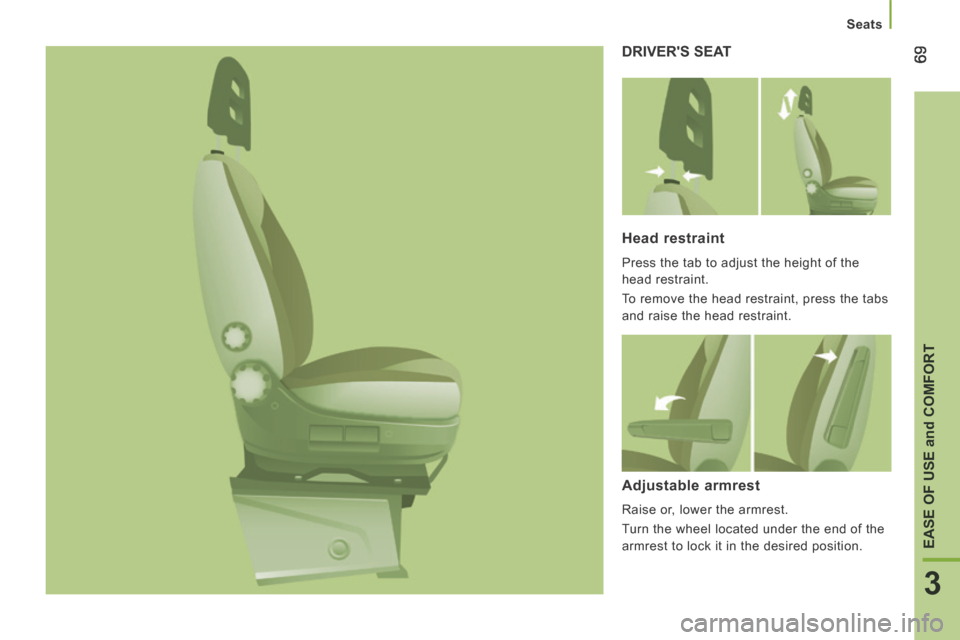

Page 71 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 69
3
EASE OF USE
and
 COMFORT
Seats
 DRIVERS  SEAT
  Head  restraint
 Press the tab to adjust the height of the
head restraint.
 To remove the head restraint, press the tabs
and raise the head

Page 72 of 240

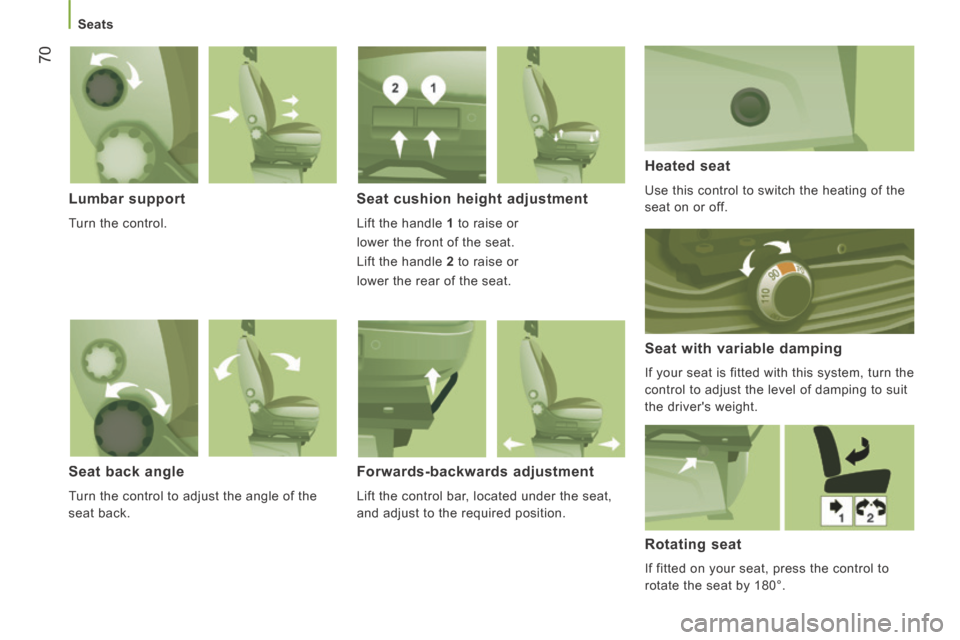

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 70
   Seats
  Lumbar  support
 Turn the control.
  Seat cushion height adjustment
 Lift the handle  1  to raise or
lower the front of the seat.
 Lift the handle   2  to raise or
lower th

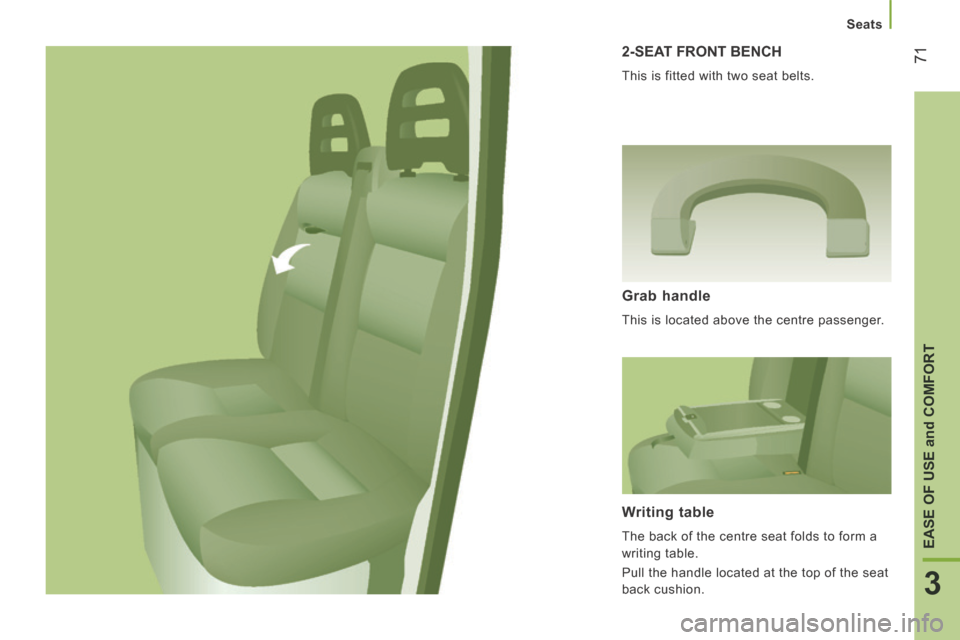

Page 73 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 71
3
EASE OF USE
and
 COMFORT
Seats
 2-SEAT FRONT BENCH
 This is fitted with two seat belts.
  Grab  handle
 This is located above the centre passenger.
  Writing  table
 The back of the centre

Page 74 of 240

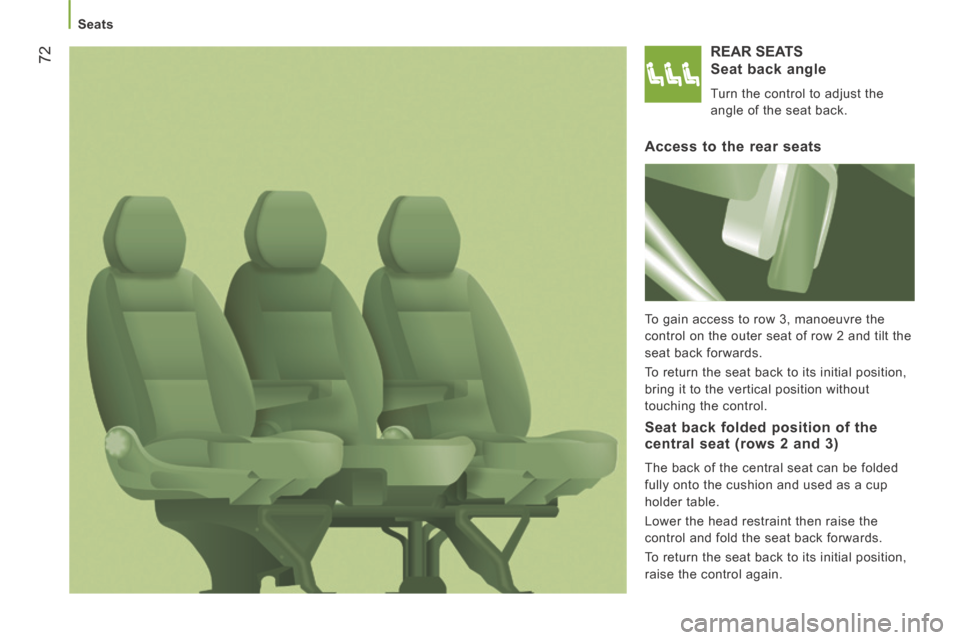

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 72
   Seats
 REAR  SEATS
  Seat  back  angle
 Turn the control to adjust the
angle of the seat back.
  Access to the rear seats
 To gain access to row 3, manoeuvre the
control on the outer s

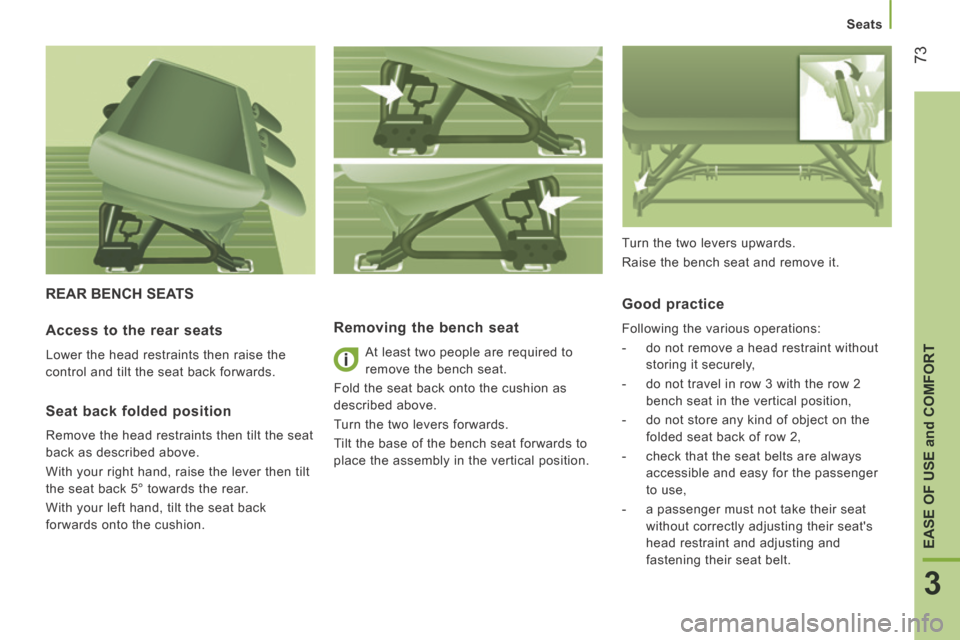

Page 75 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 73
3
EASE OF USE
and
 COMFORT
Seats
 REAR BENCH SEATS
  Removing the bench seat
 At least two people are required to
remove the bench seat.
 Fold the seat back onto the cushion as
described abov

Page 76 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 74
   Seats

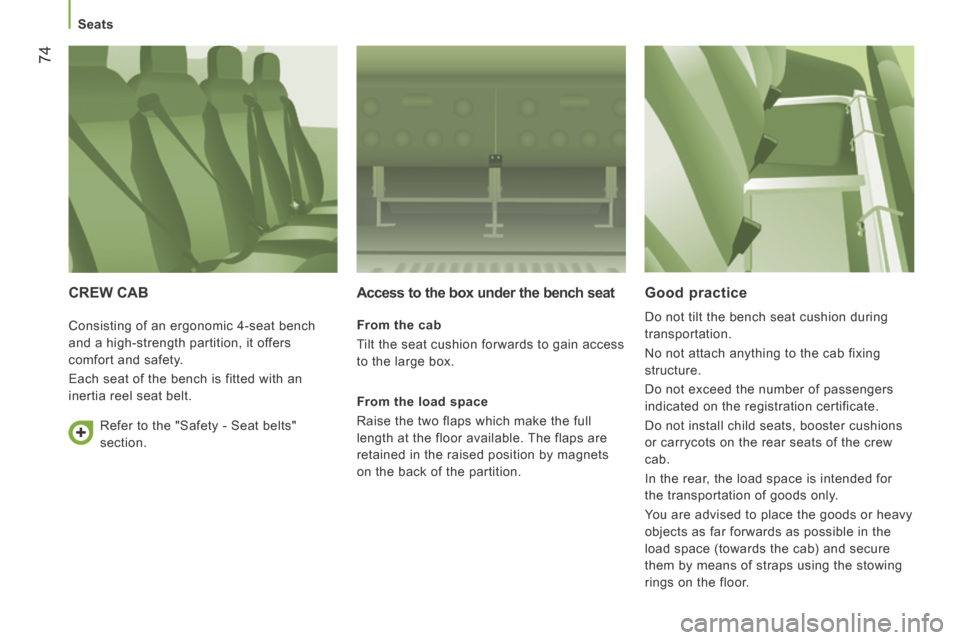

 CREW  CAB    Access to the box under the bench seat
  From  the  cab
 Tilt the seat cushion forwards to gain access
to the large box.
  From the load space
 Raise the two flaps w

Page 77 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 75
3
EASE OF USE
and
 COMFORT

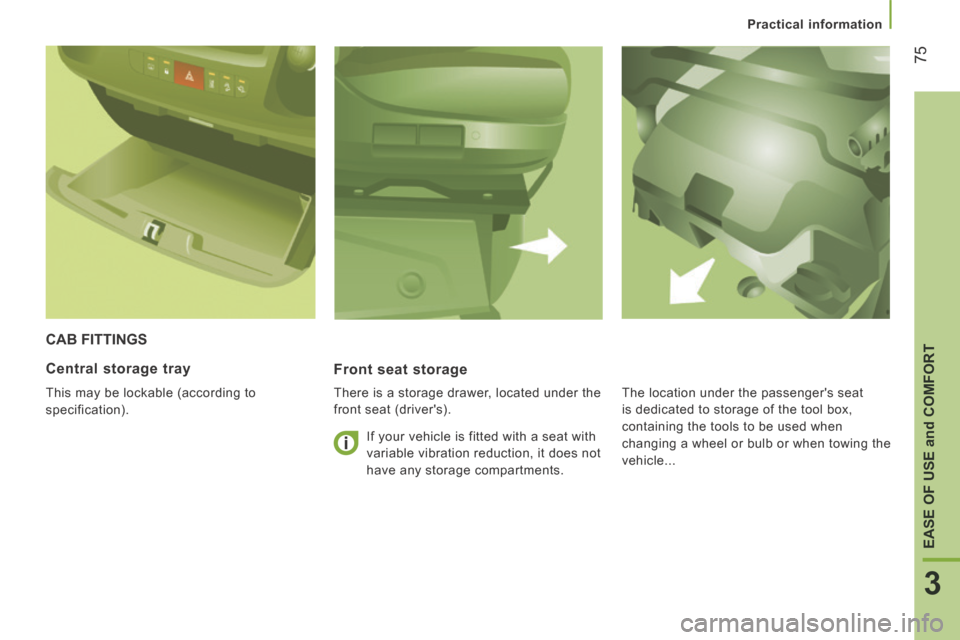

Practical information
 CAB  FITTINGS
  Front  seat  storage
 There is a storage drawer, located under the
front seat (drivers).
  Central  storage  tray
 This may

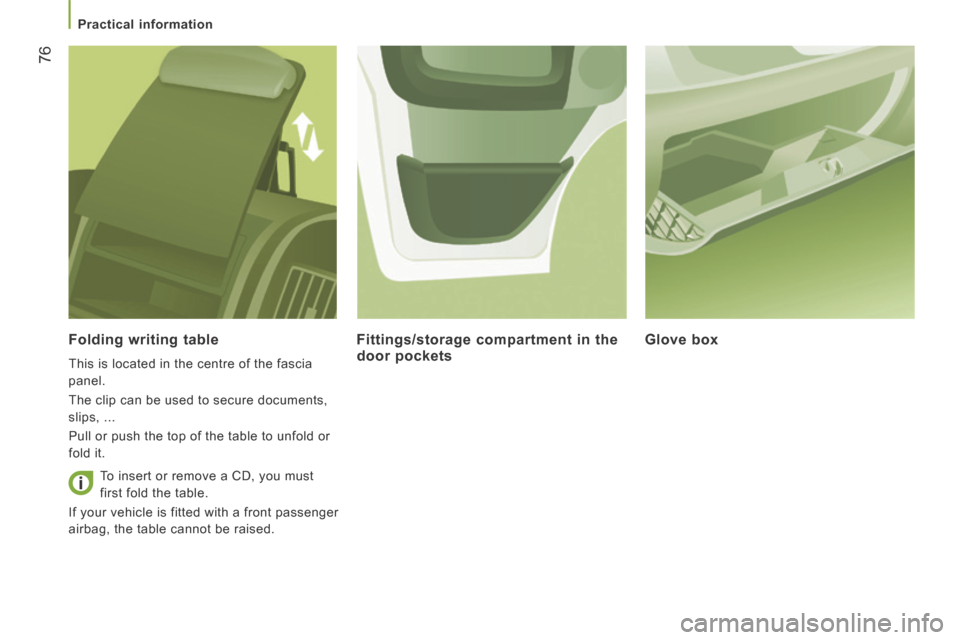

Page 78 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 76
   Practical  information
  Folding  writing  table
 This is located in the centre of the fascia
panel.
 The clip can be used to secure documents,
slips, ...
 Pull or push the top of the ta

Page 79 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 77
3
EASE OF USE
and
 COMFORT
Practical information

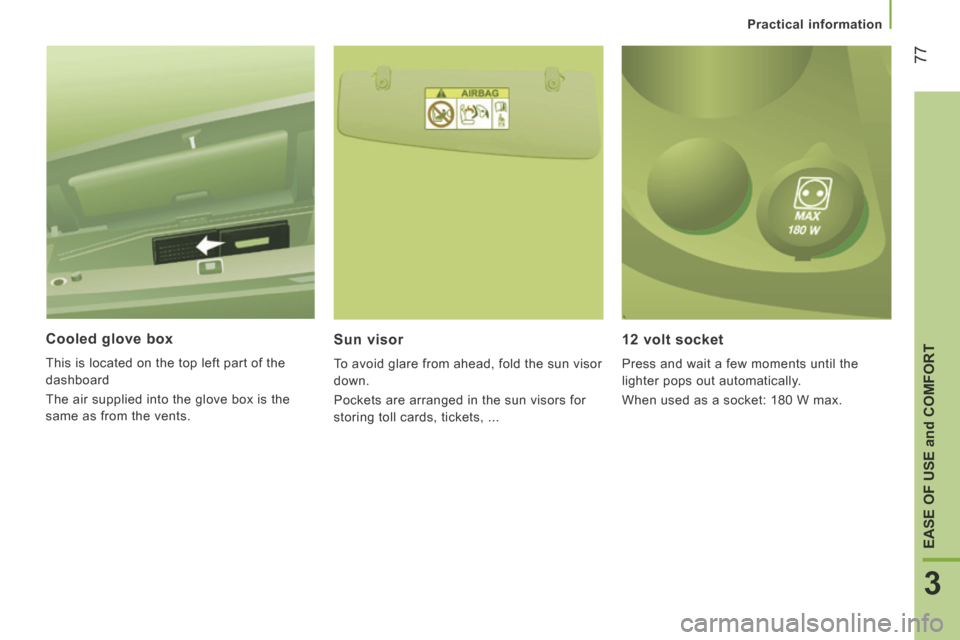

  Cooled  glove  box
 This is located on the top left part of the
dashboard
 The air supplied into the glove box is the
same as from the vents.

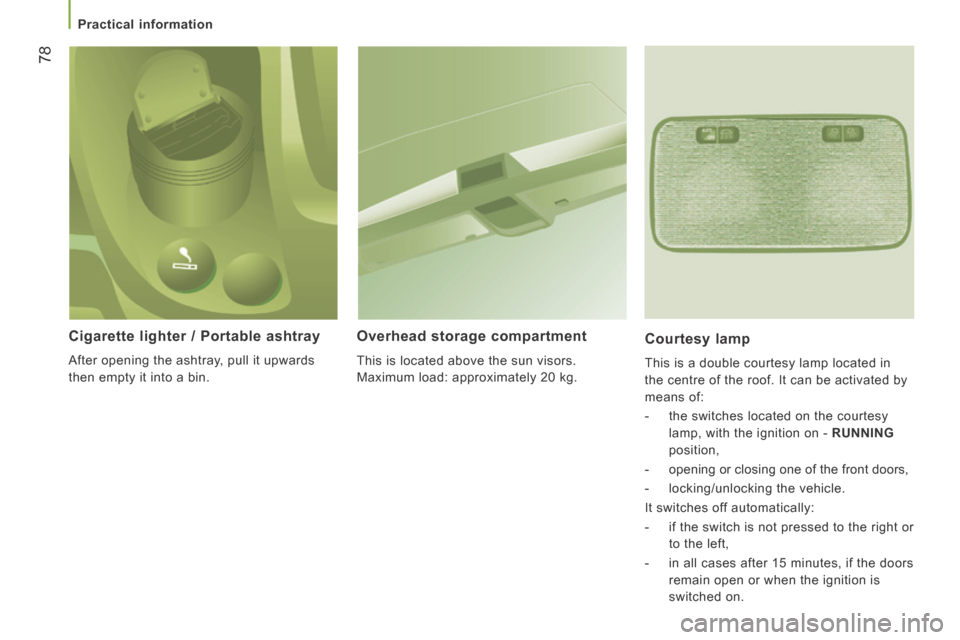

Page 80 of 240

Peugeot Boxer 2014   - RHD (UK, Australia) Manual PDF 78
   Practical  information
  Cigarette lighter / Portable ashtray
 After opening the ashtray, pull it upwards
then empty it into a bin.
  Overhead  storage  compartment
 This is located abov
