59

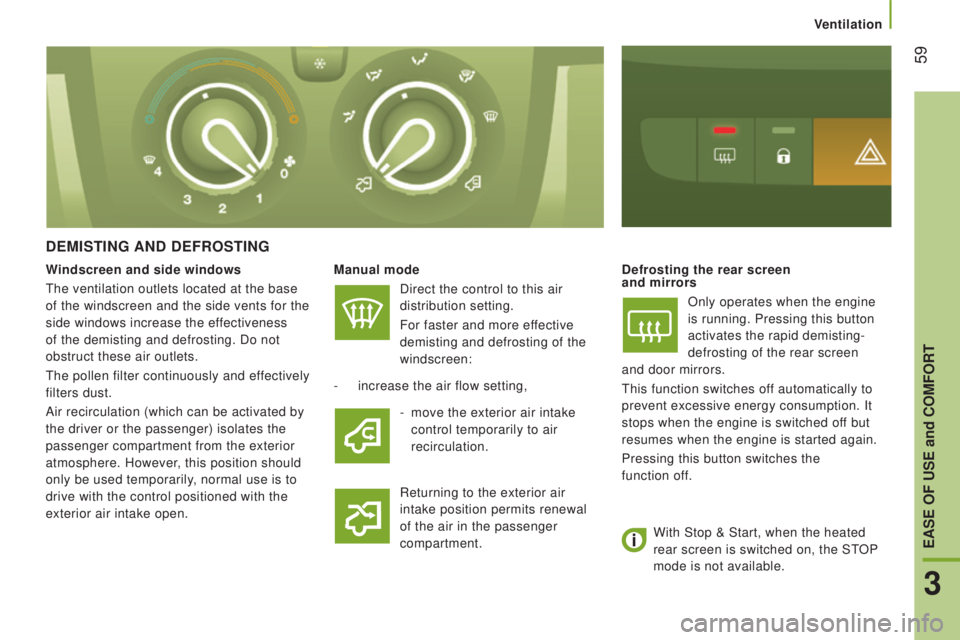

dEMIStInG And dEFroStInG
Manual modeDirect the control to this air
distribution setting.
For faster and more effective


demisting and defrosting of the
windscreen:defrosting the rear screen

and mirrors
Only operates when the engine
is running. Pressing this button
activates the rapid demisting-
defrosting of the rear screen
and
door mirrors.
this function switches of

f automatically to
prevent excessive energy consumption. It
stops when the engine is switched off but
resumes when the engine is started again.
Pressing this button switches the
function
of

f.
-
increase the air flow setting,
Returning to the exterior air
intake position permits renewal


of the air in the passenger
compartment.
Windscreen and side windows
the ventilation outlets located at the base


of the windscreen and the side vents for the
side windows increase the effectiveness
of the demisting and defrosting. Do not
obstruct these air outlets.
the pollen filter continuously and ef

fectively
filters dust.
Air recirculation (which can be activated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, normal use is to
drive with the control positioned with the
exterior air intake open. -
move the exterior air intake
control temporarily to air


recirculation.
With Stop & Start, when the heated
rear screen is switched on, the S
tOP
mode is not available.
3
EASE oF uSE and coMFort
Ventilation

60

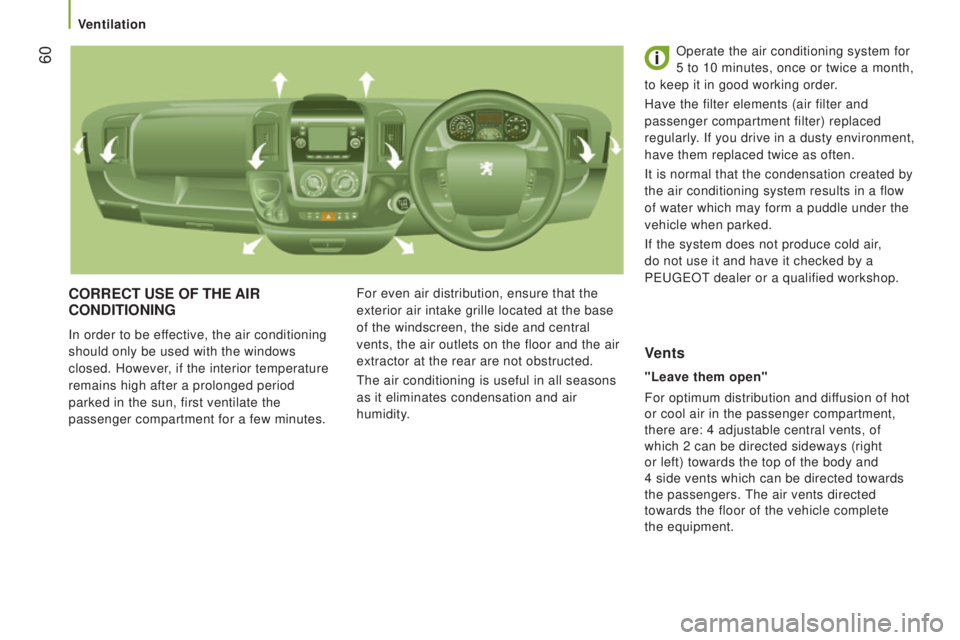

corrEct uSE oF tHE AIr
condItIonInG
In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
remains high after a prolonged period
parked in the sun, first ventilate the
passenger compartment for a few minutes. For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen, the side and central
vents, the air outlets on the floor and the air
extractor at the rear are not obstructed.
the air conditioning is useful in all seasons


as it eliminates condensation and air
humidity. Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air,
do not use it and have it checked by a
P
eugeOt dealer or a qualified workshop.
"Leave them open"
For optimum distribution and diffusion of hot

or cool air in the passenger compartment,
there are: 4 adjustable central vents, of
which 2 can be directed sideways (right
or left) towards the top of the body and
4
side vents which can be directed towards


the passengers.
the air vents directed


towards the floor of the vehicle complete
the
equipment.
Vents
Ventilation

61

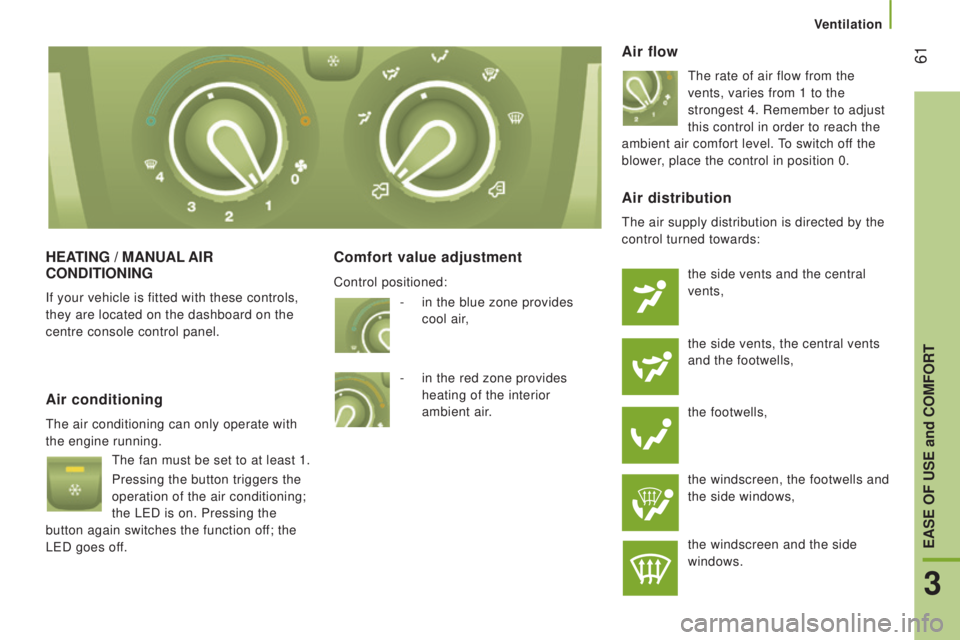

HEAtInG / MAnuAL AIr
condItIonInG
If your vehicle is fitted with these controls,
they are located on the dashboard on the
centre console control panel.
comfort value adjustment Air flow
the rate of air flow from the
vents, varies from 1 to the
strongest 4. Remember to adjust

this control in order to reach the
ambient air comfort level.
to switch off the


blower, place the control in position 0.
Air conditioning
the air conditioning can only operate with
the engine running.
the fan must be set to at least 1.
Pressing the button triggers the


operation of the air conditioning;
the L
eD is on. Pressing the


button again switches the function off; the
L
eD goes of

f.
Air distribution
the air supply distribution is directed by the
control turned towards:
the side vents and the central
vents,
the side vents, the central vents

and the footwells,
the footwells,
the windscreen, the footwells and
the side windows,
the windscreen and the side
windows.
-
in the blue zone provides
cool
air

,
-
in the red zone provides
heating of the interior


ambient
air

.
Control positioned:
3
EASE oF uSE and coMFort
Ventilation

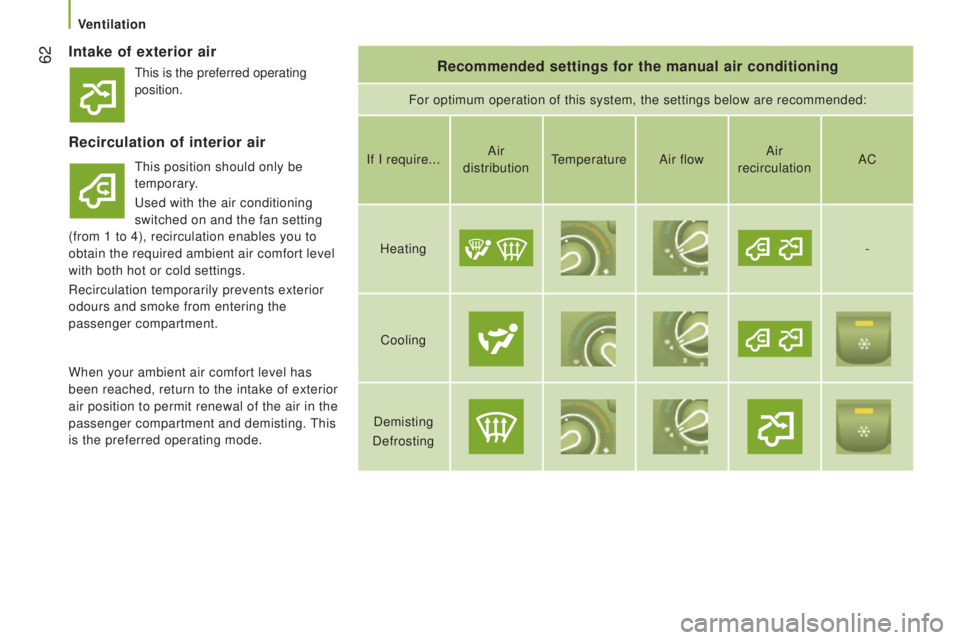

62Intake of exterior airrecommended settings for the manual air conditioning
For optimum operation of this system, the settings below are recommended\
:
recirculation of interior air
this position should only be
temporary.
used with the air conditioning


switched on and the fan setting
(from 1 to 4), recirculation enables you to
obtain the required ambient air comfort level
with both hot or cold settings.
Recirculation temporarily prevents exterior
odours and smoke from entering the
passenger compartment. If I require...
Air
distributiontemperature Air flow Air
recirculation AC
Heating -
Cooling
Demisting
Defrosting
When your ambient air comfort level has

been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and demisting.
this


is the preferred operating mode.
this is the preferred operating
position.
Ventilation

63

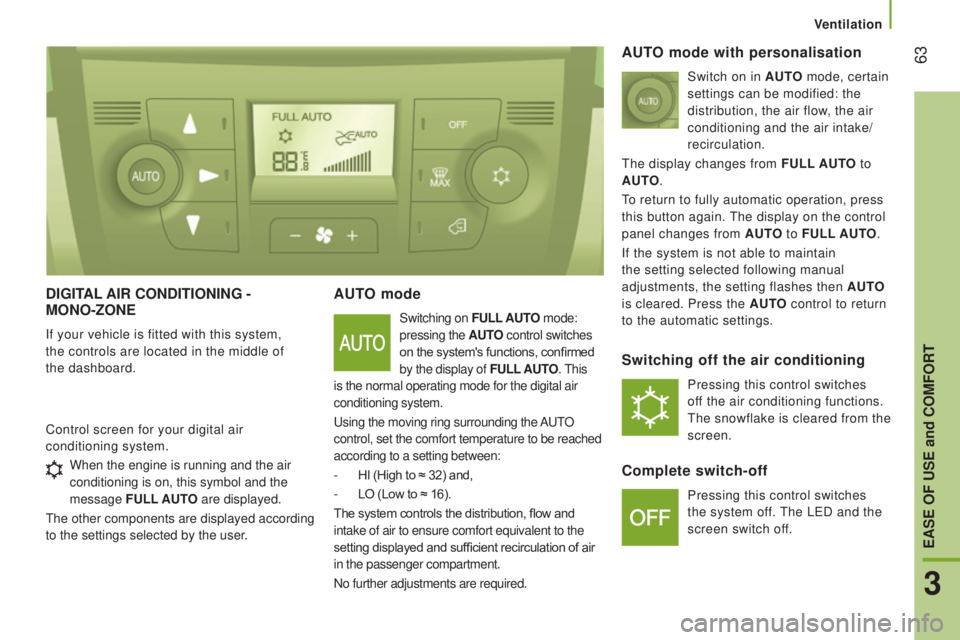

dIGItAL AIr condItIonInG -
Mono-zonE
If your vehicle is fitted with this system,
the controls are located in the middle of
the
dashboard.
Auto mode
Switching on FuLL Auto mode:
pressing the A
ut
o
control switches

on the system's functions, confirmed
by the display of F
uLL

A
ut
o
. this

is the normal operating mode for the digital air
conditioning system.
using the moving ring surrounding the

A
utO
control, set the comfort temperature to be reached


according to a setting between:
-
HI (High to ≈ 32) and,
-
LO (Low to ≈ 16).
The system controls the distribution, flow and


intake of air to ensure comfort equivalent to the
setting displayed and sufficient recirculation of air
in the passenger compartment.
No further adjustments are required.
Control screen for your digital air
conditioning system.
Auto mode with personalisation
Switch on in Auto mode, certain
settings can be modified: the
distribution, the air flow
, the air
conditioning and the air intake/
recirculation.
the display changes from

F
uLL
A
ut
o
t
o
A
ut

o
.
to return to fully automatic operation, press
this button again.
the display on the control


panel changes from A
ut

o
to
F
uLL
A
ut
o
.
If the system is not able to maintain


the setting selected following manual
adjustments, the setting flashes then A
ut

o

is cleared. Press the A
ut

o
control to return

to the automatic settings.
Switching off the air conditioning
Pressing this control switches
off the air conditioning functions.
the snowflake is cleared from the


screen.
complete switch-off
Pressing this control switches
the system off.
the LeD and the

screen switch off.
When the engine is running and the air
conditioning is on, this symbol and the
message FuLL
Aut
o are displayed.
the other components are displayed according
to the settings selected by the user

.
3
EASE oF uSE and coMFort
Ventilation

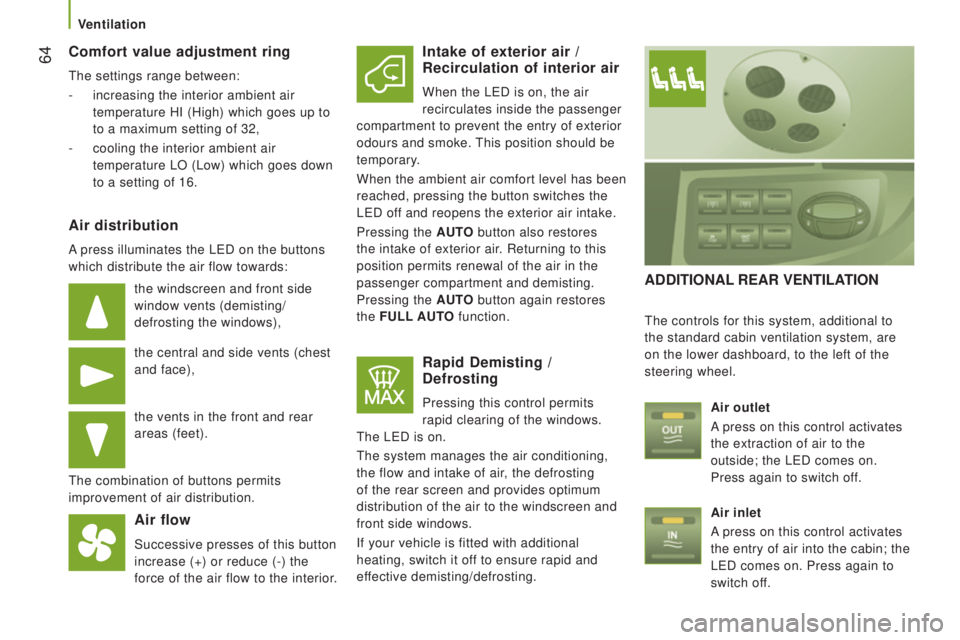

64comfort value adjustment ring
the settings range between:
-
increasing the interior ambient air
temperature HI (High) which goes up to


to a maximum setting of 32,
-
cooling the interior ambient air
temperature LO (Low) which goes down


to a setting of 16.
Air distribution
A press illuminates the LeD on the buttons
which distribute the air flow towards:
the windscreen and front side
window vents (demisting/
defrosting the windows),
the central and side vents (chest

and face),
the vents in the front and rear
areas (feet).
the combination of buttons permits


improvement of air distribution.
Air flow
Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.
Intake of exterior air / recirculation of interior air
When the LeD is on, the air
recirculates inside the passenger
compartment to prevent the entry of exterior

odours and smoke.
this position should be


temporary.
When the ambient air comfort level has been
reached, pressing the button switches the
L
eD of

f and reopens the exterior air intake.
Pressing the A
ut

o
button also restores

the intake of exterior air. Returning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the A
ut

o
button again restores

the F
uLL

A
ut
o
function.
rapid demisting / defrosting
Pressing this control permits
rapid clearing of the windows.
the LeD is on.
the system manages the air conditioning,

the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.
If your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.
AddItIonAL rEAr VEntILAtIon
the controls for this system, additional to
the standard cabin ventilation system, are
on the lower dashboard, to the left of the

steering wheel.
Air outlet
A press on this control activates
the extraction of air to the
outside; the L
eD comes on.


Press again to switch off.
Air inlet
A press on this control activates
the entry of air into the cabin; the
L
eD comes on. Press again to


switch off.
Ventilation

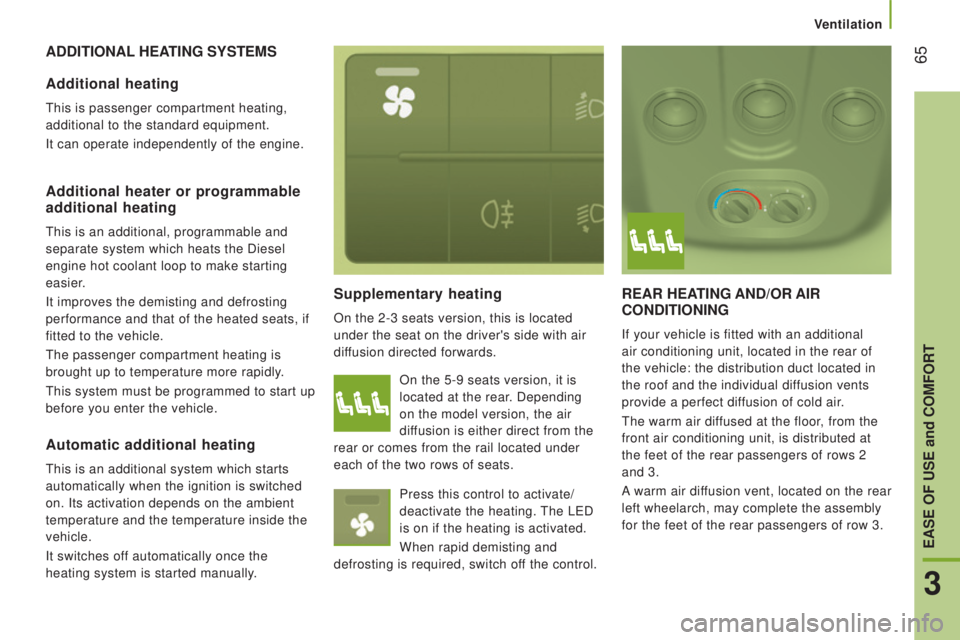

65AddItIonAL HEAtInG SYStEMS
Supplementary heating
On the 2-3 seats version, this is located
under the seat on the driver's side with air
diffusion directed forwards.
rEAr HEAtInG And/or AIr
condItIonInG
If your vehicle is fitted with an additional
air conditioning unit, located in the rear of
the vehicle: the distribution duct located in
the roof and the individual diffusion vents
provide a perfect diffusion of cold air.
the warm air dif

fused at the floor, from the
front air conditioning unit, is distributed at
the feet of the rear passengers of rows 2
and 3.
A warm air diffusion vent, located on the rear
left wheelarch, may complete the assembly
for the feet of the rear passengers of row 3.
Additional heating
this is passenger compartment heating,
additional to the standard equipment.
It can operate independently of the engine.
Additional heater or programmable
additional heating
this is an additional, programmable and
separate system which heats the Diesel
engine hot coolant loop to make starting

easier.
It improves the demisting and defrosting
performance and that of the heated seats, if
fitted to the vehicle.
the passenger compartment heating is


brought up to temperature more rapidly.
this system must be programmed to start up


before you enter the vehicle. On the 5-9 seats version, it is
located at the rear. Depending
on the model version, the air
diffusion is either direct from the
rear or comes from the rail located under
each of the two rows of seats.
Press this control to activate/
deactivate the heating.
the LeD


is on if the heating is activated.
When rapid demisting and
defrosting is required, switch off the control.
Automatic additional heating
this is an additional system which starts
automatically when the ignition is switched
on. Its activation depends on the ambient

temperature and the temperature inside the
vehicle.
It switches off automatically once the
heating system is started manually.
3
EASE oF uSE and coMFort
Ventilation

66
Activation/deactivation
this control, located on the
control panel at the right-hand
end of the dashboard, enables

you to activate/deactivate the
operation of the rear controls from the
driver's seat.
the first press activates (LeD on).
A

second press deactivates (L
eD of
f).
to deactivate the blower, place the control in

position 0. However, a safety device will ventilate the
rear circuit automatically, even if the control
is in position 0, to prevent the formation of
condensation.
Air flow
comfort value adjustment
- on the blue, produces cool
air
,
-
on the red, produces heating
of the ambient air

.
the OFF control on the "Mono-zone" central


control panel switches the function off. Control positioned:
the force of the blown air

, via
the vents, varies from 1 to the
strongest 4.
to obtain a comfortable level of
ambient air

, remember to adjust
this control.
Ventilation

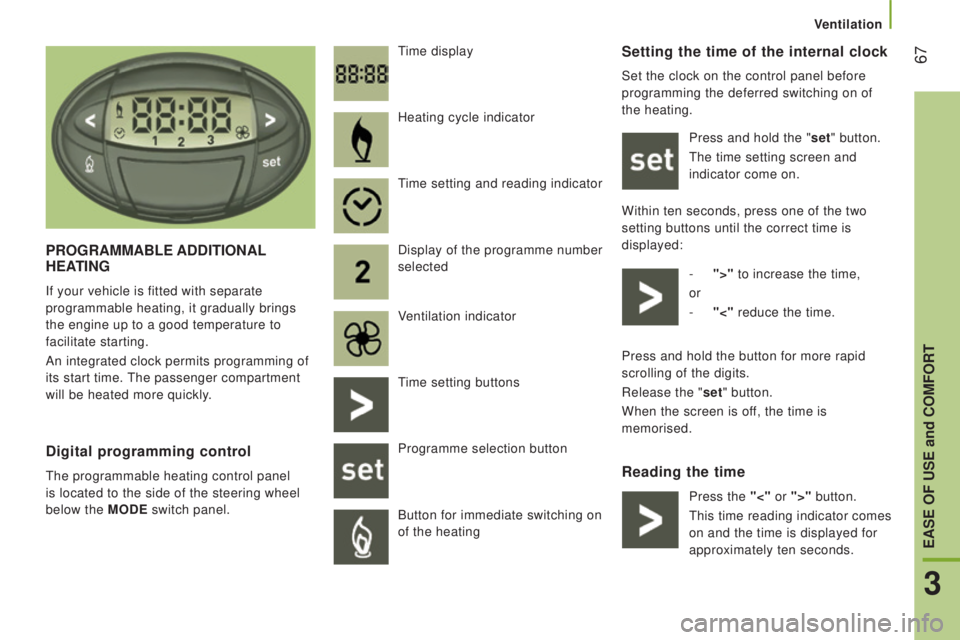

67Setting the time of the internal clock
Set the clock on the control panel before
programming the deferred switching on of
the heating.Press and hold the "set" button.
the time setting screen and


indicator come on.
Within ten seconds, press one of the two
setting buttons until the correct time is
displayed: -
">" to increase the time,
or
-
"<" reduce the time.
reading the time
Pro
GrAMMABLE AddItIonAL HEAtInG
If your vehicle is fitted with separate
programmable heating, it gradually brings
the engine up to a good temperature to
facilitate starting.
An integrated clock permits programming of
its start time.
the passenger compartment


will be heated more quickly.
time display
digital programming control
the programmable heating control panel
is located to the side of the steering wheel
below the
M
odE
switch panel. Heating cycle indicator
time setting and reading indicator
Display of the programme number
selected
V
entilation indicator
time setting buttons
Programme selection button
Button for immediate switching on
of the heating Press and hold the button for more rapid


scrolling of the digits.
Release the "set" button.
When the screen is off, the time is
memorised.
Press the "<" or ">" button.
this
time reading indicator comes
on and the time is displayed for
approximately ten seconds.
3
EASE oF uSE and coMFort
Ventilation

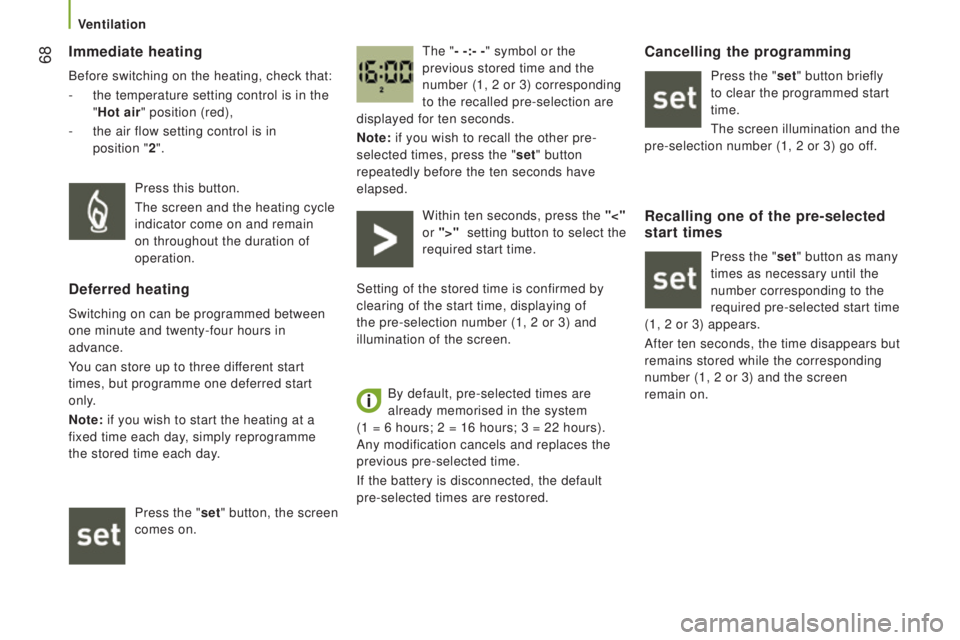

68Immediate heating
Before switching on the heating, check that:
-
the temperature setting control is in the
"Hot air

" position (red),
-
the air flow setting control is in
position
"

2".
the "
- -:- -" symbol or the
previous stored time and the
number (1, 2 or 3) corresponding
to the recalled pre-selection are
displayed for ten seconds.
note:

if you wish to recall the other pre-
selected times, press the "set" button
repeatedly before the ten seconds have
elapsed.
Press this button.
the screen and the heating cycle


indicator come on and remain
on throughout the duration of
operation.
deferred heating
Switching on can be programmed between
one minute and twenty-four hours in
advance.
You can store up to three different start
times, but programme one deferred start
only.
note:

if you wish to start the heating at a
fixed time each day, simply reprogramme
the stored time each day.
Press the "set" button, the screen
comes on. Within ten seconds, press the "<"

or ">"
setting button
to select the
required start time.
Setting of the stored time is confirmed by
clearing of the start time, displaying of
the pre-selection number (1, 2 or 3) and
illumination of the screen.
By default, pre-selected times are
already memorised in the system
(1 = 6 hours; 2 = 16 hours; 3 = 22 hours).
Any modification cancels and replaces the
previous pre-selected time.
If the battery is disconnected, the default
pre-selected times are restored.
cancelling the programming
Press the "set" button briefly
to
clear the programmed start

time.
the screen illumination and the


pre-selection number (1, 2 or 3) go off.
recalling one of the pre-selected
start times
Press the "set" button as many
times as necessary until the
number corresponding to the
required pre-selected start time
(1, 2 or 3) appears.
After ten seconds, the time disappears but
remains stored while the corresponding
number (1, 2 or 3) and the screen
remain
on.
Ventilation
