PEUGEOT BOXER 2015 Manual Online

79

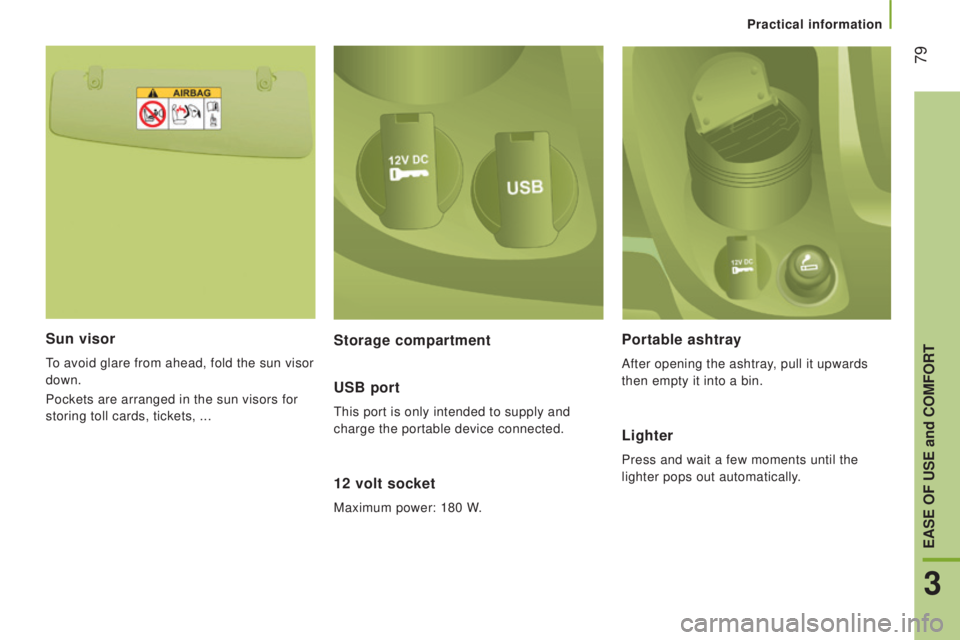

Sun visor
to avoid glare from ahead, fold the sun visor
down.
Pockets are arranged in the sun visors for

storing toll cards, tickets, ...
Storage compartment Portable ashtray
After opening the ashtray, pull it upwards
then empty it into a bin.
Lighter
Press and wait a few moments until the
lighter pops out automatically.
uSB port
this port is only intended to supply and
charge the portable device connected.
12 volt socket
Maximum power: 180 W.
3
EASE oF uSE and coMFort
Practical information

80
reading lamps
these are controlled by the switches.
the driver's switch controls both reading

lamps simultaneously.
the passenger switch controls either the


driver's reading lamp or the passenger
reading lamp.
courtesy lamp
this can be activated by means of:
-
the switches located on the courtesy
lamp, with the ignition on -
runnInG
position,
-
opening or closing one of the front
doors,
-
locking/unlocking the vehicle.
It switches off automatically:
-
if the switch is not pressed to the right or
to the left,
-
in all cases after 15 minutes, if the doors
remain open,
-
or when the ignition is switched on. Switches at the bottom of the
dashboard on the driver's side


allow the driver to switch the
passenger reading lamp on
and
of

f.
overhead storage compartment
this is located above the sun visors.
Maximum load: approximately 20 kg.
Practical information

81

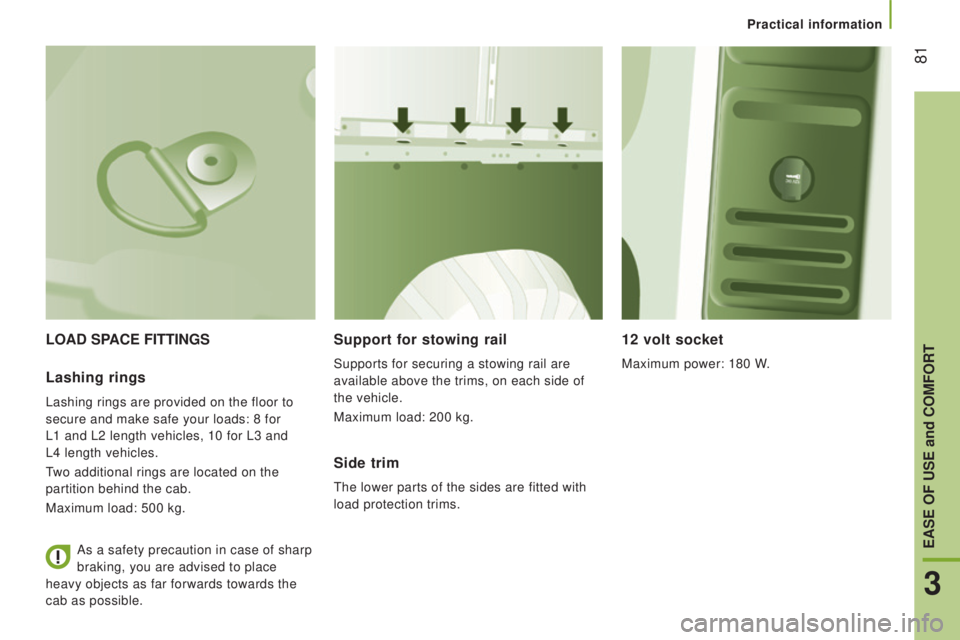

LoAd SPAcE FIttInGSSupport for stowing rail
Supports for securing a stowing rail are
available above the trims, on each side of
the vehicle.
Maximum load: 200 kg.
12 volt socket
Maximum power: 180 W.Lashing rings
Lashing rings are provided on the floor to
secure and make safe your loads: 8 for
L1 and L2 length vehicles, 10 for L3 and
L4
length vehicles.
two additional rings are located on the
partition behind the cab.
Maximum load: 500 kg.Side trim
the lower parts of the sides are fitted with
load protection trims.
As a safety precaution in case of sharp
braking, you are advised to place

heavy objects as far forwards towards the
cab as possible.
3
EASE oF uSE and coMFort
Practical information

82

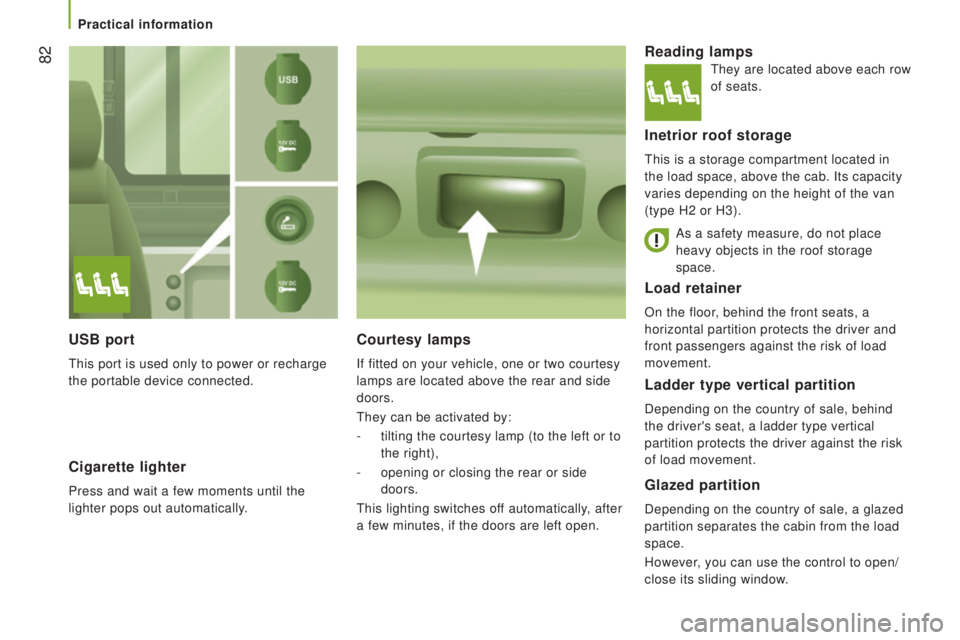

Load retainer
On the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.
courtesy lamps
If fitted on your vehicle, one or two courtesy
lamps are located above the rear and side
doors.
they can be activated by:
-
tilting the courtesy lamp (to the left or to
the right),
-
opening or closing the rear or side
doors.
this lighting switches of

f automatically, after
a few minutes, if the doors are left open.
reading lamps
Inetrior roof storage
this is a storage compartment located in
the load space, above the cab. Its capacity
varies depending on the height of the van

(type H2 or H3).
Ladder type vertical partition
Depending on the country of sale, behind
the driver's seat, a ladder type vertical
partition protects the driver against the risk
of load movement.
Glazed partition
Depending on the country of sale, a glazed
partition separates the cabin from the load
space.
However, you can use the control to open/
close its sliding window.
uSB port
this port is used only to power or recharge
the portable device connected.
cigarette lighter
Press and wait a few moments until the
lighter pops out automatically. As a safety measure, do not place
heavy objects in the roof storage
space.
they are located above each row

of seats.
Practical information

83

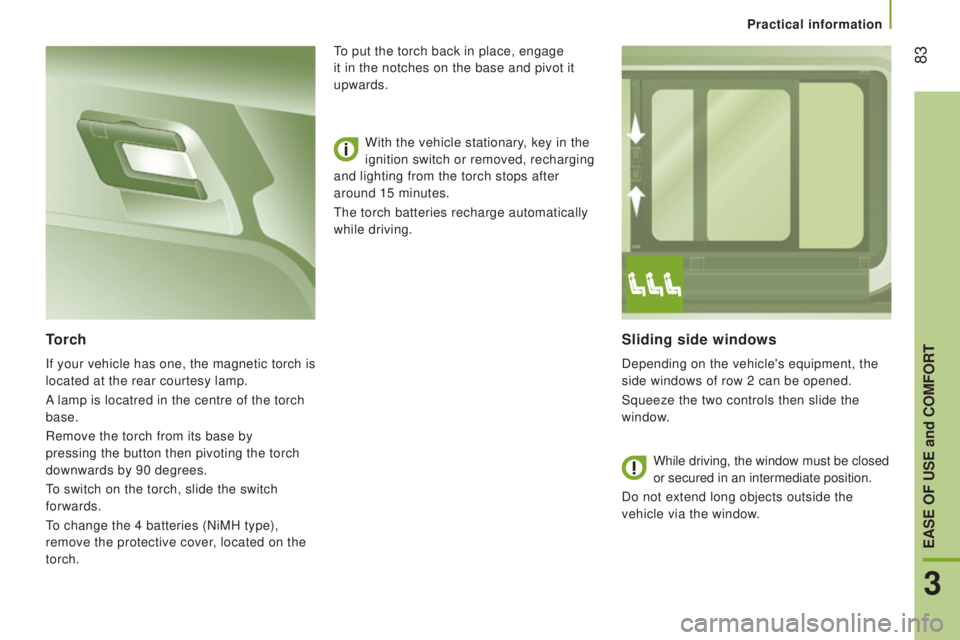

Sliding side windows
Depending on the vehicle's equipment, the
side windows of row 2 can be opened.
Squeeze the two controls then slide the
window.
torch
If your vehicle has one, the magnetic torch is
located at the rear courtesy lamp.
A lamp is locatred in the centre of the torch
base.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
to switch on the torch, slide the switch
forwards.
to change the 4 batteries (NiMH type),
remove the protective cover

, located on the
torch. With the vehicle stationary, key in the
ignition switch or removed, recharging
and lighting from the torch stops after
around 15 minutes.
the torch batteries recharge automatically

while driving.
to put the torch back in place, engage
it in the notches on the base and pivot it

upwards.
While driving, the window must be closed
or secured in an intermediate position.
Do not extend long objects outside the
vehicle via the window

.
3
EASE oF uSE and coMFort
Practical information

84
ExtErIor FIttInGS
Protective grille
Depending on the country of sale, a
protective grille fitted to the inside of
the front bumper provides protection for
underbonnet components against flying
stones...
Very cold conditions protectors
Depending on the country of sale, protective
foam pads are present to avoid the ingress
of cold or snow to the upper part of the
underbonnet.
Located at the edge of each headlamp,
they are fitted to the front panel above the
radiator.
Slide them towards the outisde of the
vehicle to remove them.
Folding foot board
to faciltate the entry and exit of rear
passengers, your vehicle may be fitted with
a foot board, which is deployed on opening
the sliding side door.
Practical information

85

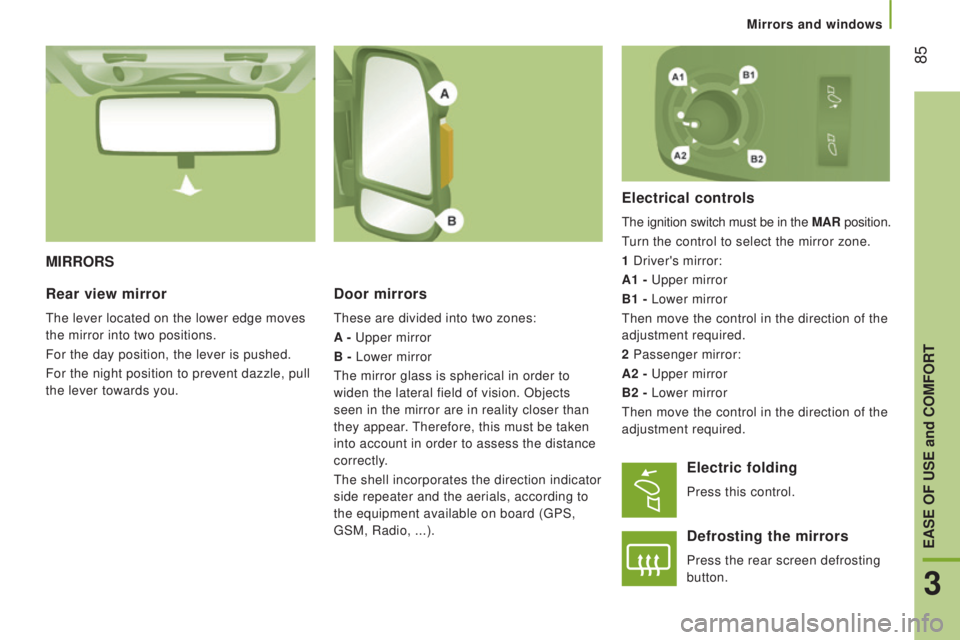

MIrrorS
door mirrors
these are divided into two zones:
A -
upper mirror
B -

Lower mirror
the mirror glass is spherical in order to


widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear.
therefore, this must be taken


into account in order to assess the distance
correctly.
the shell incorporates the direction indicator


side repeater and the aerials, according to
the equipment available on board (
gPS,


gSM, Radio, ...).
Electrical controls
the ignition switch must be in the MAr position.
turn the control to select the mirror zone.
1 Driver's mirror:
A1 -
upper mirror
B1 -

Lower mirror
then move the control in the direction of the


adjustment required.
2 Passenger mirror:
A2 -
upper mirror
B2 -

Lower mirror
then move the control in the direction of the


adjustment required.
rear view mirror
the lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle, pull
the lever towards you.
Electric folding
Press this control.
defrosting the mirrors
Press the rear screen defrosting
button.
3
EASE oF uSE and coMFort
Mirrors and windows

86

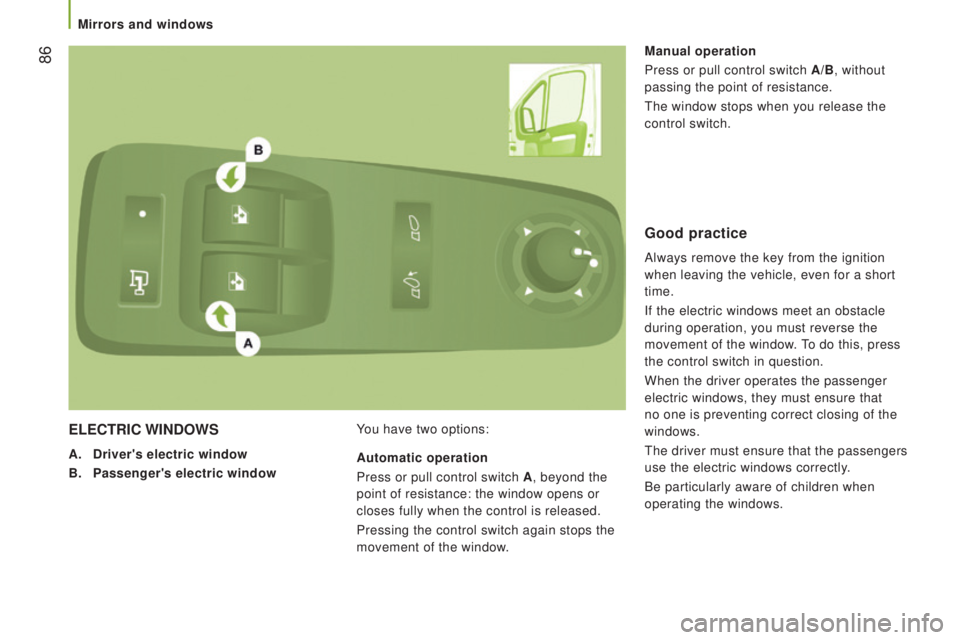

ELEctrIc WIndoWS
A. driver's electric window
B.
Passenger's electric window You have two options: Manual operation
Press or pull control switch
A/B, without
passing the point of resistance.
the window stops when you release the

control switch.
Automatic operation
Press or pull control switch A , beyond the
point of resistance: the window opens or
closes fully when the control is released.
Pressing the control switch again stops the
movement of the window.
Good practice
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window.
to do this, press
the control switch in question.
When the driver operates the passenger


electric windows, they must ensure that
no one is preventing correct closing of the
windows.
the driver must ensure that the passengers


use the electric windows correctly.
Be particularly aware of children when
operating the windows.
Mirrors and windows

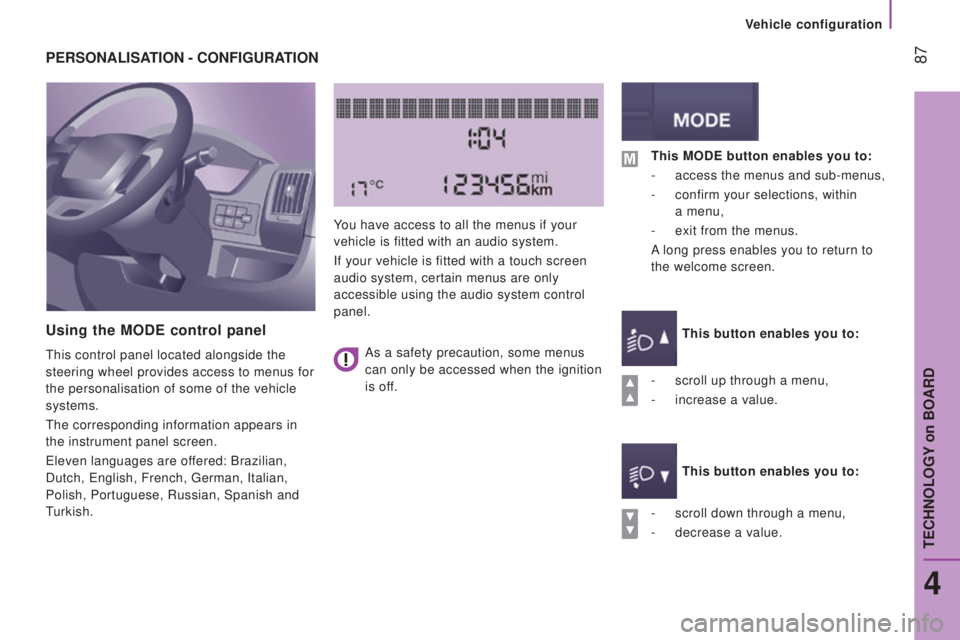

87PErSonALISAtIon - conFIGurAtIon
using the ModE control panel
this control panel located alongside the
steering wheel provides access to menus for
the personalisation of some of the vehicle

systems.
the corresponding information appears in


the instrument panel screen.
eleven languages are of

fered: Brazilian,
Dutch,
english, French, german, Italian,


Polish, Portuguese, Russian, Spanish and
turkish. You have access to all the menus if your


vehicle is fitted with an audio system.
If your vehicle is fitted with a touch screen
audio system, certain menus are only
accessible using the audio system control
panel.
-
scroll down through a menu,
-
decrease a value.
this ModE button enables you to:
-
access the menus and sub-menus,
-
confirm your selections, within
a
menu,
-
exit from the menus.
A long press enables you to return to

the welcome screen.
this button enables you to:
this button enables you to:
-
scroll up through a menu,
-
increase a value.
As a safety precaution, some menus
can only be accessed when the ignition
is off.
4
teCHNOLOgY on BOARD
Vehicle configuration

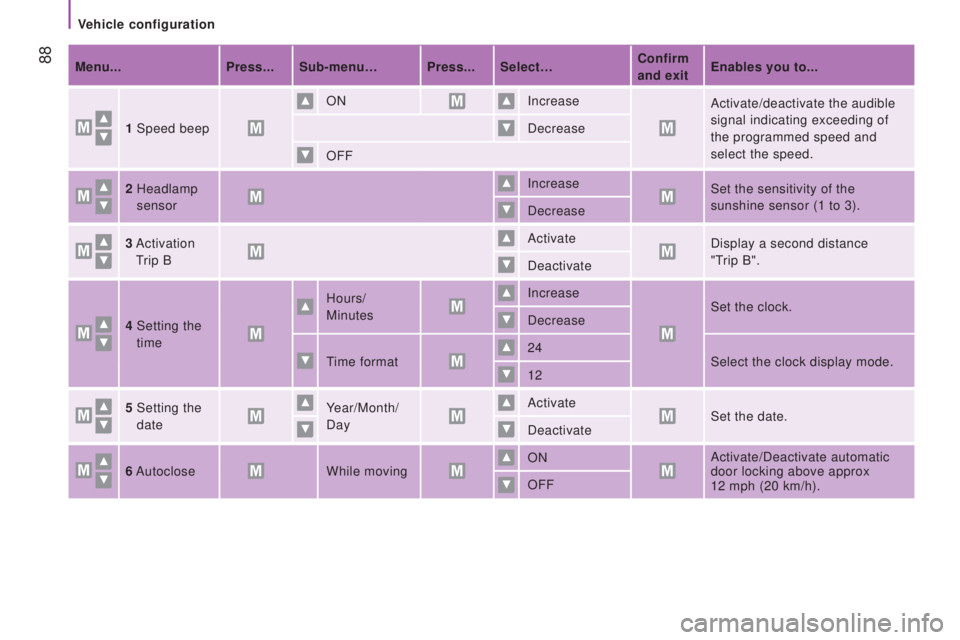

88Menu...Press... Sub-menu… Press... Select…confirm
and exit Enables you to...
1 Speed beep ON
Increase
Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed.
Decrease
OFF
2
Headlamp


sensor Increase
Set the sensitivity of the
sunshine sensor (1 to 3).
Decrease
3
Activation


trip B Activate
Display a second distance
"trip B".
Deactivate
4
Setting the
time Hours/

Minutes Increase
Set the clock.
Decrease
time format 24
Select the clock display mode.
12
5
Setting the
date Y

ear/Month/
Day Activate
Set the date.
Deactivate
6 Autoclose While moving ON
Activate/Deactivate automatic
door locking above approx
12
mph (20 km/h).
OFF
Vehicle configuration
