PEUGEOT BOXER 2015 Owners Manual

99

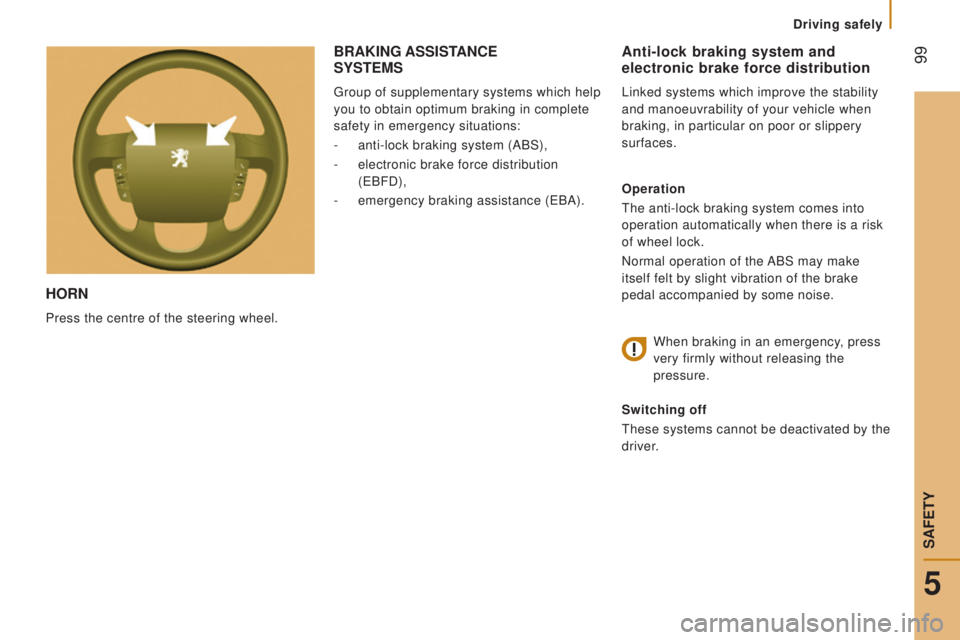

Horn
Press the centre of the steering wheel.
Anti-lock braking system and
electronic brake force distribution
Linked systems which improve the stability
and manoeuvrability of your vehicle when
braking, in particular on poor or slippery
surfaces.
operation
the anti-lock braking system comes into

operation automatically when there is a risk
of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal accompanied by some noise.
When braking in an emergency, press


very firmly without releasing the
pressure.
Switching off
these systems cannot be deactivated by the


driver.
BrAKInG ASSIStAncE SYStEMS
group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
-
anti-lock braking system (ABS),
-
electronic brake force distribution
(
eBFD),
-
emergency braking assistance (eBA).
5
Driving safely
SAFetY

100
Good practice
the
ABS system does not provide shorter
braking distances. On very slippery surfaces
(black ice, oil...) the ABS can extend braking
distances. For emergency braking, press the
brake pedal hard and do not release it, even
on a slipper surface; you will then be able to
steer the vehicle and avoid an obstacle.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.Emergency braking assistance
System which, in an emergency, enables
you to obtain the optimum braking pressure
more quickly, thus reducing the stopping
distance.
operation
It is triggered by the speed at which the


brake pedal is pressed.
the ef

fect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
Switching off
this system cannot be deactivated by the


driver.
operating fault
If this warning lamp comes on,


accompanied by an audible signal
and a message in the instrument
panel screen, it indicates a fault with
the anti-lock braking system which could result
in loss of control of the vehicle when braking.
For maximum braking efficiency, a
bedding-in period of around 300 miles
(500 kilometres) is needed. During this
period it is recommended that you avoid
harsh, repeated or prolonged braking. If this warning lamp comes on,
together with the ABS warning
lamp, accompanied by a message
in the instrument panel screen,
it indicates a fault with the electronic brake
force distribution which could result in loss
of control of the vehicle when braking. When braking in an emergency, press
firmly without releasing the pressure.
You must stop as soon as it is safe
to
do so.
In either case, contact a P
eugeOt dealer
or a qualified workshop.
Driving safely

101
trAjEctorY controL SYStEMS
Switching off
this system cannot be deactivated by the

driver.
dynamic stability control
(dSc)
the electronic stability programme acts on
the brake of one or more wheels and on the
engine to keep the vehicle on the trajectory

required by the driver, within the limits of the
laws of physics.
With the DSC system, maintain course
without trying to countersteer.
operation
the DSC system is activated automatically


each time the vehicle is started.
operating fault
Illumination of this warning lamp,


accompanied by an audible signal
and confirmed by a message
in the instrument panel screen,
indicates a fault with the DSC system.
Have it checked by a P
eugeOt dealer or a
qualified workshop.
operation
this system is activated automatically every

time the vehicle is started.
In the event of a problem of adhesion or
trajectory, this system comes into play.
Switching off
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow,
on soft ground...), it may be advisable to
deactivate the ASR system, so that the
wheels can spin freely and regain grip.
-
Press this button, located in the
middle of the dashboard, to deactivate


the
system.
Anti-slip regulation (ASr)
Anti-slip regulation (also known as traction
control) optimises traction, avoiding wheel
spin by acting on the brakes of the driving
wheels and the engine.
If the button's warning lamp comes
on, accompanied by a message in the
instrument panel screen, this indicates that
the ASR system is deactivated.
It comes into operation in the
event of a grip or trajectory
problem.
this is indicated by flashing of this warning


lamp in the instrument panel.
5
Driving safely
SAFetY

102

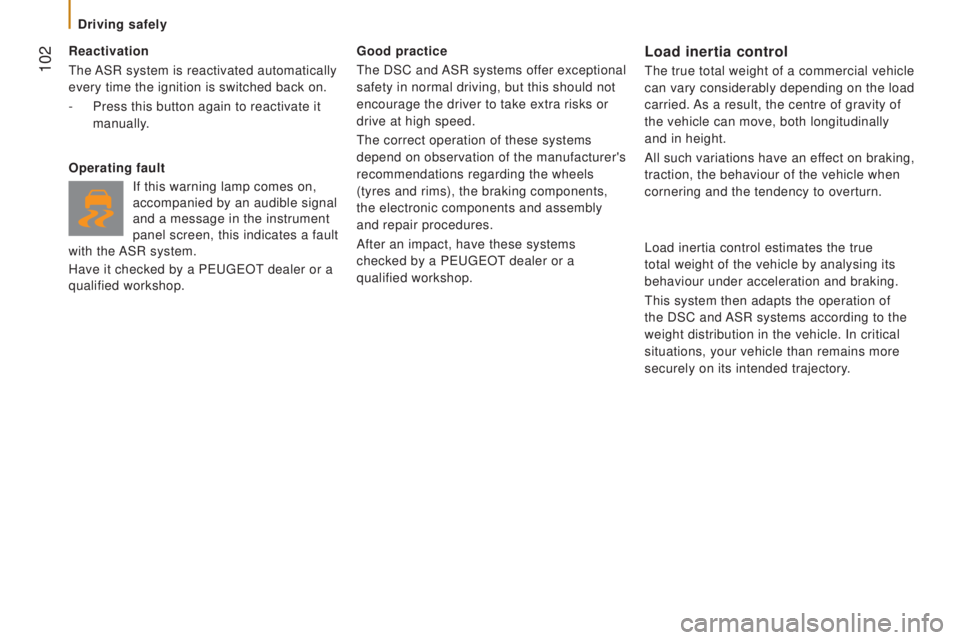

reactivation
the
ASR system is reactivated automatically
every time the ignition is switched back on.
-
Press this button again to reactivate it
manually

.
operating faultIf this warning lamp comes on,


accompanied by an audible signal
and a message in the instrument
panel screen, this indicates a fault
with the ASR system.
Have it checked by a P
eugeOt dealer or a
qualified workshop. Good practice
the DSC and

ASR systems offer exceptional
safety in normal driving, but this should not
encourage the driver to take extra risks or
drive at high speed.
the correct operation of these systems


depend on observation of the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking components,
the electronic components and assembly
and repair procedures.
After an impact, have these systems
checked by a P
eugeOt dealer or a
qualified workshop.
Load inertia control
the true total weight of a commercial vehicle
can vary considerably depending on the load
carried.
As a result, the centre of gravity of
the vehicle can move, both longitudinally
and in height.
All such variations have an effect on braking,
traction, the behaviour of the vehicle when
cornering and the tendency to overturn.
Load inertia control estimates the true
total weight of the vehicle by analysing its
behaviour under acceleration and braking.
this system then adapts the operation of


the DSC and ASR systems according to the
weight distribution in the vehicle. In critical
situations, your vehicle than remains more
securely on its intended trajectory.
Driving safely

103

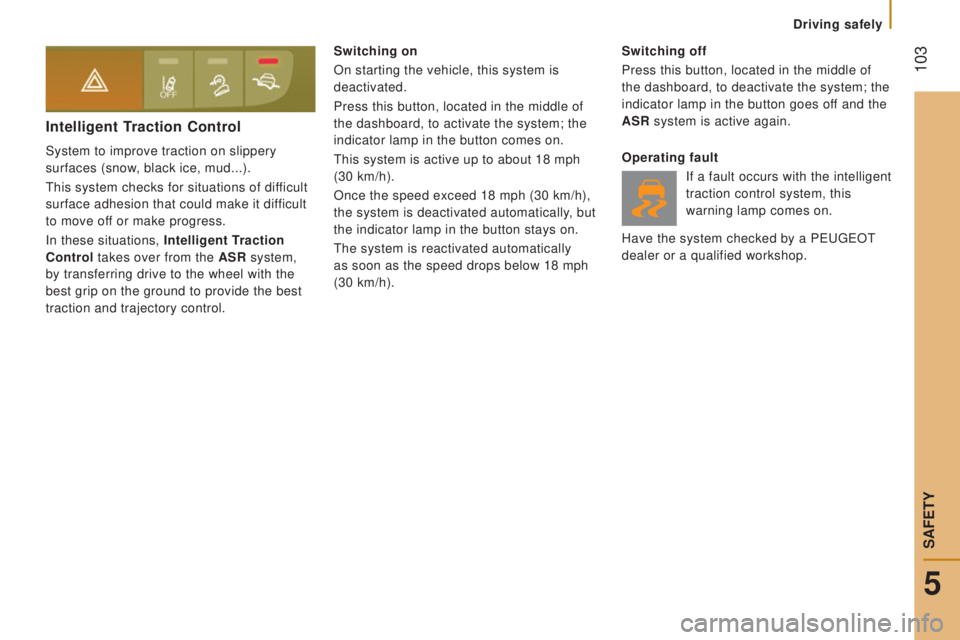

Intelligent traction control
System to improve traction on slippery
surfaces (snow, black ice, mud...).
this system checks for situations of dif
ficult
surface adhesion that could make it difficult
to move off or make progress.
In these situations, Intelligent
traction
control

takes over from the AS
r system,

by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control. Switching on
On starting the vehicle, this system is
deactivated.
Press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.this system is active up to about 18 mph

(30 km/h).
Once the speed exceed 18 mph (30 km/h),
the system is deactivated automatically, but
the indicator lamp in the button stays on.
the system is reactiv

ated automatically
as soon as the speed drops below 18 mph
(30
km/h). Switching off
Press this button, located in the middle of


the dashboard, to deactivate the system; the
indicator lamp in the button goes off and the
AS
r system is active again.
operating fault
If a fault occurs with the intelligent

traction control system, this
warning lamp comes on.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
5
Driving safely
SAFetY

104

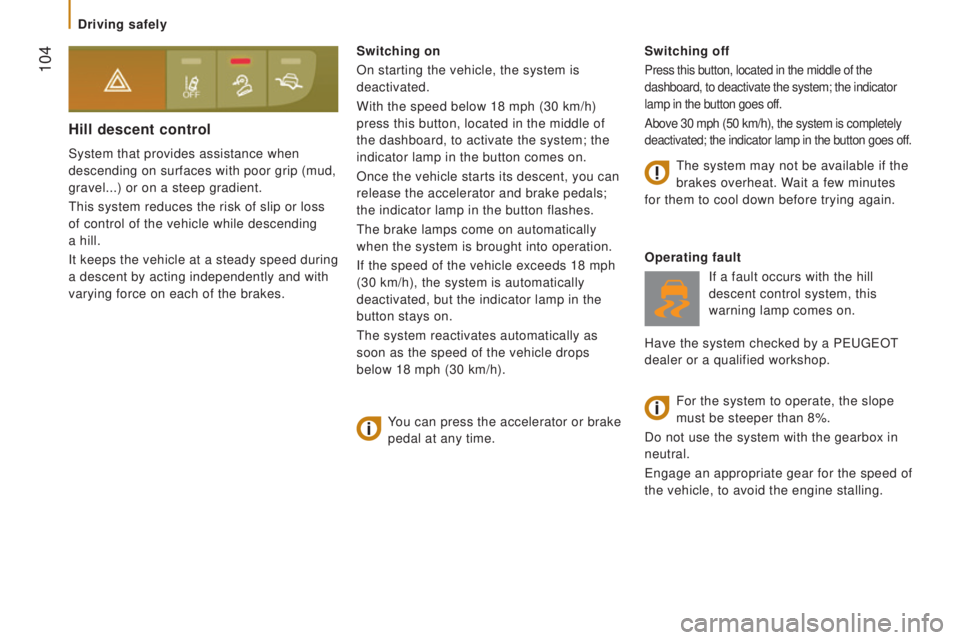

Hill descent control
System that provides assistance when
descending on surfaces with poor grip (mud,
gravel...) or on a steep gradient.
this system reduces the risk of slip or loss

of control of the vehicle while descending
a hill.
It keeps the vehicle at a steady speed during
a descent by acting independently and with
varying force on each of the brakes. Switching off
Press this button, located in the middle of the
dashboard, to deactivate the system; the indicator
lamp in the button goes off.
Above 30 mph (50 km/h), the system is completely
deactivated; the indicator lamp in the button goes off.
operating fault
If a fault occurs with the hill
descent control system, this

warning lamp comes on.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
Switching on
On starting the vehicle, the system is
deactivated.
With the speed below 18 mph (30 km/h)


press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.
Once the vehicle starts its descent, you can
release the accelerator and brake pedals;
the indicator lamp in the button flashes.
the brake lamps come on automatically


when the system is brought into operation.
If the speed of the vehicle exceeds 18 mph

(30 km/h), the system is automatically
deactivated, but the indicator lamp in the
button stays on.
the system reactivates automatically as


soon as the speed of the vehicle drops
below 18 mph (30 km/h).
For the system to operate, the slope
must be steeper than 8%.
Do not use the system with the gearbox in
neutral.
engage an appropriate gear for the speed of


the vehicle, to avoid the engine stalling.
You can press the accelerator or brake
pedal at any time.
the system may not be available if the

brakes overheat. Wait a few minutes
for them to cool down before trying again.
Driving safely

105

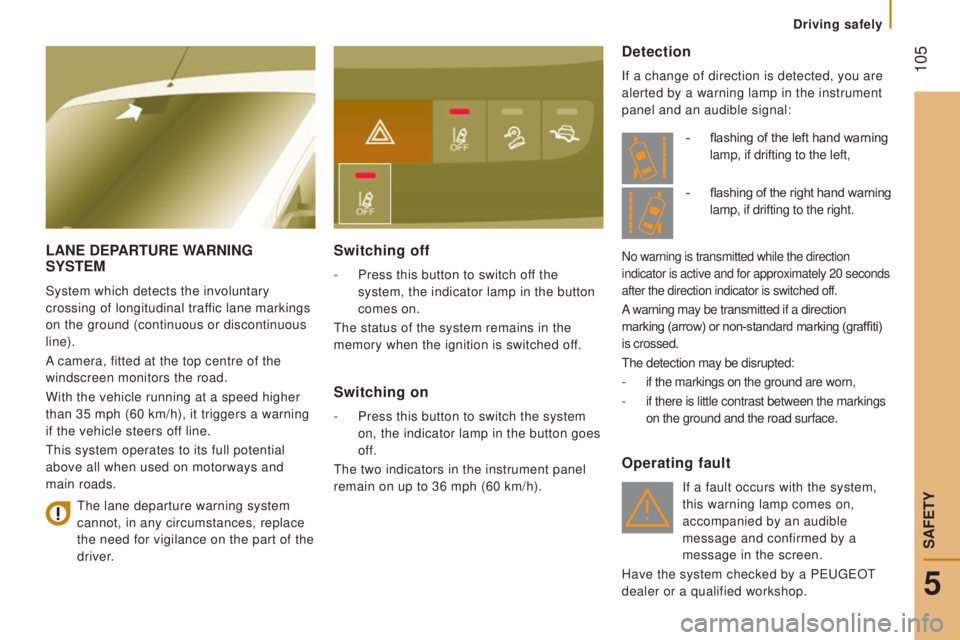

LAnE dEPArturE WArnInG SYStEM
System which detects the involuntary
crossing of longitudinal traffic lane markings
on the ground (continuous or discontinuous
line).
A camera, fitted at the top centre of the
windscreen monitors the road.
With the vehicle running at a speed higher
than 35 mph (60 km/h), it triggers a warning
if the vehicle steers off line.
this system operates to its full potential

above all when used on motorways and
main roads.
Switching off
- Press this button to switch off the
system, the indicator lamp in the button
comes on.
the status of the system remains in the


memory when the ignition is switched off.
Switching on
- Press this button to switch the system
on, the indicator lamp in the button goes
off.
the two indicators in the instrument panel


remain on up to 36 mph (60 km/h).
detection
If a change of direction is detected, you are
alerted by a warning lamp in the instrument
panel and an audible signal:
operating fault
If a fault occurs with the system,
this warning lamp comes on,
accompanied by an audible
message and confirmed by a
message in the screen.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
the lane departure warning system


cannot, in any circumstances, replace
the need for vigilance on the part of the
driver. -
flashing of the left hand warning
lamp, if drifting to the left,
No warning is transmitted while the direction
indicator is active and for approximately 20
seconds


after the direction indicator is switched off.
A warning may be transmitted if a direction
marking (arrow) or non-standard marking (graffiti)
is crossed.
the detection may be disrupted:
-
if the markings on the ground are worn,
-
if there is little contrast between the markings
on the ground and the road surface. -
flashing of

the right hand warning
lamp, if drifting to the right.
5
Driving safely
SAFetY

106

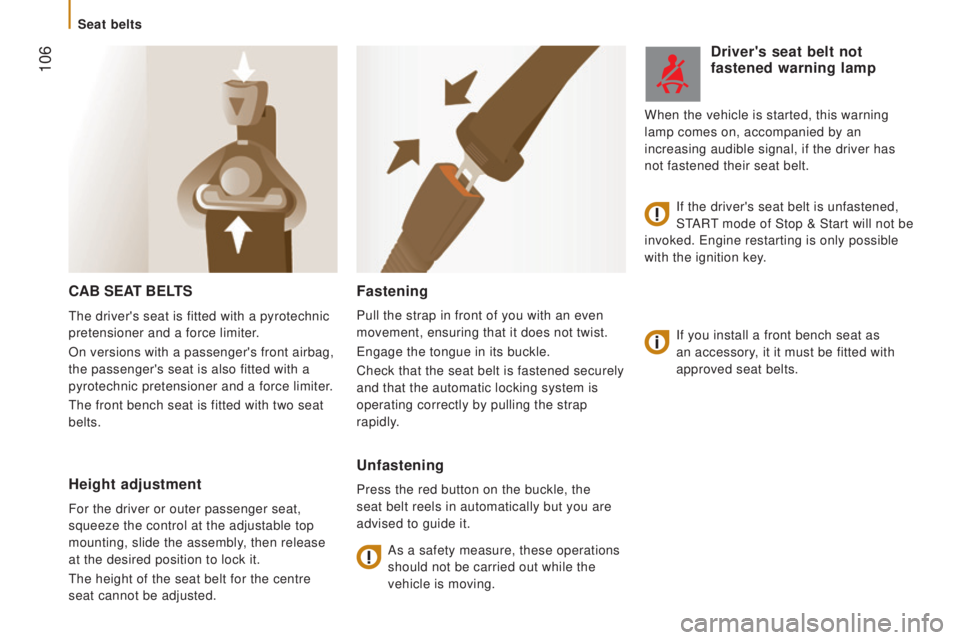

cAB SEAt BELtS
If you install a front bench seat as
an accessory, it it must be fitted with
approved seat belts.
Fastening
Pull the strap in front of you with an even
movement, ensuring that it does not twist.
engage the tongue in its buckle.
Check that the seat belt is fastened securely


and that the automatic locking system is
operating correctly by pulling the strap
rapidly.
unfastening
Press the red button on the buckle, the
seat belt reels in automatically but you are
advised to guide it.
As a safety measure, these operations
should not be carried out while the
vehicle is moving.
driver's seat belt not
fastened warning lamp
If the driver's seat belt is unfastened,
S
tARt mode of Stop & Start will not be
invoked.
engine restarting is only possible


with the ignition key. When the vehicle is started, this warning
lamp comes on, accompanied by an
increasing audible signal, if the driver has
not fastened their seat belt.
the driver's seat is fitted with a pyrotechnic


pretensioner and a force limiter.
On versions with a passenger's front airbag,
the passenger's seat is also fitted with a
pyrotechnic pretensioner and a force limiter.
the front bench seat is fitted with two seat


belts.
Height adjustment
For the driver or outer passenger seat,
squeeze the control at the adjustable top
mounting, slide the assembly, then release
at the desired position to lock it.
the height of the seat belt for the centre


seat cannot be adjusted.
Seat belts

107

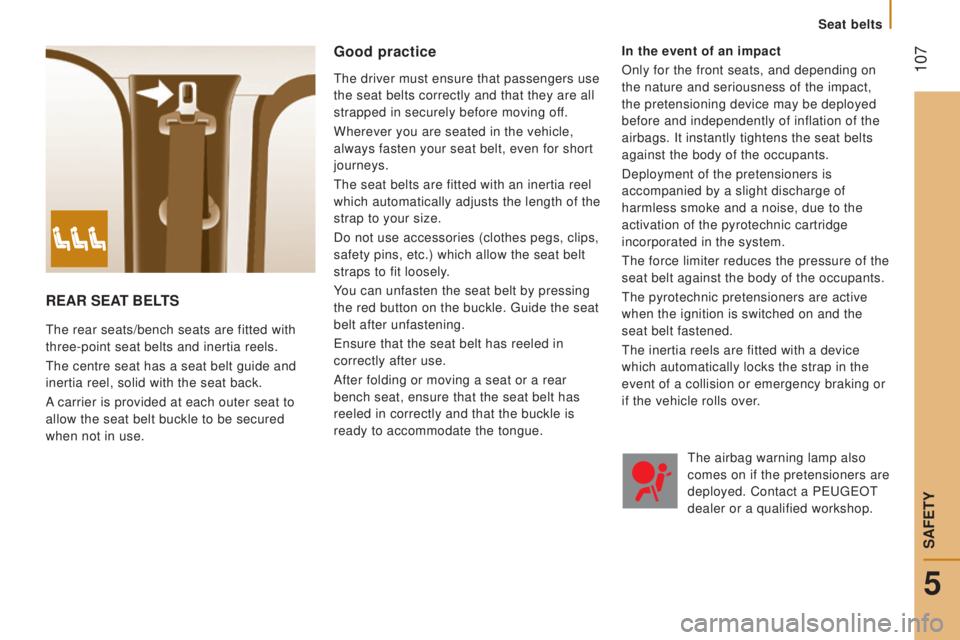

rEAr SEAt BELtS
the rear seats/bench seats are fitted with
three-point seat belts and inertia reels.
the centre seat has a seat belt guide and


inertia reel, solid with the seat back.
A carrier is provided at each outer seat to
allow the seat belt buckle to be secured
when not in use.
Good practice
the driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving of
f.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
the seat belts are fitted with an inertia reel


which automatically adjusts the length of the
strap to your size.
Do not use accessories (clothes pegs, clips,
safety pins, etc.) which allow the seat belt
straps to fit loosely.
You can unfasten the seat belt by pressing
the red button on the buckle.
guide the seat


belt after unfastening.
ensure that the seat belt has reeled in


correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.
the airbag warning lamp also


comes on if the pretensioners are
deployed. Contact a P
eugeOt
dealer or a qualified workshop.
In the event of an impact
Only for the front seats, and depending on
the nature and seriousness of the impact,


the pretensioning device may be deployed
before and independently of inflation of the
airbags. It instantly tightens the seat belts
against the body of the occupants.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
the force limiter reduces the pressure of the


seat belt against the body of the occupants.
the pyrotechnic pretensioners are active


when the ignition is switched on and the
seat belt fastened.
the inertia reels are fitted with a device


which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
5
SAFetY
Seat belts

108

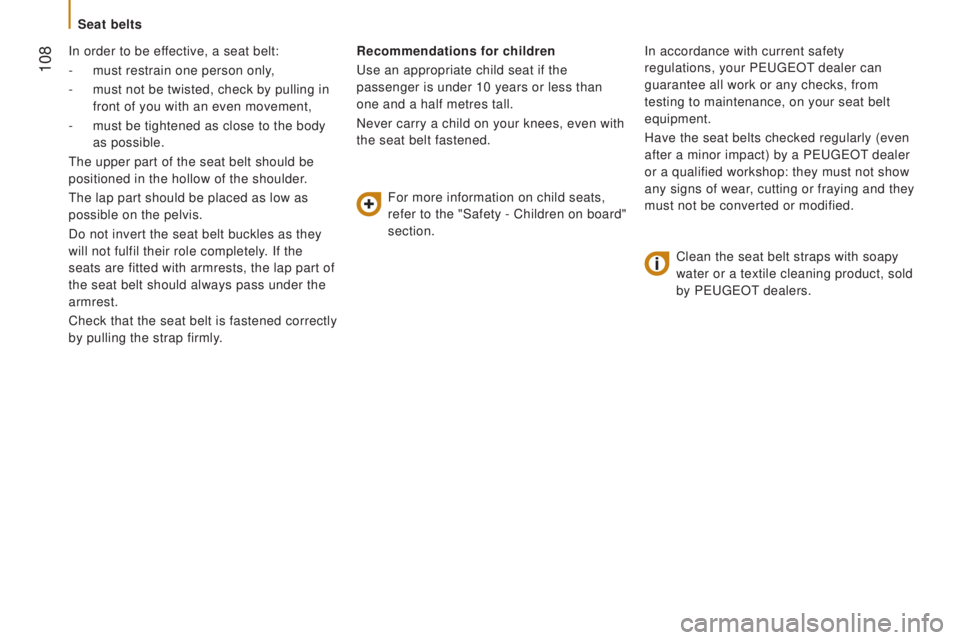

In order to be effective, a seat belt:
-
must restrain one person only,
-
must not be twisted, check by pulling in
front of you with an even movement,
-
must be tightened as close to the body
as possible.
the upper part of the seat belt should be


positioned in the hollow of the shoulder.
the lap part should be placed as low as


possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.recommendations for children
use an appropriate child seat if the


passenger is under 10 years or less than
one and a half metres tall.
Never carry a child on your knees, even with
the seat belt fastened.
For more information on child seats,
refer to the "Safety - Children on board"
section. In accordance with current safety
regulations, your P
eugeOt dealer can
guarantee all work or any checks, from


testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly (even
after a minor impact) by a P
eugeOt dealer
or a qualified workshop: they must not show


any signs of wear, cutting or fraying and they
must not be converted or modified.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by P
eugeOt dealers.
Seat belts
