Warning/indicator lampisindicates Solution - action
Diesel
pre-heater on.the ambient temperature
necessitates pre-heating. Wait until the lamp goes off before operating the starter.
Dipped beam on.a manual selection.
turn the lighting control stalk ring to the second


position.
Main beam that the control stalk has been
pulled towards you.Pull the lighting control stalk again to return to dipped
beam.
Direction
indicators flashing with
buzzer.a change of direction using the
lighting stalk.
to the Right: press the stalk upwards.
to the Left: press the stalk downwards.
Front foglamps on.that the button on the MOD

e

control panel has been pressed. Manual selection.t

he foglamps only operate if the dipped beam
headlamps are on.
Rear foglamps on.that the button on the MOD
e

control panel has been pressed. Manual selection.


t

he lamps only operate if the dipped beam headlamps
are on. When visibility is normal, please switch them off.
Cruise control on.that the cruise control has been
selected. Manual selection.
"
e ase of use and comfort - Steering mounted controls"
section.
Instruments and controls
2
rEAdY to SEt oFF

30
boxer_en_Chap02_Pret-a-Partir_ed01-2015
Screendisplays indicates Solution - action
temperature /


Ice the ice warning,
the temperature
flashing
accompanied by
a message in
the screen.weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
"Safety - Driving safely".
Date /
t
imea setting: date,


time. a configuration via the "MOD
e "
menu. "
t
echnology on board
- Vehicle configuration" section.
Headlamp beam
height a headlamp
height setting.a position from 0 to 3
depending on the load carried Adjust using the buttons on the MOD
e control panel.
"
e ase of use and comfort - Steering mounted controls"
section.
Service spanner a service
spanner which
remains on.that a service will soon be due.
Refer to the list of checks in the warranty and
maintenance record, then have the service carried out.
Stop & Start on.
engine going into S
t
OP
mode
after the the vehicle stops. As soon as you want to move off, the warning lamp
goes off and the engine restarts automatically in S
t
ARt
mode.
flashes for a few


seconds, then
goes off. S
t
OP
mode temporarily
unavailable or automatic
operation of S
t
ARt mode.Special cases for S

t
OP
mode and S t
ARt mode.
"Ready to set of

f - Starting and stopping" section.
Instruments and controls

31
boxer_en_Chap02_Pret-a-Partir_ed01-2015
Screendisplays indicates Solution - action
g

ear shift
indicator an up arrow. the possibility of changing up. "Ready to set off -
g earbox and steering wheel" section.
Speed limiter on with "OFF".
that the limiter selected is not
active.
Manual selection.
"
e ase of use and comfort - Steering mounted controls"
section.
on. that the limiter is on.
Instruments and controls
2
rEAdY to SEt oFF

32
boxer_en_Chap02_Pret-a-Partir_ed01-2015

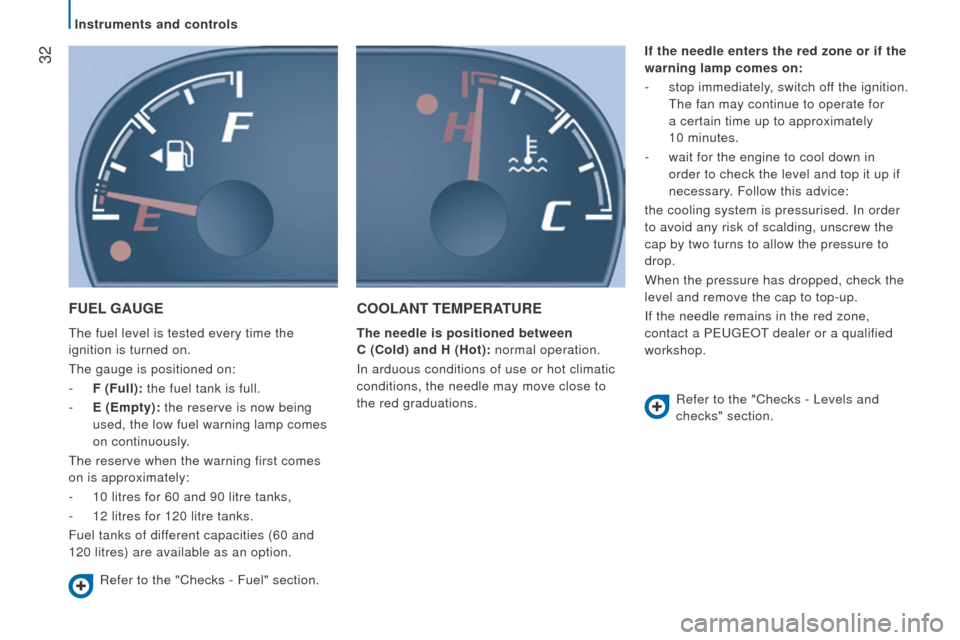

FuEL GA u GE
the fuel level is tested every time the
ignition is turned on.
t

he gauge is positioned on:
-

F (Full):
the fuel tank is full.
-

E (Empty):
the reserve is now being
used, the low fuel warning lamp comes
on continuously.
t

he reserve when the warning first comes
on is approximately:
-

10 litres for 60 and 90 litre tanks,
-


12 litres for 120 litre tanks.
Fuel tanks of dif

ferent capacities (60 and
120 litres) are available as an option.
cooLAnt tEMPErAtur E
the needle is positioned between
c

( c old) and H (Hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations. If the needle enters the red zone or if the
warning lamp comes on:
-

stop immediately
, switch off the ignition.
t

he fan may continue to operate for
a certain time up to approximately
10 minutes.
-
wait for the engine to cool down in

order to check the level and top it up if
necessary. Follow this advice:
the cooling system is pressurised. In order
to avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top-up.
If the needle remains in the red zone,
contact a P euge O t dealer or a qualified
workshop.
Refer to the "Checks - Fuel" section. Refer to the "Checks - Levels and
checks" section.
Instruments and controls

33
boxer_en_Chap02_Pret-a-Partir_ed01-2015
EMISSIonS controLS
eOBD (european On Board Diagnosis)
is a diagnostics system which complies
with, among others, the standards on the
authorised emissions of:
-

CO (carbon monoxide),
-


HC (unburnt hydrocarbons),
-


NOx (nitrous oxides) or particles,

detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
tYrE undEr-InFLAt I on d E t E ct I on
System which automatically checks the
pressures of the tyres while driving.
t

he tyre under-inflation detection
system is an aid to driving which does
not replace the need for vigilance on
the part of the driver.
t
his system does not avoid the need
to check the tyre pressures regularly
(including the spare wheel) and before a
long journey.
Driving with under-inflated tyres increases
fuel consumption.
t

he system continuously monitors the
pressures of the four tyres, as soon as the
vehicle is moving.
A pressure sensor is located in the valve of
each tyre.
t

he system triggers an alert if a drop in
pressure is detected in one or more tyres.
t

he tyre pressures must be checked
when the tyres cold (vehicle stopped
for 1 hour or after driving for less then
6 miles (10 km) at moderate speed).
Otherwise, add 0.3 bar to the values
indicated on the label.
t

he tyre pressures for your vehicle can be
found on the tyre pressure label.t
he driver is warned of any
malfunction of this emission
control system by the illumination
of this specific warning lamp in
the instrument panel.
t

here is a risk of damage to the catalytic
converter. Have it checked by a P
euge
O
t

dealer or a qualified workshop.
to locate it, refer to the "

t
echnical

data
- Identification markings" section.
Driving with under-inflated tyres
adversely affects road holding, extends
braking distances and causes premature
tyre wear, particularly under arduous
conditions (vehicle loaded, high speed, long
journey).
Instruments and controls
2
rEAdY to SEt oFF

34
boxer_en_Chap02_Pret-a-Partir_ed01-2015
under-inflation alert
The alert is given by the fixed
illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the
display of a message.
In the event of a problem on one of the
tyres, the symbol or the message appears,
according to equipment, to identify it.
-

Reduce speed, avoid sudden steering

movements or harsh brake applications.
-

Stop as soon as it is safe to do so.
-


In the event of a puncture, use the

temporary puncture repair kit or the
spare wheel (according to equipment).
-

In the event of under-inflation:
●


if you have a compressor
, the one
in the temporary puncture repair
kit for example, check the four tyre
pressures when cold,


or
●

if it is not possible to check the

tyre pressures at the time, drive
carefully at reduced speed and go to
the nearest P
euge O t
dealer or a

qualified workshop.t he loss of pressure detected does not
always lead to visible deformation of
the tyre.
Do not rely on just a visual check.
t

he alert is maintained until the tyre or
tyres concerned is reinflated, repaired
or replaced.
operating fault
the flashing and then fixed
illumination of this warning lamp
accompanied by the illumination
of the service warning lamp, and
depending on equipment, the display of a
message indicates a fault with the system.
In this case, monitoring of the tyre pressures
is not assured.
t

his alert is also displayed when one or
more wheels is not fitted with a sensor.
g

o to a P
euge O t
dealer or a qualified

workshop

to have the system checked or,
following the repair of a puncture, to have
the original wheel, equipped with a sensor,
refitted.
Instruments and controls

35
boxer_en_Chap02_Pret-a-Partir_ed01-2015

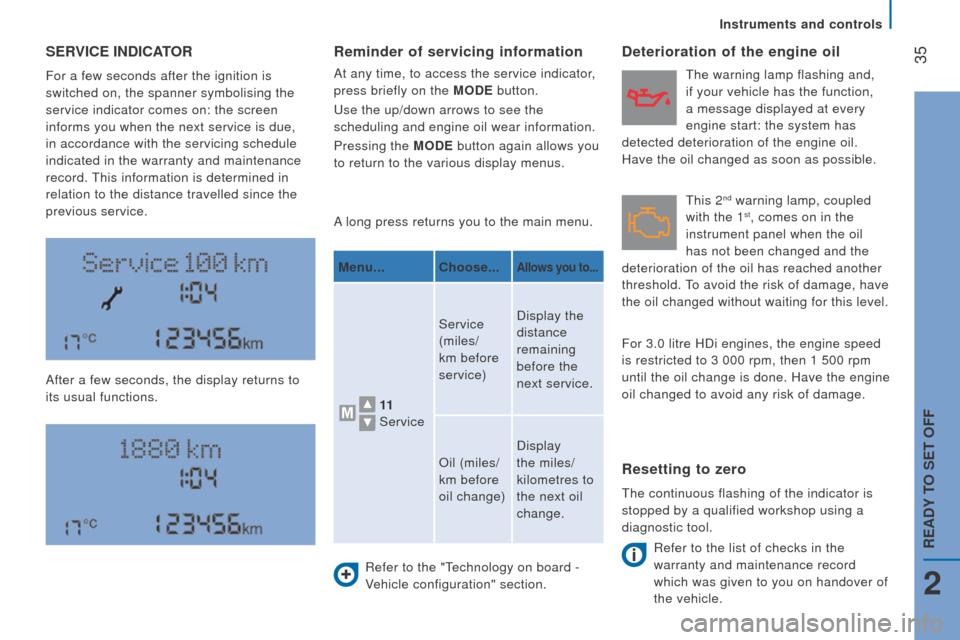

SErVIc E I nd I c At or
For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the servicing schedule
indicated in the warranty and maintenance
record.
t

his information is determined in
relation to the distance travelled since the
previous service.
After a few seconds, the display returns to
its usual functions. A long press returns you to the main menu.
Refer to the "
t
echnology on board -

Vehicle configuration" section.
deterioration of the engine oil
Refer to the list of checks in the
warranty and maintenance record
which was given to you on handover of
the vehicle.
reminder of servicing information
At any time, to access the service indicator,
press briefly on the M od E button.
u

se the up/down arrows to see the
scheduling and engine oil wear information.
Pressing the M
od E button again allows you
to return to the various display menus.
Menu...
c

hoose...
Allows you to...
11
Service Service
(miles/
km before
service)
Display the
distance
remaining
before the
next service.
Oil (miles/
km before
oil change) Display
the miles/
kilometres to
the next oil
change.
resetting to zero
the continuous flashing of the indicator is
stopped by a qualified workshop using a
diagnostic tool.
t
his 2
nd warning lamp, coupled
with the 1st, comes on in the
instrument panel when the oil
has not been changed and the
deterioration of the oil has reached another
threshold.
to avoid the risk of damage, have


the oil changed without waiting for this level.
t

he warning lamp flashing and,
if your vehicle has the function,
a message displayed at every
engine start: the system has
detected deterioration of the engine oil.
Have the oil changed as soon as possible.
For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.
Instruments and controls
2
rEAdY to SEt oFF

36
boxer_en_Chap02_Pret-a-Partir_ed01-2015
to change gear easily, always depress the
clutch pedal fully.
to prevent the mat from becoming caught


under the pedal:
-

ensure that the mat is positioned

correctly,
-

never fit one mat on top of another
.
Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
MAnuAL GEA r B ox
r

everse gear
Raise the collar under the gear knob to
engage reverse gear. Never engage reverse gear before the
vehicle is completely stationary.
t

he lever should be moved slowly to reduce
the noise on engaging reverse gear.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged; an
audible signal is heard.
Refer to the " technology on board -
Parking sensors" section.
GEAr SHIFt IndIcAt or
Depending on the engine or version, this
system allows fuel consumption to be
reduced by suggesting when to change up.
t

he gear engagement recommendations
should not be considered to be compulsory.
t

his because the configuration of the
road, the traffic density and safety remain
determining factors when choosing the
best gear.
t

herefore, the driver remains
responsible for deciding whether or not to
follow the advice given by the system.
t

he system never recommends engaging
first gear or reverse, or changing down.
Gearbox and steering wheel

37
boxer_en_Chap02_Pret-a-Partir_ed01-2015
StEErInG WHEEL A dju S t ME nt
With the vehicle stationary, first adjust your
seat to the most suitable position.
Release the steering wheel adjustment
mechanism by pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock the mechanism by pushing the lever
fully forwards.
operation
the information appears in the
instrument panel screen in the
form of the
SHIF t indicator,
accompanied by an upward arrow
to signal to the driver that they can change up.
t

he system adapts its gear change
recommendations according to the driving
conditions (slope, load, ...) and demands
from the driver (for power, acceleration,
braking,

...).
Switching off
this system cannot be deactivated by the
driver .
As a safety measure, these operations
must not be carried out while driving.
Gearbox and steering wheel
2
rEAdY to SEt oFF

38
boxer_en_Chap02_Pret-a-Partir_ed01-2015
IGnItIon SWItcH
StoP position: steering lock.
t
he ignition is off.
MA
r position: ignition on.
Certain accessories can be used.
AV V position: starter.
t

he starter is operated.
Starting the engine
Engine immobiliser warning lamp
If this warning lamp comes

on, use another key and have
the faulty key checked by a
P
euge O t
dealer
.
d

iesel pre-heating warning lamp
With the parking brake applied
and the gearbox in neutral, turn
the key to the MA
r position.
Wait for this warning lamp to go off then
operate the starter (AV V position) until the
engine starts.
t

he period of illumination of the warning
lamp depends on the climatic conditions.
d
oor or bonnet open warning
lamp
If this warning lamp comes on,

check that the doors and bonnet
are closed correctly.
Switching off the engine
Stop the vehicle and apply the parking
brake, then, with the engine at idle, return
the key to the S
to P position.
In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.
Avoid attaching heavy objects to the
key or the remote control, which would
weigh down on its blade in the ignition
switch and could cause a malfunction.
It could adversely affect the deployment of
the front airbag. With the engine hot, the warning lamp comes
on for a few moments, you can start the engine
without waiting.
As soon as the engine is running, release the key.
Starting and switching off
