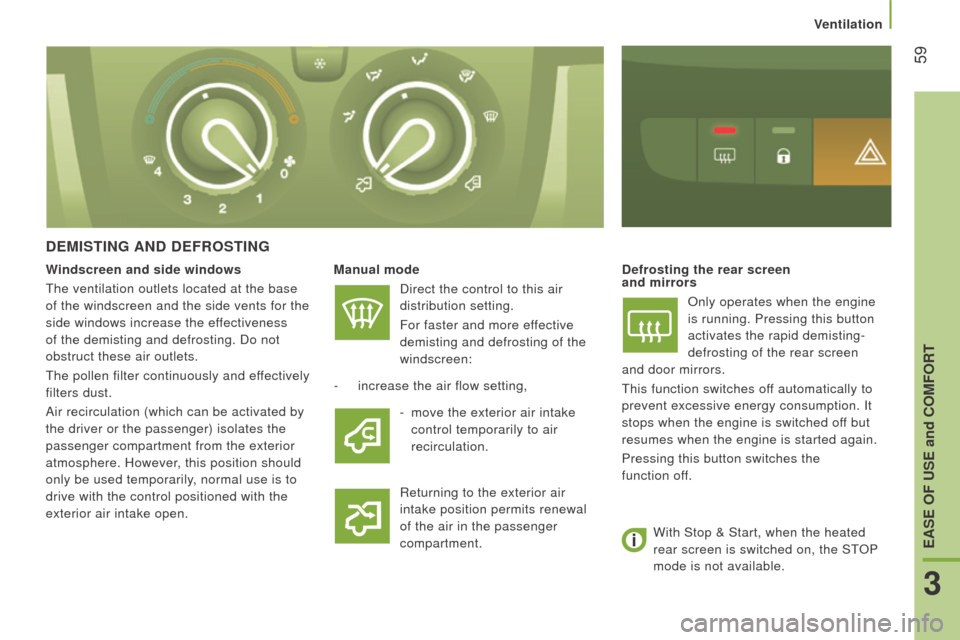

dEMIStInG And dEF ro S t I n G
Manual mode
Direct the control to this air
distribution setting.
For faster and more ef

fective
demisting and defrosting of the
windscreen:d efrosting the rear screen

and mirrors
Only operates when the engine
is running. Pressing this button
activates the rapid demisting-
defrosting of the rear screen
and
door mirrors.
t

his function switches off automatically to
prevent excessive energy consumption. It
stops when the engine is switched off but
resumes when the engine is started again.
Pressing this button switches the
function
off.
-

increase the air flow setting, Returning to the exterior air


intake position permits renewal
of the air in the passenger
compartment.
Windscreen and side windows
t

he ventilation outlets located at the base
of the windscreen and the side vents for the
side windows increase the effectiveness
of the demisting and defrosting. Do not
obstruct these air outlets.
t

he pollen filter continuously and effectively
filters dust.
Air recirculation (which can be activated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, normal use is to
drive with the control positioned with the
exterior air intake open. -

move the exterior air intake

control temporarily to air
recirculation.
With Stop & Start, when the heated
rear screen is switched on, the S
t
OP

mode is not available.
Ventilation
3
EASE oF uSE and coMFort

60
boxer_en_Chap03_ergo-et-confort_ed01-2015
corrEct uSE oF tHE AIr
cond I t I on I n G

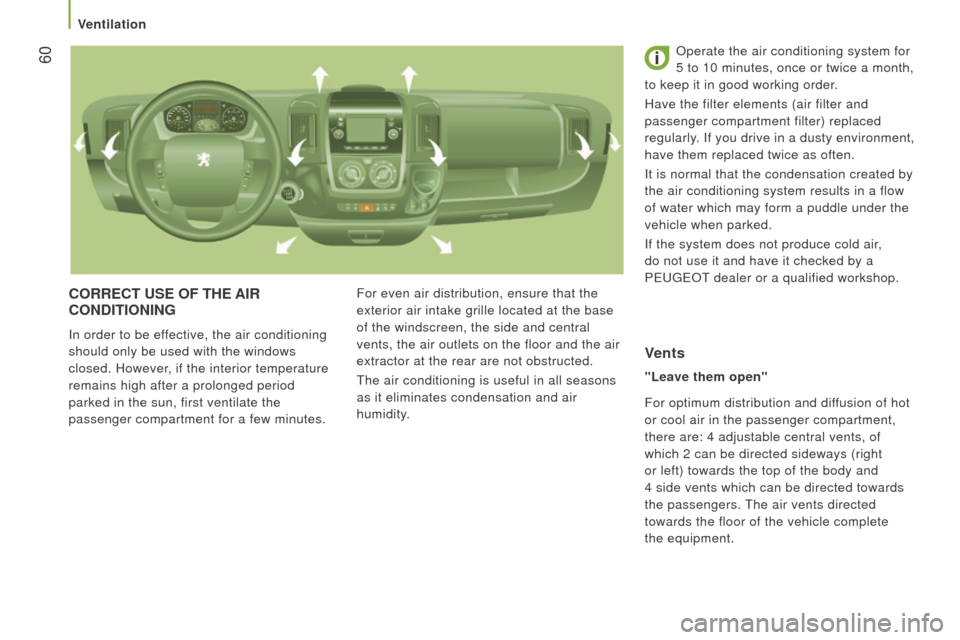

In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
remains high after a prolonged period
parked in the sun, first ventilate the
passenger compartment for a few minutes. For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen, the side and central
vents, the air outlets on the floor and the air
extractor at the rear are not obstructed.
t

he air conditioning is useful in all seasons
as it eliminates condensation and air
humidity. Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air,
do not use it and have it checked by a
P euge O t
dealer or a qualified workshop.
"Leave them open"
For optimum distribution and dif
fusion of hot
or cool air in the passenger compartment,
there are: 4 adjustable central vents, of
which 2 can be directed sideways (right
or left) towards the top of the body and
4
side vents which can be directed towards
the passengers.
t

he air vents directed
towards the floor of the vehicle complete
the
equipment.
Vents
Ventilation

61
boxer_en_Chap03_ergo-et-confort_ed01-2015
HEAtI n G / M A nu AL AI r
cond I t I on I n G

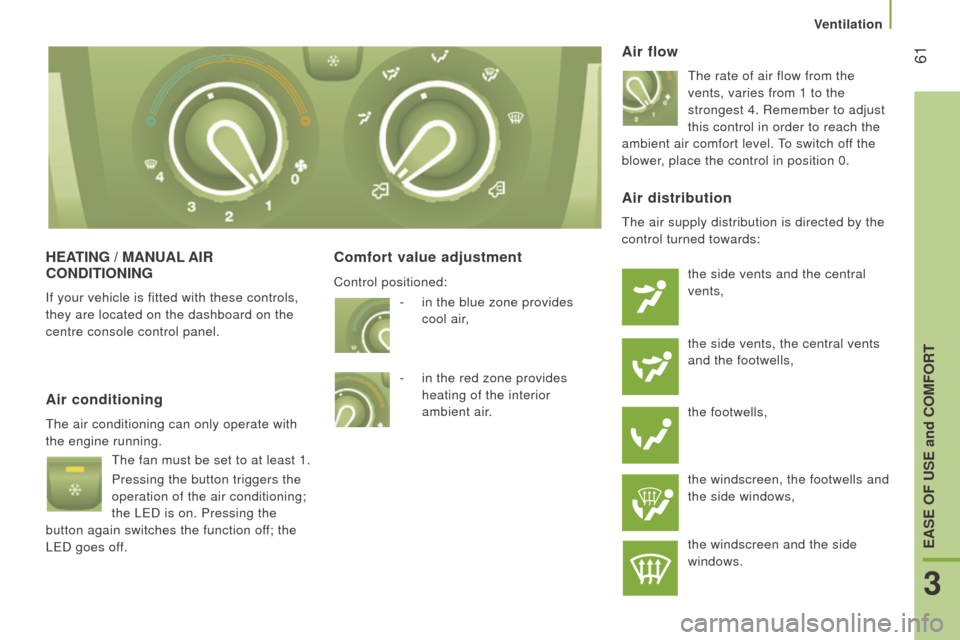

If your vehicle is fitted with these controls,
they are located on the dashboard on the
centre console control panel.
comfort value adjustment Air flow
the rate of air flow from the
vents, varies from 1 to the
strongest 4. Remember to adjust
this control in order to reach the
ambient air comfort level.
to switch of

f the
blower, place the control in position 0.
Air conditioning
the air conditioning can only operate with
the engine running.
t

he fan must be set to at least 1.
Pressing the button triggers the
operation of the air conditioning;
the L
e D is on. Pressing the
button again switches the function off; the
L
e D goes off.
Air distribution
the air supply distribution is directed by the
control turned towards:
the side vents and the central

vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the footwells and
the side windows,
the windscreen and the side
windows.
-

in the blue zone provides


cool

air,
-

in the red zone provides


heating of the interior
ambient

air.
Control positioned:
Ventilation
3
EASE oF uSE and coMFort

62
boxer_en_Chap03_ergo-et-confort_ed01-2015

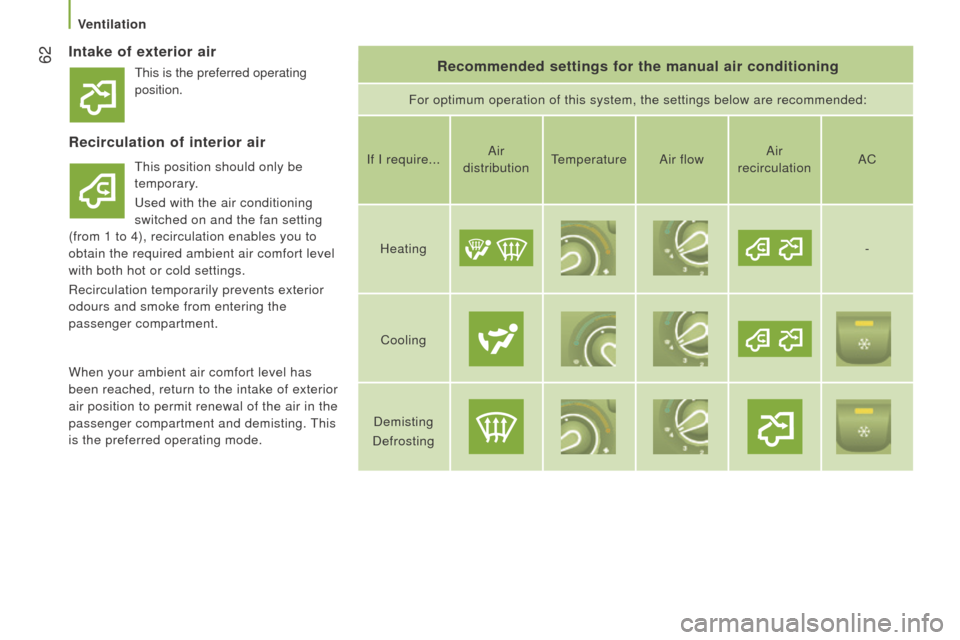

Intake of exterior airrecommended settings for the manual air conditioning
For optimum operation of this system, the settings below are recommended\
:
recirculation of interior air
this position should only be
temporary .
u

sed with the air conditioning
switched on and the fan setting
(from 1 to 4), recirculation enables you to
obtain the required ambient air comfort level
with both hot or cold settings.
Recirculation temporarily prevents exterior
odours and smoke from entering the
passenger compartment. If I require...
Air
distributiontemperature Air flow Air
recirculation AC
Heating -
Cooling
Demisting
Defrosting
When your ambient air comfort level has
been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and demisting.
t

his
is the preferred operating mode.
t
his is the preferred operating
position.
Ventilation

63
boxer_en_Chap03_ergo-et-confort_ed01-2015

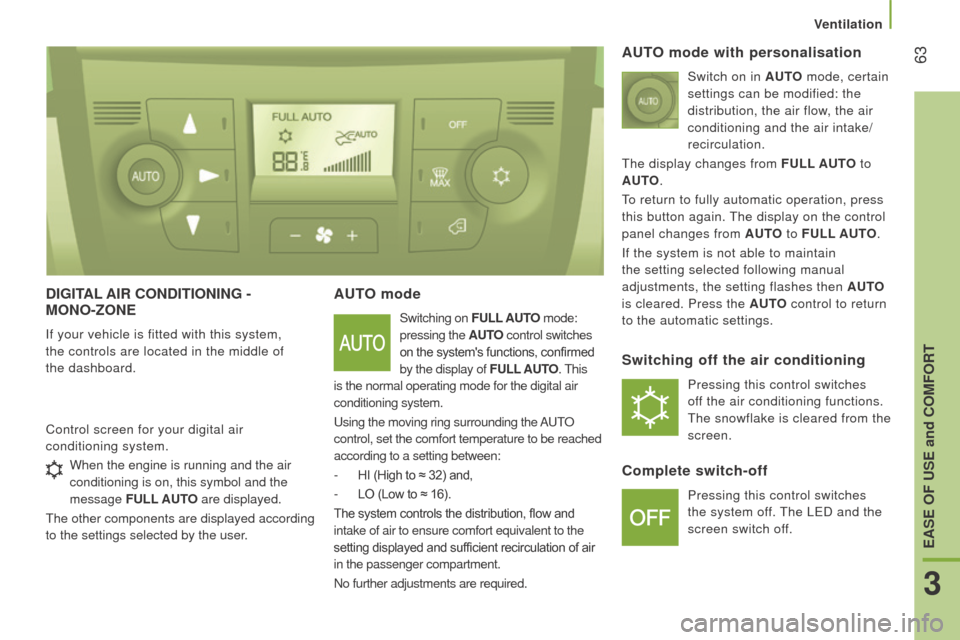

dIGItAL AIr cond I t I on I n G -
Mono-zon E
If your vehicle is fitted with this system,
the controls are located in the middle of
the
dashboard.
Auto mode
Switching on FuLL Auto mode:
pressing the A uto control switches
on the system's functions, confirmed
by the display of F
u LL A uto . t his
is the normal operating mode for the digital air
conditioning system.
u

sing the moving ring surrounding the A ut
O

control, set the comfort temperature to be reached
according to a setting between:
-
HI (High to ≈

32) and,
-
LO (Low to ≈

16).
The system controls the distribution, flow and
intake of air to ensure comfort equivalent to the
setting displayed and sufficient recirculation of air
in the passenger compartment.
No further adjustments are required.
Control screen for your digital air
conditioning system.
Auto mode with personalisation
Switch on in Auto mode, certain
settings can be modified: the
distribution, the air flow, the air
conditioning and the air intake/
recirculation.
t

he display changes from F u LL A uto to
A
uto
.
to return to fully automatic operation, press


this button again.
t

he display on the control
panel changes from A
uto to F u LL A uto .
If the system is not able to maintain
the setting selected following manual
adjustments, the setting flashes then A
uto

is cleared. Press the

A uto control to return
to the automatic settings.
Switching off the air conditioning
Pressing this control switches
off the air conditioning functions.
t

he snowflake is cleared from the
screen.
complete switch-off
Pressing this control switches
the system off.
t
he L e D and the
screen switch off.
When the engine is running and the air
conditioning is on, this symbol and the
message F
u
LL A
uto
are displayed.
t

he other components are displayed according
to the settings selected by the user.
Ventilation
3
EASE oF uSE and coMFort

64
boxer_en_Chap03_ergo-et-confort_ed01-2015

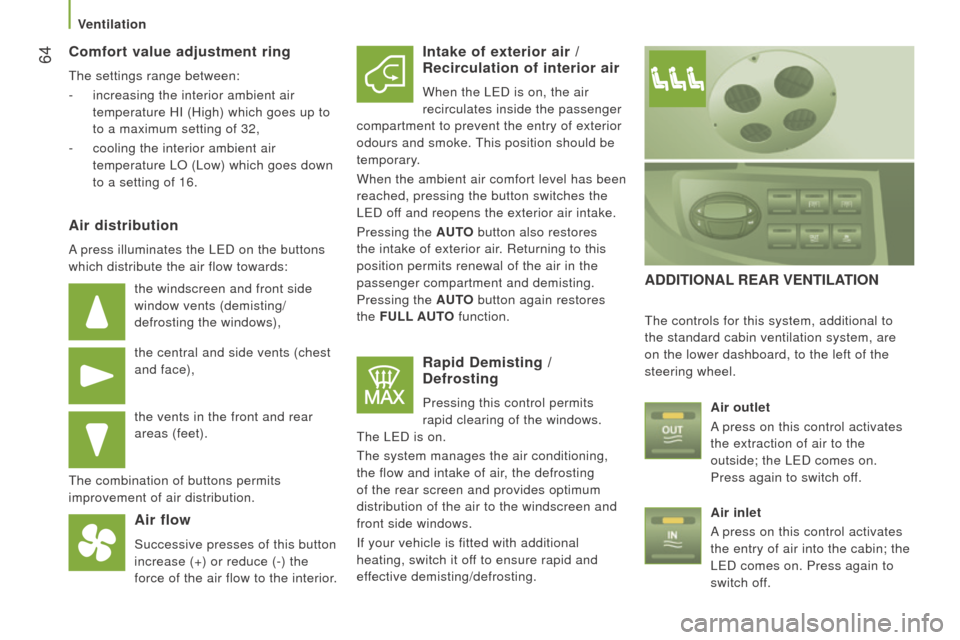

comfort value adjustment ring
the settings range between:
-
increasing the interior ambient air

temperature HI (High) which goes up to
to a maximum setting of 32,
-

cooling the interior ambient air

temperature LO (Low) which goes down
to a setting of 16.
Air distribution
A press illuminates the LeD on the buttons
which distribute the air flow towards:
the windscreen and front side

window vents (demisting/
defrosting the windows),
the central and side vents (chest
and face),
the vents in the front and rear
areas (feet).
t

he combination of buttons permits
improvement of air distribution.
Air flow
Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.
Intake of exterior air / r ecirculation of interior air
When the LeD is on, the air
recirculates inside the passenger
compartment to prevent the entry of exterior
odours and smoke.
t

his position should be
temporary.
When the ambient air comfort level has been
reached, pressing the button switches the
L
e
D off and reopens the exterior air intake.
Pressing the A
uto button also restores
the intake of exterior air. Returning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the A
uto button again restores
the F
u
LL A uto function.
rapid demisting / defrosting
Pressing this control permits
rapid clearing of the windows.
t

he L
e
D is on.
t

he system manages the air conditioning,
the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.
If your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.
AddItIonAL r EA r VE nt ILAt I on
the controls for this system, additional to
the standard cabin ventilation system, are
on the lower dashboard, to the left of the
steering wheel.
Air outlet
A press on this control activates
the extraction of air to the
outside; the L
e D comes on.
Press again to switch off.
Air inlet
A press on this control activates
the entry of air into the cabin; the
L
e D comes on. Press again to
switch off.
Ventilation

65
boxer_en_Chap03_ergo-et-confort_ed01-2015

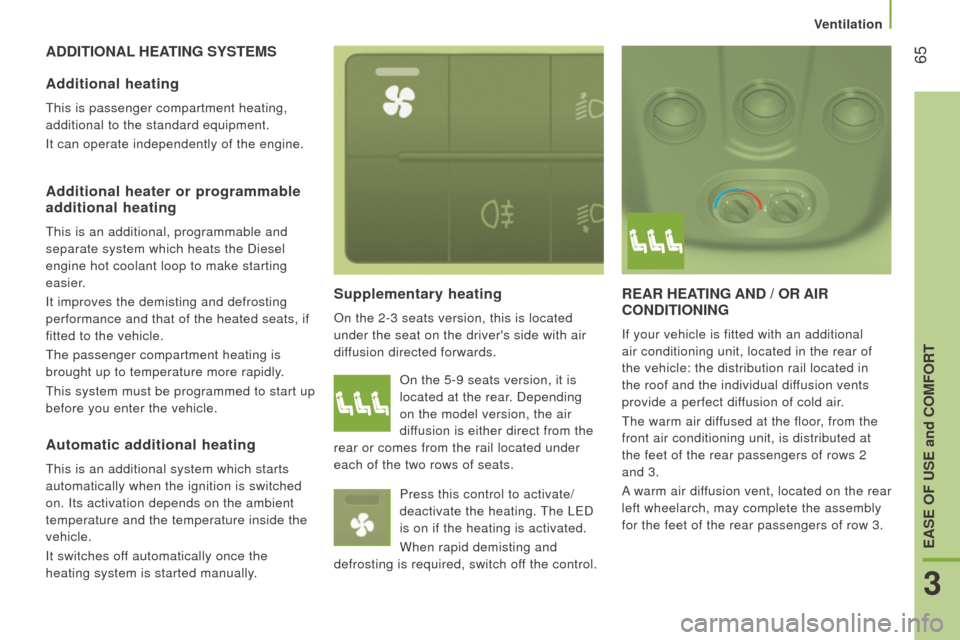

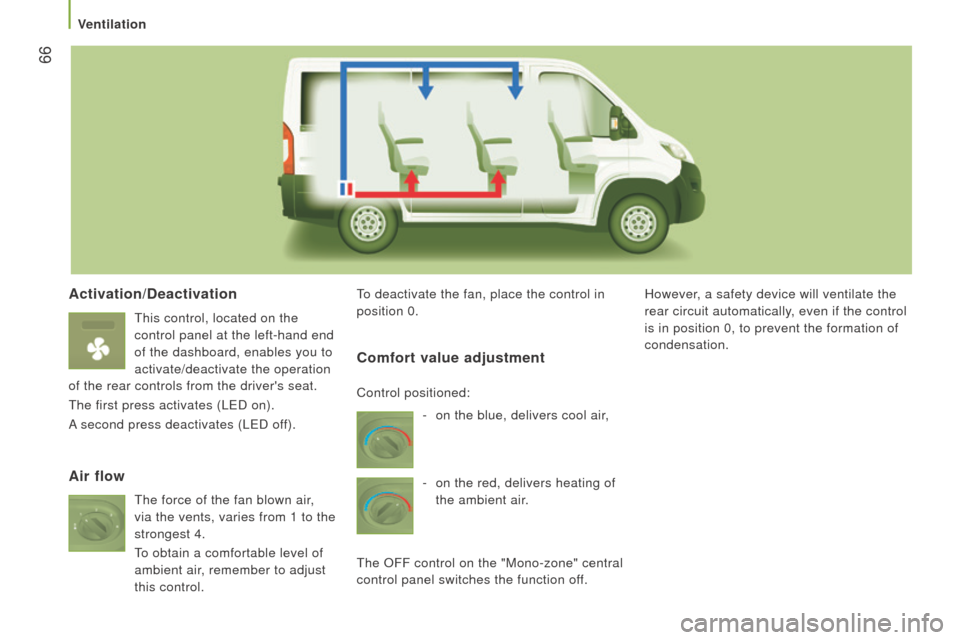

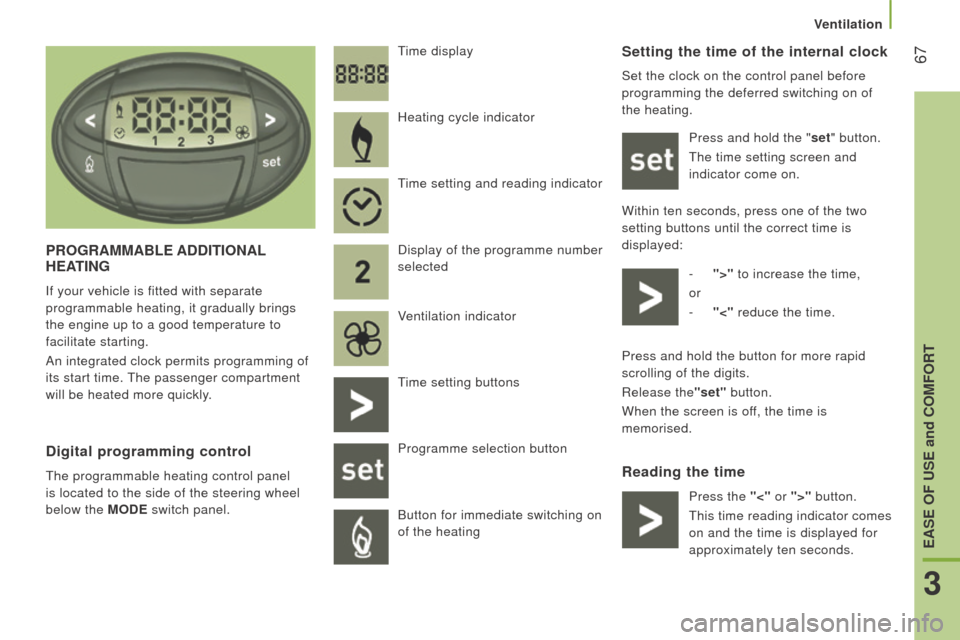

AddItIonAL HEAt I n G SYS t EMS
Supplementary heating
On the 2-3 seats version, this is located
under the seat on the driver's side with air
diffusion directed forwards.
rEAr HEAtI n G A nd / or AI r
cond I t I on I n G
If your vehicle is fitted with an additional
air conditioning unit, located in the rear of
the vehicle: the distribution rail located in
the roof and the individual diffusion vents
provide a perfect diffusion of cold air.
t

he warm air diffused at the floor, from the
front air conditioning unit, is distributed at
the feet of the rear passengers of rows 2
and 3.
A warm air diffusion vent, located on the rear
left wheelarch, may complete the assembly
for the feet of the rear passengers of row 3.
Additional heating
this is passenger compartment heating,
additional to the standard equipment.
It can operate independently of the engine.
Additional heater or programmable
additional heating
this is an additional, programmable and
separate system which heats the Diesel
engine hot coolant loop to make starting
easier.
It improves the demisting and defrosting
performance and that of the heated seats, if
fitted to the vehicle.
t

he passenger compartment heating is
brought up to temperature more rapidly.
t

his system must be programmed to start up
before you enter the vehicle. On the 5-9 seats version, it is
located at the rear. Depending
on the model version, the air
diffusion is either direct from the
rear or comes from the rail located under
each of the two rows of seats.
Press this control to activate/
deactivate the heating.
t

he L e D
is on if the heating is activated.
When rapid demisting and
defrosting is required, switch off the control.
Automatic additional heating
this is an additional system which starts
automatically when the ignition is switched
on. Its activation depends on the ambient
temperature and the temperature inside the
vehicle.
It switches off automatically once the
heating system is started manually.
Ventilation
3
EASE oF uSE and coMFort

66
boxer_en_Chap03_ergo-et-confort_ed01-2015
Activation/deactivation
this control, located on the
control panel at the left-hand end
of the dashboard, enables you to
activate/deactivate the operation
of the rear controls from the driver's seat.
t

he first press activates (L e D on).
A second press deactivates (L
e D off).
to deactivate the fan, place the control in

position 0. However, a safety device will ventilate the
rear circuit automatically, even if the control
is in position 0, to prevent the formation of
condensation.
Air flow
c
omfort value adjustment
- on the blue, delivers cool air
,
-
on the red, delivers heating of

the ambient air.
t

he OFF control on the "Mono-zone" central
control panel switches the function off. Control positioned:
t

he force of the fan blown air,
via the vents, varies from 1 to the
strongest 4.
to obtain a comfortable level of


ambient air, remember to adjust
this control.
Ventilation

67
boxer_en_Chap03_ergo-et-confort_ed01-2015
Setting the time of the internal clock
Set the clock on the control panel before
programming the deferred switching on of
the heating.Press and hold the "set" button.
t

he time setting screen and
indicator come on.
Within ten seconds, press one of the two
setting buttons until the correct time is
displayed: -

">"
to increase the time,
or
-

"<"
reduce the time.
reading the time
Pro
G
r
AMMABLE

A
dd
I
t
I
on
AL
HEAt

I
n
G
If your vehicle is fitted with separate
programmable heating, it gradually brings
the engine up to a good temperature to
facilitate starting.
An integrated clock permits programming of
its start time.
t

he passenger compartment
will be heated more quickly.
time display
digital programming control
the programmable heating control panel
is located to the side of the steering wheel
below the M
od E switch panel. Heating cycle indicator
time setting and reading indicator
Display of the programme number

selected
Ventilation indicator
time setting buttons
Programme selection button
Button for immediate switching on

of the heating Press and hold the button for more rapid
scrolling of the digits.
Release the"set" button.
When the screen is off, the time is
memorised.
Press the "<" or ">" button.
t
his time reading indicator comes
on and the time is displayed for
approximately ten seconds.
Ventilation
3
EASE oF uSE and coMFort

68
boxer_en_Chap03_ergo-et-confort_ed01-2015
Immediate heating
Before switching on the heating, check that:
-
the temperature setting control is in the

" Hot air" position (red),
-

the air flow setting control is in

position
"2".
t
he "- -:- -" symbol or the
previous stored time and the
number (1, 2 or 3) corresponding
to the recalled pre-selection are
displayed for ten seconds.
n

ote: if you wish to recall the other pre-
selected times, press the "set" button
repeatedly before the ten seconds have
elapsed.
Press this button.
t

he screen and the heating cycle
indicator come on and remain
on throughout the duration of
operation.
deferred heating
Switching on can be programmed between
one minute and twenty-four hours in
advance.
You can store up to three different start
times, but programme one deferred start
only.
n

ote: if you wish to start the heating at a
fixed time each day, simply reprogramme
the stored time each day.
Press the "set" button, the screen
comes on. Within ten seconds, press the "<"

or ">"
setting
button to select the
required start time.
Setting of the stored time is confirmed by
clearing of the start time, displaying of
the pre-selection number (1, 2 or 3) and
illumination of the screen.
By default, pre-selected times are
already memorised in the system
(1 = 6 hours; 2 = 16 hours; 3 = 22 hours).
Any modification cancels and replaces the
previous pre-selected time.
If the battery is disconnected, the default
pre-selected times are restored.
cancelling the programming
Press the "set" button briefly
to clear the programmed start
time.
t

he screen illumination and the
pre-selection number (1, 2 or 3) go off.
recalling one of the pre-selected
start times
Press the "set" button as many
times as necessary until the
number corresponding to the
required pre-selected start time
(1, 2 or 3) appears.
After ten seconds, the time disappears but
remains stored while the corresponding
number (1, 2 or 3) and the screen
remain

on.
Ventilation
