YOUR BOXER IN DETAIL53

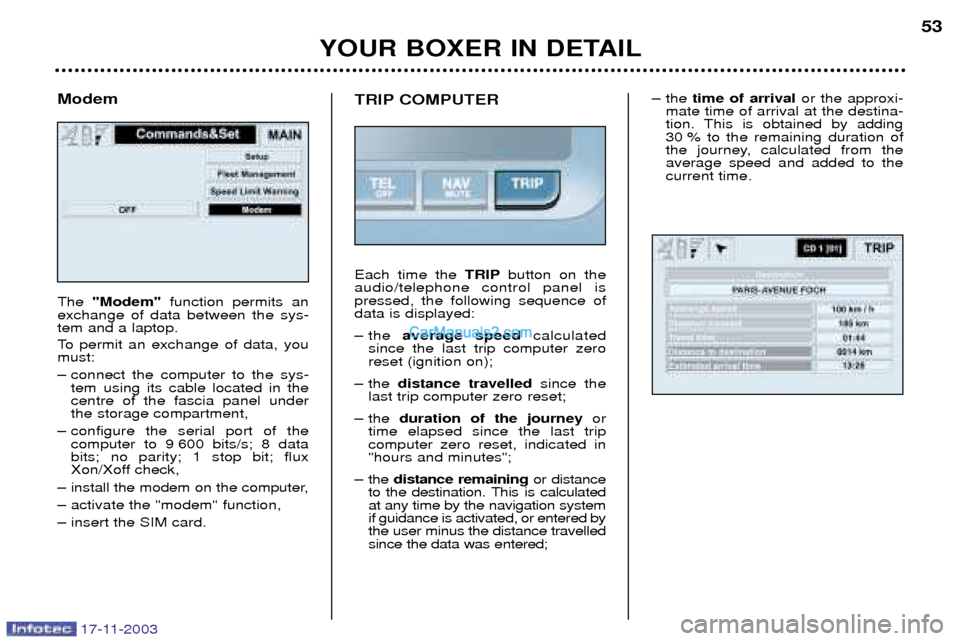

Modem The "Modem" function permits an
exchange of data between the sys- tem and a laptop.
To permit an exchange of data, you must:
Ð connect the computer to the sys- tem using its cable located in the centre of the fascia panel underthe storage compartment,
Ð configure the serial port of the computer to 9 600 bits/s; 8 databits; no parity; 1 stop bit; flux
Xon/Xoff check,
Ð install the modem on the computer,
Ð activate the "modem" function,
Ð insert the SIM card.
TRIP COMPUTER Each time the TRIPbutton on the
audio/telephone control panel is pressed, the following sequence ofdata is displayed:
Ð the average speed calculated
since the last trip computer zero reset (ignition on);
Ð the distance travelled since the
last trip computer zero reset;
Ð the duration of the journey or
time elapsed since the last tripcomputer zero reset, indicated in"hours and minutes";
Ð the distance remaining or distance
to the destination. This is calculatedat any time by the navigation systemif guidance is activated, or entered bythe user minus the distance travelledsince the data was entered; Ð the
time of arrival or the approxi-
mate time of arrival at the destina-
tion. This is obtained by adding
30 % to the remaining duration of
the journey, calculated from theaverage speed and added to thecurrent time.

17-11-2003
YOUR BOXER IN DETAIL53
Modem The "Modem" function permits an
exchange of data between the sys- tem and a laptop.
To permit an exchange of data, you must:
Ð connect the computer to the sys- tem using its cable located in the centre of the fascia panel underthe storage compartment,
Ð configure the serial port of the computer to 9 600 bits/s; 8 databits; no parity; 1 stop bit; flux
Xon/Xoff check,
Ð install the modem on the computer,
Ð activate the "modem" function,
Ð insert the SIM card.
TRIP COMPUTER Each time the TRIPbutton on the
audio/telephone control panel is pressed, the following sequence ofdata is displayed:
Ð the average speed calculated
since the last trip computer zero reset (ignition on);
Ð the distance travelled since the
last trip computer zero reset;
Ð the duration of the journey or
time elapsed since the last tripcomputer zero reset, indicated in"hours and minutes";
Ð the distance remaining or distance
to the destination. This is calculatedat any time by the navigation systemif guidance is activated, or entered bythe user minus the distance travelledsince the data was entered; Ð the
time of arrival or the approxi-
mate time of arrival at the destina-
tion. This is obtained by adding
30 % to the remaining duration of
the journey, calculated from theaverage speed and added to thecurrent time.

YOUR BOXER IN DETAIL
54

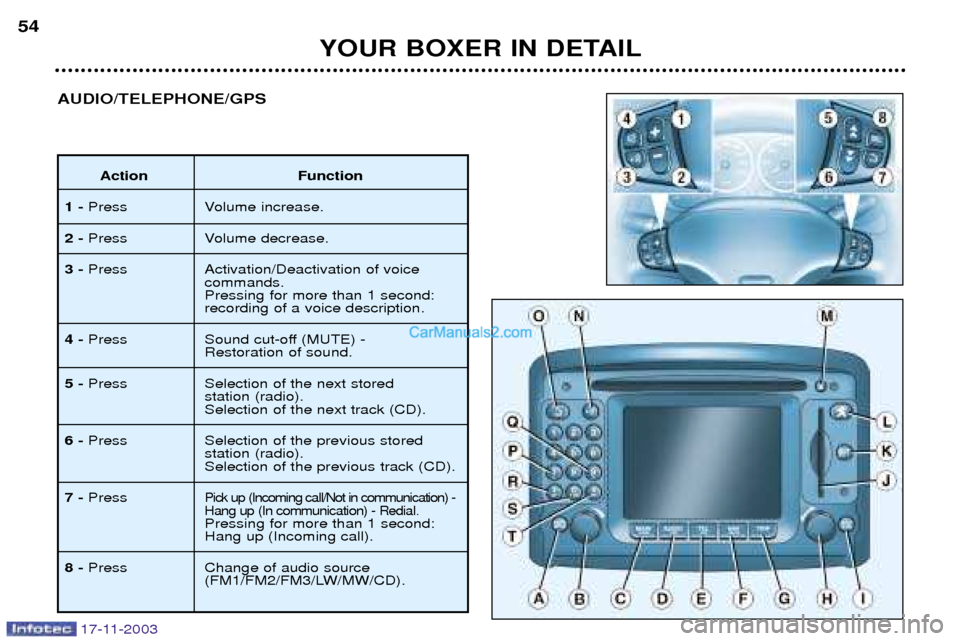

AUDIO/TELEPHONE/GPS
Action Function
1- Press Volume increase.
2- Press Volume decrease.
3- Press Activation/Deactivation of voice
commands. Pressing for more than 1 second:recording of a voice description.
4- Press Sound cut-off (MUTE) -
Restoration of sound.
5- Press Selection of the next stored
station (radio).Selection of the next track (CD).
6- Press Selection of the previous stored
station (radio).Selection of the previous track (CD).
7- Press
Pick up (Incoming call/Not in communication) -Hang up (In communication) - Redial.
Pressing for more than 1 second:
Hang up (Incoming call).
8- Press Change of audio source
(FM1/FM2/FM3/LW/MW/CD).
17-11-2003

YOUR BOXER IN DETAIL55

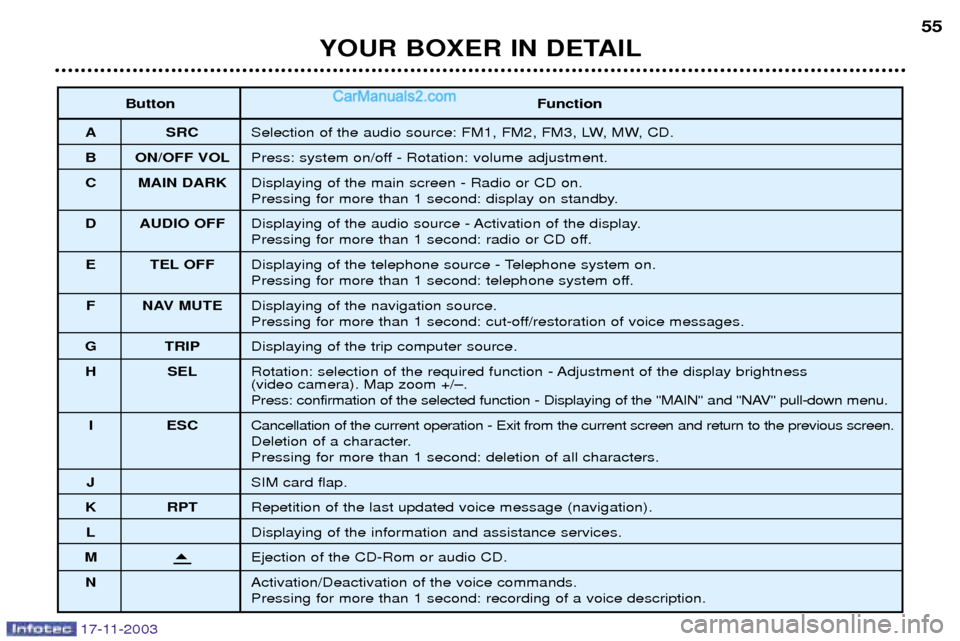

Button Function
A SRC Selection of the audio source: FM1, FM2, FM3, LW, MW, CD.
B ON/OFF VOL Press: system on/off - Rotation: volume adjustment.
C MAIN DARK Displaying of the main screen - Radio or CD on.
Pressing for more than 1 second: display on standby.
D AUDIO OFF Displaying of the audio source - Activation of the display.
Pressing for more than 1 second: radio or CD off.
E TEL OFF Displaying of the telephone source - Telephone system on.
Pressing for more than 1 second: telephone system off.
F NAV MUTE Displaying of the navigation source.
Pressing for more than 1 second: cut-off/restoration of voice messages.
G TRIP Displaying of the trip computer source.
H SEL Rotation: selection of the required function - Adjustment of the display brightness (video camera). Map zoom +/Ð.
Press: confirmation of the selected function - Displaying of the "MAIN" and "NAV" pull-down menu.
I ESC Cancellation of the current operation - Exit from the current screen and return to the previous screen.
Deletion of a character.Pressing for more than 1 second: deletion of all characters.
J SIM card flap.
K RPT Repetition of the last updated voice message (navigation).
L Displaying of the information and assistance services.
M

Ejection of the CD-Rom or audio CD.
N Activation/Deactivation of the voice commands. Pressing for more than 1 second: recording of a voice description.
17-11-2003

17-11-2003
YOUR BOXER IN DETAIL
56

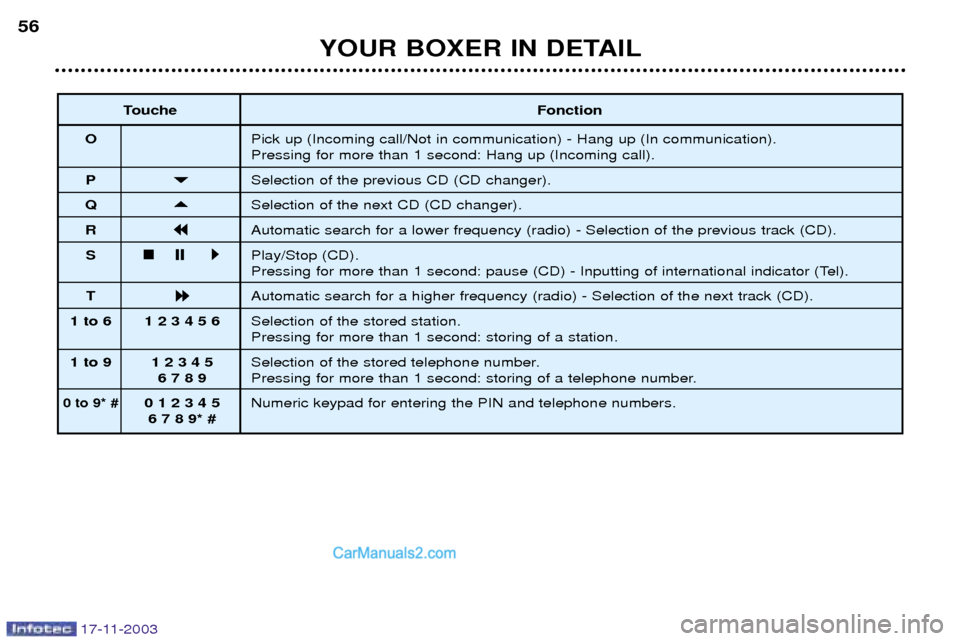

Touche Fonction
O Pick up (Incoming call/Not in communication) - Hang up (In communication). Pressing for more than 1 second: Hang up (Incoming call).
P

Selection of the previous CD (CD changer).
Q

Selection of the next CD (CD changer).
R

Automatic search for a lower frequency (radio) - Selection of the previous track (CD).
S



Play/Stop (CD).
Pressing for more than 1 second: pause (CD) - Inputting of international indicator (Tel).
T

Automatic search for a higher frequency (radio) - Selection of the next track (CD).
1 to 6 1 2 3 4 5 6 Selection of the stored station.Pressing for more than 1 second: storing of a station.
1 to 9 1 2 3 4 5 Selection of the stored telephone number.
6 7 8 9 Pressing for more than 1 second: storing of a telephone number.
0 to 9* #0 1 2 3 4 5 Numeric keypad for entering the PIN and telephone numbers.
6 7 8 9* #

17-11-2003
YOUR BOXER IN DETAIL57
GENERAL FUNCTIONS On/Off With the ignition key in the "ON"position, the audio/telephone/GPS comes on automatically.
Switching off is also automatic when the key is turned to the "STOP"position.
You can also switch the audio/telephone/GPS on or off manually by pressing knob B.
In this case, the audio/telephone/GPS can operate for 20 minutes without the ignition being switched on. Notes:
Ð the SIM card must only be removed or inserted after switching off the audio/telephone/GPS,
Ð when the audio-telephone/GPS is switched off after 20 minutes, communication is possible by pressing button O,
Ð after the ignition has been switched off, the audio/telephone/GPS can be switched on again by pressing button Lor Oor
by inserting a CD in the player.
Anti-theft system The audio/telephone/GPS is coded so that it can only operate in your vehicle. If it is installed in another vehicle, contact yo ur
PEUGEOT dealer to have the system configured. The anti-theft system is automatic and does not require any intervention on your part. VOLUME ADJUSTMENT
Turn knob Bclockwise to increase the volume of the audio-telephone/GPS or anti-clockwise to decrease the volume.
Note: the volume setting is specific to each source. It is posible to have a different setting for the radio, CD, telephone or
voice messages.
SOUND CUT-OFF/RESTORATION
To gradually restore or cut off the volume of an audio source, press the "AUDIO OFF"button.
To gradually restore or cut off the volume of the navigation source voice messages, press the "NAV MUTE"button for more
than one second. Note: during telephone calls, the volume of the other sources is cut off automatically.

17-11-2003
YOUR BOXER IN DETAIL
58

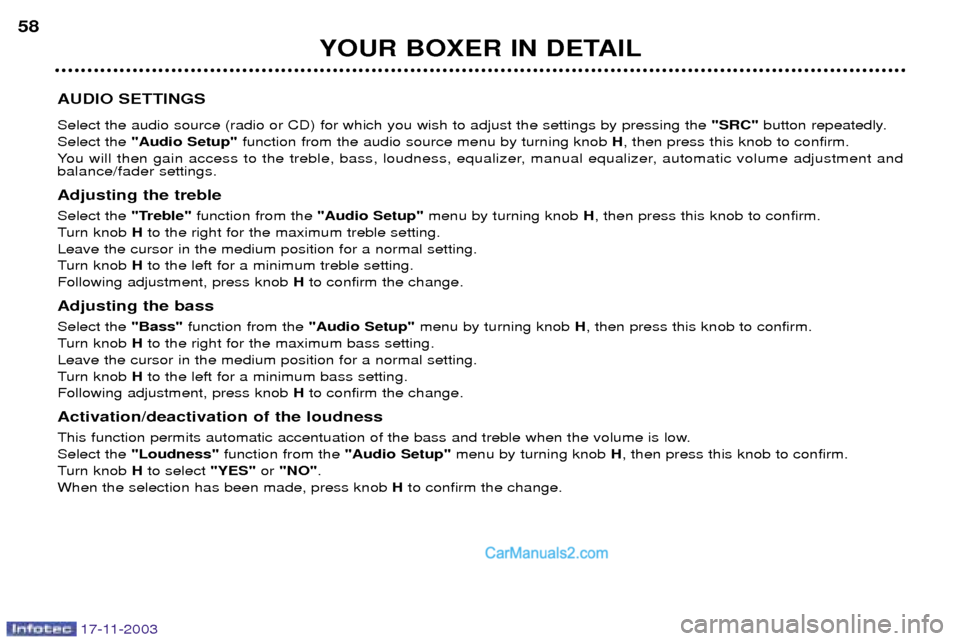

AUDIO SETTINGS Select the audio source (radio or CD) for which you wish to adjust the settings by pressing the "SRC"button repeatedly.
Select the "Audio Setup" function from the audio source menu by turning knob H, then press this knob to confirm.
You will then gain access to the treble, bass, loudness, equalizer, manual equalizer, automatic volume adjustment and balance/fader settings.
Adjusting the treble Select the "Treble"function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Turn knob Hto the right for the maximum treble setting.
Leave the cursor in the medium position for a normal setting.
Turn knob Hto the left for a minimum treble setting.
Following adjustment, press knob Hto confirm the change.
Adjusting the bass Select the "Bass"function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Turn knob Hto the right for the maximum bass setting.
Leave the cursor in the medium position for a normal setting.
Turn knob Hto the left for a minimum bass setting.
Following adjustment, press knob Hto confirm the change.
Activation/deactivation of the loudness
This function permits automatic accentuation of the bass and treble when the volume is low. Select the "Loudness" function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Turn knob Hto select "YES"or "NO" .
When the selection has been made, press knob Hto confirm the change.

17-11-2003
YOUR BOXER IN DETAIL59

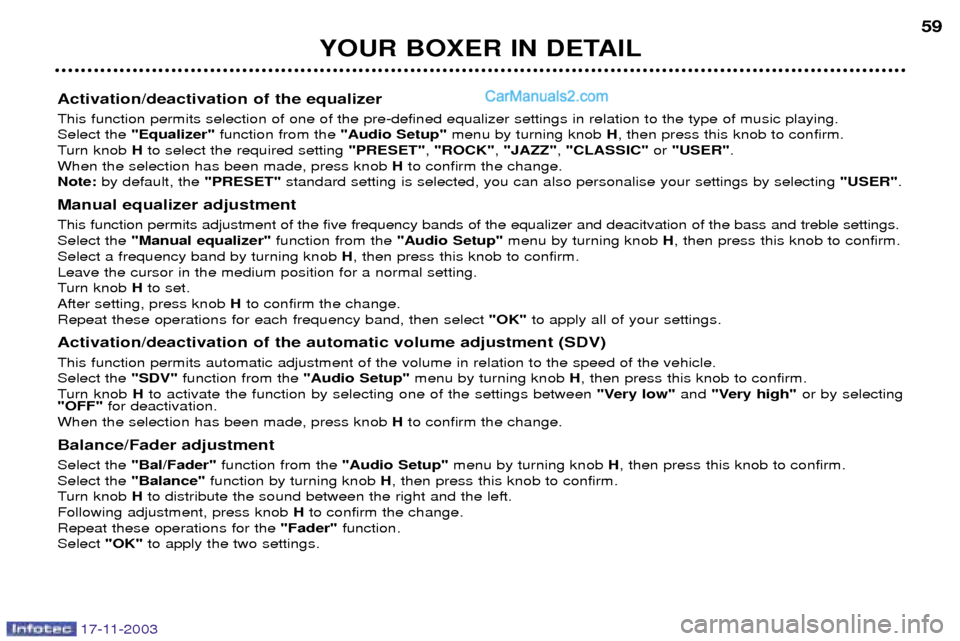

Activation/deactivation of the equalizer This function permits selection of one of the pre-defined equalizer settings in relation to the type of music playing. Select the "Equalizer" function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Turn knob Hto select the required setting "PRESET", "ROCK" , "JAZZ" , "CLASSIC" or "USER" .
When the selection has been made, press knob Hto confirm the change.
Note: by default, the "PRESET"standard setting is selected, you can also personalise your settings by selecting "USER".
Manual equalizer adjustment This function permits adjustment of the five frequency bands of the equalizer and deacitvation of the bass and treble settings. Select the "Manual equalizer" function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Select a frequency band by turning knob H, then press this knob to confirm.
Leave the cursor in the medium position for a normal setting.
Turn knob Hto set.
After setting, press knob Hto confirm the change.
Repeat these operations for each frequency band, then select "OK"to apply all of your settings.
Activation/deactivation of the automatic volume adjustment (SDV) This function permits automatic adjustment of the volume in relation to the speed of the vehicle. Select the "SDV"function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Turn knob Hto activate the function by selecting one of the settings between "Very low"and "Very high" or by selecting
"OFF" for deactivation.
When the selection has been made, press knob Hto confirm the change.
Balance/Fader adjustment Select the "Bal/Fader" function from the "Audio Setup"menu by turning knob H, then press this knob to confirm.
Select the "Balance" function by turning knob H, then press this knob to confirm.
Turn knob Hto distribute the sound between the right and the left.
Following adjustment, press knob Hto confirm the change.
Repeat these operations for the "Fader"function.
Select "OK"to apply the two settings.

17-11-2003
YOUR BOXER IN DETAIL
60

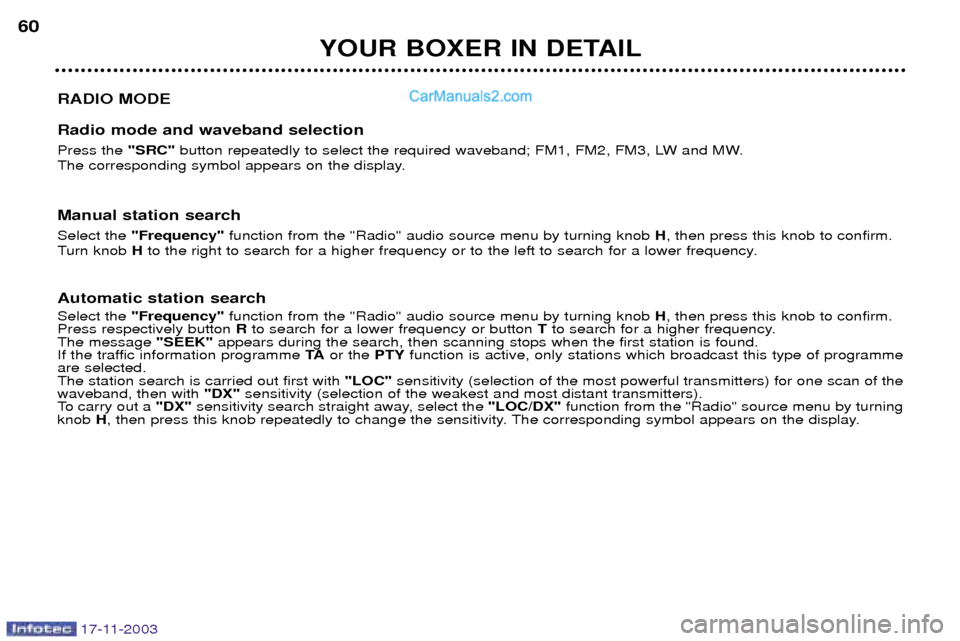

RADIO MODE Radio mode and waveband selection Press the "SRC"button repeatedly to select the required waveband; FM1, FM2, FM3, LW and MW.
The corresponding symbol appears on the display. Manual station search Select the "Frequency" function from the "Radio" audio source menu by turning knob H, then press this knob to confirm.
Turn knob Hto the right to search for a higher frequency or to the left to search for a lower frequency.
Automatic station search Select the "Frequency" function from the "Radio" audio source menu by turning knob H, then press this knob to confirm.
Press respectively button Rto search for a lower frequency or button Tto search for a higher frequency.
The message "SEEK"appears during the search, then scanning stops when the first station is found.
If the traffic information programme TAor the PTYfunction is active, only stations which broadcast this type of programme
are selected. The station search is carried out first with "LOC"sensitivity (selection of the most powerful transmitters) for one scan of the
waveband, then with "DX"sensitivity (selection of the weakest and most distant transmitters).
To carry out a "DX"sensitivity search straight away, select the "LOC/DX"function from the "Radio" source menu by turning
knob H, then press this knob repeatedly to change the sensitivity. The corresponding symbol appears on the display.

17-11-2003
YOUR BOXER IN DETAIL61

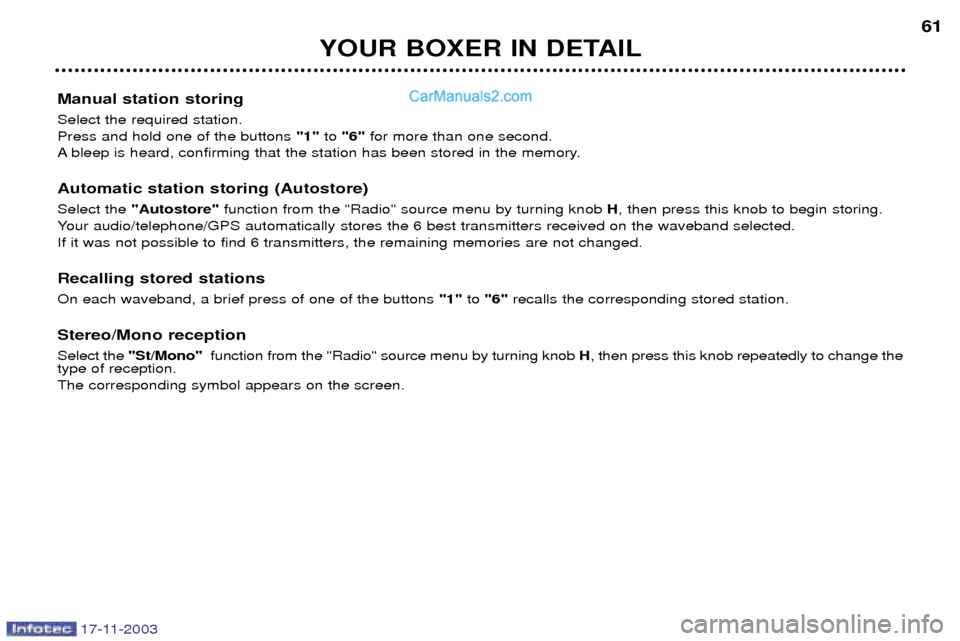

Manual station storing Select the required station. Press and hold one of the buttons "1"to "6" for more than one second.
A bleep is heard, confirming that the station has been stored in the memory.
Automatic station storing (Autostore) Select the "Autostore" function from the "Radio" source menu by turning knob H, then press this knob to begin storing.
Your audio/telephone/GPS automatically stores the 6 best transmitters received on the waveband selected. If it was not possible to find 6 transmitters, the remaining memories are not changed. Recalling stored stations On each waveband, a brief press of one of the buttons "1"to "6" recalls the corresponding stored station.
Stereo/Mono receptionSelect the "St/Mono" function from the "Radio" source menu by turning knob H, then press this knob repeatedly to change the
type of reception. The corresponding symbol appears on the screen.
