FAMILIARISATION
5
Familiarisation
Reversing camera
This system is activated automatically
when reverse gear is engaged, with a
visual return on a screen that takes the
place of the interior rear view mirror.
77

76

41
EXTERIOR
Guide-me-home
lighting
After switching off the ignition, when you
leave your vehicle, the front lamps remain
on briefly. Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.
Rear parking sensors
This system warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.

24

222
6
Familiarisation
Sliding side door

Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor so as to allow the door to slide
correctly.
Take care to open the door fully so as to
engage the latch at the bottom of the door.
Do not drive with the sliding side door open.

23
Remote control key

2 buttons

18 Manual centralised controls

25
ACCESS

3 buttons

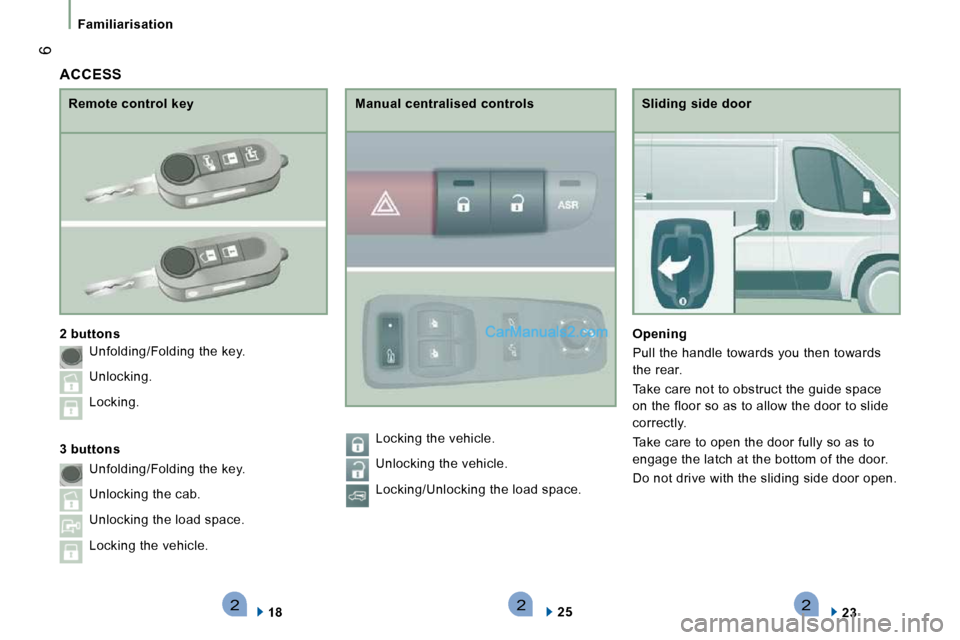

Unfolding/Folding the key.
Unlocking.
Locking.
Unfolding/Folding the key.
Unlocking the cab.
Unlocking the load space.
Locking the vehicle. Locking the vehicle.
Unlocking the vehicle.
Locking/Unlocking the load space.

2271
FAMILIARISATION
7
Familiarisation

Opening

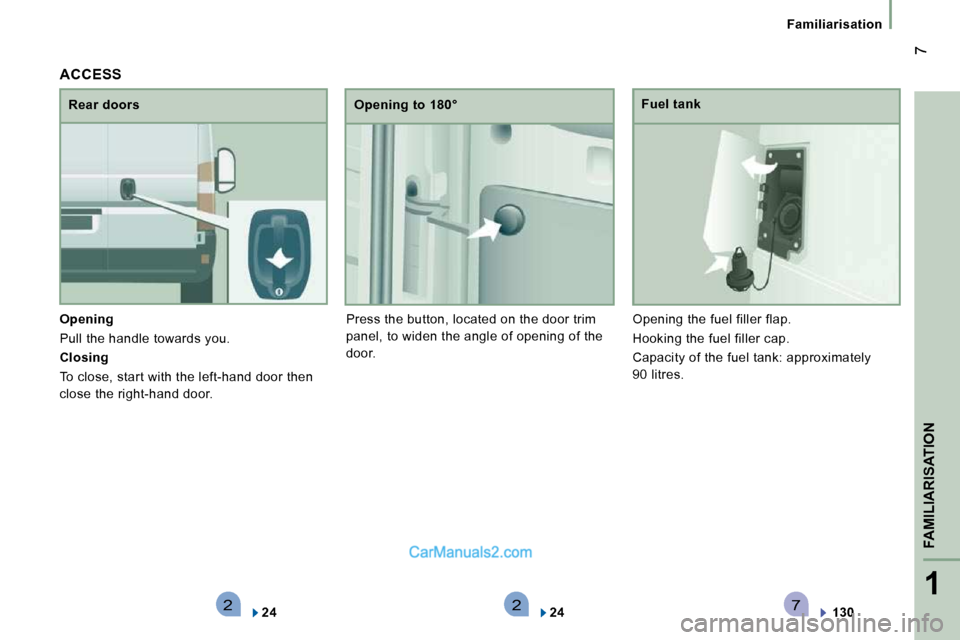

Pull the handle towards you.

Closing
To close, start with the left-hand door then
close the right-hand door. Rear doors
Opening to 180°
Press the button, located on the door trim
panel, to widen the angle of opening of the
door. Fuel tank
Opening the fuel filler flap.
Hooking the fuel filler cap.
Capacity of the fuel tank: approximately
90 litres.

24
ACCESS

24
130

8
Familiarisation
INTERIOR

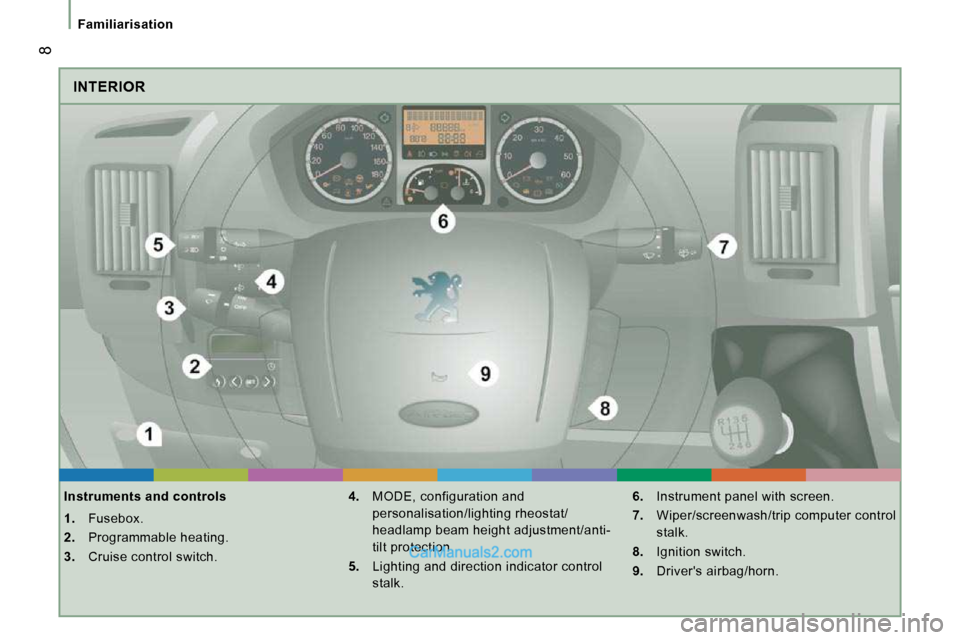

Instruments and controls

1. Fusebox.

2. Programmable heating.

3. Cruise control switch.
4. MODE, configuration and
personalisation/lighting rheostat/
headlamp beam height adjustment/anti-
tilt protection.

5. Lighting and direction indicator control
stalk.
6. Instrument panel with screen.

7. Wiper/screenwash/trip computer control
stalk.

8. Ignition switch.

9. Driver's airbag/horn.

1
FAMILIARISATION
9
Familiarisation
Centre console

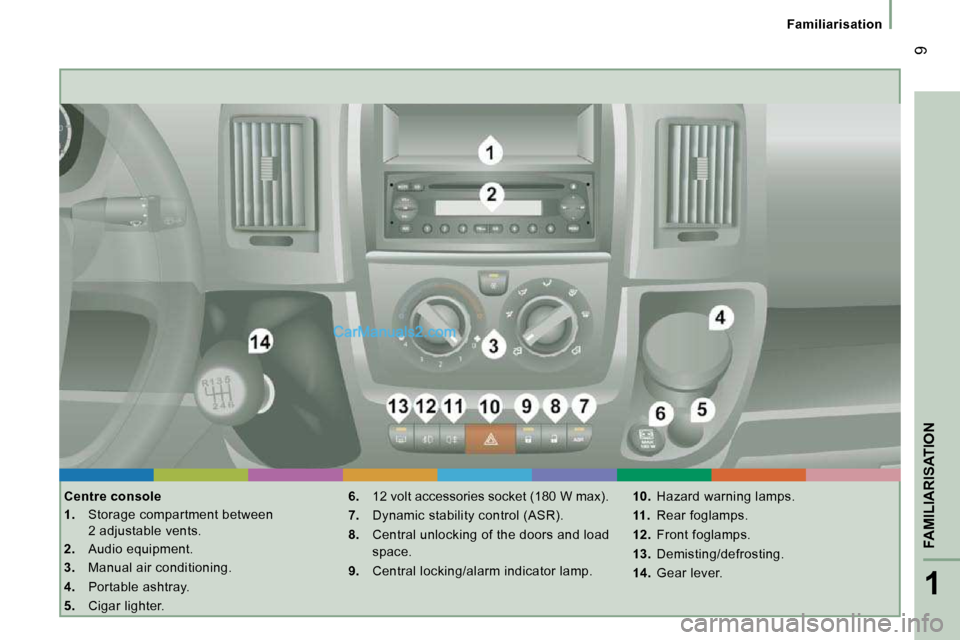

1. Storage compartment between
2 adjustable vents.

2. Audio equipment.

3. Manual air conditioning.

4. Portable ashtray.

5. Cigar lighter.
6. 12 volt accessories socket (180 W max).

7. Dynamic stability control (ASR).

8. Central unlocking of the doors and load
space.

9. Central locking/alarm indicator lamp.
10. Hazard warning lamps.

11. Rear foglamps.

12. Front foglamps.

13. Demisting/defrosting.

14. Gear lever.

2
10
Familiarisation
SITTING COMFORTABLY

58

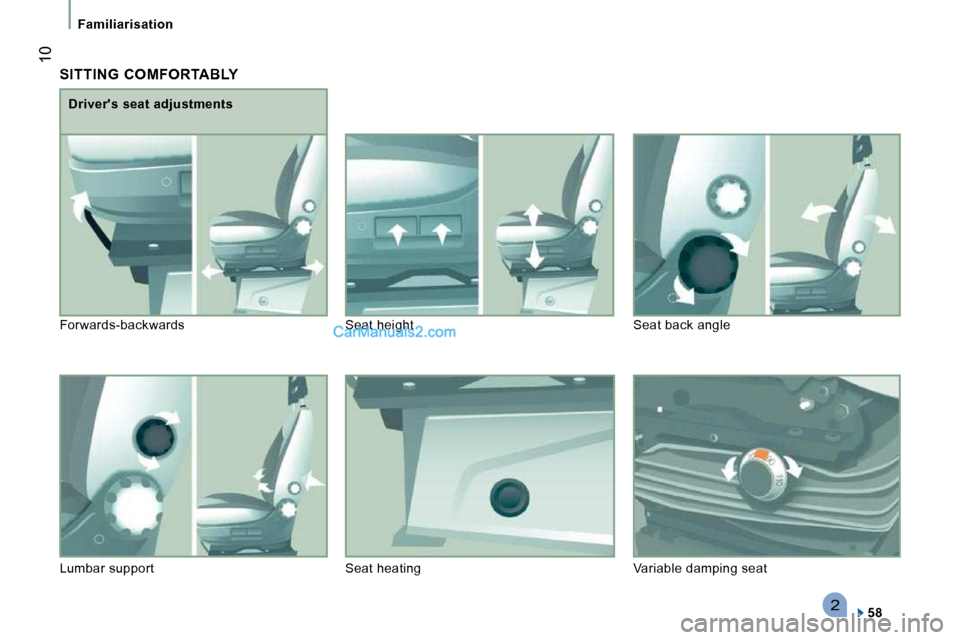

Driver's seat adjustments
Forwards-backwards Seat height Seat back angle
Lumbar support Seat heating Variable damping sea t

523
5
1
FAMILIARISATION
11
Familiarisation
SITTING COMFORTABLY

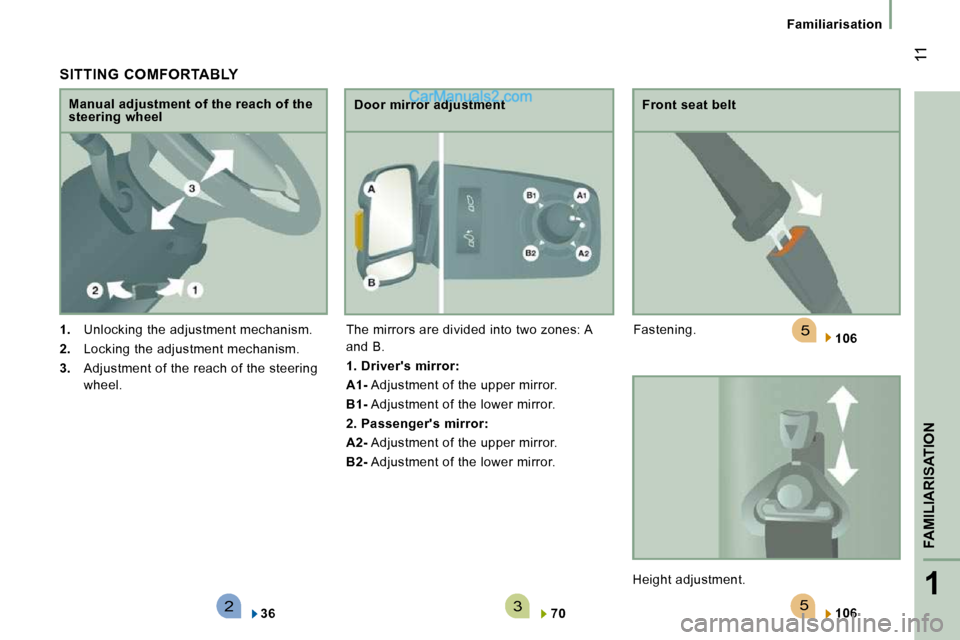

1. Unlocking the adjustment mechanism.

2. Locking the adjustment mechanism.

3. Adjustment of the reach of the steering
wheel.
Manual adjustment of the reach of the
steering wheel
Door mirror adjustment
The mirrors are divided into two zones: A
and B.

1. Driver's mirror:

A1- Adjustment of the upper mirror.

B1- Adjustment of the lower mirror.

2. Passenger's mirror:

A2- Adjustment of the upper mirror.

B2- Adjustment of the lower mirror.

36
70 Front seat belt
Fastening.
Height adjustment.
106

106

233
12
Familiarisation
SEEING CLEARLY
Lighting Sidelamps/PARK
Front and rear foglamps.
40
42
Automatic illumination of
headlamps.
Lamps off.
Sidelamps.

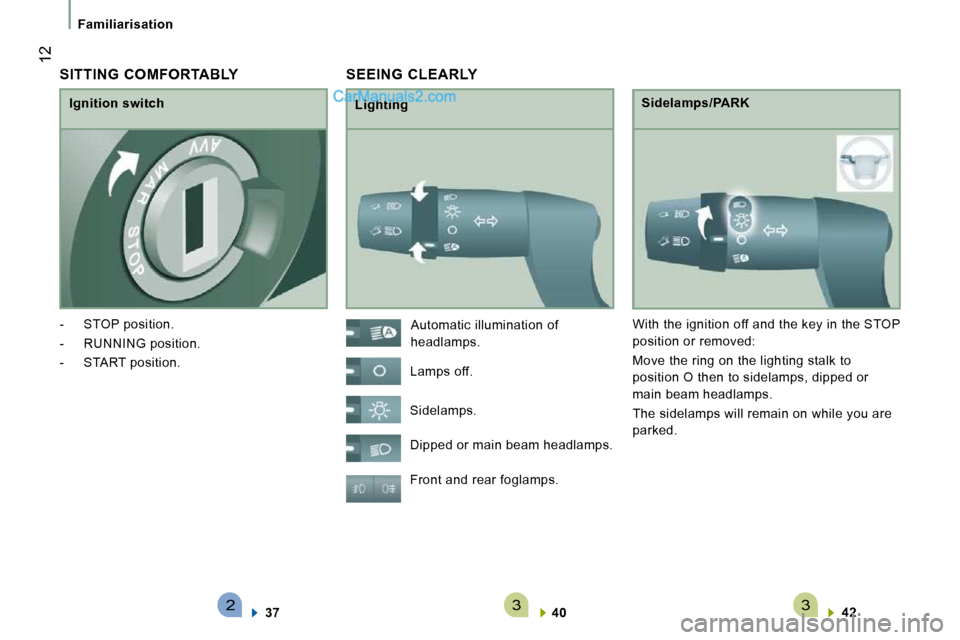

Dipped or main beam headlamps. With the ignition off and the key in the STOP
position or removed:
Move the ring on the lighting stalk to
position O then to sidelamps, dipped or
main beam headlamps.
The sidelamps will remain on while you are
parked.
SITTING COMFORTABLY
Ignition switch
- STOP position.
- RUNNING position.
- START position.

37

3331
FAMILIARISATION
13
Familiarisation

43

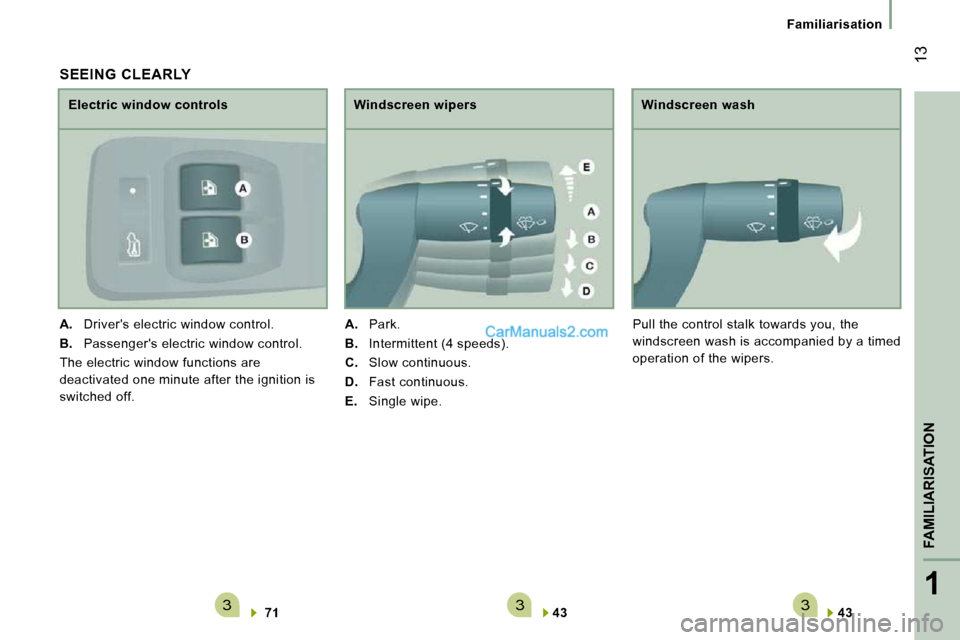

Windscreen wash
Pull the control stalk towards you, the
windscreen wash is accompanied by a timed
operation of the wipers.
SEEING CLEARLY

71
Electric window controls

A. Driver's electric window control.

B. Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

43
Windscreen wipers

A. Park.

B. Intermittent (4 speeds).

C. Slow continuous.

D. Fast continuous.

E. Single wipe.

14
Familiarisation
VENTILATION

Digital

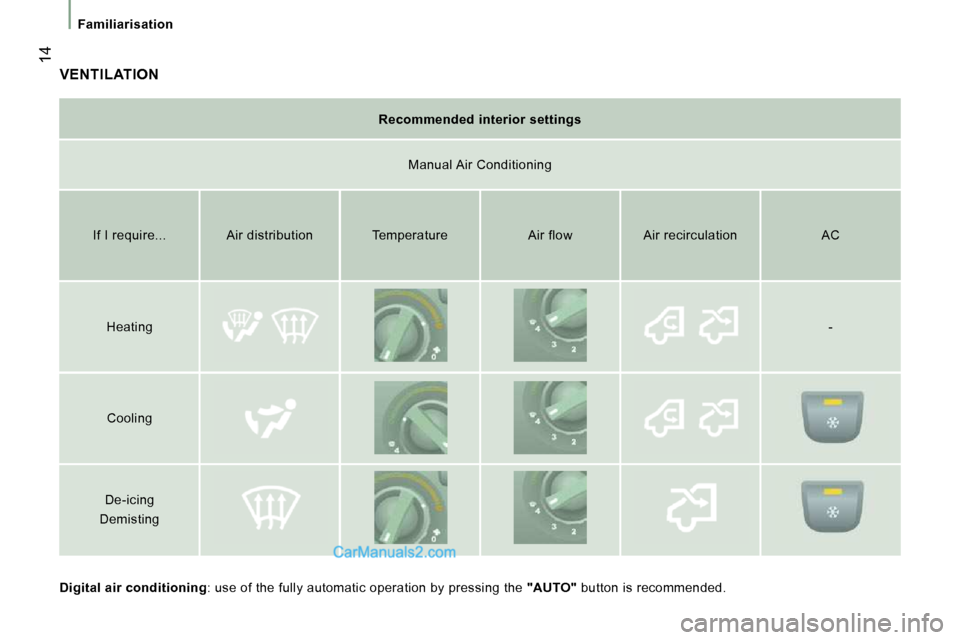

air conditioning : use of the fully automatic operation by pressing the "AUTO" button is recommended.

Recommended interior settings
Manual Air Conditioning
If I require... Air distribution Temperatur e Air flow Air recirculation AC
Heating -
Cooling
De-icing
Demisting
