Peugeot Boxer Dag 2010 Owner's Guide

24
Access

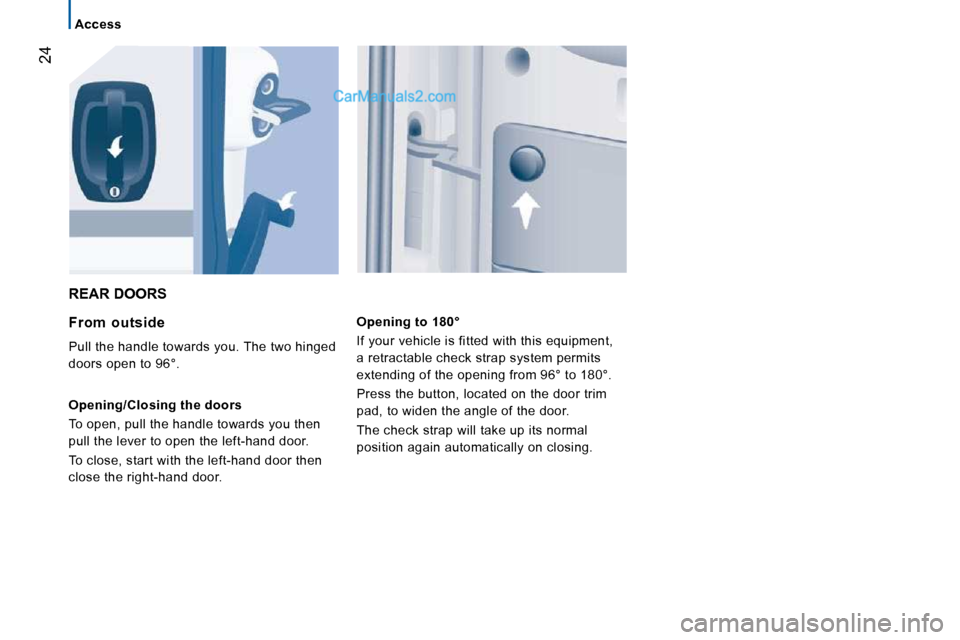

REAR DOORS
From outside
Pull the handle towards you. The two hinged
doors open to 96°.
Opening/Closing the doors
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door. Opening to 180°
If your vehicle is fitted with this equipment,
a retractable check strap system permits
extending of the opening from 96° to 180°.
Press the button, located on the door trim
pad, to widen the angle of the door.
The check strap will take up its normal
position again automatically on closing.

25
2
READY TO SET OFF
Access

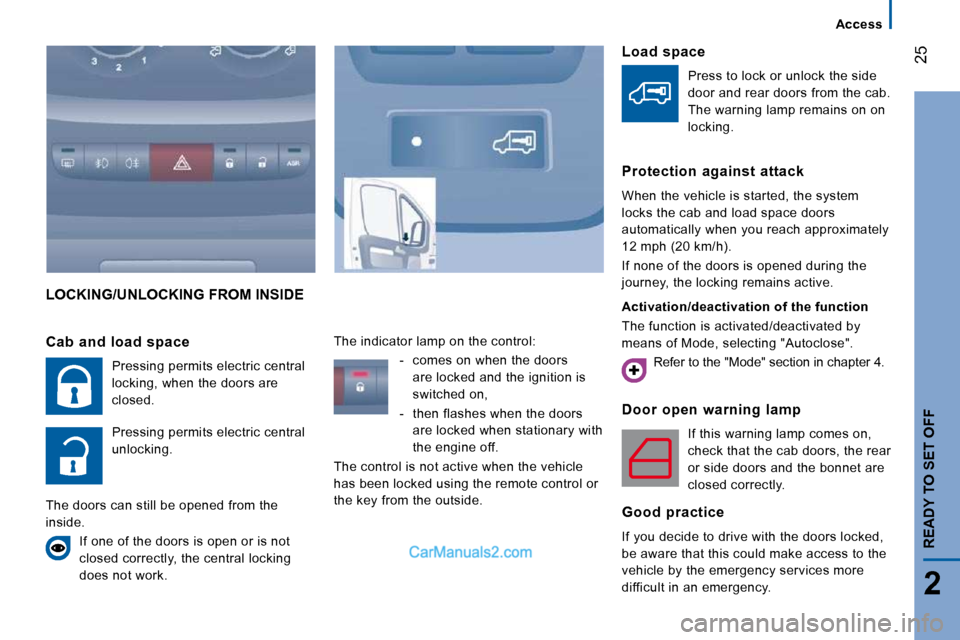

LOCKING/UNLOCKING FROM INSIDE
Door open warning lamp
If this warning lamp comes on,
check that the cab doors, the rear
or side doors and the bonnet are
closed correctly.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency.
Cab and load space
Pressing permits electric central
locking, when the doors are
closed.
Pressing permits electric central
unlocking.
The doors can still be opened from the
inside. If one of the doors is open or is not
closed correctly, the central locking
does not work. The indicator lamp on the control:
- comes on when the doors are locked and the ignition is
switched on,
- then flashes when the doors are locked when stationary with
the engine off.
The control is not active when the vehicle
has been locked using the remote control or
the key from the outside.
Load space
Press to lock or unlock the side
door and rear doors from the cab.
The warning lamp remains on on
locking.
Protection against attack
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the function
The function is activated/deactivated by
means of Mode, selecting "Autoclose". Refer to the "Mode" section in chapter 4.

Instruments and controls
26

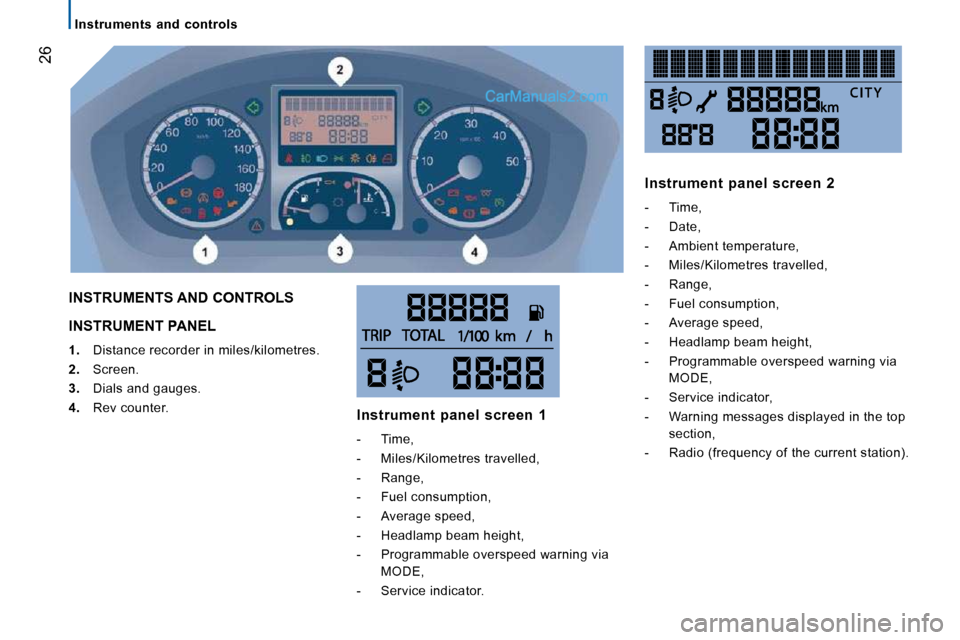

INSTRUMENT PANEL

1. Distance recorder in miles/kilometres.

2. Screen.

3. Dials and gauges.

4. Rev counter.
INSTRUMENTS AND CONTROLS
Instrument panel screen 1
- Time,
- Miles/Kilometres travelled,
- Range,
- Fuel consumption,
- Average speed,
- Headlamp beam height,
- Programmable overspeed warning via
MODE,
- Service indicator.
Instrument panel screen 2
- Time,
- Date,
- Ambient temperature,
- Miles/Kilometres travelled,
- Range,
- Fuel consumption,
- Average speed,
- Headlamp beam height,
- Programmable overspeed warning via MODE,
- Service indicator,
- Warning messages displayed in the top section,
- Radio (frequency of the current station).

Instruments and controls
27
2
READY TO SET OFF

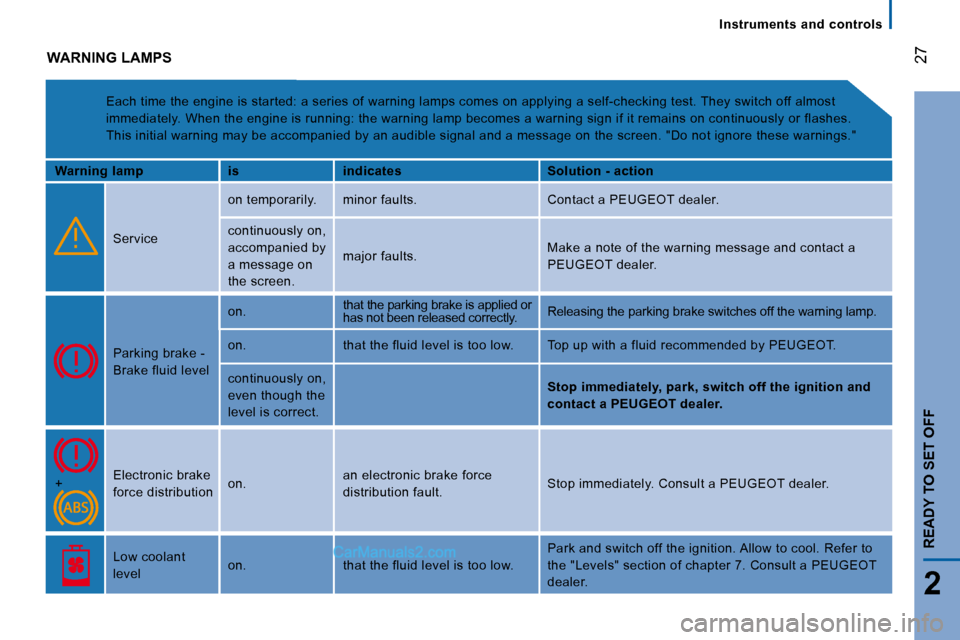

WARNING LAMPS
Each time the engine is started: a series of warning lamps comes on applying a self-checking test. Th ey switch off almost
immediately. When the engine is running: the warnin g lamp becomes a warning sign if it remains on continuously or flashes.
This initial warning may be accompanied by an audib le signal and a message on the screen. "Do not ignore these warnings."

Warning
lamp is indicates Solution - action
Service on temporarily.
minor faults. Contact a PEUGEOT dealer.
continuously on,
accompanied by
a message on
the screen. major faults.
Make a note of the warning message and contact a
PEUGEOT dealer.
Parking brake -
Brake fluid level on.
that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the warni
ng lamp.
on. that the fluid level is too low. Top up with a fl uid recommended by PEUGEOT.
continuously on,
even though the
level is correct.
Stop immediately, park, switch off the ignition and
contact a PEUGEOT dealer.
+ Electronic brake
force distribution on. an electronic brake force
distribution fault. Stop immediately. Consult a PEUGEOT dealer.
Low coolant
level on.
that the fluid level is too low. Park and switch off the ignition. Allow to cool. R
efer to
the "Levels" section of chapter 7. Consult a PEUGEO T
dealer.

Instruments and controls
28

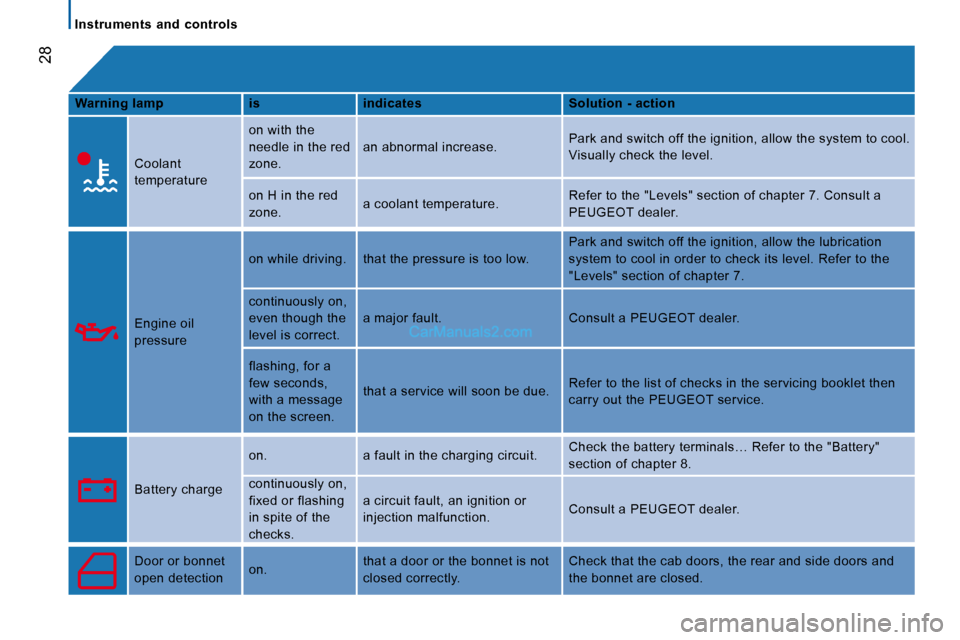

Warning
lamp is indicates Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition, allow the system
to cool.
Visually check the level.
on H in the red
zone. a coolant temperature. Refer to the "Levels" section of chapter 7. Consul
t a
PEUGEOT dealer.
Engine oil
pressure on while driving. that the pressure is too low.
Park and switch off the ignition, allow the lubric
ation
system to cool in order to check its level. Refer t o the
"Levels" section of chapter 7.
continuously on,
even though the
level is correct. a major fault. Consult a PEUGEOT dealer.
flashing, for a
few seconds,
with a message
on the screen. that a service will soon be due.
Refer to the list of checks in the servicing bookl
et then
carry out the PEUGEOT service.
Battery charge on.
a fault in the charging circuit. Check the battery terminals… Refer to the "Battery
"
section of chapter 8.
continuously on,
fixed or flashing
in spite of the
checks. a circuit fault, an ignition or
injection malfunction.
Consult a PEUGEOT dealer.
Door or bonnet
open detection on. that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors
and
the bonnet are closed.

29
2
READY TO SET OFF

Warning
lamp is indicates Solution - action

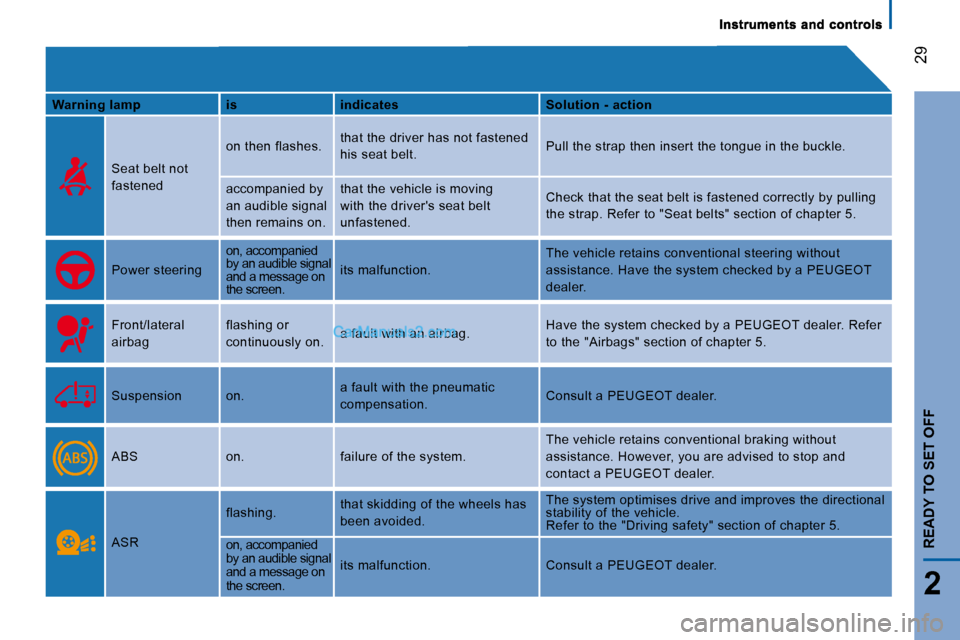

Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckl
e.
accompanied by
an audible signal
then remains on. that the vehicle is moving
with the driver's seat belt
unfastened.
Check that the seat belt is fastened correctly by
pulling
the strap. Refer to "Seat belts" section of chapter 5.
Power steering on, accompanied
by an audible signal
and a message on
the screen. its malfunction.
The vehicle retains conventional steering without
assistance. Have the system checked by a PEUGEOT
dealer.
Front/lateral
airbag flashing or
continuously on.
a fault with an airbag. Have the system checked by a PEUGEOT dealer. Refer
to the "Airbags" section of chapter 5.
Suspension on. a fault with the pneumatic
compensation. Consult a PEUGEOT dealer.
ABS on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer.
ASR flashing.
that skidding of the wheels has
been avoided. The system optimises drive and improves the direct
ional
stability of the vehicle.
Refer to the "Driving safety" section of chapter 5 .
on, accompanied
by an audible signal
and a message on
the screen.

its malfunction. Consult a PEUGEOT dealer.

Instruments and controls
30

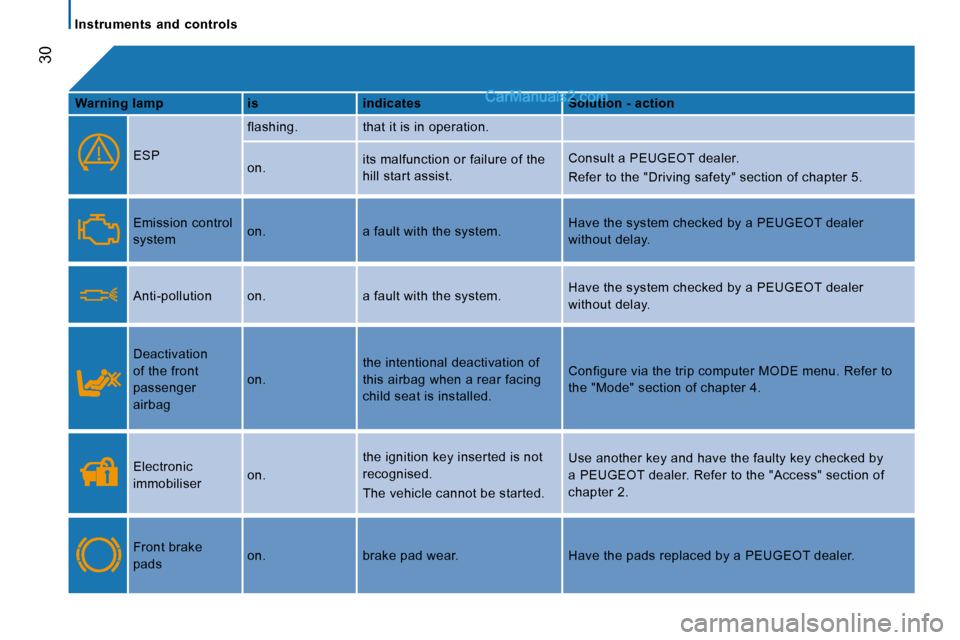

Warning
lamp is indicates Solution - action
ESP flashing.
that it is in operation.
on. its malfunction or failure of the
hill start assist. Consult a PEUGEOT dealer.
Refer to the "Driving safety" section of chapter 5.

Emission control
system on.
a fault with the system. Have the system checked by a PEUGEOT dealer
without delay.
Anti-pollution on. a fault with the system. Have the system checked by a PEUGEOT dealer
without delay.
Deactivation
of the front
passenger
airbag on.
the intentional deactivation of
this airbag when a rear facing
child seat is installed. Configure via the trip computer MODE menu. Refer t
o
the "Mode" section of chapter 4.
Electronic
immobiliser on. the ignition key inserted is not
recognised.
The vehicle cannot be started. Use another key and have the faulty key checked by
a PEUGEOT dealer. Refer to the "Access" section of
chapter 2.
Front brake
pads on.
brake pad wear. Have the pads replaced by a PEUGE OT dealer.

Instruments and controls
31
2
READY TO SET OFF

Warning
lamp is indicates Solution - action

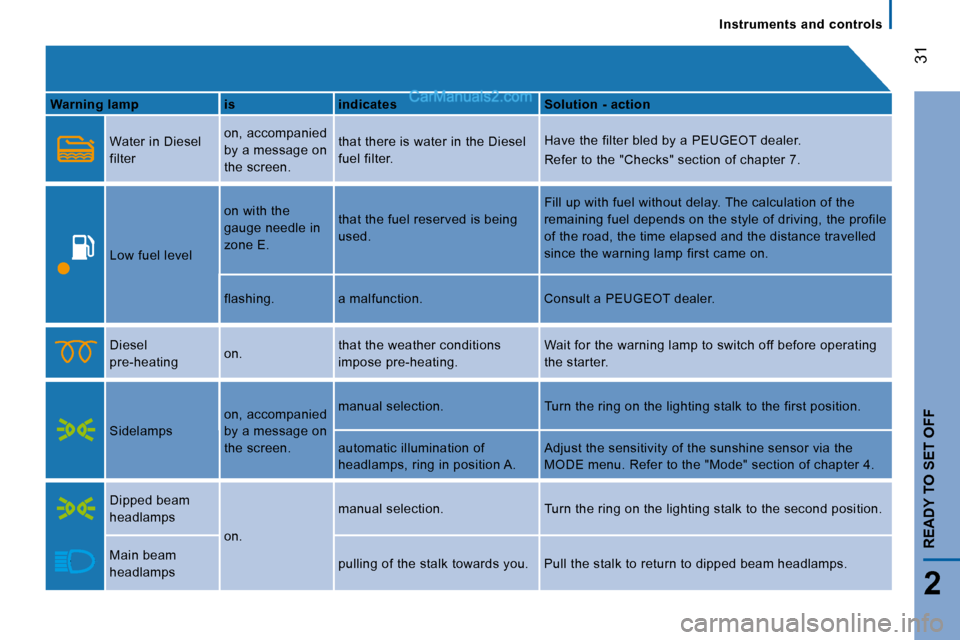

Water in Diesel
filter on, accompanied
by a message on
the screen. that there is water in the Diesel
fuel filter.
Have the filter bled by a PEUGEOT dealer.
Refer to the "Checks" section of chapter 7.
Low fuel level on with the
gauge needle in
zone E.
that the fuel reserved is being
used. Fill up with fuel without delay. The calculation o
f the
remaining fuel depends on the style of driving, the profile
of the road, the time elapsed and the distance trav elled
since the warning lamp first came on.
flashing. a malfunction. Consult a PEUGEOT deale r.
Diesel
pre-heating on. that the weather conditions
impose pre-heating. Wait for the warning lamp to switch off before ope
rating
the starter.
Sidelamps on, accompanied
by a message on
the screen. manual selection.
Turn the ring on the lighting stalk to the first p osition.
automatic illumination of
headlamps, ring in position A. Adjust the sensitivity of the sunshine sensor via
the
MODE menu. Refer to the "Mode" section of chapter 4 .
Dipped beam
headlamps on. manual selection.
Turn the ring on the lighting stalk to the second position.
Main beam
headlamps pulling of the stalk towards you. Pull the stalk
to return to dipped beam headlamps.

Instruments and controls
32

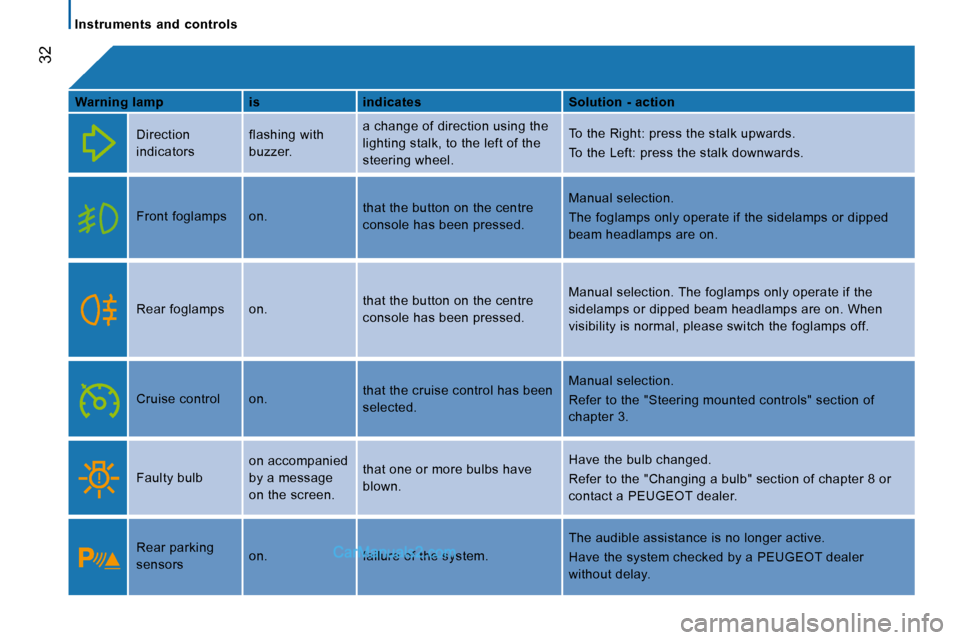

Warning
lamp is indicates Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lighting stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front foglamps on. that the button on the centre
console has been pressed. Manual selection.
The foglamps only operate if the sidelamps or dippe
d
beam headlamps are on.
Rear foglamps on. that the button on the centre
console has been pressed. Manual selection. The foglamps only operate if the

sidelamps or dipped beam headlamps are on. When
visibility is normal, please switch the foglamps of f.
Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering mounted controls" section of

chapter 3.
Faulty bulb on accompanied
by a message
on the screen. that one or more bulbs have
blown. Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or
contact a PEUGEOT dealer.
Rear parking
sensors on.
failure of the system. The audible assistance is no longer active.
Have the system checked by a PEUGEOT dealer
without delay.

Instruments and controls
33
2
READY TO SET OFF

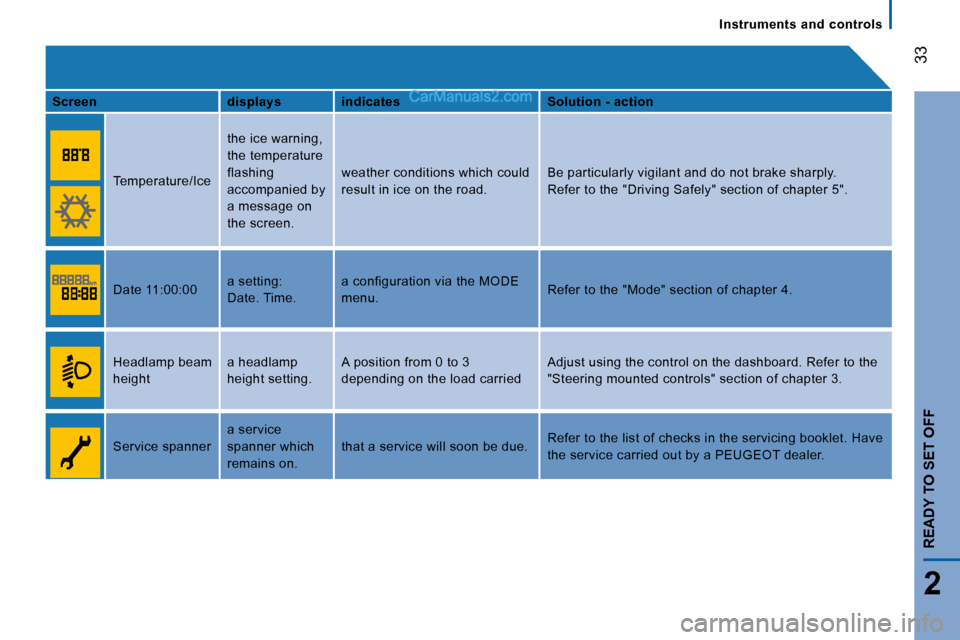

Screen displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
flashing
accompanied by
a message on
the screen. weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.

Refer to the "Driving Safely" section of chapter 5" .
Date 11:00:00 a setting:
Date. Time. a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4.
Headlamp beam
height a headlamp
height setting. A position from 0 to 3
depending on the load carried Adjust using the control on the dashboard. Refer t
o the
"Steering mounted controls" section of chapter 3.
Service spanner a service
spanner which
remains on. that a service will soon be due.
Refer to the list of checks in the servicing bookl
et. Have
the service carried out by a PEUGEOT dealer.
