TECHNICAL DATA

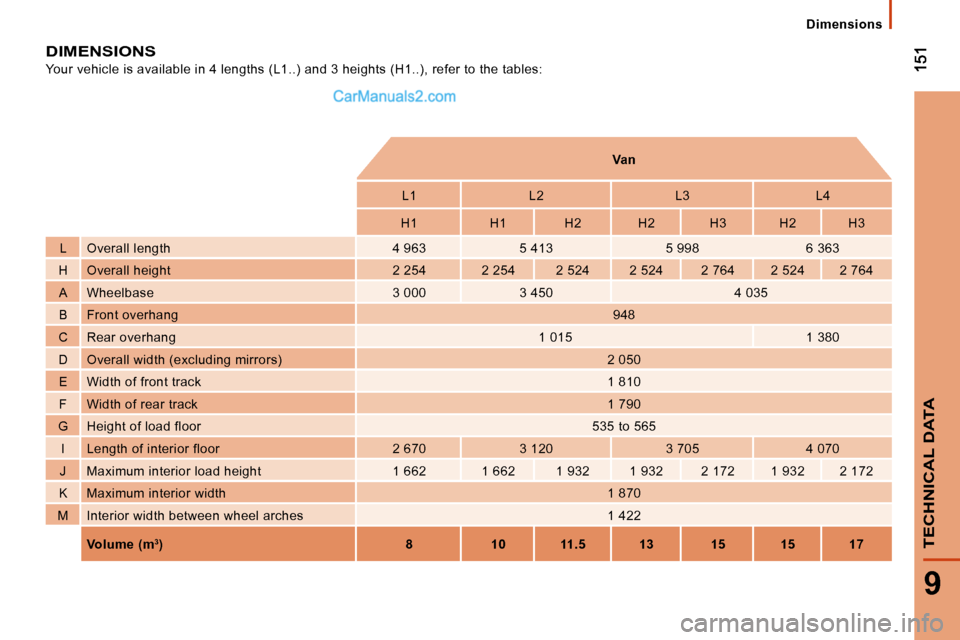

DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:

Van
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 52 4 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (excluding mirrors) 2 050
E Width of front track 1 810
F Width of rear track 1 790
G Height of load floor 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422

Volume (m 3
)
8 10 11.5 13 15 15 17
Dimensions

152

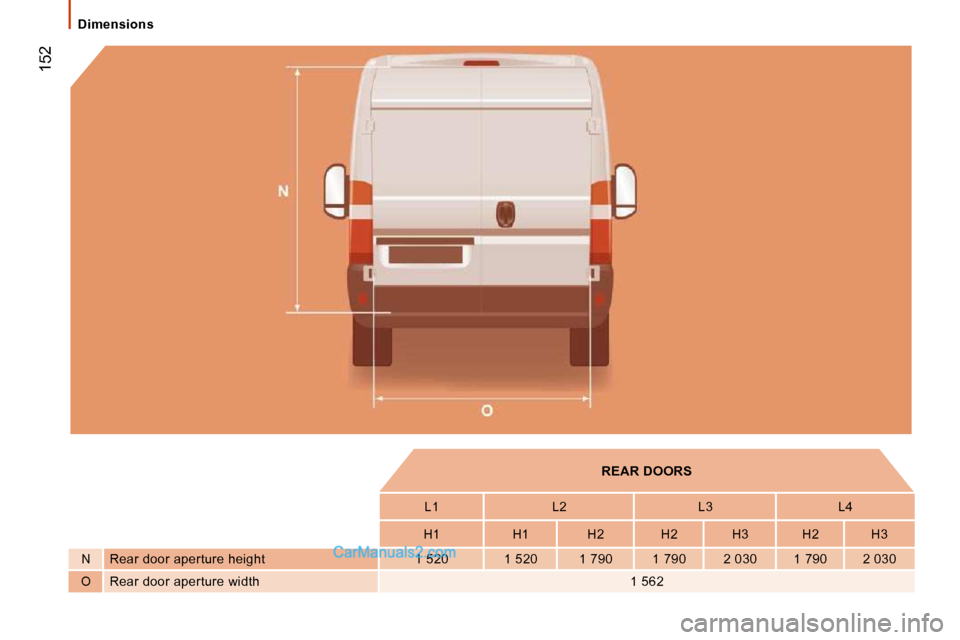

REAR DOORS
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
N Rear door aperture height 1 520 1 520 1 790 1 790 2 030 1 790 2 030
O Rear door aperture width 1 562
Dimensions

153
9
TECHNICAL DATA

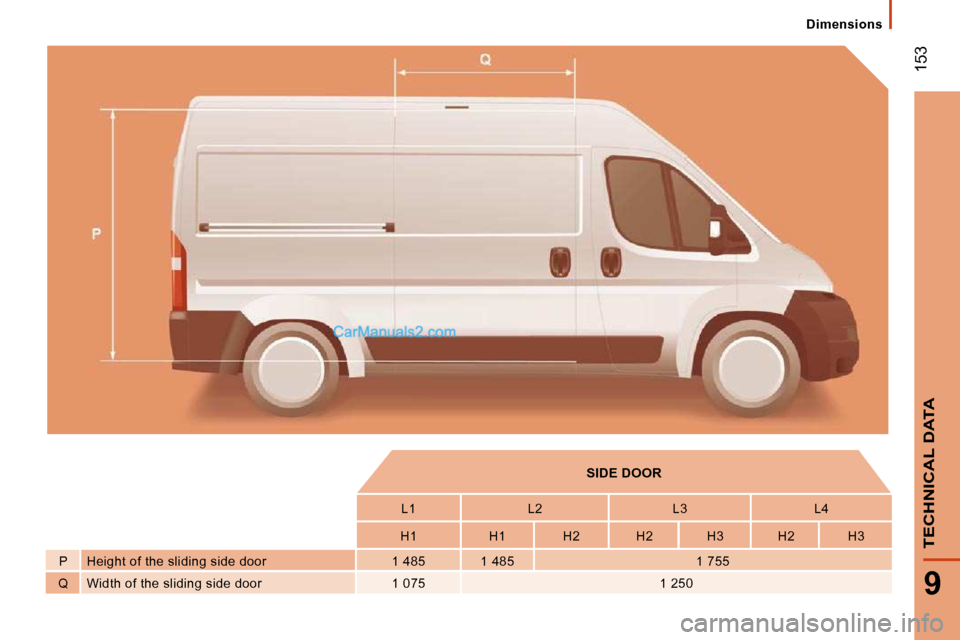

SIDE DOOR
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 4 85 1 755
Q Width of the sliding side door 1 075 1 250
Dimensions

154

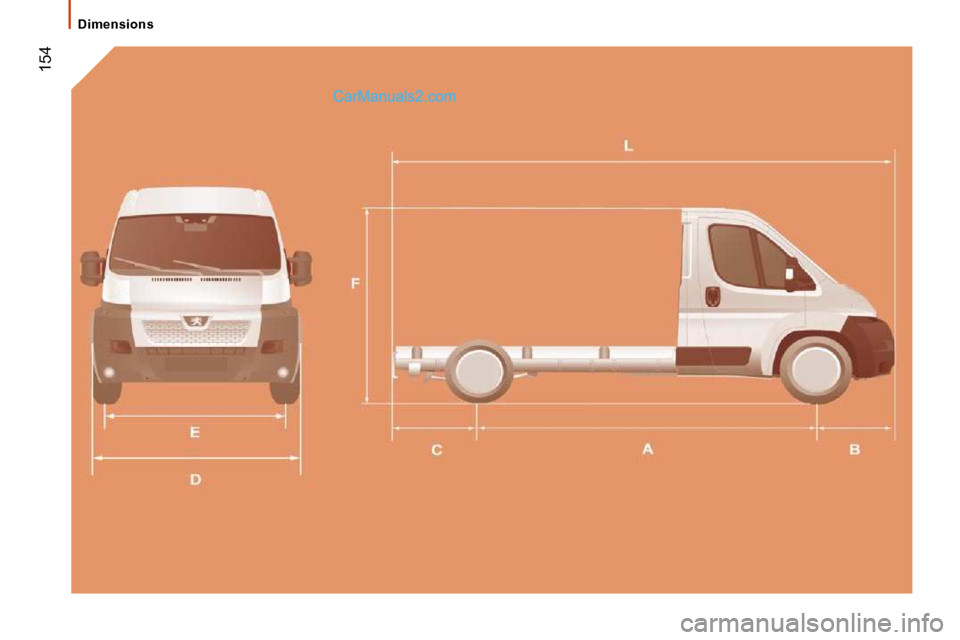

Dimensions

9
TECHNICAL DATA

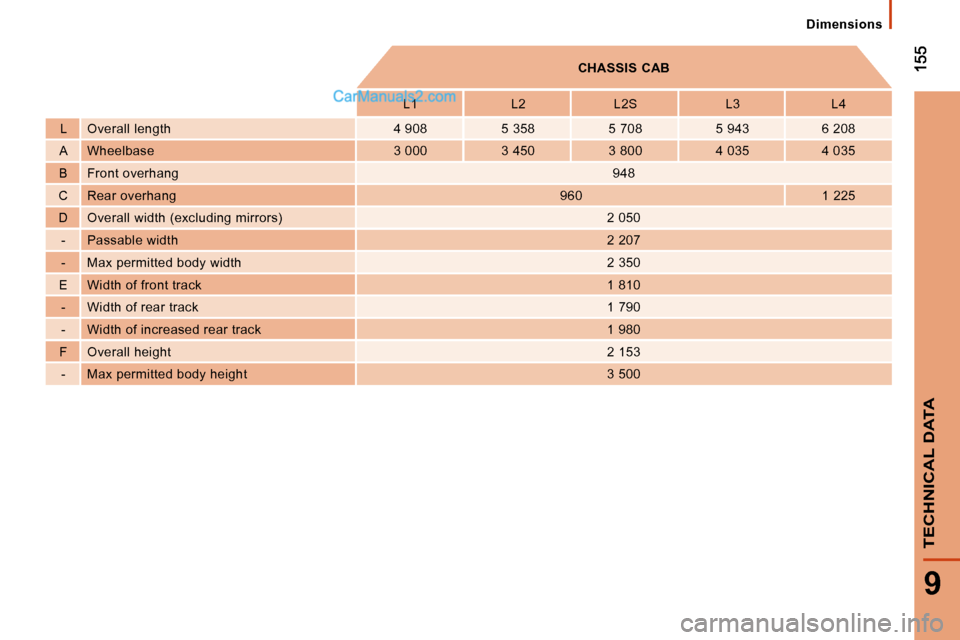

CHASSIS CAB
L1 L2 L2S L3 L4
L Overall length 4 908 5 358 5 708 5 943 6 208
A Wheelbase 3 000 3 450 3 800 4 035 4 035
B Front overhang 948
C Rear overhang 960 1 225
D Overall width (excluding mirrors) 2 050
- Passable width 2 207
- Max permitted body width 2 350
E Width of front track 1 810
- Width of rear track 1 790
- Width of increased rear track 1 980
F Overall height 2 153
- Max permitted body height 3 500
Dimensions

156

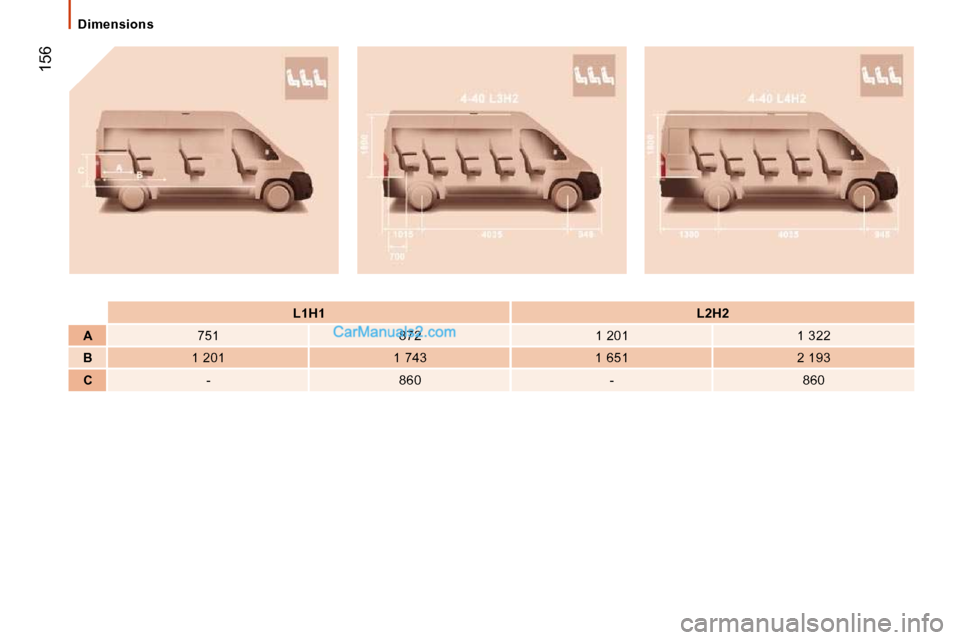

L1H1
L2H2

A 751 872 1 201 1 322

B 1 201 1 743 1 651 2 193

C - 860 - 860
Dimensions

157
9
TECHNICAL DATA

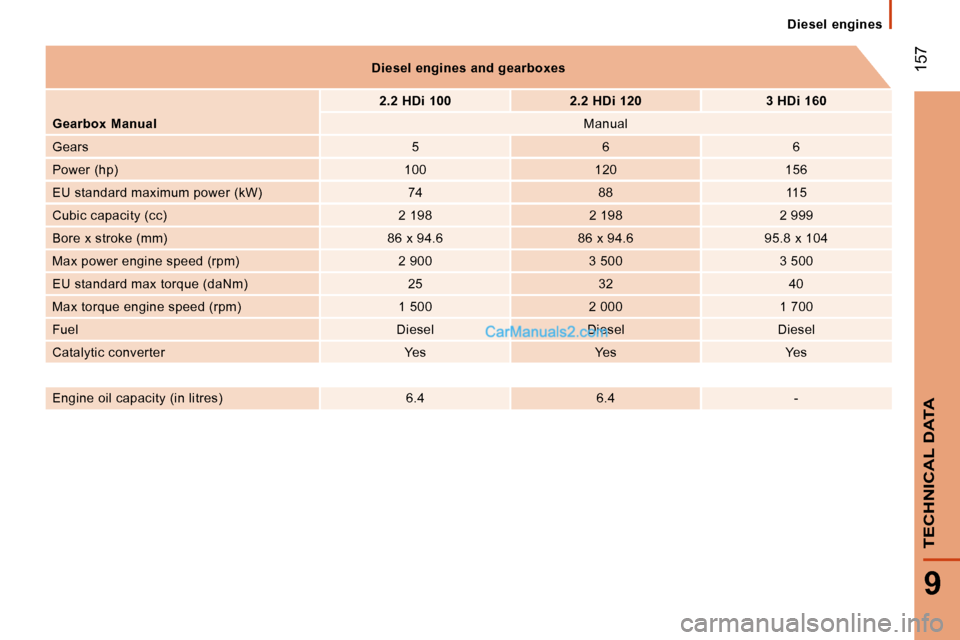

Diesel engines

Diesel engines and gearboxes

2.2 HDi 100 2.2 HDi 120 3 HDi 160

Gearbox Manual Manual
Gears 5 6 6
Power (hp) 100 120 156
EU standard maximum power (kW) 74 88 115
Cubic capacity (cc) 2 198 2 198 2 999
Bore x stroke (mm) 86 x 94.6 86 x 94.6 95.8 x 104
Max power engine speed (rpm) 2 900 3 500 3 500
EU standard max torque (daNm) 25 32 40
Max torque engine speed (rpm) 1 500 2 000 1 700
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Engine oil capacity (in litres) 6.4 6.4 -

158

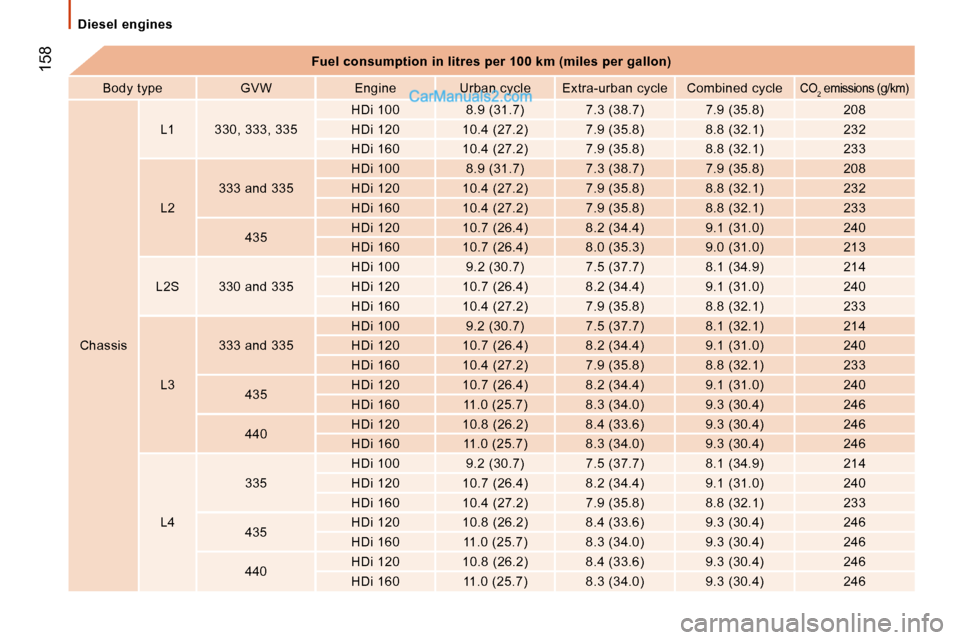

Diesel engines

Fuel consumption in litres per 100 km (miles per ga llon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle
CO
2 emissions (g/km)
Chassis L1 330, 333, 335
HDi 100 8.9 (31.7) 7.3 (38.7) 7.9 (35.8)
208
HDi 120 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 232
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
L2 333 and 335 HDi 100 8.9 (31.7) 7.3 (38.7) 7.9 (35.8)
208
HDi 120 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 232
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
435 HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0)
240
HDi 160 10.7 (26.4) 8.0 (35.3) 9.0 (31.0) 213
L2S 330 and 335 HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (34.9)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
L3 333 and 335
HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (32.1)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
435 HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0)
240
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L4 335
HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (34.9)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
440 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246

159
9
TECHNICAL DATA
Diesel engines

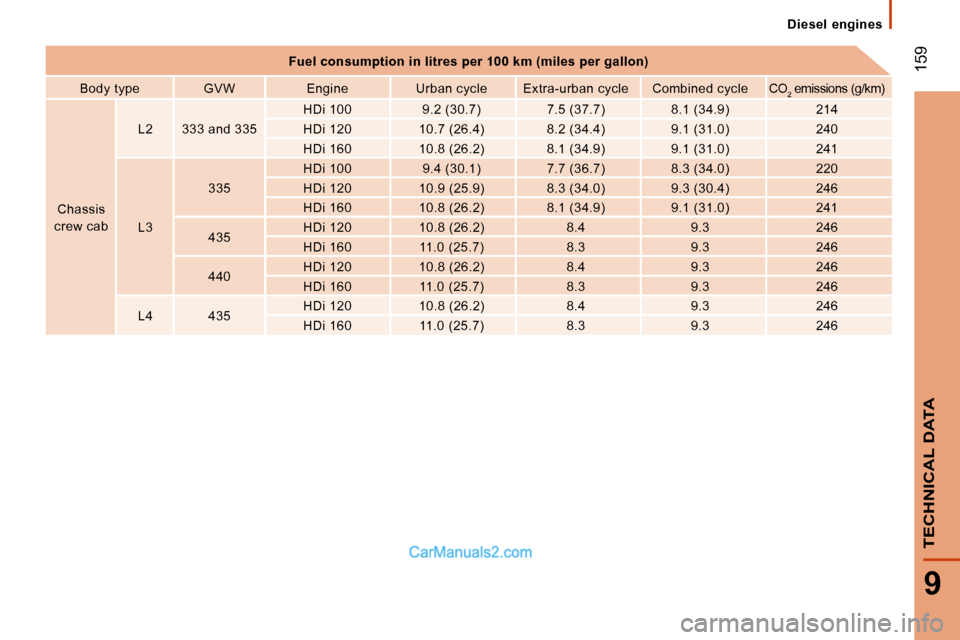

Fuel consumption in litres per 100 km (miles per ga llon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle CO
2 emissions (g/km)
Chassis
crew cab L2 333 and 335
HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (34.9)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
L3 335
HDi 100 9.4 (30.1) 7.7 (36.7) 8.3 (34.0)
220
HDi 120 10.9 (25.9) 8.3 (34.0) 9.3 (30.4) 246
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 9.3 246
HDi 160 11.0 (25.7) 8.3 9.3 246
440 HDi 120 10.8 (26.2) 8.4 9.3 246
HDi 160 11.0 (25.7) 8.3 9.3 246
L4 435 HDi 120 10.8 (26.2) 8.4 9.3 246
HDi 160 11.0 (25.7) 8.3 9.3 246

160
Diesel engines

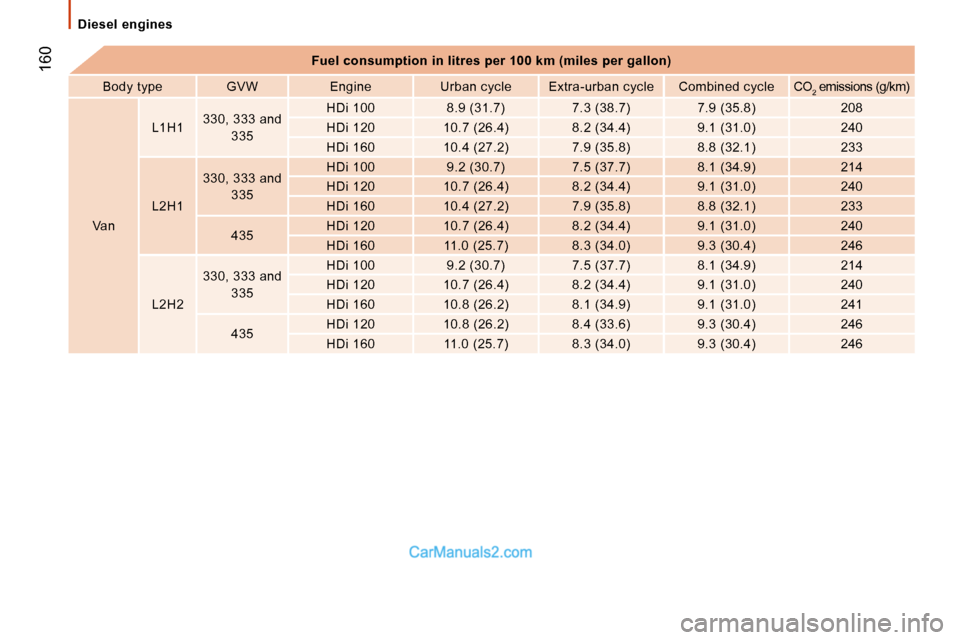

Fuel consumption in litres per 100 km (miles per ga llon)
Body type GVW Engine Urban cycle Extr a-urban cycle Combined cycle CO
2 emissions (g/km)
Van L1H1
330, 333 and
335 HDi 100 8.9 (31.7) 7.3 (38.7) 7.9 (35.8)
208
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
L2H1 330, 333 and
335 HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (34.9)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.4 (27.2) 7.9 (35.8) 8.8 (32.1) 233
435 HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0)
240
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
L2H2 330, 333 and
335 HDi 100 9.2 (30.7) 7.5 (37.7) 8.1 (34.9)
214
HDi 120 10.7 (26.4) 8.2 (34.4) 9.1 (31.0) 240
HDi 160 10.8 (26.2) 8.1 (34.9) 9.1 (31.0) 241
435 HDi 120 10.8 (26.2) 8.4 (33.6) 9.3 (30.4)
246
HDi 160 11.0 (25.7) 8.3 (34.0) 9.3 (30.4) 246
