Peugeot Boxer Dag 2010 Owner's Manual

140

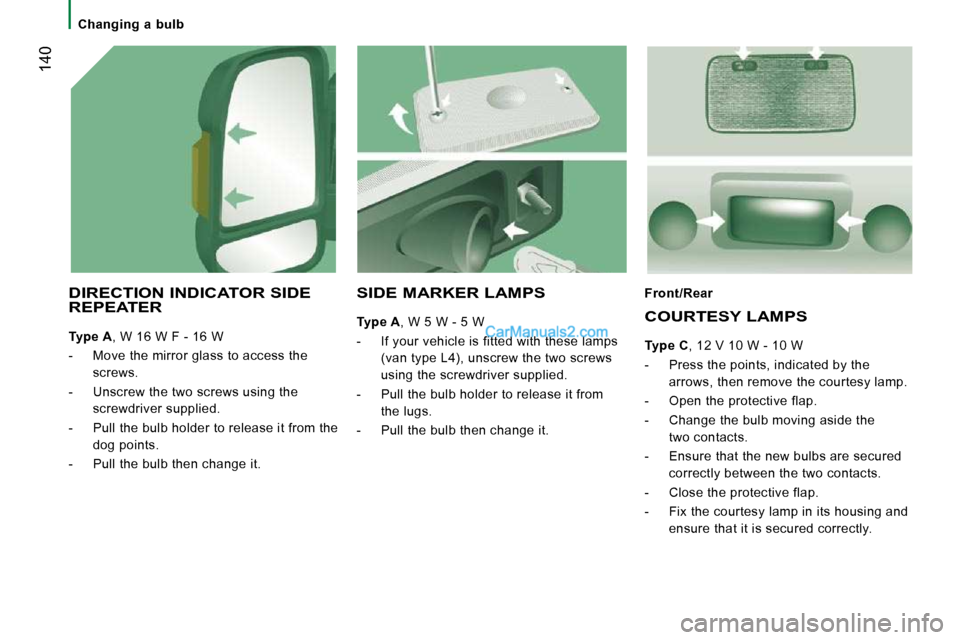

Changing a bulb
DIRECTION INDICATOR SIDE REPEATER

Type A , W 16 W F - 16 W
- Move the mirror glass to access the screws.
- Unscrew the two screws using the screwdriver supplied.
- Pull the bulb holder to release it from the dog points.
- Pull the bulb then change it.
Front/Rear
COURTESY LAMPS

Type C , 12 V 10 W - 10 W
- Press the points, indicated by the arrows, then remove the courtesy lamp.
- Open the protective flap.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy lamp in its housing and ensure that it is secured correctly.
SIDE MARKER LAMPS

Type A , W 5 W - 5 W
- If your vehicle is fitted with these lamps (van type L4), unscrew the two screws
using the screwdriver supplied.
- Pull the bulb holder to release it from the lugs.
- Pull the bulb then change it.

QUICK HELP
8

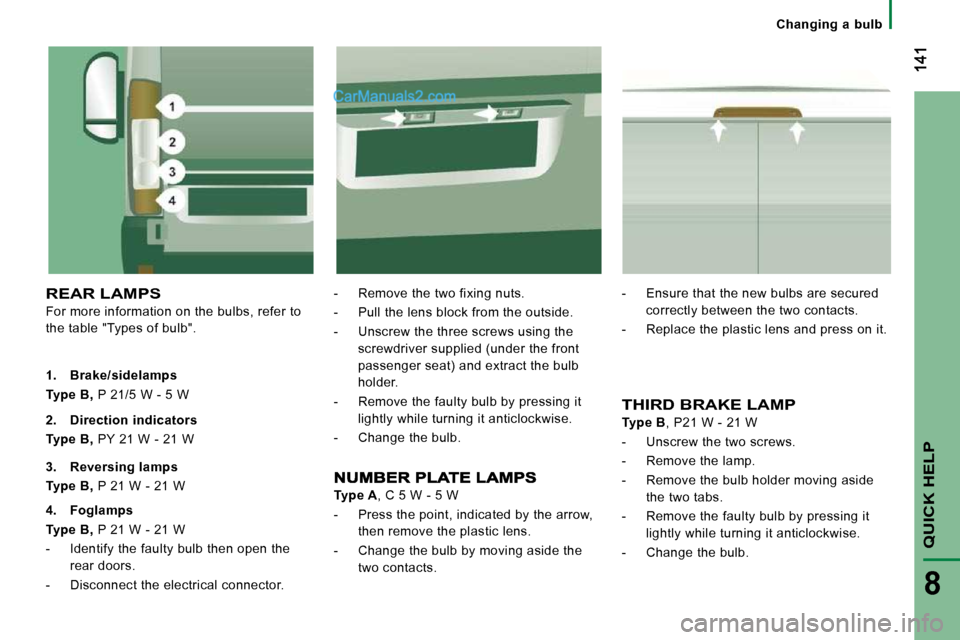

Changing a bulb
REAR LAMPS
For more information on the bulbs, refer to
the table "Types of bulb". - Remove the two fixing nuts.
- Pull the lens block from the outside.
- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

1. Brake/
sidelamps

Type B, P 21/5 W - 5 W
THIRD BRAKE LAMP

Type B , P21 W - 21 W
- Unscrew the two screws.
- Remove the lamp.
- Remove the bulb holder moving aside the two tabs.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

2. Direction indicators

Type B, PY 21 W - 21 W

3. Reversing
lamps

Type B, P 21 W - 21 W

4. Foglamps

Type B, P 21 W - 21 W
- Identify the faulty bulb then open the rear doors.
- Disconnect the electrical connector.

Type A , C 5 W - 5 W
- Press the point, indicated by the arrow, then remove the plastic lens.
- Change the bulb by moving aside the two contacts. - Ensure that the new bulbs are secured
correctly between the two contacts.
- Replace the plastic lens and press on it.

142

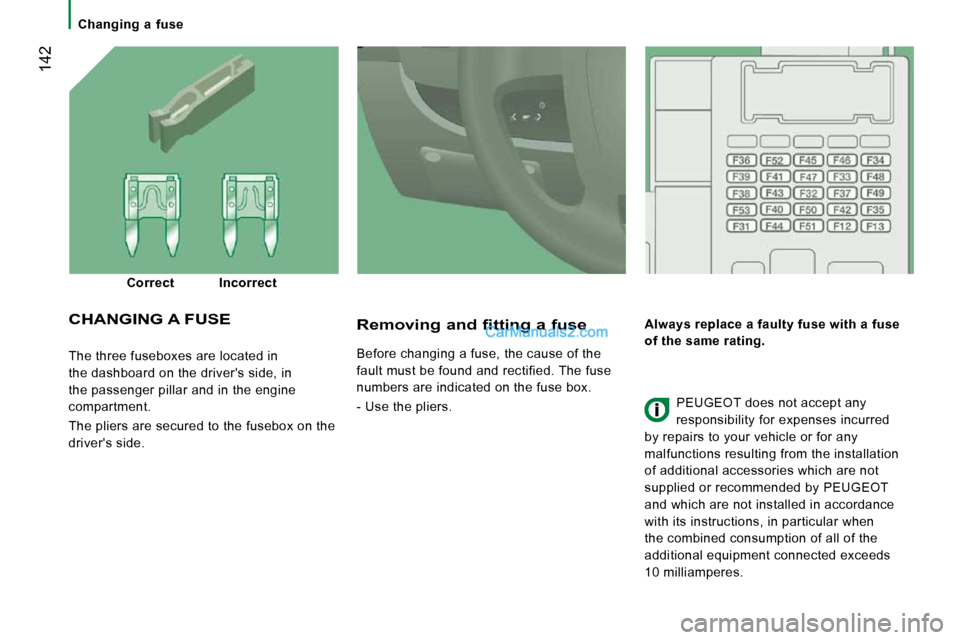

Changing a fuse
The three fuseboxes are located in
the dashboard on the driver's side, in
the passenger pillar and in the engine
compartment.
The pliers are secured to the fusebox on the
driver's side.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
CHANGING A FUSE
PEUGEOT does not accept any
responsibility for expenses incurred
by repairs to your vehicle or for any
malfunctions resulting from the installation
of additional accessories which are not
supplied or recommended by PEUGEOT
and which are not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.

Correct Incorrect

143
QUICK HELP
8
Changing a fuse

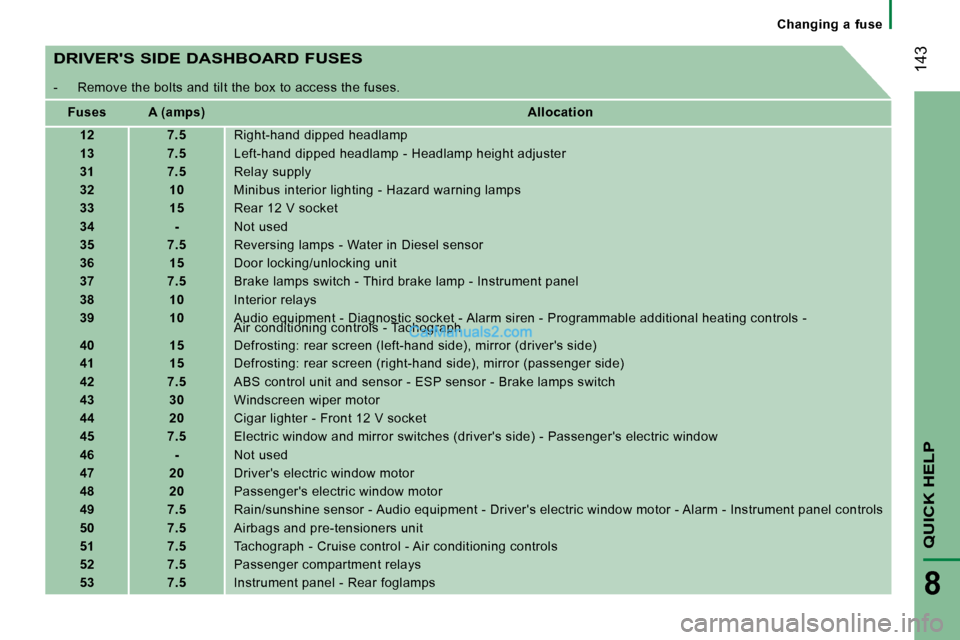

DRIVER'S SIDE DASHBOARD FUSES
- Remove the bolts and tilt the box to access the fuses.

Fuses A (amps)
Allocation

12 7.5 Right-hand dipped headlamp

13 7.5 Left-hand dipped headlamp - Headlamp height adj uster

31 7.5 Relay supply

32 10 Minibus interior lighting - Hazard warning lamp s

33 15 Rear 12 V socket

34 - Not used

35 7.5 Reversing lamps - Water in Diesel sensor

36 15 Door locking/unlocking unit

37 7.5 Brake lamps switch - Third brake lamp - Instrum ent panel

38 10 Interior relays

39 10 Audio equipment - Diagnostic socket - Alarm sir en - Programmable additional heating controls -
Air conditioning controls - Tachograph

40 15 Defrosting: rear screen (left-hand side), mirro r (driver's side)

41 15 Defrosting: rear screen (right-hand side), mirr or (passenger side)

42 7.5 ABS control unit and sensor - ESP sensor - Brak e lamps switch

43 30 Windscreen wiper motor

44 20 Cigar lighter - Front 12 V socket

45 7.5 Electric window and mirror switches (driver's s ide) - Passenger's electric window

46 - Not used

47 20 Driver's electric window motor

48 20 Passenger's electric window motor

49 7.5 Rain/sunshine sensor - Audio equipment - Driver 's electric window motor - Alarm - Instrument panel controls

50 7.5 Airbags and pre-tensioners unit

51 7.5 Tachograph - Cruise control - Air conditioning controls

52 7.5 Passenger compartment relays

53 7.5 Instrument panel - Rear foglamps

144
Changing a fuse

Fuses A (amps) Allocation

54 - Not used

55 15 Heated seats

56 15 Rear 12 V socket - Cigar lighter

57 10 Ventilation/heating motor under the driver's se at

58 10 Direction indicators

59 7.5 Pneumatic suspension

60 - Not used

61 - Not used

62 - Not used

63 10 Programmable additional heating switch

64 - Not used

65 30 Rear blower

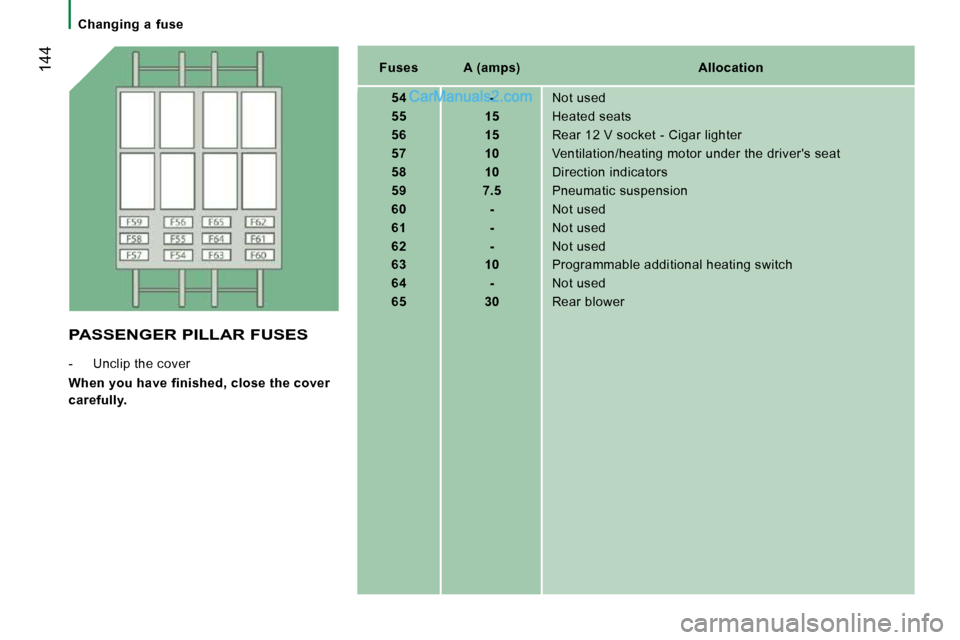

PASSENGER PILLAR FUSES
- Unclip the cover

When you have finished, close the cover
carefully.

QUICK HELP
8
Changing a fuse

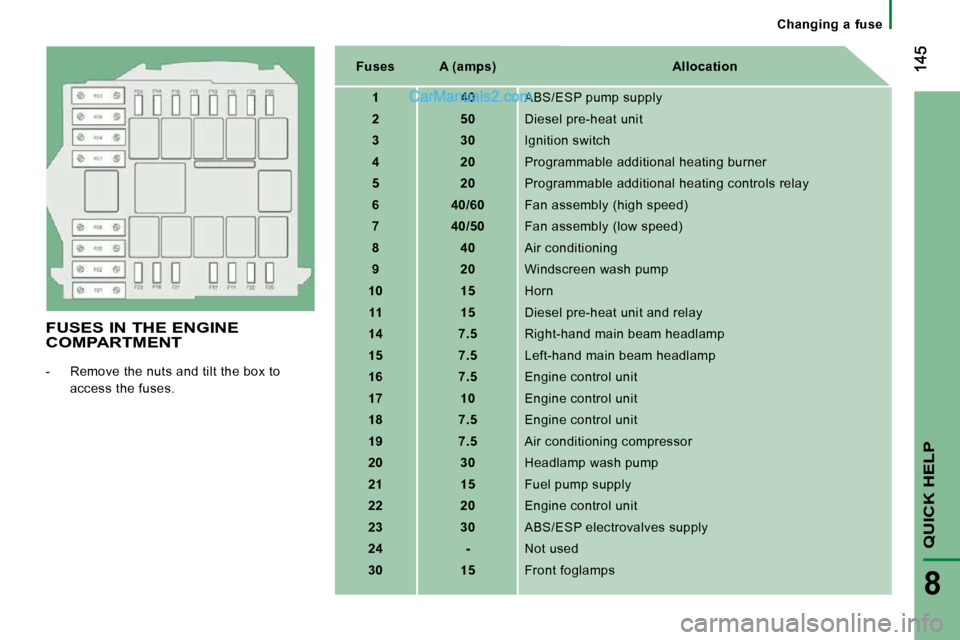

FUSES IN THE ENGINE COMPARTMENT
- Remove the nuts and tilt the box to access the fuses.
Fuses A (amps) Allocation

1 40 ABS/ESP pump supply

2 50 Diesel pre-heat unit

3 30 Ignition switch

4 20 Programmable additional heating burner

5 20 Programmable additional heating controls rela y

6 40/60 Fan assembly (high speed)

7 40/50 Fan assembly (low speed)

8 40 Air conditioning

9 20 Windscreen wash pump

10 15 Horn

11 15 Diesel pre-heat unit and relay

14 7.5 Right-hand main beam headlamp

15 7.5 Left-hand main beam headlamp

16 7.5 Engine control unit

17 10 Engine control unit

18 7.5 Engine control unit

19 7.5 Air conditioning compressor

20 30 Headlamp wash pump

21 15 Fuel pump supply

22 20 Engine control unit

23 30 ABS/ESP electrovalves supply

24 - Not used

30 15 Front foglamps

146

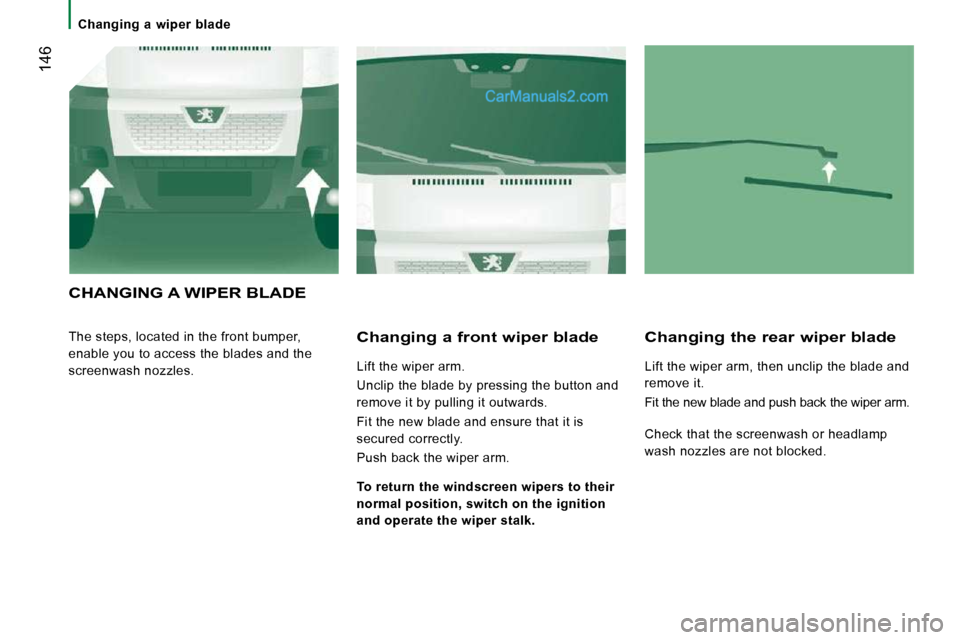

Changing a wiper blade
CHANGING A WIPER BLADE
The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles. Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the
wiper
stalk. Check that the screenwash or headlamp
wash nozzles are not blocked.

QUICK HELP
8

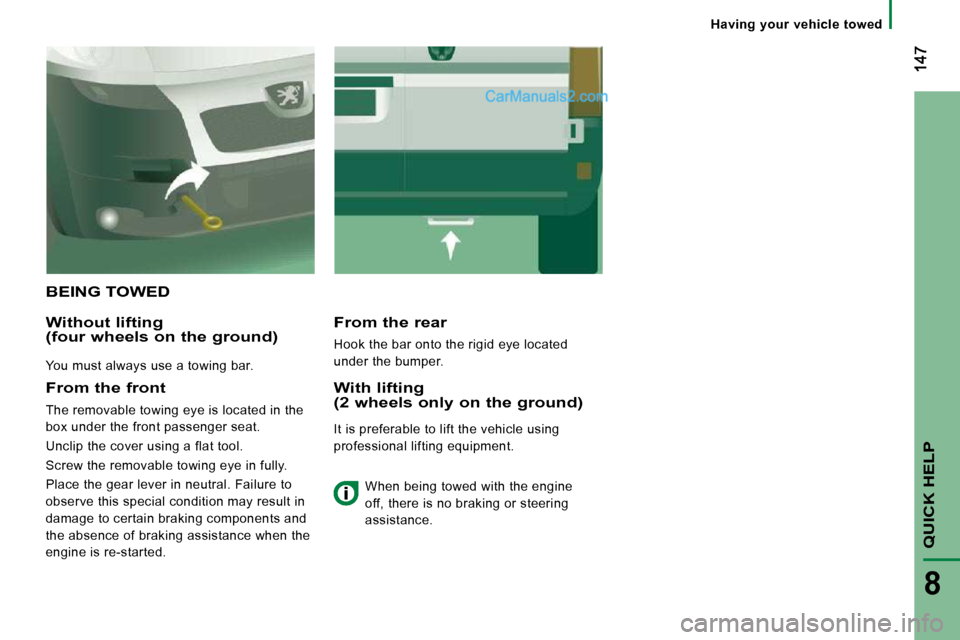

Having your vehicle towed
BEING TOWED
Without lifting (four wheels on the ground)
You must always use a towing bar.
From the rear
Hook the bar onto the rigid eye located
under the bumper.
From the front
The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting (2 wheels only on the ground)
It is preferable to lift the vehicle using
professional lifting equipment. When being towed with the engine
off, there is no braking or steering
assistance.

149
9
TECHNICAL DATA

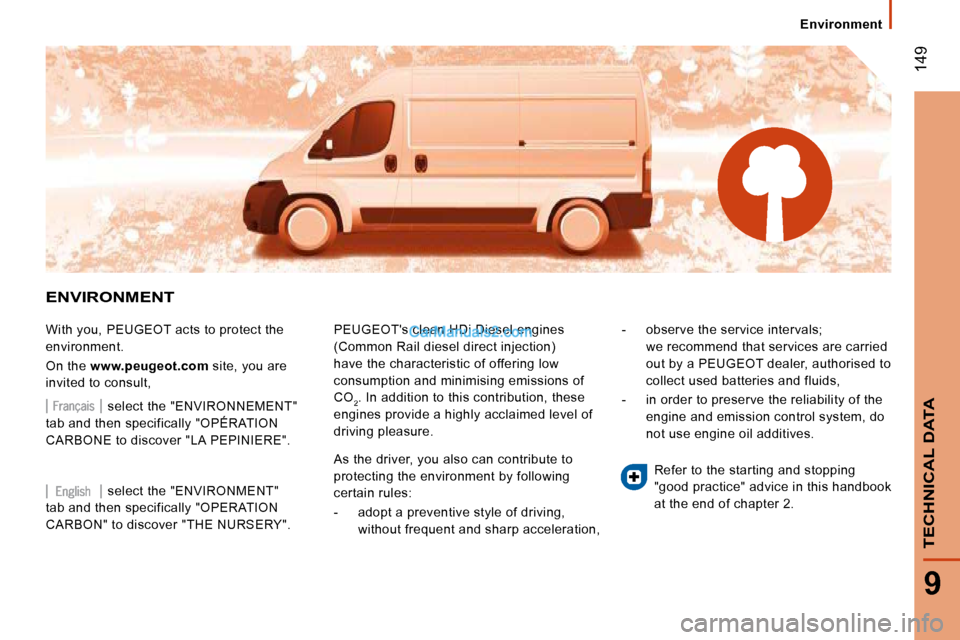

Environment
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
On the www.peugeot.com site, you are
invited to consult, PEUGEOT's clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO
2. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure. - observe the service intervals;
we recommend that services are carried
out by a PEUGEOT dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control system, do
not use engine oil additives.
select the "ENVIRONNEMENT"
tab and then specifically "OPÉRATION
CARBONE to discover "LA PEPINIERE".
select the "ENVIRONMENT"
tab and then specifically "OPERATION
CARBON" to discover "THE NURSERY". As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and sharp acceleration, Refer to the starting and stopping
"good practice" advice in this handbook
at the end of chapter 2.

150

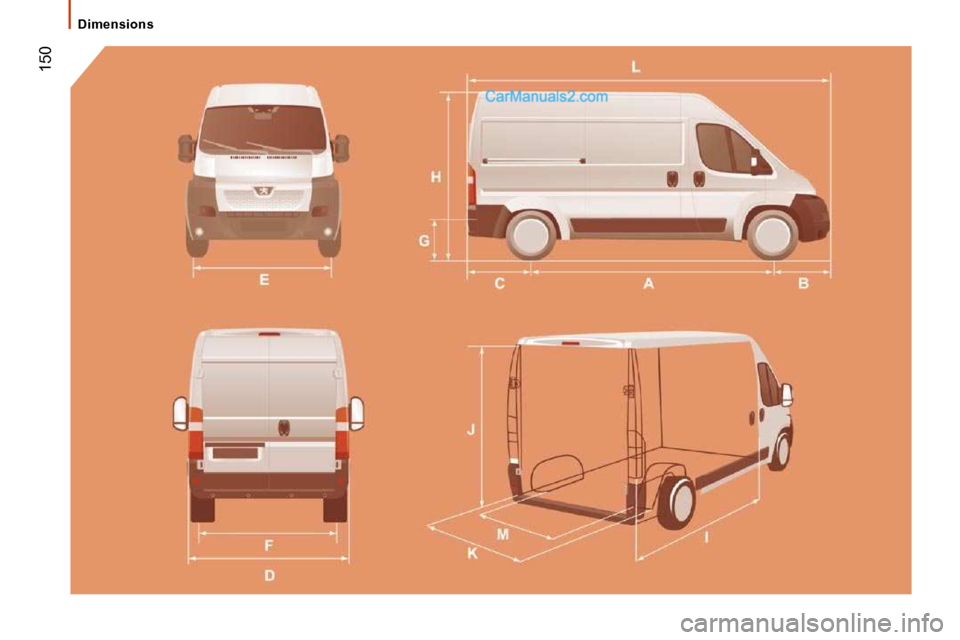

Dimensions
