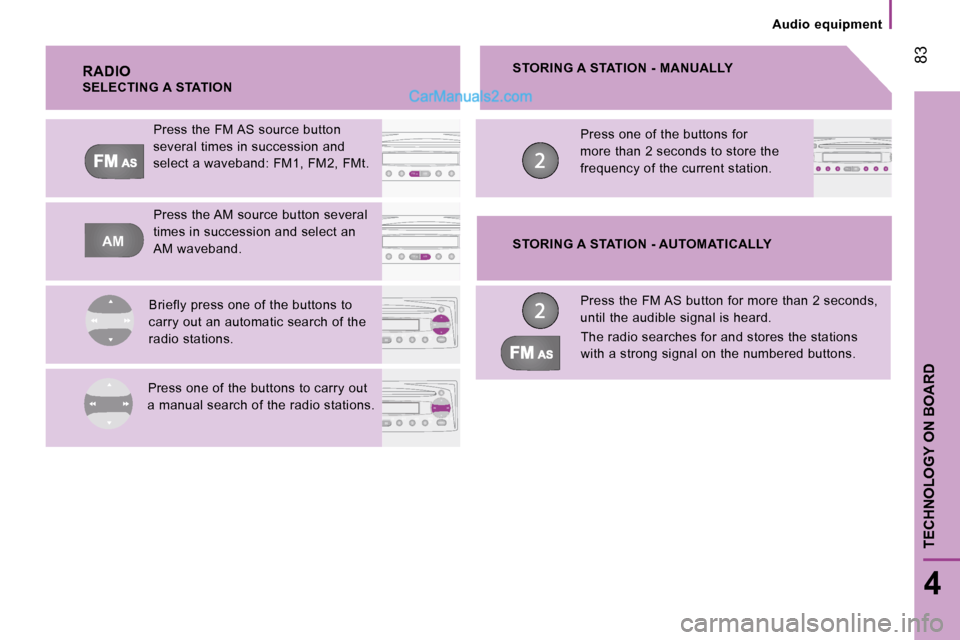

RADIO SELECTING A STATION Press the FM AS source button
several times in succession and
select a waveband: FM1, FM2, FMt.
Press the AM source button several
times in succession and select an
AM waveband.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out
a manual search of the radio stations. STORING A STATION - MANUALLY
Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.
STORING A STATION - AUTOMATICALLY Press the FM AS button for more than 2 seconds,
until the audible signal is heard. The radio searches for and stores the stations
with a strong signal on the numbered buttons.
Page 82 of 167
FM
MUTE CD
AM
AS
Audio equipment
84

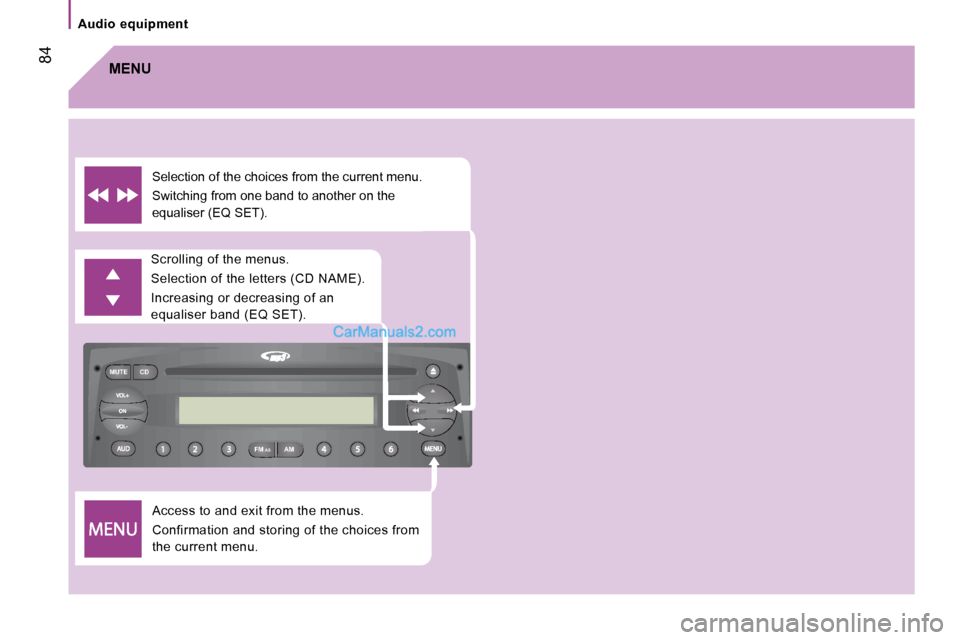

Access to and exit from the menus.
Confirmation and storing of the choices from
the current menu.
Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).
Selection of the choices from the current menu.
Switching from one band to another on the
equaliser (EQ SET).
MENU
Page 83 of 167
4
TECHNOLOGY ON BOARD
Audio equipment
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
Display
Enables you
to…

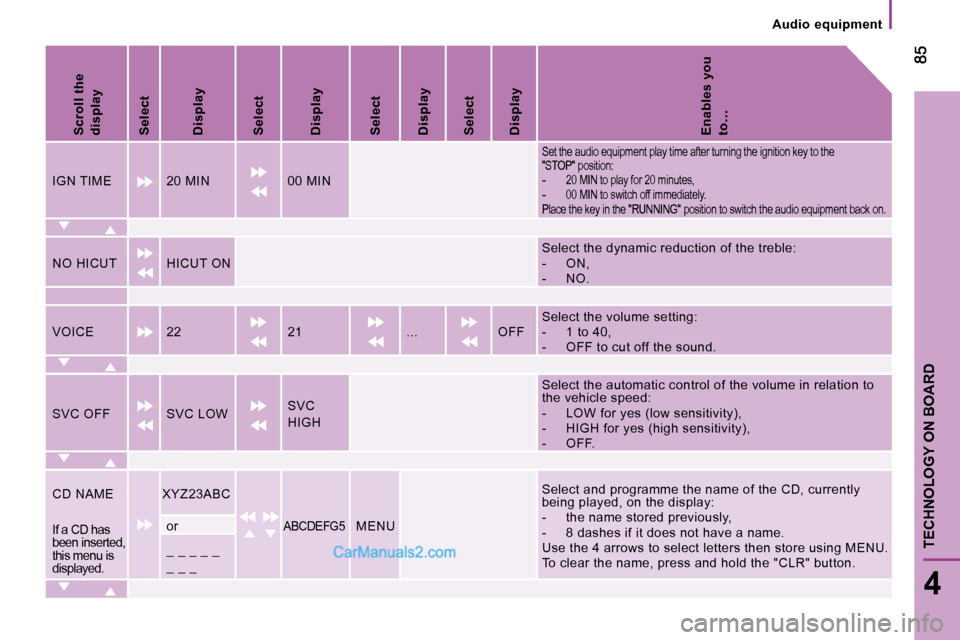

IGN TIME 20 MIN 00 MIN
Set the audio equipment play time after turning th e ignition key to the
"STOP" position:
- 20 MIN to play for 20 minutes,
- 00 MIN to switch off immediately.
Place the key in the "RUNNING" position to switch the audio equipment back on.
NO HICUT HICUT ON Select the dynamic reduction of the treble:
- ON,
- NO.
VOICE 22 21 ... OFF Select the volume setting:
- 1 to 40,
- OFF to cut off the sound.
SVC OFF SVC LOW
SVC
HIGH
Select the automatic control of the volume in rela
tion to
the vehicle speed:
- LOW for yes (low sensitivity),
- HIGH for yes (high sensitivity),
- OFF.
CD NAME
XYZ23ABC
ABCDEFG5 MENU
Select and programme the name of the CD, currently
being played, on the display:
- the name stored previously,
- 8 dashes if it does not have a name.
Use the 4 arrows to select letters then store usin g MENU.
To clear the name, press and hold the "CLR" button .
If a CD has
been inserted,
this menu is
displayed. or
_ _ _ _ _
_ _ _
Page 84 of 167
Audio equipment
86
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
Display
Enables you
to…

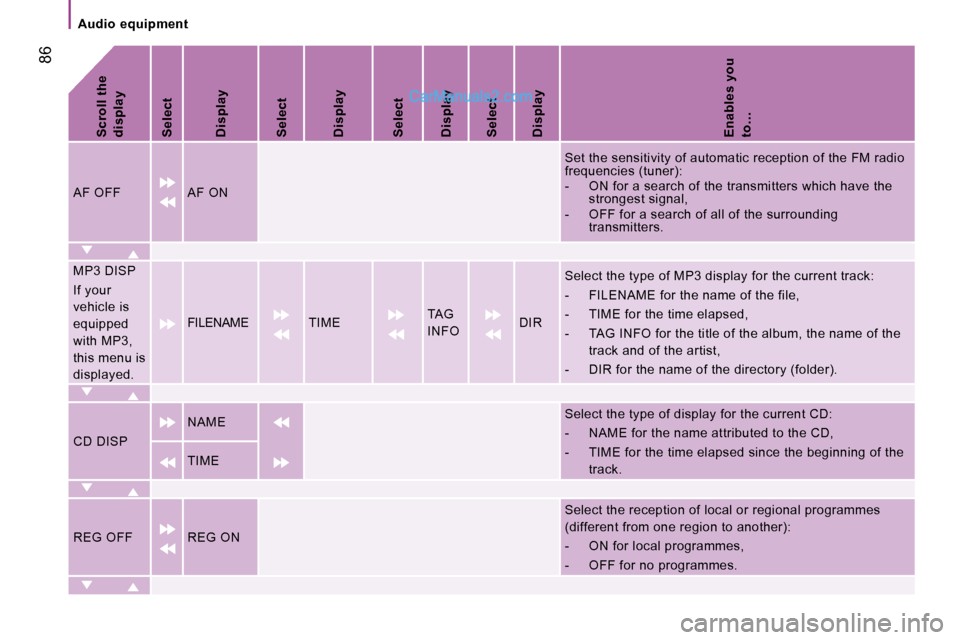

AF OFF AF ON Set the sensitivity of automatic reception of the
FM radio
frequencies (tuner):
- ON for a search of the transmitters which hav e the
strongest signal,
- OFF for a search of all of the surrounding transmitters.
MP3 DISP
If your
vehicle is
equipped
with MP3,
this menu is
displayed. FILENAME TIME
TAG
INFO DIR Select the type of MP3 display for the current tra
ck:
- FILENAME for the name of the file,
- TIME for the time elapsed,
- TAG INFO for the title of the album, the name of the
track and of the artist,
- DIR for the name of the directory (folder).
CD DISP NAME
Select the type of display for the current CD:
- NAME for the name attributed to the CD,
- TIME for the time elapsed since the beginning
of the
track.
TIME
REG OFF REG ON Select the reception of local or regional programm
es
(different from one region to another):
- ON for local programmes,
- OFF for no programmes.
Page 85 of 167
87
4
TECHNOLOGY ON BOARD
Audio equipment
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
Display
Enables you
to…
PRESET USER CLASSIC ROCK JAZZ Select pre-defined equaliser settings.
Select USER to set the equaliser manually then go
to the
EQ SET menu.
Bass and Treble adjustments are always possible.
EQ SET
If USER is
selected in
PRESET,
this menu is
displayed.
Programme the 7 bands of the equaliser manually.
To store the settings, press MENU.
TA OFF TA ON Receive traffic information from the FM radio stat ions.
EXT EXT VOL EXT OFF EXT
23 Adjust or cut off external sound sources.
LIMIT ON NO LIMIT Activate the maximum volume setting when audio
system is on.
Page 86 of 167
22
11
CDFFM
C
AMAMASA
AM
FM
MUTE CD
AM
AS
Audio equipment

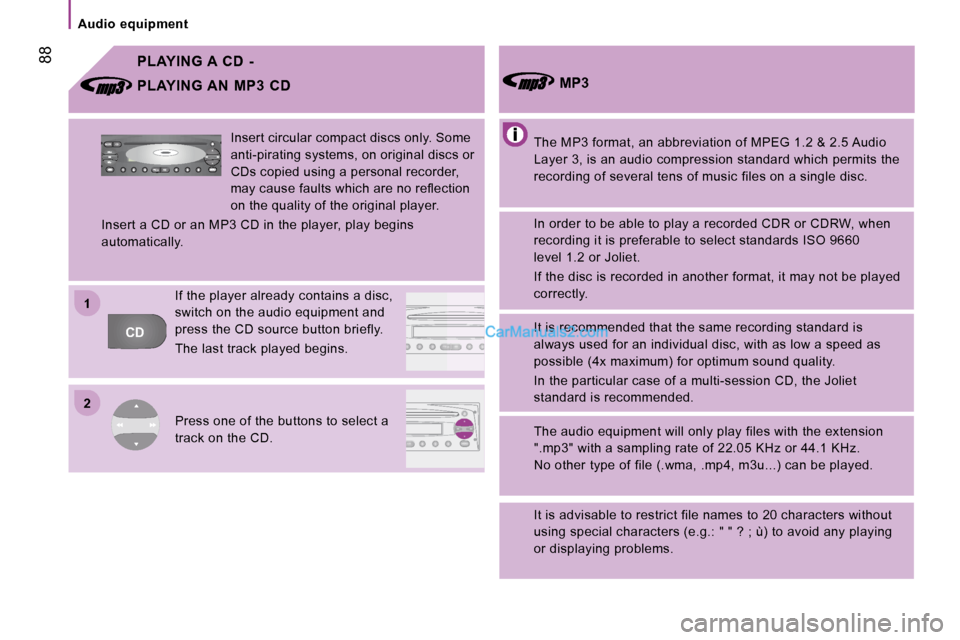

88 PLAYING A CD -
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which per mits the
recording of several tens of music files on a singl e disc.
MP3
In order to be able to play a recorded CDR or CDRW , when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z.
No other type of file (.wma, .mp4, m3u...) can be p layed.
It is advisable to restrict file names to 20 chara cters without
using special characters (e.g.: " " ? ; ù) to avoid any playing
or displaying problems.
PLAYING AN MP3 CD
Insert circular compact discs only. Some
anti-pirating systems, on original discs or
CDs copied using a personal recorder,
m a y c a u s e f a u l t s w h i c h a r e n o r e fl e c t i o n
on the quality of the original player.
Insert a CD or an MP3 CD in the player, play begin s
automatically.
If the player already contains a disc,
switch on the audio equipment and
press the CD source button briefly.
The last track played begins.
Press one of the buttons to select a
track on the CD.
Page 87 of 167
89
4
TECHNOLOGY ON BOARD

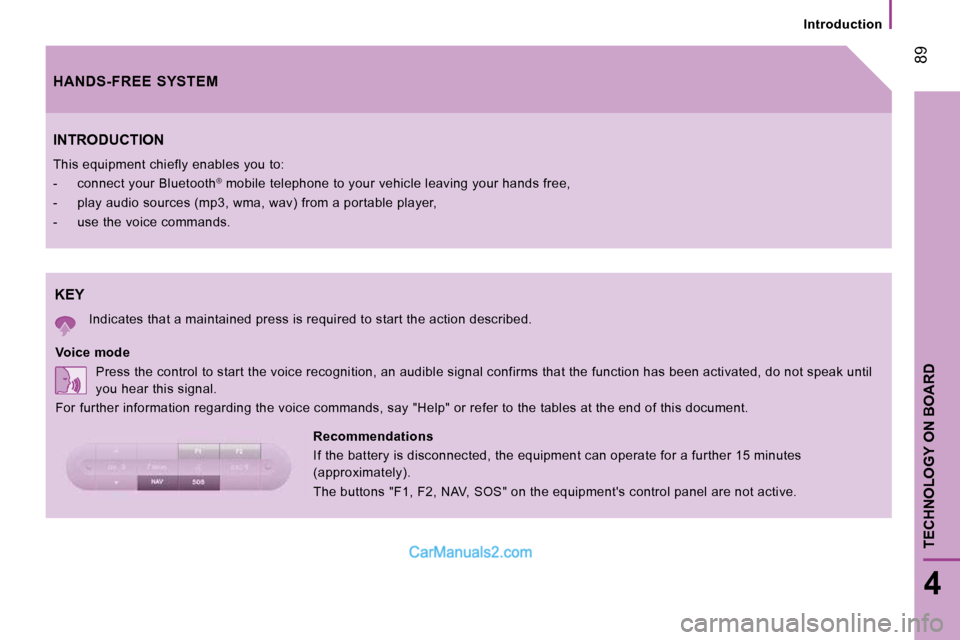

Introduction
KEY
Indicates that a maintained press is required to start the action described.
Voice mode Press the control to start the voice recognition, an audible signal confirms that the function has be en activated, do not speak until
you hear this signal.
For further information regarding the voice comman ds, say "Help" or refer to the tables at the end of this document.
INTRODUCTION
This equipment chiefly enables you to:
- connect your Bluetooth®
mobile telephone to your vehicle leaving your hand s free,
- play audio sources (mp3, wma, wav) from a port able player,
- use the voice commands.
Recommendations
If the battery is disconnected, the equipment can operate for a further 15 minutes
(approximately).
The buttons "F1, F2, NAV, SOS" on the equipment's control panel are not active.
HANDS-FREE SYSTEM
Page 88 of 167
Presentation

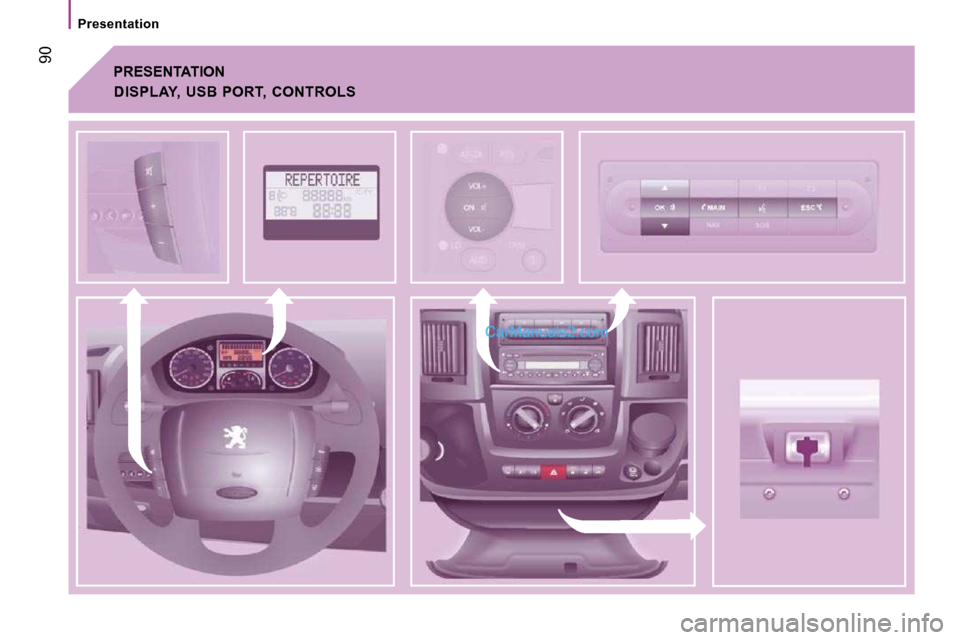

90 PRESENTATION
DISPLAY, USB PORT, CONTROLS
Page 89 of 167
1 F2
OSOSESC
NAVF1
SOSSOSMAINOK
NAV F1 F2
SOSSOSMAINESC
NAMAOK
NAMOK
91
4
TECHNOLOGY ON BOARD
Presentation

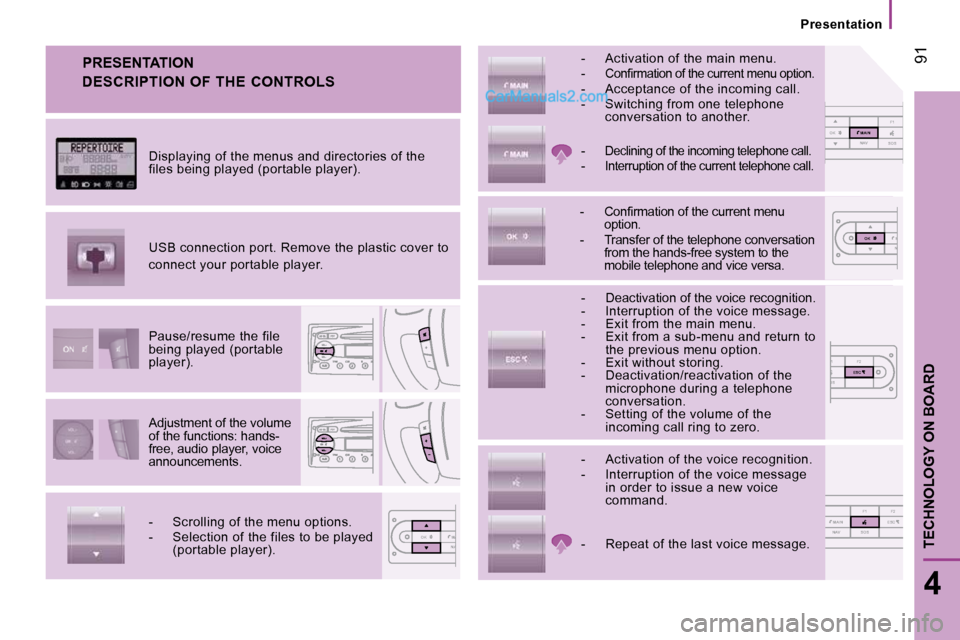

PRESENTATION
Adjustment of the volume
of the functions: hands-
free, audio player, voice
announcements.
Pause/resume the file
being played (portable
player).
USB connection port. Remove the plastic cover to
connect your portable player.
Displaying of the menus and directories of the
files being played (portable player).
- Scrolling of the menu options.
- Selection of the files to be played
(portable player). - Activation of the voice recognition.
- Interruption of the voice message
in order to issue a new voice
command.
- Deactivation of the voice recognition.
- Interruption of the voice message.
- Exit from the main menu.
- Exit from a sub-menu and return to
the previous menu option.
- Exit without storing.
- Deactivation/reactivation of the microphone during a telephone
conversation.
- Setting of the volume of the incoming call ring to zero.
- C o n fi r m a t i o n o f t h e c u r r e n t m e n u option.
- Transfer of the telephone conversation from the hands-free system to the
mobile telephone and vice versa.
-
Declining of the incoming telephone call.
- Interruption of the current telephone call.
- Activation of the main menu.
- C o n fi r m a t i o n o f t h e c u r r e n t m e n u o p t i o n . - Acceptance of the incoming call.
- Switching from one telephone conversation to another.
- Repeat of the last voice message. DESCRIPTION OF THE CONTROLS
Page 90 of 167
Mobile telephone with hands-free function
92
When prompted by the telephone, enter the
PIN displayed on the instrument panel.
If the pairing has been successful, the
system announces "Connecting".
The name of the telephone identified
appears on the instrument panel display,
pairing is confirmed.
Blue indicator lamp on
"Settings"\wait for a response\
"Pairing".
PIN

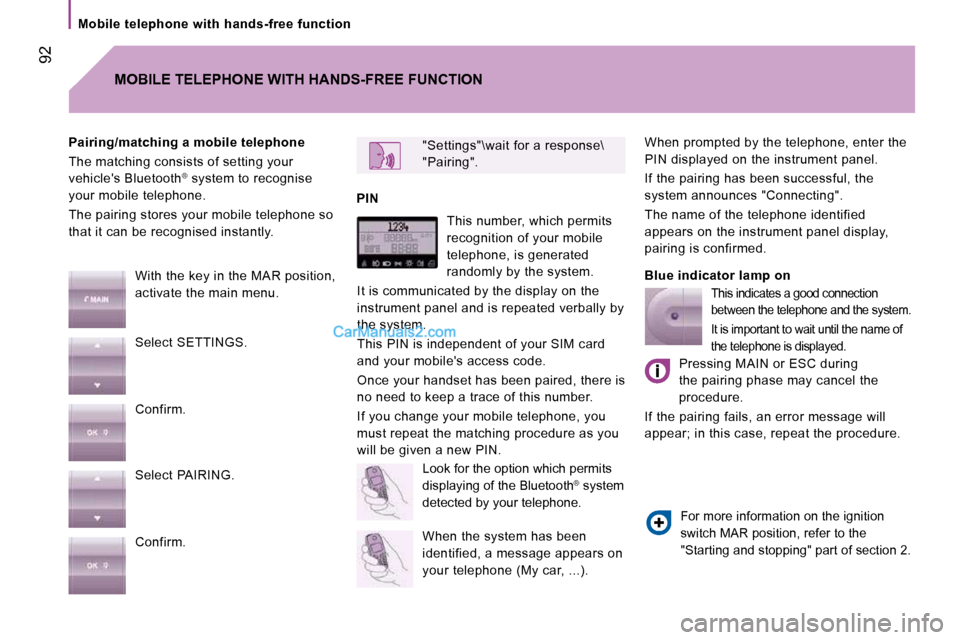

Pairing/matching a mobile telephone
The matching consists of setting your
vehicle's Bluetooth
®
system to recognise
your mobile telephone.
The pairing stores your mobile telephone so
that it can be recognised instantly.
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
With the key in the MAR position,
activate the main menu.
Select SETTINGS.
Confirm.
Select PAIRING.
Confirm. This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.
It is communicated by the display on the
instrument panel and is repeated verbally by
the system.
This PIN is independent of your SIM card
and your mobile's access code.
Once your handset has been paired, there is
no need to keep a trace of this number.
If you change your mobile telephone, you
must repeat the matching procedure as you
will be given a new PIN. Look for the option which permits
displaying of the Bluetooth ®
system
detected by your telephone.
When the system has been
identified, a message appears on
your telephone (My car, ...).
This indicates a good connection
between the telephone and the system.
It is important to wait until the name of
the telephone is displayed.
Pressing MAIN or ESC during
the pairing phase may cancel the
procedure.
If the pairing fails, an error message will
appear; in this case, repeat the procedure.
For more information on the ignition
switch MAR position, refer to the
"Starting and stopping" part of section 2.
