EASE OF USE AND COMFORT
Seats
CREW CAB
Consisting of an ergonomic 4-seat bench
and a high-strength partition, it offers
comfort and safety.
Each seat of the bench is fitted with an
inertia reel seat belt.
Refer to section 5 to read the "Good
practice" recommendations.
Access to the box under the bench seat
From the cab
Tilt the seat cushion forwards to gain access
to the large box.
From the load space
Raise the two flaps which make the full
length at the floor available. The flaps are
retained in the raised position by magnets
on the back of the partition.
Good pratice
Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Do not install child seats, booster cushions or
carrycots on the rear seats of the crew cab.
In the rear, the load space is intended for
the transportation of goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.

64

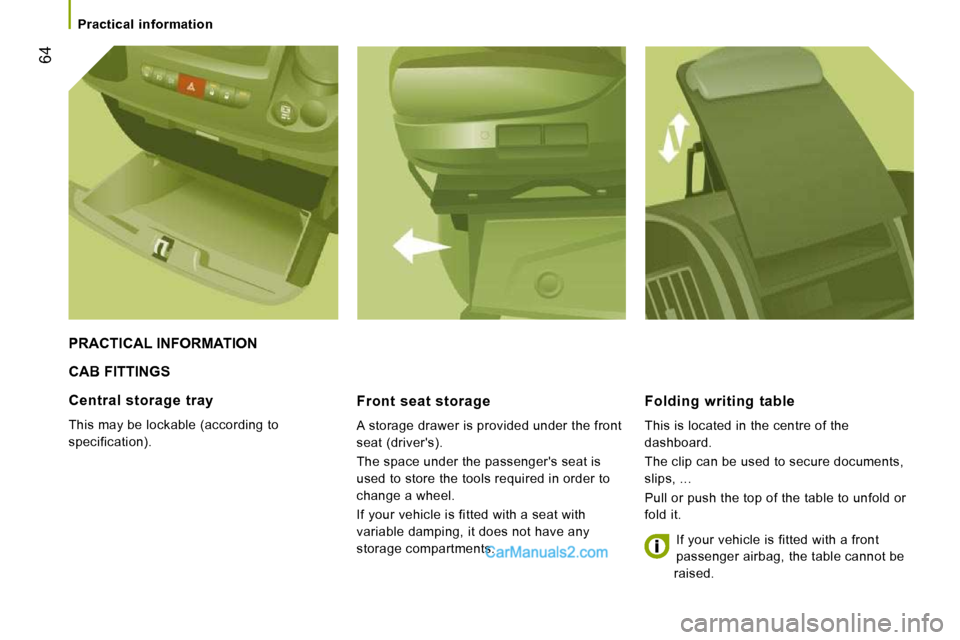

Practical information
CAB FITTINGS
Front seat storage
A storage drawer is provided under the front
seat (driver's).
The space under the passenger's seat is
used to store the tools required in order to
change a wheel.
If your vehicle is fitted with a seat with
variable damping, it does not have any
storage compartments.
Folding writing table
This is located in the centre of the
dashboard.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.
PRACTICAL INFORMATION
Central storage tray
This may be lockable (according to
specification). If your vehicle is fitted with a front
passenger airbag, the table cannot be
raised.

65
3
EASE OF USE AND COMFORT
Practical information

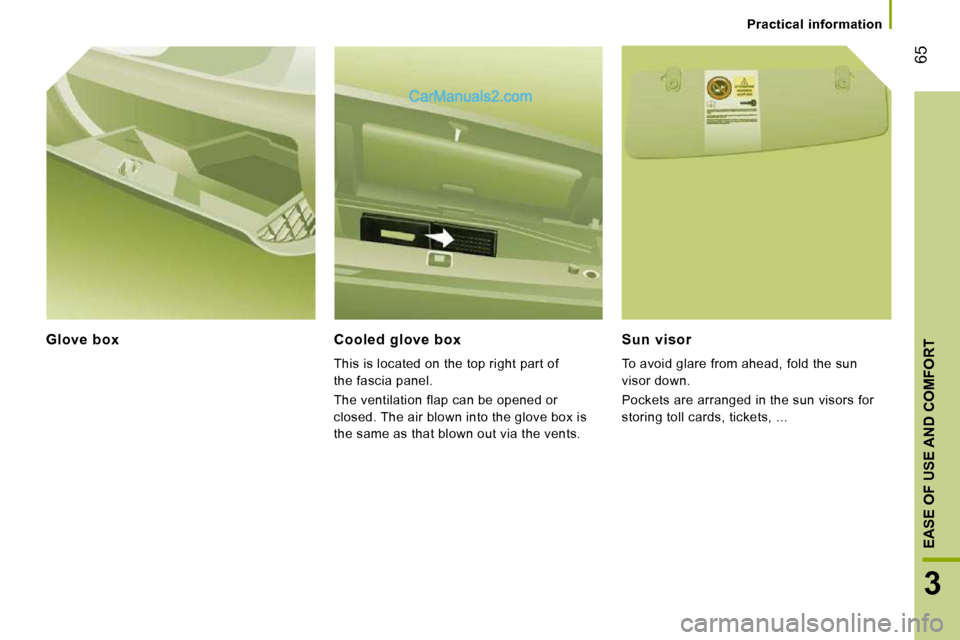

Glove box Cooled glove box
This is located on the top right part of
the fascia panel.
The ventilation flap can be opened or
closed. The air blown into the glove box is
the same as that blown out via the vents.
Sun visor
To avoid glare from ahead, fold the sun
visor down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, ...

66
Practical information
Cigar lighter/12 volt socket
Press and wait a few moments until
the lighter pops out automatically.
When used as a socket: 180 W max.
Portable ashtray
After opening, pull upwards then empty
the ashtray into a bin.
Overhead storage compartment
This is located above the sun visors.
Maximum load: approximately 20 kg.

67
3
EASE OF USE AND COMFORT
Practical information

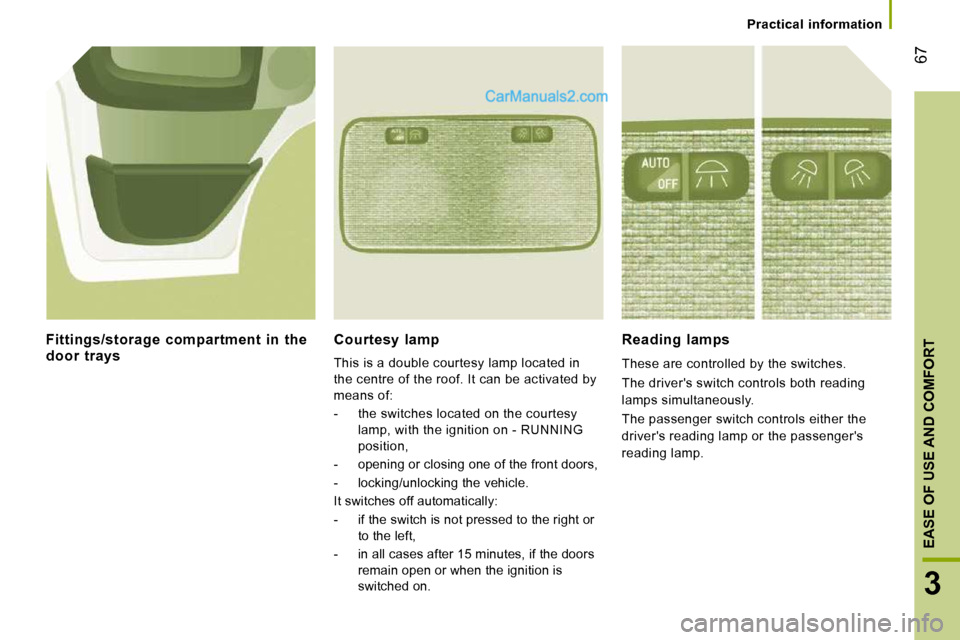

Courtesy lamp
This is a double courtesy lamp located in
the centre of the roof. It can be activated by
means of:
- the switches located on the courtesy lamp, with the ignition on - RUNNING
position,
- opening or closing one of the front doors,
- locking/unlocking the vehicle.
It switches off automatically:
- if the switch is not pressed to the right or to the left,
- in all cases after 15 minutes, if the doors remain open or when the ignition is
switched on.
Reading lamps
These are controlled by the switches.
The driver's switch controls both reading
lamps simultaneously.
The passenger switch controls either the
driver's reading lamp or the passenger's
reading lamp.
Fittings/storage compartment in the door trays

68
Practical information

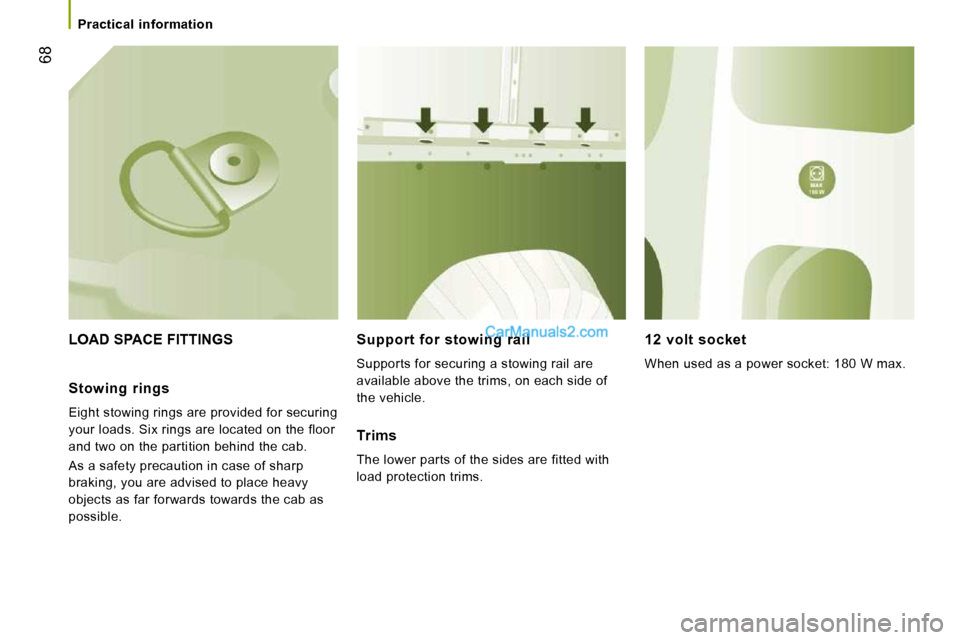

LOAD SPACE FITTINGS Support for stowing rail
Supports for securing a stowing rail are
available above the trims, on each side of
the vehicle.
12 volt socket
When used as a power socket: 180 W max.
Stowing rings
Eight stowing rings are provided for securing
your loads. Six rings are located on the floor
and two on the partition behind the cab.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the cab as
possible.
Trims
The lower parts of the sides are fitted with
load protection trims.

3
EASE OF USE AND COMFORT
Practical information
Sliding side windows
Depending on the vehicle's
equipment, the side windows of
row 2 can be opened.
Squeeze the two controls then
slide the window.
While driving, the window must be closed or
secured in an intermediate position.
Step
To make access and exit easier, your vehicle
may be fitted with a step which unfolds when

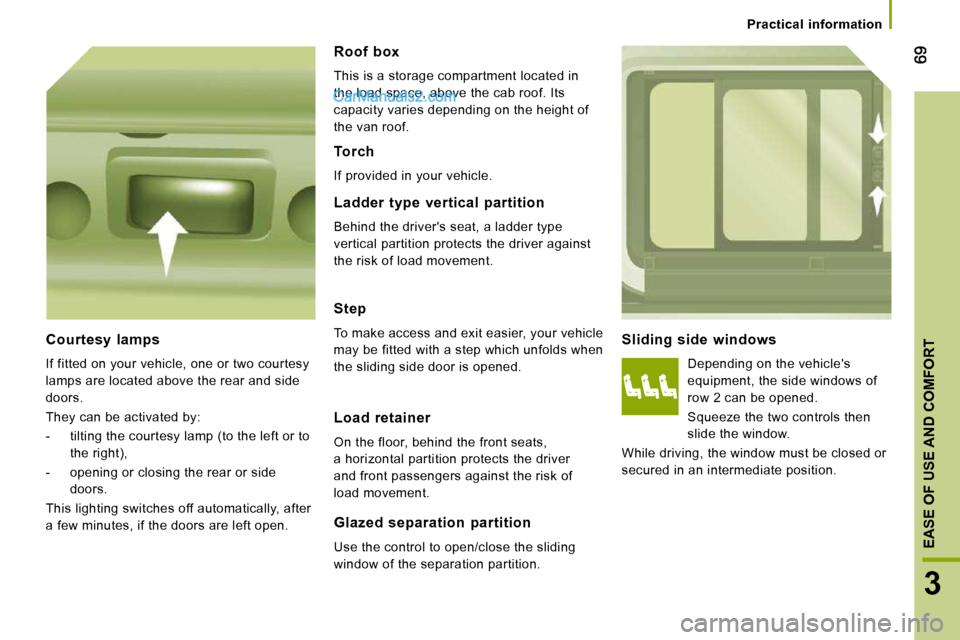

the sliding side door is opened. Courtesy lamps
If fitted on your vehicle, one or two courtesy
lamps are located above the rear and side
doors.
They can be activated by:
- tilting the courtesy lamp (to the left or to the right),
- opening or closing the rear or side doors.
This lighting switches off automatically, after
a few minutes, if the doors are left open.
Roof box
This is a storage compartment located in
the load space, above the cab roof. Its
capacity varies depending on the height of
the van roof.
Torch
If provided in your vehicle.
Ladder type vertical partition
Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.
Load retainer
On the floor, behind the front seats,
a horizontal partition protects the driver
and front passengers against the risk of
load movement.
Glazed separation partition
Use the control to open/close the sliding
window of the separation partition.

70
Mirrors and windows

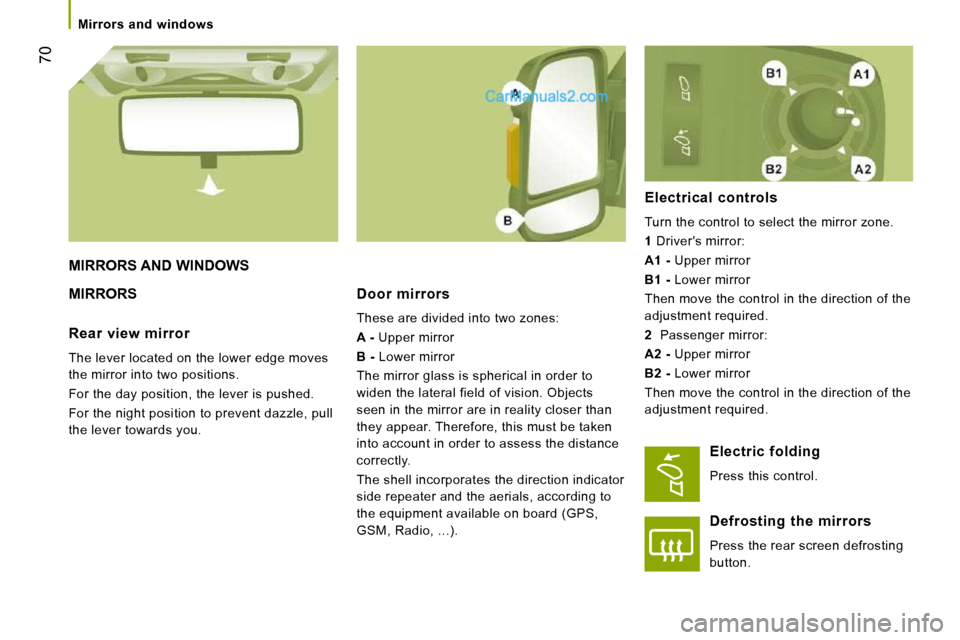

MIRRORS AND WINDOWS
MIRRORS Door mirrors
These are divided into two zones:

A - Upper mirror

B - Lower mirror
The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.
The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM, Radio, ...).
Electrical controls
Turn the control to select the mirror zone.

1 Driver's mirror:

A1 - Upper mirror

B1 - Lower mirror
Then move the control in the direction of the
adjustment required.

2 Passenger mirror:

A2 - Upper mirror

B2 - Lower mirror
Then move the control in the direction of the
adjustment required.
Rear view mirror
The lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle, pull
the lever towards you.
Electric folding
Press this control.
Defrosting the mirrors
Press the rear screen defrosting
button.

71
3
EASE OF USE AND COMFORT
Mirrors and windows

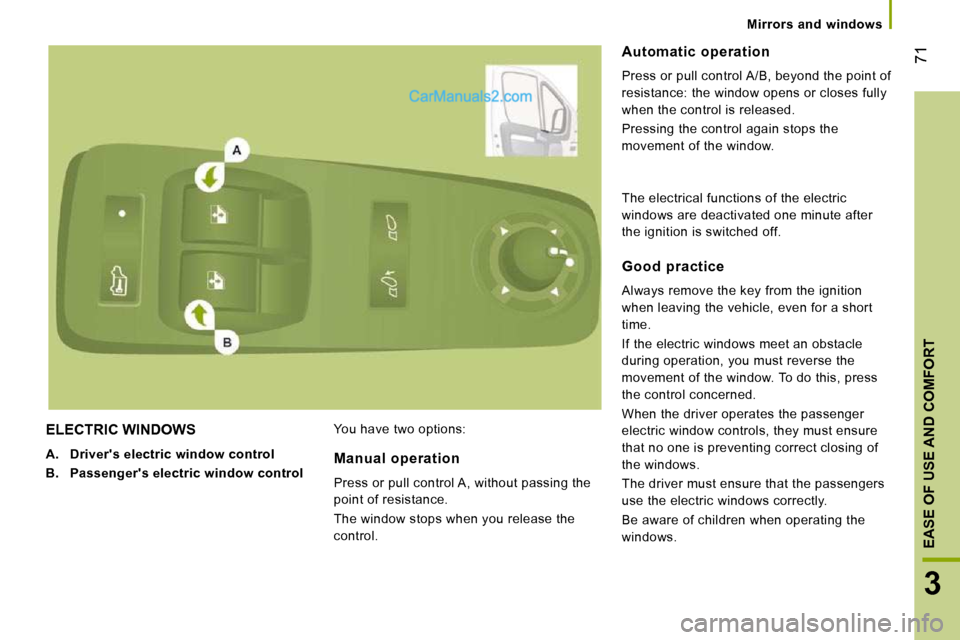

ELECTRIC WINDOWS

A. Driver's electric window control

B. Passenger
's
electric window control You have two options:
Automatic operation
Press or pull control A/B , beyond the point of
resistance: the window opens or closes fully
when the control is released.
Pressing the control again stops the
movement of the window.
Manual operation
Press or pull control A , without passing the
point of resistance.
The window stops when you release the
control.
Good practice
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.
The electrical functions of the electric
windows are deactivated one minute after
the ignition is switched off.

72
Trip computer
The TRIP button, located at the end of the
wiper stalk, provides access to the following
information:
- Ambient
temperature
This indicates the temperature outside the vehicle.
- Range
This indicates the distance that can still be travelled with the fuel remaining in
the tank on the basis of the average
consumption over the last few miles
(kilometres) travelled. -
Average speed A
This is the average speed calculated since the last trip computer zero reset
(with the ignition on).
- Trip duration A
This indicates the total time since the last trip recorder zero reset.
-
Distance A
This indicates the distance travelled since the last trip computer zero reset.
- Average
fuel
consumption A
This is the average quantity of fuel consumed since the last trip computer
zero reset.
- Current
fuel
consumption A
This is the average quantity of fuel consumed during the last few seconds.

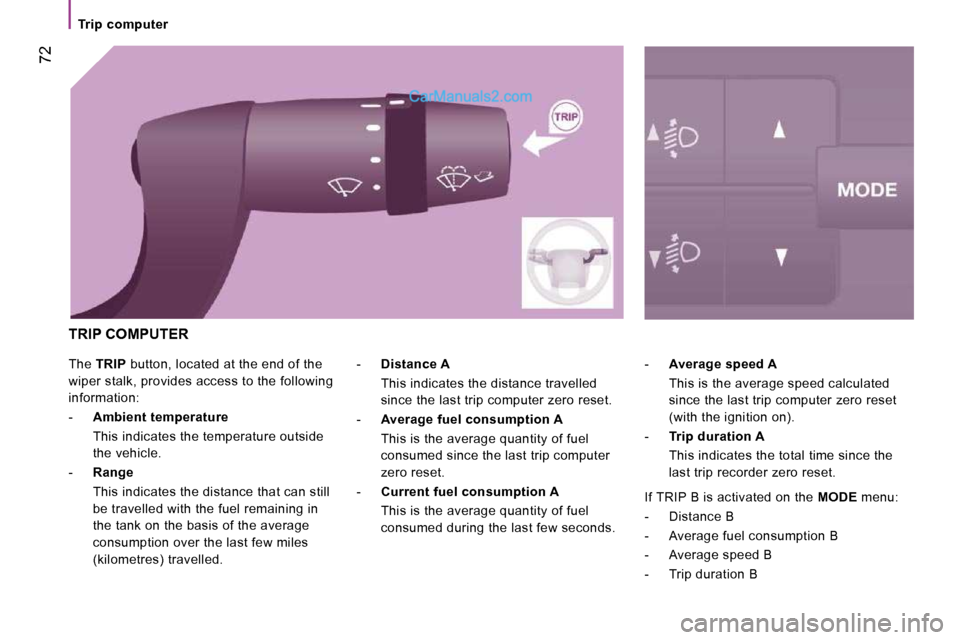

TRIP COMPUTER
If TRIP B is activated on the MODE menu:
- Distance B
- Average fuel consumption B
- Average speed B
- Trip duration B
