AUDIO-SYSTEM122

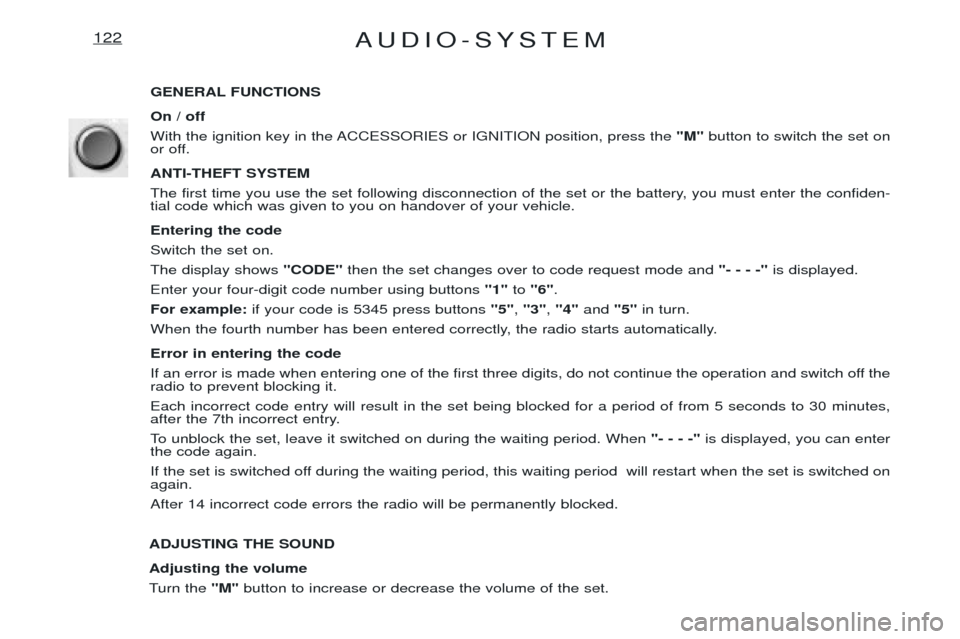

GENERAL FUNCTIONS On / off
With the ignition key in the ACCESSORIES or IGNITION position, press the"M"button to switch the set on
or off. ANTI-THEFT SYSTEM
The first time you use the set following disconnection of the set or the battery, you must enter the confiden- tial code which was given to you on handover of your vehicle. Entering the code Switch the set on.The display shows "CODE"then the set changes over to code request mode and "- - - -"is displayed.
Enter your four-digit code number using buttons "1"to "6" .
For example: if your code is 5345 press buttons "5", "3" , "4" and "5"in turn.
When the fourth number has been entered correctly, the radio starts automatically. Error in entering the code
If an error is made when entering one of the first three digits, do not continue the operation and switch off the radio to prevent blocking it. Each incorrect code entry will result in the set being blocked for a period of from 5 seconds to 30 minutes,
after the 7th incorrect entry.
To unblock the set, leave it switched on during the waiting period. When "- - - -"is displayed, you can enter
the code again.
If the set is switched off during the waiting period, this waiting period will restart when the set is switched on again. After 14 incorrect code errors the radio will be permanently blocked.
ADJUSTING THE SOUND Adjusting the volume
Turn the "M"button to increase or decrease the volume of the set.

AUDIO-SYSTEM123

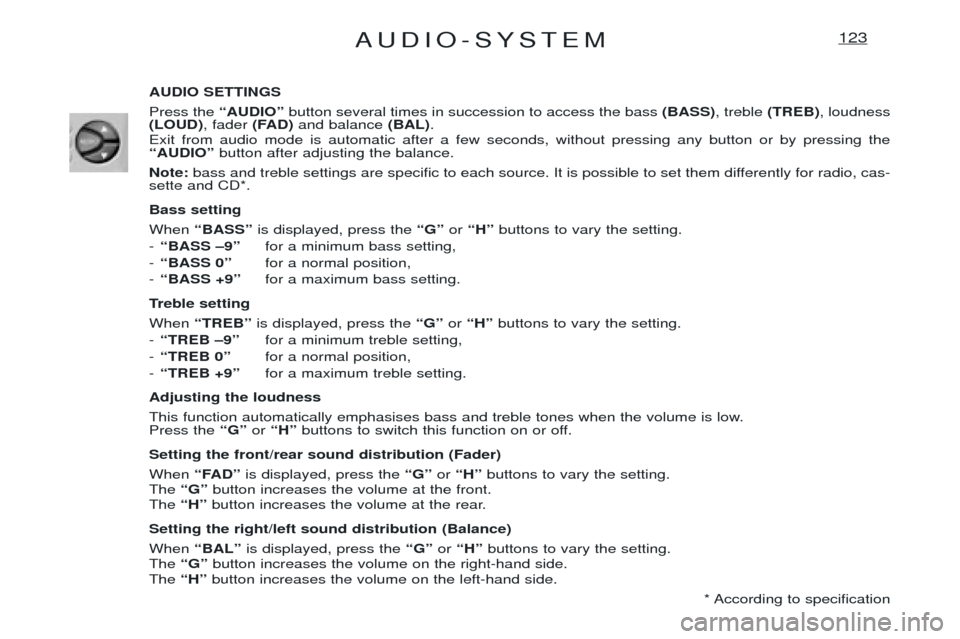

AUDIO SETTINGS Press the ÒAUDIOÓbutton several times in succession to access the bass (BASS), treble (TREB) , loudness
(LOUD) , fader (FAD)and balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the ÒAUDIOÓ button after adjusting the balance.
Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette and CD*. Bass setting When ÒBASSÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
- ÒBASS Ð9Ó for a minimum bass setting,
- ÒBASS 0Ó for a normal position,
- ÒBASS +9Ó for a maximum bass setting.
Treble settingWhen ÒTREBÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
- ÒTREB Ð9Ó for a minimum treble setting,
- ÒTREB 0Ó for a normal position,
- ÒTREB +9Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒGÓor ÒHÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When ÒFADÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
The ÒGÓ button increases the volume at the front.
The ÒHÓbutton increases the volume at the rear.
Setting the right/left sound distribution (Balance)When ÒBALÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
The ÒGÓ button increases the volume on the right-hand side.
The ÒHÓbutton increases the volume on the left-hand side.
* According to specification

AUDIO-SYSTEM125
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the ÒRDSÓbutton.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.

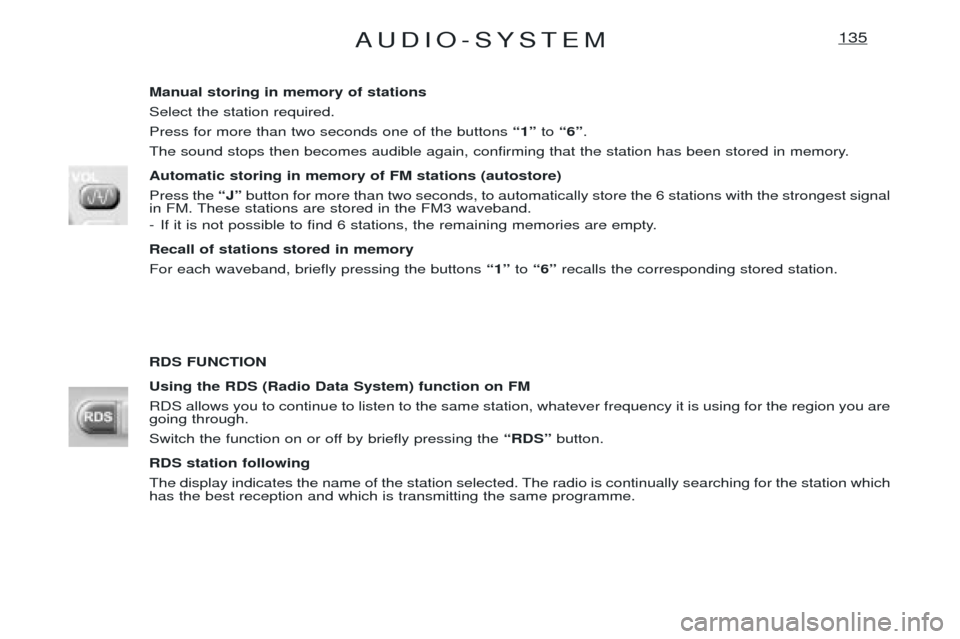

Manual storing in memory of stations Select the station required.Press for more than two seconds one of the buttons Ò1Óto Ò6Ó .
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing in memory of FM stations (autostore) Press the ÒBND/ASTÓ button for more than two seconds, to automatically store the 6 stations with the
strongest signal in FM. These stations are stored in the FM3 waveband.
- If it is not possible to find 6 stations, the remaining memories are empty. Recall of stations stored in memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.

AUDIO-SYSTEM127

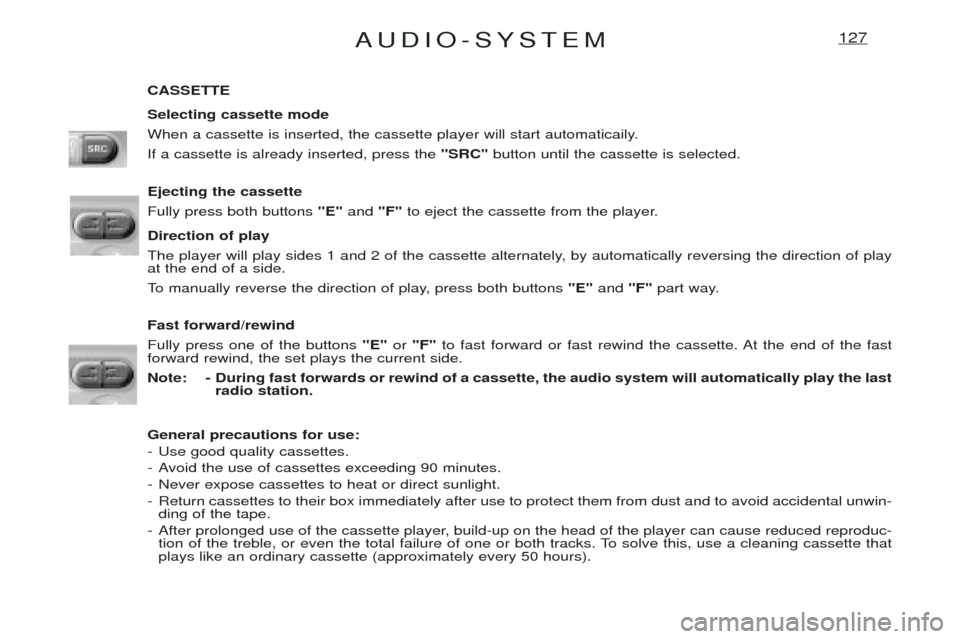

CASSETTE Selecting cassette mode
When a cassette is inserted, the cassette player will start automaticaily.If a cassette is already inserted, press the "SRC"button until the cassette is selected.
Ejecting the cassetteFully press both buttons "E"and "F"to eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press both buttons "E"and "F"part way.
Fast forward/rewindFully press one of the buttons "E"or "F" to fast forward or fast rewind the cassette. At the end of the fast
forward rewind, the set plays the current side.
Note: - During fast forwards or rewind of a cassette, the audio system will automatically play the last radio station.
General precautions for use:
- Use good quality cassettes.
- Avoid the use of cassettes exceeding 90 minutes.
- Never expose cassettes to heat or direct sunlight.
- Return cassettes to their box immediately after use to protect them from dust and to avoid accidental unwin- ding of the tape.
- After prolonged use of the cassette player, build-up on the head of the player can cause reduced reproduc- tion of the treble, or even the total failure of one or both tracks. To solve this, use a cleaning cassette that plays like an ordinary cassette (approximately every 50 hours).

AUDIO-SYSTEM128

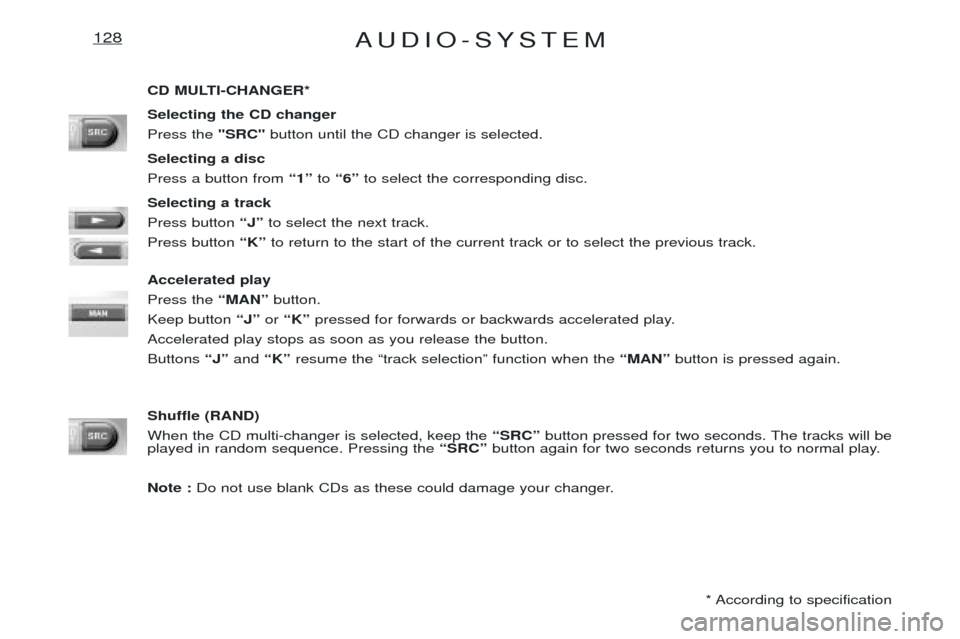

CD MULTI-CHANGER* Selecting the CD changer Press the "SRC"button until the CD changer is selected.
Selecting a discPress a button from Ò1Óto Ò6Ó to select the corresponding disc.
Selecting a trackPress button ÒJÓto select the next track.
Press button ÒKÓto return to the start of the current track or to select the previous track.
Accelerated playPress the ÒMANÓbutton.
Keep button ÒJÓor ÒKÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button.Buttons ÒJÓand ÒKÓ resume the Òtrack selectionÓ function when the ÒMANÓbutton is pressed again.
Shuffle (RAND)When the CD multi-changer is selected, keep the ÒSRCÓbutton pressed for two seconds. The tracks will be
played in random sequence. Pressing the ÒSRCÓbutton again for two seconds returns you to normal play.
Note : Do not use blank CDs as these could damage your changer.
* According to specification

AUDIO-SYSTEM131
ButtonFunction
A i
Ejection of the CD.
B RDS RDS function on/off.
Press for more than 2 seconds: regional station following on/off.
CT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
D Increase audio setting.
E Decrease audio setting.
F AUDIO Selects the bass, treble, loundness and sound distibution.
G Automatic search of higher frequency.Selection of next CD track.
H Automatic search of lower frequency.Selection of previous CD track.
I MAN Manual/automatic operation of buttons Gand H.
J Source selection, radio. Selection of wavebands FM1, FM2, FM3, AM.Press for more than 2 seconds: automatic storing of stations (autostore).
K Source selection, CD.
Press for more than 2 seconds: shuffle.
L Source selection: CD player*.
Press for more than 2 seconds: shuffle.
M ON/VOL Radio on/off. Volume adjustment.
N 1 to 6 Selection of the stored station.Press for more than 2 seconds: storing a station.Selection of a CD disc*.


k
j
* According to specification

AUDIO-SYSTEM132
GENERAL FUNCTIONS On / off
With the ignition key in the ACCESSORIES or IGNITION position, press the "M"button to switch the set on
or off.The set can operate for 30 minutes without switching the ignition on. ANTI-THEFT SYSTEM
The first time you use the set following disconnection of the set or the battery, you must enter the confiden- tial code which was given to you on handover of your vehicle. Entering the code Switch the set on.The display shows "CODE"then the set changes over to code request mode and "- - - -"is displayed.
Enter your four-digitcode number using buttons "1"to "6" .
For example: if your code is 5345 press buttons "5", "3" , "4" and "5"in turn.
When the fourth number has been entered correctly, the radio starts automatically. Error in entering the code
If an error is made when entering one of the first three digits, do not continue the operation and switch off the radio to prevent blocking it. Each incorrect code entry will result in the set being blocked for a period of from 5 seconds to 30 minutes,
after the 7th incorrect entry.
To unblock the set, leave it switched on during the waiting period. When "- - - -"is displayed, you can enter
the code again.
If the set is switched off during the waiting period, this waiting period will restart when the set is switched on again. After 14 incorrect code errors the radio will be permanently blocked. ADJUSTING THE SOUND Adjusting the volume
Turn the "M"button M to increase or decrease the volume of the set.

AUDIO-SYSTEM133
AUDIO SETTINGS Press the ÒAUDIOÓbutton several times in succession to access the bass (BASS), treble (TREB) , loudness
(LOUD) , fader (FAD)and balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the ÒAUDIOÓ button after adjusting the balance.
Note: the bass and treble settings are specific to each source. It is possible to set the radio, CD, or CD* multi-
changer differently. Bass setting When ÒBASSÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
- ÒBASS Ð9Ó for a minimum bass setting,
- ÒBASS 0Ó for a normal position,
- ÒBASS +9Ó for a maximum bass setting.
Treble settingWhen ÒTREBÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
- ÒTREB Ð9Ó for a minimum treble setting,
- ÒTREB 0Ó for a normal position,
- ÒTREB +9Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒDÓor ÒEÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When ÒFADÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
The ÒDÓbutton increases the volume at the front.
The ÒEÓbutton increases the volume at the rear.
Setting the right/left sound distribution (Balance)When ÒBALÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
The ÒDÓbutton increases the volume on the right-hand side.
The ÒEÓbutton increases the volume on the left-hand side.
* According to specification

AUDIO-SYSTEM135
Manual storing in memory of stations Select the station required.Press for more than two seconds one of the buttons Ò1Óto Ò6Ó .
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing in memory of FM stations (autostore) Press the ÒJÓbutton for more than two seconds, to automatically store the 6 stations with the strongest signal
in FM. These stations are stored in the FM3 waveband.
- If it is not possible to find 6 stations, the remaining memories are empty. Recall of stations stored in memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the ÒRDSÓbutton.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.

AUDIO-SYSTEM136
Traffic information programme Press the ÒTAÓbutton to switch the function on or off.
Any traffic information flash will be broadcast as a priority, whether you are using the radio, CD, CD multi-
changer. If you wish to interrupt a message, press the ÒTAÓbutton; this switches off the function.
Note: the volume of the traffic information announcements is independent of the volume of normal
radio listening. You can adjust it using the volume button. The setting will be stored and will be usedwhen the next messages are broadcast.
While traffic information is being broadcast, the display will alternately show ÒTRAFFICÓand the name of the
station.
When the station selected cannot broadcast traffic information, the display shows ÒNO TAÓ.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this press the ÒRDSÓbutton for more than two seconds to switch this function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the ÒTAÓbutton for two seconds to switch this function on or off.
To find a PTY programme:
- switch on the PTYfunction,
- briefly press button ÒGÓor ÒHÓ to scroll down the list of the various types of programmes offered,
- when the programme of your choice is displayed, keep button ÒGÓor ÒHÓ pressed for more than two
seconds to carry out an automatic search (after an automatic search the PTY function is switched off).
In PTY mode the different types of programmes can be stored in memory. To do this, press down the prese-
lection buttons Ò1Óto Ò6Ó for more than two seconds. Recalling the type of programme stored in the memo-
ry is by a brief press on the corresponding button.
