PEUGEOT EXPERT 2018 Manual PDF

69
Using the button(s) at the front
The button is not operational and pressing
it results in an audible signal, if:
-
t
he vehicle is moving,
-

t
he vehicle has been locked or
deadlocked from outside (using
the key, remote control or Keyless
Entry and Starting, depending on
equipment),
-

t
he child lock is on (activated).
The button for the left-hand door is not
operational and pressing it results in an
audible signal if the fuel filler flap is open.
F

W
ith the child lock deactivated, to unlock
the vehicle and start the electrically
powered opening of a door, press the button
for the corresponding door.
F

P
ressing the button again reverses the
movement of the door.
Using the button(s) on the door
pillar
F With the child lock deactivated, to unlock the vehicle and start the electrically
powered opening of a door, press the button
for the corresponding door.
F

P
ressing the button again reverses the
movement of the door.
The button is not operational and pressing
it results in an audible signal, if:
-

t
he vehicle is moving,
-

t
he vehicle has been locked or
deadlocked from outside (using
the key, remote control or Keyless
Entry and Starting, depending on
equipment),
-

t
he child lock is on (activated).
The button for the left-hand door is not
operational and pressing it results in an
audible signal if the fuel filler flap is open.
Closing
From outside
Using the remote control
F Press this button again to reverse the movement of the
d o o r.
The remote controls buttons are not active
with the ignition switched on. F

P
ress and hold this button until
the sliding door has closed.
2
Access

70
Using the handle
F Pull and release the handle to start the electrically powered opening of the door.
F

P
ull the handle again to reverse the
movement of the door.
The button is not operational and pressing
it results in an audible signal, if the speed
of the vehicle is above 19
mph (30 km/h).The button is not operational and pressing
it results in an audible signal, if the speed
of the vehicle is above 19
mph (30 km/h).
If a sliding side door is not fully closed:
-

w
ith the vehicle stationary and the
engine running, this warning lamp
comes on, accompanied by an alert
message for a few seconds,
-

w
ith the vehicle moving (speed
above 6
mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and an alert message
for a few seconds.
Using the button(s) on the door
pillar
F To start the electrically powered opening of a door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
From inside
Using the button(s) at the front
F To start the electrically powered opening of a door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
Access

71
Manual or electric sliding
side door(s)
General recommendations
The doors must only be operated when
the vehicle is stationary.
For your safety and for that of your
passengers, as well as for correct
operation of the doors, you are strongly
advised not to drive with a door open.
Always check that it is safe to operate the
door and in particular, be sure not to leave
children or animals near the door controls
without supervision.
The audible warning, illumination of
the "door open" warning lamp and the
message in the multifunction screen are
there to remind you. Contact a PEUGEOT
dealer or a qualified workshop to
deactivate these warnings.
Lock your vehicle when using an
automatic car wash.Before opening or closing or per forming
any movement of the doors, ensure that
no person, animal or object is in the door
frame or can block the desired movement,
inside or outside the vehicle.
If this advice is not followed, injuries or
damage may occur if a person or an
object is trapped or caught.
The doors cannot be opened electrically
above 2
mph (3 km/h):
-

B
ut if the doors remained open when
starting, the speed must fall below
19
mph (30 km/h) before they can be
closed.
-

A
ny attempt to open a door electrically
using the interior handle while driving
results in it only being possible to open
the door manually.
-

T
his situation is accompanied by the
audible warning, illumination of the
"door open" warning lamp and the
message in the multifunction screen.
To release the door and be able to
operate it again, it is necessary to stop
the vehicle. The electric controls are inhibited in the
event of an impact. Manual opening and
closing remain possible.
While starting the engine, the movement
of a door is interrupted and restored once
the engine is running.
Depending on the engine, in Stop
mode of Stop & Start, if the door
is closed and you initiate opening
of the door, the door opens
partially and stops. When the
engine changes automatically to
Start mode, the door continues its
movement.
2
Access

72
The doors and the overall
dimensions of the vehicle
When open, a door projects beyond the body.
Be sure to take this into account when you park
alongside a wall, a post or a high kerb, etc.When open, a door never projects beyond
the rear bumper.
Safety/Obstacle detection with
electric door(s) Reinitialising electric doors
If electrical operations no longer work,
the doors must be closed manually then
reinitialised:
F
F
ully close the door(s) manually.
F

F
ully open the door(s) manually.
F

C
lose the door(s) electrically.
The obstacle detection system is triggered
when the moving door encounters an obstacle
with a certain level of physical resistance.
-

I

f an obstacle is detected while the door is
closing, the door stops then opens fully.
-

I

f an obstacle is detected while the door is
opening, the door stops and then closes.
-

I

f an obstacle is detected twice in
succession during a movement of the door,
it will no longer close electrically. This
resets the door.
On a steep slope: a safety system slows down
the movement of the door. On completion of this procedure, electric
operation of the doors is restored.
However, if a problem persists following this
procedure, contact a PEUGEOT dealer or a
qualified workshop.In any case, wait a few seconds before
operating the door (closing or opening).
Close the door manually for safety reasons.
Then reinitialise the door.
Access

73
Fuel filler flap
If your vehicle is equipped with one, do not
open the sliding left side door when the
fuel filler flap is open, other wise there is a
risk that the fuel filler flap and the sliding
door will be damaged and the person
filling up will be injured.
If the fuel filler flap is open and you open
the left side door, a mechanism prevents it
being opened.
The door can be opened half way
h o w eve r.
With a mechanical door, close the fuel
filler flap again to regain use of the door.
With an electrical door, in order to be able
to use it correctly, close the fuel filler flap
then press an opening button.
On a steep slope
It is possible to open and close doors
electrically on slopes of up to a 20% gradient.
However, if your vehicle is on a slope, with the
front of the vehicle facing up, open the door
with care. The door may open more quickly due
to the incline.
On a steep slope, guide the side door manually
to help it to close.However, if your vehicle is on a slope, with the
front of the vehicle facing down, the door may
not stay open and may close again jerkily with
the risk of injury.
In the case of a steep slope, the door
may be driven by its own weight and as a
consequence may open or close jerkily.
There would not be time for action at the
electric controls to take effect.
There would not be time for the
obstacle detection system to react.
Take care not to leave the vehicle on a
steep slope with the door(s) open without
supervision. If this advice is not followed,
injuries or damage may occur if a person
or an object is trapped or caught.
2
Access

74
Hands-free sliding side
d o o r (s)
The automatic locking after closing the
door is programmable in the vehicle
configuration menu.Before making the movement with your
foot, ensure that you are steady and well
positioned, so that you do not lose your
balance (rain, snow, ice, mud, etc.).
Take care not to touch the exhaust tailpipe
when making the movement with your foot
– risk of burns.
F
P
ut your foot beneath the corner of the rear
bumper, then move your foot at normal
speed with a side sweep movement.
The sensor detects your foot approaching and
leaving and triggers opening or closing of the
side door. Make the movement without interruption
and do not repeat it immediately
after wards or several times.
If the door does not open, wait about
2
seconds before trying again.
Do not leave your foot in the air.
Opening
With " Hands-Free Tailgate Access " activated
in the vehicle configuration menu.
F

W
ith the remote control on your person and
in the recognition zone A , pass your foot
under the corner of the rear bumper, on the
side you want to open the door.
By keeping the remote control on your person
and with a movement of your foot, the system
unlocks and opens the sliding side door or
closes and locks it.
The remote control must be located at the rear
of the vehicle, at least 30

cm and but no more
about 2

m from the vehicle.
Access

75
Confirmation that the door is going
to open is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors unfold on unlocking the vehicle.Cab and loading area selectivity
deactivated.
If the vehicle is locked, it is unlocked before
opening the door.
Closing
F With the remote control on your person and in the recognition zone A , pass your foot
under the corner of the rear bumper, on the
side you want to close the door.
Once the door has closed, the vehicle locks
itself automatically, if " Hands-free tailgate
access self-locking " has been selected in the
vehicle configuration menu.
Confirmation that the door is going
to close is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors fold on locking the vehicle.
Cab and loading area selectivity
activated.
If the vehicle is locked, the loading area is
unlocked before opening the door. For more information on the Key, Remote
control or

K

eyless Entr y and Star ting ,
and in particular the total or selective
unlocking, refer to the corresponding
section.
If the vehicle is locked, it is unlocked before
opening the door.
With " Hands-Free Tailgate Access " activated
in the vehicle configuration menu.
2
Access

76
Deactivation
By default, hands-free access is activated.
The function can be deactivated in the vehicle
configuration menu.
Automatic locking
The vehicle locks itself following the hands-free
closing of a sliding door.
The automatic locking can be deactivated in
the vehicle configuration menu.If your vehicle is not fitted with an alarm,
locking is confirmed by fixed illumination
of the direction indicators for about two
seconds.
Depending on your version, the door
mirrors fold at the same time.
With audio system With touch screen
Then, if you want automatic locking after
closing the door, activate/deactivate "
Hands-
free tailgate access self-locking ".
Operating fault
An audible signal repeated three times
indicates a fault with the system.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked. If the "
Hands-free tailgate access self-
locking " option is selected in the vehicle
menu and after closing the door, make
sure that the vehicle is locked.
This is because locking will not take place:
-
i
f the ignition is on,
-
i
f one of the doors or the tailgate is
open,
-
i
f a Keyless Entry and Starting remote
control is inside the vehicle.
If a number of gestures with your foot
have no effect, wait a few seconds before
starting again.
The system is automatically deactivated in
heavy rain or with accumulations of snow.
If it does not work, check that the remote
control is not exposed to a source of
electromagnetic pollution (smartphone,
e t c .) .
Operation may be affected if using a
prosthetic leg.
This system may not work correctly if your
vehicle is fitted with a towbar.
In the " Personalisation-
configuration " menu, activate/
deactivate " Hands-Free Tailgate
Access ". In the "
Driving/Vehicle " menu,
activate/deactivate " Hands-Free
Tailgate Access ".
Access

77

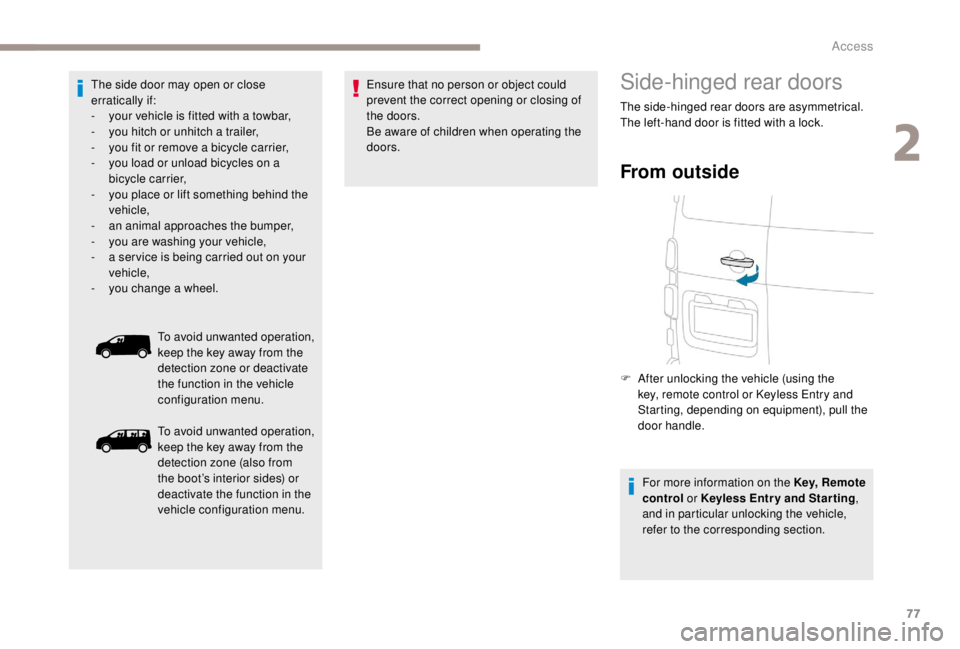

The side door may open or close
erratically if:
-
y
our vehicle is fitted with a towbar,
-

y
ou hitch or unhitch a trailer,
-

y
ou fit or remove a bicycle carrier,
-

y
ou load or unload bicycles on a
bicycle carrier,
-

y
ou place or lift something behind the
vehicle,
-
an

animal approaches the bumper,
-

y
ou are washing your vehicle,
-

a s
er vice is being carried out on your
vehicle,
-

y
ou change a wheel. Ensure that no person or object could
prevent the correct opening or closing of
the doors.
Be aware of children when operating the
doors.
To avoid unwanted operation,
keep the key away from the
detection zone or deactivate
the function in the vehicle
configuration menu.
To avoid unwanted operation,
keep the key away from the
detection zone (also from
the boot’s interior sides) or
deactivate the function in the
vehicle configuration menu.Side-hinged rear doors
The side-hinged rear doors are asymmetrical.
The left-hand door is fitted with a lock.
From outside
F After unlocking the vehicle (using the key, remote control or Keyless Entry and
Starting, depending on equipment), pull the
door handle.
For more information on the Key, Remote
control or

K
eyless Entr y and Star ting ,
and in particular unlocking the vehicle,
refer to the corresponding section.
2
Access

78
F After first opening the left-hand door, pull the lever A towards you to open the right-
hand door.
Closing
F First close the right-hand door, then the left-hand door.
If the left-hand door
is closed first, a
buffer stop located
on the edge of the
right-hand door
prevents it closing. If the left-hand door is not fully closed
(the right-hand door is not detected):
-

w
ith the vehicle stationary and the
engine running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-
w
ith the vehicle moving (speed
above 6 mph (10 km/h)), this
warning lamp comes on,
accompanied by an audible signal
and an alert message for a few
seconds.
Opening to approximately 180°
If fitted to your vehicle, a check strap system
allows the doors to be opened from about 90°
to about 180°.
F

P
ull the yellow control when the door is
open.
The check strap will engage again
automatically on closing. When parking with rear
doors opened at 90°, they
conceal the rear lamps.
To signal your position to
other road users driving
in the same direction who
may not have noticed that
your vehicle has stopped,
use a warning triangle or
other device required by the
legislation in your country.
Opening to approximately 250°
If you have them, the hinges include three
notches that allow the door to be held in the
open position at 90°, 180° or 250°.
Access
