Instruments and controls
Depending on the vehicle's equipment,
the storage compartments may be open
or closed. This configuration is shown for
illustrative purposes.
Steering mounted controls
1.Glove box
Deactivation of the front passenger airbag
(inside the glove box)
2. 12 V accessory socket (120 W)
Obser ve the maximum power rating to
avoid damaging the accessory 3.
USB socket
4. JACK socket
5. Instrument panel
6. Storage compartments
Cup or can holder
7. Cooled glove box (if the vehicle is so
equipped)
Via a ventilation nozzle, if opened, engine
running and air conditioning on
8. Upper glove box
9. 220 V accessory socket (150 W, if the
vehicle is so equipped)
Obser ve the maximum power rating to
avoid damaging the accessory.
10. Horn
11. Courtesy lamp
Warning lamp display for seat belts and
front passenger airbag
Interior rear view mirror
Surveillance mirror
Emergency and assistance call buttons
12 . Heating
Manual air conditioning
Dual-zone automatic air conditioning
Front demisting - defrosting
Rear screen demisting – defrosting
13. "START/STOP" button
14 . Gearbox
15. Monochrome screen with audio system
Touch screen with PEUGEOT Connect
Radio or PEUGEOT Connect Nav 16.
Bonnet release
17. Dashboard fuses
18. Head-up display
1. External lighting/direction indicator
controls
2. Wiper/screenwash/trip computer controls
3. Audio system adjustment controls
(depending on version)
Over view

11
Persistent warning lamp
When the engine is running or the vehicle is
being driven, the illumination of a red or orange
warning lamp indicates a fault that needs
further investigation, using any associated
message and the description of the warning
lamp in the documentation.
Where a warning lamp remains lit
The references (1) (2) and (3) in the warning
and indicator lamp description indicate whether
you should contact a qualified professional
in addition to the immediate recommended
actions. (1 )
: You must stop as soon as it is safe to
do so and switch off the ignition.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
(3) : Go to a PEUGEOT dealer or a qualified
workshop.
STOP Fixed, associated with
another warning lamp,
accompanied by the
display of a message
and an audible signal. Indicates a serious fault with the
engine, braking system, power
steering, automatic gearbox or a
major electrical fault.
Carry out (1) and then (2).
Engine oil
pressure Fixed.
There is a fault with the engine
lubrication system. Carry out (1) and then (2).
Brakes Fixed. The brake fluid level has dropped
significantly. Carry out (1), then top up with brake fluid that complies
with the manufacturer's recommendations. If the
problem persists, carry out (2).

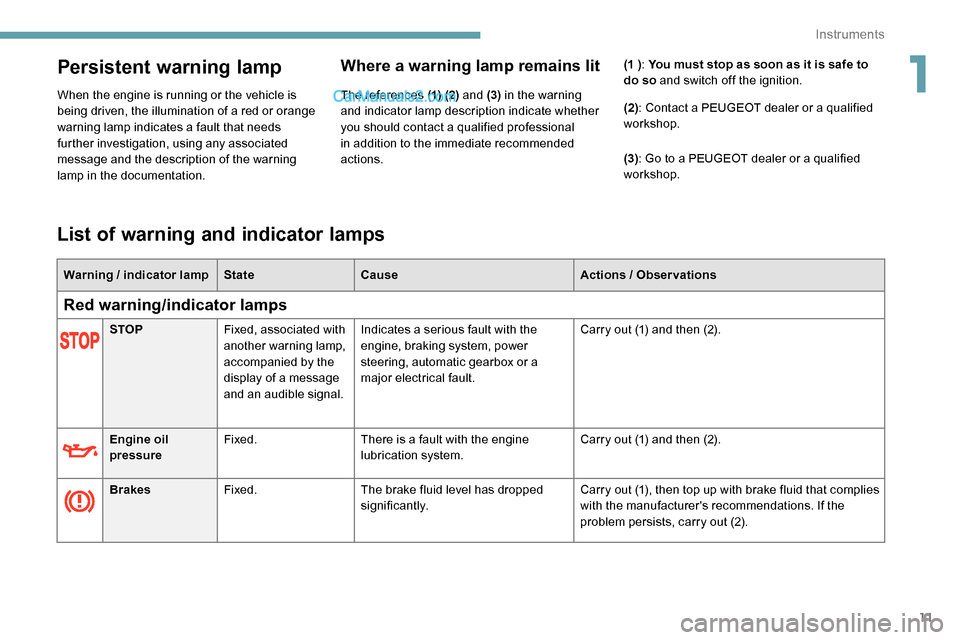

List of warning and indicator lamps
Warning
/ indicator lamp State Cause Actions / Observations
Red warning/indicator lamps
1
Instruments

19

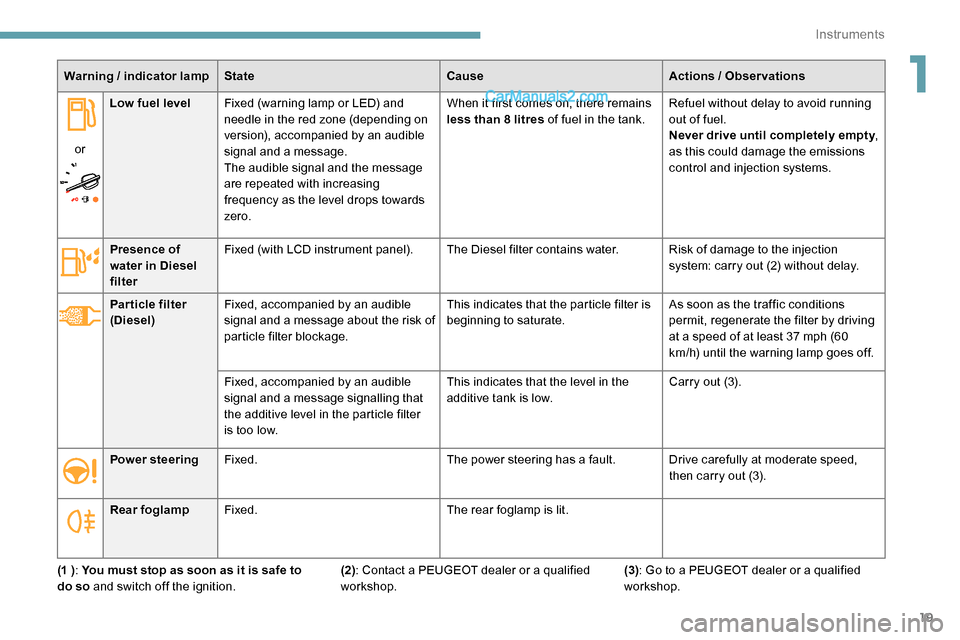

Warning / indicator lamp State CauseActions / Observations
or Low fuel level
Fixed (warning lamp or LED) and
needle in the red zone (depending on
version), accompanied by an audible
signal and a message.
The audible signal and the message
are repeated with increasing
frequency as the level drops towards
zero. When it first comes on, there remains
less than 8 litres of fuel in the tank.
Refuel without delay to avoid running
out of fuel.
Never drive until completely empty
,
as this could damage the emissions
control and injection systems.
Presence of
water in Diesel
filter Fixed (with LCD instrument panel). The Diesel filter contains water. Risk of damage to the injection
system: carry out (2) without delay.
Par ticle filter
(Diesel) Fixed, accompanied by an audible
signal and a message about the risk of
particle filter blockage. This indicates that the particle filter is
beginning to saturate.
As soon as the traffic conditions
permit, regenerate the filter by driving
at a speed of at least 37 mph (60
km/h) until the warning lamp goes off.
Fixed, accompanied by an audible
signal and a message signalling that
the additive level in the particle filter
is too low. This indicates that the level in the
additive tank is low.
Carry out (3).
Power steering Fixed. The power steering has a fault. Drive carefully at moderate speed,
then carry out (3).
Rear foglamp Fixed. The rear foglamp is lit.
(1 ) : You must stop as soon as it is safe to
do so and switch off the ignition. (2): Contact a PEUGEOT dealer or a qualified
workshop.(3)
: Go to a PEUGEOT dealer or a qualified
workshop.
1
Instruments

77
On the passenger side, do not forget to
fold it before placing the seat in the "table"
position.
Do not place hard or heavy objects on
the table. They could become dangerous
projectiles in the event of emergency
braking or impact.
For more information on the Front seats
and, in particular, the "table" position of
the backrest, refer to the corresponding
section.
12 V socket(s)
Depending on version.
F
T
o connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and plug in
a suitable adapter.
Obser ve the maximum power rating to
avoid damaging the accessory. The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays in
the screens.
USB socketF To use the table, lower it fully until it locks in
the low position.
F

T
o store it, raise the table, passing the point
of resistance, to the high position.
It allows the connection of a portable device or
a USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
It is also possible to manage these files using
the steering mounted controls or the audio
system.
3
Ease of use and comfort

146

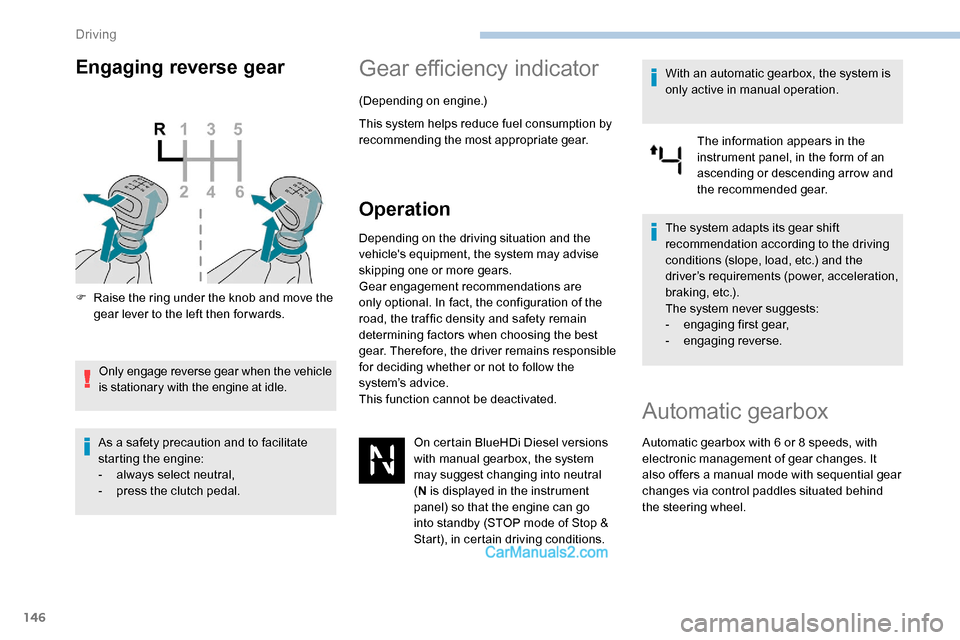

Engaging reverse gear
F Raise the ring under the knob and move the gear lever to the left then for wards.
Only engage reverse gear when the vehicle
is stationary with the engine at idle.
As a safety precaution and to facilitate
starting the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
Gear efficiency indicator
(Depending on engine.)
This system helps reduce fuel consumption by
recommending the most appropriate gear.
Operation
Depending on the driving situation and the
vehicle's equipment, the system may advise
skipping one or more gears.
Gear engagement recommendations are
only optional. In fact, the configuration of the
road, the traffic density and safety remain
determining factors when choosing the best
gear. Therefore, the driver remains responsible
for deciding whether or not to follow the
system’s advice.
This function cannot be deactivated. On certain BlueHDi Diesel versions
with manual gearbox, the system
may suggest changing into neutral
(N is displayed in the instrument
panel) so that the engine can go
into standby (STOP mode of Stop &
Start), in certain driving conditions. With an automatic gearbox, the system is
only active in manual operation.
The information appears in the
instrument panel, in the form of an
ascending or descending arrow and
the recommended gear.
The system adapts its gear shift
recommendation according to the driving
conditions (slope, load, etc.) and the
driver’s requirements (power, acceleration,
b r a k i n g , e t c .) .
The system never suggests:
-
e

ngaging first gear,
-
enga

ging reverse.
Automatic gearbox
Automatic gearbox with 6 or 8 speeds, with
e lectronic management of gear changes. It
also offers a manual mode with sequential gear
changes via control paddles situated behind
the steering wheel.
Driving

191
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns), using the
protected area.
When the bonnet is open, take care not to
damage the safety catch.
Do not open the bonnet under very windy
conditions.
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might be
caught by the fan blades.
Opening
F Open the door.
F
P
ull towards you the release lever ( 1),
located at the bottom of the door frame.
F

L
ift the safety catch ( 2), then raise the
bonnet. F

U
nclip the stay (
3) from its housing and
place it in the support slot to hold the bonnet
open.
Closing
F Take the stay out of the support slot.
F C lip the stay in its housing.
F

L
ower the bonnet and release it near the
end of its travel.
F

P
ull on the bonnet to check that it is fully
latched.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, etc.) be limited.
Engine
Diesel
The diesel circuit is under very high
pressure.
All work on this circuit must be carried out
only by a PEUGEOT dealer or a qualified
workshop.
This engine is an example only. The location of
the dipstick and engine oil filler cap, as well as
the priming pump may vary. 1.
Screenwash and headlamp wash
reservoir.
2. Engine coolant reservoir.
3. Engine oil filler cap.
4. Engine oil dipstick.
5. Priming pump.
6. Brake fluid filler cap.
7. Battery.
8. Remote earth point ("-" terminal).
9. Fusebox.
10. Power steering fluid reservoir.
11. A i r f i l t e r.
Checking levels
Check all of the following levels regularly in
accordance with the manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop.
7
Practical information

193
During the 30 minutes after topping up the
oil, the check per formed with the oil level
indicator in the instrument panel when the
ignition is switched on is not valid.

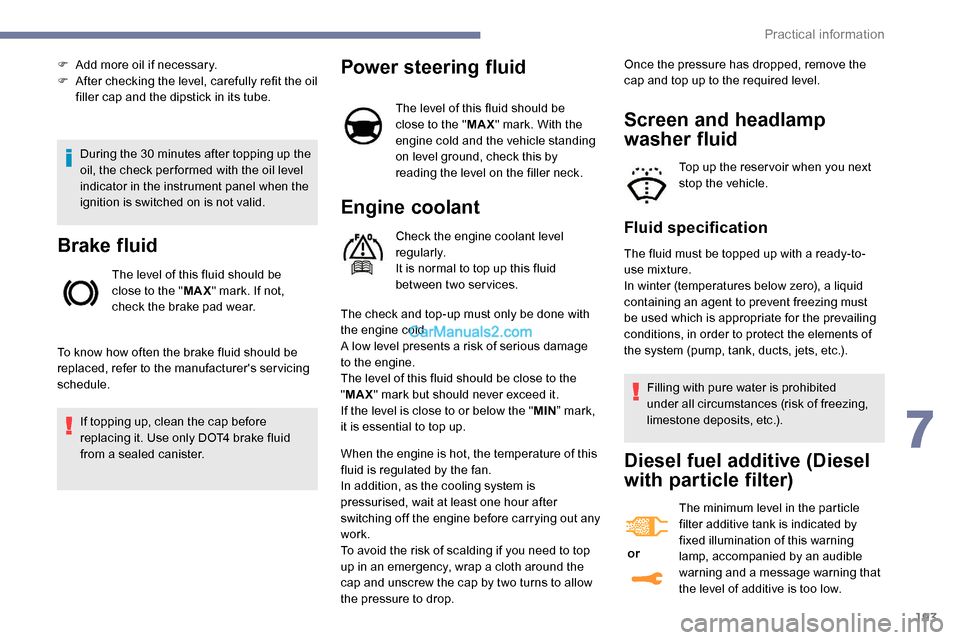

Brake fluid
The level of this fluid should be
close to the "MAX" mark. If not,
check the brake pad wear.
To know how often the brake fluid should be
replaced, refer to the manufacturer's servicing
schedule. If topping up, clean the cap before
replacing it. Use only DOT4 brake fluid
from a sealed canister.
F

A

dd more oil if necessary.
F

A

fter checking the level, carefully refit the oil
filler cap and the dipstick in its tube.
Power steering fluid
The level of this fluid should be
close to the " MAX" mark. With the
engine cold and the vehicle standing
on level ground, check this by
reading the level on the filler neck.
Engine coolant
Check the engine coolant level
regularly.
It is normal to top up this fluid
between two services.
The check and top-up must only be done with
the engine cold.
A low level presents a risk of serious damage
to the engine.
The level of this fluid should be close to the
" MAX " mark but should never exceed it.
If the level is close to or below the " MIN” mark,
it is essential to top up. Once the pressure has dropped, remove the
cap and top up to the required level.
Screen and headlamp
washer fluid
Top up the reser voir when you next
stop the vehicle.
Fluid specification
The fluid must be topped up with a ready-to-
use mixture.
In winter (temperatures below zero), a liquid
containing an agent to prevent freezing must
be used which is appropriate for the prevailing
conditions, in order to protect the elements of
the system (pump, tank, ducts, jets, etc.).
When the engine is hot, the temperature of this
fluid is regulated by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying out any
work.
To avoid the risk of scalding if you need to top
up in an emergency, wrap a cloth around the
cap and unscrew the cap by two turns to allow
the pressure to drop. Filling with pure water is prohibited
under all circumstances (risk of freezing,
limestone deposits, etc.).
Diesel fuel additive (Diesel
with particle filter)
or
The minimum level in the particle
filter additive tank is indicated by
fixed illumination of this warning
lamp, accompanied by an audible
warning and a message warning that
the level of additive is too low.
7
Practical information

234
G
H
Gauge, fuel............................................. 185 -187
Gearbox, automatic .......145 -15 0, 15 3 -15 4, 19 5
Gearbox, electronic


...............145, 15 0 -152, 19 5
Gearbox, manual


...........14 5 -14 6 , 15 3 -15 4, 19 5
Gear lever, automatic gearbox


..............147-15 0
Gear lever, electronic gearbox


.....................195
Gear lever, manual gearbox


..................145 -14 6
Gear shift indicator ~ Gear efficiency indicator


..................................... 14 6
Glove box
........................................................ 76
Hazard warning lamps


..........................108, 200
Hazard warning lamps, automatic operation
.................................... 10

8
Headlamp adjustment


...................................102
Headlamp adjustment


...................................102
Headlamp beam height
................................. 10

2
Headlamps, automatic dipping


.......20, 101, 174
Headlamps, automatic illumination


................99
Headlamps, dipped beam


..........20, 97, 211-213
Headlamps, halogen


..............................211-212
Headlamps, main beam


.......20, 22, 97, 211-213
Headlamps, Xenon


....................................... 213
EBFD
................

.............................................
11 0
Eco-driving (advice)


..........................................
7
Economy mode
............................................. 18

9
Electric windows


.............................................
53
Electronic brake force distribution (EBFD)
.............................. 10

9 -110
Emergency braking assistance (EBA)


...
109 -110
Emergency call


.....................................
108 -109
Emergency warning lamps


...................
108, 200
Emissions control system, SCR

.............
26, 19 6
Energy economy mode
................................. 18

9
Engine compartment
.................................... 19

1
Engine, Diesel


...........
13, 18, 185, 191, 200, 225
Engines
.........................................................
224
Engine self-diagnosis ..................................... 16
E
nvironment
.......................................... 7, 40, 94
ESC (electronic stability control)

.................. 10

9
E
F
Fatigue detection .......................................... 175
Filling the AdBlue® tank ........................ 19 4, 198
Filling the fuel tank ................................. 185 -187
Filter, air


........................................................ 19 4
Filter, Diesel fuel


........................................... 191
Filter, oil
................

......................................... 19 4
Filter, particle


........................................ 193, 195
Filter, passenger compartment


...............8 6, 19 4
Finisher


......................................................... 210
Fitting a wheel

....................................... 208 -210
Fitting roof bars


............................................. 189
Fittings, interior
.................................... 7

5 -76, 81
Fittings, rear


.................................................... 81
Fitting the mat


................................................. 75
Flap, fuel filler


......................................... 185 -187
Flap, removable
..............................

..........60-62
Flashing indicators


.......................................... 98
Floor cab

....................................................... 216
Fluid, brake


................................................... 193
D
Date (setting) ................................................... 30
Daytime running lamps ..............97, 99, 211-213
Deactivating the passenger airbag


.......11 8 , 12 2
Deactivation of DSC (ESC)
...........................111
Deadlocking


............................................... 37- 3 8
Defrosting


............................................ 60, 90 -91
Demisting


.................................................. 90 -91
Demisting, rear


................................................ 91
Demisting, rear screen


...................................91
Dimensions
..............................

.....................228
Dipstick
................

.............................. 24 -25, 192
Direction indicators


..................98, 211-214, 216
Display, head-up
...............................

.....15 8 -159
Door pockets
...............................

..............75 -76
Doors, rear
................................................ 49-50
Doors, side-hinged
......... 3

7-38, 49 - 50, 214 -215
Driver’s attention warning


.............................175
Driving


.................................................... 13 8 -13 9
Driving abroad ................................................. 97
Driving aids camera (warnings)


....................157
Driving aids (recommendations)


...................15 6
Driving economically ......................................... 7
Dynamic stability control (DSC)


.......17, 1 0 9 -11 3
Cruise control


..................
159, 161-162, 16 4 -167
Cruise control, adaptive .........
16 2 , 167, 170 -171
Cruise control by speed limit recognition
...............................
............
161-162
Cruise control, dynamic with Stop function

........................................
161-162
Cup holder .......................................................
75 Fluid, engine coolant

.....................................
193
Fluid, power steering
.................................... 19
3
Foglamp, rear

..................................
19, 214, 216
Foglamps, front

.........................
97-98, 100, 214
Foglamps, rear
........................................... 9
7- 9 8
Fuel ............................................................ 7, 1 8 5
Fuel consumption

........................................
7, 2 9
Fuel tank ........................................................ 185
Fusebox, engine compartment

.....................
219
Fuses
...................................................... 21
7-219
Alphabetical index

235
IIgnition .................................................... 142-143
Ignition on ...................................................... 143
Immobiliser, electronic


..................................140
Indicator, AdBlue
® range ................................. 25
Indicator, coolant temperature ........................ 24
Indicator, engine oil level
.......................... 24-25
Indicator lamps, operation
.............................. 97
I

ndicators, direction

........................................ 98
Inflating tyres


................................................ 19 6
Inflating tyres and accessories (using the kit)


...................................... 202-205
Infrared camera


............................................ 157
Instrument panel


....................................... 9, 15 8
Intelligent Traction Control


............................ 11 0
ISOFIX


........................................... 13 0, 132-13 6
JJack .........................................................78, 206
Jump starting ................................................ 220
LLabels .................................................... 5, 63 - 64
Labels, identification ..................................... 231
Lane Departure Warning System (LDWS)


................................... 174 -175
Level, AdBlue
® .............................................. 19 4
Level, brake fluid ........................................... 193
Level, Diesel additive


............................ 193, 195
Level, engine coolant


.............................. 24, 193
Level, engine oil
................................ 24 -25, 192
Level, headlamp wash


.......................... 105, 193
Level, power steering fluid
............................ 193
Levels and checks

..............................
...191-193
Level, screenwash fluid

........................ 1

05, 193
Lighting


............................................................ 97
Lighting, cornering


........................................ 10 0
Lighting dimmer


.............................................. 27
Lighting, directional


....................................... 10 0
Lighting, guide-me home


................................ 99
Lighting, interior
...............................

.......95, 102
Lighting, mood


.............................................. 102
Lighting, welcome


................................... 9 9 -10 0
Loading


................................................... 8 0, 189
Loading area fittings


....................................... 79
Load reduction mode


.................................... 189
Load restraint
...............................

...................79
Locating your vehicle


...................................... 32
Locking
...............................

...........31, 33, 36 -37
Locking from the inside
............................. 41- 4 3
Locking the doors
...................................... 4

1- 42
Low fuel level

......................................... 18

5 -187
Lumbar


...................................................... 55, 58
Key


........................................... 31, 33 -36, 38 -39
Key, electronic


......................................... 31, 14 3
K
Maintenance, routine ............................15 8, 19 4
Manoeuvring aids (recommendations) .........15 6
Map reading lamps
......................................... 95
M

arkings, identification

.................................231
Massage function
........................................... 58
Mat


.................................................. 75, 141, 158
Memorising a speed

..................................... 15

9
Mirror, rear view
.............................................. 60
Mirrors, door ........................ 59 - 60, 91, 176, 178
Misfuel prevention


......................................... 187
Moduwork .................................................. 60-62
Mountings, ISOFIX


........................12 9, 132-13 6M
NNet, cargo.................................................. 60-62
Net, high load retaining ...................................81
Net, luggage retaining ..................................... 78
Number plate lamps


...................................... 216
Headlamp wash
..............................

..............
104
Head restraints, front

......................................
56
Head-up display
..................................... 15

8 -159
Heated bench seat


..........................................
57
Heating
........................................... 8

6 - 87, 92-94
Heating, additional


...............................
51, 9 2- 9 4
Heating, programmable


.......................
51, 9 2- 9 4
Hill start assist

........................................
14 4 -145
Horn ............................................................... 109Keyless Entry and Starting

........
3

1- 3 8, 141, 143
Key with remote control

.....................
3

6 - 3 7, 1 4 0
Kit, puncture repair
............................... 20

3-205
Kit, temporary puncture repair
.............. 20

2-205
O
Obstacle detection
........................................ 178
Oil change ..................................................... 19
2
Oil consumption


............................................ 192
OIl, engine
...............................

......................192
On-board tools


...................................... 201-202
Opening the bonnet


...............................19 0 -191
Opening the boot


................................ 31- 32, 50
Opening the doors


.........................31- 32, 43 - 4 4
Opening to 180°

........................................ 49

-50
.
Alphabetical index

236
Pads, brake ................................................... 195
Paint .............................................................. 231
Paint colour code
.......................................... 231
Panoramic glass sunroof


................................82
Parcel shelf, rear


............................................. 76
Parking brake


........................................ 14 4, 19 5
Parking sensors, audible and visual


.............178
Parking sensors, front


...................................179
Parking sensors, rear .................................... 178
Plates, identification ...................................... 231
Port, USB
........................................................ 77
Power steering
...............................

.................19
Pre-heater, Diesel


........................................... 18
Pressures, tyres


........................... 196, 203, 205
Pre-tensioning seat belts


.......................11 6 -117
Priming pump
........................................ 20

0-201
Priming the fuel system
................................200
Protecting children


..........118 , 12 0 -124, 13 0 -13 6
Puncture


................................. 202-203, 205-206P
RRadar (warnings) ........................................... 15 6
Range .............................................................. 29
Range, AdBlue


.................................. 15, 25, 194
Rear screen, demisting


...................................91
Recharging the battery


.................................221
Recirculation, air


....................................... 88-90
Reduction of electrical load


..........................189
Regeneration of the particle filter
.................195
Reinitialisation of the under- inflation detection system


...........................15 5
Reinitialising the remote control
..................... 40
R

eminder, key in ignition
...............................14

2
Reminder, lighting on
...................................... 98
R

emote control

............................ 31-36, 38, 140
Removing a wheel
................................ 208 -210
Removing the mat


........................................... 75
Replacing bulbs
............................. 21

1, 213 -216
SSafety, children ...............118 , 12 0 -124, 13 0 -13 6
Saturation of the particle filter (Diesel) .........195
Screen, instrument panel


................................28
Screenwash


.................................................. 104
Screenwash, rear


.......................................... 104
SCR (Selective Catalytic Reduction)


......26, 19 6
Seat and bench seat, rear, fixed


...63-64, 66-67
Seat and bench seat, rear, on rails


......................................... 63-64, 68-70
Seat angle


....................................................... 54
Seat belts


.................................. 12 , 113 -117, 12 3
Seat belts, rear


.............................................. 115
Seat, bench front, 2-seat
........................ 5

6 , 114
Seat, rear bench


....................................... 63-64
Seats, electric


........................................... 55-56
Seats, front
...............................

.................54-56
Seats, heated


.................................................. 57
Seat(s), individual, rear, on rails
........71 - 7 2 , 115
Seats, rear


......................................... 6 4 -70, 12 2
Selector, gear


.................................146, 15 0 -152
Sensors (warnings)


....................................... 157
Serial number, vehicle


..................................231Service indicator


.......................................
23 -24
Servicing
............................... 1
3, 23, 23 -24, 194
Sidelamps
................................ 9
7, 211-214, 216
Side repeater

................................................
214
Sliding side door, electric ...............
37- 3 8 , 4 3 - 47
Sliding side door, hands-free .....................
47- 4 9
Sliding side window
........................................ 8
2
Snow chains

...........................
155, 187-188, 208
Snow chains, link

..................................
188, 208
Socket, 12 V accessory ..................................
77
Socket, 220 V ..................................................
78
Socket, Jack

....................................................
78
Sockets, audio
........................................... 7
7-78
Sockets, auxiliary
...............................
.............
78
Speed limiter
.................................. 1
59, 161-16 4
Speed limit recognition
............ 16
0 -161, 163, 166, 170 -171
Speedometer ................................................
15 8
Stability control (ESC)............. 1 0 9 -11 0 , 112 -113
Starting a Diesel engine ............................... 18
5
Starting the engine
....................................... 14

0
Starting the vehicle
........ 14

1, 143, 145, 147-152
Starting using another battery


......................220
Stay, bonnet


..................................................191
Steering wheel, adjustment
............................ 58
S

topping the vehicle

..............141, 143, 147-152
Stop & Start


.........................21, 29, 87, 152-154,
185, 190, 194, 222
Storage


..........................................56, 63, 73 -76
Storage compartments


...................................76
Storage wells


.......................................73-74, 76
Stowing rings


..................................................79
Sunshine sensor


.............................................86
Switching off the engine


.......................140, 142
Synchronising the remote control
...................40
Replacing fuses


.....................................
217-218
Replacing the air filter
................................... 19
4
Replacing the oil filter
................................... 19
4
Replacing the passenger compartment filter

......................................
19 4
Reservoir, headlamp wash
........................... 19
3
Reservoir, screenwash

.................................
193
Resetting the service indicator

.......................
23
Resetting the trip recorder

..............................
27
Reversing camera
......................... 1
57, 18 0, 183
Reversing camera (on interior mirror) ..........
18 0
Reversing lamp

.....................................
214, 216
Roof bars

.......................................................
189
Running out of fuel (Diesel) ..........................
200
Alphabetical index
