PEUGEOT EXPERT 2021 Owners Manual

209
In the event of a breakdown

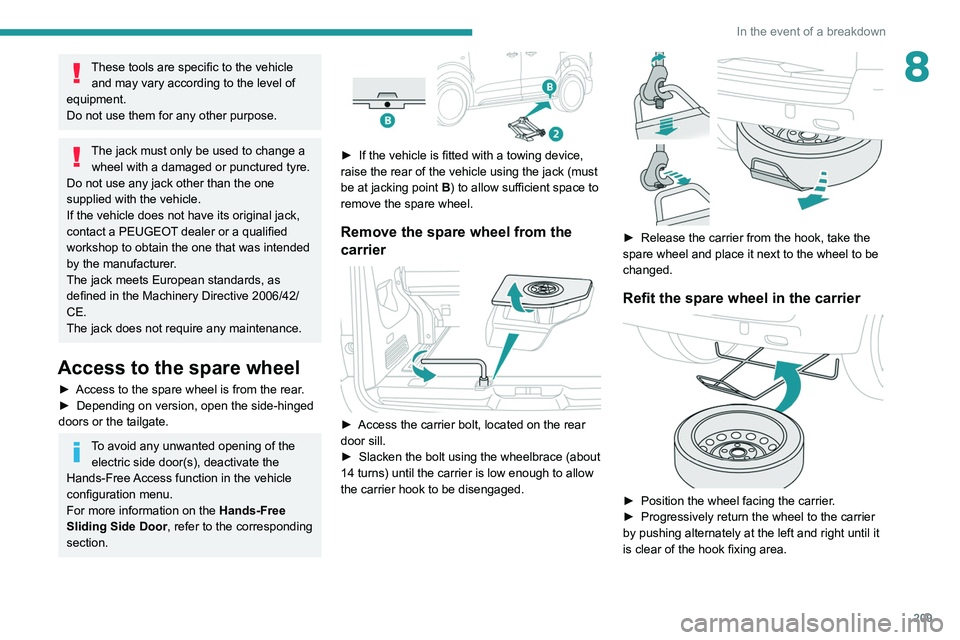

8These tools are specific to the vehicle and may vary according to the level of
equipment.
Do not use them for any other purpose.
The jack must only be used to change a wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with the vehicle.
If the vehicle does not have its original jack,
contact a PEUGEOT dealer or a qualified
workshop to obtain the one that was intended
by the manufacturer.
The jack meets European standards, as
defined in the Machinery Directive 2006/42/
CE.
The jack does not require any maintenance.
Access to the spare wheel
► Access to the spare wheel is from the rear .
► Depending on version, open the side-hinged
doors or the tailgate.
To avoid any unwanted opening of the electric side door(s), deactivate the
Hands-Free Access function in the vehicle
configuration menu.
For more information on the Hands-Free
Sliding Side Door , refer to the corresponding
section.


► If the vehicle is fitted with a towing device,
raise the rear of the vehicle using the jack (must
be at jacking point B
) to allow sufficient space to
remove the spare wheel.
Remove the spare wheel from the
carrier


► Access the carrier bolt, located on the rear
door sill.
►

Slacken the bolt using the wheelbrace (about
14 turns) until the carrier is low enough to allow
the carrier hook to be disengaged.


► Release the carrier from the hook, take the
spare wheel and place it next to the wheel to be
changed.
Refit the spare wheel in the carrier

► Position the wheel facing the carrier .
► Progressively return the wheel to the carrier
by pushing alternately at the left and right until it
is clear of the hook fixing area.

210
In the event of a breakdown

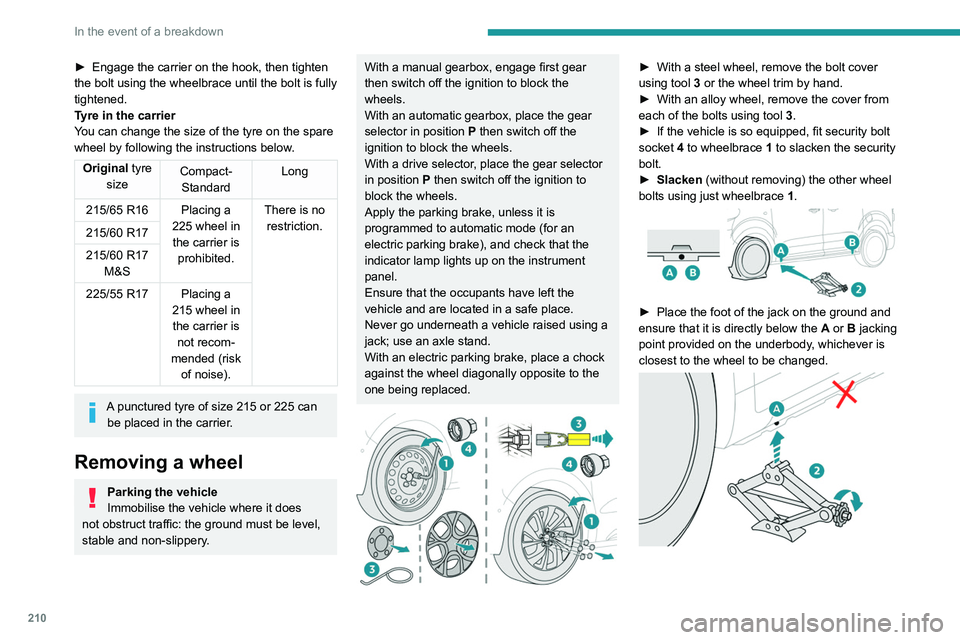

► Engage the carrier on the hook, then tighten
the bolt using the wheelbrace until the bolt is fully
tightened.
Tyre in the carrier
You can change the size of the tyre on the spare
wheel by following the instructions below.
Original tyre
size Compact-
Standard Long
215/65 R16 Placing a 225 wheel in the carrier is prohibited. There is no
restriction.
215/60 R17
215/60 R17
M&S
225/55 R17 Placing a 215 wheel in the carrier is not recom-
mended (risk of noise).
A punctured tyre of size 215 or 225 can be placed in the carrier.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does
not obstruct traffic: the ground must be level,
stable and non-slippery.
With a manual gearbox, engage first gear
then switch off the ignition to block the
wheels.
With an automatic gearbox, place the gear
selector in position P then switch off the
ignition to block the wheels.
With a drive selector, place the gear selector
in position P then switch off the ignition to
block the wheels.
Apply the parking brake, unless it is
programmed to automatic mode (for an
electric parking brake), and check that the
indicator lamp lights up on
the instrument
panel.
Ensure that the occupants have left the
vehicle and are located in a safe place.
Never go underneath a vehicle raised using a
jack; use an axle stand.
With an electric parking brake, place a chock
against the wheel diagonally opposite to the
one being replaced.


► With a steel wheel, remove the bolt cover
using tool 3
or the wheel trim by hand.
►

With an alloy wheel, remove the cover from
each of the bolts using tool 3

.
►

If the vehicle is so equipped, fit security bolt
socket

4 to wheelbrace 1 to slacken the security
bolt.
►

Slacken
(without removing) the other wheel
bolts using just wheelbrace 1.


► Place the foot of the jack on the ground and
ensure that it is directly below the A
or B jacking
point provided on the underbody, whichever is
closest to the wheel to be changed.

2 11
In the event of a breakdown
8

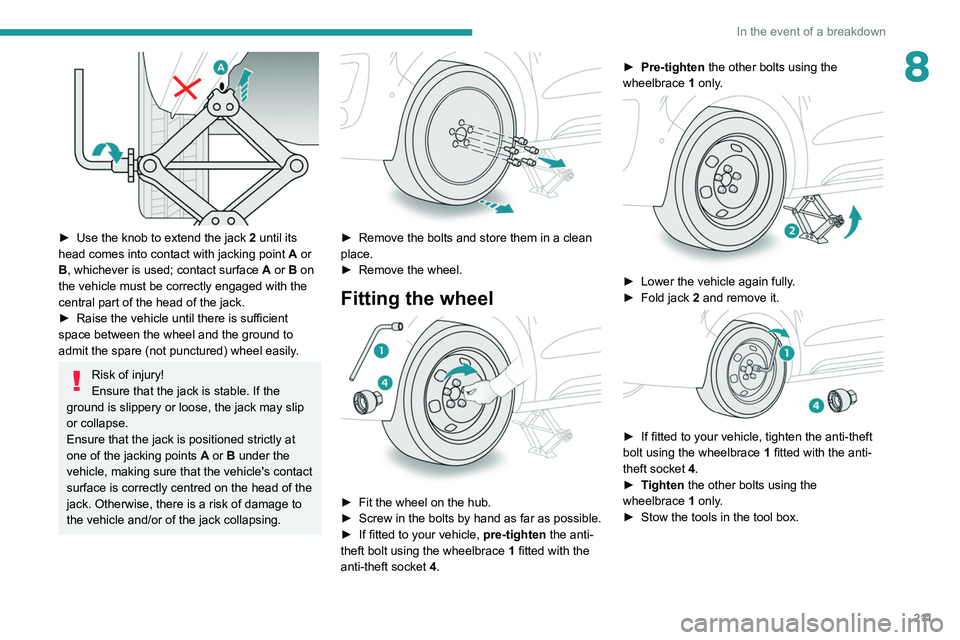

► Use the knob to extend the jack 2 until its
head comes into contact with jacking point A or
B, whichever is used; contact surface A or B on
the vehicle must be correctly engaged with the
central part of the head of the jack.
►

Raise the vehicle until there is sufficient
space between the wheel and the ground to
admit the spare (not punctured) wheel easily

.
Risk of injury!
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may slip
or collapse.
Ensure that the jack is positioned strictly at
one of the jacking points A or B under the
vehicle, making sure that the vehicle's contact
surface is correctly centred on the head of the
jack. Otherwise, there is a risk of damage to
the vehicle and/or of the jack collapsing.


► Remove the bolts and store them in a clean
place.
►

Remove the wheel.
Fitting the wheel

► Fit the wheel on the hub.
► Screw in the bolts by hand as far as possible.
►

If fitted to your vehicle,
pre-tighten the anti-
theft bolt using the wheelbrace 1 fitted with the
anti-theft socket 4. ►

Pre-tighten
the other bolts using the
wheelbrace
1
only.


► Lower the vehicle again fully
.
► Fold jack 2 and remove it.


► If fitted to your vehicle, tighten the anti-theft
bolt using the wheelbrace 1 fitted with the anti-
theft socket
4.
►

T
ighten the other bolts using the
wheelbrace

1
only.
►

Stow the tools in the tool box.

212
In the event of a breakdown
Model with halogen
headlamps


1.Sidelamps (W5W-5W)
2. Main beam headlamps (H1-55W)
3. Dipped beam headlamps (H7-55W)
4. Daytime running lamps (W21W LL-21W)
5. Direction indicators (PY21W-21W amber)
Model with Xenon
headlamps


1.Main beam headlamps (H1-55W)
2. Dipped beam headlamps (D8S-25W)
3. Direction indicators (PY21W-21W amber)
Fitting a steel or "space-saver" type
spare wheel
If the vehicle is fitted with alloy wheels, the
washers A do not make contact with the steel
or "space-saver" type spare wheel. The wheel
is held in place by the conical contact surface
B of each bolt.
After changing a wheel
Stow the punctured wheel in the carrier.
Go promptly to a PEUGEOT dealer or a
qualified workshop.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Some driving aid functions should be
disabled, e.g. the Active Safety Brake.
If your vehicle has tyre under-inflation
detection, check the tyre pressures and
reinitialise the system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Tyre under-inflation detection
The steel spare wheel does not have a
sensor.
Wheel with wheel trim
When refitting the wheel, refit the wheel
trim, starting by aligning the cutout with the
valve and then pushing the trim into place all
round its edge with the palm of your hand.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), misting on the
internal surface of the glass of the headlamps
and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.
The headlamps have polycarbonate lenses with a protective coating:
–

Do not clean them with a dry or abrasive
cloth, nor with detergent or solvent
products.
–


Use a sponge and soapy water or a pH
neutral product.
–


When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Changing a bulb must only be done with
the ignition off and after the headlamp /
lamp has been switched off for several
minutes - risk of serious burns!
Do not touch the bulb directly with your
fingers; use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb
of the same type and specification. To avoid
lighting imbalance, replace the bulbs in pairs.
Halogen bulbs (Hx)
To ensure good quality lighting, check
that the bulb is correctly positioned in its
housing.
Opening the bonnet/Accessing the
bulbs
Proceed with caution when the engine is hot -
risk of burns!
Take care with objects or clothing that could
be caught in the blades of the cooling fan -
risk of strangulation!
After changing a bulb
To refit, carry out the operations in
reverse order to removal.
Close the protective cover very carefully to
guarantee the sealing of the lamps.

213
In the event of a breakdown

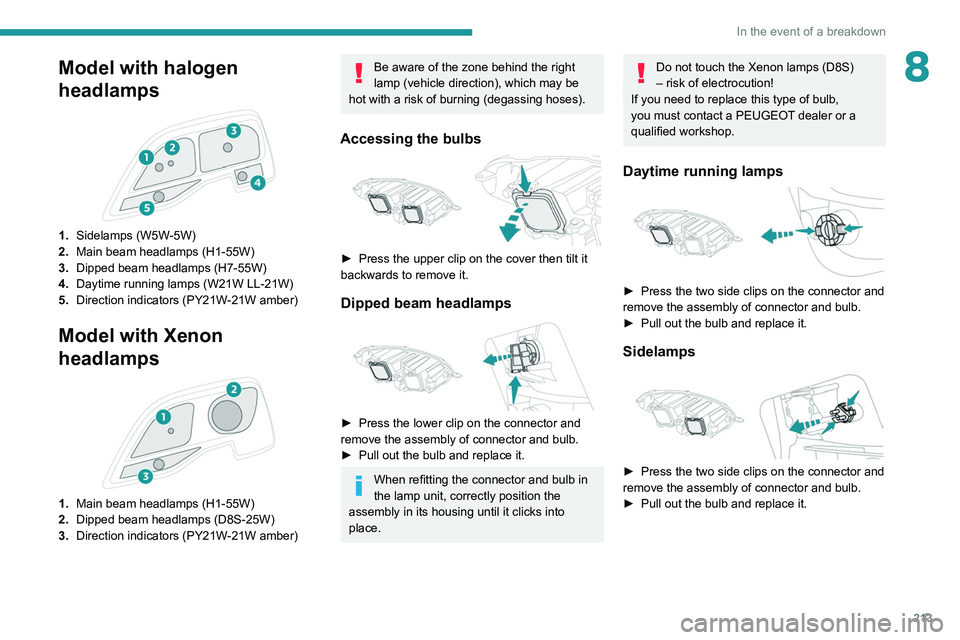

8Model with halogen
headlamps


1.Sidelamps (W5W-5W)
2. Main beam headlamps (H1-55W)
3. Dipped beam headlamps (H7-55W)
4. Daytime running lamps (W21W LL-21W)
5. Direction indicators (PY21W-21W amber)
Model with Xenon
headlamps


1.Main beam headlamps (H1-55W)
2. Dipped beam headlamps (D8S-25W)
3. Direction indicators (PY21W-21W amber)
Be aware of the zone behind the right
lamp (vehicle direction), which may be
hot with a risk of burning (degassing hoses).
Accessing the bulbs

► Press the upper clip on the cover then tilt it
backwards to remove it.
Dipped beam headlamps

► Press the lower clip on the connector and
remove the assembly of connector and bulb.
►

Pull out the bulb and replace it.
When refitting the connector and bulb in
the lamp unit, correctly position the
assembly in its housing until it clicks into
place.
Do not touch the Xenon lamps (D8S)
– risk of electrocution!
If you need to replace this type of bulb,
you must contact a PEUGEOT dealer or a
qualified workshop.
Daytime running lamps

► Press the two side clips on the connector and
remove the assembly of connector and bulb.
►

Pull out the bulb and replace it.
Sidelamps

► Press the two side clips on the connector and
remove the assembly of connector and bulb.
►

Pull out the bulb and replace it.

214
In the event of a breakdown
– When refitting, engage the repeater towards
the front and then bring it back towards the rear.
Amber-coloured bulbs (direction indicators and
side repeaters) must be replaced with bulbs of
identical specification and colour.

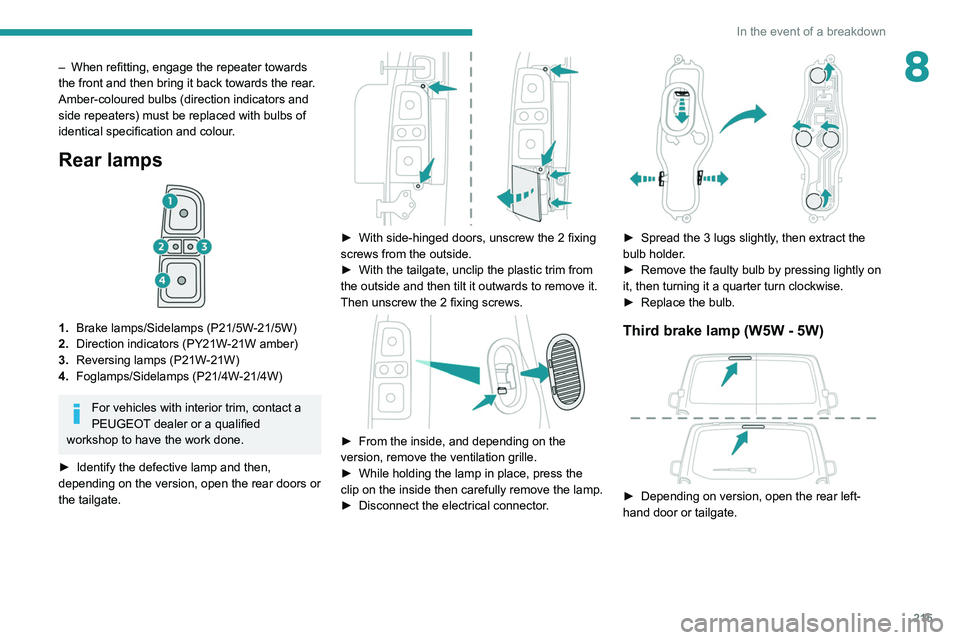

Rear lamps

1. Brake lamps/Sidelamps (P21/5W-21/5W)
2. Direction indicators (PY21W-21W amber)
3. Reversing lamps (P21W-21W)
4. Foglamps/Sidelamps (P21/4W-21/4W)
For vehicles with interior trim, contact a
PEUGEOT dealer or a qualified
workshop to have the work done.
► Identify the defective lamp and then,
depending on the version, open the rear doors or
the tailgate.

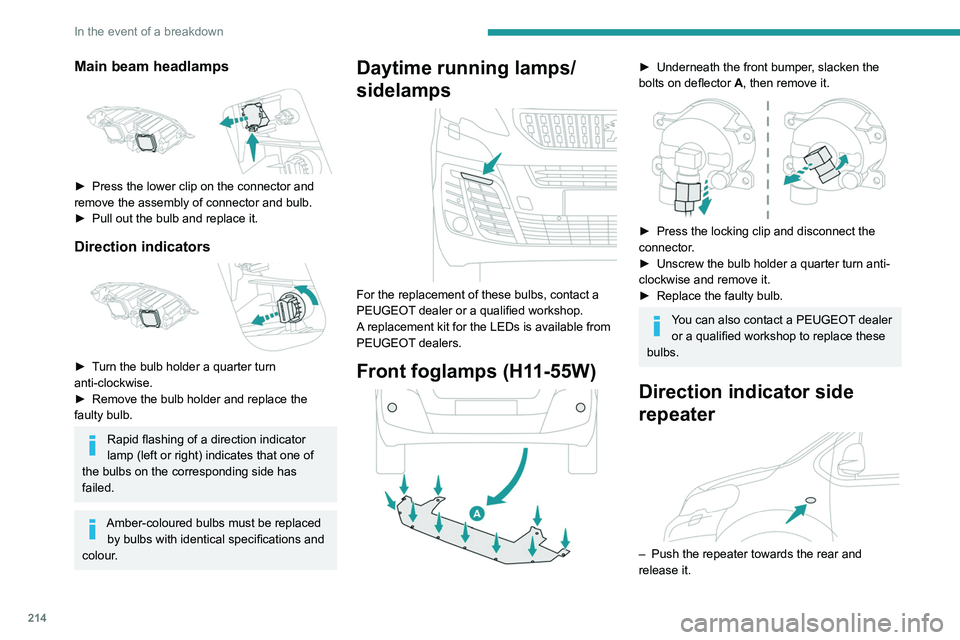

Main beam headlamps

► Press the lower clip on the connector and
remove the assembly of connector and bulb.
►

Pull out the bulb and replace it.
Direction indicators

► Turn the bulb holder a quarter turn
anti-clockwise.
►
Remove the bulb holder and replace the
faulty bulb.
Rapid flashing of a direction indicator
lamp (left or right) indicates that one of
the bulbs on the corresponding side has
failed.
Amber-coloured bulbs must be replaced by bulbs with identical specifications and
colour.
Daytime running lamps/
sidelamps


For the replacement of these bulbs, contact a
PEUGEOT dealer or a qualified workshop.
A replacement kit for the LEDs is available from
PEUGEOT dealers.
Front foglamps (H11-55W)

► Underneath the front bumper , slacken the
bolts on deflector A, then remove it.


► Press the locking clip and disconnect the
connector .
►

Unscrew the bulb holder a quarter turn anti-
clockwise and remove it.
►


Replace the faulty bulb.
You can also contact a PEUGEOT dealer or a qualified workshop to replace these
bulbs.
Direction indicator side
repeater


– Push the repeater towards the rear and
release it.

215
In the event of a breakdown
8– When refitting, engage the repeater towards
the front and then bring it back towards the rear .
Amber-coloured bulbs (direction indicators and
side repeaters) must be replaced with bulbs of
identical specification and colour.
Rear lamps

1. Brake lamps/Sidelamps (P21/5W-21/5W)
2. Direction indicators (PY21W-21W amber)
3. Reversing lamps (P21W-21W)
4. Foglamps/Sidelamps (P21/4W-21/4W)
For vehicles with interior trim, contact a
PEUGEOT dealer or a qualified
workshop to have the work done.
►

Identify the defective lamp and then,
depending on the version, open the rear doors or
the tailgate.


► With side-hinged doors, unscrew the 2 fixing
screws from the outside.
►

With the tailgate, unclip the plastic trim from
the outside and then tilt it outwards to remove it.
Then unscrew the 2 fixing screws.


► From the inside, and depending on the
version, remove the ventilation grille.
►

While holding the lamp in place, press the
clip on the inside then carefully remove the lamp.
►


Disconnect the electrical connector
.


► Spread the 3 lugs slightly, then extract the
bulb holder.
►

Remove the faulty bulb by pressing lightly on
it, then turning it a quarter turn clockwise.
►


Replace the bulb.
Third brake lamp (W5W - 5W)

► Depending on version, open the rear left-
hand door or tailgate.

216
In the event of a breakdown
Platform cab (rear lamps)
1.Direction indicators (P21W-21W).
2. Brake lamps (P21W-21W).
3. Sidelamps (R10W-10W).
4. Reversing lamps (P21W-21W).
5. Foglamps (P21W-21W).
► Locate the faulty bulb.
► Unscrew the 4 fixing screws from the lens
unit and remove it.
► Remove the faulty bulb by pressing lightly on
it, then turning it a quarter turn clockwise.
► Change the bulb.

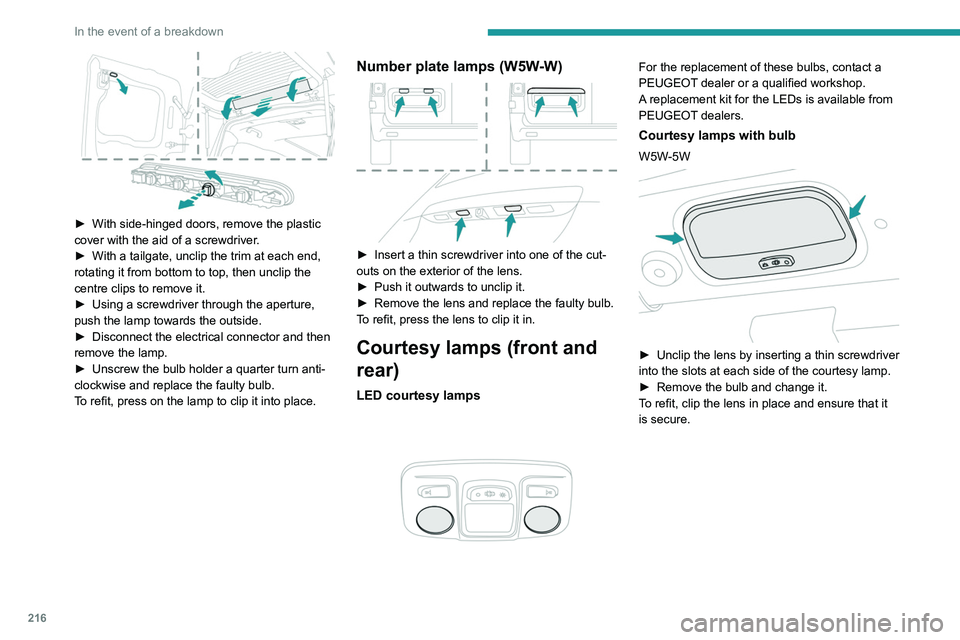

► With side-hinged doors, remove the plastic
cover with the aid of a screwdriver .
►

With a tailgate, unclip the trim at each end,
rotating it from bottom to top, then unclip the
centre clips to remove it.
►


Using a screwdriver through the aperture,
push the lamp towards the outside.
►


Disconnect the electrical connector and then
remove the lamp.
►


Unscrew the bulb holder a quarter turn anti-
clockwise and replace the faulty bulb.
T

o refit, press on the lamp to clip it into place.
Number plate lamps (W5W-W)

► Insert a thin screwdriver into one of the cut-
outs on the exterior of the lens.
►

Push it outwards to unclip it.
►


Remove the lens and replace the faulty bulb.
T

o refit, press the lens to clip it in.
Courtesy lamps (front and
rear)
LED courtesy lamps

For the replacement of these bulbs, contact a
PEUGEOT dealer or a qualified workshop.
A replacement kit for the LEDs is available from
PEUGEOT dealers.
Courtesy lamps with bulb
W5W-5W

► Unclip the lens by inserting a thin screwdriver
into the slots at each side of the courtesy lamp.
►

Remove the bulb and change it.
T

o refit, clip the lens in place and ensure that it
is secure.

217
In the event of a breakdown

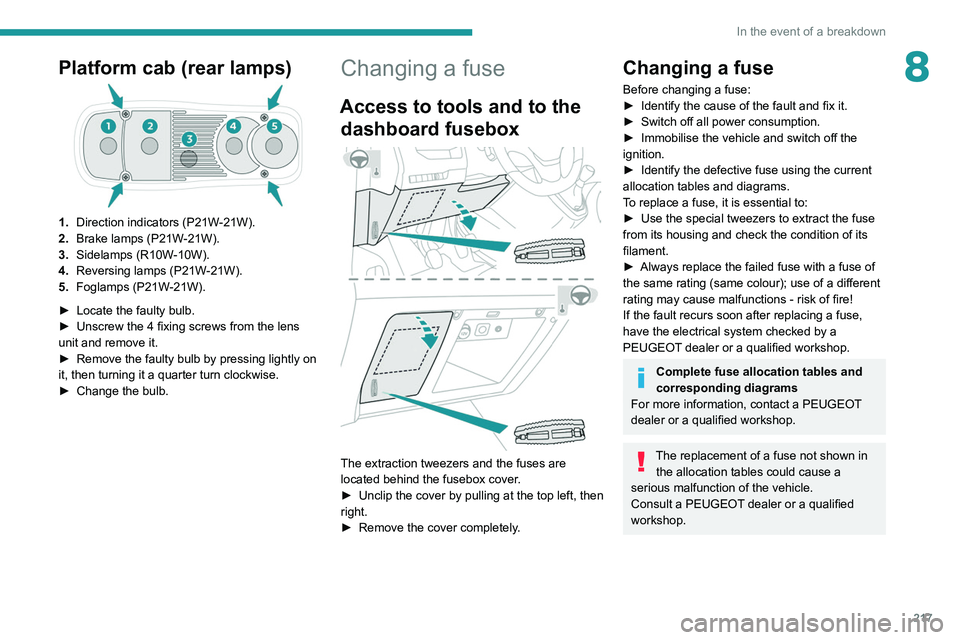

8Platform cab (rear lamps)
1.Direction indicators (P21W-21W).
2. Brake lamps (P21W-21W).
3. Sidelamps (R10W-10W).
4. Reversing lamps (P21W-21W).
5. Foglamps (P21W-21W).
►

Locate the faulty bulb.
►


Unscrew the 4 fixing screws from the lens
unit and remove it.
►


Remove the faulty bulb by pressing lightly on
it, then turning it a quarter turn clockwise.
►


Change the bulb.
Changing a fuse
Access to tools and to the dashboard fusebox


The extraction tweezers and the fuses are
located behind the fusebox cover.
►

Unclip the cover by pulling at the top left, then
right.
►


Remove the cover completely
.
Changing a fuse
Before changing a fuse:
► Identify the cause of the fault and fix it.
►

Switch off all power consumption.
►


Immobilise the vehicle and switch off the
ignition.
►


Identify the defective fuse using the current
allocation tables and diagrams.
T

o replace a fuse, it is essential to:
►

Use the special tweezers to extract the fuse
from its housing and check the condition of its
filament.
►


Always replace the failed fuse with a fuse of
the same rating (same colour); use of a different
rating may cause malfunctions - risk of fire!
If the fault recurs soon after replacing a fuse,
have the electrical system checked by a
PEUGEOT

dealer or a qualified workshop.
Complete fuse allocation tables and
corresponding diagrams
For more information, contact a PEUGEOT
dealer or a qualified workshop.
The replacement of a fuse not shown in the allocation tables could cause a
serious malfunction of the vehicle.
Consult a PEUGEOT dealer or a qualified
workshop.

218
In the event of a breakdown
Fuse N° Rating(Amps) Functions
F5 5 Touch screen, reversing
camera and parking
sensors.
F8 20 Single or double rear
wipers.
F10/ F 11 30
Internal/external locks,
front and rear.
F12 3 Alarm.
F17 10 Rear 12 V accessory
socket.
F33 15 Front 12 V accessory
socket.
F36 20 Audio system, touch
screen, CD player,
navigation.
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.


Good
Faulty

Tweezers
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
For more information on installing a
towbar or TAXI type equipment, contact a
PEUGEOT dealer.
Version 1 (Eco)

The fuses described below vary according to the
equipment in your vehicle.
Fuse N° Rating (Amps) Functions
F4 15 Horn.
F5 20 Front/rear screenwash
pump.
F6 20 Front/rear screenwash
pump.
F7 10 Rear 12
V accessory
socket.
F8 20 Single or double rear
wipers.
Fuse N° Rating
(Amps) Functions
F10/ F 11 30
Internal/external locks,
front and rear.
F14 5 Alarm, emergency and
assistance calls.
F24 5 Touch screen, reversing
camera and parking
sensors.
F29 20 Audio system, touch
screen, CD player,
navigation.
F32 15 Front 12
V accessory
socket.
Version 2 (Full)

The fuses described below vary according to the
equipment in your vehicle.
