PEUGEOT EXPERT DAG 2001 Owners Manual

AUDIO-SYSTEM141
AUDIO SETTINGS Press the ÒAUDIOÓbutton several times in succession to access the bass (BASS), treble (TREB) , loudness
(LOUD) , fader (FAD)and balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the ÒAUDIOÓ button after adjusting the balance.
Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette and CD*. Bass setting When ÒBASSÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
- ÒBASS Ð9Ó for a minimum bass setting,
- ÒBASS 0Ó for a normal position,
- ÒBASS +9Ó for a maximum bass setting.
Treble settingWhen ÒTREBÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
- ÒTREB Ð9Ó for a minimum treble setting,
- ÒTREB 0Ó for a normal position,
- ÒTREB +9Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒGÓor ÒHÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When ÒFADÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
The ÒGÓ button increases the volume at the front.
The ÒHÓbutton increases the volume at the rear.
Setting the right/left sound distribution (Balance)When ÒBALÓ is displayed, press the ÒGÓor ÒHÓ buttons to vary the setting.
The ÒGÓ button increases the volume on the right-hand side.
The ÒHÓbutton increases the volume on the left-hand side.
* According to specification

AUDIO-SYSTEM142
RADIO Notes on radio reception
Your car radio receiver is subject to phenomena which do not affect domestic sets. Both amplitude modula-
tion (MW/LW) and frequency modulation (FM) reception are subject to various forms of interference whichare not a reflection on the quality of your set, but are due to the nature of the signals and the way in whichthey are transmitted.
On MW/LW, interference may be noticed when passing underneath high voltage power lines or bridges or in tunnels.
On FM, interference may be the result of distance from the transmitter, reflection of the signal by obstacles (mountains, hills, buildings etc), or of being in a shadow area (an area which is not covered by a transmitter). Selecting the radio Press the "SRC"button, until the radio is selected.
Selecting a wavebandBy short presses on the "BND/AST"button, you can select the FM1, FM2, FM3 and AM wavebands.
Automatic station searchBriefly press button "J"or "K" to search for the next station up or down the waveband. By continuing to press
the button in the direction selected, you will obtain continous scrolling of the frequency. The scrolling stops at the first station found as soon as you release the button.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters, while scan-
ning the waveband, then in "DX"sensitivity (selection of weaker and more distant transmitters).
Manual station searchPress the ÒMANÓbutton.
Briefly press button ÒJÓor ÒKÓ respectively to increase or reduce the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.Scrolling stops as soon as you release the button.Pressing the ÒMANÓbutton again returns you to automatic station search.

AUDIO-SYSTEM143
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the ÒRDSÓbutton.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
SYSTéME RDS
Utilisation de la fonction RDS (Radio Data System) sur bande FM lise pour la rŽgion que vous traversez. ÒRDSÓ, activez ou dŽsactivez la fonction.
Suivi des stations RDS
LÕafficheur indique le nom de la station sŽlectionnŽe. LÕautoradio recherche en permanence lÕŽmetteur qui dif-
Manual storing in memory of stations Select the station required.Press for more than two seconds one of the buttons Ò1Óto Ò6Ó .
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing in memory of FM stations (autostore) Press the ÒBND/ASTÓ button for more than two seconds, to automatically store the 6 stations with the
strongest signal in FM. These stations are stored in the FM3 waveband.
- If it is not possible to find 6 stations, the remaining memories are empty. Recall of stations stored in memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.

AUDIO-SYSTEM144
Traffic information programmes Press the "TA"button to switch the function on or off.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD).If you wish to interrupt a message, press the "TA"button; this switches off the function.
Note: the volume of the traffic information announcements is independent of the volume of normal
radio listening. You can adjust it using the volume button. The setting will be stored and will be usedwhen the next messages are broadcast.
While traffic information is being broadcast, the display will alternately show ÒTRAFFICÓand the name of the
station.
When the station selected cannot broadcast traffic information, the display shows ÒNO TAÓ.
Regional following mode (REG)When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this press the ÒRDSÓbutton for more than two seconds to switch this function on or off.

AUDIO-SYSTEM145
CASSETTE Selecting cassette mode
When a cassette is inserted, the cassette player will start automaticaily.If a cassette is already inserted, press the "SRC"button until the cassette is selected.
Ejecting the cassetteFully press both buttons "E"and "F"to eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press both buttons "E"and "F"part way.
Fast forward/rewindFully press one of the buttons "E"or "F" to fast forward or fast rewind the cassette. At the end of the fast
forward rewind, the set plays the current side.
Note: - During fast forwards or rewind of a cassette, the audio system will automatically play the last radio station.
General precautions for use:
- Use good quality cassettes.
- Avoid the use of cassettes exceeding 90 minutes.
- Never expose cassettes to heat or direct sunlight.
- Return cassettes to their box immediately after use to protect them from dust and to avoid accidental unwin- ding of the tape.
- After prolonged use of the cassette player, build-up on the head of the player can cause reduced reproduc- tion of the treble, or even the total failure of one or both tracks. To solve this, use a cleaning cassette that plays like an ordinary cassette (approximately every 50 hours).

AUDIO-SYSTEM146
CD MULTI-CHANGER* Selecting the CD changer Press the "SRC"button until the CD changer is selected.
Selecting a discPress a button from Ò1Óto Ò6Ó to select the corresponding disc.
Selecting a trackPress button ÒJÓto select the next track.
Press button ÒKÓto return to the start of the current track or to select the previous track.
Accelerated playPress the ÒMANÓbutton.
Keep button ÒJÓor ÒKÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button.Buttons ÒJÓand ÒKÓ resume the Òtrack selectionÓ function when the ÒMANÓbutton is pressed again.
Shuffle (RAND)When the CD multi-changer is selected, keep the ÒSRCÓbutton pressed for two seconds. The tracks will be
played in random sequence. Pressing the ÒSRCÓbutton again for two seconds returns you to normal play.
Note : Do not use blank CDs as these could damage your changer.
* According to specification

AUDIO-SYSTEM147
CD
C
CD changer** Depending on equipment

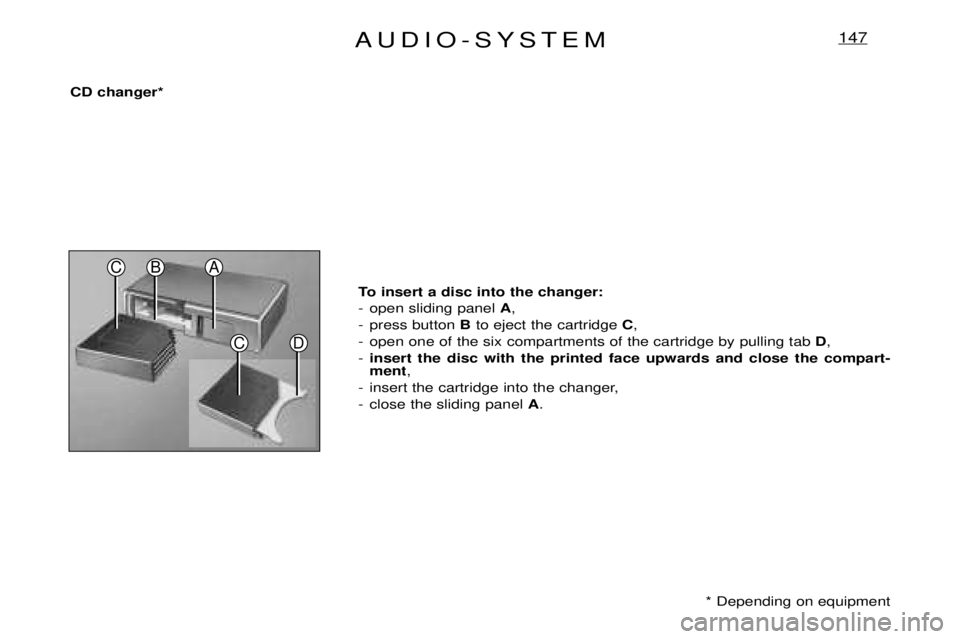

To insert a disc into the changer:
- open sliding panel
A,
- press button Bto eject the cartridge C,
- open one of the six compartments of the cartridge by pulling tab D,
- insert the disc with the printed face upwards and close the compart- ment ,
- insert the cartridge into the changer,
- close the sliding panel A.
BA

AUDIO-SYSTEM148

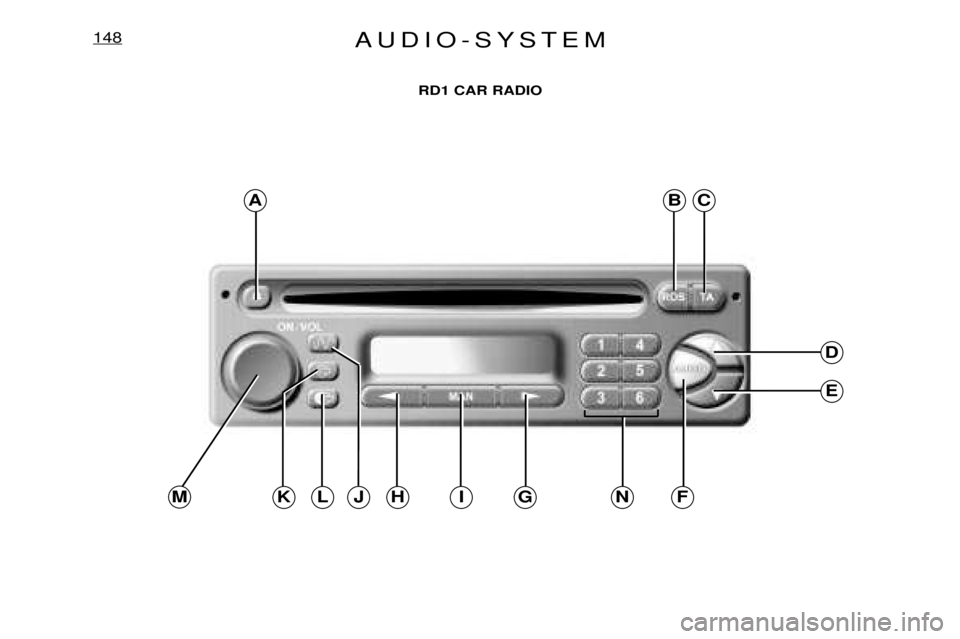

RD1 CAR RADIO
ABC
D
E
MJKFGIHLN

AUDIO-SYSTEM149
ButtonFunction
A i
Ejection of the CD.
B RDS RDS function on/off.
Press for more than 2 seconds: regional station following on/off.
CT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
D Increase audio setting.
E Decrease audio setting.
F AUDIO Selects the bass, treble, loundness and sound distibution.
G Automatic search of higher frequency.Selection of next CD track.
H Automatic search of lower frequency.Selection of previous CD track.
I MAN Manual/automatic operation of buttons Gand H.
J Source selection, radio. Selection of wavebands FM1, FM2, FM3, AM.Press for more than 2 seconds: automatic storing of stations (autostore).
K Source selection, CD.
Press for more than 2 seconds: shuffle.
L Source selection: CD player*.
Press for more than 2 seconds: shuffle.
M ON/VOL Radio on/off. Volume adjustment.
N 1 to 6 Selection of the stored station.Press for more than 2 seconds: storing a station.Selection of a CD disc*.


k
j
* According to specification

AUDIO-SYSTEM150
GENERAL FUNCTIONS On / off
With the ignition key in the ACCESSORIES or IGNITION position, press the "M"button to switch the set on
or off.The set can operate for 30 minutes without switching the ignition on. ANTI-THEFT SYSTEM
The first time you use the set following disconnection of the set or the battery, you must enter the confiden- tial code which was given to you on handover of your vehicle. Entering the code Switch the set on.The display shows "CODE"then the set changes over to code request mode and "- - - -"is displayed.
Enter your four-digitcode number using buttons "1"to "6" .
For example: if your code is 5345 press buttons "5", "3" , "4" and "5"in turn.
When the fourth number has been entered correctly, the radio starts automatically. Error in entering the code
If an error is made when entering one of the first three digits, do not continue the operation and switch off the radio to prevent blocking it. Each incorrect code entry will result in the set being blocked for a period of from 5 seconds to 30 minutes,
after the 7th incorrect entry.
To unblock the set, leave it switched on during the waiting period. When "- - - -"is displayed, you can enter
the code again.
If the set is switched off during the waiting period, this waiting period will restart when the set is switched on again. After 14 incorrect code errors the radio will be permanently blocked. ADJUSTING THE SOUND Adjusting the volume
Turn the "M"button M to increase or decrease the volume of the set.
