Page 131 of 149
FRONT AIRBAG130
IMPORTANT:
For your safety, it is essential that you always sit with your back fully against the backrest.
Front airbags - Precautions ¥
The wearing of seat belts is obligatory.
¥ Never fix nor attach anything to the steering wheel boss; this could cause facial injuries should the airbag be activated.
¥ Do not stow nor allow objects to rest between your body and the airbag.
¥ Never drive with your hands on the centre boss of the steering wheel or holding the branches of the wheel.
¥ Do not smoke in the vehicle (risk of burns or injury should the airbag be deployed).
¥ Do not leave objects on the dashboard which could interfere with the operation of the airbag or cause injury to the passenger when activated.
¥ Make sure that the passenger does not place his feet on the dashboard when the vehicle is in motion.
¥ Children under ten years of age should use the rear seats with appropriate child restraints (see "Child restraints").
Page 132 of 149

FRONT AIRBAG131
Replacing the airbag pyrotechnic systems
They must be replaced following deployment or within ten years after first
registration of the vehicle. This must be done by the dealer network. In accordance with the strict security regulations in force, any repairs or checks must be performed exclusively by the dealer network. Any repairs that have not been carried out in strict compliance with the regulations could prevent the systems from operating correctly or couldcause their premature deployment, with the risk of bodily injuries.
Warning When the airbag(s) is(are) deployed, there is a light discharge of harmless smoke and a loud noise; both are due to the detonation of the explosive cartridge(s) forming part of the airbag system.
This smoke is not toxic but may cause irritation to people suffering from respiratory problems.As a precaution therefore, vacate the vehicle as soon as possible after deployment of an airbag (provided it is safe to do so). If this is not possible, open the windows or doors. The noise associated with the detonation may cause a temporary loss of hearing.These devices can only operate once and cannot provide further protection in the event of a second impact (either during the same collision or in any further collision). It is imperative that the system be repaired by the dealer network.
Page 133 of 149

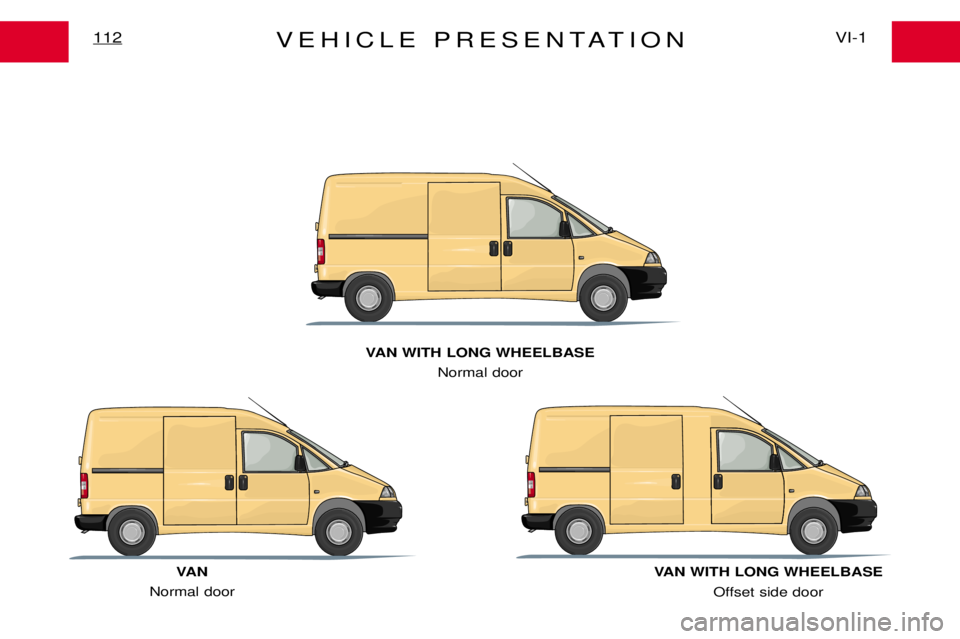

VEHICLE PRESENTATIONVI-1
112
VA N
Normal door VAN WITH LONG WHEELBASE
Normal door
VAN WITH LONG WHEELBASEOffset side door
Page 134 of 149
GENERAL INFORMATION*Glazed and panel vans113VI-2
Weights (kg) Unladen weight 1 370 1 375 1 400/1 415
Gross vehicle weight 2 185 2 190 2 215/2 315
Payload 815 815 815/900
Gross train weight 3 485 3 290 3 500
Gross trailer weight (with brakes)** 1 300 1 100 1 300
Gross trailer weight (without brakes)** 720 685 750Max. roof rack load 100 100 100
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
French fiscal rating 11 6 6
Calculated maximum speed in km/h (mph) 175 (108) 138 (86) 160 (100)
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Page 135 of 149
GENERAL INFORMATION*
Glazed and panel vans longwheelbaseVI-2
114
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Weights (kg) Unladen weight 1 410 1 445
Gross vehicle weight 2 205 2 315
Payload 795 900
Gross train weight 3 305 3 500
Gross trailer weight (with brakes)** 1 100 1 300
Gross trailer weight (without brakes)** 705 730Max. roof rack load 100 100
Engine type
1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 868 1 997
French fiscal rating 6 6
Calculated maximum speed in km/h (mph) 138 (86) 157 (98)
Page 136 of 149

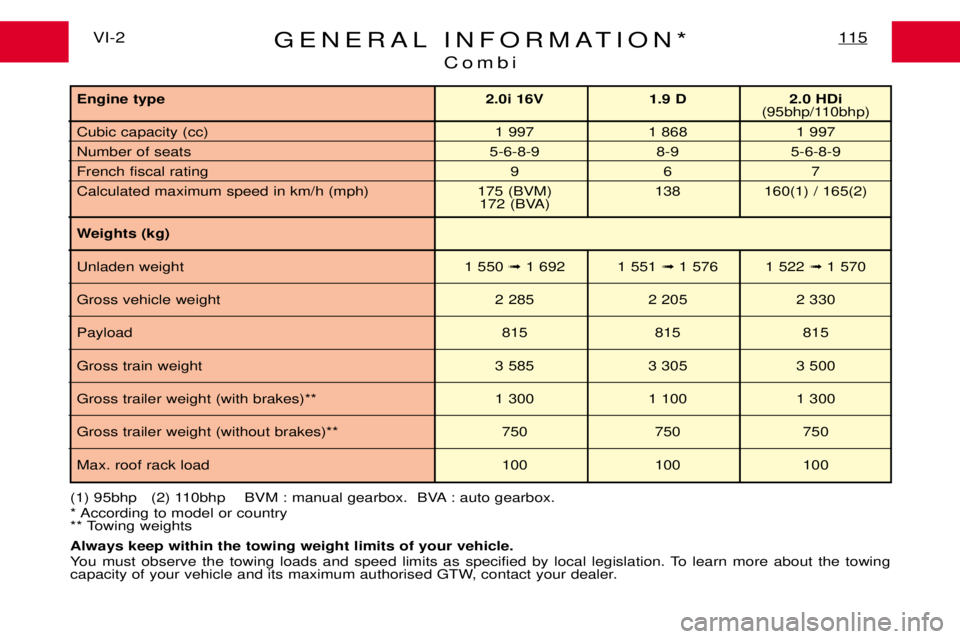

GENERAL INFORMATION*Combi115VI-2
(1) 95bhp (2) 110bhp BVM : manual gearbox. BVA : auto gearbox.
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Weights (kg) Unladen weight 1 550 ➟1 692 1 551 ➟1 576 1 522 ➟1 570
Gross vehicle weight 2 285 2 205 2 330
Payload 815 815 815
Gross train weight 3 585 3 305 3 500
Gross trailer weight (with brakes)** 1 300 1 100 1 300
Gross trailer weight (without brakes)** 750 750 750Max. roof rack load 100 100 100
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
Number of seats 5-6-8-9 8-9 5-6-8-9
French fiscal rating 9 6 7
Calculated maximum speed in km/h (mph) 175 (BVM) 138 160(1) / 165(2) 172 (BVA)
Page 137 of 149
GENERAL INFORMATION*Chassis cabVI-2
116
Weights (kg) Unladen weight 1 195 1 255 1 240
Gross vehicle weight 2 185 2 205 2 315
Payload According to model or country
Gross train weight 3 485 3 305 3 500
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
French fiscal rating 11 8 8
Calculated maximum speed in km/h (mph) According to model or country
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Page 138 of 149

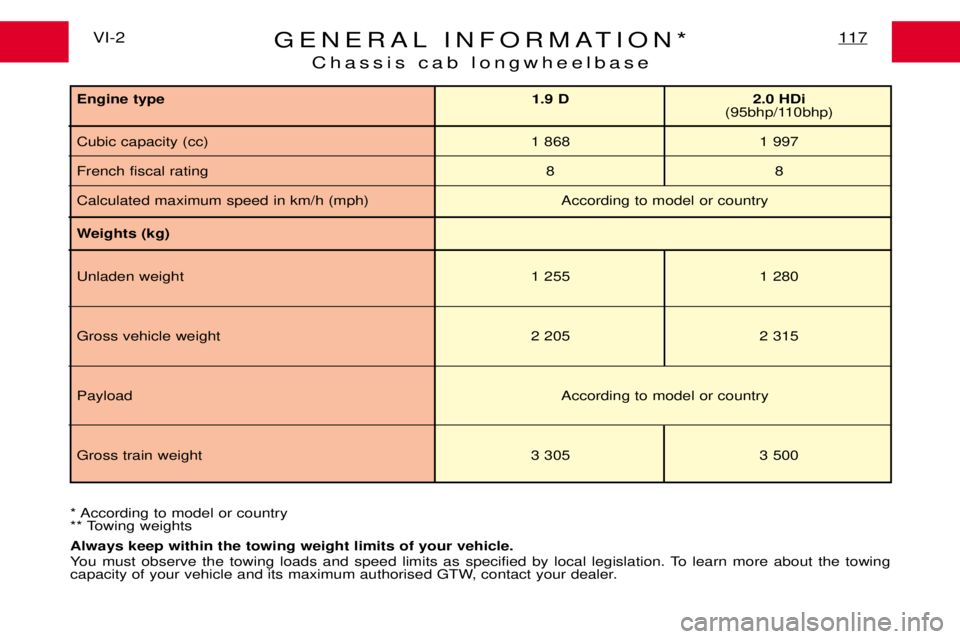

GENERAL INFORMATION*Chassis cab longwheelbase117VI-2
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Engine type 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 868 1 997
French fiscal rating 8 8
Calculated maximum speed in km/h (mph) According to model or country
Weights (kg) Unladen weight 1 255 1 280
Gross vehicle weight 2 205 2 315
Payload According to model or country
Gross train weight 3 305 3 500
Page 139 of 149

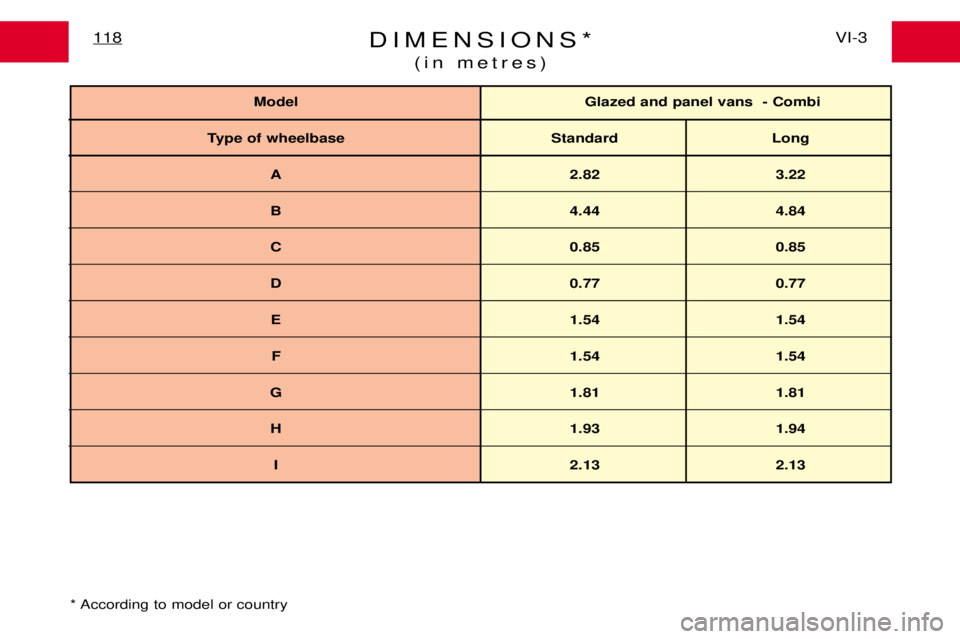

DIMENSIONS*(in metres)VI-3
118
* According to model or country
Model Glazed and panel vans - Combi
Type of wheelbase Standard Long
A 2.82 3.22
B 4.44 4.84
C 0.85 0.85
D 0.77 0.77
E 1.54 1.54
F 1.54 1.54
G 1.81 1.81
H 1.93 1.94
I 2.13 2.13
Page 140 of 149
DIMENSIONS119VI-3
CADB
F E
I G
H
