PEUGEOT EXPERT DAG 2001 Owners Manual

TABLE OF FUSES
(According to model or country)V- 2
90

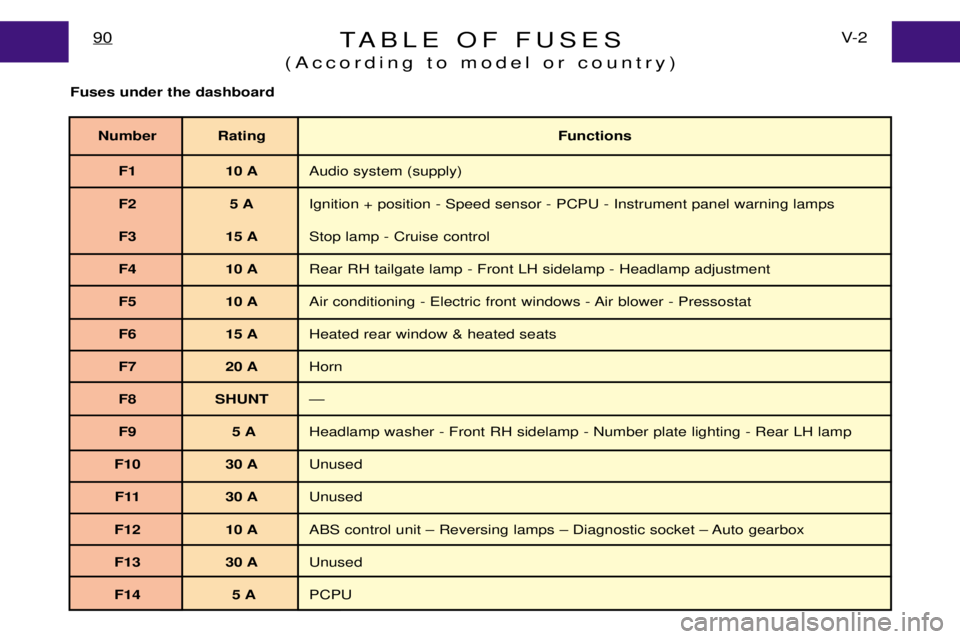

Fuses under the dashboard
Number Rating Functions
F1 10 A Audio system (supply)
F2 5 A Ignition + position - Speed sensor - PCPU - Instrument panel warning lamps
F3 15 A Stop lamp - Cruise control
F4 10 A Rear RH tailgate lamp - Front LH sidelamp - Headlamp adjustment
F5 10 A Air conditioning - Electric front windows - Air blower - Pressostat
F6 15 A Heated rear window & heated seats
F7 20 A Horn
F8 SHUNT Ñ
F9 5 A Headlamp washer - Front RH sidelamp - Number plate lighting - Rear LH lamp
F10 30 A Unused
F11 30 A Unused
F12 10 A ABS control unit Ð Reversing lamps Ð Diagnostic socket Ð Auto gearbox
F13 30 A Unused
F14 5 A PCPU

TABLE OF FUSES
(According to model or country)91V- 2
Number Rating Functions
F15 30 A PCPU (central locking Ð ceiling lights)
F16 20 A Cigar lighter - Permanent + position
F16A 20 A Cigar lighter - Accessories + position
F17 15 A Coolant temperature control unit - Cooling fan assembly
F18 10 A Foglamp
F19 10 A Instrument panel lighting - Audio system - Sidelamps
F20 30 A Air conditioning - Air blower
F21 20 A Heated seats
F22 20 A Accessories + position - Unused
F23 SHUNT F14 - F15 - F25 - F27
F24 30 A Windscreen washer - Windscreen wiper
F25 10 A Air conditioning - Interior lamp - Radio memory - Digital clock
F26 15 A Hazard warning lamps
F27 30 A Heated rear screen
F28 15 A Electric window - Charge warning lamp
F29 30 A Electric window
F30 15 A Interior lighting - Direction indicators - Clock - Electric rear view mirror

TABLE OF FUSES
(According to model or country)V- 2
92
Any work involving the additional protection MAXI fuses,
located in the fuse boxes, must only be performed
by personnel from the dealer network. (MF14 ➟ MF17)
Fuses under the bonnet Fuse box
To reach the fuses in the fusebox
under the bonnet unclip the cover. The fuses positions which are not numbered are for spare fuses. Close the lid of the fuse box care-
fully.

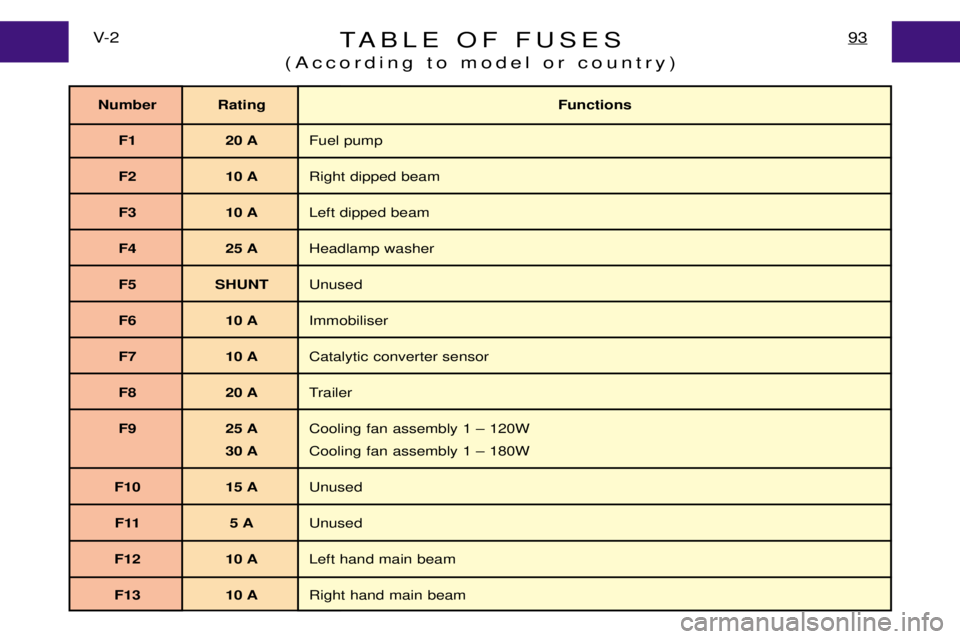

Fuses under the bonnet (without ABS)

TABLE OF FUSES
(According to model or country)93V- 2
Number Rating Functions
F1 20 A Fuel pump
F2 10 A Right dipped beam
F3 10 A Left dipped beam
F4 25 A Headlamp washer
F5 SHUNT Unused
F6 10 A Immobiliser
F7 10 A Catalytic converter sensor
F8 20 A Trailer
F9 25 A Cooling fan assembly 1 Ð 120W
30 A Cooling fan assembly 1 Ð 180W
F10 15 A Unused
F11 5 A Unused
F12 10 A Left hand main beam
F13 10 A Right hand main beam

TABLE OF FUSES
(According to model or country)V- 2
94
Any work involving the additional protection MAXI fuses,
located in the fuse boxes, must only be performed by personnel from the dealer network.

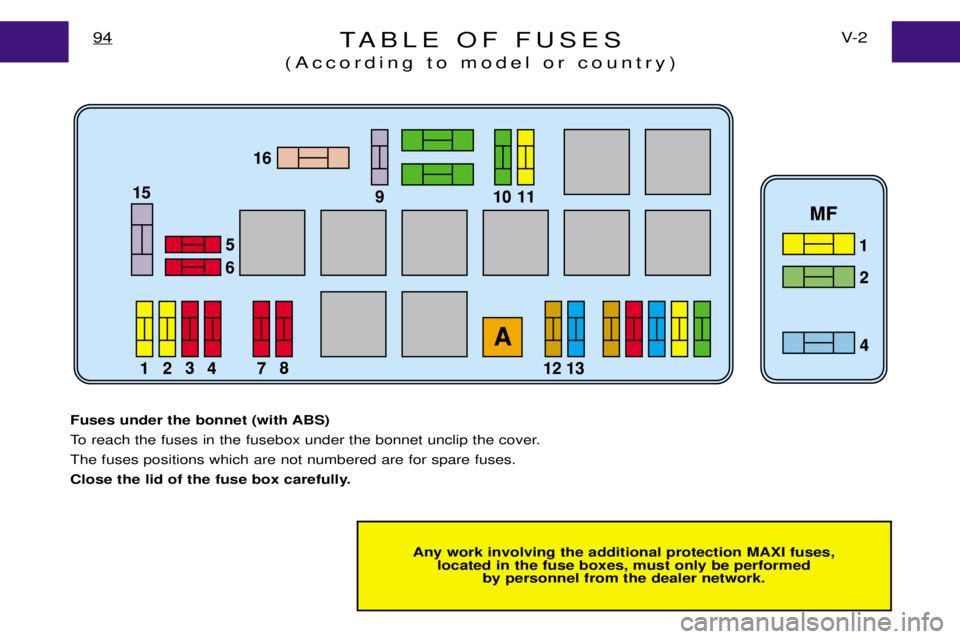

Fuses under the bonnet (with ABS)
To reach the fuses in the fusebox under the bonnet unclip the cover.The fuses positions which are not numbered are for spare fuses.
Close the lid of the fuse box carefully.

TABLE OF FUSES
(According to model or country)95V- 2

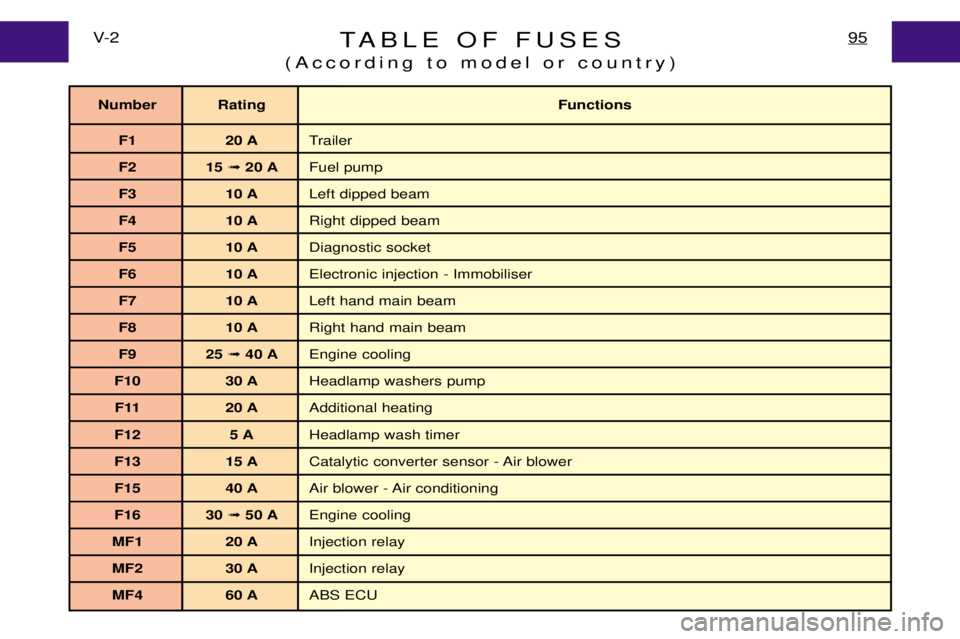

Number Rating Functions
F1 20 A Trailer
F2 15 ➟ 20 A Fuel pump
F3 10 A Left dipped beam
F4 10 A Right dipped beam
F5 10 A Diagnostic socket
F6 10 A Electronic injection - Immobiliser
F7 10 A Left hand main beam
F8 10 A Right hand main beam
F9 25 ➟ 40 A Engine cooling
F10 30 A Headlamp washers pump
F11 20 A Additional heating
F12 5 A Headlamp wash timer
F13 15 A Catalytic converter sensor - Air blower
F15 40 A Air blower - Air conditioning
F16 30 ➟ 50 A Engine cooling
MF1 20 A Injection relay
MF2 30 A Injection relay
MF4 60 A ABS ECU

* According to model or country

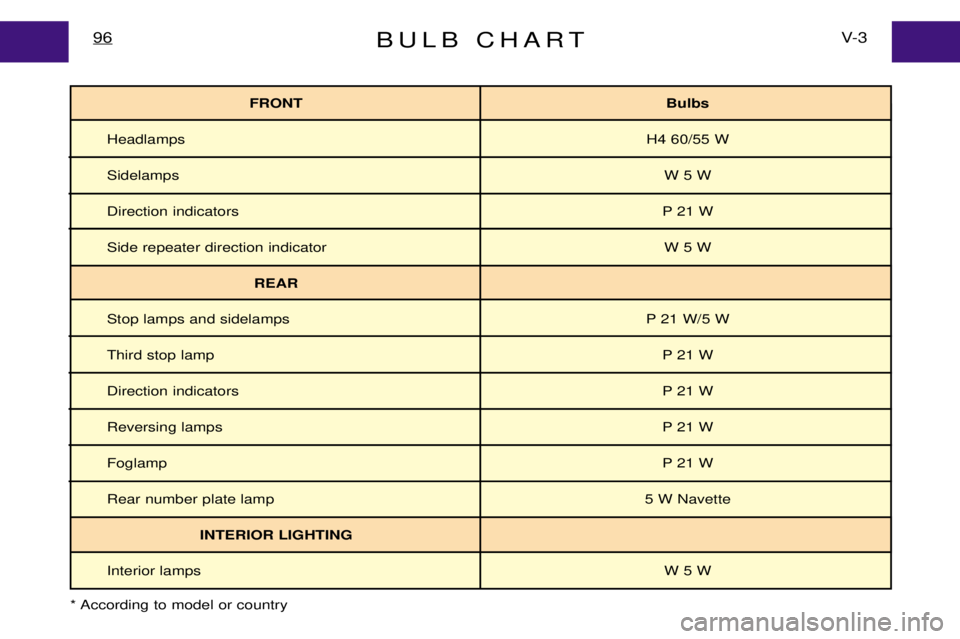

BULB CHARTV- 3
96
FRONT Bulbs
Headlamps H4 60/55 W
Sidelamps W 5 W
Direction indicators P 21 W
Side repeater direction indicator W 5 W
REAR
Stop lamps and sidelamps P 21 W/5 W
Third stop lamp P 21 W
Direction indicators P 21 W
Reversing lamps P 21 W
Foglamp P 21 W
Rear number plate lamp 5 W Navette
INTERIOR LIGHTING
Interior lamps W 5 W

REPLACING BULBS*97V- 3
Beware
The halogen bulbs should not be changed until they have been off for a few minutes (risk of serious burns). Do not touch the new bulb directly withyour fingers; use a lint-free cloth. After replacing a bulb, check the correct operation of the lighting and signalling.

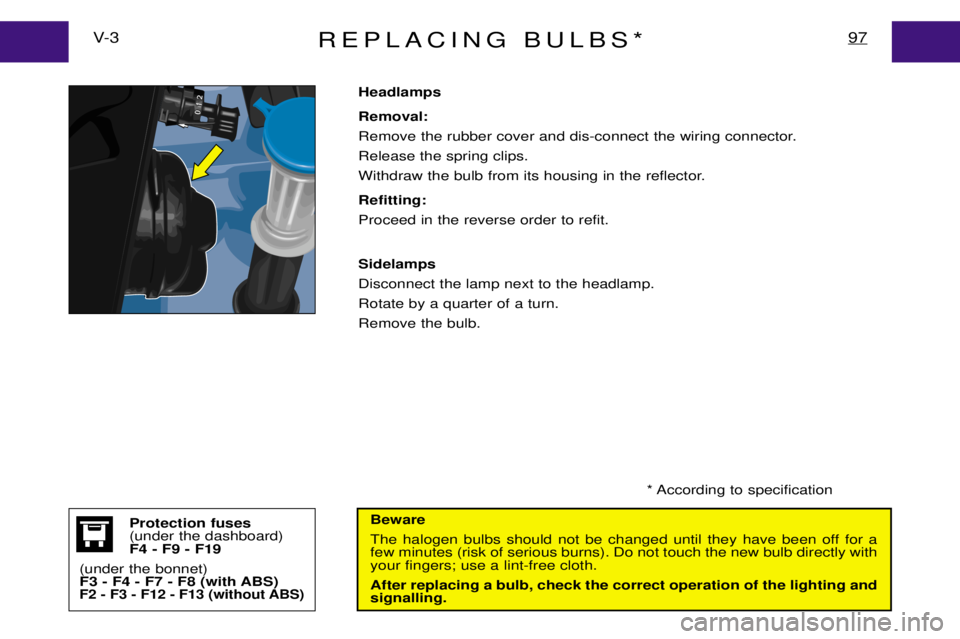

Headlamps Removal:
Remove the rubber cover and dis-connect the wiring connector.Release the spring clips.
Withdraw the bulb from its housing in the reflector. Refitting: Proceed in the reverse order to refit. Sidelamps Disconnect the lamp next to the headlamp.Rotate by a quarter of a turn.Remove the bulb.Protection fuses (under the dashboard)F4 - F9 - F19
(under the bonnet)
F3 - F4 - F7 - F8 (with ABS)
F2 - F3 - F12 - F13 (without ABS)
* According to specification

REPLACING BULBS*V- 3
98

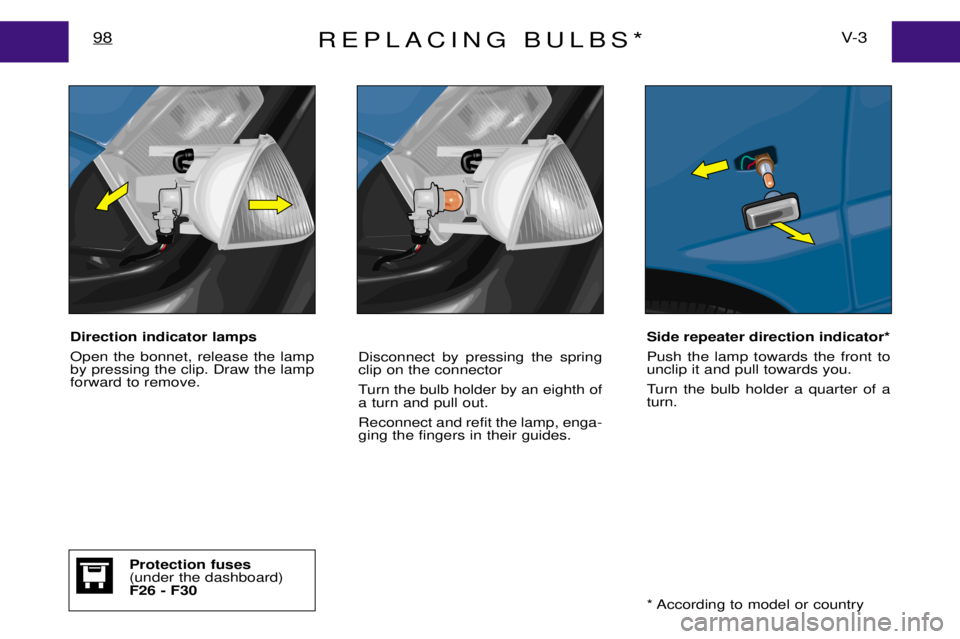

Direction indicator lamps Open the bonnet, release the lamp by pressing the clip. Draw the lampforward to remove. Disconnect by pressing the springclip on the connector
Turn the bulb holder by an eighth of a turn and pull out. Reconnect and refit the lamp, enga- ging the fingers in their guides.Side repeater direction indicator* Push the lamp towards the front to unclip it and pull towards you.
Turn the bulb holder a quarter of a turn.
* According to model or country
Protection fuses (under the dashboard)F26 - F30

REPLACING BULBS*99V- 3
Headlamp Release the headlamp rear cover by pressing the two clips and swiv-
elling the cover.When refitting, ensure that the wiringis returned to its retaining clip.
Headlamp dipped beam (outer lamps)
Disconnect the wiring connector.Press and disengage the retaining wire clips
1and 2.
Pull the bulb out. Bulb: H1 (reduced tolerance type H1R). Headlamp main beam(inner lamps)
Disconnect the wiring connector.Press and disengage the retaining wire clips
1and 2.
Pull the bulb out. Bulb: H1 (reduced tolerance type H1R).
21
1
2
* According to model or country
