Changing a fuse
QUICK HELP
7

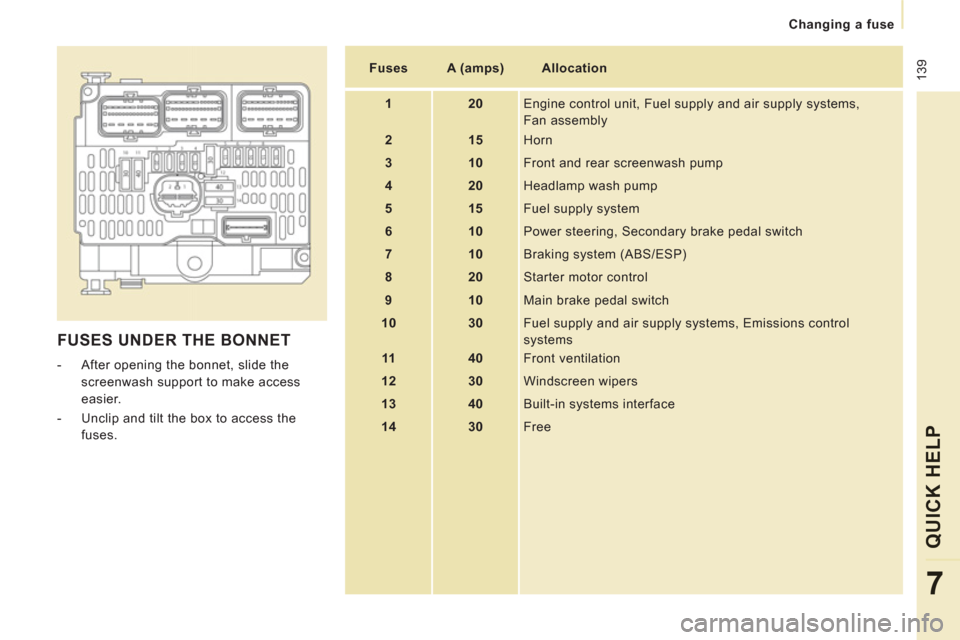

FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems

11


40
Front ventilation


12


30
Windscreen wipers


13


40
Built-in systems interface


14


30
Free

140


Changing a wiper blade



Placing the wiper blades in the
special position


- Less than a minute after switching
off the ignition, press the wipers stalk
downwards to position the wiper
blades along the windscreen uprights
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the blade
and remove it.

- Fit the new blade and push back the
wiper arm.

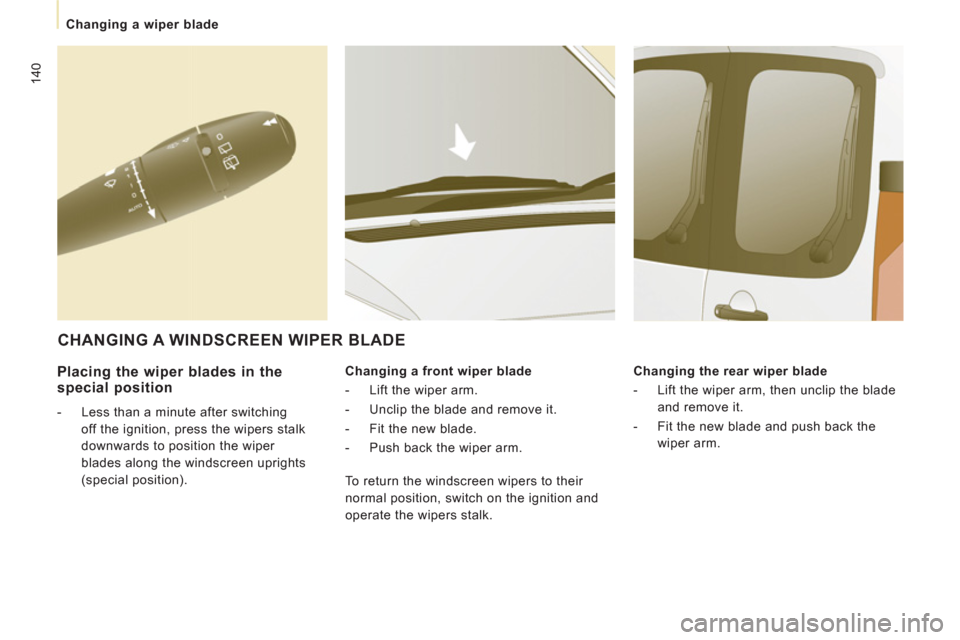

CHANGING A WINDSCREEN WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.

141


Having your vehicle towed
QUICK HELP
7


Without lifting(4 wheels on the road)

You should always use a towing bar.


From the front



- Unclip the cover by pressing the bottom
part.

- Fully screw in the removable towing eye.

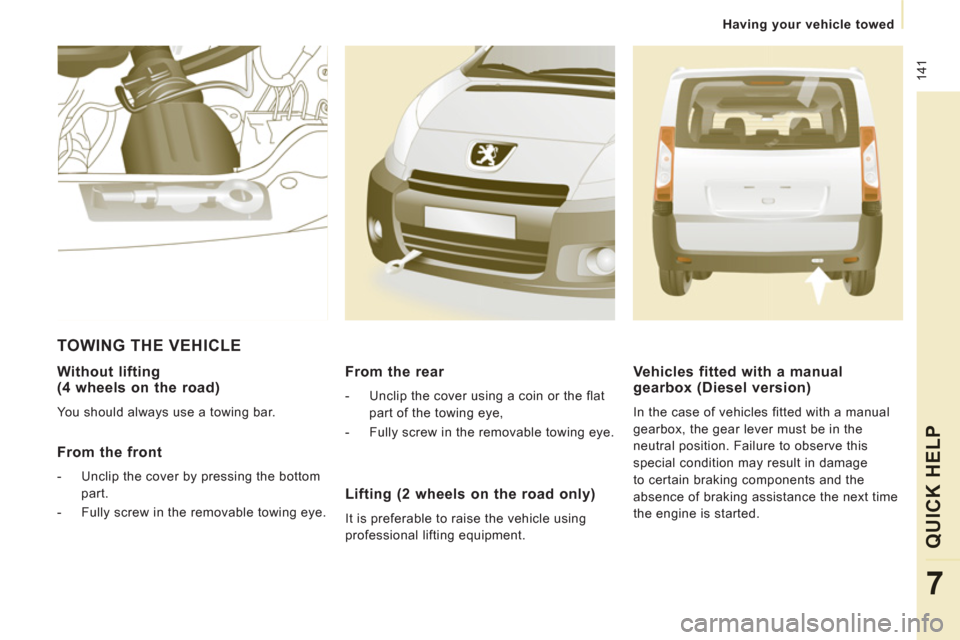

TOWING THE VEHICLE
Lifting (2 wheels on the road only)

It is preferable to raise the vehicle using
professional lifting equipment.
From the rear



- Unclip the cover using a coin or the flat
part of the towing eye,

- Fully screw in the removable towing eye.


Vehicles fitted with a manual gearbox (Diesel version)

In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

142


Having your vehicle towed

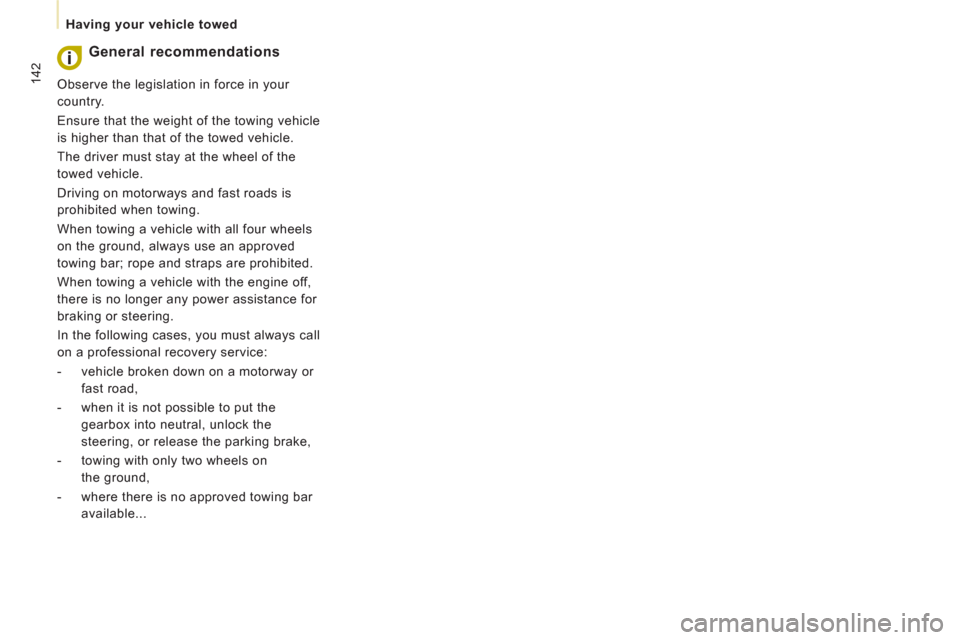

General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on
the ground,

- where there is no approved towing bar
available...

143



Environment
QUICK HELP
7

ENVIRONMENT

With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com

website. As the driver, you also can contribute to
protecting the environment by following
certain rules:


- adopt a preventive style of driving,
without frequent and harsh acceleration,

- observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,

- in order to preserve the reliability of the
engine and emission control systems,
do not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).

144


Dimensions

14
5
Dimensions

TECHNICAL DAT
A
8


H1

L Overall length
4 805
5 135

H Overall height pneumatic/metal suspension
1 895/1 942

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830
1 038
Overall width:
on panel

1 870

D with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded

2 194

E Width of front tracks

1 574

F Width of rear tracks

1 574
Turning circle pitch diameter between kerbs (m)
12,18
12,59
Maximum loads (kg)
Payload

1 000
On roof

170

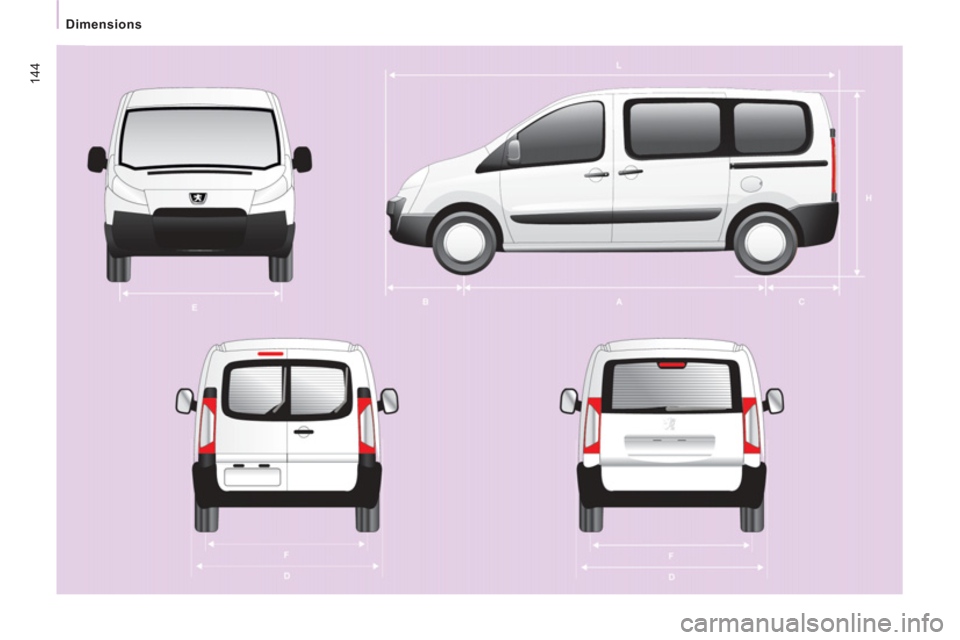

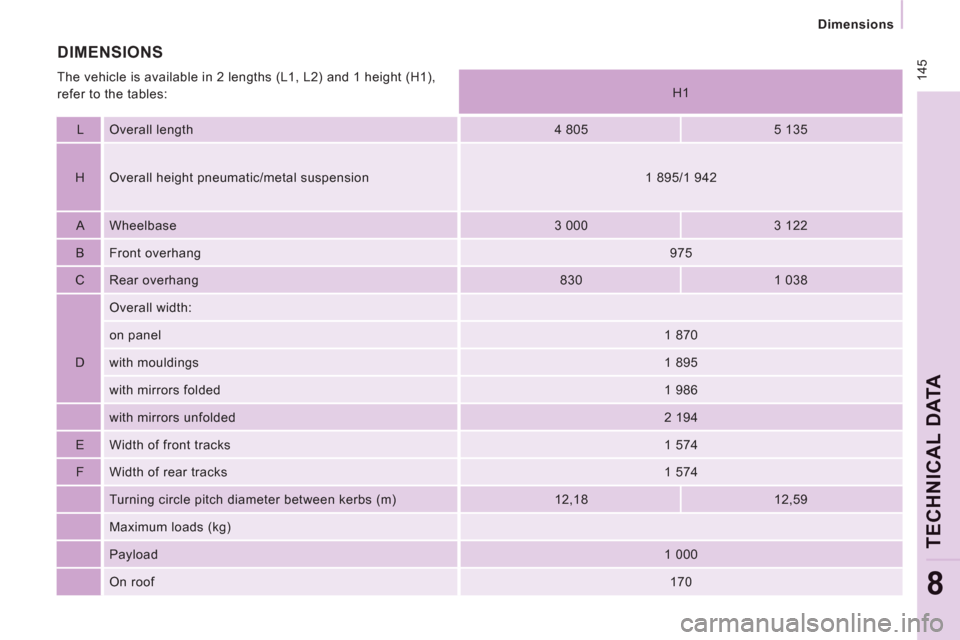

DIMENSIONS

The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

146


Dimensions

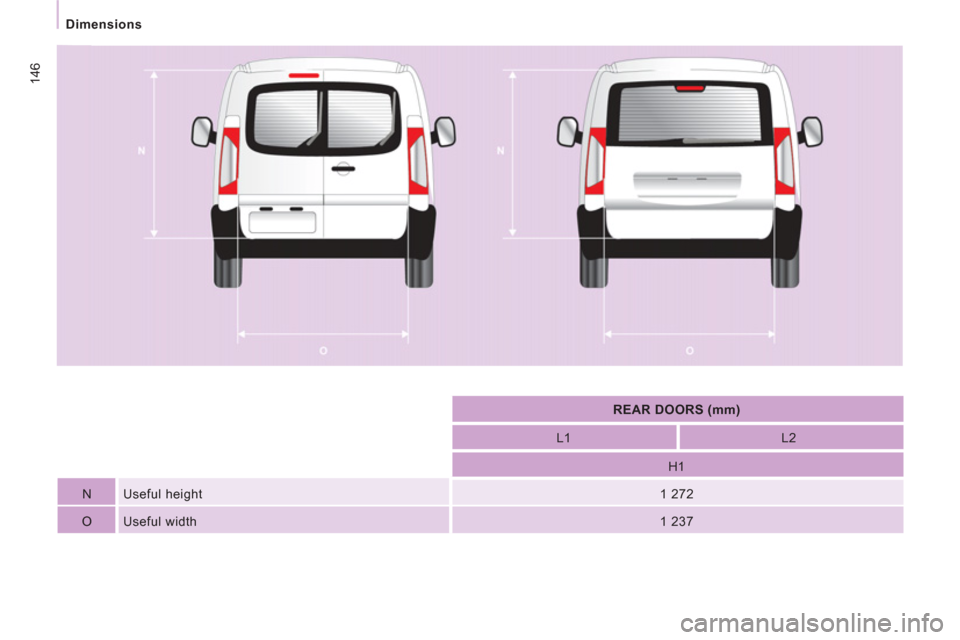

REAR DOORS (mm)


L1
L2

H1

N Useful height

1 272

O Useful width

1 237

147
Dimensions

TECHNICAL DAT
A
8



SLIDING SIDE DOOR (mm)


L1
L2

H1

P Height

1 203

Q Width

924

148

Weights

WEIGHTS AND TOWED LOADS (KG)

For further information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle's towing
capabilities and its gross train weight, contact a PEUGEOT dealer.

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Comply with the towing capacities of your vehicle.

The weight of a braked trailer with load transfer can be increased on condition that the equivalent weight is removed from the vehicle and
the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine. If the ambient temperature is
above 37 °C, limit the towed load to 700 kg, without any transfer of load.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
